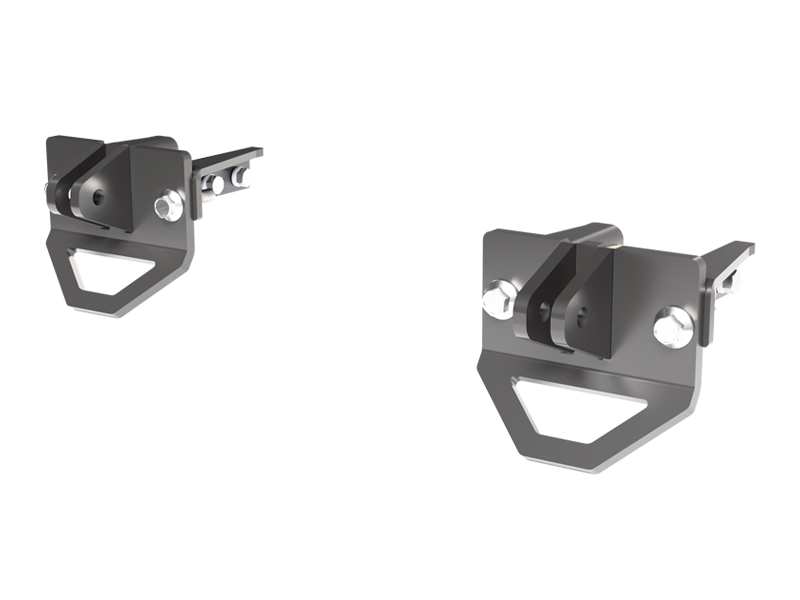

High-Quality Material: Made of durable steel, the Blue Ox BX4104 Tow Bar Bracket is designed to withstand intense towing conditions and ensure longevity.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Introducing the Blue Ox BX4104 Tow Bar Bracket, your ultimate solution for secure and efficient towing. Custom designed for each specific towed vehicle, our base plates ensure a perfect fit for your vehicle. The bracket is made from high-quality steel, ensuring robust durability and longevity. The black powder coat finish gives it an elegant appearance while providing additional protection against rust and corrosion. This bolt-on mounting type base plate is easy to install. The package includes all necessary hardware and comprehensive instructions for a hassle-free, do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2006 - 2010 | Hummer H3 | Works with Factory Brush Guard Option Comes with Standard Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Tow Hooks Must be Removed and Remain off the Vehicle After Installation Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight. |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HUMMER H3 (Part #FDRWBX4104) is designed to fit the 2006-2010 Hummer H3.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HUMMER H3 (Part #FDRWBX4104) fits 2006-2010 Hummer H3 models. The 2010 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HUMMER H3 (Part #FDRWBX4104) fits the following vehicles: 2006-2010 Hummer H3. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HUMMER H3 (Part #FDRWBX4104) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX4104 is designed for 2006-2010 HUMMER H3 vehicles. However, the manual notes that dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments may be necessary to compensate for manufacturing tolerances. These may include filing a hole slightly, bending electrical rods, or bending endplates. If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051.
The BX4104 is rated for Class III towing with a 5,000 lb weight limit. The manual states that the weight of the 2006-2010 HUMMER H3 is near this 5,000 lb rating limitation, and some models depending on options may exceed this rating. You must confirm the weight of your individual vehicle before towing. If your vehicle exceeds 5,000 lbs, you must use either the Aventa II or Aventa LX tow bar, which are rated for 10,000 lbs. Tow bar adapters cannot be used with vehicles weighing over 5,000 lbs.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Customer Care Department at (402) 385-3051. The manual notes that handling of cosmetic parts may require protective covers, rags, and specialty tools to prevent damage.
The front fascia, fascia brace, and metal bumper must be removed for baseplate installation. Specifically, you will remove: the tow hooks from the front fascia (using a 24MM socket or T-30 Torx socket depending on model), metric bolts from the upper and lower front fascias, the grill, push pins from the lower front fascia, metric bolts from the belly pan area, metric bolts from underneath the lower front fascia, and metric bolts from the tow hook bracket. All removed bolts and push pins must be set aside for reinstallation.
Yes, drilling is required. Using the baseplate as a template, you must drill holes with a 13/32" drill bit for the baseplate to mount to the frame rail. The manual also notes that some vehicle fascias may need trimming, and minor adjustments may include filing a hole slightly, bending electrical rods, or bending endplates to compensate for manufacturing tolerances. When using power drills, be aware of the dangers of torque and drill bit length.
Required tools are: 10MM socket, 12MM socket, 13MM socket, 18MM socket, 19MM socket, 24MM socket, 9/16" socket, 13/32" drill bit, Loctite RED, and a vise grip. Some models may also require a T-30 Torx socket to remove tow hooks. The manual recommends using protective covers, rags, and specialty tools to prevent damage to cosmetic parts during installation.
The kit includes: 2 baseplates (61-6163), 2 driver-side support braces (61-6168), 2 passenger-side support braces (61-6167), 8 nut plates with 14" wire (61-5208), 8 3/8-16 x 1.5" Grade 5 hex bolts (201-0440), 8 3/8" lock washers (203-0010), 4 12MM lock washers (203-0105), 4 12MM-1.75 hex nuts (202-0117), 1 electrical bracket 45 degree (101-6841), 2 #10-16 x 1 self-drilling screws (201-0654), 2 1/4-20 x 1 Grade 5 hex bolts (201-0071), 2 1/4" lock washers (203-0008), 2 1/4-20 hex flange locking nuts (202-0069), 2 #10-32 x 1/2 slot round head screws (201-0192), 2 #10 lock washers (203-0054), 2 #10-32 hex nuts (202-0047), 2 4-way connectors (101-5822), 2 36" Class IV baseplate safety cables (226-0049), and 4 1/2" quicklinks (229-0512). The kit also requires 4 existing 12MM-1.75 x 50MM Grade 8.8 hex bolts from the vehicle.
The BX8869 Bulb and Socket Taillight Wiring Kit is recommended for the HUMMER H3. The manual states this twice, indicating it is a strongly recommended accessory for proper electrical integration with the towed vehicle's lighting system.
All bolts must be tightened according to the torque chart on page 1 of the instructions. For Grade 5 bolts: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs, 5/8" = 154 ft-lbs. For Grade 8 bolts: 1/4" = 14 ft-lbs, 5/16" = 29 ft-lbs, 3/8" = 47 ft-lbs, 7/16" = 78 ft-lbs, 1/2" = 119 ft-lbs, 5/8" = 230 ft-lbs. For metric Grade 8.8 bolts: 6MM = 6 ft-lbs, 8MM = 16 ft-lbs, 10MM = 31 ft-lbs, 12MM = 54 ft-lbs, 14MM = 89 ft-lbs. For metric Grade 10.9 bolts: 6MM = 8 ft-lbs, 8MM = 22 ft-lbs, 10MM = 40 ft-lbs, 12MM = 70 ft-lbs, 14MM = 117 ft-lbs. Loctite RED must be used on all bolts before tightening.
The 3/8-16 x 1.5" Grade 5 hex bolts (part 201-0440) used with the 3/8" lock washers to attach the nut plates to the frame rail must be tightened to 33 foot-pounds according to the Grade 5 bolt torque chart. Loctite RED must be used on all bolts before tightening.
The 12MM-1.75 x 50MM Grade 8.8 hex bolts (existing vehicle bolts) must be tightened to 54 foot-pounds according to the Grade 8.8 metric bolt torque chart. Loctite RED must be used on all bolts before tightening.
The installation sequence is: (1) Remove tow hooks from front fascia using 24MM socket or T-30 Torx socket. (2) Remove metric bolts from upper front fascia using 10MM socket (both sides). (3) Remove metric bolts from front of upper fascia using 10MM socket (both sides). (4) Remove metric bolts from inside grill near headlight using 10MM socket (both sides). (5) Release grill clips and pull forward. (6) Remove push pins from lower front fascia (both sides). (7) Remove metric bolts from bottom of lower fascia where belly pan meets it using 13MM socket (both sides). (8) Pull back webbing and remove metric bolts using 13MM socket (both sides). (9) For 2009 models only: remove metric bolt from impact bar support using 10MM socket (both sides). (10) Remove metric bolts from tow hook bracket using 18MM socket and pull lower bumper fascia forward. (11) Insert existing bolts but do not fully tighten bracket next to frame rail. (12) Using baseplate as template, drill holes with 13/32" drill bit. (13) Insert nut plates and tighten 3/8-16 hex bolts with lock washers to 33 ft-lbs using Loctite RED. (14) Remove existing bolt and hex nuts, replace fascias. (15) Align baseplate with existing holes on metal bumper fascia and tighten. (16) Attach permanent baseplate safety cables. (17) Install tow bar and safety cables per tow bar instructions. (18) Do not substitute other devices if tow bar pins and clips are misplaced.
No. In step 11, you insert the existing bolts but do not fully tighten the bracket so that it sits up next to the frame rail. The bolts are fully tightened later after the nut plates are installed and aligned in step 13.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The recommended installation is to secure the cables to the frame of the vehicle. If additional options interfere with the suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Ensure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses, or brake lines.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Do not substitute other devices if the tow bar pins and clips are misplaced. Use only the original tow bar pins and clips provided with the towing system.
Be sure that all electrical connections are plugged in properly and functioning before installing the fascia. This ensures the lighting system is working correctly before the cosmetic parts are reinstalled.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite RED on all bolts and tighten to the recommended specifications. It is also the owner's responsibility to hook up all towing equipment per manufacturer's instructions and recommendations. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
The attachment tab height is 21" and the attachment tab width is 29.5". However, the manual states that the 2006-2010 HUMMER H3 is not equipped with removable tabs.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow and/or altering these installation instructions or required equipment will void the manufacturer's warranty. Towing behind a non-motorized vehicle will also void the warranty.
Failing to follow and/or altering these installation instructions or required equipment will void the manufacturer's warranty. Towing behind a non-motorized vehicle will void the warranty. If the baseplate is in an accident, it must be replaced and not reused. Do not use the baseplate if it is damaged or missing parts.
Yes, the BX4104 is designed for 2006-2010 HUMMER H3 models. However, your vehicle weight must not exceed 5,000 lbs; if it does, you must use the Aventa II or Aventa LX tow bar rated for 10,000 lbs. Confirm your vehicle's weight before towing.
The BX8869 Bulb and Socket Taillight Wiring Kit is recommended. All other hardware is included in the kit. You will reuse existing 12MM-1.75 x 50MM Grade 8.8 bolts from your vehicle.
Yes. You must drill holes with a 13/32" drill bit using the baseplate as a template. Some fascias may also need trimming, and minor adjustments such as filing holes, bending electrical rods, or bending endplates may be necessary.
You need: 10MM, 12MM, 13MM, 18MM, 19MM, 24MM, and 9/16" sockets, a 13/32" drill bit, Loctite RED, and a vise grip. Some models may also require a T-30 Torx socket.
Yes. The front fascia, fascia brace, and metal bumper must be removed. This includes removing tow hooks, multiple bolts, the grill, and push pins. All removed parts and fasteners must be set aside for reinstallation.
Tighten the 3/8-16 x 1.5" Grade 5 hex bolts to 33 foot-pounds using Loctite RED.
The baseplate must be replaced. Do not reuse it, as accidents can cause unseen damage that could result in more damage or serious injury.
Before each towing trip, inspect the baseplate for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to specification using Loctite RED. Register your product at www.blueox.com for safety bulletins and recalls.
