Expertly crafted from top-grade steel for ultimate durability and strength.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Designed for the perfect fit, the Blue Ox BX2908 Tow Bar Bracket is a must-have for your towing needs. Expertly engineered, it is made from high-quality steel to ensure maximum durability and strength. The bracket boasts a sleek black powder coat finish, providing both a stylish look and superior resistance to corrosion. With Bolt-On mounting type, the Blue Ox BX2908 makes the installation process a breeze. What's more, it comes with all the necessary hardware and easy-to-follow instructions, making it ideal for the DIY enthusiast.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2007 | Lexus GX470 | Comes with Removable Attachment Tabs Install Rating 4 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Headlights Must be Removed and Replaced During Installation Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight. |

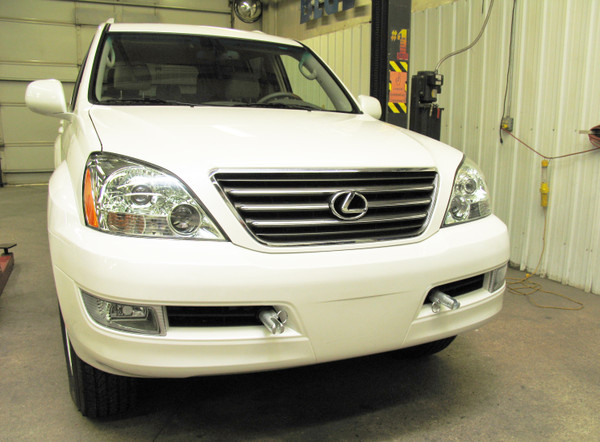

The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, LEXUS GX470 (Part #FDRWBX2908) fits 2004-2007 Lexus GX470 models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, LEXUS GX470 (Part #FDRWBX2908) fits the following vehicles: 2004-2007 Lexus GX470. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, LEXUS GX470 (Part #FDRWBX2908) is designed to fit the 2004-2007 Lexus GX470.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, LEXUS GX470 (Part #FDRWBX2908) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

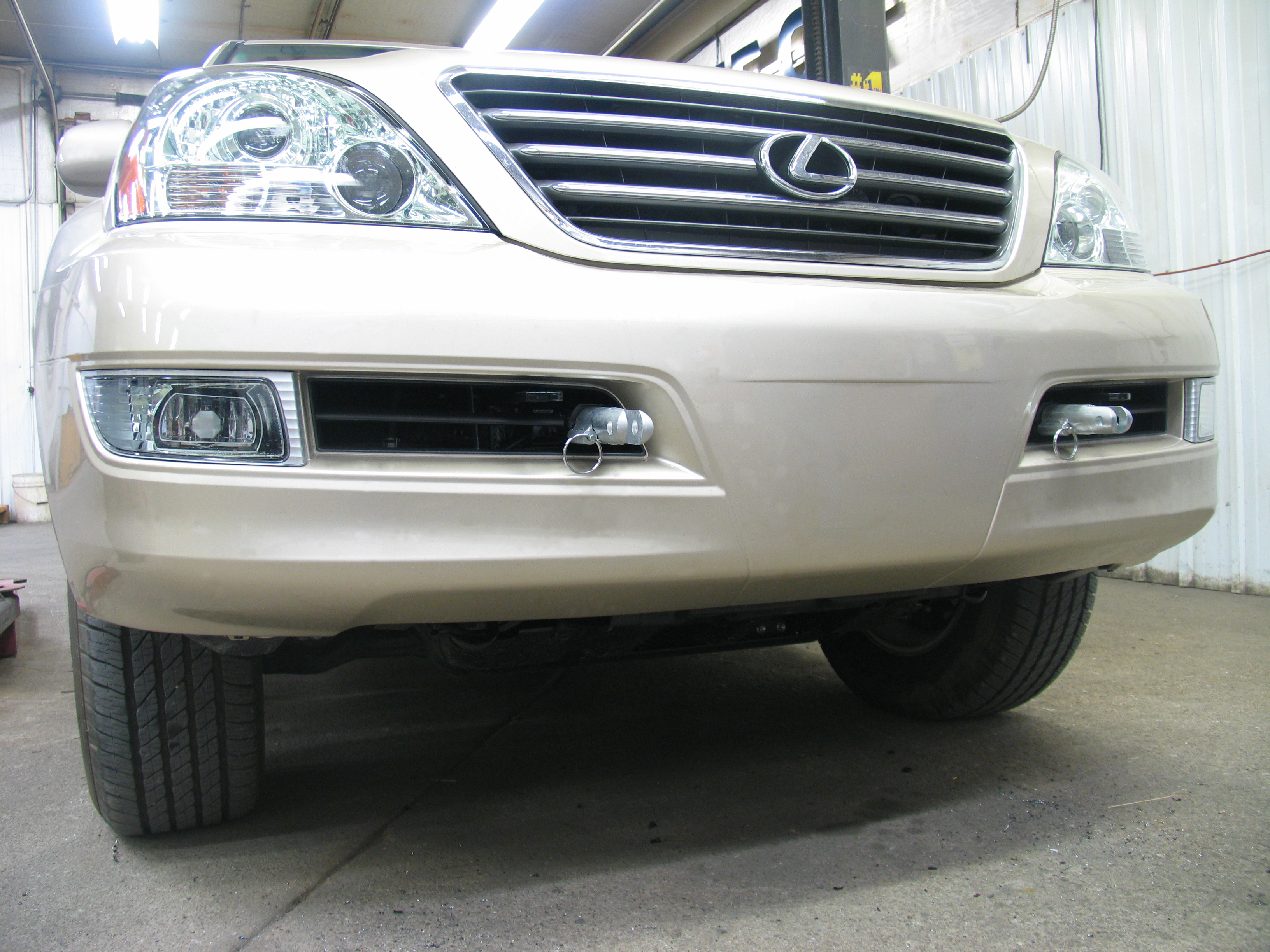

Yes, the BX2908 is designed for 2004-07 Lexus GX470 models. The attachment tabs are 25 1/2 inches center to center with a height of 24 inches. Note that 2007 models have 12 push pins on the radiator cover instead of 9 on earlier years, so the removal procedure varies slightly.
Yes, the BX8869 is available for the Lexus GX470. According to the manual, it mounts on the driver's side tail light assembly.
The following must be removed: black plastic front fascia, headlight brackets, headlight assembly, metal bumper, coolant line brackets and clamp, radiator cover, and various braces. The styrofoam from the front of the metal bumper must also be removed. These components are reinstalled after baseplate installation.
Yes, drilling is required. A 1 1/4" hole saw is used to cut holes on the end of the frame rail on both sides. A 13/32" drill bit is used to drill two holes in the side of the frame on each side. Additionally, a #10 x 1" self-drill screw is used to secure the coolant line clamp to the cross member.
Yes, trimming of the grill is required. The manual also specifies that the coolant line webbing must be cut from the bottom edge up about 1/2" on both sides of the coolant line, and the webbing must be bent back toward the radiator using a chisel and hammer.
Required tools are: 8MM, 10MM, 13MM, 14MM, and 19MM sockets; 9/16" socket; 1 1/4" hole saw; 13/32" drill bit; flat screwdriver; vise grips; utility knife; chisel; hammer; and Loctite Red. A drill is also needed for the hole saw and drill bit.

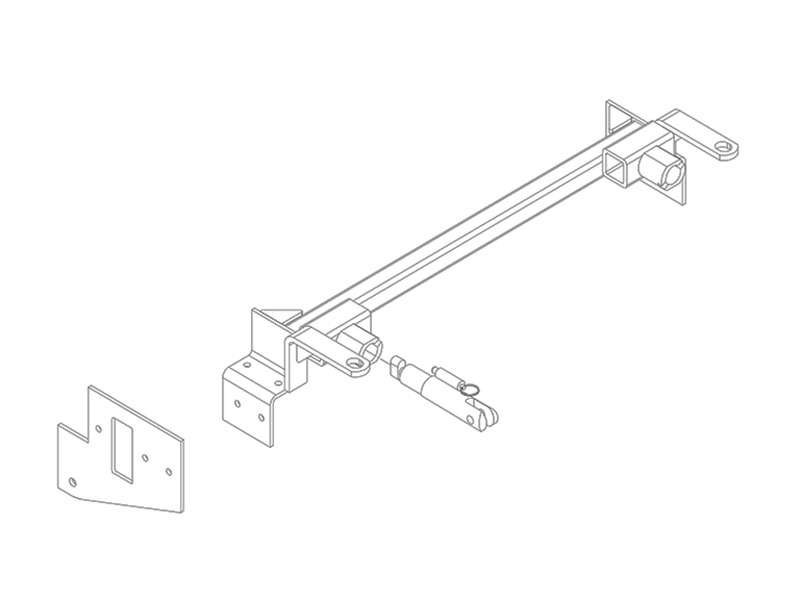

The kit includes: 8 nut plates with 14" wire (61-5208), 2 support plates (101-6721), 4 3/8-16 x 1 1/4" bolts Grade 5, 4 3/8-16 x 1 1/2" bolts Grade 5, 8 3/8" lock washers, 2 8MM-1.25 x 30MM hex bolts Grade 8, 2 12MM-1.25 x 45MM hex bolts Grade 8, 6 3/8" flat washers, 6 1/2" lock washers, 4 1/4-20 x 3/4" slot truss head screws, 4 1/4-20 whiz nuts, 2 #10-32 x 1/2" slot round head screws, 2 #10 lock washers, 2 #10-32 hex nuts, 2 4-way connectors, 1 electrical bracket, 2 attachment assemblies, 2 #10-16 x 1" self-drilling screws, 2 1/4" flat washers, 2 loop clamps, 2 36" safety cables, 2 3/8" quicklinks, and 2 receiver cap plugs.
Remove in this order: (1) nine push pins from radiator cover (12 on 2007 models); (2) three push pins from top edge of fascia between headlight assemblies; (3) two push pins from power steering cover on passenger's side; (4) three push pins from top edge of fascia between headlights; (5) metric bolts from edge of fascia forward of front tire with 10MM socket (both sides); (6) metric bolt from corner of fascia forward of front tire with 10MM socket (both sides); (7) three metric bolts from lower edge of fascia forward of front tire with 10MM socket (both sides); (8) two metric bolts from lower edge of fascia below license plate bracket, then pull fascia corner out and forward.
Remove the coolant line clamp and bracket using a 10MM socket (clamp bolt) and 12MM socket (bracket bolt). Mark the ribbing above and on each side of the coolant line. Pull the coolant line down to the frame and cut the webbing from the bottom edge up about 1/2" on both sides. Using a chisel and hammer, bend the webbing back toward the radiator as far as possible. Snap a loop clamp onto the coolant line, lift it to the front side of the cross member, and secure with a #10 x 1" self-drill screw and 1/4" lock washer through the clamp into the cross member on both sides. Ensure the coolant line does not touch the bent webbing.
Place the support plate onto the side of the frame rail to align with the lower threaded hole on the tie-down support just below the frame rail. Install two 1/2" flat washers between the tie-down support and support plate, then partially tighten a 12MM hex bolt, 12MM lock washer, and 1/2" flat washer into the existing threaded hole on both sides (do not tighten completely). Align the hole of the support plate with the existing threaded hole for the coolant line bracket. Partially tighten an 8MM hex bolt and lock washer into the support plate hole while placing three 3/8" flat washers between the support plate and frame on both sides (do not tighten completely).
Place the baseplate on top of the frame rail between the side of the frame and the support plate. Align the holes of the baseplate and support plate, then clamp to the frame with vise grips on both sides. Tighten the 12MM hex bolt with a 19MM socket and the 8MM hex bolt with a 13MM socket on both sides. Using the support plate and baseplate as a template, drill two holes in the side of the frame with a 13/32" drill bit on both sides. Apply Loctite Red to all bolts before tightening. Tighten all bolts according to the torque chart in the General Instruction sheet.
After drilling holes in the end of the frame with a 1 1/4" hole saw (Step 10), insert the nut plates with wire into the drilled holes to align with the drilled holes from the side of the frame. Tighten 3/8-16 x 1 1/2" hex bolts and lock washers into the drilled holes on both sides. Apply Loctite Red to all bolts before tightening. Tighten according to the torque chart in the General Instruction sheet. This procedure is repeated in Step 22 with 3/8-16 x 1 1/4" hex bolts for the remaining holes.
The headlight assemblies and associated brackets must be removed. Pry up the small cover just behind the headlight assembly and remove one metric bolt from under the cover and one on top of the radiator support with a 10MM socket on both sides. Remove three metric bolts from the bracket on the side of the headlight assembly with a 10MM socket on both sides. Remove two metric bolts from the bracket just below the headlight assembly with a 10MM socket on both sides and pull the brace forward. Release the clip just behind the headlight assembly, unplug electrical connections, and pull the headlight assembly forward on both sides. Remove two metric bolts from the bracket just behind the headlight assembly with a 10MM socket on both sides.
The manual states that all bolts must be tightened according to the torque chart in the General Instruction sheet, which is not included in this installation manual. Consult the separate General Instruction sheet provided by Blue Ox for specific torque values. Loctite Red must be applied to all bolts before tightening.
The kit includes 2 four-way connectors (101-6721), 1 electrical bracket (101-6739), and 2 receiver cap plugs (290-0437). The manual shows a location for the electrical bracket but does not provide detailed wiring instructions. Refer to the separate electrical instructions or contact Blue Ox for complete wiring details.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX2908 kit includes 2 safety cables (36" CL III) and 2 quicklinks. The cables must be connected from the baseplate to the frame rail or cross member. They must not be mounted against wires, hoses, or brake lines. Permanent baseplate safety cables must be used in conjunction with, and are NOT a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
It is the installer's responsibility to watch for oil cooler and air conditioner lines, electrical wires, and hoses during installation. Do not mount the baseplate or safety cables against wires, hoses, or brake lines. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts some time after installation. Ensure there are no missing parts or attaching points on the frame before installation.
After installation, reinstall all removed components including headlight brackets, headlight assemblies, metal bumper, belly pan, styrofoam, and fascia. Ensure all electrical components are plugged in properly. Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Verify that all bolts are tightened to the recommended specifications using Loctite Red. Install the tow bar and safety cables according to their included instructions.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Ensure all bolts are tightened to the recommended specifications using Loctite Red. Register your product online at www.blueox.com to receive alerts about product offerings, updates, upgrades, maintenance and safety bulletins, and recalls. Remove the attachment tabs when not in use.
No. Use only genuine factory replacement parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (usually Grade 5). Do not use homemade or nontypical parts. Repair parts may be ordered through your nearest Blue Ox dealer or distributor.
Do not substitute other devices if the tow bar pin and clip are lost. Obtain replacement parts from your Blue Ox dealer or distributor.
Yes. The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for auto manufacturers' tolerances. These minor adjustments may include filing a hole slightly, bending electrical rods, adding shims, and/or bending endplates.
Yes, the BX2908 is designed for 2004-07 Lexus GX470 models with 25 1/2" center-to-center attachment tabs and 24" height.
Yes. A 1 1/4" hole saw is used on the frame rail ends, and a 13/32" drill bit is used on the frame sides. Trimming of the grill is also required.
Required tools: 8MM, 10MM, 13MM, 14MM, 19MM, and 9/16" sockets; 1 1/4" hole saw; 13/32" drill bit; flat screwdriver; vise grips; utility knife; chisel; hammer; and Loctite Red.
Remove: black plastic fascia, headlight brackets and assemblies, metal bumper, coolant line brackets and clamp, radiator cover, and various braces. These are reinstalled after baseplate installation.
Yes, 2 permanent baseplate safety cables (36" CL III) and 2 quicklinks are included. They must be connected from baseplate to frame and are recommended but not a replacement for legally required tow vehicle safety cables.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to specification using Loctite Red. Register online at www.blueox.com for safety bulletins and recalls.
The coolant line must be repositioned. Remove the coolant line clamp and bracket. Mark the ribbing above and on each side of the coolant line. Pull the coolant line down to the frame and cut the webbing from the bottom edge up about 1/2" on both sides. Using a chisel and hammer, bend the webbing back toward the radiator as far as possible. Snap a loop clamp onto the coolant line and lift it to the front side of the cross member. Secure with a #10 x 1" self-drill screw and 1/4" lock washer through the clamp into the cross member on both sides. Ensure the coolant line does not touch the bent webbing.
The dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may be necessary to compensate for auto manufacturers' tolerances. These adjustments may include filing a hole slightly, bending electrical rods, adding shims, and/or bending endplates. Use the baseplate and support plate as templates and verify alignment before final tightening.
If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. Before installation, watch for oil cooler and air conditioner lines, electrical wires, and hoses. Do not mount the baseplate or safety cables against wires, hoses, or brake lines.
