Custom-designed for each specific towed vehicle, ensuring a perfect fit and optimized performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

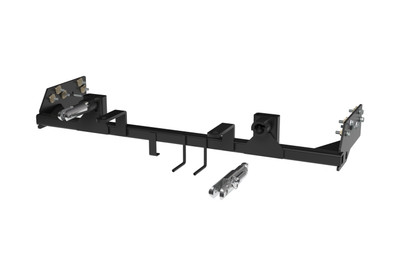

The Blue Ox BX2006 Tow Bar Bracket is a robust and reliable solution for your towing needs. Custom-designed for each specific towed vehicle, this piece of equipment guarantees a perfect fit and maximum performance. It's durably built from high-quality steel and finished with a black powder coat for added protection against wear and tear. Whether you're planning a cross-country adventure or need a reliable set-up for your everyday towing needs, this Blue Ox tow bar bracket is your go-to choice. The bracket is easy to install with its bolt-on mounting type, and all necessary hardware is included in the package. You'll also receive comprehensive instructions for a hassle-free, do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 | Mitsubishi Outlander Sport | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, MITSUBISHI OUTLANDER SPORT (Part #FDRWBX2006) fits the following vehicles: 2015 Mitsubishi Outlander Sport. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, MITSUBISHI OUTLANDER SPORT (Part #FDRWBX2006) fits 2015 Mitsubishi Outlander Sport models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, MITSUBISHI OUTLANDER SPORT (Part #FDRWBX2006) is designed to fit the 2015 Mitsubishi Outlander Sport.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, MITSUBISHI OUTLANDER SPORT (Part #FDRWBX2006) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX2006 baseplate is designed specifically for the 2015 Mitsubishi Outlander Sport. Before installation, verify that the front of your vehicle matches the reference image in the manual. If it does not, contact Blue Ox Technical Service at (402) 385-3051.
The BX2006 attachment tab height is 21 inches and the width is 24 inches.
Required tools include: 8MM socket, 10MM socket, 12MM socket, 7/16" socket, 7/16" wrench, 9/16" socket, drill with 3/8" drill bit, torque wrench, large vise grips, tape measure, utility knife, reciprocating saw, flat screwdriver, Phillips screwdriver, and Loctite Red.
The kit includes: 11 pieces of 3/8" nut plate with 14" wire (61-5208), 1 BX2006 baseplate (62-3468), 2 attachment tab assemblies with hole (62-3468), 1 piece of 1/4"-20 x 3/4" hex head bolt Grade 5 (201-0050), 2 pieces of #10-32 1/2" round slotted head screw (201-0192), 1 piece of 8MM-1.25 x 35MM hex bolt Grade 8.8 (201-0418), 11 pieces of 3/8-16 x 1.5" hex bolt Grade 5 (201-0440), 2 pieces of #12-14 x 1" self-drilling screw (201-0979), 2 pieces of #10-32 hex nut (202-0047), 1 piece of 1/4"-20 hex nylon nut (202-0102), 1 piece of 5/16" flat washer (203-0002), 11 pieces of 3/8" lock washer (203-0010), 2 pieces of #10 lock washer (203-0054), 1 piece of 4-way bracket (299-0685), 2 class III safety cables (226-0046), 2 pieces of 3/8" quicklink (229-0359), and 2 black cap plug receivers (290-0437).
Blue Ox recommends that baseplates be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Technical Service at (402) 385-3051.
The fascia cover, fascia, and windshield washer fluid reservoir must be removed during installation and reinstalled after the baseplate is installed. All removed components should be placed on a flat, sturdy surface. Some drilling and trimming is required.
Yes, drilling is required. You must drill five 3/8" diameter holes on each side of the vehicle (driver's side and passenger side) into the frame rail. Use a 3/8" drill bit and be aware of the dangers of torque and drill bit length when using a power drill.
Yes, trimming is required. Using a reciprocating saw, trim the bumper horn five inches up from the bottom, flush with the face of the frame, on both sides of the vehicle. Additionally, make two horizontal cuts (between 1" and 1.5" long) on the side of the frame rail on both sides, aligned with existing holes, and trim additional metal from the area. Be aware of objects behind the cutting surface when using a reciprocating saw. Use a good quality paint to spray cut edges of frame to prevent rusting.
According to the bolt torque specifications chart, 3/8" Grade 5 bolts should be torqued to 33 foot-pounds. Use Loctite Red on all bolt threads before tightening.
According to the bolt torque specifications chart, 8MM Grade 8.8 bolts should be torqued to 16 foot-pounds. However, the 8MM-1.25 x 35MM bolt used on the passenger side should not be tightened during initial baseplate installation; it is removed and reused when reinstalling the windshield washer fluid reservoir.
1. Remove fascia cover (4 push pins from top, 2 from inside near headlights). 2. Remove three screws from top of fascia and center push pin. 3. Remove three push pins in front of tire and one bolt from upper wheel well on both sides. 4. Remove two bolts from front of fascia. 5. Remove eleven push pins underneath fascia. 6. Disconnect electrical connections and remove fascia. 7. Remove windshield washer fluid reservoir (2 push pins, electrical connections, fluid lines, 3 bolts). 8. Trim bumper horn 5" from bottom on both sides. 9. Make two horizontal cuts on frame rail on both sides. 10. Slide baseplate into position, clamp with vise grips, and install bolts on existing holes. 11. Drill five 3/8" holes on each side and install bolts. 12. Reinstall windshield washer fluid reservoir. 13. Attach safety cables. 14. Trim fascia around convenience links and attachment tabs, then reinstall fascia and fascia cover.
Slide the baseplate into position and ensure it is level and aligned with existing holes before clamping to the frame rail on both sides with large vise grips. Only after confirming proper position and alignment should you insert and tighten the bolts.
The BX8848 4-Diode Wiring Kit is recommended for this vehicle, but the manual does not specify whether it is included in the baseplate kit or must be purchased separately. Contact your Blue Ox Dealer or Blue Ox Technical Service at (402) 385-3051 for clarification.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. Reference your vehicle owner's manual for manufacturer's towing specifications.
Yes. Two permanent baseplate safety cables (Class III, part 226-0046) are included with the baseplate kit and must be attached to the baseplate and secured to a solid piece of the vehicle's frame. The cables must be connected from the baseplate to the frame rail or cross member. Ensure the safety cables do not rub against any hoses or moving parts. These permanent baseplate safety cables are to be used in conjunction with, and NOT a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The permanent baseplate safety cables should be attached to the provided convenience link on the baseplate and secured to a solid piece of the vehicle's frame, such as the frame rail or cross member. The manual shows two recommended options for cable routing. Do not mount the cables against wires, hoses, or brake lines, as improper installation could cause fluid leaks or electrical shorts. Ensure the cables do not rub against any hoses or moving parts.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. After installation, it is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. Remove the attachment tabs when not in use (if applicable).
If the baseplate is in an accident, it must be replaced. Do NOT use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Yes, the BX2006 is designed specifically for the 2015 Mitsubishi Outlander Sport. Verify the front of your vehicle matches the reference image in the manual.
Yes. You must drill five 3/8" diameter holes on each side of the frame rail using a 3/8" drill bit.
Yes. Trim the bumper horn 5" from the bottom on both sides and make two horizontal cuts (1"-1.5" long) on the frame rail on both sides using a reciprocating saw.
Required tools include sockets (8MM, 10MM, 12MM, 7/16", 9/16"), wrenches, drill with 3/8" bit, torque wrench, large vise grips, tape measure, utility knife, reciprocating saw, screwdrivers, and Loctite Red.
The fascia cover, fascia, and windshield washer fluid reservoir must be removed and later reinstalled.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Reference your vehicle owner's manual for towing specifications.
3/8" Grade 5 bolts should be torqued to 33 foot-pounds. Use Loctite Red on all bolt threads.
Yes, two Class III permanent baseplate safety cables are included and must be attached to the baseplate and secured to the vehicle's frame. They supplement, not replace, legally required safety cables.
The manual states that dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. If alignment issues occur, contact Blue Ox Technical Service at (402) 385-3051 for guidance.
Reposition the safety cables so they do not rub against any hoses or moving parts. The manual provides two recommended installation options for cable routing. If the recommended options interfere with other vehicle components, secure the cables to a solid piece of the frame as described in the General Information sheet, ensuring they remain clear of all hoses and moving parts.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. If accessories are not functioning after reinstallation, disconnect the fascia and verify that all electrical connections are fully seated and properly connected.
