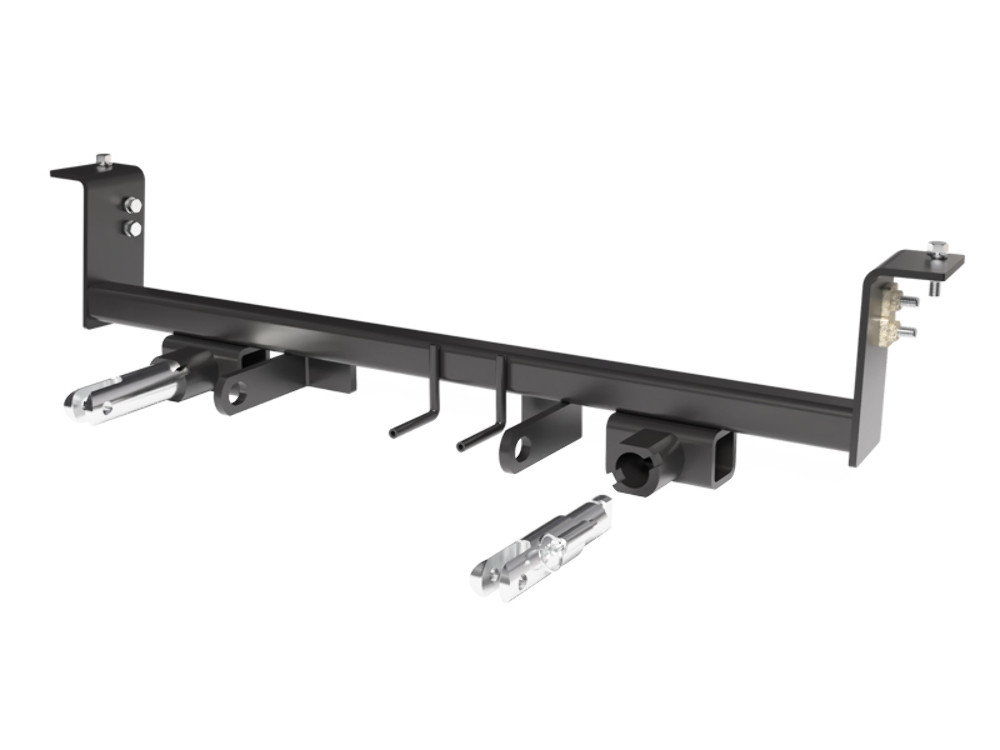

1. Custom-Designed Fit: Each Blue Ox BX3753 Tow Bar Bracket is specifically designed to fit your towed vehicle perfectly, ensuring optimal performance and safety.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX3753 Tow Bar Bracket is a custom-designed, high-quality and durable automotive part, ensuring a perfect fit for your specific towed vehicle. Crafted from robust steel with a sleek black powder coat finish, this bracket offers resilience against the elements and a stylish appearance. The base plate comes complete with all the necessary hardware and comprehensive instructions for a hassle-free, do-it-yourself installation. The bolt-on mounting type ensures a secure and firm attachment to your vehicle, providing you with peace of mind on all your towing adventures.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004, 2006 | Scion xB | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2005 | Scion xB | Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Requires Some Trimming of the Air Dam Minor Drilling Required Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Bumper Fascia Must Be Removed/Replaced During Install Install Rating 3 Comes with Removable Attachment Tabs |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select,TOYOTA SCION XB (Part #FDRWBX3753) is designed to fit the 2004-2006 Scion xB.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select,TOYOTA SCION XB (Part #FDRWBX3753) fits 2004-2006 Scion xB models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select,TOYOTA SCION XB (Part #FDRWBX3753) fits the following vehicles: 2004-2006 Scion xB. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select,TOYOTA SCION XB (Part #FDRWBX3753) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX3753 is designed specifically for the 2004 Toyota Scion XB. However, if the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before proceeding with installation.
No. Due to the design of the removable tabs, the RangeFinderII tow bar cannot be used with this baseplate.
Most adapters cannot be used with this baseplate. Only the BX8833 and BX8851 adapters are compatible. All other adapters are not supported.
The attachment tab height is 13 3/4" and the attachment tab width is 24".
Required tools are: 10MM socket, 12MM socket, 9/16" socket, 13/32" drill bit, 1 1/4" hole saw, vise grips, hack saw, Phillips screwdriver, and Loctite Red. A power drill is recommended for drilling.
The kit includes: 1 base plate weldment (61-5947), 6 nut plates (61-5208), 6 hex bolts 3/8-16 x 1 1/2" Grade 5 (201-0440), 6 lock washers (203-0010), 2 self-drilling screws #12-14 x 1" (201-0979), 2 round head screws 10-32 x 1/2" (201-0192), 2 lock washers #10 (203-0054), 2 hex nuts 10-32 (202-0047), 2 four-way connectors (101-5822), 2 removable tab assemblies (62-3468), tubing 3/8" ID x 5/8" OD (153-0110), 2 safety cables 36" (226-0046), 4 quicklinks 3/8" (229-0359), and 2 nylon cable ties 8" (290-0275).
Yes. The front fascia, metal bumper and bumper brackets must be removed during installation and then reinstalled after the baseplate is mounted. This is a required part of the installation process.
Yes. Drilling is required. You will drill three holes on each side of the frame using a 13/32" drill bit, and cut two holes in the frame ends using a 1 1/4" hole saw. After drilling, spray cut edges of the frame with good quality paint to prevent rusting.
Yes. Trimming of the air dam is required. The manual states to trim the air dam as needed during reinstallation (step 12). The exact trimming dimensions are not specified; minor adjustments may be necessary to compensate for manufacturer tolerances.
Yes. You must make two short cuts in the webbing on the radiator support using a hack saw and bend it out of the way on both sides. Some models may have a sensor on the driver's side webbing that will need to be relocated.
According to the torque chart for Grade 5 bolts, a 3/8" bolt should be torqued to 33 foot-pounds. However, the manual instructs to tighten all bolts according to the torque chart in the General Instruction Sheet. Confirm the exact specification with the General Towing Instructions or contact Blue Ox at (402) 385-3051.
Yes. Loctite Red must be used on all bolts before tightening. This is a critical requirement stated multiple times in the manual.
The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle.
Be sure that all electrical connections are plugged in properly and functioning before installing the fascia.
If the baseplate is in an accident, it must be replaced and not reused. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The cables must have adequate weight rating for the towing system. Permanent safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Mount the permanent baseplate safety cables from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount them against wires, hoses or brake lines, as this could cause fluid leaks or electrical shorts.
Inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Ensure all electrical connections are plugged in properly and functioning. Verify that the baseplate is firm against the front of the radiator support. Check that all bolts are tightened to the recommended torque specifications using Loctite Red.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts and loose bolts. Use Loctite Red on all bolts and tighten to the recommended specifications. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Remove the attachment tabs when not in use.
No. Even though bolts may exist on the vehicle, do not assume they are adequate for baseplate mounting. Always use hardware supplied in the hardware kit or existing hardware specified in the Baseplate Towing Installation Instructions. Use only genuine factory replacement parts, and if a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5).
Do not substitute other devices if the tow bar pin and clip are lost. Contact Blue Ox or your dealer for replacement parts.
Yes. Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Customer Care Department at (402) 385-3051.
Yes, the BX3753 is designed for the 2004 Toyota Scion XB. If your vehicle's front looks different, call (402) 385-3051.
No, the RangeFinderII cannot be used with this baseplate due to the removable tab design. Only BX8833 and BX8851 adapters are compatible.
Yes. Drilling with a 13/32" bit and 1 1/4" hole saw is required. Air dam trimming is also required. Paint cut frame edges to prevent rust.
10MM and 12MM sockets, 9/16" socket, 13/32" drill bit, 1 1/4" hole saw, vise grips, hack saw, Phillips screwdriver, and Loctite Red.
Yes. The front fascia, metal bumper and bumper brackets must be removed and then reinstalled during installation.
Yes. Loctite Red must be used on all bolts before tightening. This is required for all installations.
Permanent baseplate safety cables are strongly recommended. They must connect from the baseplate to the frame rail and not touch wires, hoses or brake lines.
The BX8869 Bulb and Socket Wiring Kit is recommended. Ensure all electrical connections are plugged in and functioning before installing the fascia.
