Constructed from durable steel material, ensuring long-lasting performance and resistance to wear and tear.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX3754 Tow Bar Bracket is the perfect solution for those who need a sturdy and reliable base plate for their towed vehicle. This bracket is expertly crafted from high-quality steel, ensuring its durability and long-lasting performance. It's finished with a black powder coat which not only gives it a sleek look, but also offers superior resistance to rust and corrosion. The bracket is designed with a bolt-on mounting type, making it easy to install without the need for professional help. Each purchase of the Blue Ox BX3754 Tow Bar Bracket includes all the necessary mounting hardware, along with detailed instructions for a hassle-free, do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2006 | Scion xA | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BX3754 is designed for the 2004 Toyota Scion XA. The attachment tabs are 20 1/2 inches center to center with a height of 13 3/4 inches. Note that dimensional variations between otherwise identical cars can be considerable, and it may be necessary to file a hole slightly to allow a bolt to clear.
Yes, the BX8869 is available for the 2004 Toyota Scion XA and is compatible with the BX3754 baseplate.
The headlight assembly, front fascia, horn bracket and windshield washer reservoir must be removed for baseplate installation. The metal bumper and bumper bracket must also be removed during installation and then reinstalled afterward.
Yes, drilling is required. Using the baseplate as a template, you must drill three holes with a 13/32" drill bit on both sides of the frame ends. Additionally, a 1 1/4" hole saw is used to cut holes in the frame ends, both sides.
Yes, trimming of the air dam on the metal bumper is required. The manual specifies making two short cuts in webbing using a hack saw on the radiator support and bending it out of the way on both sides. The air dam must be trimmed as needed during reinstallation.
Some models may have a sensor on the driver's side webbing that needs to be relocated. The manual does not provide specific details on how to relocate this sensor; consult with your installer or Blue Ox dealer if your vehicle has this sensor.
Required tools are: 10MM socket, 12MM socket, 9/16" socket, vise grips, Loctite Red, 13/32" drill bit, Phillips screwdriver, 1 1/4" hole saw, and hack saw.

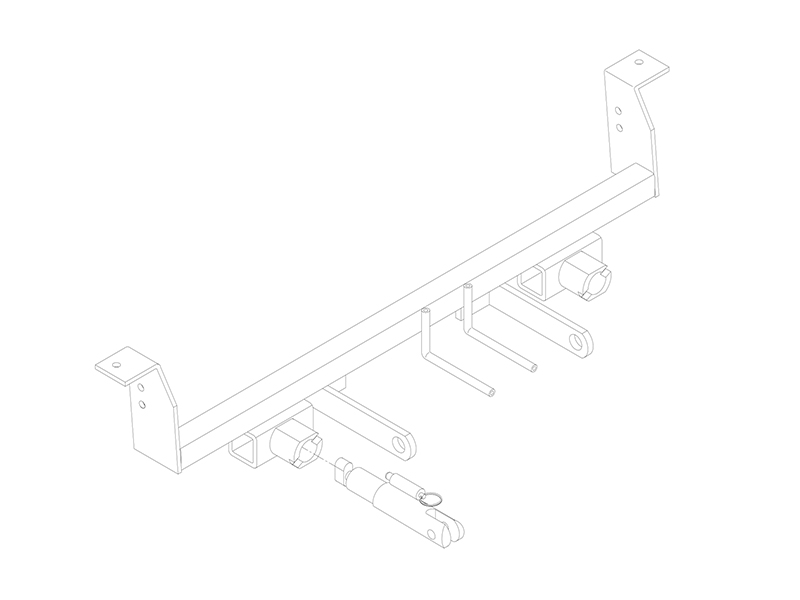

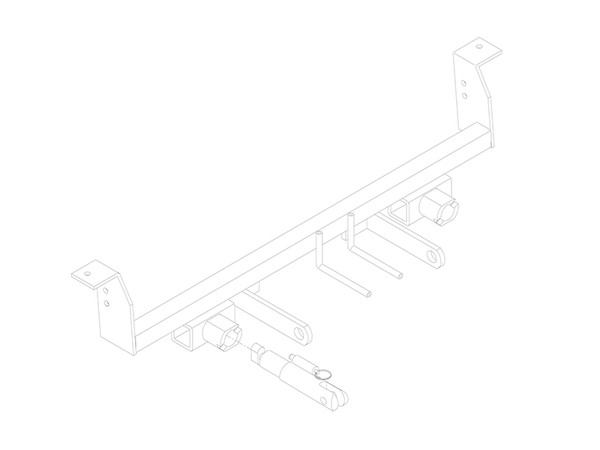

The BX3754 includes: one weldment base plate (61-5954), six 3/8" nut plates with wire (61-5208), six 3/8-16 x 1 1/2" Grade 5 bolts (201-0440), six 3/8 lock washers (203-0010), two #12-14 x 1" self-drilling screws (201-0979), two #10-32 x 1/2" slot round head screws (201-0192), two #10 lock washers (203-0054), two #10-32 hex nuts (202-0047), two 4-way connector adapters (101-5822), two attachment assemblies (62-3468), three 1/4" flat washers (203-0001), two 36" Class III baseplate safety cables (226-0046), two 3/8" quicklinks (229-0359), and two receiver cap plugs (290-0437).
The removal sequence is: (1) Remove four push pins from top edge of front grill; (2) Remove two metric bolts from top edge of fascia's tabs with 10MM socket and one push pin; (3) Remove lower bolt just forward of front tire on both sides with 10MM socket; (4) Remove eight metric bolts from lower fascia's tabs with 10MM socket; (5) Remove four metric nuts from metal bumper with 12MM socket, pull bumper forward and set aside; (6) Remove two metric bolts from bumper bracket on both sides; (7) Remove four metric bolts from headlight assemblies, pull assembly forward, unplug electrical connection on both sides; (8) Pinch clips together on back of radiator support and pull air dam forward on both sides.
The top metric bolt from the harmonic balancer on the passenger's side is removed and reinserted through three 1/4" flat washers, then reinstalled to its original position. This appears to be part of the frame preparation for baseplate mounting.
Set the baseplate on top of the frame ends and clamp it in place. The baseplate should be flat against the front of the radiator support. Use the baseplate as a template to drill the three holes with a 13/32" drill bit on both sides.
The baseplate is attached using 3/8-16 x 1 1/2" Grade 5 bolts with 3/8 lock washers. These bolts are inserted through 3/8" nut plates in the frame ends and tightened with a 9/16" socket. Loctite Red must be applied to all bolts before tightening.
Yes, Loctite Red must be used on all bolts before tightening. This is required for proper installation and is listed in the Tools Required section.
Dimensional variations between otherwise identical cars can be considerable. If a bolt does not clear, it may be necessary to file a hole slightly to allow the bolt to fit. This is a normal part of the installation process.
After baseplate installation, reinstall the air dam (trim as needed), bumper bracket, metal bumper, headlight assemblies and fascia. Ensure all electrical components are plugged in properly.

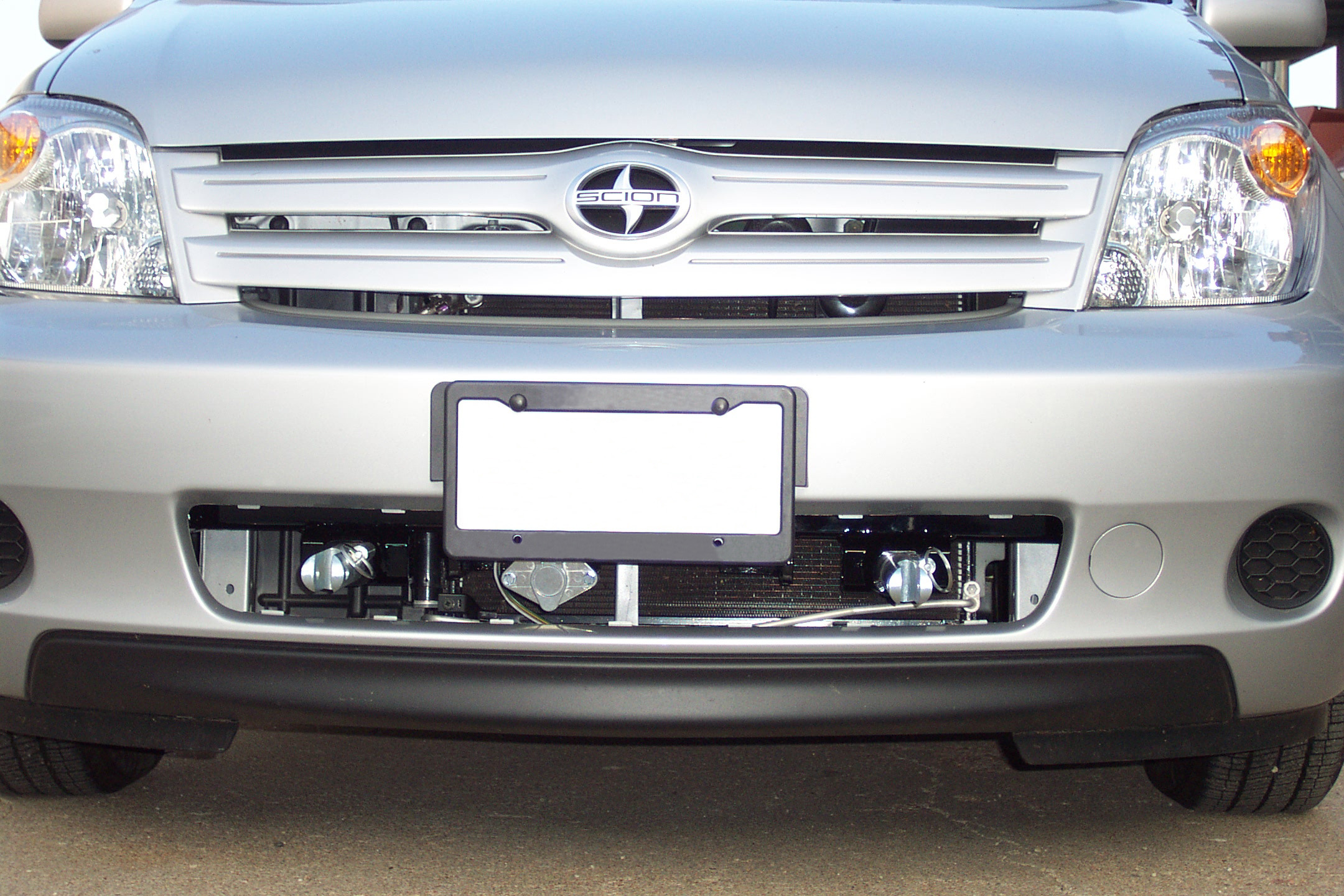

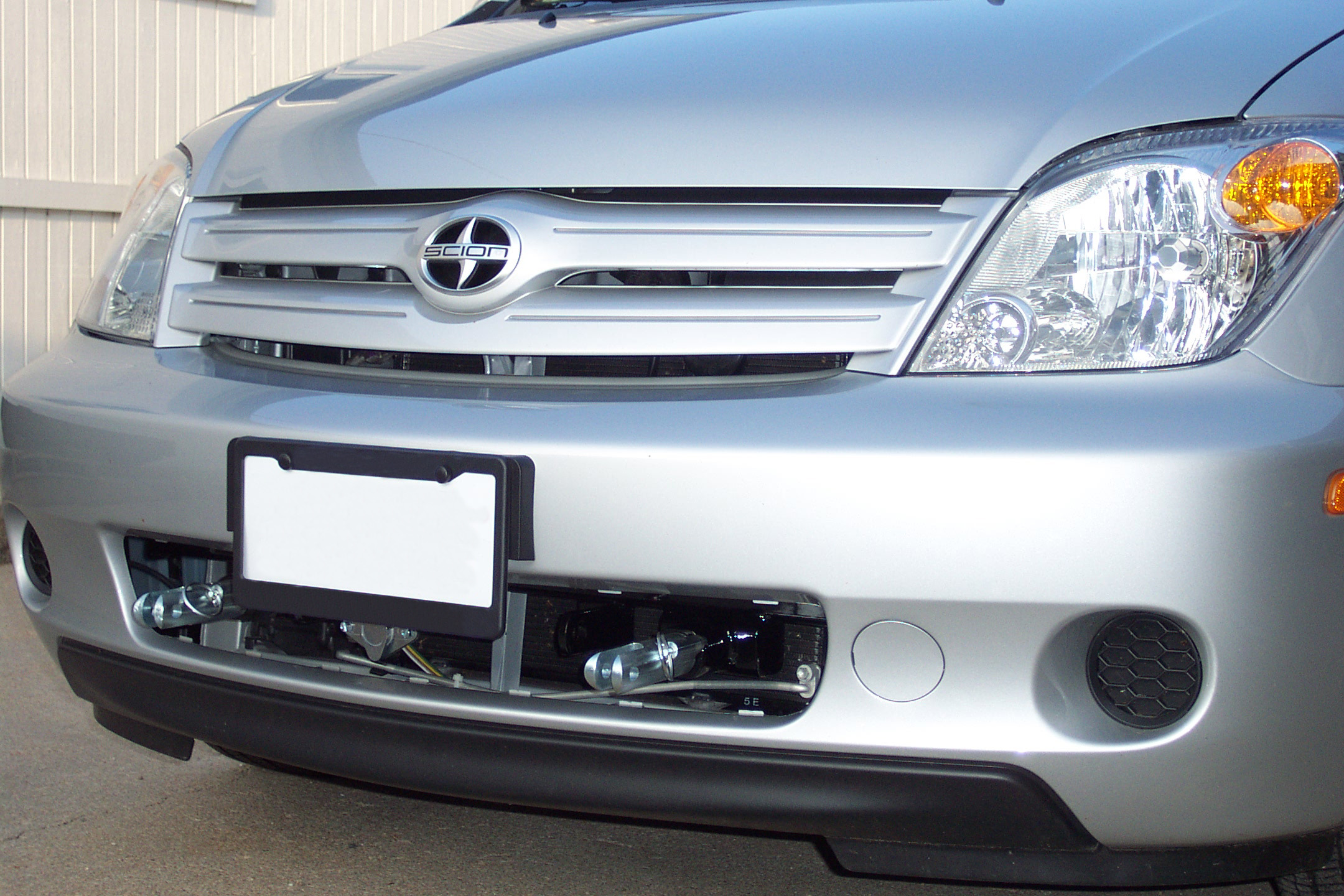

The BX3754 is a baseplate manufactured by Blue Ox for the 2004 Toyota Scion XA. It is designed to provide a mounting point for a tow bar and safety cables to enable towing of the vehicle. The baseplate is permanently installed to the vehicle's frame.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. Two cables are included with the BX3754 (226-0046, 36" Class III). However, these cables are to be used in conjunction with, and NOT as a replacement for legally required safety cables attaching the towed vehicle to the towing vehicle.
Permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses or brake lines, as this could cause fluid leaks or electrical shorts.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts and loose bolts. Ensure Loctite Red is used on all bolts and that they are tightened to the recommended specifications.
Yes, it is crucial to register your BX3754 baseplate online at www.blueox.com. Registration ensures you will be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes, the attachment tabs may be removed when not in use.
If a bolt is lost or needs replacement, use a replacement bolt of the same grade (usually Grade 5). Only use genuine factory replacement parts on the baseplate; do not substitute homemade or nontypical parts. Repair parts may be ordered through your nearest Blue Ox dealer or distributor.
After baseplate installation, install the tow bar and safety cables according to the instructions included in their packages. Do not substitute other devices if the tow bar pin and clip are lost.
Yes. Attachment tabs are 20 1/2 inches center to center, 13 3/4 inches height. Dimensional variations may require minor hole filing.
Yes. Drill three 13/32" holes on both sides using baseplate as template, and cut 1 1/4" holes in frame ends with hole saw. Trimming of air dam is also required.
10MM and 12MM sockets, 9/16" socket, vise grips, Loctite Red, 13/32" drill bit, Phillips screwdriver, 1 1/4" hole saw, and hack saw.
Headlight assembly, front fascia, horn bracket, windshield washer reservoir, metal bumper, and bumper bracket must be removed. Some models may have a driver's side sensor to relocate.
3/8-16 x 1 1/2" Grade 5 bolts with 3/8 lock washers, inserted through 3/8" nut plates. Apply Loctite Red before tightening with 9/16" socket. Torque per General Instruction Sheet.
Yes, two 36" Class III permanent baseplate safety cables are included. They must be connected from baseplate to frame rail and are strongly recommended, but do not replace legally required towing vehicle safety cables.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to specification with Loctite Red before each towing trip.
