Made from high-quality steel, ensuring maximum strength and durability for heavy-duty towing tasks.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Durably crafted from steel and finished with a protective black powder coating, the Blue Ox BX3775 Tow Bar Bracket is an essential tool for vehicle towing. This tailored product ensures an exact fit for your specific vehicle, providing a secure and reliable connection for towing. With the included mounting hardware and comprehensive instructions, it's designed for easy do-it-yourself installation. The material choice and finishing process provide superior resistance to wear and tear, guaranteeing a long-lasting and high-performance product.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2001 - 2007 | Toyota Highlander | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |

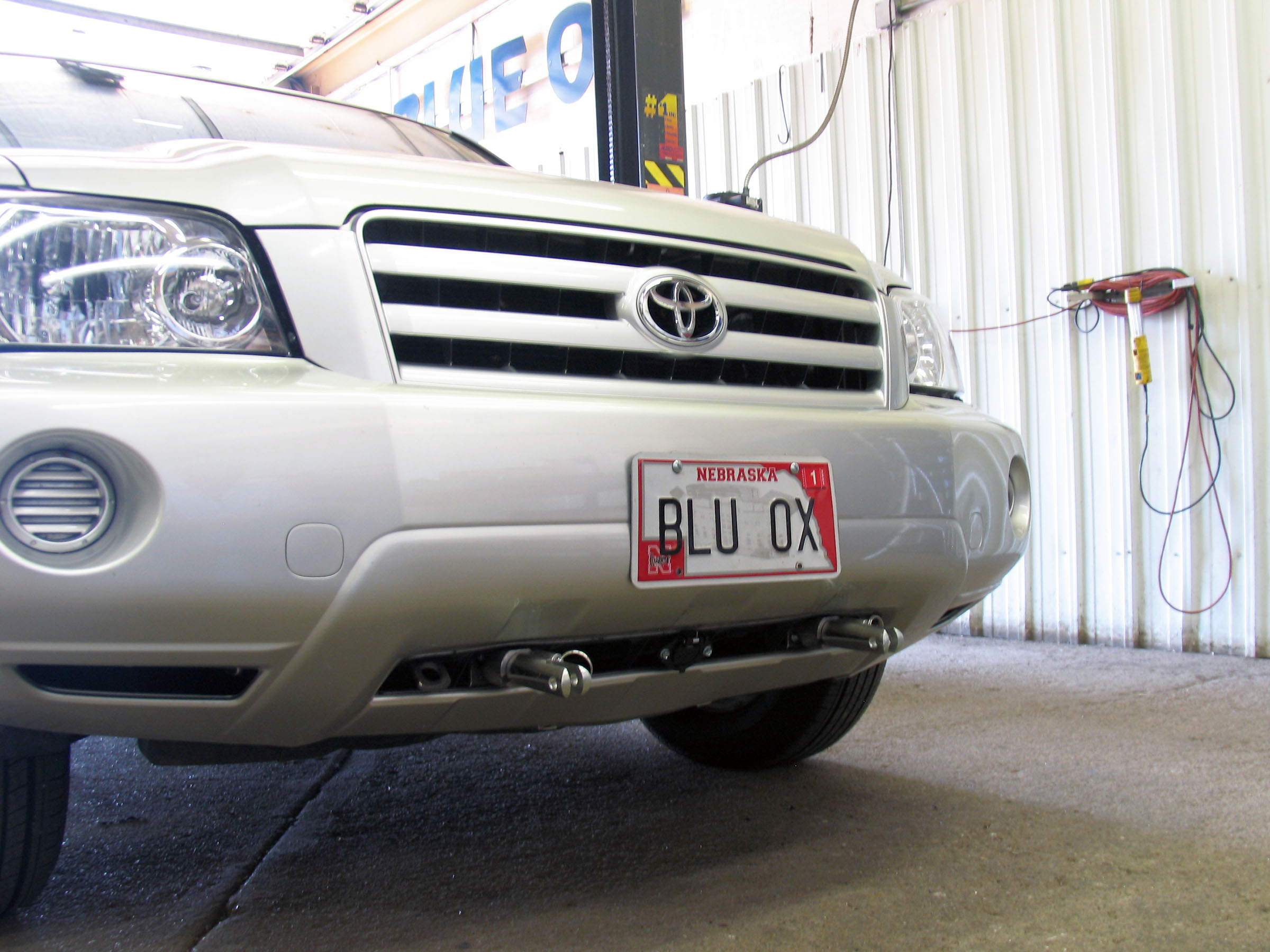

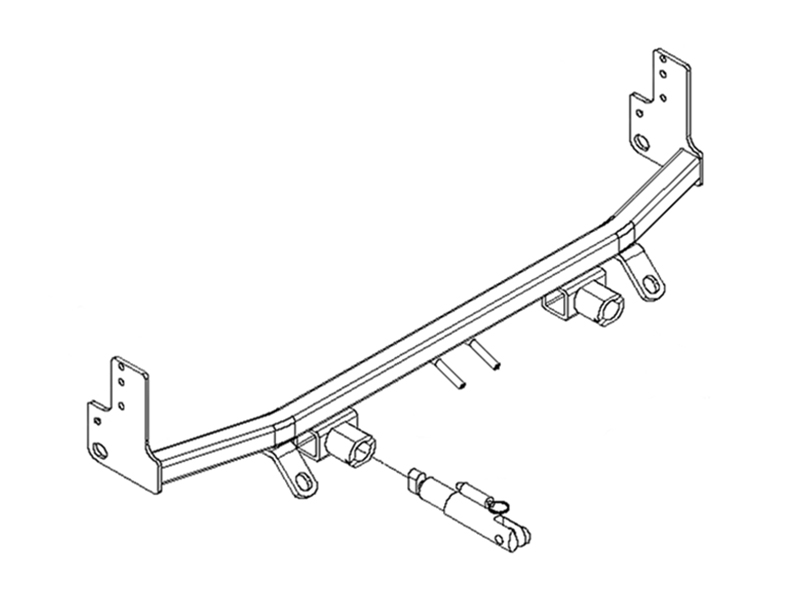

The BX3775 is a baseplate designed for towing a 2001-07 Toyota Highlander. It mounts to the vehicle's frame and provides attachment points for a tow bar. The baseplate has an attachment tab height of 15 1/4" and width of 19 1/2". It is intended to be installed by Blue Ox Dealers familiar with the product and equipped to perform fit work.
Yes, the BX3775 is designed for 2001-07 Toyota Highlander models. However, you must confirm your vehicle's weight before installation. The baseplate is rated for Class III towing with a 5,000 lb. limit. Some Highlander models, depending on options, may exceed this 5,000 lb. rating. Contact the vehicle manufacturer or check your owner's manual to confirm your specific vehicle's weight.
No. Tow Bar Adapters are NOT to be used with vehicles weighing over 5,000 lbs. If your 2001-07 Toyota Highlander exceeds the 5,000 lb. Class III rating, you must use the Aventa II or Aventa LX tow bar instead, not an adapter.
The following tools are required: 9/16" socket, 10MM socket, 13/32" drill bit, 1 1/4" hole saw, Phillips screwdriver, flat screwdriver, needle nose pliers, vise grips, and Loctite RED. You will also need a good quality paint to spray cut edges of the frame to prevent rusting.
The kit includes: 1 baseplate (61-6433), 4 nut plates (61-5208), 2 x 3/8-16 x 1" hex bolts Grade 5 (201-0443), 4 x 3/8-16 x 1 1/4" hex bolts Grade 5 (201-0368), 6 x 3/8" lock washers (203-0010), 2 x 3/8-16 hex nuts (202-0003), 1 x 6MM-1.0 x 30MM hex bolt Grade 8.8 (201-0655), 1 x 1/4" lock washer (203-0008), 1 x 1/4" flat washer (203-0001), 2 x #12-14 x 1" self-drilling screws (201-0979), 2 x 10-32 x 1/2" slot round head screws (201-0192), 2 x #10 lock washers (203-0054), 2 x #10-32 hex nuts (202-0047), 2 x 4-way connector adapters (101-5822), 2 x attachment tab assemblies (62-3468), 2 x 36" baseplate safety cables Class IV (226-0049), 4 x 1/2" quick links (229-0512), and 2 x receiver cap plugs (290-0437).
Blue Ox recommends that the BX3775 be installed by Blue Ox Dealers who are familiar with the product and have the equipment and knowledge to perform fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Customer Care at (888) 425-5382. The installation involves drilling, trimming, and adjustments to compensate for manufacturer tolerances.
During installation, the following components are removed and reinstalled: four plastic push pins from the top of the fascia, two screws from the wheel well, two push pins from the wheel well (one per side), two metric bolts from the fascia's upper corners (one per side), six metric bolts from the lower edge of the fascia, two push pins from beside the headlights (one per side), three metric bolts from the washer reservoir (passenger side), one screw between the grill and radiator, the fascia, styrofoam, and the washer reservoir.
Yes, drilling is required. You must drill a 1 1/4" hole on both the driver's side and passenger's side below the stud to allow wire nuts to pass through. Additionally, using the baseplate as a template, you must drill two holes per side with a 13/32" drill bit. The manual notes that trimming of the fascia is also required.
Yes. The installation requires drilling holes in the frame and fascia. These holes are permanent. The manual also notes that trimming of the fascia is required. Minor adjustments may include filing holes, bending electrical rods, and/or bending end plates to compensate for manufacturer tolerances. Once installed, the baseplate is intended to remain on the vehicle.
For 3/8" Grade 5 hex bolts, the torque specification is 33 foot-pounds. All bolts must be treated with Loctite RED before tightening.
For 6MM Grade 8.8 metric bolts, the torque specification is 8 foot-pounds. All bolts must be treated with Loctite RED before tightening.
For 10MM Grade 8.8 metric bolts, the torque specification is 31 foot-pounds. For 10MM Grade 10.9 metric bolts, the torque specification is 40 foot-pounds. All bolts must be treated with Loctite RED before tightening.
The attachment tab height is 15 1/4" and the attachment tab width is 19 1/2".
The BX8869 Bulb and Socket Wiring Kit is recommended for the 2001-07 Toyota Highlander with the BX3775 baseplate. All electrical connections must be plugged in properly and functioning before installing the fascia.
The BX3775 is rated for Class III towing with a 5,000 lb. maximum rating. However, the weight of the 2001-07 Toyota Highlander is near this Class III 5,000 lb. rating limitation. Some models, depending on options, may exceed this 5,000 lb. rating. You must confirm the weight of your individual vehicle before towing by checking the owner's manual or contacting the vehicle manufacturer.
Yes. Permanent baseplate safety cables are strongly recommended when towing with the BX3775. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The kit includes 2 x 36" Class IV baseplate safety cables (226-0049) and 4 x 1/2" quick links (229-0512). The cables must wrap around the lower frame extension twice, or as close as possible. If unable to position them there, position them around a solid piece of the frame. Ensure the safety cables do not rub against any hoses or moving parts. These permanent baseplate safety cables are to be used in conjunction with, and NOT a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The baseplate installer must watch for oil cooler and air conditioner lines, electrical wires, and hoses during installation. Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines. If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. After installation, ensure that safety cables do not rub against any hoses or moving parts.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure that all electrical connections are plugged in properly and functioning. Verify that the baseplate is level with the vehicle. Confirm that safety cables are properly positioned and do not rub against hoses or moving parts. Ensure that all bolts are tightened to the recommended torque specifications using Loctite RED.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite RED on all bolts and tighten to the recommended specifications. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. Blue Ox offers factory service for a nominal fee to service your towing system to ensure it is in proper working condition.
No. The manual states: "Even though bolts are there, do not assume they are adequate for baseplate mounting. Always use hardware supplied in the hardware kit or existing hardware specified in the Baseplate Towing Installation Instructions." You must use the hardware supplied in the BX3775 kit. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor.
The installation sequence is: (1) Remove four plastic push pins from the fascia top. (2) Remove two screws from the wheel well and two push pins from the wheel well (one per side). (3) Remove one metric bolt from inside each front wheel well. (4) Remove six metric bolts from the lower edge of the fascia. (5) Remove two push pins from beside the headlights. (6) Remove one screw between the grill and radiator, then pull the fascia forward. (7) Remove three metric bolts from the washer reservoir and unplug it. (8) Drill 1 1/4" holes on both sides below the stud. (9) Slide the baseplate up from the bottom, level it, and clamp with a vise grip. Align the passenger side with the existing hole in the frame. Install bolts and drill the remaining holes with a 13/32" drill bit. (10) Reinstall the washer reservoir with the 6MM bolt and washers. (11) Attach baseplate safety cables around the lower frame extension. (12) Spray cut frame edges with paint. (13) Reinstall the styrofoam, bumper, fascia, bolts, and push pins. All bolts must be treated with Loctite RED and tightened to the specified torque.
Slide the baseplate straight up from the bottom and push up as far as possible. Adjust it to a level position with the vehicle and clamp it with a vise grip. Align the passenger's side with the existing hole in the frame for the washer reservoir. The baseplate should be level before drilling the remaining mounting holes.
The baseplate is mounted using: (1) Two 3/8-16 x 1 1/4" hex bolts Grade 5 (201-0368) with 3/8" lock washers (203-0010) attached to 1/4" x 1" x 1" nut plates (61-5208) in the existing holes on both sides. (2) Two 3/8-16 x 1 1/4" hex bolts Grade 5 (201-0368) in the top holes drilled with a 13/32" drill bit. (3) Two 3/8-16 x 1" hex bolts Grade 5 (201-0443) with 3/8" lock washers (203-0010) and hex nuts (202-0003) in the bottom holes. All bolts must be treated with Loctite RED and tightened to 33 foot-pounds for 3/8" Grade 5 bolts.
On the passenger side, reinstall the washer reservoir. Reattach it with a 6MM-1.0 x 30MM hex bolt Grade 8.8 (201-0655) and 1/4" lock and flat washers. Reconnect all hoses and electrical connections. The bolt must be treated with Loctite RED and tightened to 8 foot-pounds.
After drilling and before reinstalling the fascia, spray the cut edges of the frame with a good quality paint to prevent rusting.
Yes, the BX3775 is designed for 2001-07 Toyota Highlander models. You must confirm your vehicle's weight is under 5,000 lbs before installation, as some models may exceed this Class III rating limit.
You need: 9/16" and 10MM sockets, 13/32" drill bit, 1 1/4" hole saw, Phillips and flat screwdrivers, needle nose pliers, vise grips, and Loctite RED.
If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. During installation, the installer must watch for oil cooler and air conditioner lines, electrical wires, and hoses. After installation, ensure that safety cables do not rub against any hoses or moving parts.
Inspect all bolts to ensure they are tightened to the correct torque specifications: 33 foot-pounds for 3/8" Grade 5 bolts, 8 foot-pounds for 6MM Grade 8.8 bolts. Ensure all bolts have been treated with Loctite RED before tightening. Check that the baseplate is level with the vehicle. Verify that the vise grip was removed after final tightening and that all bolts are fully seated.
