Includes base plate, safety cables and installation hardware (tow bar sold separately)
Not compatible with universal tow bar
Includes base plate, safety cables and installation hardware (tow bar sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: GLOSS BLACK POWDER COAT
Installation Difficulty: Professional
Installation Time Exact (Minutes): 120

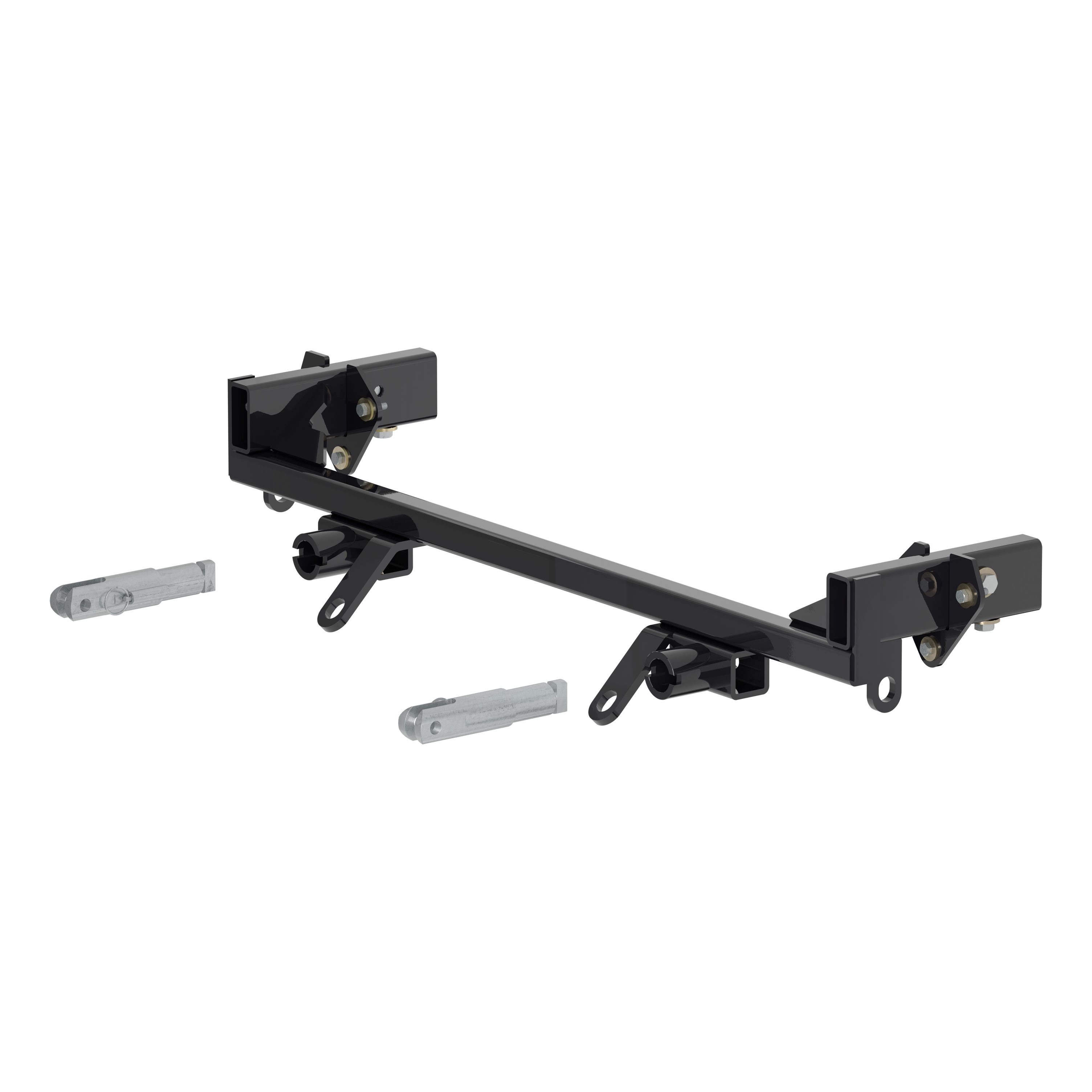

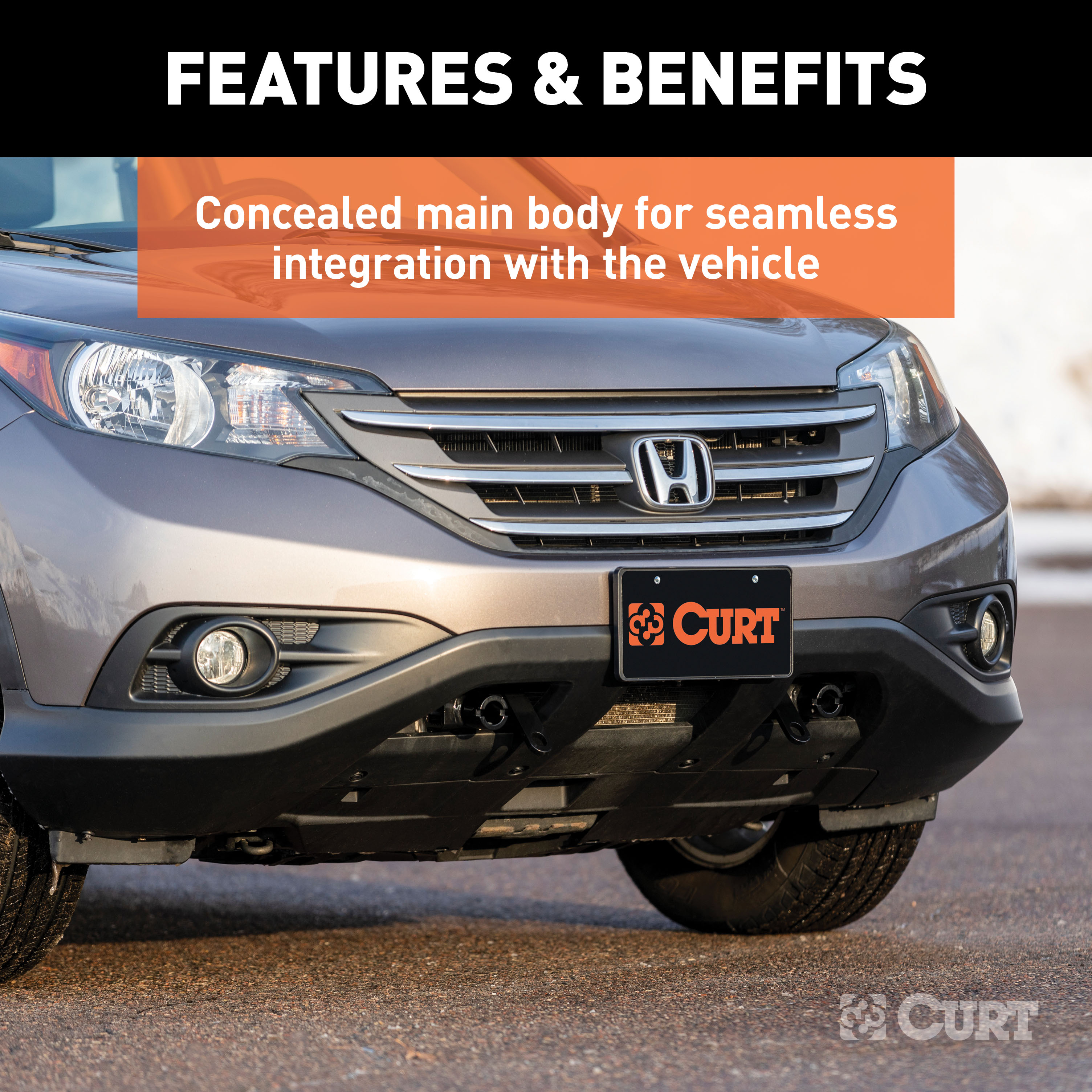

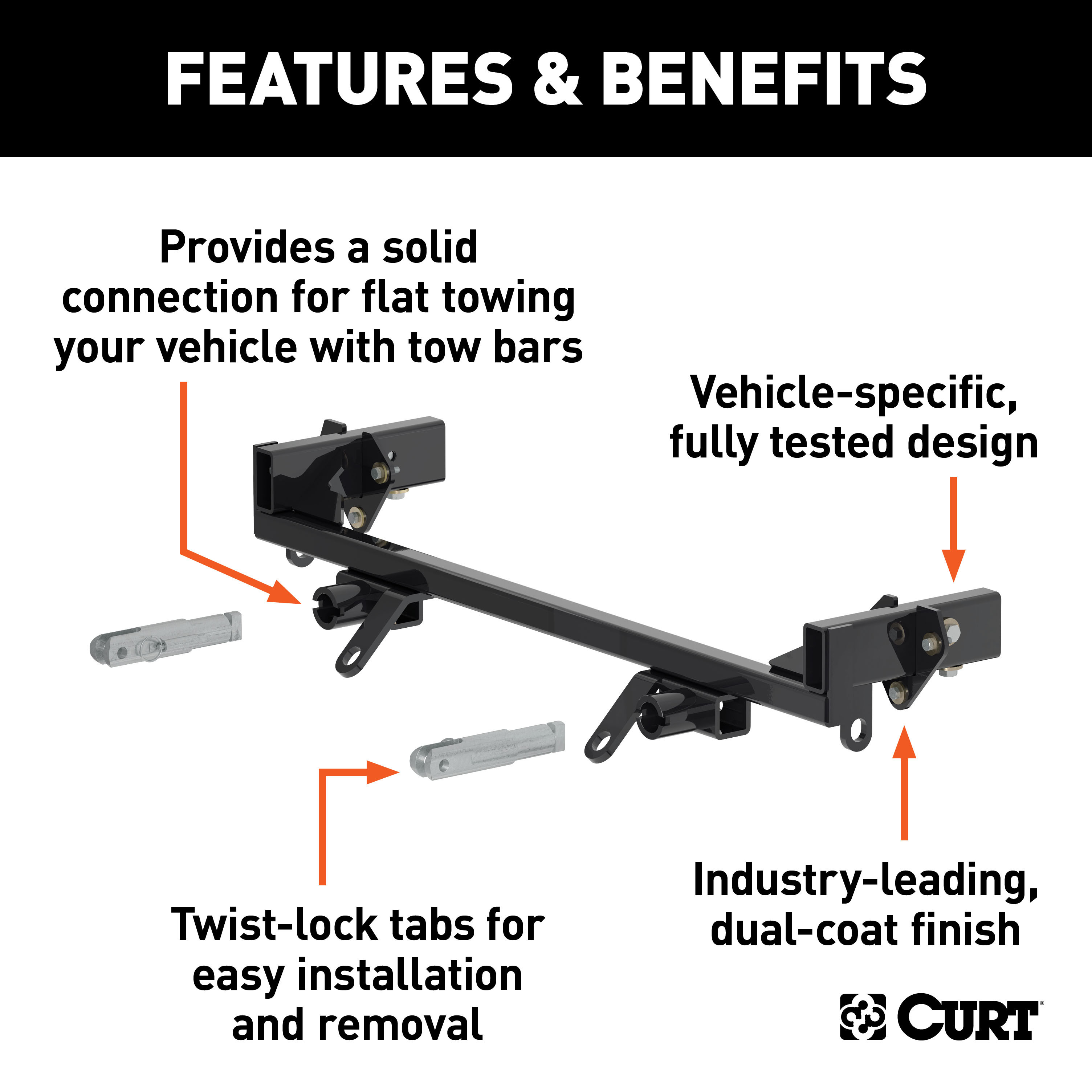

CURT tow bar base plates are engineered for a custom fit on each unique vehicle. This custom tow bar base plate fits select years of the Honda CRV (see application info to verify fitment). It features an OE style design to fully integrate with the front of the vehicle and maintain a factory look. This Honda CRV tow bar baseplate is constructed from high-quality steel and is precisely welded for a perfect fit. It is physically tested for absolute safety and peace of mind while dinghy towing. It also features a unique co-cured finish of liquid A-coat and highly durable powder coat to protect against the outdoor elements. This base plate for towing comes with attachment tabs, safety cables and installation hardware.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2014 | Honda CR-V | No Drilling Required Installation Time: 90+ minutes Visibility: Concealed |
The CURT 70104 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Honda CR-V (Part #BKDK70104) fits the following vehicles: 2012-2014 Honda CR-V. Always verify your specific year, make, and model before ordering.
The CURT 70104 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Honda CR-V (Part #BKDK70104) fits 2012-2014 Honda CR-V models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 70104 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Honda CR-V (Part #BKDK70104) is designed to fit the 2012-2014 Honda CR-V.
The CURT 70104 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Honda CR-V (Part #BKDK70104) Drilling is not required for installation. Typical installation time is 90+ minutes. Basic hand tools are typically all you need.
The CURT 70104 is a permanent tow bar base plate designed for dinghy towing. It includes a base plate, mounting tabs, safety cables, quick links, socket plugs, and all required fasteners. The base plate mounts to the vehicle frame tubes and is secured with M8 and 1/2" hex bolts. When not towing, socket plugs insert into the ends of the base plate.
The manual does not specify the vehicle year, make, or model. Contact CURT Manufacturing at 877-287-8634 or visit curtmfg.com to confirm fitment for your specific vehicle before purchasing.
Yes. The bumper beam must be removed during installation and will not be reinstalled. The bumper cover is removed and reinstalled, but the bumper beam is removed permanently and returned to the vehicle owner.
The temperature sensor must be temporarily removed and relocated during installation. After the base plate is installed, the temperature sensor is reattached to the base plate using an included 15" cable tie. The sensor will not interfere with the base plate once properly secured.
Yes. The coolant line above the frame on the passenger side must be unclipped and temporarily moved out of the way during base plate installation. After installation, the coolant line is clipped back into place on the fender, with slight bending as needed to ensure it does not interfere with the attachment tabs.
Required tools: torque wrench, large vice grip, sockets (3/4", 10mm, 12mm, 13mm), flat screwdriver, Phillips screwdriver, utility knife, punch and hammer, and tape measure. Safety glasses should be worn at all times during installation.
The kit includes: 1 tow bar base plate, 2 mounting tabs, 2 safety cables (3,500 lbs each), 4 conical washers (1/2"), 6 conical washers (3/8"), 6 M8 hex bolts (1-1/4", 30mm, CL8.8), 4 hex bolts (1/2"-13, 1-1/2", grade 5), 1 cable tie (15"), 4 nut plates (1/2"-13), 2 quick links (1/4"), and 2 socket plugs.
Installation difficulty is rated as Difficult. The manual states that proper tools will improve installation quality and reduce time required. The installation involves removing the bumper cover and beam, trimming the radiator shroud, removing weld nuts from frame tubes, and relocating the temperature sensor and coolant line. Consider professional installation if you lack experience with vehicle modifications.
1. Open hood and remove four push pins from upper front fascia panel. 2. Release four yellow clips under grille and two outermost yellow tabs at top of grille using Phillips screwdriver. 3. Remove screw and two push pins from wheel well liner on both sides. 4. Remove screw and push pin from bottom outer edge corner in front of wheel on both sides using 10mm socket and flat screwdriver. 5. Remove four center push pins from underside of fascia. 6. Remove topmost screw holding front bumper panel on both sides. 7. Release two yellow corner clips in grille area. 8. Pull bumper cover away from vehicle and unplug fog light wiring harnesses on each side.
1. Use a 12mm socket to remove four bolts from the bumper beam: one on top and three facing the front on the bracket. Repeat on both sides. 2. Remove push pin on bottom passenger side. 3. Release push pin on driver-side temperature sensor and two wire harness clips (one on bottom, one on side). 4. Use flathead screwdriver to remove push pins on top outer corners of bumper. 5. Carefully remove bumper beam and return it and hardware to vehicle owner. The bumper beam will not be reinstalled.
Trimming of the rubber radiator shroud is required. On the passenger side, cut the bracket straight down using a utility knife. On the driver side, trim a notch measuring 2-1/2" from the bottom. Additionally, trim the rubber mounting flanges on either side of the radiator, measuring 1-1/4" from the bottom and following the notched lines. Use a paint pen to mark areas before cutting. The manual recommends trimming a smaller area first, testing fit, and trimming again as needed. Take care when cutting to prevent injury.
Yes. Remove the weld nut on the inside of the vehicle frame tube using a punch and hammer. Straighten the frame if needed and repeat on the other side of the vehicle. This must be done before installing the base plate.
The six M8 hex bolts (1-1/4", 30mm, CL8.8) that secure the base plate to the frame must be torqued to 16 lb-ft. These bolts should be snugged but not fully tightened during initial installation (Step 17), then torqued to final specification after the 1/2" bolts are torqued to 110 lb-ft.
The 1/2" hex bolts (1/2"-13, 1-1/2", grade 5) that secure the base plate to the frame side and bottom holes must be torqued to 110 lb-ft. There are four of these bolts total: two for the side holes (one on each side) and two for the bottom holes (one on each side).
The installed attachment tabs measure 15-1/2" in height and 24" in width.
Two permanent safety cables rated at 3,500 lbs each are included. These cables must be installed at all times when dinghy towing. They are looped around the vehicle frame and linked to the tow bar base plate using quick links. Each cable must meet or exceed the gross weight of the towed vehicle. The cables must not pinch or interfere with hoses, wiring, or other components. Safety cables are not a replacement for safety chains connecting the tow vehicle to the towed vehicle.
Each of the two included safety cables is rated for 3,500 lbs. Each cable must meet or exceed the gross weight of the towed vehicle.
Never exceed the vehicle manufacturer's recommended gross vehicle weight rating (GVWR). This is a critical safety requirement when towing with the CURT 70104.
After installation, verify that the base plate is level before final torquing. Ensure the coolant line does not interfere with the attachment tabs, bending it slightly if needed. Confirm that the safety cables do not pinch or interfere with hoses, wiring, or other components. Check that the bumper cover, grille, and other removed components are properly reinstalled. Periodically check the condition of all towing equipment, ensure all fasteners are tight, and verify that all structural components are sound.

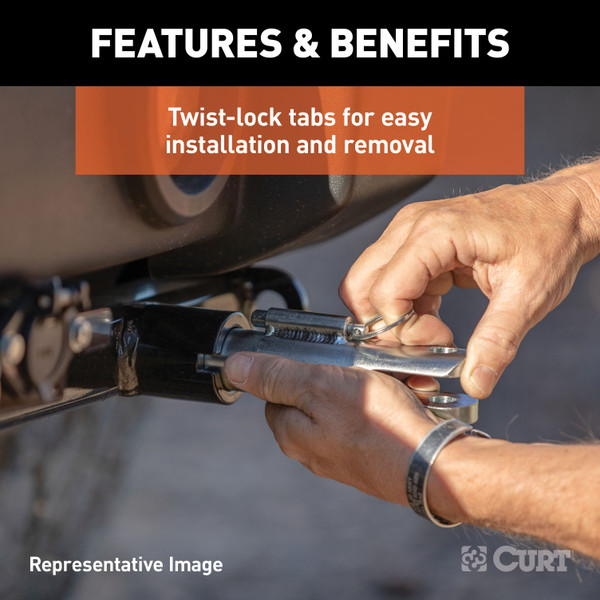

When not towing, insert the two included socket plugs into the ends of the tow bar base plate. When ready to tow, remove the socket plugs and install the tow bar mounting tabs.
Periodically check the condition of all towing equipment. Ensure all fasteners are tight and that all structural components are sound. Do not tow with worn or damaged parts. Review your towing vehicle and trailer manufacturer's recommendations in their owner's manuals for specific capacities and requirements.
The manual does not specify vehicle compatibility. Contact CURT at 877-287-8634 or visit curtmfg.com to confirm fitment before purchasing.
Yes. The bumper cover is removed and reinstalled, but the bumper beam is removed permanently and will not be reinstalled.
Yes. The rubber radiator shroud must be trimmed using a utility knife. On the passenger side, cut the bracket straight down. On the driver side, trim a notch measuring 2-1/2" from the bottom. Rubber mounting flanges on either side must also be trimmed 1-1/4" from the bottom.
Required tools include: torque wrench, large vice grip, sockets (3/4", 10mm, 12mm, 13mm), flat and Phillips screwdrivers, utility knife, punch and hammer, and tape measure. Safety glasses are required.
M8 hex bolts: 16 lb-ft. 1/2" hex bolts (side and bottom holes): 110 lb-ft each. Snug all hardware initially, then torque to final specifications after all bolts are installed.
Yes. Two permanent safety cables (3,500 lbs each) must be installed and used at all times when dinghy towing. They are not a replacement for safety chains connecting the tow vehicle to the towed vehicle.
Installation is rated as Difficult. It involves bumper removal, frame modifications, radiator shroud trimming, and component relocation. Professional installation is recommended if you lack experience.
