2015 - 2020 Chevrolet Colorado
Confirmed to Fit
2015 - 2020 GMC Canyon
Confirmed to Fit
Verify Fitment
Select your vehicle to confirm this part fits.
Includes base plate, safety cables and installation hardware (tow bar sold separately)
Not compatible with universal tow bar
Includes base plate, safety cables and installation hardware (tow bar sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: GLOSS BLACK POWDER COAT
Installation Difficulty: Professional
Installation Time Exact (Minutes): 210

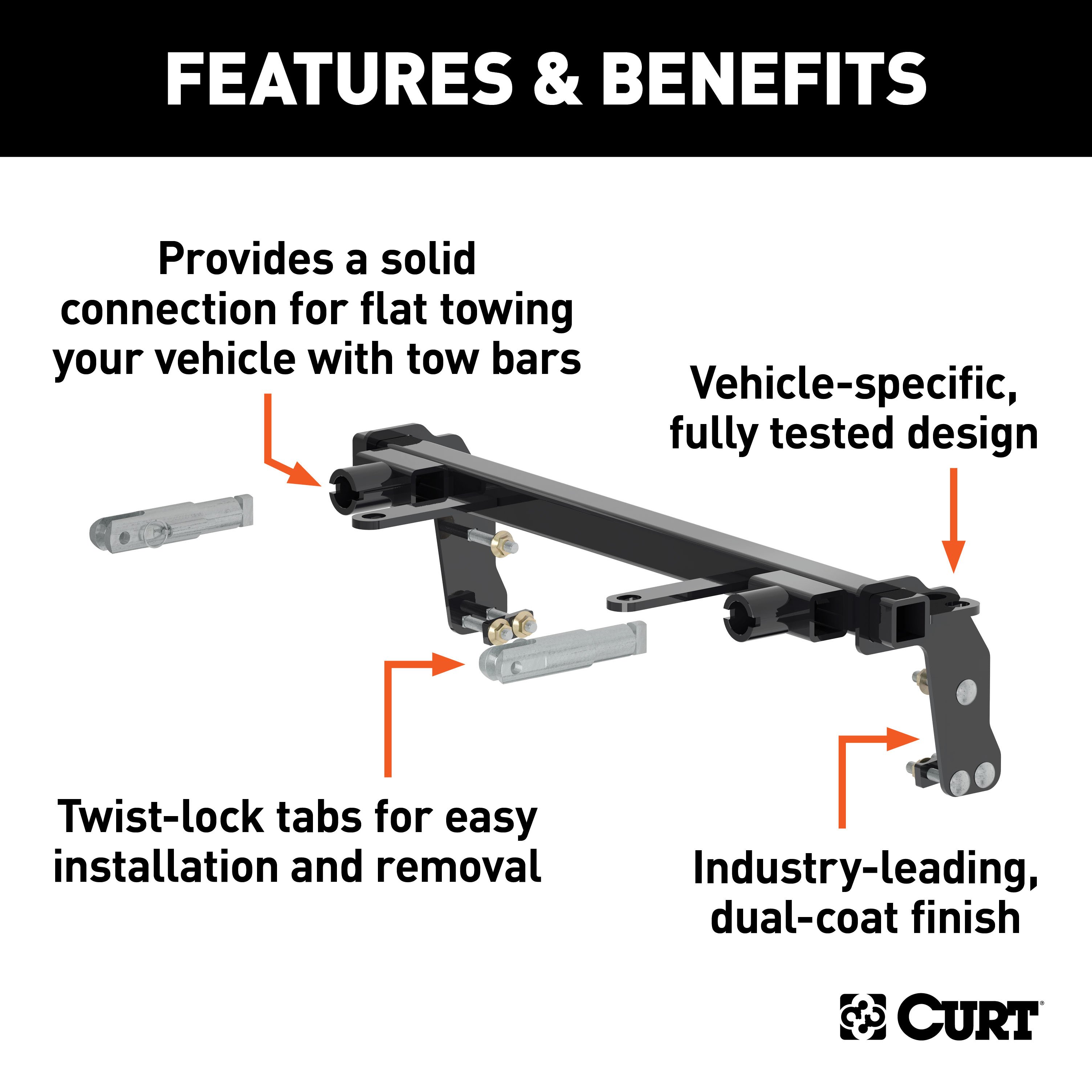

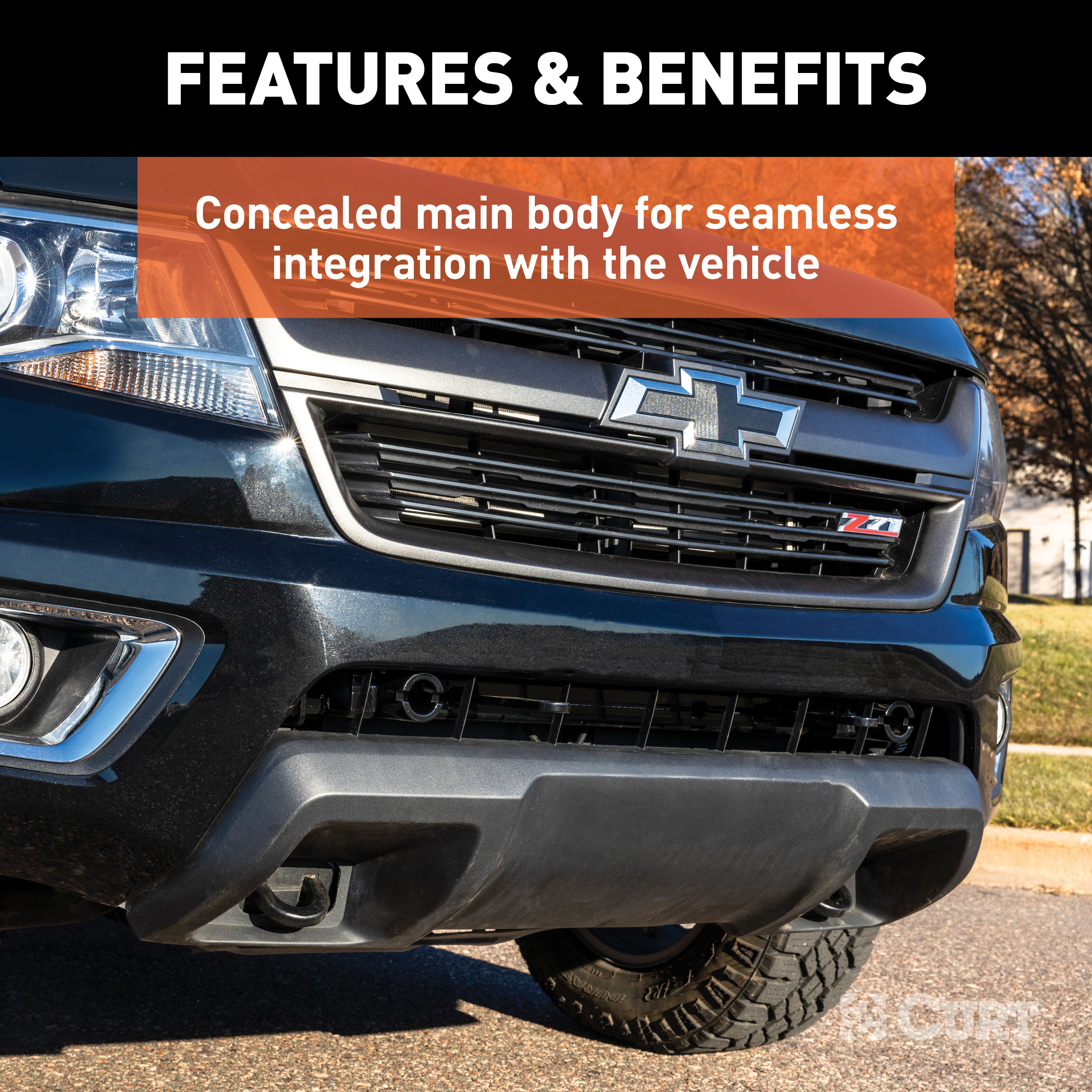

CURT tow bar base plates are engineered for a custom fit on each unique vehicle. This custom tow bar base plate fits select years of the Chevy Colorado and GMC Canyon (see application info to verify fitment). It features an OE style design to fully integrate with the front of the vehicle and maintain a factory look. This Chevy / GMC tow bar baseplate is constructed from high-quality steel and is precisely welded for a perfect fit. It is physically tested for absolute safety and peace of mind while dinghy towing. It also features a unique co-cured finish of liquid A-coat and highly durable powder coat to protect against the outdoor elements. This base plate for towing comes with attachment tabs, safety cables and installation hardware.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2020 | Chevrolet Colorado | No Drilling Required Installation Time: 90+ minutes Visibility: Concealed |
| 2015 - 2020 | GMC Canyon | No Drilling Required Installation Time: 90+ minutes Visibility: Concealed |
The CURT 70107 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Chevrolet Colorado, GMC Canyon (Part #BKDK70107) fits 2015-2020 Chevrolet Colorado models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 70107 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Chevrolet Colorado, GMC Canyon (Part #BKDK70107) is designed to fit the 2015-2020 Chevrolet Colorado.
The CURT 70107 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Chevrolet Colorado, GMC Canyon (Part #BKDK70107) fits the following vehicles: 2015-2020 Chevrolet Colorado; 2015-2020 GMC Canyon. Always verify your specific year, make, and model before ordering.
The CURT 70107 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Chevrolet Colorado, GMC Canyon (Part #BKDK70107) Drilling is not required for installation. Typical installation time is 90+ minutes. Basic hand tools are typically all you need.
Yes, the CURT 70107 is designed for Chevrolet Colorado and GMC Canyon trucks. However, the installation procedure differs between standard Colorado/Canyon models and Colorado ZR2 models, so confirm your exact model variant before beginning. The manual does not specify model years, so contact CURT Product Support at 877-287-8634 to confirm fitment for your specific year.
Yes, the CURT 70107 is compatible with Colorado ZR2 models. The ZR2 has a different fascia and bumper removal procedure than standard Colorado models. Follow Steps 9–14 in the manual for ZR2 installation instead of Steps 1–7. Note that ZR2 tow hooks have foam trim pieces that must be removed before installing the base plate.

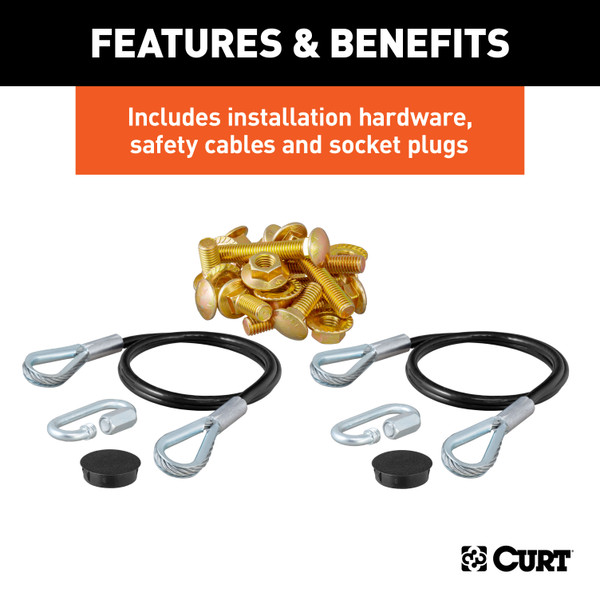

The kit includes: one tow bar base plate, two spacers (two-hole), two tube spacers, two spacer plates, two tow bar mounting tabs, two safety cables (7,500 lbs. each), six carriage bolts (1/2"-13, 3-1/4", grade 8), six flange nuts (1/2"-13, grade 8), one 15" cable tie, two 1/2" quick links, and two socket plugs. Safety cables, quick links and socket plugs are not pictured on the product photo but are included.
Required tools are: torque wrench, sockets (3/4", 7mm, 10mm, 15mm, 18mm), wrenches (15mm, 18mm, 3/4"), reciprocating saw, flat screwdriver, utility knife, four pieces of 3/8" fishwire, and a T15 Torx bit. The reciprocating saw is needed to trim the factory bumper beam extension arms. A cutoff wheel is listed as an alternative to the reciprocating saw.
Yes. The factory bumper must be temporarily removed during installation and then reinstalled. For standard Colorado/Canyon models, remove the bumper cover first (Step 6), then the factory bumper (Step 7). For Colorado ZR2 models, remove the bumper cover (Step 12) and then the factory bumper (Step 14). The bumper is reinstalled in Step 22 after trimming the extension arms.
Yes, the factory tow hooks must be removed. Use an 18mm socket to remove the two bolts holding each tow hook in place (Step 16). Note that Colorado ZR2 models have foam trim pieces on the tow hooks that must be removed first. The tow hooks are then reinstalled in Step 17 using the factory bolts to secure both the hooks and the base plate.
Yes, the air baffle must be temporarily removed. For standard Colorado/Canyon models, remove the three push pins on top and unsnap the outside edges with a flathead screwdriver (Step 8). For Colorado ZR2 models, do the same in Step 13. The air baffle is reinstalled in Step 23 after trimming approximately 1-1/2" off the bottom edge and removing the support flanges on the inside.
Yes. Step 15 requires removal of the front temperature sensor and bracket in the center of the vehicle. In Step 21, the backing of the temperature sensor bracket is trimmed and then reattached to the plastic radiator shroud using a self-tapping screw or the provided 15" cable tie.
No drilling is required. However, trimming is required: approximately 1-1/2" must be cut off the extension arms of the factory bumper beam using a reciprocating saw or cutoff wheel (Step 22), and approximately 1-1/2" must be trimmed from the bottom edge of the air baffle on both sides, along with removal of the support flanges inside the baffle (Step 23). These modifications are permanent.
All 1/2" fasteners (carriage bolts and flange nuts) must be torqued to 110 lb-ft. This is done in Step 19 after lifting the base plate to ensure it is as high as possible and level. The factory tow hook bolts (18mm) and factory bumper bolts (15mm) use their original torque specifications; the manual does not provide these values.
Carefully slide the tow bar base plate onto the frame and rotate it into position evenly, lining up the square mounting holes with the factory tow hook holes (Step 17). The base plate will be snug. Reinstall the tow hooks and secure both the base plate and tow hooks with the previously removed factory bolts, but snug only—do not fully tighten yet. Repeat on both sides. In Step 19, lift the base plate to ensure it is as high as possible and level before final torquing.
Spacer plates (#4) are used on models without factory tow hooks; they are installed between the frame and the base plate and secured with supplied 1/2" carriage bolts and flange nuts (Step 17 note). Tube spacers (#3) are inserted into the existing hole on the inside edge of the vehicle frame onto a carriage bolt, along with a spacer plate, to properly position the base plate (Step 18). These components ensure correct alignment and spacing of the base plate.
Yes. Two permanent safety cables (7,500 lbs. each) must be installed, one on each side of the vehicle (Step 20). The cables must be looped around the vehicle frame and linked to the tow bar base plate using quick links. They must not pinch or interfere with hoses, wiring or other components. The manual emphasizes that base plate safety cables are not a replacement for safety chains connecting the tow vehicle to the towed vehicle.
Safety glasses must be worn at all times during installation. Take care when cutting any plastic or metal, as injury may occur if done improperly. Watch for oil cooler and air conditioner lines, electrical wires and hoses during installation; if the base plate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts after installation. Never exceed the vehicle manufacturer's recommended gross vehicle weight rating (GVWR) when towing.
After installation, reinstall the bumper cover, fascia and body panels, fender fasteners, and reattach all wiring removed during installation (Step 24). When ready to tow, install the tow bar mounting tabs (#5) into the ends of the base plate. When not towing, insert the socket plugs (#11) into the ends of the base plate. Periodically check the condition of all towing equipment, ensure all fasteners are tight, and verify that all structural components are sound.
Periodically check the condition of all towing equipment. Ensure all fasteners are tight and that all structural components are sound. Do not tow with worn or damaged parts. Review your towing vehicle and trailer owner's manuals for specific recommendations, capacities and requirements. The manual does not specify a retorque interval, so contact CURT Product Support at 877-287-8634 for guidance on periodic maintenance checks.
The installed attachment tabs have a height of 23" and a width of 28".
Each of the two safety cables included in the kit is rated for 7,500 lbs. The manual states that each cable must meet or exceed the gross weight of the towed vehicle.
The CURT 70107 is designed for Chevrolet Colorado and GMC Canyon trucks. Confirm your exact model year and variant (standard or ZR2) with CURT Product Support at 877-287-8634 before purchasing.
Yes, both the factory bumper and tow hooks must be temporarily removed and then reinstalled. The air baffle and front temperature sensor must also be removed and reinstalled.
No drilling is required. You must trim approximately 1-1/2" off the factory bumper beam extension arms and 1-1/2" off the bottom of the air baffle on both sides using a reciprocating saw or cutoff wheel. These are permanent modifications.
All 1/2" carriage bolts and flange nuts must be torqued to 110 lb-ft after the base plate is lifted to ensure it is level.
Yes, two permanent safety cables rated at 7,500 lbs. each must be installed, one on each side. They must be looped around the vehicle frame and linked to the base plate and are not a replacement for safety chains.

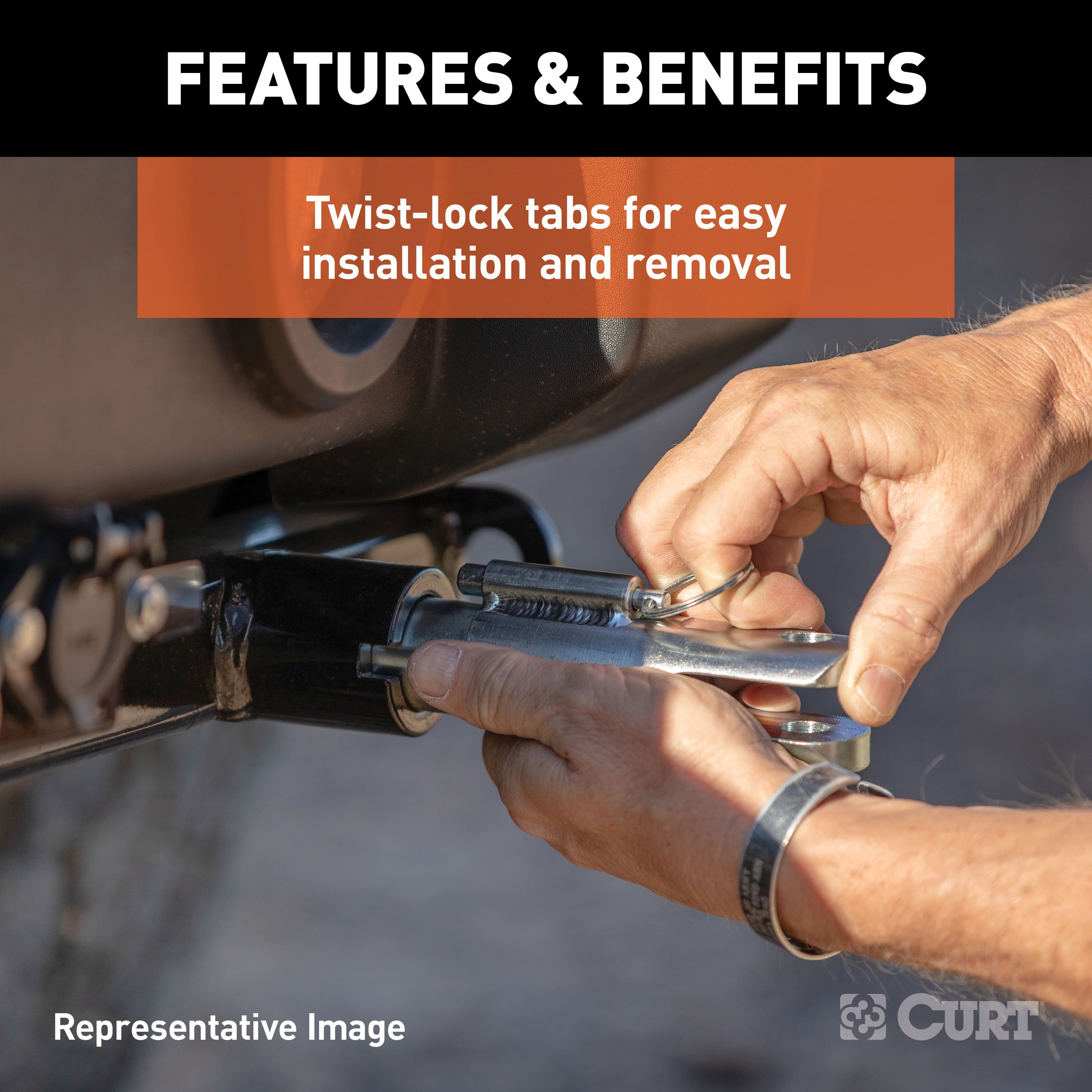

When not towing, insert the two socket plugs into the ends of the tow bar base plate. Install the tow bar mounting tabs only when ready to tow.
Ensure you are sliding the base plate onto the frame and rotating it into position evenly (Step 17). The base plate will be snug. If alignment is still difficult, verify that you have removed all required components (bumper, tow hooks, air baffle, temperature sensor) and that the frame is not bent or damaged. Contact CURT Product Support at 877-287-8634 if the base plate cannot be aligned after confirming all removal steps are complete.
In Step 19, lift the base plate to ensure it is as high as possible and level before torquing the fasteners. If the base plate remains unlevel after lifting, verify that all fasteners in Steps 17 and 18 are snug but not fully tightened, allowing the base plate to move freely. Check that the frame is not bent or damaged. If the base plate still cannot be leveled, contact CURT Product Support at 877-287-8634.
