Includes base plate, safety cables and installation hardware (tow bar sold separately)
Not compatible with universal tow bar
Includes base plate, safety cables and installation hardware (tow bar sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: GLOSS BLACK POWDER COAT
Installation Difficulty: Professional
Installation Time Exact (Minutes): 180

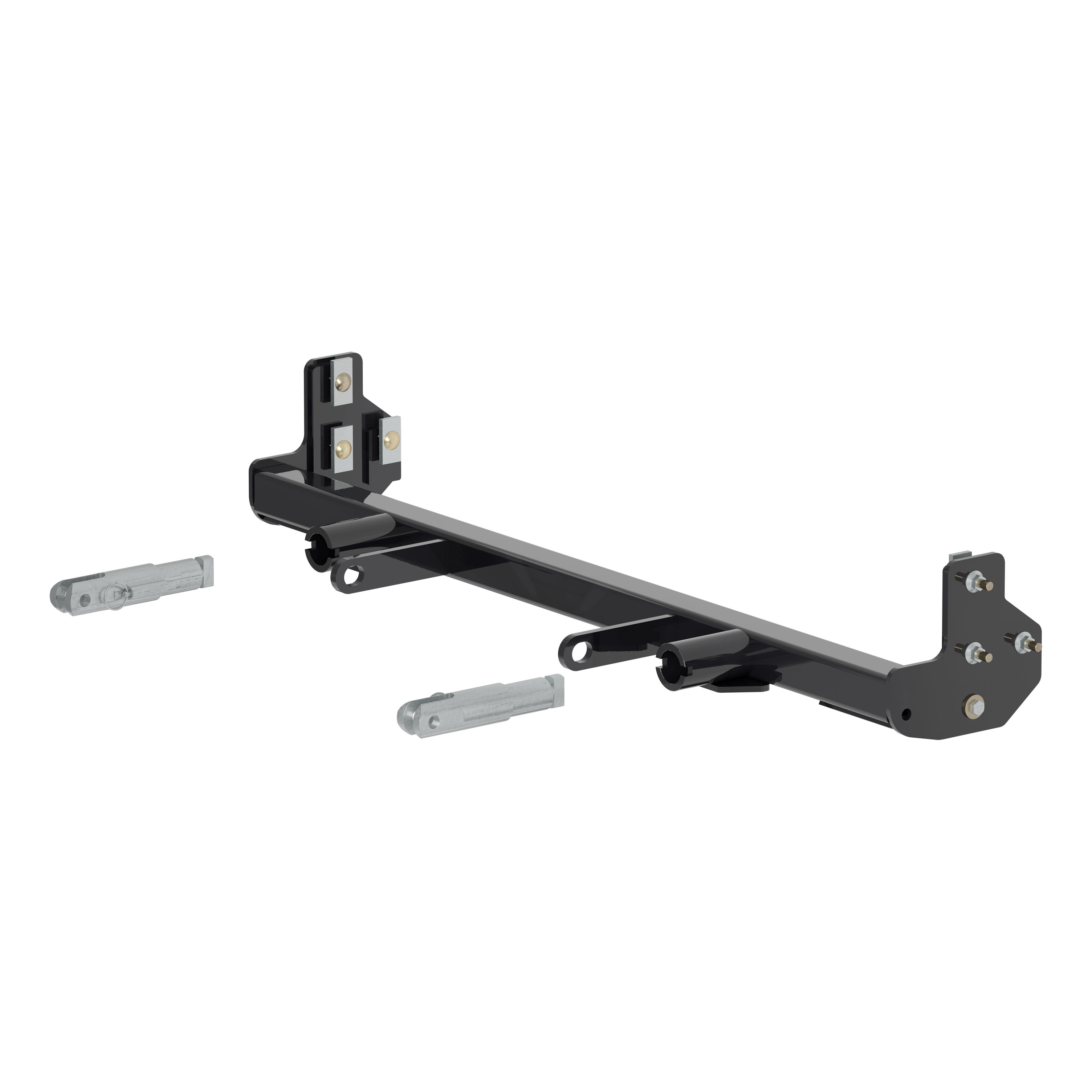

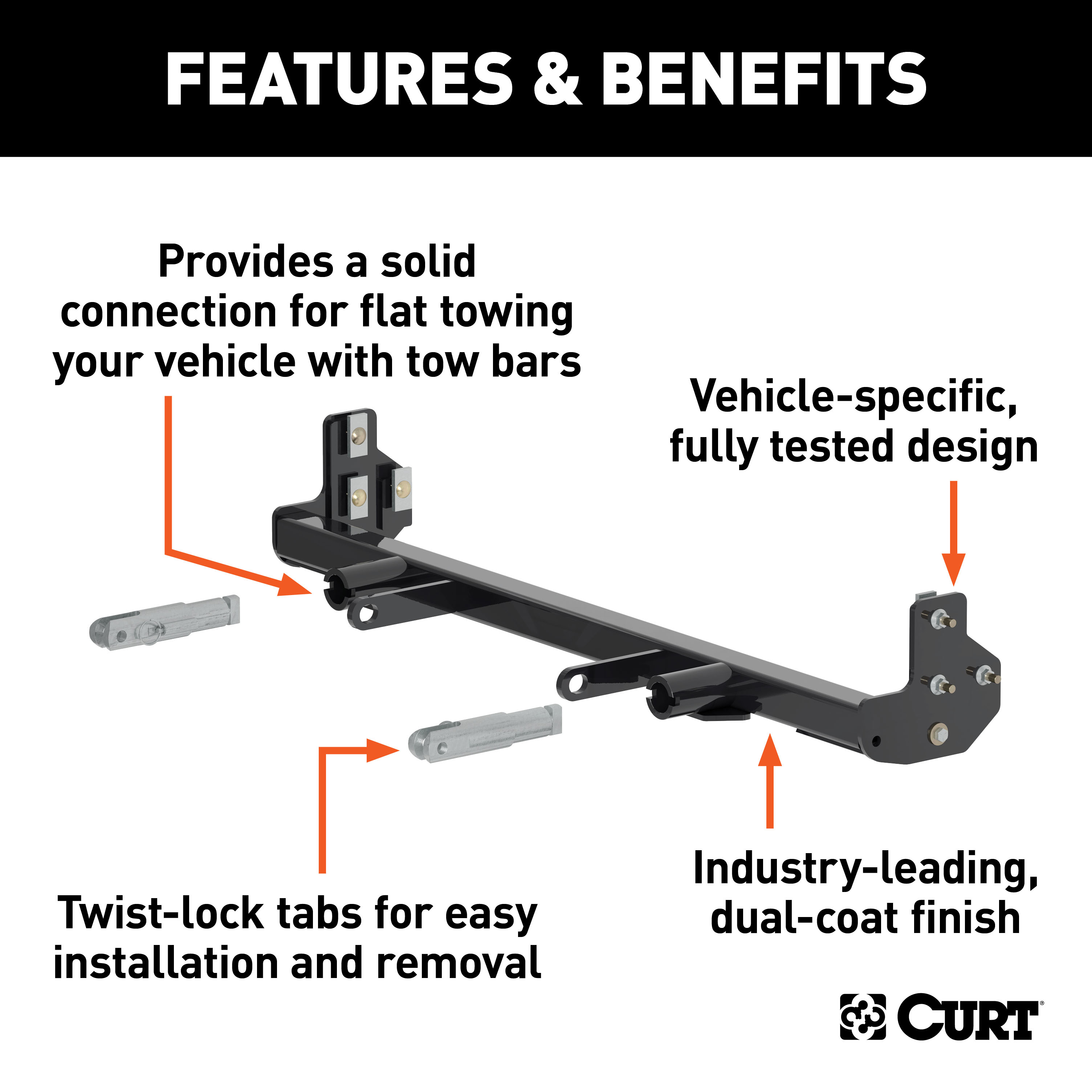

CURT tow bar base plates are engineered for a custom fit on each unique vehicle. This custom tow bar base plate fits select years of the Chevy Equinox and GMC Terrain (see application info to verify fitment). It features an OE style design to fully integrate with the front of the vehicle and maintain a factory look. This Chevy / GMC tow bar baseplate is constructed from high-quality steel and is precisely welded for a perfect fit. It is physically tested for absolute safety and peace of mind while dinghy towing. It also features a unique co-cured finish of liquid A-coat and highly durable powder coat to protect against the outdoor elements. This base plate for towing comes with attachment tabs, safety cables and installation hardware.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2017 | Chevrolet Equinox | Drilling Required Installation Time: 90+ minutes Visibility: Concealed |
| 2010 - 2017 | GMC Terrain | Drilling Required Installation Time: 90+ minutes Visibility: Concealed |
The CURT 70109 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Chevrolet Equinox, GMC Terrain (Part #BKDK70109) fits the following vehicles: 2010-2017 Chevrolet Equinox; 2010-2017 GMC Terrain. Always verify your specific year, make, and model before ordering.
Yes, the CURT 70109 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Chevrolet Equinox, GMC Terrain (Part #BKDK70109) is designed to fit the 2010-2017 Chevrolet Equinox.
The CURT 70109 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Chevrolet Equinox, GMC Terrain (Part #BKDK70109) fits 2010-2017 Chevrolet Equinox models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 70109 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Chevrolet Equinox, GMC Terrain (Part #BKDK70109) Drilling is required for installation. Typical installation time is 90+ minutes. Basic hand tools are typically all you need.
The CURT 70109 tow bar base plate fits 2010-2017 Chevrolet Equinox and GMC Terrain models. Fitment varies by model year, as different years require different trimming and modifications to the bumper, fascia, and frame components. Consult the installation manual for your specific model year to confirm compatibility and identify the required modifications.

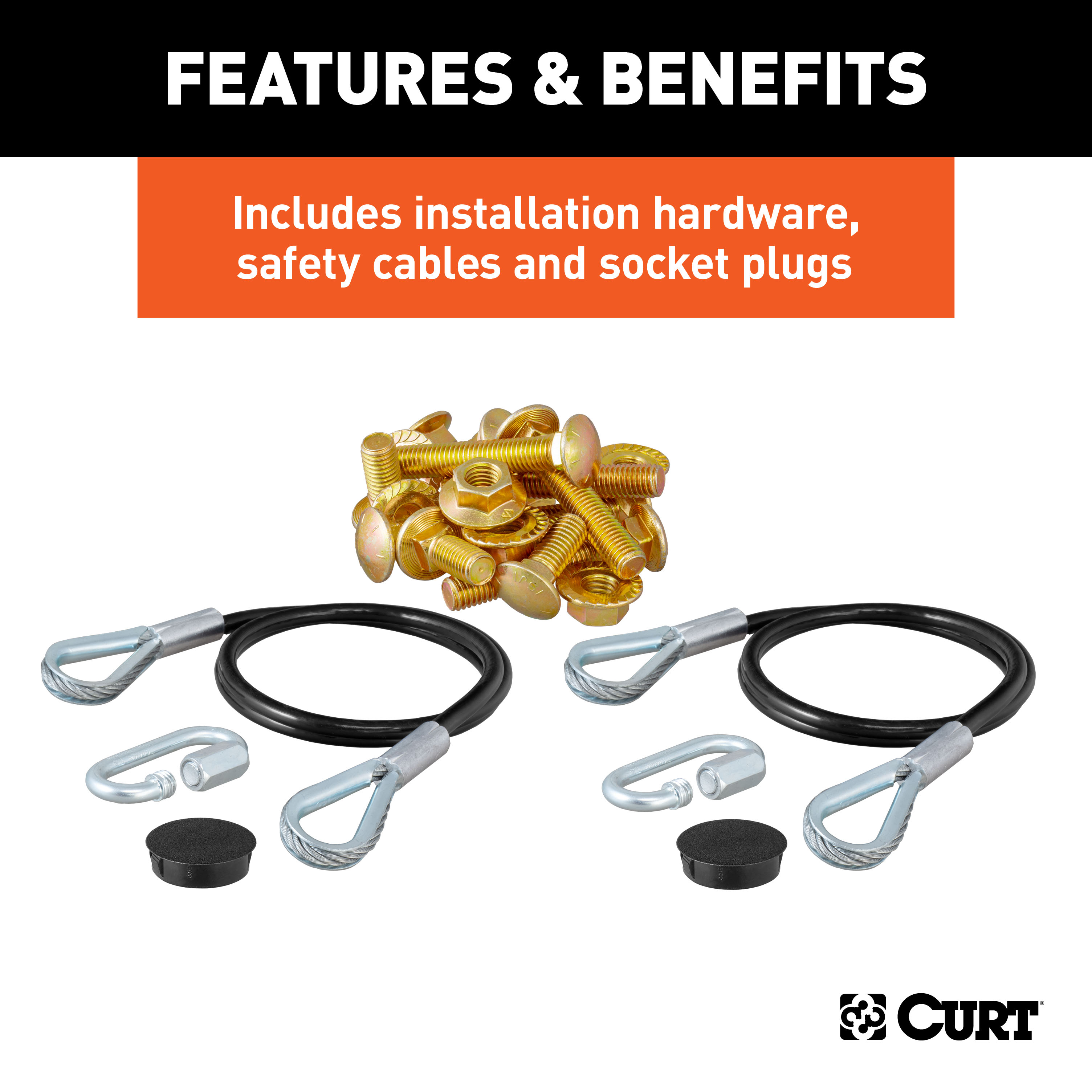

The kit includes: one tow bar base plate, two tow bar mounting tabs, two safety cables (3,500 lbs. each), two spacer plates (10-gauge), four 1/4"-20 x 3/4" grade 8 hex bolts, four 1/4" nylock nuts, six 3/8" flange nuts, two 3/8" nylock nuts, two 3/8" conical washers, two 3/8"-16 x 1-1/2" grade 8 hex bolts, six 3/8"-16 x 2" grade 8 carriage bolts, six 1/4" x 1" x 2" square hole spacers, six 3/8" flat washers, two 1/4" quick links, two socket plugs, and six pieces of 1/2" fishwire.
Required tools are: torque wrench, drill, drill bit 13/32", reciprocating saw, T20 Torx bit, utility knife, large vice grips, tape measure, Phillips screwdriver, sockets (9/16", 7/16", 7mm, 10mm), wrenches (7/16", 9/16"), and fishwire (six pieces included). A non-marring pry tool is also needed for fascia removal.
The manual rates this installation as "Difficult" based on time and effort involved, and notes that difficulty may vary depending on installer expertise, vehicle condition, and proper tools and equipment. The manual does not explicitly recommend or require professional installation.
Installation requires temporary removal and reinstallation of the fascia and air baffle. Drilling and trimming of plastic and metal components are required. The bumper cover must be removed, the frame must be trimmed, and the temperature sensor must be relocated. Specific trimming requirements vary by model year. The installation is rated as difficult and requires proper tools, safety glasses, and careful work to prevent injury.
Yes. You must drill four 13/32" holes in the vehicle frame—one using the top hole in the side plate as a guide, then three additional holes. The manual notes that on the driver side, the rearward hole will have a weldnut behind it that must be removed after drilling.
Yes. Trimming is required on all installations. You must trim the frame flush with the outer edge of the frame rail and up to the bumper seam using a reciprocating saw or cutoff wheel. Additional trimming of plastic components (temperature sensor mount, bumper padding, fascia, and grille openings) is required and varies by model year. For 2014-2017 models, bumper reinforcement must be removed. Specific trimming steps are detailed for 2010-2013, 2014, 2015-2017, and 2016-2017 model variants.
Yes. Trimming of the frame and plastic components is permanent. The frame must be trimmed flush with the outer edge and up to the bumper seam, and various plastic components must be trimmed to provide clearance for the base plate. These modifications cannot be reversed.
All base plate fasteners must be torqued to 37 lb-ft. This applies to the carriage bolts and flange nuts at the top holes, and the hex bolt and nylock nut at the bottom hole. Ensure the base plate is level before final torquing.
There should be 1-1/8" clearance between the top edge of the side plates and the top edge of the vehicle frame when the base plate is properly installed.
Mark the top portion of the temperature sensor mount approximately 5/8" high x 1/2" deep and trim off the marked area using a utility knife.
1. Use a T20 Torx bit to remove four screws from the grille attachment panel (two on each side) and four push pins from the outer radiator cover panel (two on each side). 2. Use a T20 Torx bit to remove two screws along the front edge of the wheel well liner and two push pins in the liner on each side. For 2014-2017 Equinox, also remove one additional screw with a 7mm socket. 3. Use a 7mm socket to remove four underside screws along the outer edge of the front fascia (two on each side). 4. Starting at the outer edges, pull the fascia panel out while using a non-marring pry tool to release clips from each fender, working toward the center. Unplug any wiring harnesses and carefully remove the bumper cover.
After removing the fascia, use vice grips to carefully bend the outside flanges of the bumper outward to at least 90 degrees on both sides. If the vehicle is equipped with an auxiliary cooler, remove the two bolts and move the cooler down. For 2014-2017 models, use a 10mm socket to remove two bolts in the bumper reinforcement on the driver side and a 15mm socket to remove two remaining bolts inset in the reinforcement, then remove the reinforcement and return it and its hardware to the vehicle owner.
1. Unclip the temperature sensor and move it up by the bumper. 2. Trim the temperature sensor mount (5/8" high x 1/2" deep) with a utility knife. For 2016-2017 models, also trim the outside portion of the lower plastic piece on both sides. 3. Slide the base plate onto the vehicle so the frame rail rib is between the spacers, with 1-1/8" clearance between the top edge of the side plates and the top edge of the frame. Clamp it temporarily and level it. 4. Using the top hole as a guide, drill a 13/32" hole in the frame. Fishwire a 3/8" carriage bolt and 1/4" square hole spacer through the access hole and loosely install a 3/8" flange nut. Repeat on the other side. 5. Drill out the remaining three holes with a 13/32" bit. On the driver side, remove the weldnut behind the rearward hole after drilling. 6. Fishwire 3/8" carriage bolts into the upper holes and secure with 3/8" flange nuts. For the bottom hole, insert a 3/8" hex bolt and conical washer through the base plate and tighten with a 3/8" nylock nut. 7. Ensure the base plate is level and torque all hardware to 37 lb-ft.
Trim the inner edges of the black plastic lower grille opening at the bottom about 1" and taper upward to the top edge as needed.
Mark and trim off the corner of the styrofoam bumper padding above the lower grille opening. Mark and trim out the side of the lower grille opening on the outer edges, following the edge around. Also trim back the seam in the area between the tabs next to the lower grille opening only as needed to provide extra clearance for the base plate.
Mark and trim the outermost lower tab from the styrofoam bumper padding above the opening as needed. Mark and trim the side of the lower grille opening about 1" as needed.
Mark and trim the corner inside the bumper cover toward the grille opening where the black lower plastic trim meets the body colored fascia as needed to ensure base plate clearance. Repeat on the other side of the vehicle.
Mark and trim approximately 1-1/2" of the styrofoam bumper padding and fascia as needed, roughly flush with the bumper padding attachment clip on the cover. An additional portion of the bumper cover seam directly below it may also need to be trimmed for proper fitment.
Place three 3/8" flat washers on each mounting stud for the air baffle and reinstall the baffle.
Install the permanent safety cables by looping them around the vehicle frame and linking them to the tow bar base plate using quick links. There must be one cable on each side of the vehicle. Make sure the cables do not pinch or interfere with any hoses, wiring or other components. Each cable must meet or exceed the gross weight of the towed vehicle (these cables are rated 3,500 lbs.). Base plate safety cables are not a replacement for safety chains connecting the tow vehicle to the towed vehicle.
If the auxiliary cooler was previously removed, relocate it using the supplied spacer plate and 1/4" hex bolts and nylock nuts, raising the cooler above the base plate in front of the radiator.

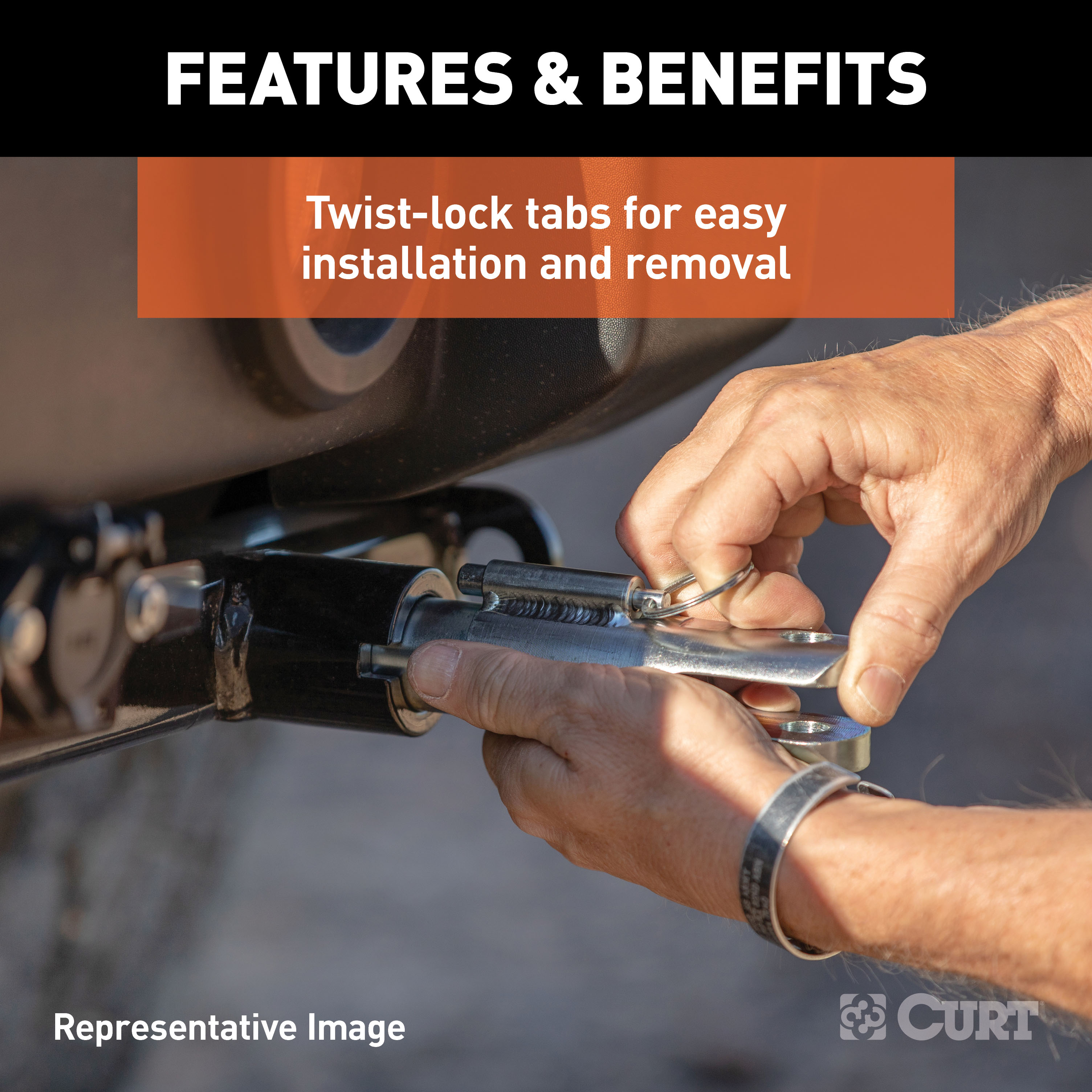

Reinstall the temperature sensor and any fascia and other components that were removed during installation. When ready to tow, install the tow bar mounting tabs. When not towing, insert the socket plugs into the ends of the tow bar base plate.
Safety glasses must be worn at all times while installing this product. Take care when cutting any plastic or metal as injury may occur if done improperly. Never exceed the vehicle manufacturer's recommended gross vehicle weight rating (GVWR) when towing.
Yes. When dinghy towing a vehicle with the CURT 70109 tow bar, base plate safety cables must be used at all times. In the event of a disconnect, the safety cables are designed to help prevent complete vehicle separation. Two cables must be installed, one on each side of the vehicle. Each cable must meet or exceed the gross weight of the towed vehicle. Base plate safety cables are not a replacement for safety chains connecting the tow vehicle to the towed vehicle.
Ensure the base plate is level before final torquing. Verify that all fasteners are torqued to 37 lb-ft. Confirm that safety cables do not pinch or interfere with any hoses, wiring or other components. Check that the 1-1/8" clearance between the top edge of the side plates and the top edge of the vehicle frame is maintained.
Periodically check the condition of all towing equipment. Ensure all fasteners are tight and that all structural components are sound. Do not tow with worn or damaged parts. Review the owner's manual for your towing vehicle and trailer for specific recommendations, capacities and requirements.
The installed attachment tabs are 15-1/2" in height and 24" in width.

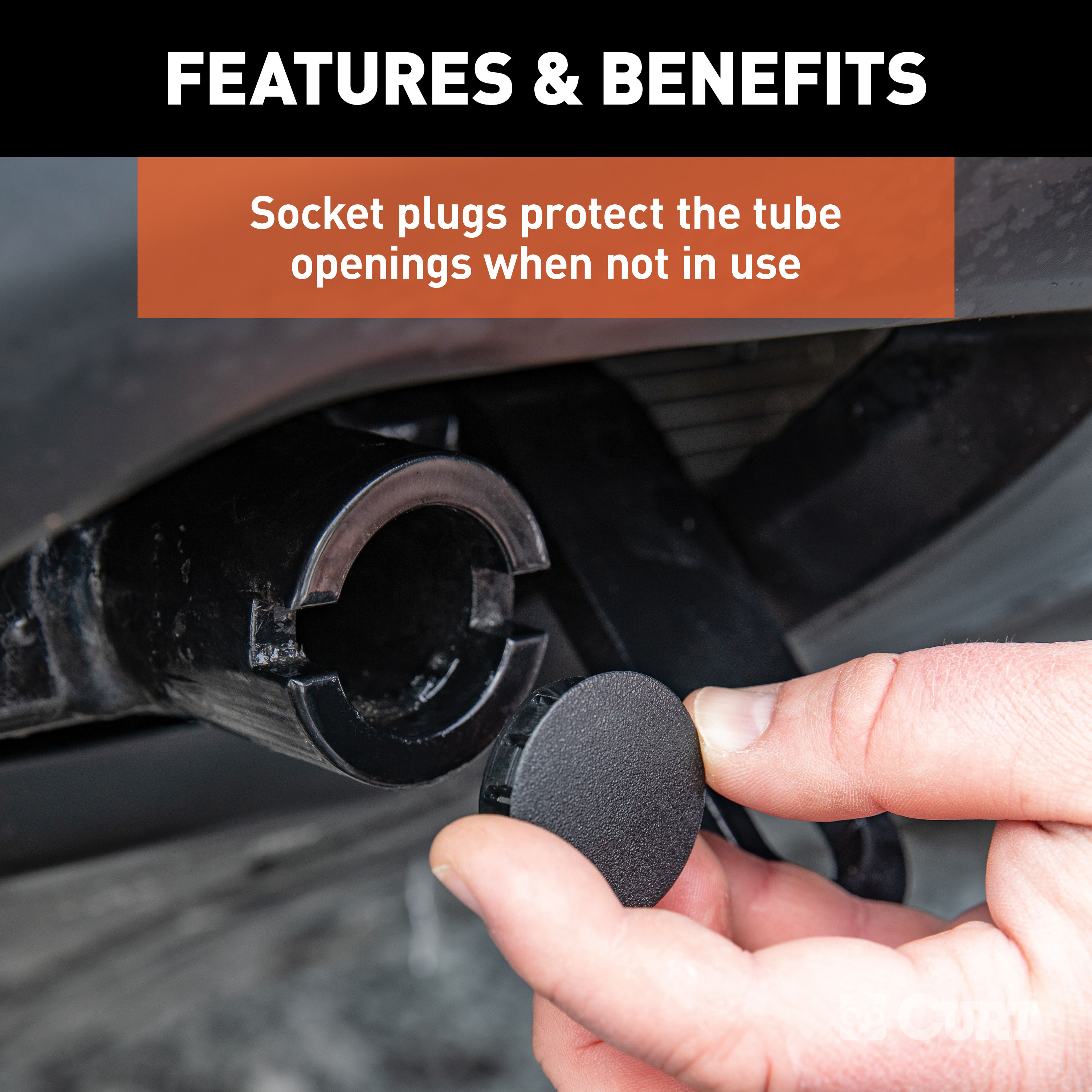

When not towing, insert the socket plugs into the ends of the tow bar base plate. When ready to tow, install the tow bar mounting tabs instead.
The manual recommends removing the base plate attachment tabs when not in use. When not towing, insert the socket plugs into the ends of the tow bar base plate.
The CURT 70109 fits 2010-2017 Chevrolet Equinox and GMC Terrain models. Fitment varies by model year and requires different trimming modifications.
You need a torque wrench, drill with 13/32" bit, reciprocating saw, T20 Torx bit, utility knife, vice grips, tape measure, sockets (9/16", 7/16", 7mm, 10mm), wrenches (7/16", 9/16"), and fishwire. A non-marring pry tool is also needed.
Yes. You must drill four 13/32" holes in the vehicle frame and trim the frame and plastic components. Trimming requirements vary by model year. These modifications are permanent.
All base plate fasteners must be torqued to 37 lb-ft. Ensure the base plate is level before final torquing.
Wear safety glasses at all times. Take care when cutting plastic or metal to prevent injury. Never exceed the vehicle manufacturer's GVWR when towing.
Periodically check all towing equipment condition, ensure all fasteners remain tight, and do not tow with worn or damaged parts. Review your vehicle and trailer owner's manuals for specific towing recommendations.
