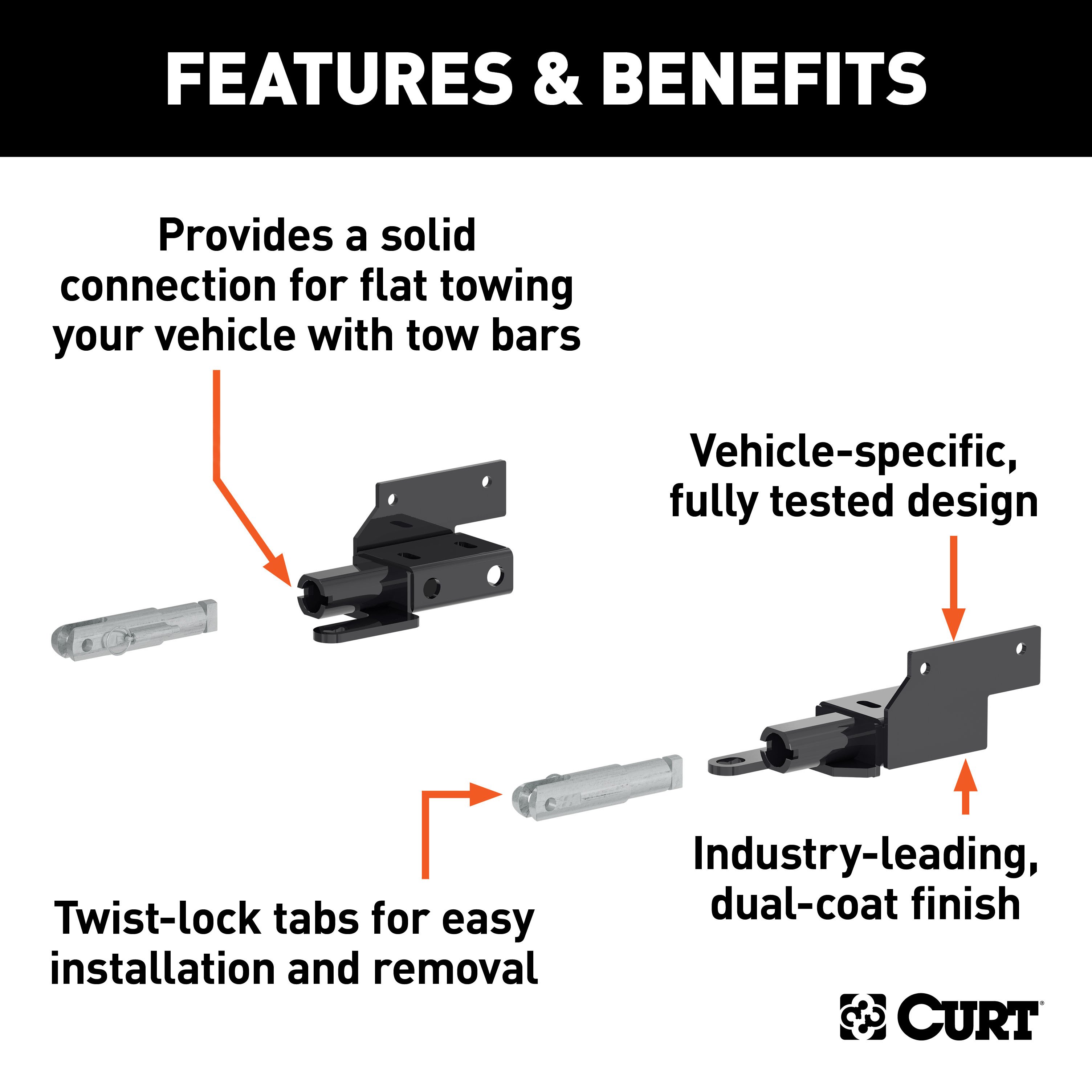

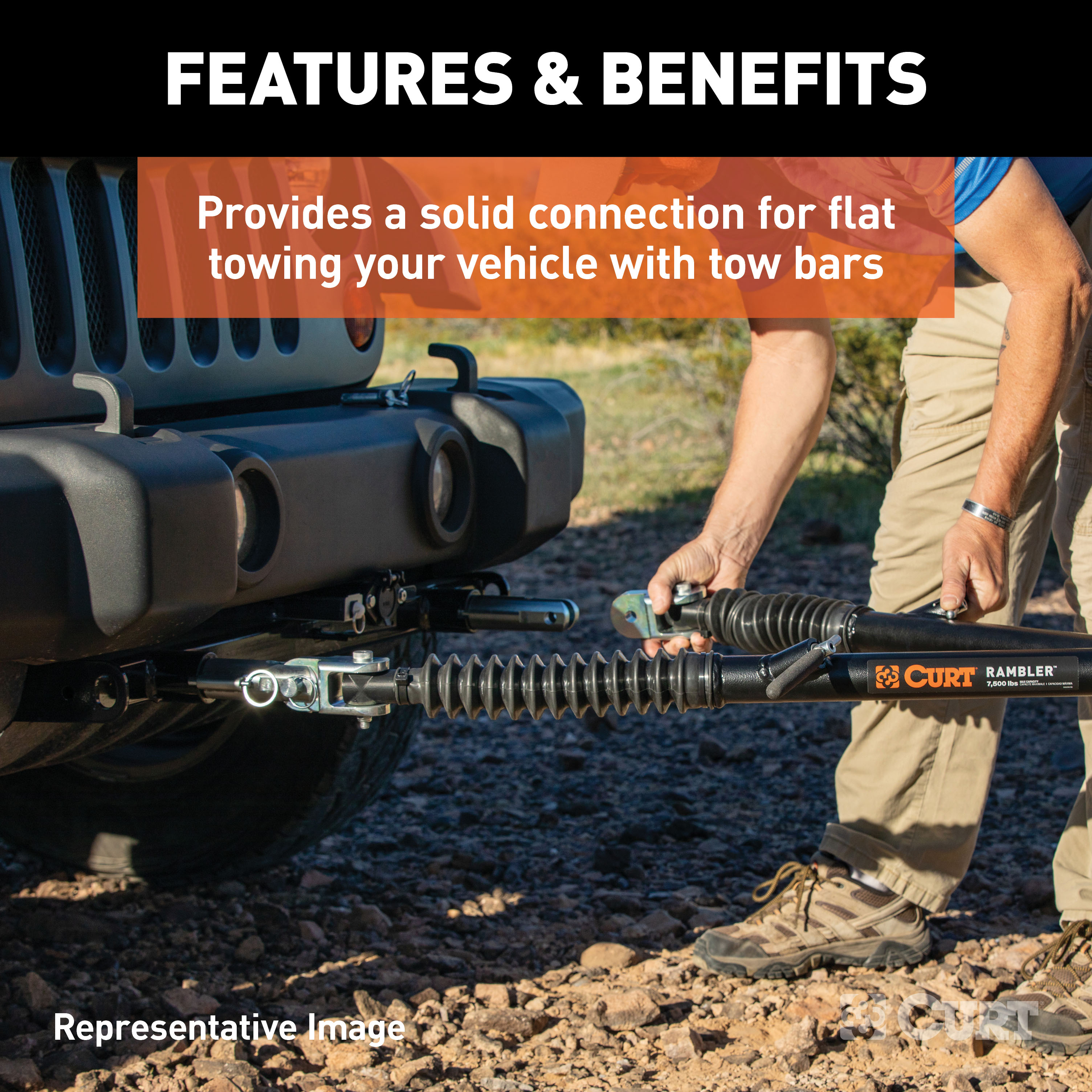

Provides a solid connection for dinghy towing your vehicle with tow bars
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |

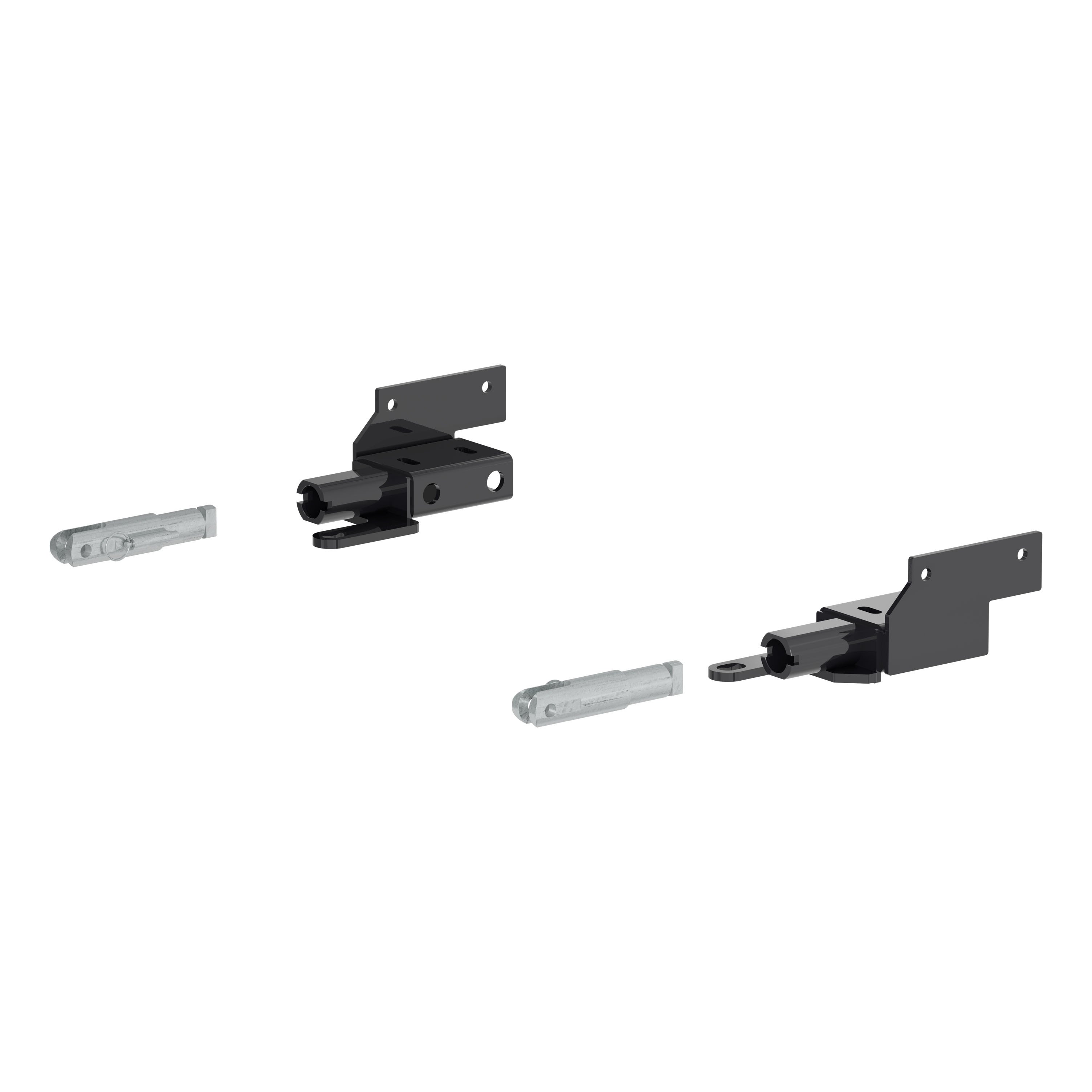

CURT tow bar base plates are engineered for a custom fit on each unique vehicle. This custom tow bar base plate fits select years of the Ford F-150 (see application info to verify fitment). It features an OE style design to fully integrate with the front of the vehicle and maintain a factory look. This Ford F-150 tow bar baseplate is constructed from high-quality steel and is precisely welded for a perfect fit. It is physically tested for absolute safety and peace of mind while dinghy towing. It also features a unique co-cured finish of liquid A-coat and highly durable powder coat to protect against the outdoor elements. This base plate for towing comes with attachment tabs, safety cables and installation hardware.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited lifetime warranty (one-year finish, one-year parts)
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
Yes, the CURT 70150 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Ford F-150 (Part #BKDK70150) is designed to fit the 2021-2026 Ford F-150.
The CURT 70150 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Ford F-150 (Part #BKDK70150) fits the following vehicles: 2021-2026 Ford F-150. Always verify your specific year, make, and model before ordering.
The CURT 70150 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Ford F-150 (Part #BKDK70150) fits 2021-2026 Ford F-150 models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 70150 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Ford F-150 (Part #BKDK70150) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Curt 70150 is designed for Ford F-150 Standard, Raptor, Tremor 402A, and Hybrid models. The manual provides model-specific removal and installation steps for Standard, Raptor & Tremor 402A, and Hybrid variants. Confirm your specific F-150 model matches one of these before purchasing.
The installed attachment tabs measure 16.5 inches in height and 34 inches in width.
Required tools include: drill with 1/2" bit, torque wrench, 5/16" nut driver, Phillips screwdriver, sockets (7mm, 8mm, 10mm, 15mm, 21mm, 7/16", 9/16", 3/4"), wrenches (7/16", 9/16", 3/4"), 3/8" and 1/2" ratchets, and a trim panel pry tool. Loctite red is also required for all bolt threads.
Yes, bumper removal is required. The removal process varies by model: Standard models require removal of three nuts from behind the bumper and unplugging electrical connections. Raptor & Tremor 402A models require additional skid plate removal. Hybrid models require fascia cover and grille removal before bumper removal. The bumper is reinstalled after base plate installation.
Skid plate removal is required for Raptor & Tremor 402A models only. For these models, remove one hex head bolt from the skid plate bracket on each side, then remove four hex head bolts (two from each side) under the tow hooks, and two bolts from the back of the skid plate. The skid plate is temporarily removed and reinstalled later using four shorter M10 bolts. Standard and Hybrid models do not require skid plate removal.
Yes, the factory tow hooks are permanently removed. During base plate installation, use a 15mm socket to remove the two bottom hex head bolts from each tow hook on both sides of the vehicle. These bolts will not be reinstalled.
Yes, removal of recovery loops/D-rings is required and is a permanent modification. The manual lists this as part of the installation requirements.
Yes, drilling is required. Using the base plate as a template, drill two 1/2" holes through the frame of the vehicle on each side. The manual notes that you may need to ream drill holes as needed to ensure there is no gap between the base plate and outer frame rail.
Yes, trimming is required on Hybrid models only. On the backside of the lower valance/air dam, trim the plastic behind the tow hook opening as needed to allow proper clearance for the base plate. This must be done on both sides of the vehicle.
All base plate bolts must be torqued to 110 ft-lb. This applies to: the two 1/2" hex head bolts with flat washer and locking washer installed into the bottom holes of the tow hook housing, and the two 1/2" bolts with lock washer drilled through the frame. Loctite red must be applied to all bolt threads before tightening.
No, the manual states 'No fishwiring required' for this installation. However, you must unplug and reconnect existing electrical connections during bumper removal and reinstallation. An optional electrical bracket (Curt PN #58300) is available for purchase if desired.
Safety glasses must be worn at all times during installation. Use caution when removing bumper bolts, as the bumper could fall once all bolts are removed. When skid plate bolts are removed, the skid plate could fall. Never exceed the vehicle manufacturer's recommended towing capacity when using this base plate.
Yes, safety cables must be used at all times when dinghy towing a vehicle with a tow bar. The Curt 70150 includes two permanent base plate safety cables rated for 7500 lbs each. These cables are designed to help prevent complete vehicle separation in the event of a disconnect. Safety cables are not a replacement for safety chains connecting the tow vehicle to the towed vehicle.
Safety cables must be connected to the base plate using the provided .500" Quick Link and secured to a solid piece of the vehicle frame. Ensure cables do not rub against any hoses or moving parts, as this could cause severe damage to the vehicle. Additional options may interfere with suggested mounting locations, so verify clearance before final installation.
After installation, verify that all electrical connections are properly reconnected. Ensure all fasteners are tight and all structural components are sound. Periodically inspect the product to ensure all hardware and components remain secure. Check that safety cables do not rub against hoses or moving parts.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive cleaners, abrasive pads, wire brushes or other similar products that may damage the finish. Periodically check the condition of all towing equipment and ensure all fasteners remain tight.
The kit includes: one driver-side base plate (70150-DSWA), one passenger-side base plate (70150-PSWA), two base plate T-bolts, four handle nuts (1/2-13 UNC), eight hex head bolts (1/2-13 UNC, 1-3/4"), four nylon lock nuts (1/2-13 UNC), eight lock washers (1/2"), four flat washers (7/16"), four .500" quick links, two cap lugs, four flange bolts (M10x1.5, 20mm), and two safety cables rated for 7500 lbs.
The Curt 70150 fits Ford F-150 Standard, Raptor, Tremor 402A, and Hybrid models. Confirm your specific model variant before purchasing.
You'll need a drill with 1/2" bit, torque wrench, sockets (7mm, 8mm, 10mm, 15mm, 21mm, 7/16", 9/16", 3/4"), wrenches (7/16", 9/16", 3/4"), ratchets (3/8", 1/2"), Phillips screwdriver, 5/16" nut driver, trim panel pry tool, and Loctite red.
Yes, you must drill two 1/2" holes through the vehicle frame on each side using the base plate as a template. Hybrid models also require trimming plastic from the lower valance/air dam for clearance.
All base plate bolts must be torqued to 110 ft-lb with Loctite red applied to all threads.
Yes, two permanent base plate safety cables rated for 7500 lbs are included and must be used at all times when dinghy towing.
Yes, bumper removal is required. The process varies by model: Standard models require removing three nuts and unplugging electrical; Raptor & Tremor 402A models also require skid plate removal; Hybrid models require fascia and grille removal first.
Installation is rated as Difficult, based on time and effort involved. Difficulty may vary depending on installer expertise, vehicle condition, and proper tools and equipment.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2026 | Ford F-150 | Excluding Lobo package |
