Includes base plate, safety cables and installation hardware (tow bar sold separately)
Not compatible with universal tow bar
Includes base plate, safety cables and installation hardware (tow bar sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: GLOSS BLACK POWDER COAT
Installation Time Exact (Minutes): 0

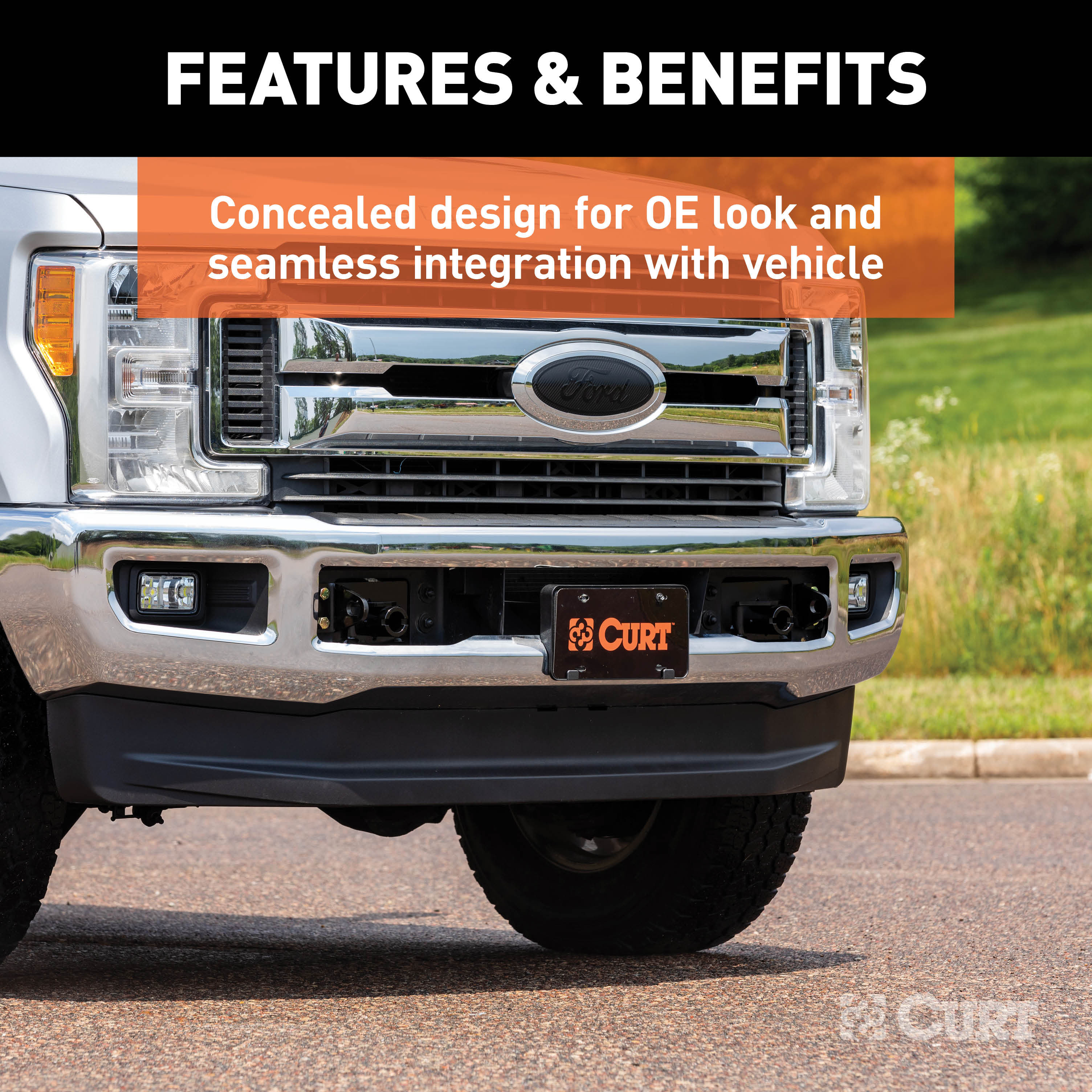

CURT tow bar base plates are engineered for a custom fit on each unique vehicle. This custom tow bar base plate fits select years of the Ford F-250 (see application info to verify fitment). It features an OE style design to fully integrate with the front of the vehicle and maintain a factory look. This Ford F-250 tow bar baseplate is constructed from high-quality steel and is precisely welded for a perfect fit. It is physically tested for absolute safety and peace of mind while dinghy towing. It also features a unique co-cured finish of liquid A-coat and highly durable powder coat to protect against the outdoor elements. This base plate for towing comes with attachment tabs, safety cables and installation hardware.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2019 | Ford F-250 Super Duty | Drilling Required Installation Time - Visibility - |
| 2017 - 2019 | Ford F-350 Super Duty | Drilling Required Installation Time - Visibility - |
The CURT 70137 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Ford F-250 (Part #BKDK70137) fits 2017-2019 Ford F-250 Super Duty models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 70137 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Ford F-250 (Part #BKDK70137) is designed to fit the 2017-2019 Ford F-250 Super Duty.
The CURT 70137 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Ford F-250 (Part #BKDK70137) fits the following vehicles: 2017-2019 Ford F-250 Super Duty; 2017-2019 Ford F-350 Super Duty. Always verify your specific year, make, and model before ordering.
The CURT 70137 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Ford F-250 (Part #BKDK70137) Drilling is required for installation. Typical installation time is . Basic hand tools are typically all you need.

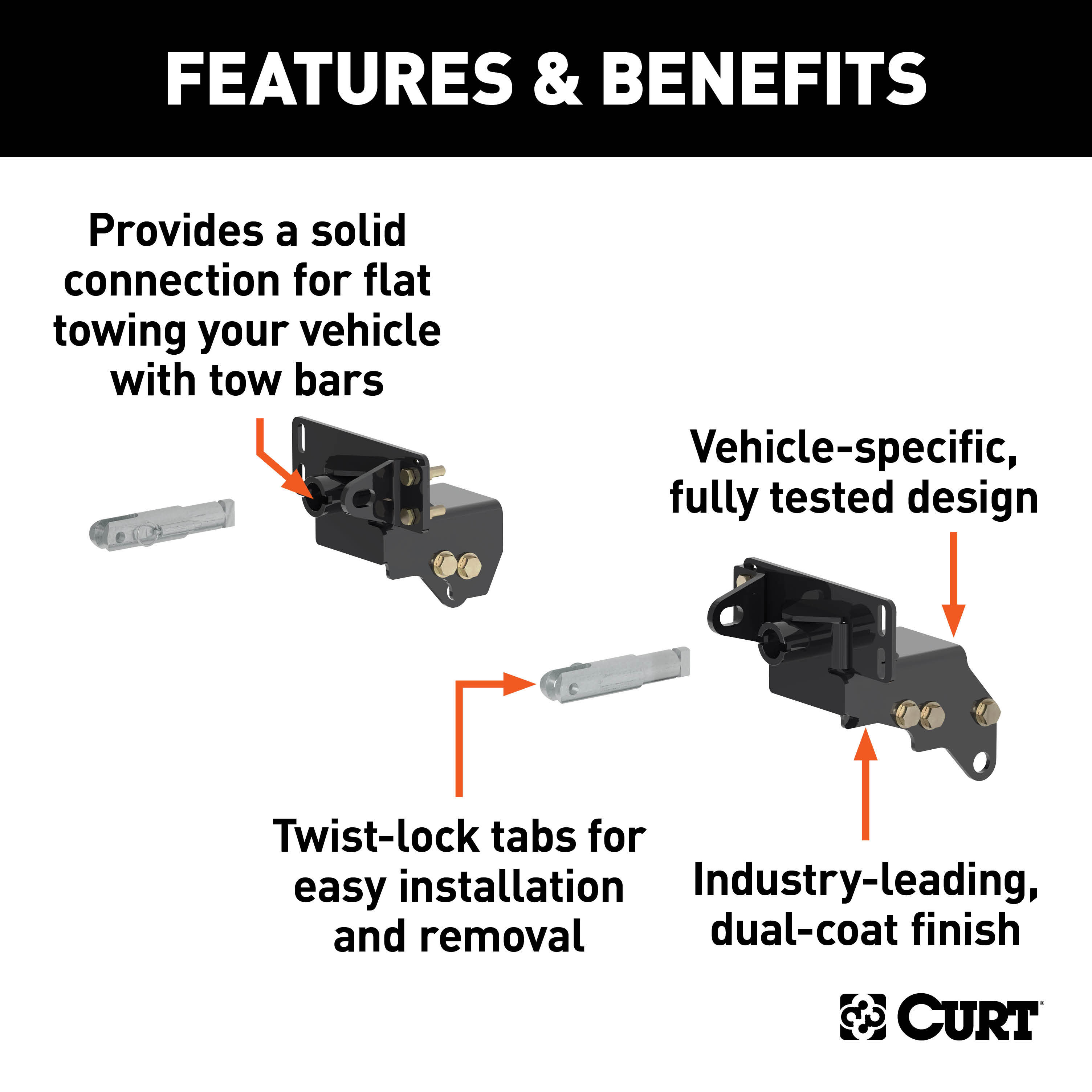

The CURT 70137 is a tow bar base plate assembly designed to provide a mounting point for towing equipment. It consists of driver-side and passenger-side base plates that attach to the vehicle frame using hex head cap screws and serrated flange nuts. The assembly includes safety cables rated at 7,500 lbs. each and safety chain plates for additional security. The installed dimensions are 24-1/2" in height and 34-1/2" in width.
The manual does not specify the vehicle make, model, or model year. Contact CURT product support at 877-287-8634 or visit curtmfg.com to confirm fitment for your specific vehicle before purchasing.
Yes, the installation procedure includes steps to remove and reinstall the ACC if equipped. In Step 3, use a 10mm socket to remove two bolts from the ACC cover on the driver side, then use an 11mm socket to remove three bolts mounting the ACC. Unplug and set the ACC aside during installation. In Step 15, reinstall the ACC and cover, trimming the bolt covers as needed to reinstall around the convenience links.
Required tools are: 15mm socket, 18mm socket, 7/16" socket, 11/16" drill bit, 7/16" wrench, 3/4" wrench, torque wrench, drill, utility knife, and tape measure. A 10mm socket and 11mm socket are also needed if the vehicle is equipped with adaptive cruise control.
The kit includes: 14 hex head cap screws 5/8"-11 x 1-3/4" (grade 8), 14 flat washers 5/8", 14 serrated-flange nuts 5/8"-11 (grade 8), 4 hex head cap screws 1/2"-13 x 2" (grade 8), 4 serrated-flange nuts 1/2"-13 (grade 8), 2 safety cables rated 7,500 lbs. each, 2 safety chain plates, 2 tow bar mounting tabs, 2 caplugs, and 2 quick links 1/2".
Yes, temporary removal of the bumper is required. In Step 1, unplug the wiring connector for the bumper harness from under the vehicle behind the bumper. In Step 5, remove four bolts around each tow hook using an 18mm socket, then pull the bumper forward and set it aside. The bumper is reinstalled in Step 13 after the base plates are secured.
Yes, temporary removal of the tow hooks is required. In Step 6, use an 18mm socket to remove four bolts from the bottom of each tow hook. Remove the tow hooks and return them to the vehicle owner. The tow hooks are not reinstalled as part of this installation.
The installation difficulty is rated as Moderate. This rating is based on time and effort involved and may vary depending on the installer's level of expertise, the condition of the vehicle, and availability of proper tools and equipment.
Yes, drilling is required. In Step 8, use an 11/16" drill bit to enlarge the forward-most two holes in the frame on both sides of the vehicle before installing the base plates. This is a permanent modification to the vehicle frame.
In Step 11, use a utility knife to trim the marked areas on both tow hook panels to allow the base plate to fit through the holes. Additionally, in Step 15, trim the bolt covers as needed to reinstall the ACC cover around the convenience links if the vehicle is equipped with adaptive cruise control.
All 5/8" hex head cap screws, flat washers, and serrated flange nuts must be torqued to 180 lb-ft. This applies to the 14 fasteners securing the base plates to the frame (2 in the enlarged forward holes and 12 in the remaining frame holes).
All 1/2" hex head cap screws and serrated flange nuts must be torqued to 110 lb-ft. This applies to the 4 fasteners securing the safety chain plates to the base plates.
The installed base plate assembly measures 24-1/2" in height and 34-1/2" in width.
Each of the two safety cables included with the kit is rated for 7,500 lbs.
In Step 9, slide both base plates (#1 driver side, #2 passenger side) onto the frame and align them with the existing front tow hook holes. Install two of the 5/8" x 1-3/4" hex head cap screws with washers into the holes previously enlarged in Step 8, and secure with 5/8" serrated flange nuts. In Step 10, install the remaining 5/8" fasteners into the 3 inward holes and 2 outward holes on the frame as shown in the diagram. Torque all 5/8" hardware to 180 lb-ft.
In Step 12, install the permanent safety cables (#4) by looping them around the vehicle frame and linking them to the tow bar base plates. There must be one cable on each side of the vehicle. Ensure the cables do not pinch or interfere with any hoses, wiring, or other components.
In Step 14, insert two 1/2" x 2" hex head cap screws (#9) from the front with a 1/2" serrated flange nut (#10) on the backside to attach each safety chain plate (#5) on both sides of the vehicle. Torque the 1/2" fasteners to 110 lb-ft.
In Step 4, on the passenger side, pass the engine heater plug through the backside of the bumper and let it hang out the front. Unclip it from the plastic mount on the bumper as well. This allows the bumper to be removed in Step 5 without damaging the heater plug.
Never exceed the vehicle manufacturer's recommended towing capacity. This is a critical safety requirement that must be observed when using the tow bar base plate.
No. The manual recommends removing the base plate attachment tabs when not in use to help prevent damage to the product or vehicle.
The safety cables must not pinch or interfere with any hoses, wiring, or other components. Verify proper routing and clearance during installation in Step 12.
You will need: 15mm, 18mm, and 7/16" sockets; 7/16" and 3/4" wrenches; torque wrench; drill with 11/16" bit; utility knife; and tape measure. A 10mm and 11mm socket are also needed if your vehicle has adaptive cruise control.
Yes, both the bumper and tow hooks must be temporarily removed. The bumper is reinstalled after the base plates are secured, but the tow hooks are not reinstalled as part of this installation.
Torque all 5/8" fasteners (base plate mounting bolts) to 180 lb-ft. Torque all 1/2" fasteners (safety chain plate bolts) to 110 lb-ft. Use a torque wrench to ensure proper tightness.
Never exceed the vehicle manufacturer's recommended towing capacity. Also, ensure safety cables do not pinch or interfere with hoses, wiring, or other components, and remove the base plate attachment tabs when not in use.
