CURT ActiveLink SE Hitch-Mounted Bike Rack (2 Bikes, 2" Shank) Bicycle RackCURTOriginal price was $316.95. Current price is $174.99.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Includes bike rack and shank (compatible with ActiveLink shank only)
For use with any frame-mounted 2" class 3 or higher trailer hitch receiver. Clamp-on bumper receivers and traditional 4" square bumpers should not be used to mount bike racks. Do not exceed receiver weight limits.
Patent pending
Includes bike rack and shank (compatible with ActiveLink shank only)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size (Inches): 2 IN
Finish: BLACK POWDER COAT
Installation Time Exact (Minutes): 0

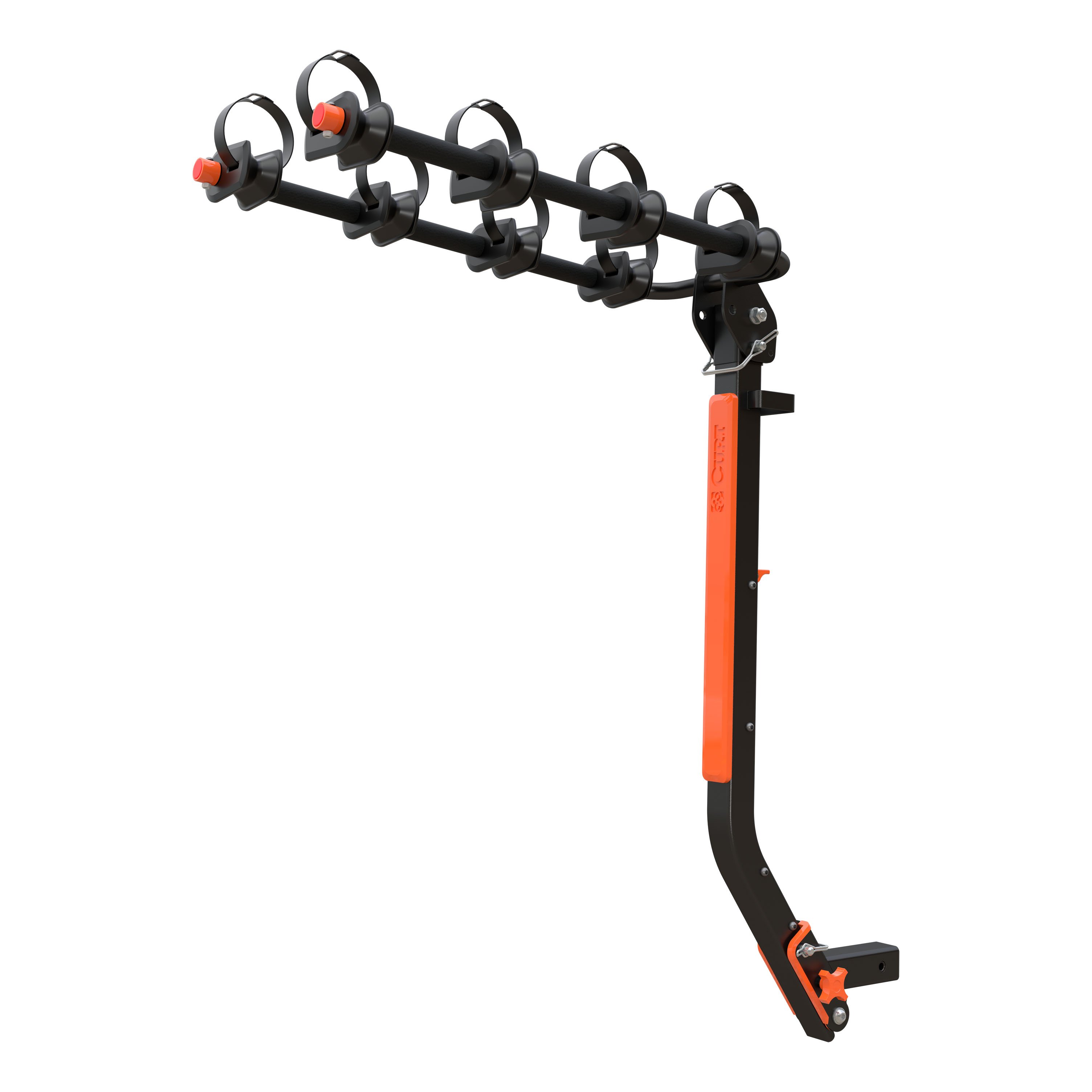

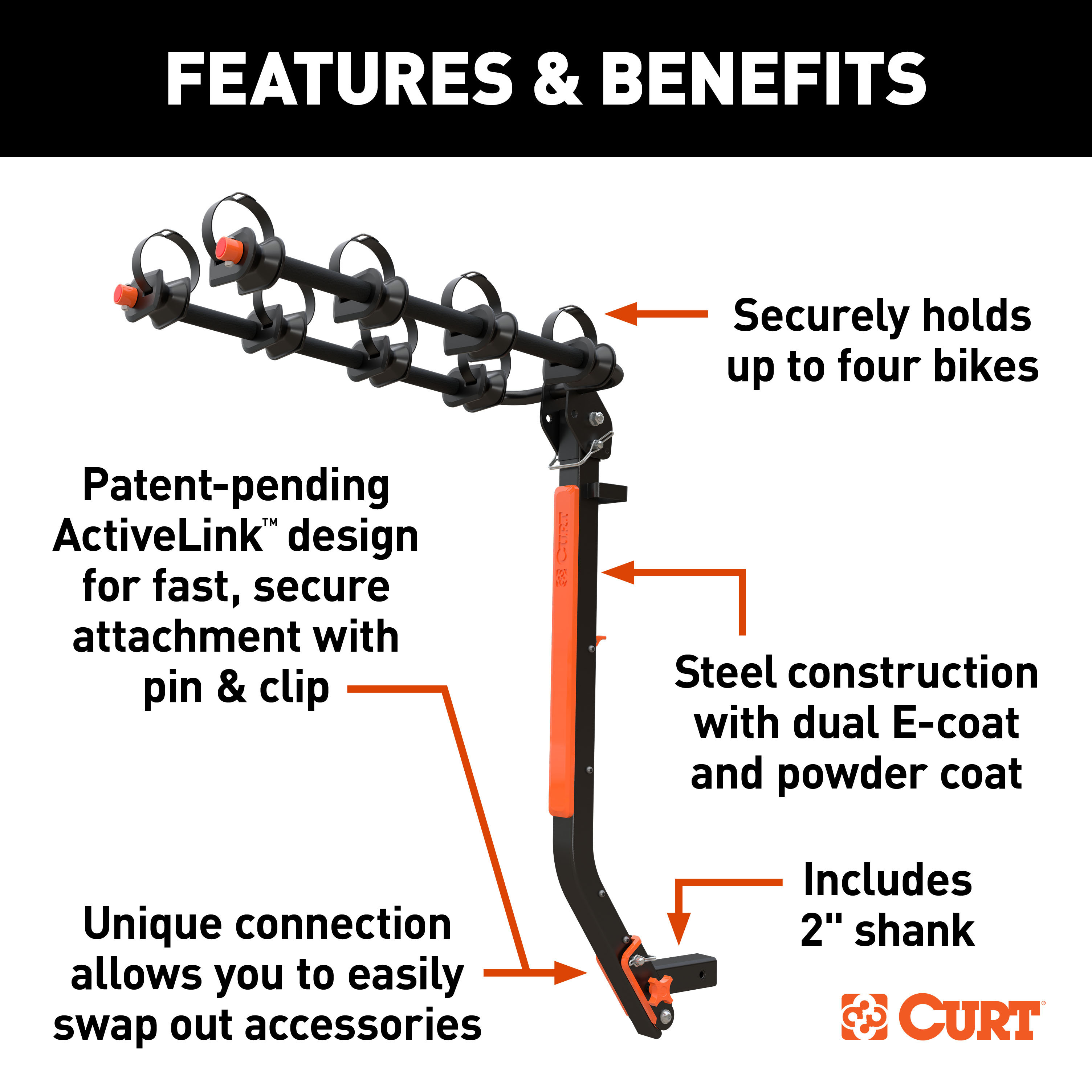

The CURT ActiveLink SE bike rack features a revolutionary hitch mounting system to make it faster and easier than ever to hook up the accessory you want to fully support your outdoor adventure. The system is hassle-free, and the rack holds up to four bikes, keeping them safe and secure for the journey. The ActiveLink system from CURT is built around an innovative hitch attachment system. After installing the ActiveLink shank into your receiver, you can quickly and easier attach whatever ActiveLink accessory you want, struggle-free. No more climbing down on your hands and knees to wrestle with rusty, grimy components. Simply install the ActiveLink shank once, and the integrated pivot point and plastic-lined receiver ensure everything lines up perfectly, every time. Plus, the shank allows you to swap out accessories with the greatest of ease, including the ActiveLink bike rack! This 4-bike rack model features high-strength steel construction and a capacity of 180 pounds for secure transportation of your bikes. It has rubber cradles for a secure hold and a rubber bumper along the vertical support to help protect the frames from marring and scratches. The bike rack also features a tilting frame for easy access to the trunk or other rear cargo area, and the arms can be folded down for compact storage of the bike rack when not in use. To help protect this CURT bike rack for the long haul, it comes with a dual finish of A-coat and durable black powder coat.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The CURT 18411 is designed for vehicles with receiver hitches. The manual confirms it works with 1-1/4" receivers and larger. If your vehicle has a receiver hitch, this rack will fit. Verify your hitch size before purchase.
A support strap is required if you have a 1-1/4" receiver hitch. The support strap is sold separately. Failure to use it with a 1-1/4" receiver will void the warranty and may cause injury or property damage.
You need a torque wrench and a 3/4" socket. These are the only tools listed as required in the manual.
Tighten the anti-rattle bolt (#3) firmly until no movement of the shank is noticed, not to exceed 64 ft-lbs. Do not over-tighten.
The weight carrying capacity depends on the number of bikes: 1 bike = 45 lbs, 2 bikes = 90 lbs, 3 bikes = 135 lbs, 4 bikes = 180 lbs. Never exceed the product's weight capacity or your vehicle manufacturer's recommended towing capacity.
The package includes: 1 ActiveLink bike rack, 1 ActiveLink shank assembly, 1 anti-rattle bolt (1/2"-13), 1 flat washer (1/2"), 1 lock washer (1/2"), 1 hair pin clip, 1 anti-rattle handwheel, and 8 hook and loop straps. The support strap required for 1-1/4" receivers is sold separately.
The manual rates this product as "Easy" difficulty based on time and effort involved. Installation difficulty may vary depending on your expertise, vehicle condition, and access to proper tools. No professional installation is explicitly required, but you will need a torque wrench and 3/4" socket.
Insert the ActiveLink shank (#2) into your vehicle's receiver tube. Secure it with the anti-rattle bolt (#3), flat washer (#4), and lock washer (#5). Tighten the bolt firmly until no movement of the shank is noticed, not to exceed 64 ft-lbs. Do not over-tighten. Then install the hair pin clip (#6).

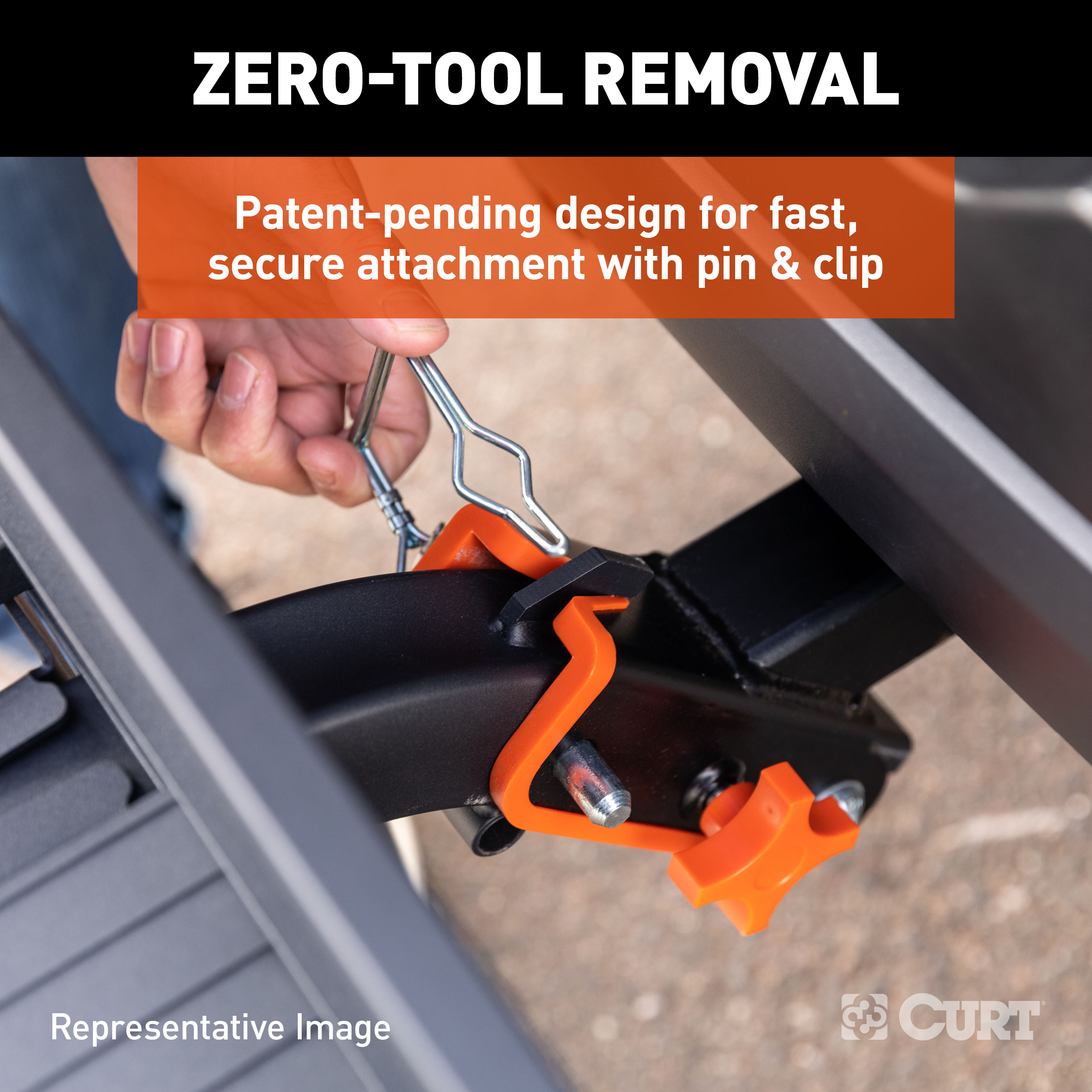

Remove the clevis pin from the ActiveLink shank's channel. Insert the ActiveLink rack assembly (#1) into the shank (#2), resting the tube's notch on the bolt and sliding the latch into the shank's notch. Insert the clevis pin into the shank, snapping the wire loop onto the pin. Thread the anti-rattle handwheel (#7) into the shank and tighten until no movement of the rack's support tube is noticed. Do not over-tighten the handwheel as it may damage the shank's insert.
Remove the clevis pin from the ActiveLink rack assembly (#1). Rotate the rack's arm assembly upward, aligning the holes in the plate with those in the square tube. Re-insert the clevis pin.

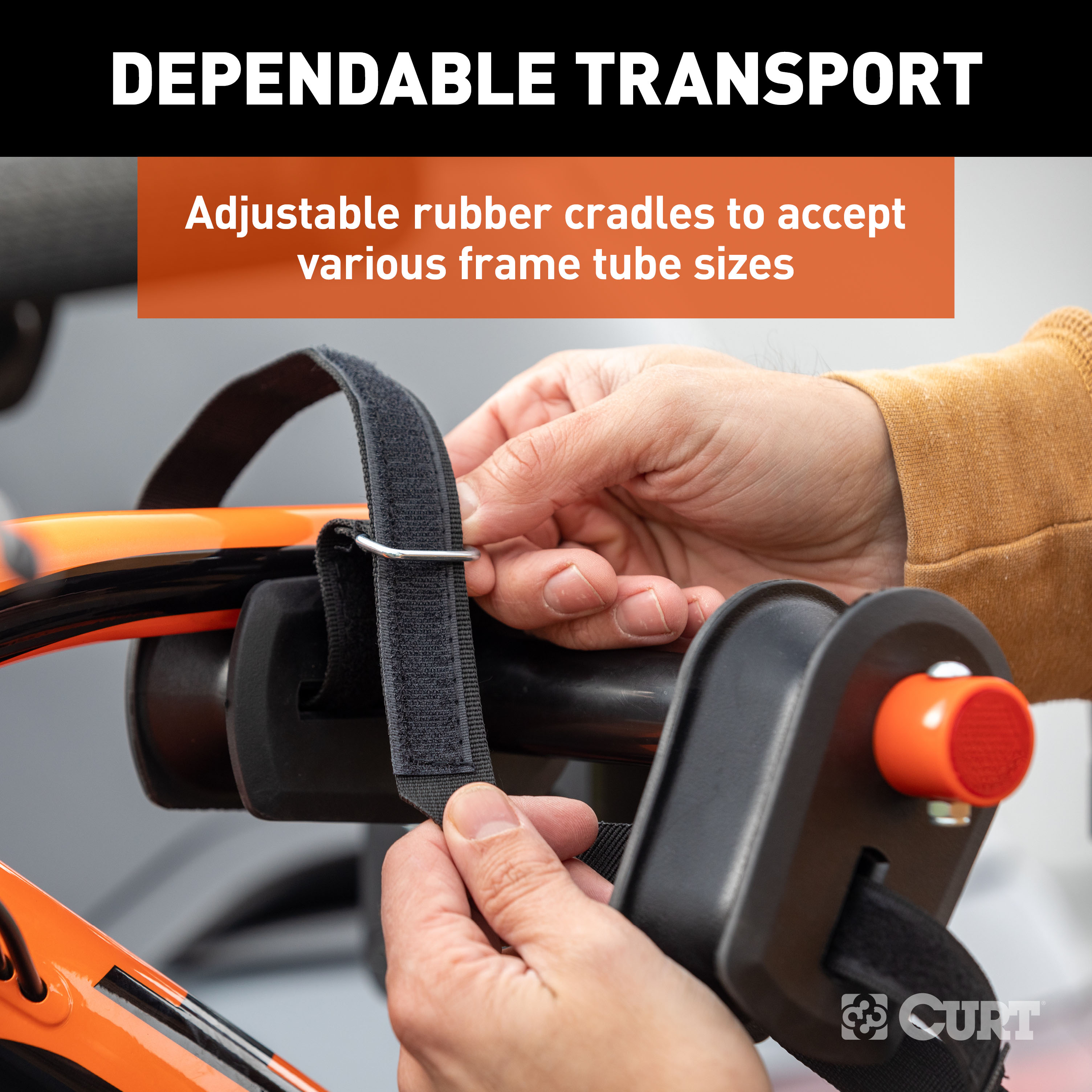

Adjust the frame cradles to your desired positions. Position the bike frame onto the cradles. Pass the hook and loop strap (#8) through the opening in each cradle, over the bike frame, through the strap's ring, and secure. Repeat for additional bikes if desired.

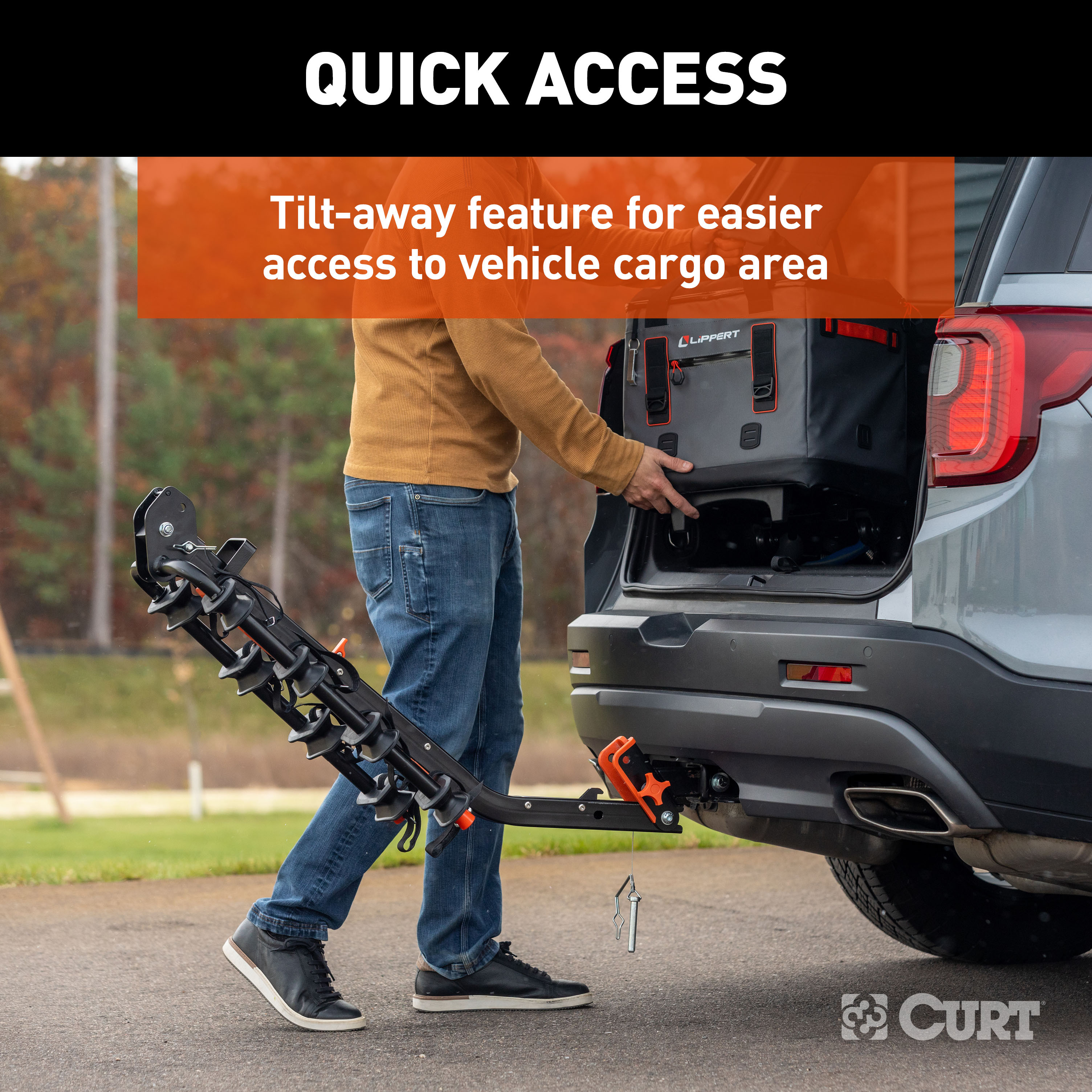

First, undo the support strap if you installed one. Loosen the anti-rattle handwheel (#7) and remove the clevis pin from the shank. While supporting the rack, push upward on the latch release lever and allow the rack to rotate downward. A tab on the underside of the ActiveLink shank (#2) will engage with the bike rack's tube to prevent disconnection. Do not transport the bike rack in the tilted position.
Rotate the rack upward until the latch snaps over the ActiveLink shank's (#2) slot. Re-insert the clevis pin and tighten the handwheel. Re-install the support strap if you previously installed one.
Yes. The ActiveLink rack's arm assembly can be folded for transport or storage. A convenient handle can be used for tilting, carrying, and storage, as well as a cable lock secure point.
Read all instructions thoroughly before beginning installation. Proper tools will improve the quality of installation and reduce the time required. After installation, perform a periodic inspection to ensure all hardware and components remain secure.
Yes. This product is not designed for off-road use. Do not install it on a trailer or towed vehicle. Remove the accessory before entering automatic car washes. Do not transport the bike rack in the tilted position. Never exceed your vehicle manufacturer's recommended towing capacity or the product's weight capacity. Always be mindful of the accessory extending beyond your vehicle when operating.
When transporting heavier bikes such as e-bikes and tilting the rack for rear vehicle access is necessary, a team lift may be required to prevent injury and/or product damage.
It is your responsibility to adhere to all state and federal laws regarding obstruction of vehicle lighting (brake lights, taillights, turn signals, and backup lights) and license plate when using this accessory.
Perform periodic inspection of your product to ensure all hardware and components remain secure. The manual does not specify an inspection interval, but regular checks are recommended to maintain safe operation.
On Sale Today
Original price was $375.95. Current price is $218.99.You save $156.96 (42%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
Shipping from Eau Claire, WIFREE SHIPPING
Estimated delivery Mon, Aug 31 - Wed, Sep 2
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
| Part # | Series Name | Number of Bikes | Capacity | Shank Size |
|---|---|---|---|---|
| Bike Racks | ||||
| 18410 | SE | Up to 2 | 90 lbs. | 2" included (1-1/4" sold separately, #18401) |
| 18411 | SE | Up to 4 | 180 lbs. | 2" included (1-1/4" sold separately, #18401) |
| 18412 | Ultra | Up to 4 | 180 lbs. | 2" included (1-1/4" sold separately, #18401) |
| Shanks | ||||
| 18401 | -- | -- | 3,500 / 350 lbs. | 1-1/4" |
| 18402 | -- | -- | 5,000 / 500 lbs. | 2" |
