For use with any frame-mounted 2" class 3 or higher trailer hitch receiver. Clamp-on bumper receivers and traditional 4" square bumpers should not be used to mount bike racks. Do not exceed receiver weight limits.
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size (Inches): 2 IN
Color: Black
Finish: CARBIDE BLACK POWDER COAT
Installation Time Exact (Minutes): 0

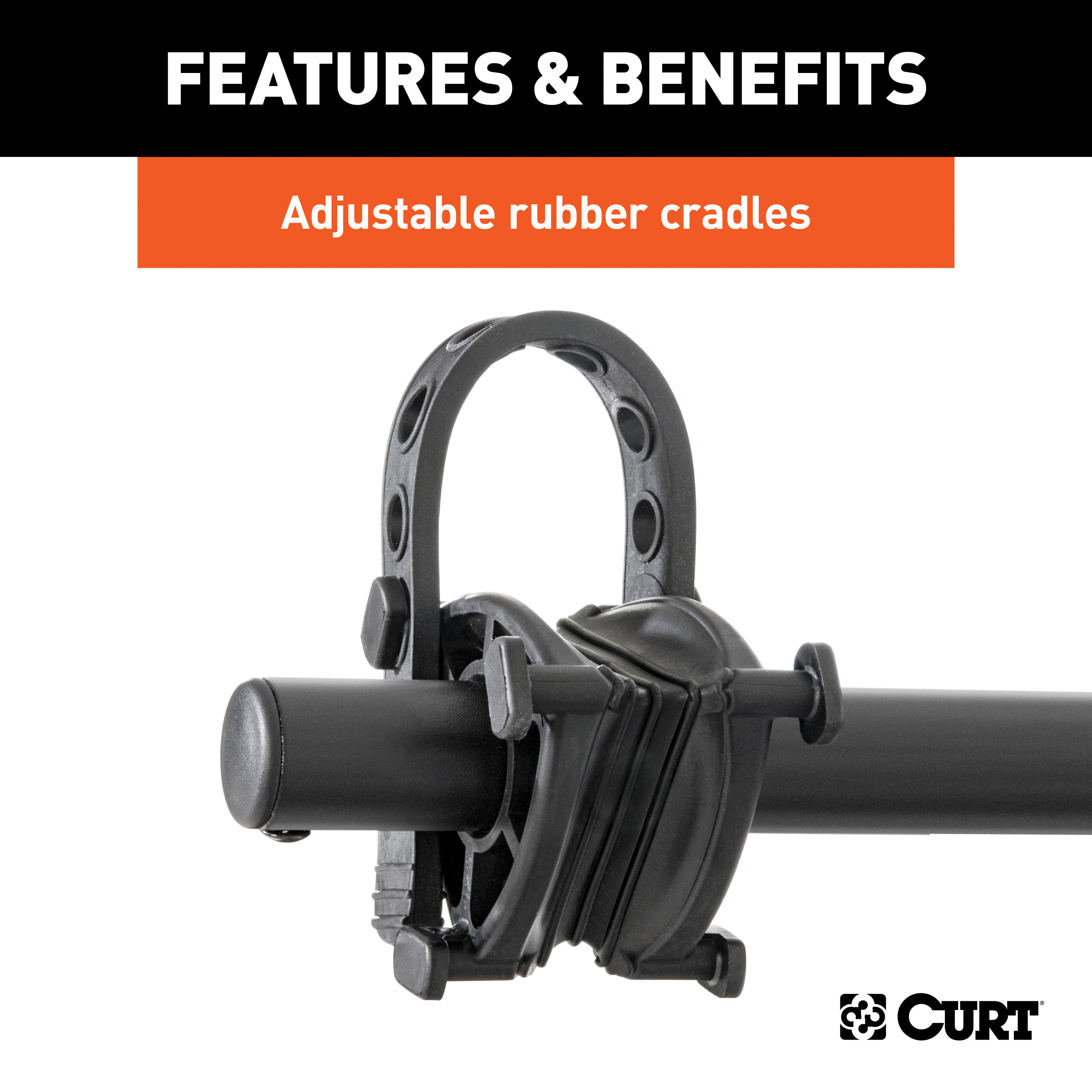

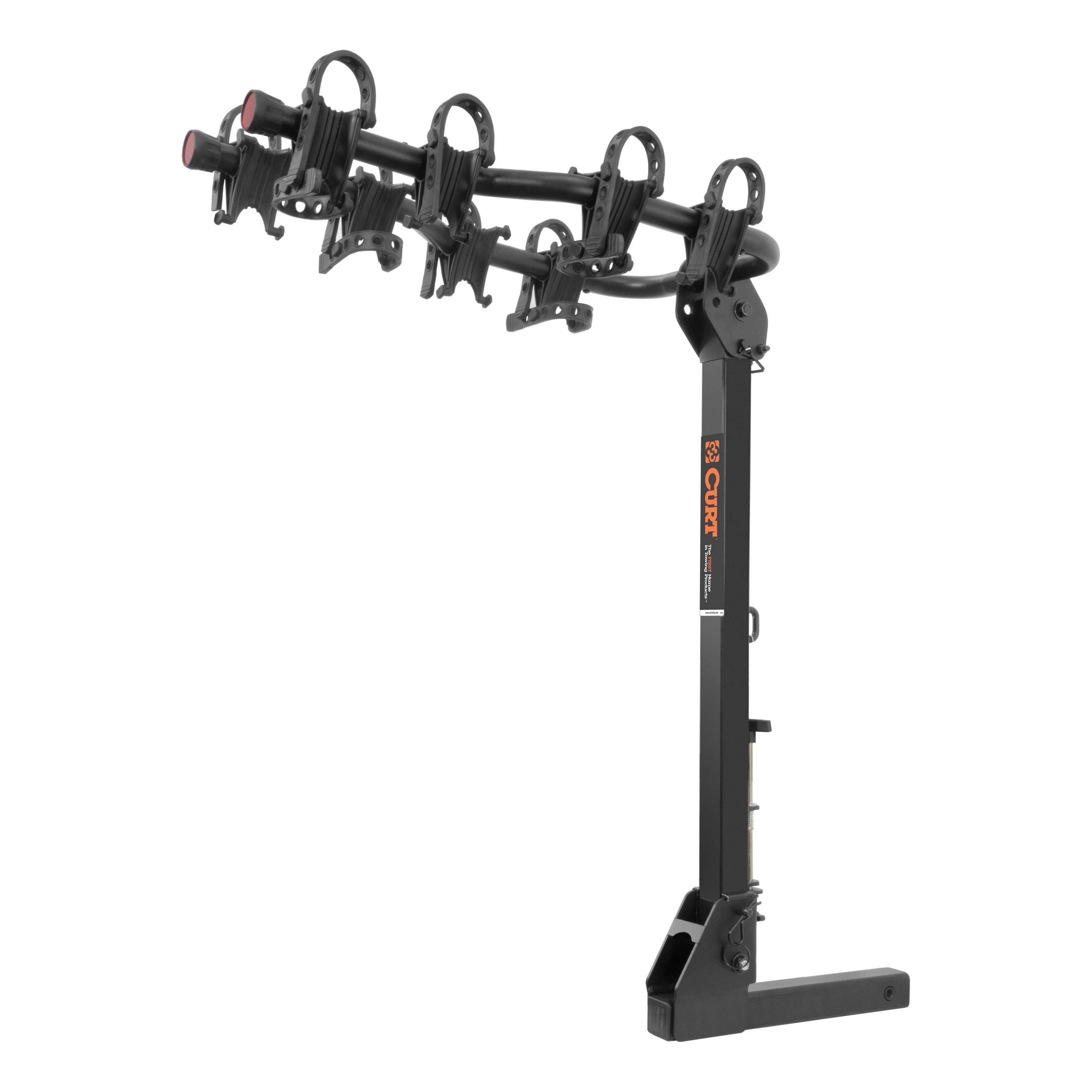

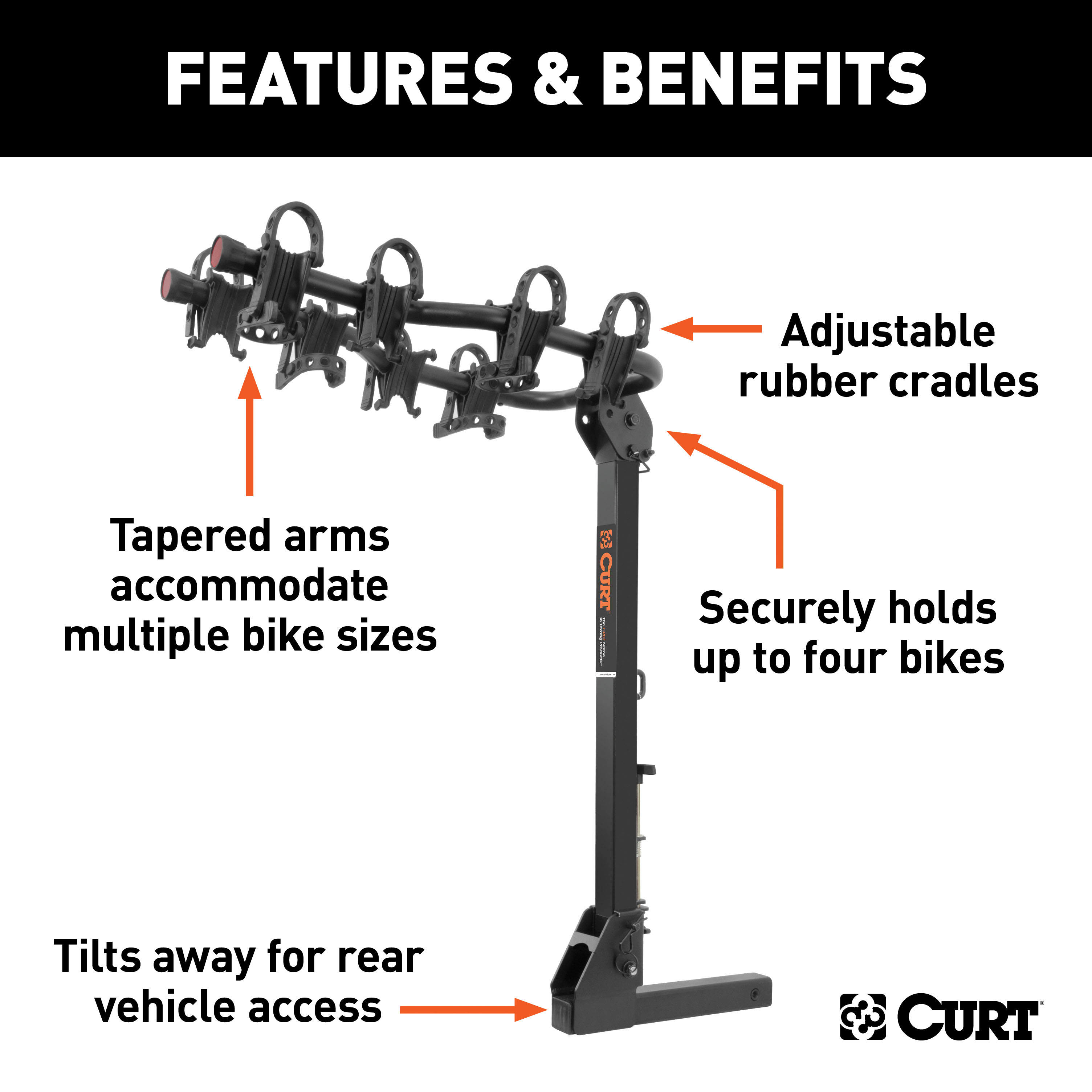

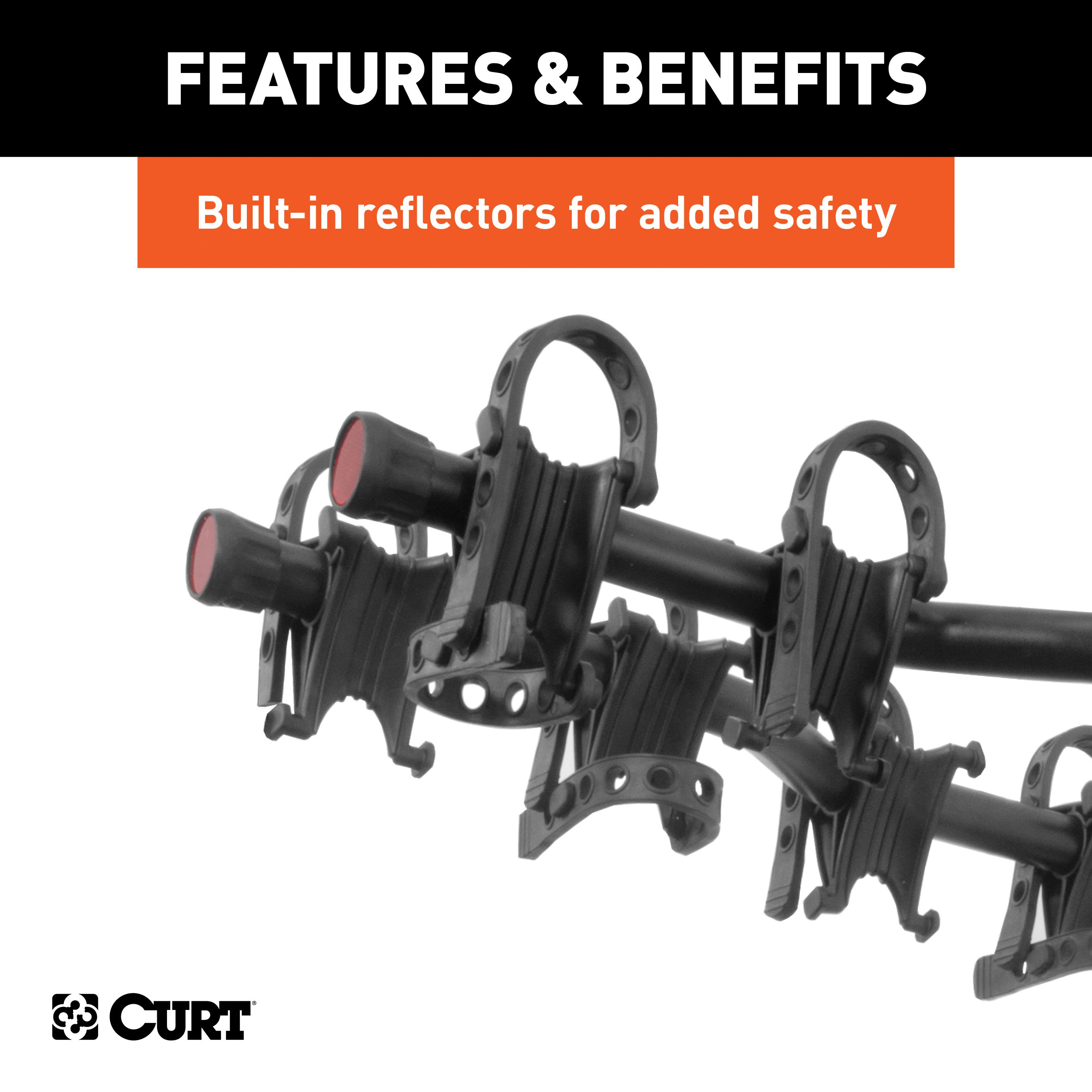

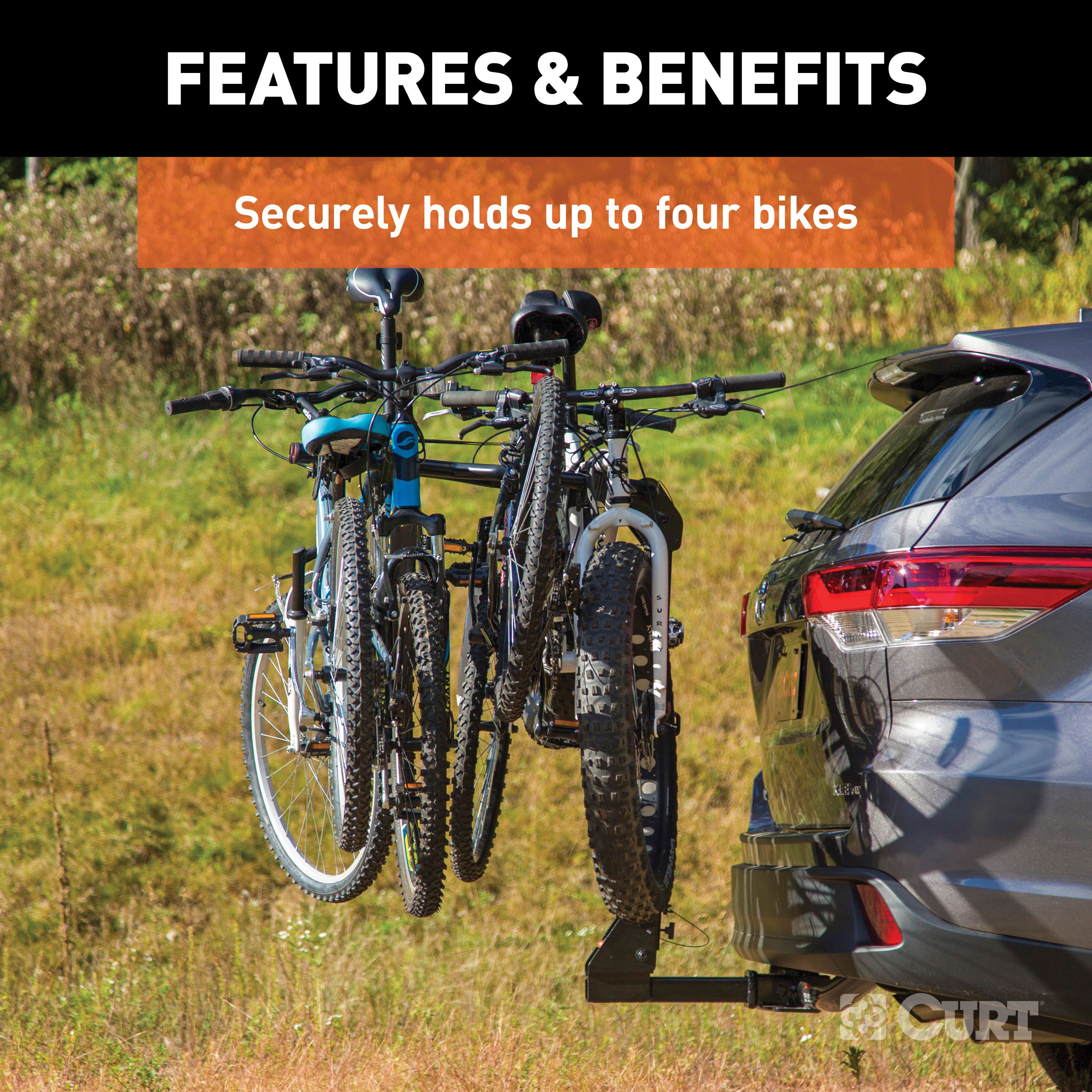

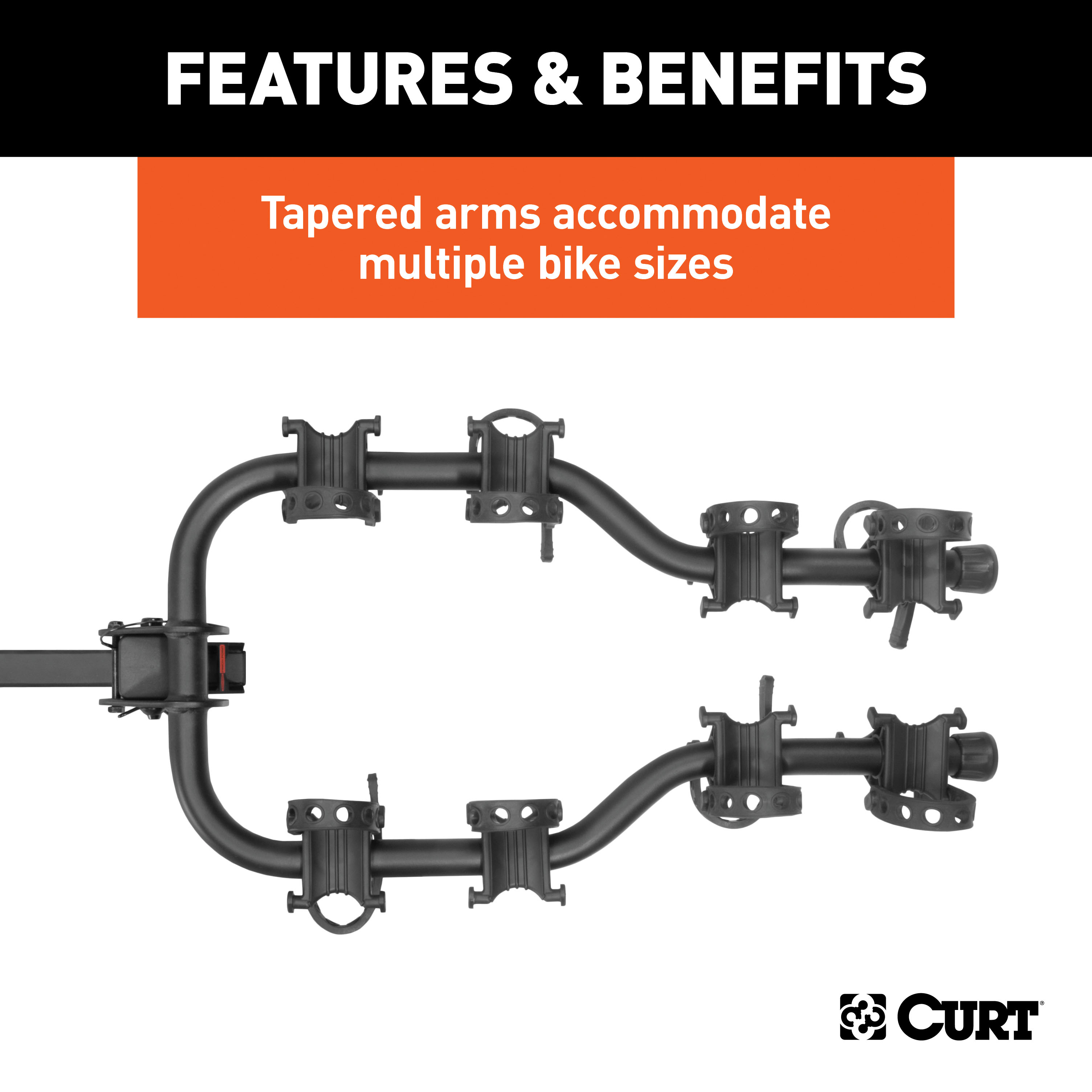

Whether you are an avid mountain biker or a casual rider, you will want CURT along for the ride. CURT bike racks offer both versatility and quality and are available in several different styles to fit your needs. CURT premium bike racks come with an anti-wobble shank for better bike security, foldable arms for a compact design and a tilt-away feature for easy rear vehicle access. One feature that sets the premium bike rack apart from others is its tapered arm design. CURT premium bike racks are very accommodating to different types of bikes, having tapered arms to fit a range of bike sizes. This makes them an especially attractive option for families with younger children. All CURT premium bike rack comes with a durable powder coat finish, built-in reflectors and non-scratch rubber cradles. This model features a maximum load limit of 180 lbs. and is able to hold up to four bikes at a time. NOTE: For use with any frame-mounted 2" class 3 or higher trailer hitch receiver. Clamp-on bumper receivers and traditional 4" square bumpers should not be used to mount bike racks. Do not exceed receiver weight limits.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products

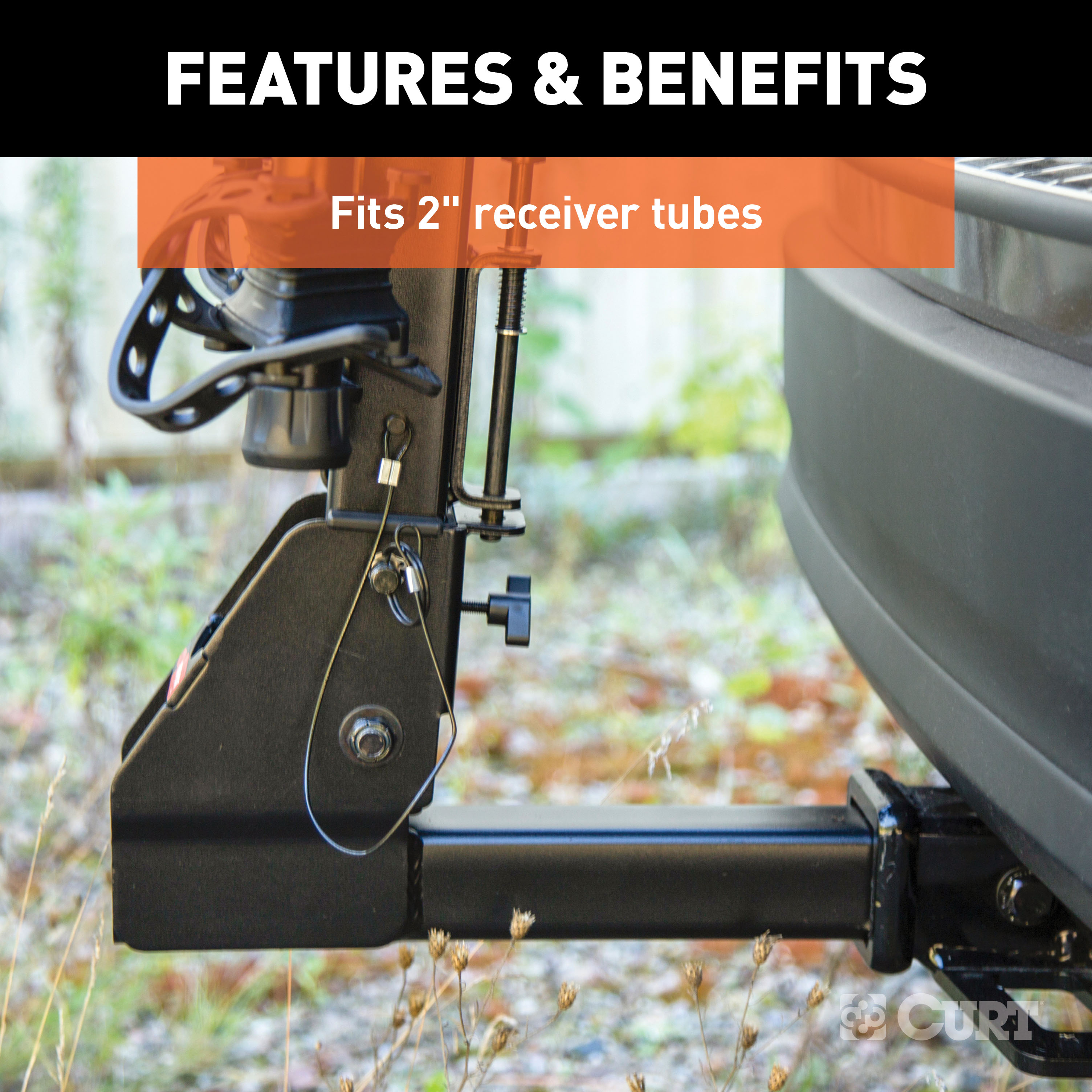

The Curt 18064 bike rack fits any tow vehicle equipped with a trailer hitch with a 2" receiver tube opening. Check your vehicle's hitch specifications to confirm it has a 2" receiver tube before purchasing.
No. The Curt 18064 is not intended for installation on a trailer or other towed vehicle. It is designed only for tow vehicles with a 2" receiver tube hitch.
No. The Curt 18064 is not intended for off-road use, tandems, or recumbents. It is designed for standard upright bicycles only.
The package includes: 1 arm post, 1 shank (2"), 12 rubber arm straps, 1 hex head bolt kit (bolt, two washers, nut), 1 anti-rattle bolt and clip, 1 clip, 1 8mm Allen wrench, and 1 19mm wrench.
The installation kit includes an 8mm Allen wrench and a 19mm wrench. These are the only tools required for assembly and installation.
Assembly has two steps: (1) Raise the arms on the arm post to the outright position and secure with the attached lynch pin. (2) Using the hex head bolt kit, attach the bottom of the arm post to the shank, making sure to install the bolt in the bottom hole. Insert the bolt connected to the main body through the top hole of the shank and secure with the provided clip.

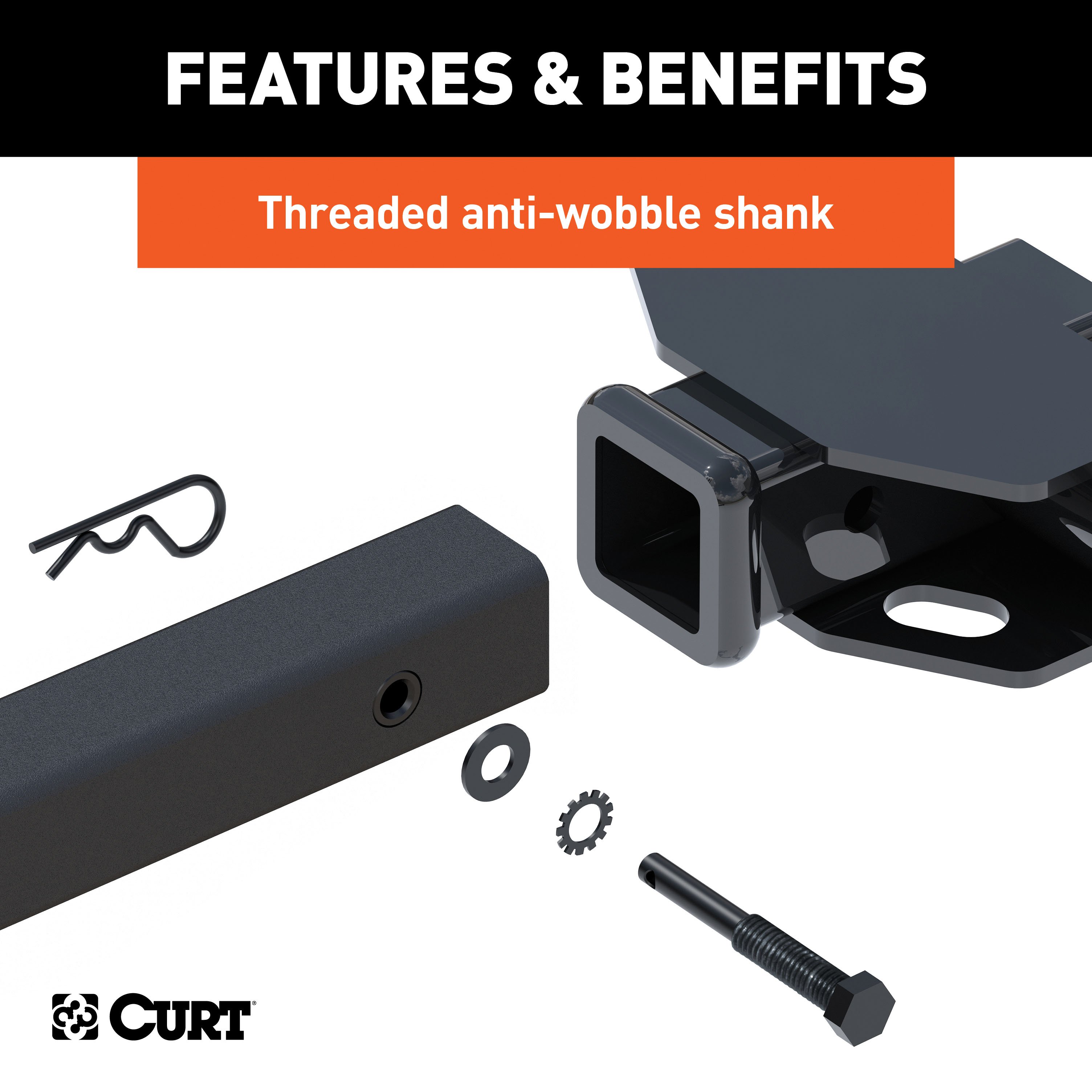

Insert the bike rack shank into the vehicle receiver tube. Secure with the 1/2" hex head bolt, flat washer, star washer, and clip provided in the bolt kit.
Install the bikes on the rack and secure with the provided rubber bike arm straps. Be sure to secure both the cross post and seat post to the rack. When towing more than one bike, alternate the directions the bikes are facing: first bike faces right, second bike faces left, and so on.

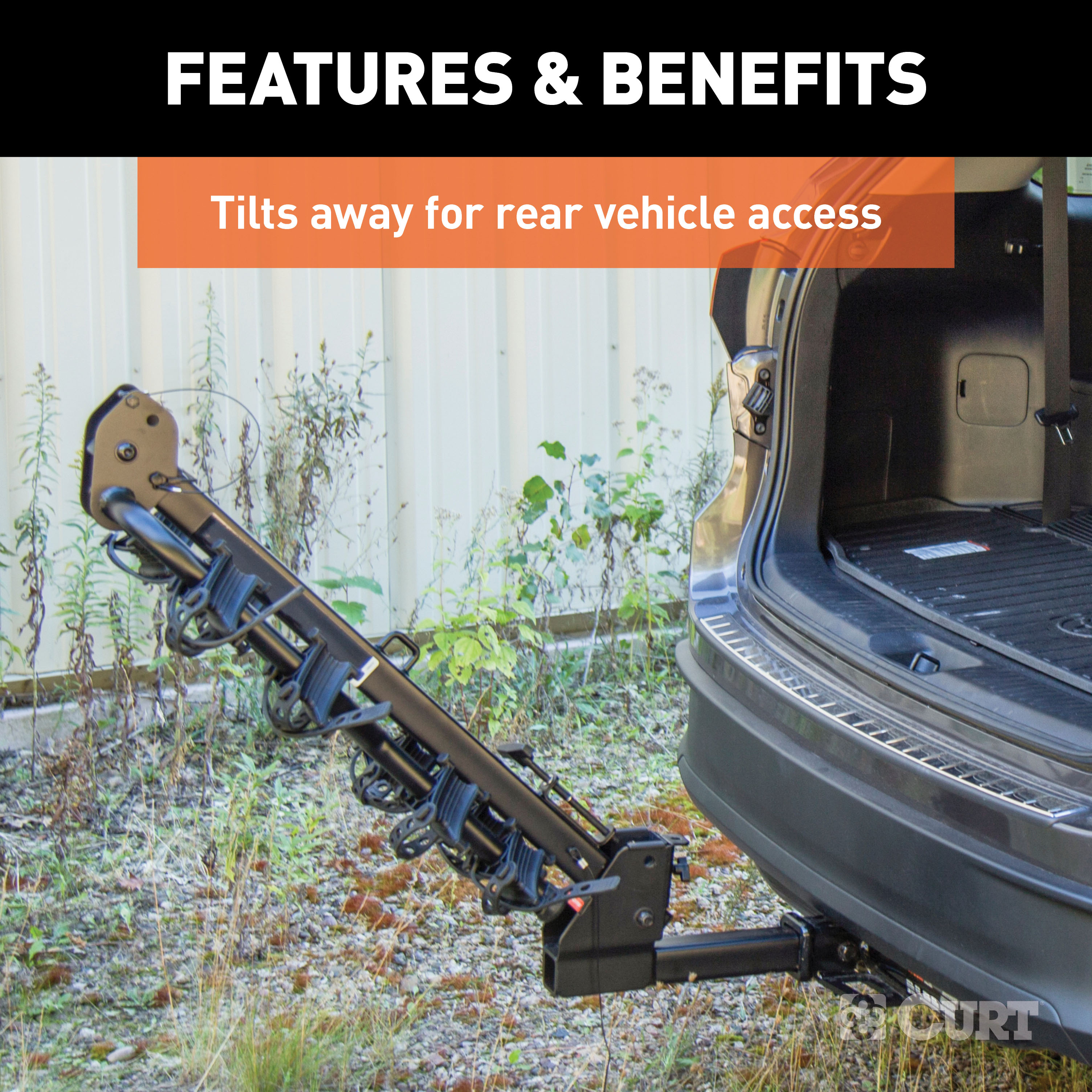

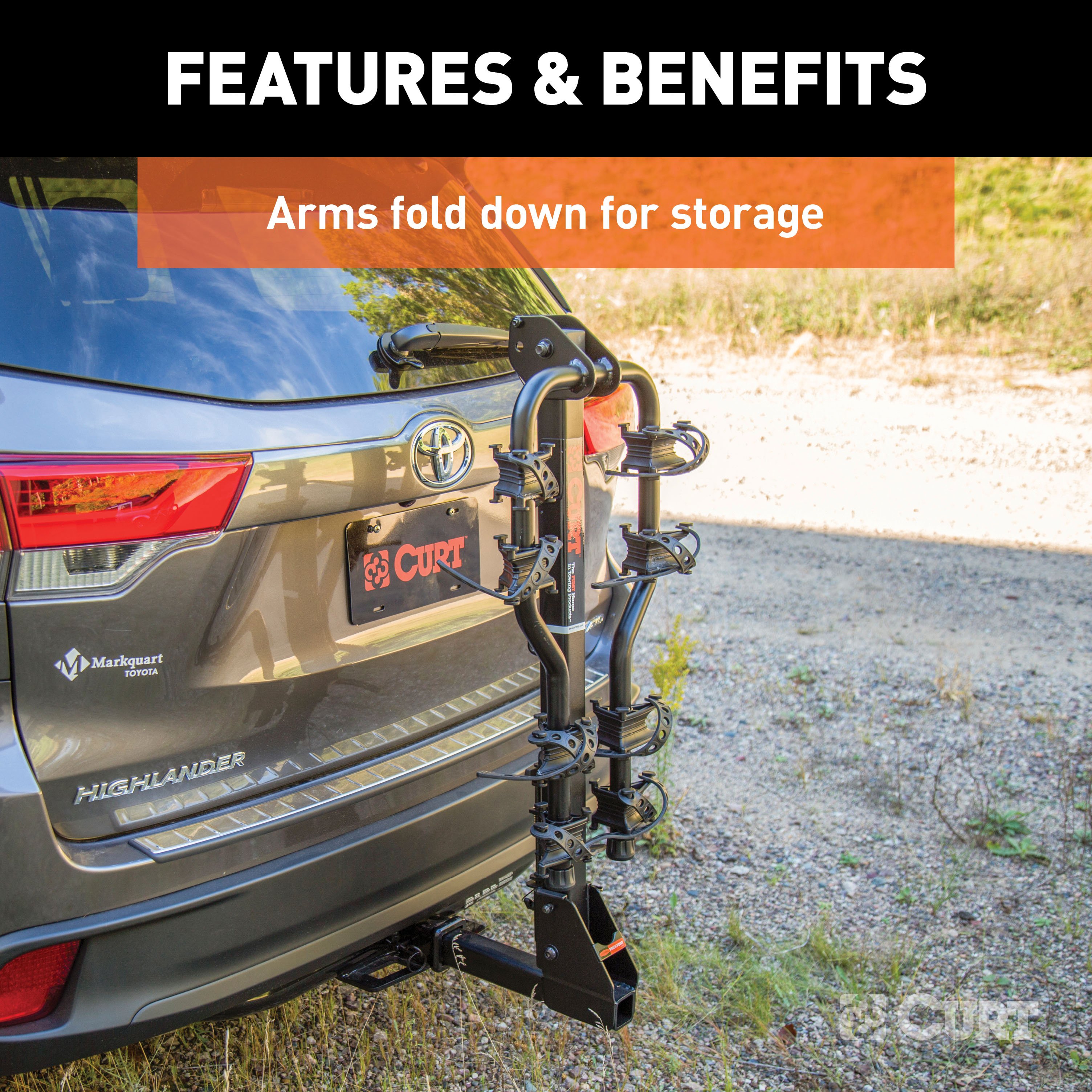

At the base, remove the clip from the upper bolt holding the bike rack in the vertical position, then remove the bolt and tilt the rack away from the vehicle. At the top, pull the lynch pin that secures the arms in the outward position, fold the bike rack arms down to the transport position, and replace the lynch pin. The rear cargo area is now accessible.
Check the tightness of all bolts periodically. The manual does not specify an exact interval, but regular inspection is recommended to ensure safe operation.
Check straps for wear and replace if worn. Inspect the straps regularly to ensure they remain in good condition for secure bike attachment.
Never exceed your vehicle manufacturer's recommended towing capacity. The bike rack itself does not have a separate capacity rating; you must follow your vehicle's specifications.
Yes, if your vehicle has a 2" receiver tube hitch. It is not compatible with trailers, tandems, or recumbents.
An 8mm Allen wrench and 19mm wrench are included. No additional tools are required for installation.
Insert the shank into the 2" receiver tube and secure with the 1/2" hex head bolt, flat washer, star washer, and clip provided.
Yes. Remove the clip and bolt at the base, tilt the rack away, pull the lynch pin at the top, and fold the arms down to the transport position.
Check all bolts periodically for tightness and inspect rubber straps for wear. Replace straps if damaged.
| Part # | # of Bikes | Max Bike Capacity | Shank Size | Arm Extensions |
|---|---|---|---|---|
| Premium Hitch-Mounted Bike Racks | ||||
| 18064 | Up to 4 | 180 lbs. | 2" | Not extendable |
| 18065 | Up to 5 | 225 lbs. | 2" | Not extendable |
| Standard Hitch-Mounted Bike Racks | ||||
| 18030 | Up to 4 | 90 lbs. without extensions 180 lbs. with extensions |
1-1/4" 2" |
Included |
| 18021 | Up to 2 | 90 lbs. | 1-1/4" 2" |
Not included (use #18020) |
| Extension Arms for #18021 Only | ||||
| 18020 | Adds 2 | Adds 90 lbs. | -- | -- |
