For use with any frame-mounted 2" class 3 or higher trailer hitch receiver. Clamp-on bumper receivers and traditional 4" square bumpers should not be used to mount bike racks. Do not exceed receiver weight limits.
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

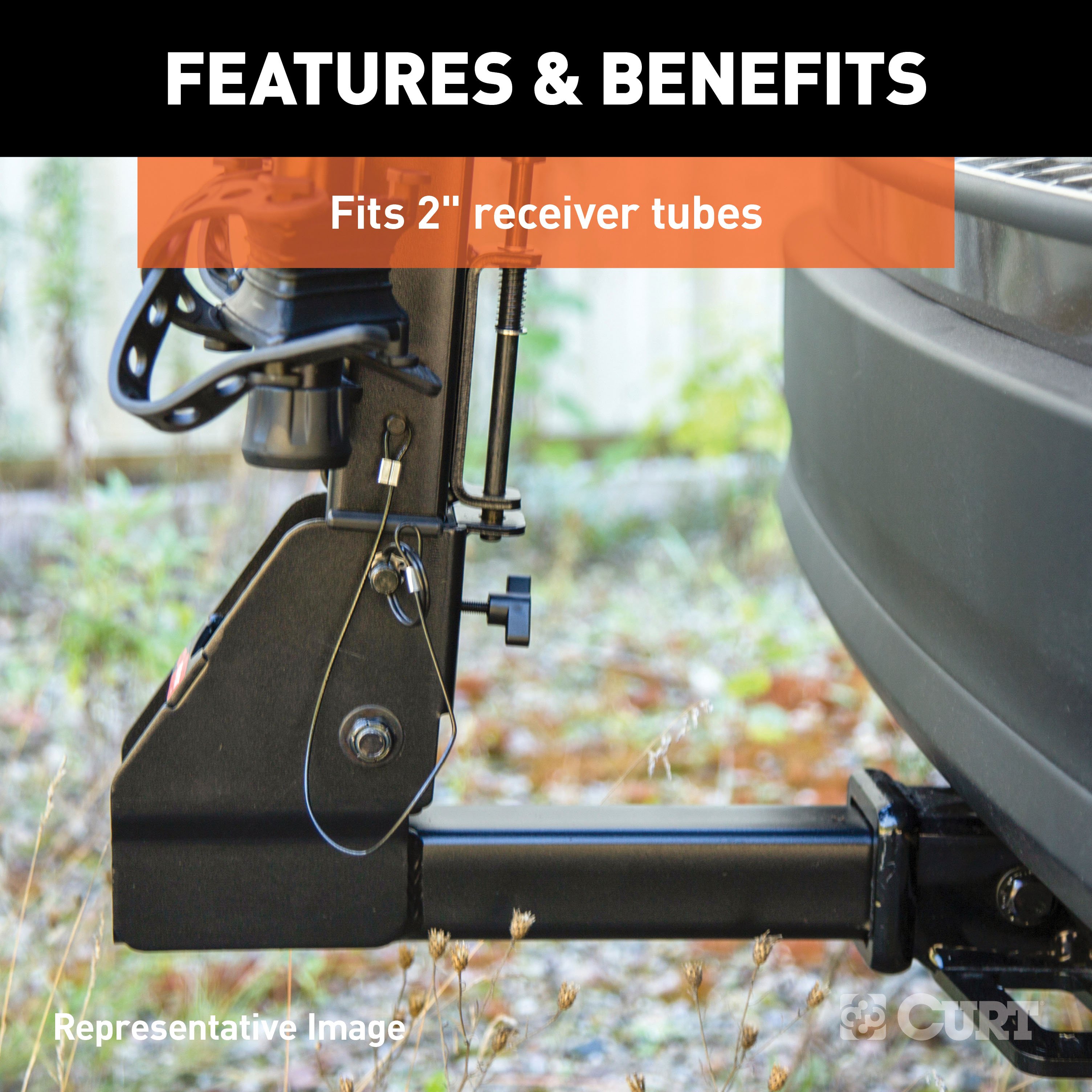

Receiver Tube Size (Inches): 2 IN
Color: Black
Finish: CARBIDE BLACK POWDER COAT
Installation Time Exact (Minutes): 0

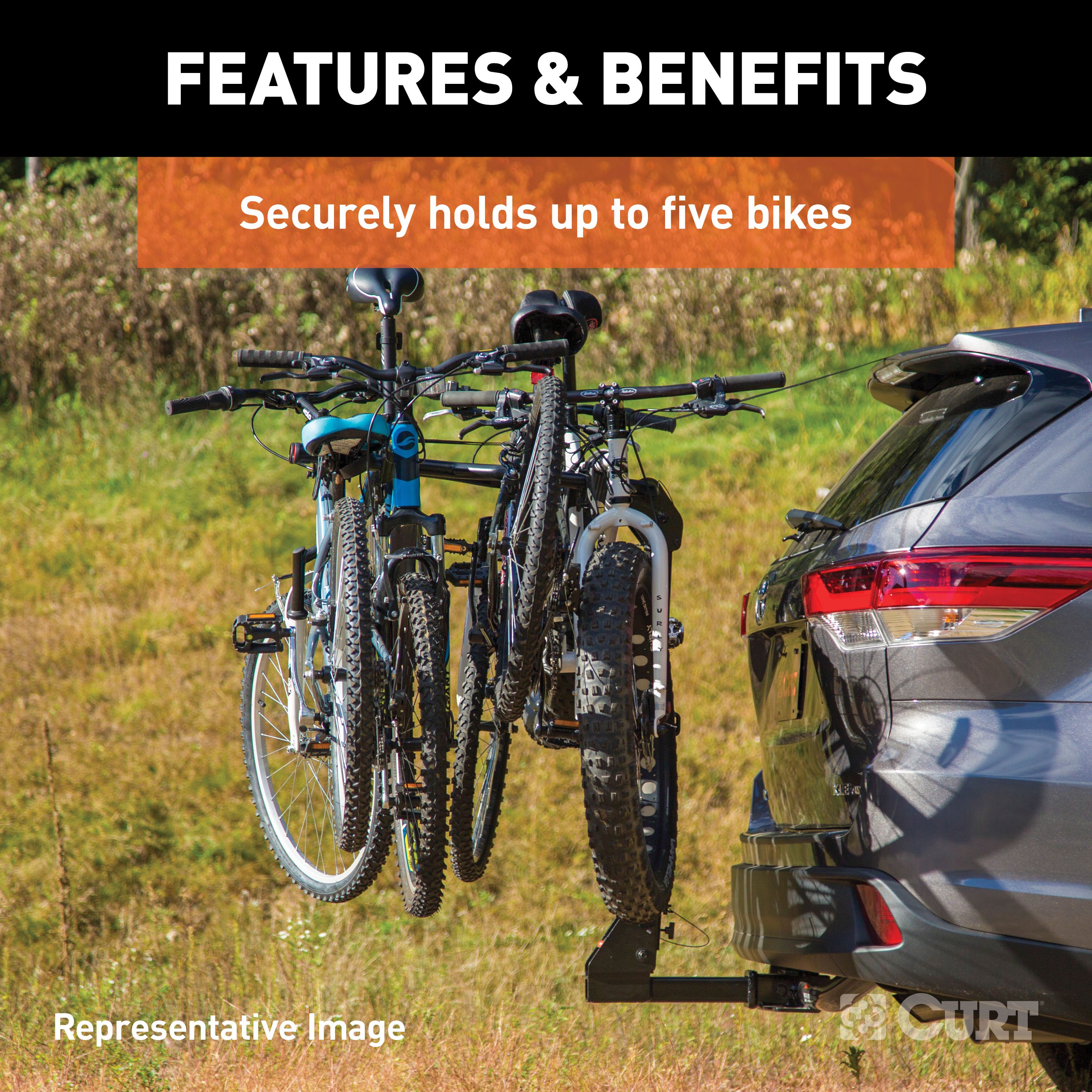

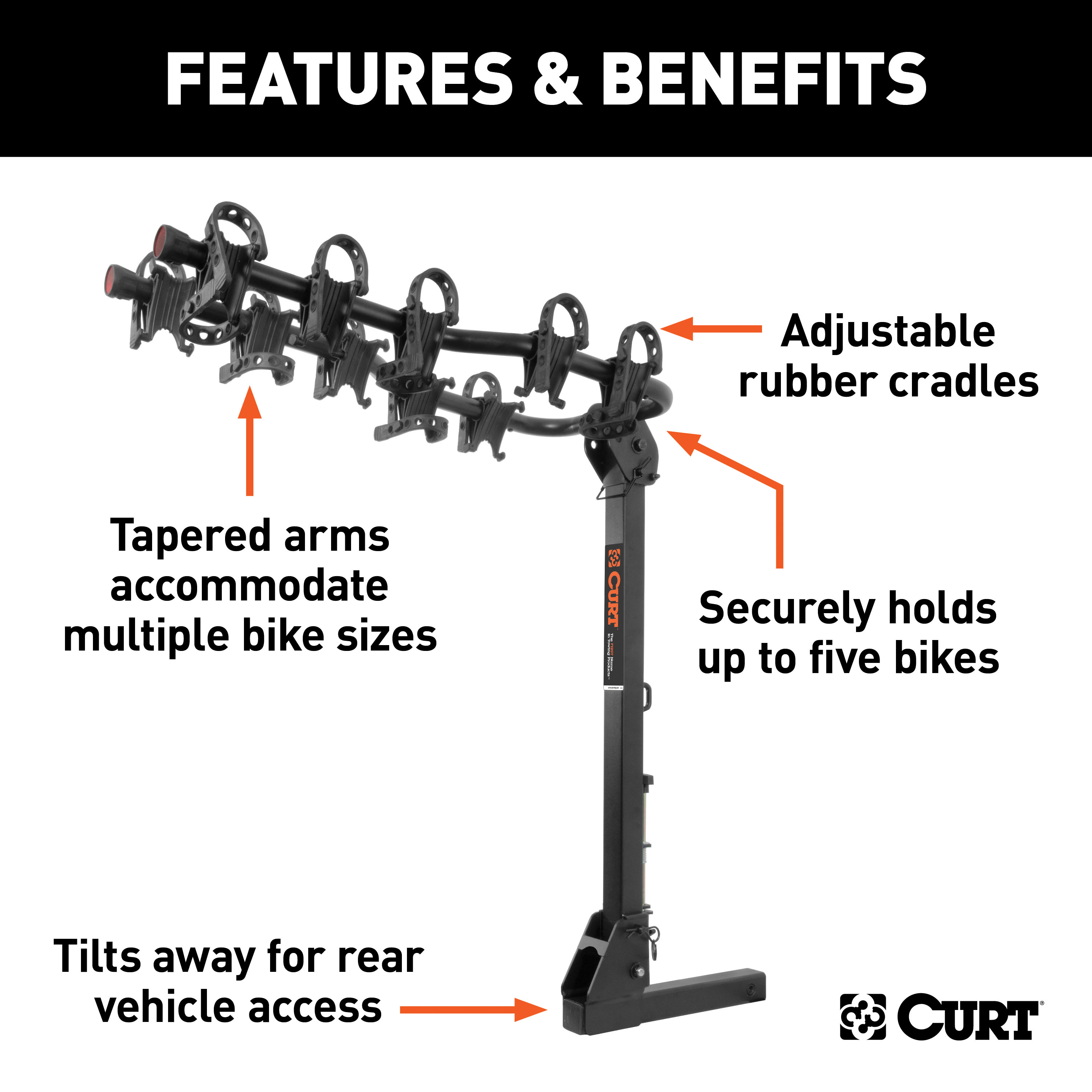

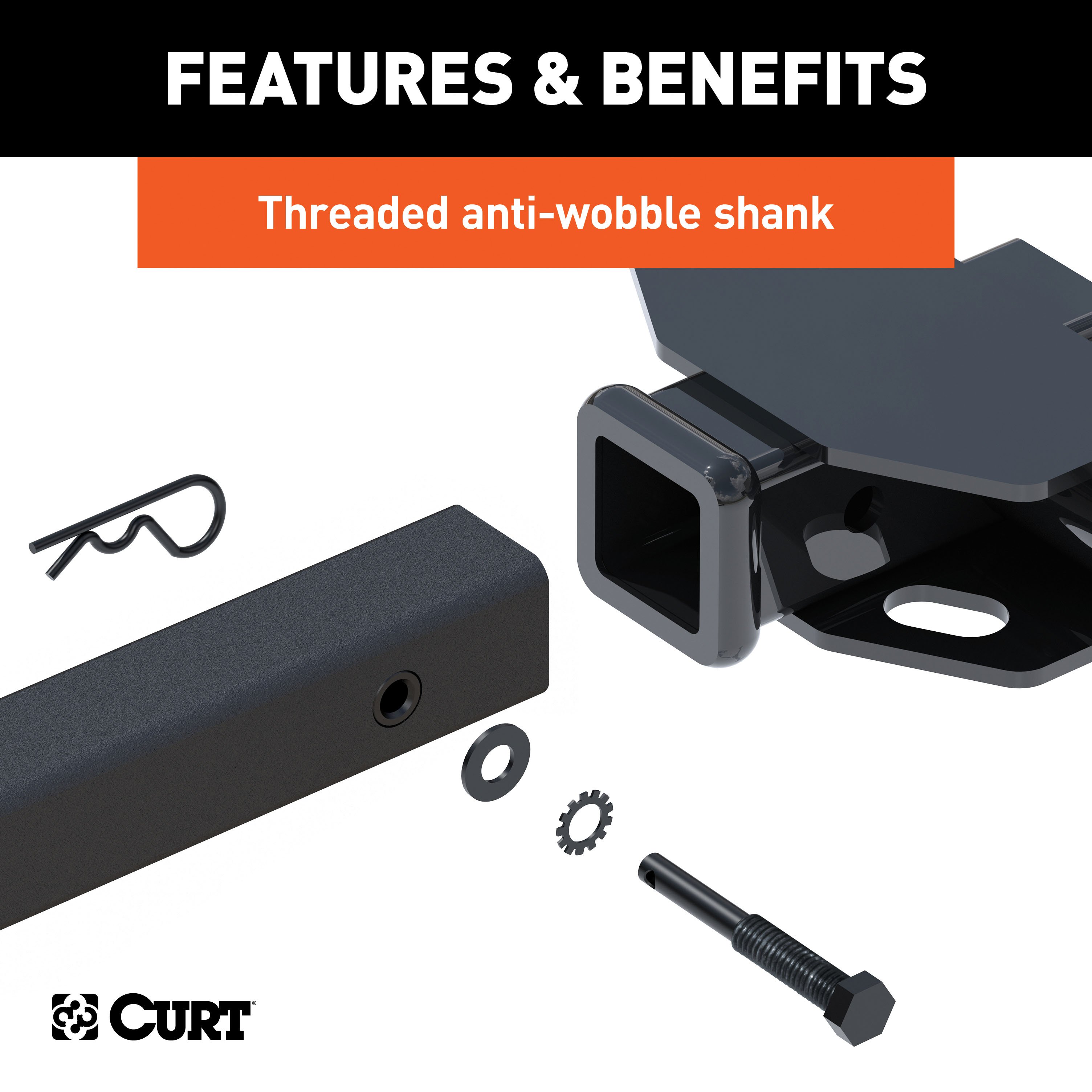

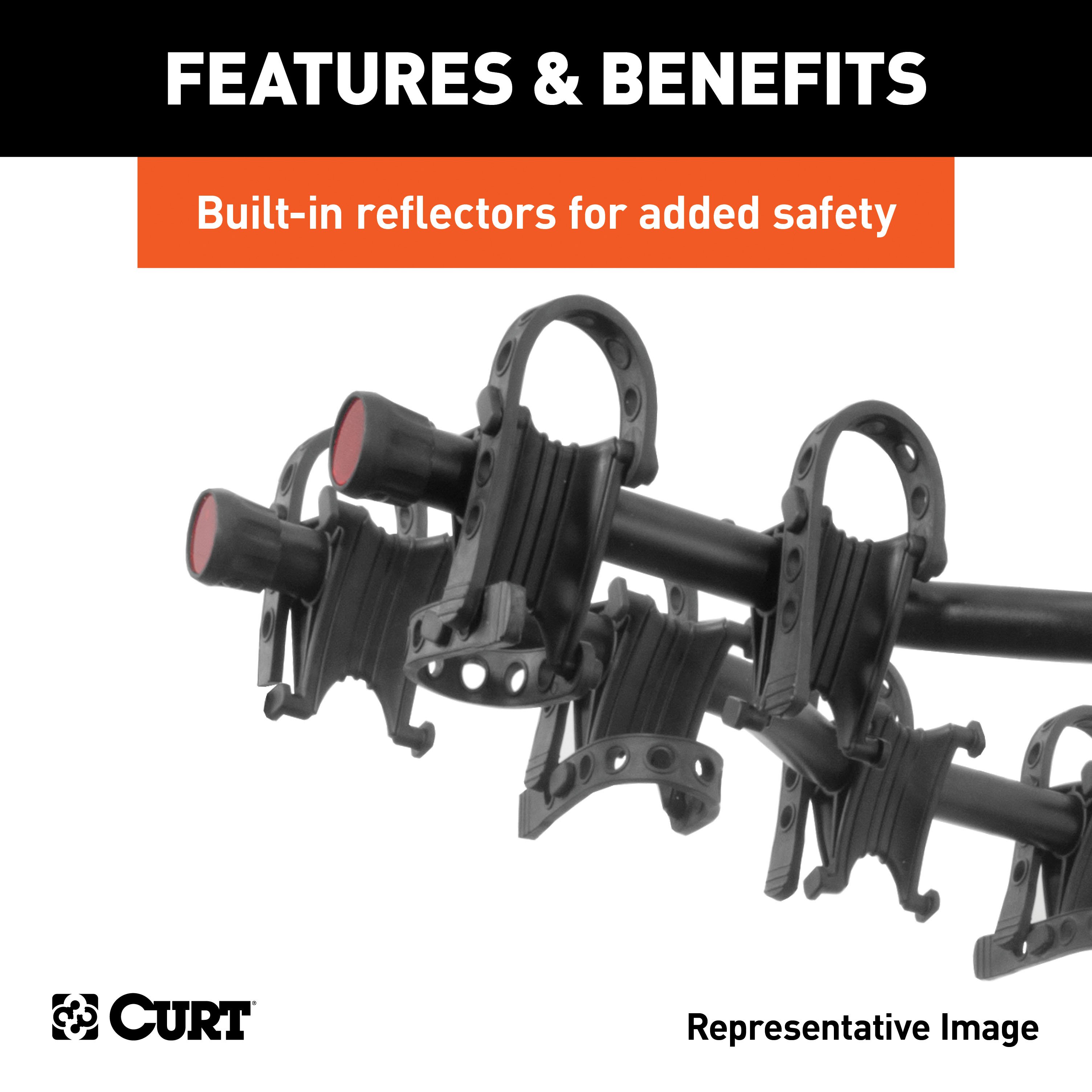

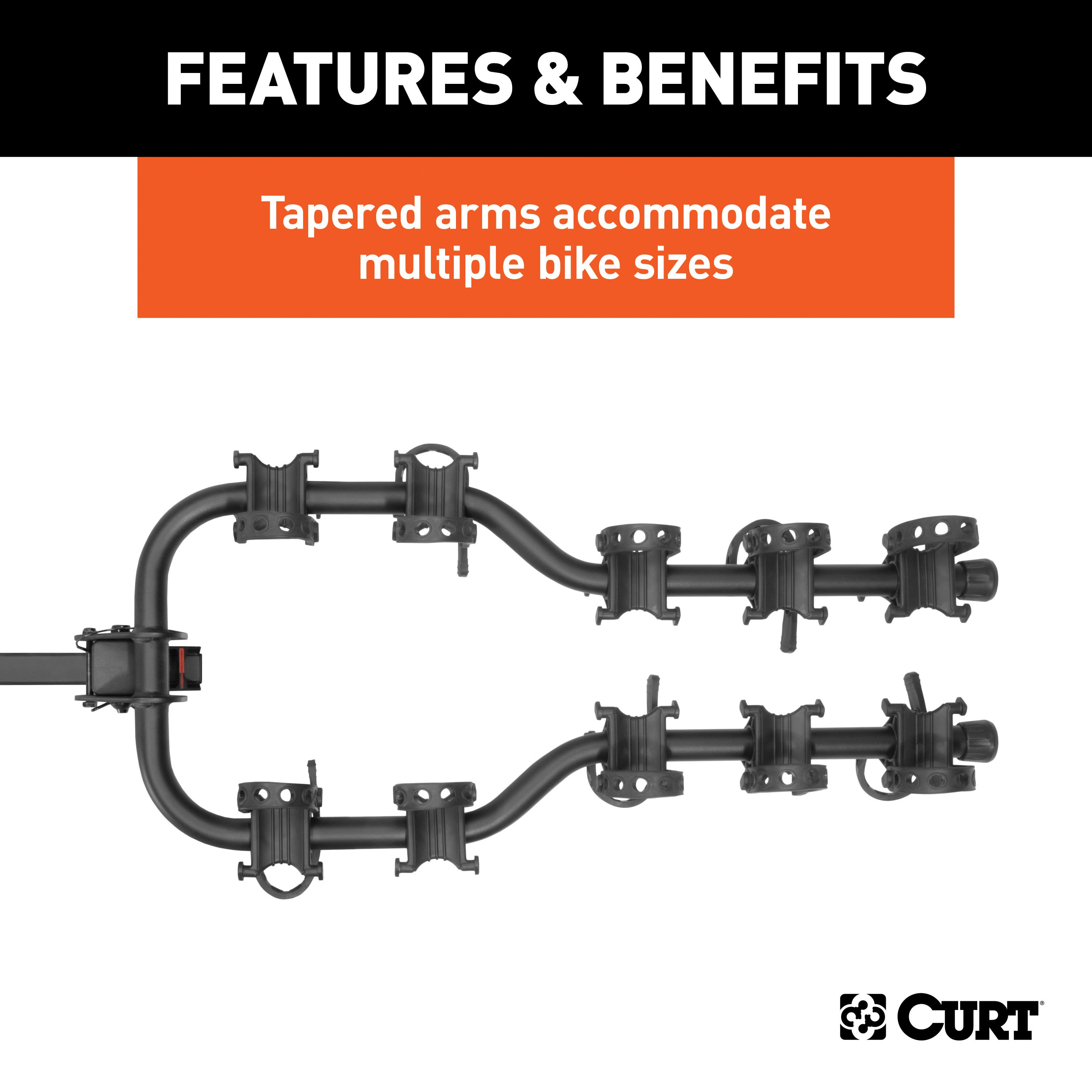

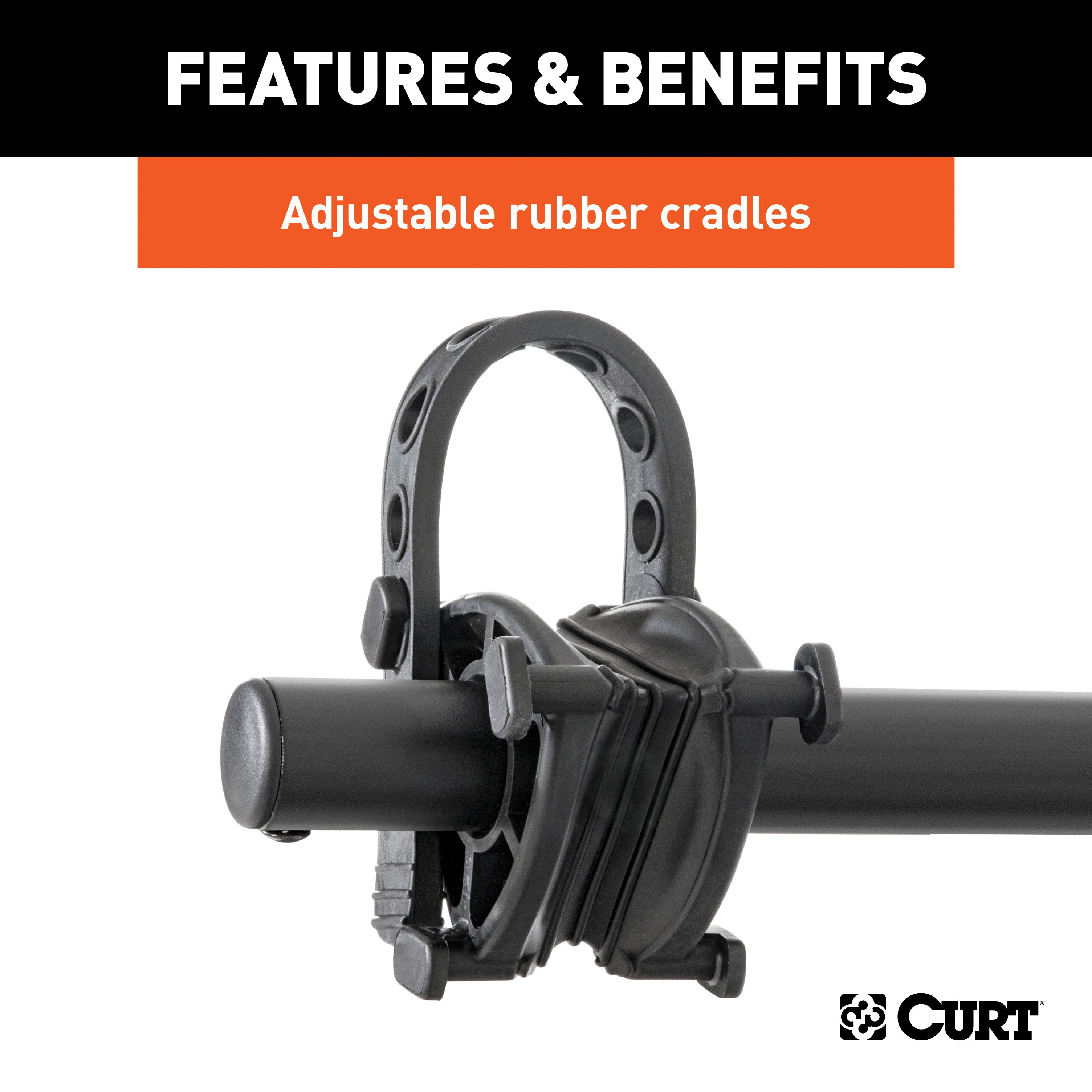

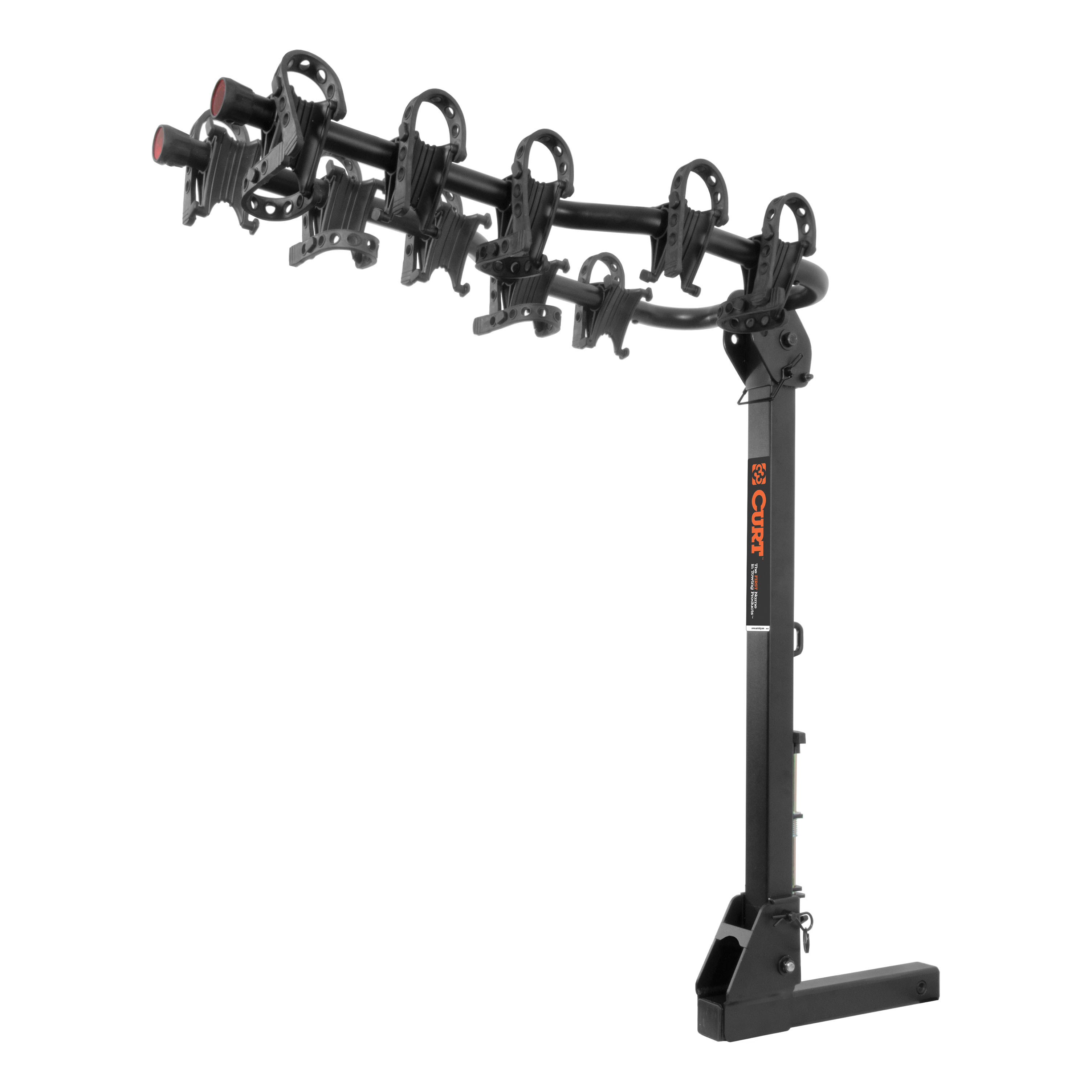

Whether you are an avid mountain biker or a casual rider, you will want CURT along for the ride. CURT bike racks offer both versatility and quality and are available in several different styles to fit your needs. CURT premium bike racks come with an anti-wobble shank for better bike security, foldable arms for a compact design and a tilt-away feature for easy rear vehicle access. One feature that sets the premium bike rack apart from others is its tapered arm design. CURT premium bike racks are very accommodating to different types of bikes, having tapered arms to fit a range of bike sizes. This makes them an especially attractive option for families with younger children. All CURT premium bike rack comes with a durable powder coat finish, built-in reflectors and non-scratch rubber cradles. This model features a maximum load limit of 225 lbs. and is able to hold up to five bikes at a time. NOTE: For use with any frame-mounted 2" class 3 or higher trailer hitch receiver. Clamp-on bumper receivers and traditional 4" square bumpers should not be used to mount bike racks. Do not exceed receiver weight limits.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494The Curt 18065 fits any tow vehicle equipped with a 2" receiver tube hitch. Check your vehicle's hitch to confirm it has a 2" receiver tube opening before purchasing. The rack is not compatible with trailers or other towed vehicles.
No. The manual explicitly states: "Do not install on a trailer or other towed vehicle." The Curt 18065 is designed only for tow vehicles with a 2" receiver hitch.
No. The manual states: "This product is not intended for off-road use, tandems or recumbents." The rack is designed for standard upright bicycles only.
The kit includes: 1 arm post, 1 shank (2"), 15 rubber arm straps, 1 hex head bolt kit (bolt, two washers, nut), 1 anti-rattle bolt and clip, 1 clip, 1 Allen wrench (8mm), and 1 wrench (19mm).
The necessary tools are included: an 8mm Allen wrench and a 19mm wrench. No additional tools are required for basic installation.
Assembly has two main steps: (1) Raise the arms on the arm post to the outright position and secure with the attached lynch pin. (2) Using the hex head bolt kit, attach the bottom of the arm post to the shank, installing the bolt in the bottom hole. Insert the bolt connected to the main body through the top hole of the shank and secure with the provided clip.
Insert the bike rack shank into your vehicle's receiver tube. Secure it with the 1/2" hex head bolt, flat washer, star washer, and clip provided. The rack is now ready to receive bikes.
Install the bikes on the rack and secure them with the provided rubber bike arm straps. Be sure to secure both the cross post and seat post to the rack. When loading more than one bike, alternate the directions the bikes face: first bike faces right, second bike faces left, and so on.

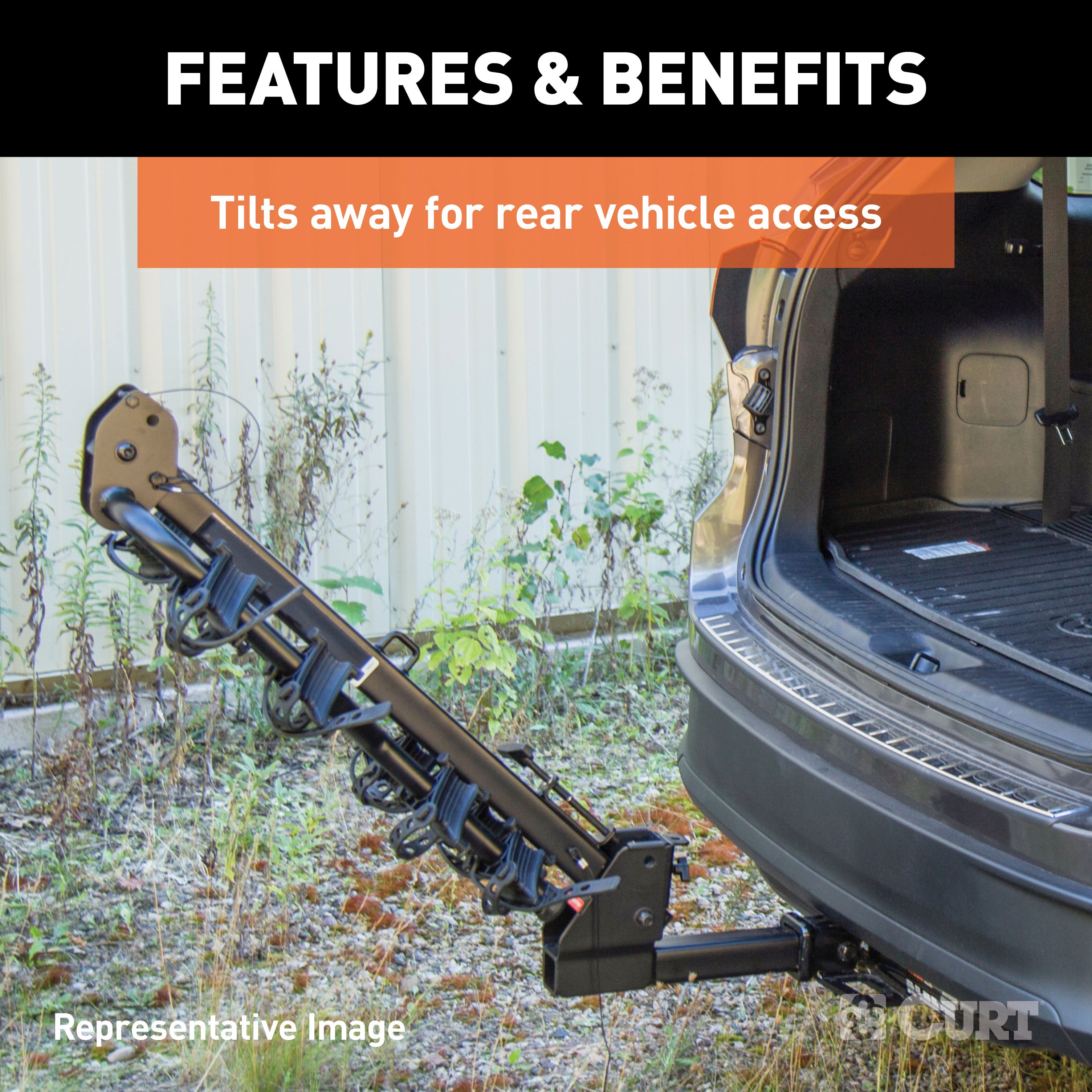

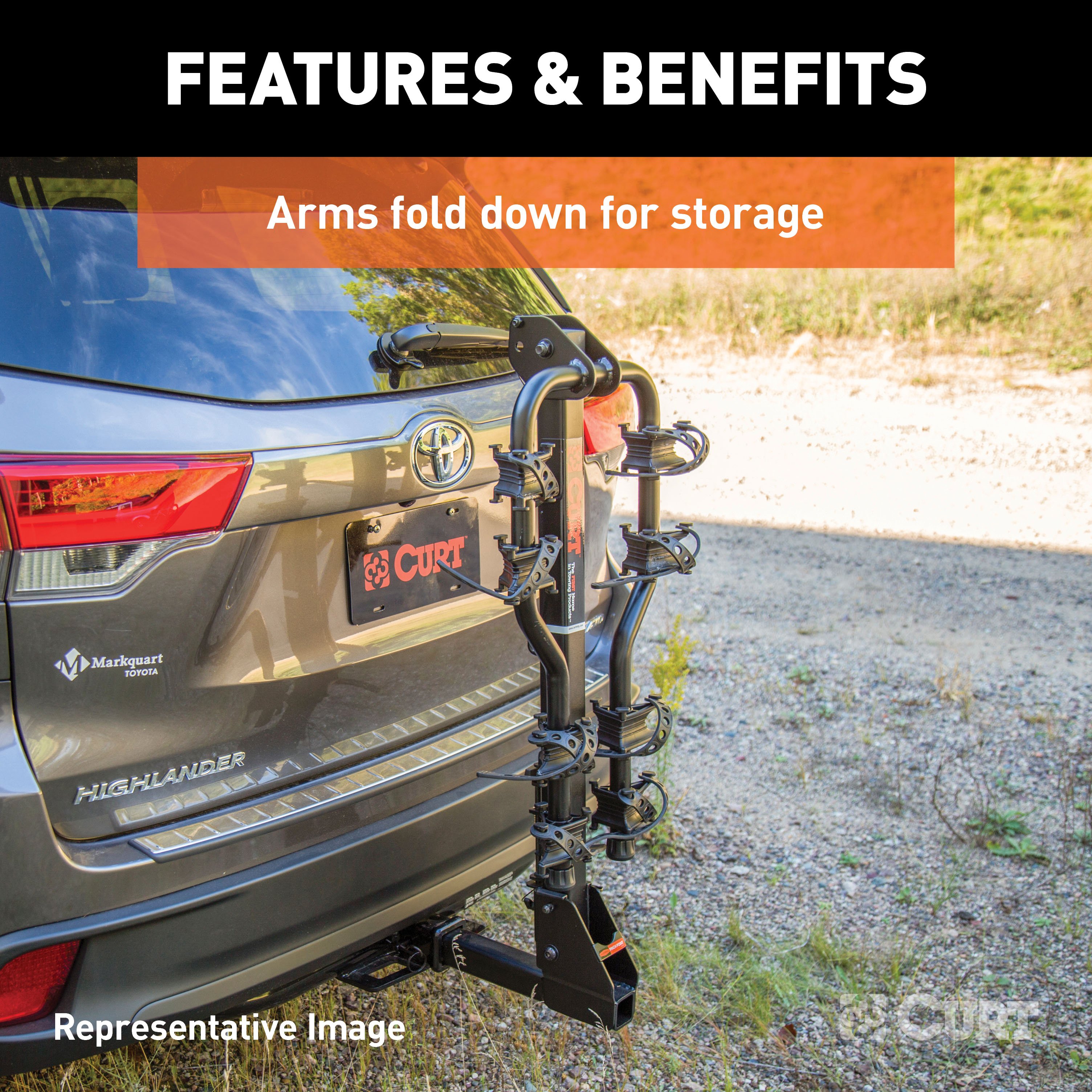

To fold the rack: (1) At the base, remove the clip from the upper bolt holding the rack in the vertical position, then remove the bolt and tilt the rack away from the vehicle. (2) At the top, pull the lynch pin that secures the arms in the outward position. (3) Fold the bike rack arms down to the transport position and replace the lynch pin. This allows access to your rear cargo area.
The manual does not specify a weight capacity or maximum number of bikes. You must never exceed your vehicle manufacturer's recommended towing capacity. Consult your vehicle's owner manual and the Curt 18065 product specifications for capacity details.
Before each use, check the rubber arm straps for wear and replace them if damaged. Periodically check the tightness of all bolts and tighten as needed. Ensure bikes are securely fastened with the arm straps before towing.
The manual states: "Check tightness of all bolts periodically." No specific interval is given. It is recommended to check bolt tightness before each use and after long trips to ensure the rack remains secure.
The manual states that straps should be checked for wear and replaced if worn, but does not provide replacement instructions. Contact Curt Manufacturing at 1.877.287.8634 or visit CURTMFG.COM for replacement strap part numbers and installation guidance.
Yes, if your tow vehicle has a 2" receiver tube hitch. The rack is not compatible with trailers, tandems, or recumbents.
The manual does not specify an installation time. Assembly involves attaching the arm post to the shank with a bolt kit, then inserting the shank into your vehicle's receiver tube and securing it with a 1/2" hex head bolt.
The manual does not specify a weight capacity. You must not exceed your vehicle manufacturer's recommended towing capacity. Contact Curt Manufacturing for capacity specifications.
Check rubber arm straps for wear and replace if damaged. Periodically check the tightness of all bolts and tighten as needed.
| Part # | # of Bikes | Max Bike Capacity | Shank Size | Arm Extensions |
|---|---|---|---|---|
| Premium Hitch-Mounted Bike Racks | ||||
| 18064 | Up to 4 | 180 lbs. | 2" | Not extendable |
| 18065 | Up to 5 | 225 lbs. | 2" | Not extendable |
| Standard Hitch-Mounted Bike Racks | ||||
| 18030 | Up to 4 | 90 lbs. without extensions 180 lbs. with extensions |
1-1/4" 2" |
Included |
| 18021 | Up to 2 | 90 lbs. | 1-1/4" 2" |
Not included (use #18020) |
| Extension Arms for #18021 Only | ||||
| 18020 | Adds 2 | Adds 90 lbs. | -- | -- |
