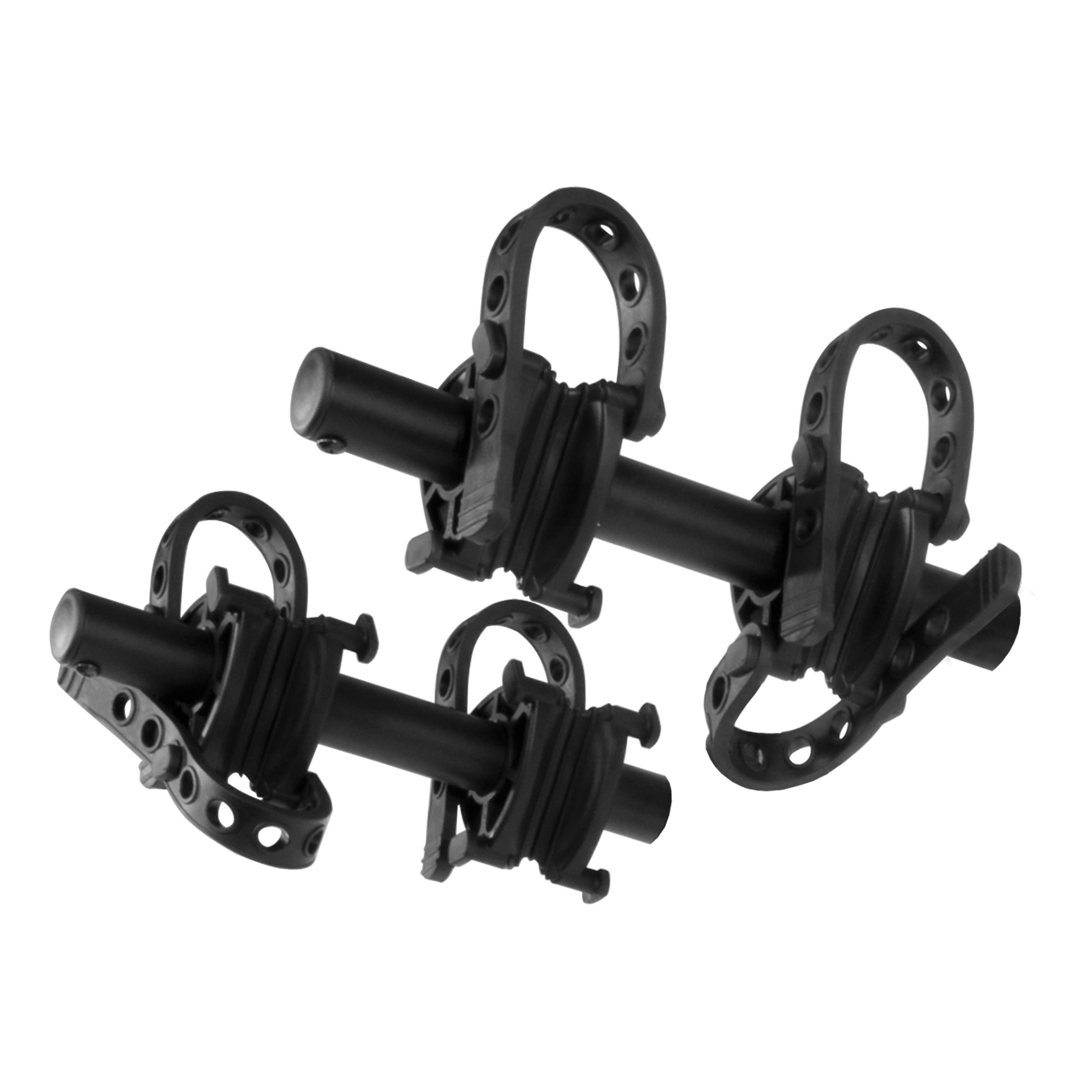

Includes two arms (bike rack #18021 sold separately)
Includes two arms (bike rack #18021 sold separately)
Warranty: One-Year Limited Warranty
Finish: CARBIDE BLACK POWDER COAT
Installation Time Exact (Minutes): 0
These replacement arms are designed to be used with the CURT hitch-mounted bike rack #18021, allowing it to be transformed from a 2-bike model to a 4-bike model as needed. The arms easily and securely bolt into place and feature rubber cradles that hold the bike frame firmly in place during travel, without scratching the finish. To protect the arms against the elements and the trail ahead, they come with a durable black powder coat finish.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The CURT 18020 is an arm extension kit for the CURT 18021 bike rack. It allows you to expand the 18021 from a 2-bike carrier to a 4-bike carrier by inserting extension arms into the support arms of the base unit.
The 18020 is for use with any frame-mounted 2" class 3 or higher trailer hitch receiver. It is designed for vehicles with 1-1/4" receiver tubes. Clamp-on bumper receivers and traditional 4" square bumpers should not be used to mount this bike rack.
No. The 18020 is an extension kit designed to work with the CURT 18021 bike rack. You must have the 18021 base unit to use the 18020 extension arms.
You will need a Phillips screwdriver and a 19mm wrench.
The 18020 includes one arm extension and one set of rubber arm straps.
When the 18021 is expanded to a 4-bike carrier using the 18020 extension, the maximum weight capacity is 180 lbs. evenly distributed. This must never be exceeded.
The product is not intended for off-road use, tandems or recumbents. Only standard frame-mounted bikes should be used.
Yes. You must first remove the plastic caps from the support arms on the 18021 by removing the screws on the bottom surface. Then remove the carriage bolts, washers and lock nuts from the ends of the support arms to allow insertion of the extension arms.
Insert the extension arms into the ends of the support arms of the 18021 after removing the end caps and carriage bolts. Secure the extensions by re-installing the carriage bolts, washers and lock nuts that you removed.
Attach the rubber support straps to each bike support cradle. Refer to your 18021 installation manual for additional information on operation and safe use of your bike rack.
Failure to use support straps on trailer hitches with 1-1/4" receiver tubes voids the trailer hitch and bike rack warranties.
Periodic inspection of your product should be performed to ensure all hardware and components remain secure. Check straps for wear, and replace if worn.
Yes. It is the user's responsibility to adhere to all state and federal laws regarding obstruction of vehicle lighting (brake lights, taillights, turn signals and backup lights) and license plate when using this accessory.
No. Never exceed the vehicle manufacturer's recommended towing capacity. You must also never exceed the product's weight capacity of 180 lbs. when fully expanded.
No. Do not modify or use this accessory for purposes other than for which it was designed. It is designed exclusively for carrying bikes on a trailer hitch receiver.
The 18020 works with any frame-mounted 2" class 3 or higher trailer hitch receiver with 1-1/4" receiver tubes. It cannot be used with clamp-on bumper receivers or 4" square bumpers. Check your vehicle's hitch specifications.
The maximum weight capacity is 180 lbs. evenly distributed when the 18021 is expanded to a 4-bike carrier using the 18020 extension.
Yes. Support straps must be used on trailer hitches with 1-1/4" receiver tubes. Failure to use them voids the trailer hitch and bike rack warranties. The 18020 includes rubber arm straps for this purpose.
Perform periodic inspection to ensure all hardware remains secure. Check the rubber support straps for wear and replace them if worn.
| Part # | # of Bikes | Max Bike Capacity | Shank Size | Arm Extensions |
|---|---|---|---|---|
| Premium Hitch-Mounted Bike Racks | ||||
| 18064 | Up to 4 | 180 lbs. | 2" | Not extendable |
| 18065 | Up to 5 | 225 lbs. | 2" | Not extendable |
| Standard Hitch-Mounted Bike Racks | ||||
| 18030 | Up to 4 | 90 lbs. without extensions 180 lbs. with extensions |
1-1/4" 2" |
Included |
| 18021 | Up to 2 | 90 lbs. | 1-1/4" 2" |
Not included (use #18020) |
| Extension Arms for #18021 Only | ||||
| 18020 | Adds 2 | Adds 90 lbs. | -- | -- |
