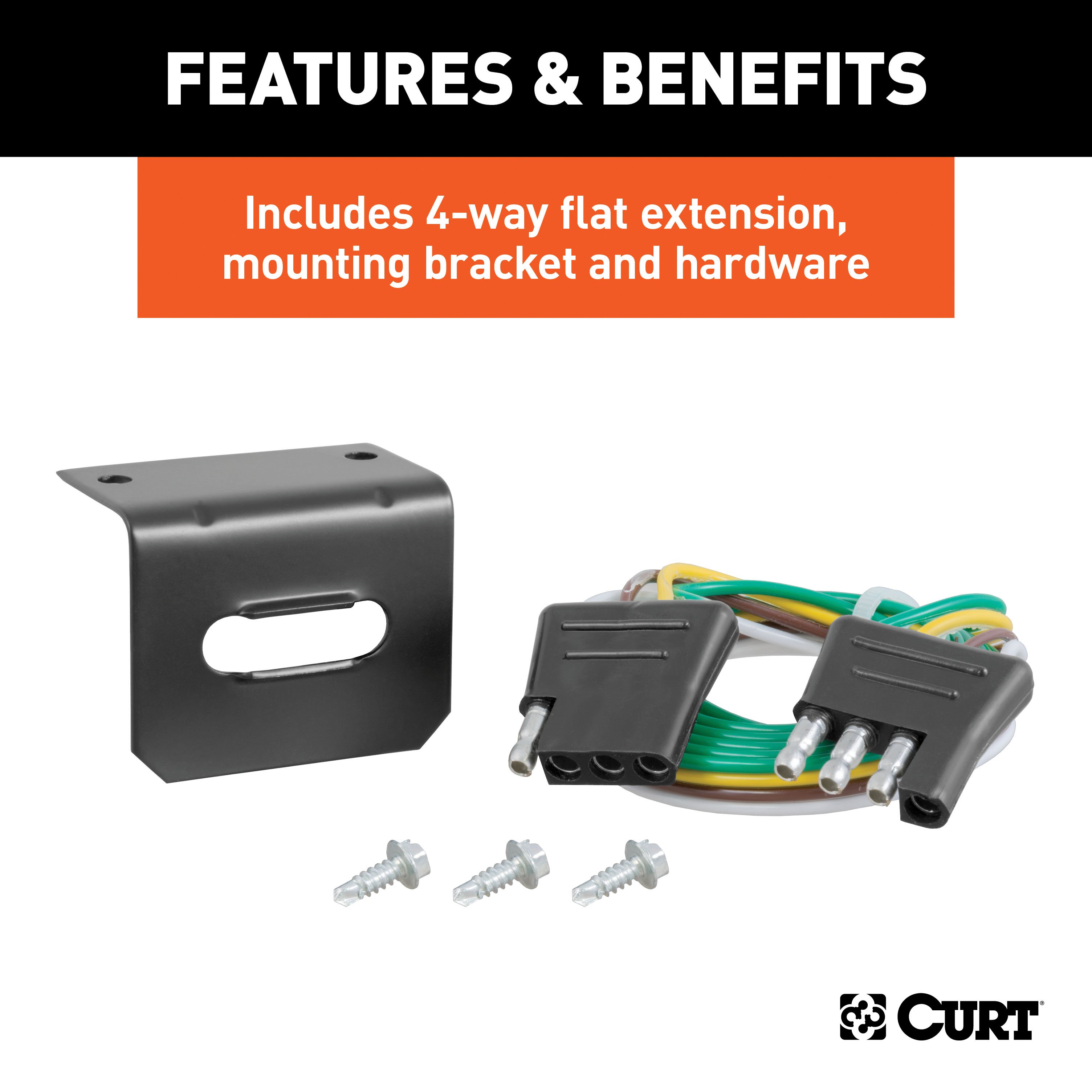

Includes harness, 4-flat extension, mounting bracket and hardware
Includes harness, 4-flat extension, mounting bracket and hardware
Warranty: One-Year Limited Warranty
Finish: Blank
Installation Difficulty: Professional
Installation Time Exact (Minutes): 45

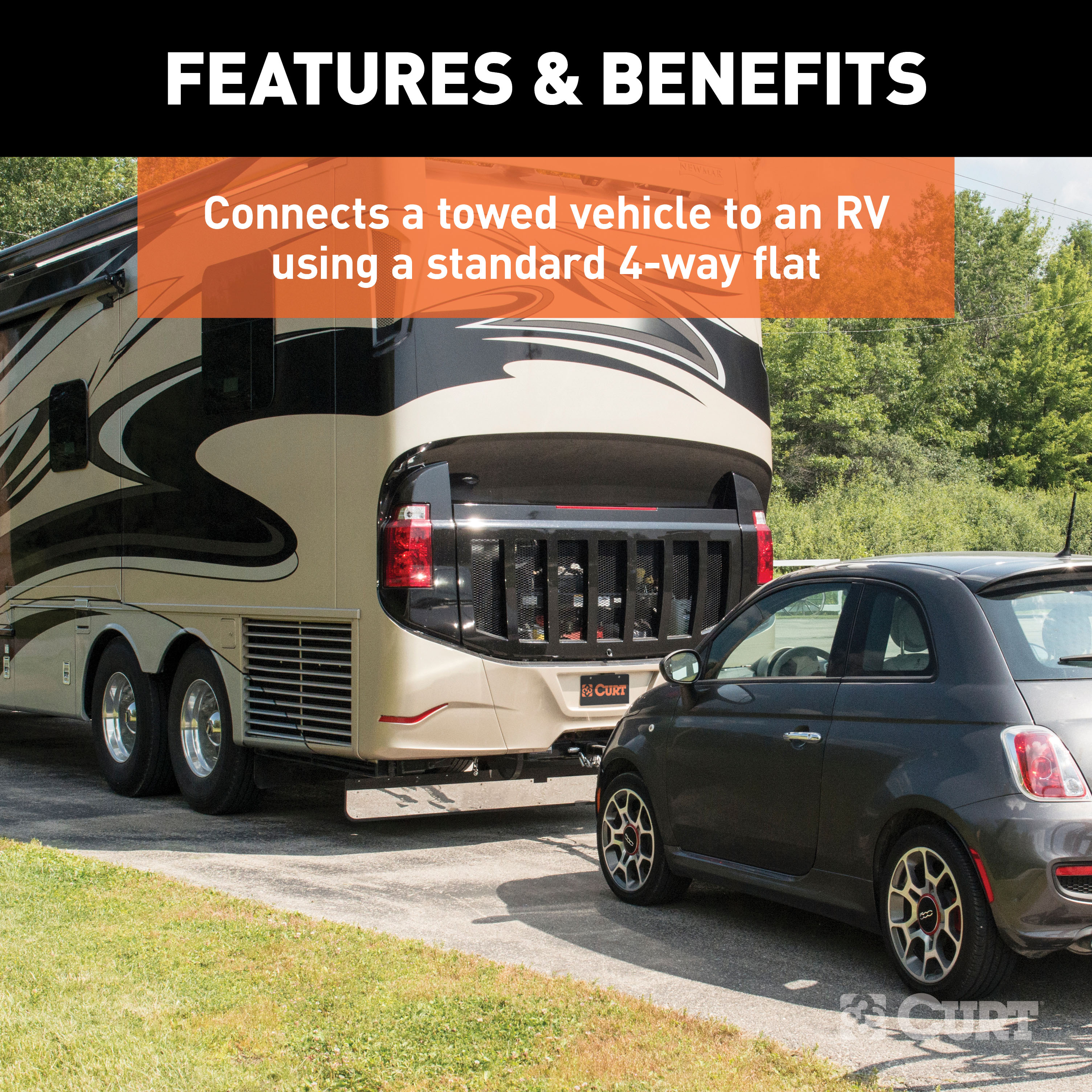

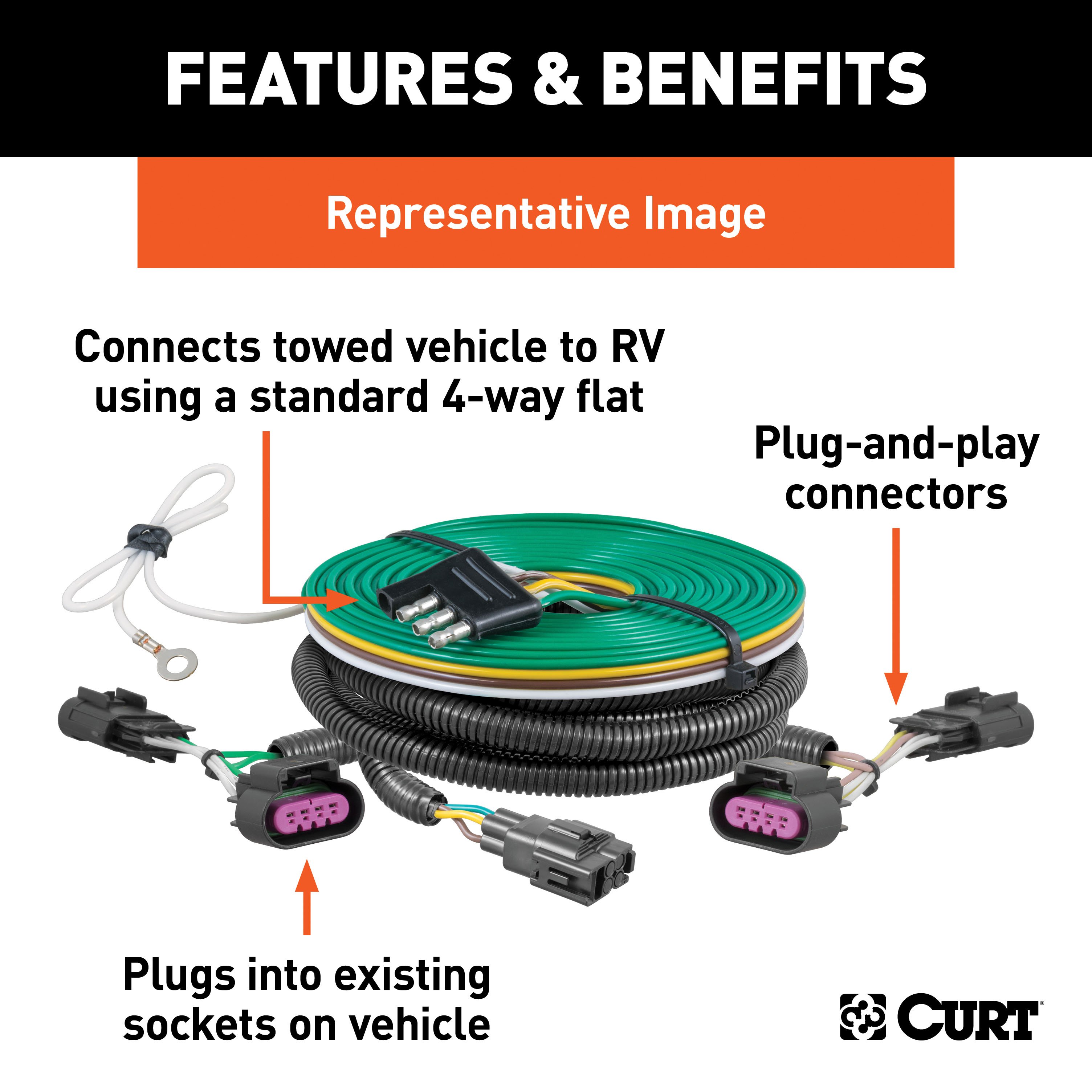

Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This particular RV dinghy towing wiring harness is designed for specific years of the Jeep Grand Cherokee and Jeep Grand Cherokee L. CURT RV harnesses are also built to provide long-lasting operation. They feature integrated block diodes that protect the vehicle's circuits from the RV signals. They isolate the sensitive vehicle electronics, keeping them from overheating and short circuiting. Every CURT towed-vehicle RV harness comes ready to install with all necessary hardware included. They also come with a 4-way flat extension to provide plenty of length to plug into the RV socket, as well as a connector mounting bracket to mount the connector on the vehicle.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2026 | Jeep Grand Cherokee | — |
| 2021 - 2026 | Jeep Grand Cherokee L | — |
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Jeep Grand Cherokee, L Trailer Connector Kit (Part #BKDK58998) fits the following vehicles: 2022-2026 Jeep Grand Cherokee; 2021-2026 Jeep Grand Cherokee L. Always verify your specific year, make, and model before ordering.
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Jeep Grand Cherokee, L Trailer Connector Kit (Part #BKDK58998) fits 2022-2026 Jeep Grand Cherokee models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT Custom Towed-Vehicle RV Wiring Harness, Select Jeep Grand Cherokee, L Trailer Connector Kit (Part #BKDK58998) is designed to fit the 2022-2026 Jeep Grand Cherokee.
The CURT Custom Towed-Vehicle RV Wiring Harness, Select Jeep Grand Cherokee, L Trailer Connector Kit (Part #BKDK58998) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Curt part 58998 is a custom wiring harness designed for SUVs and vans. It connects your vehicle's factory taillight wiring to a 4-flat trailer connector, allowing you to tow a trailer with functioning brake and turn signal lights. The harness includes green and yellow wire housings for the taillight circuits and a white ground wire with ring terminal.
Curt 58998 is designed for SUVs and vans. The manual shows a representative vehicle but does not list specific makes, models or years. Contact Curt Manufacturing or your retailer with your vehicle's year, make and model to confirm fitment before purchasing.
You will need: a ratchet, a T-27 Torx bit, a socket extension, and a panel trim removal tool. You will also need a fishwire or equivalent (such as a cut-up wire hanger, stiff wire, rope or string) to route the harness through blind holes between the bumper and vehicle body. A drill with 3/32" bit may be needed if you do not have an existing bolt or screw for the ground connection.
Yes. You must disconnect the negative battery terminal before beginning installation and fasten this wire down and away from the battery while completing the installation. Reconnect it only after all installation steps are complete and you have reinstalled all items removed during the install.
A fishwire is a tool used to push or pull an electrical wire through a blind hole. For this installation, you can use a cut-up wire hanger, stiff wire, rope or string. Insert the fishwire through the blind hole between the bumper cover and vehicle body, locate it on the other side, use tape to secure the harness to the fishwire, and pull it back up. If the harness gets hung up, push back down, wiggle it around or twist the wire to loosen it.
1. Disconnect the negative battery terminal. 2. Remove the taillight trim panels and taillights from both sides (using T-27 Torx bit). 3. Route fishwire down between the bumper cover and vehicle body on both sides. 4. Attach the green wire housing harness to the fishwire and pull up to the taillight cavity on the passenger side; connect to factory wiring and set taillight in cavity (do not fully install). 5. Route the yellow wire housing harness above the bumper mount along the bumper to the driver side and repeat step 4. 6. Locate or drill a grounding point and secure the white ground wire. 7. Reinstall taillights and tighten zip ties. 8. Route the 4-flat connector along the sub frame, passenger side, above rear suspension and driveline, between fuel tank and frame to the rear of the front tire. 9. Pull the 4-flat up between inner and outer fender, under the weather strip around the back of the engine compartment to the front. 10. Secure excess wire with zip ties, reinstall all removed items, reconnect the battery, and install the 4-flat dust cover.
Open the rear hatch and locate the taillight trim panel. Use a panel trim removal tool to remove the push fastener and remove the taillight cover. Using a T-27 Torx bit, remove the single screw securing the taillight. Remove the taillight at a 45° angle out from the vehicle—the alignment tabs will only allow removal in this direction. Locate and separate the vehicle taillight wiring connectors from the taillight housing, taking care not to damage the locking tabs. Repeat on the other side.
The custom wiring harness connectors are similar to your factory taillight connectors. After routing the harness up through the fishwire to the taillight cavity, attach the custom wiring harness to the vehicle factory wiring. Set the taillight inside the taillight cavity but do not fully install it at this time. Complete this on both the passenger side (green wire housing) and driver side (yellow wire housing) before reinstalling the taillights.
Route the housing with the yellow wire above the bumper mount and along the bumper to the driver side. Zip tie as needed along the bumper. Route above the driver-side bumper mount. Then repeat the fishwire process (Step 5) to pull this harness up to the taillight cavity, connect it to the factory wiring, and set the taillight in the cavity without fully installing it.
You need to locate a grounding point on the vehicle frame. If an existing screw or bolt is available, use that. If not, you may drill a 3/32" pilot hole. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The area should be free from rust, dirt and paint—use an abrasive pad or paper to remove rust and paint.
If you need to drill a grounding point, drill a 3/32" pilot hole. The area should be free from rust, dirt and paint—use an abrasive pad or paper to remove rust and paint before securing the white ground wire with the ring terminal.
Route the 4-flat along the sub frame on the passenger side and above the rear suspension and driveline. Once you reach the rear of the fuel tank, route between the tank and frame to the rear of the front tire. Then pull the 4-flat up between the inner and outer fender, route under the weather strip around the back of the engine compartment to the front of the vehicle.
Secure any excess wire so that it is not drooping or dangling, but not so tight that it causes unnecessary strain to the wire, which could lead to breakage over time. Use zip ties to fasten excess wire to solid spots along the vehicle frame. After removing slack from the 4-flat wire, tighten any zip ties and add as needed.
Once the harness is installed, verify that it is functioning by attaching the 4-flat to any vehicle with functioning trailer lights. The taillights on the tow vehicle should function along with the taillights on the towing vehicle. You can also use a test light to check for proper function.
Reinstall all items removed during installation. If the negative battery terminal was disconnected at the beginning, reconnect it. Install the provided 4-flat dust cover to help prevent corrosion. Test the harness by attaching the 4-flat to a vehicle with functioning trailer lights to verify the taillights work on both vehicles.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. This helps maintain proper function and prevent electrical issues.
The manual states: do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. The specific product rating is not provided in this manual. Contact Curt Manufacturing or your retailer for the exact rating.
Do not lay tools across the positive battery terminal (typically noted with red covers or a red '+' symbol), as this can cause a ground short resulting in sparks and/or electrical shocks. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. Do not secure wires so tightly that unnecessary strain causes breakage.
Yes, disconnect the negative battery terminal before starting and reconnect only after all installation steps are complete.
Drilling is required only if no existing bolt or screw is available for the ground connection. If drilling is needed, drill a 3/32" pilot hole after checking for hidden items.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. The specific product rating is not provided in this manual; contact Curt Manufacturing for details.
Periodically inspect all wires and connections for visible damage or loose connections.
