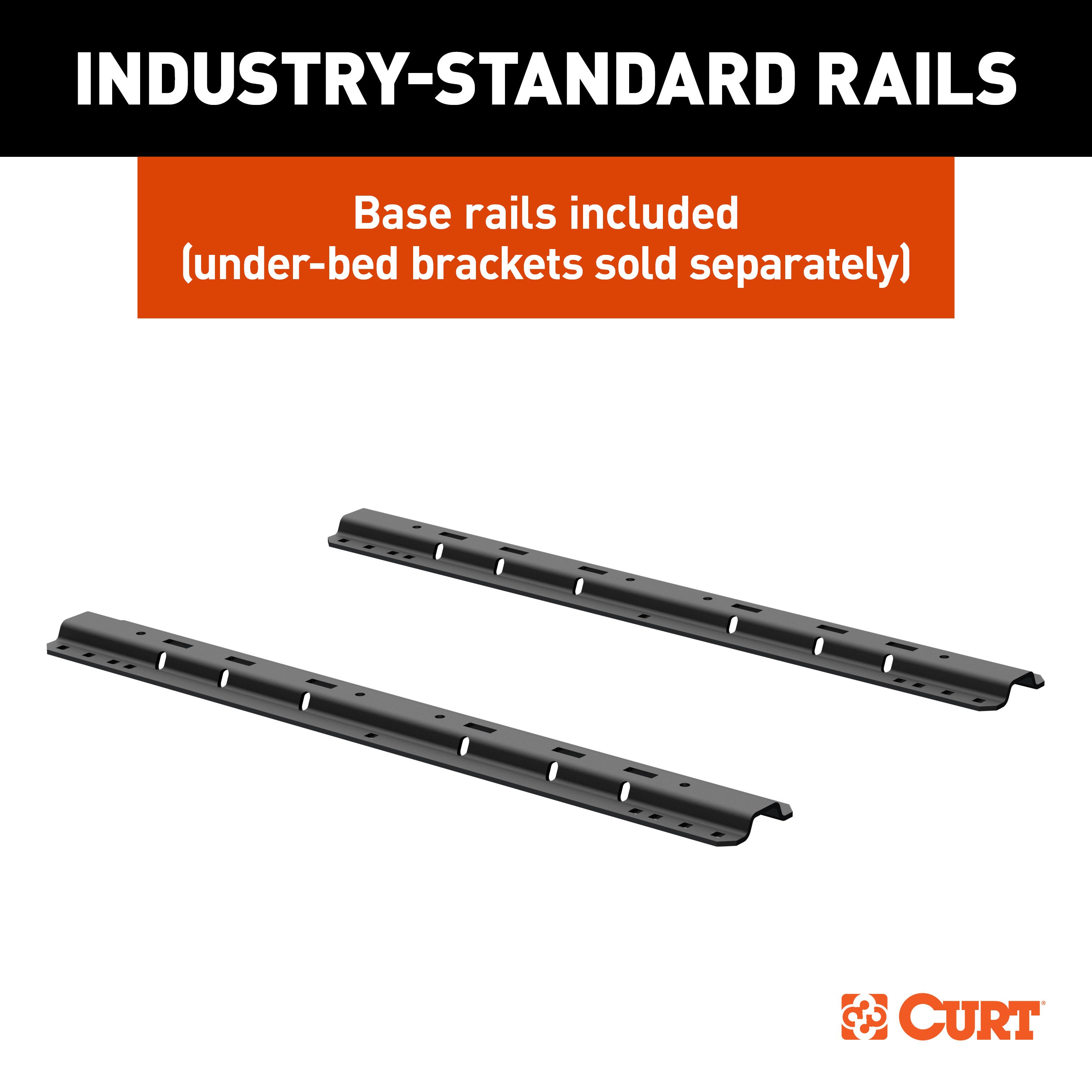

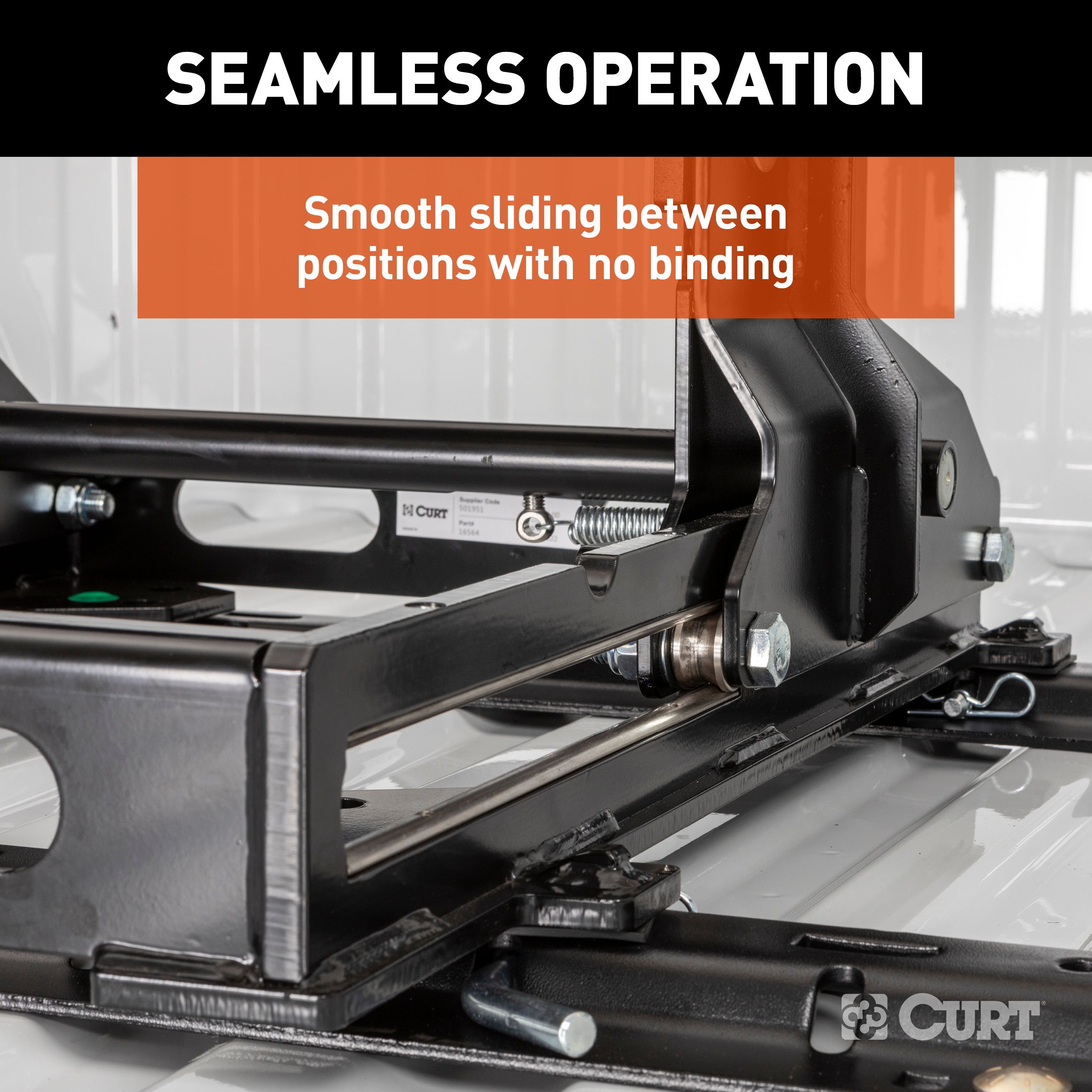

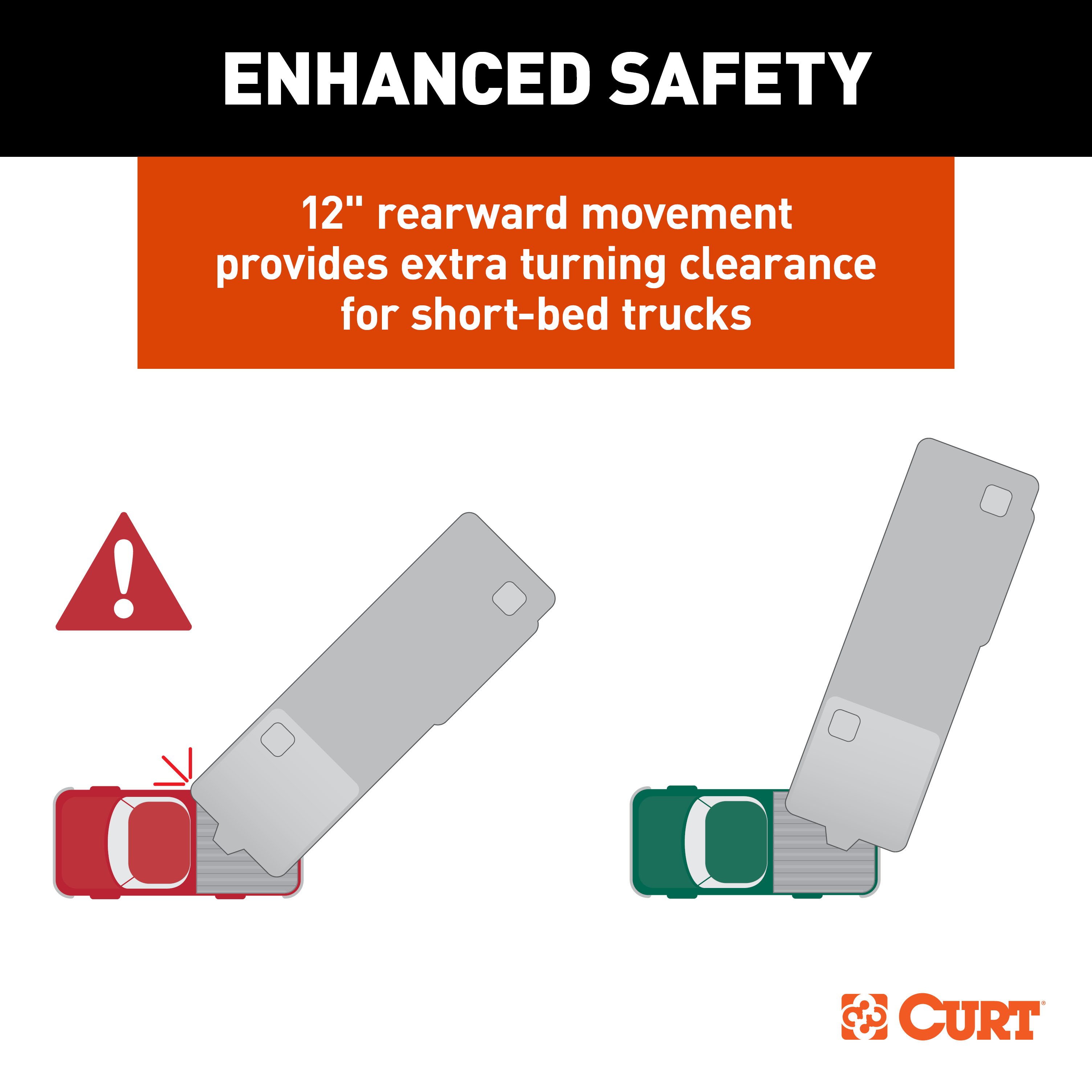

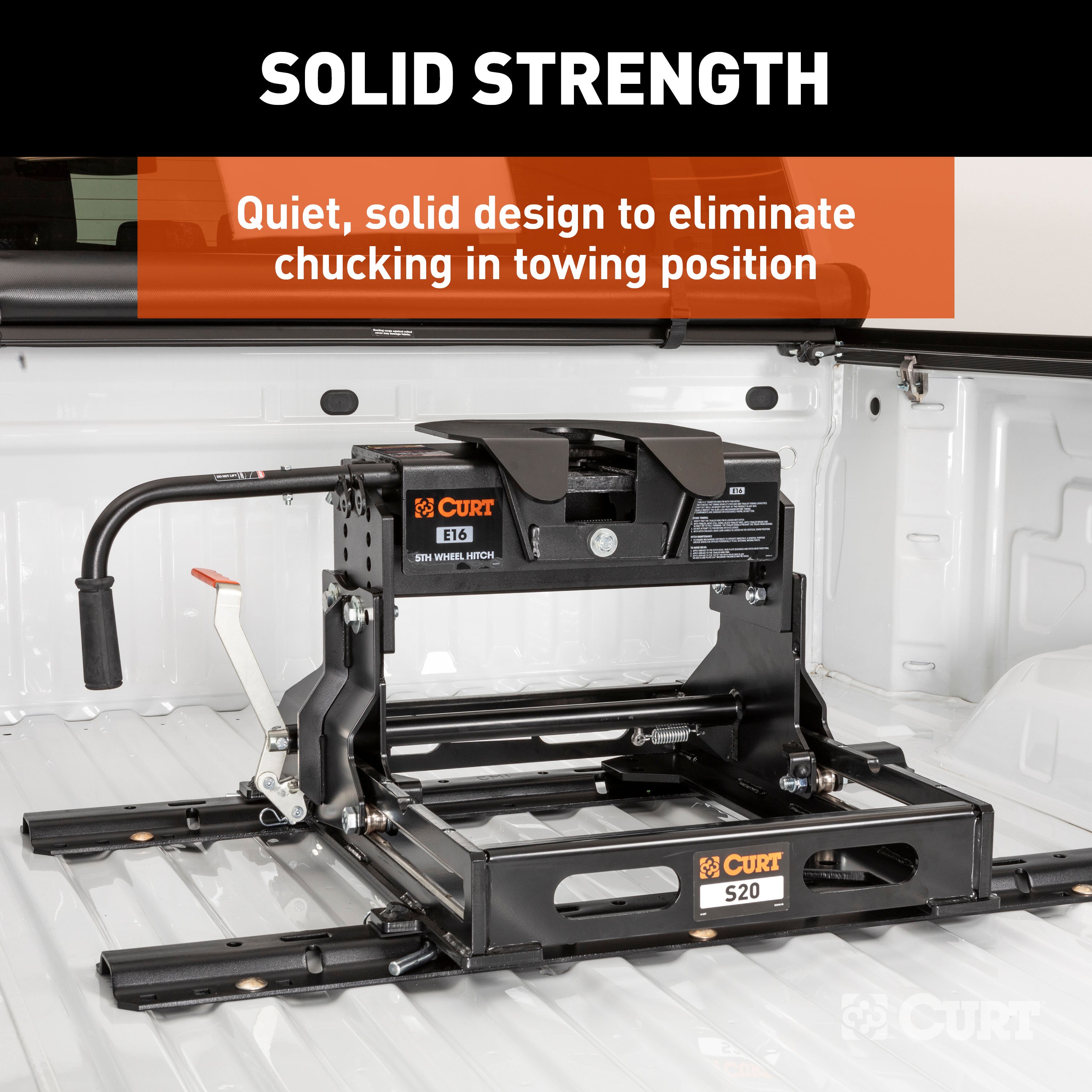

The CURT E16 5th wheel trailer hitch is an economical choice that offers many of the same features found in our Q-Series 5th wheel hitches. The E16 has a gross trailer weight rating of 16,000 lbs. and can withstand a vertical load up to 4,000 lbs. It comes with a dual-pivoting head, 10 degrees of lateral movement and an anti-rattle skid plate to provide a smoother, quieter ride. The E16 also comes with easy, single-handle operation and a durable carbide powder coat for long-lasting protection against the elements. With four height adjustment settings, the E16 is quick and simple to install, and it is backed by a limited lifetime warranty. This 16K 5th wheel hitch head comes attached to the CURT S20 slider and a set of 5th wheel rails to be mounted in your truck bed using a 5th wheel bracket kit (brackets sold separately). CURT 5th wheel sliders are built with a solid design to eliminate chucking in the towing position and promote smooth rolling from forward to rearward positions, with no binding. With the slider installed, you can safely move the coupling point 12" toward the rear, allowing your short-bed truck to make turns without obstruction. The slider is comfortable and easy to operate, featuring a lift-style lever that is easily accessible over the side of the truck wall. The lever moves in a more user-friendly, ergonomic motion compared to traditional, pull-out-style levers. Best of all, the slider automatically latches into place in both directions, meaning you only have to get out of the truck once to complete the operation.

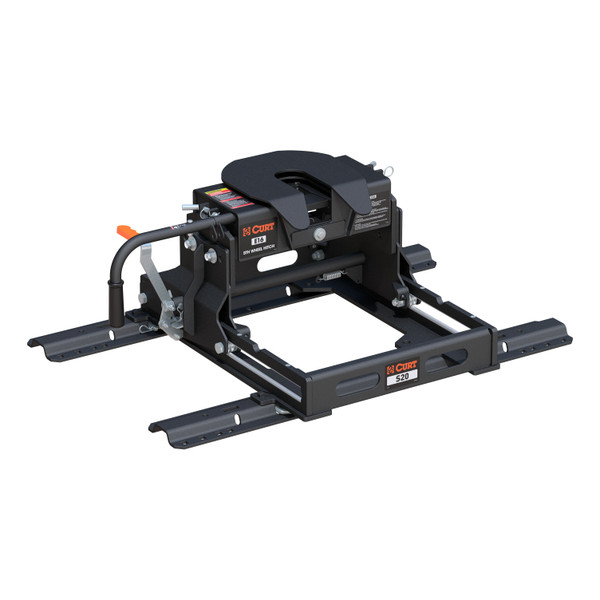

- E16 Sliding 5th Wheel Hitch with Rails, 16,000 lbs.

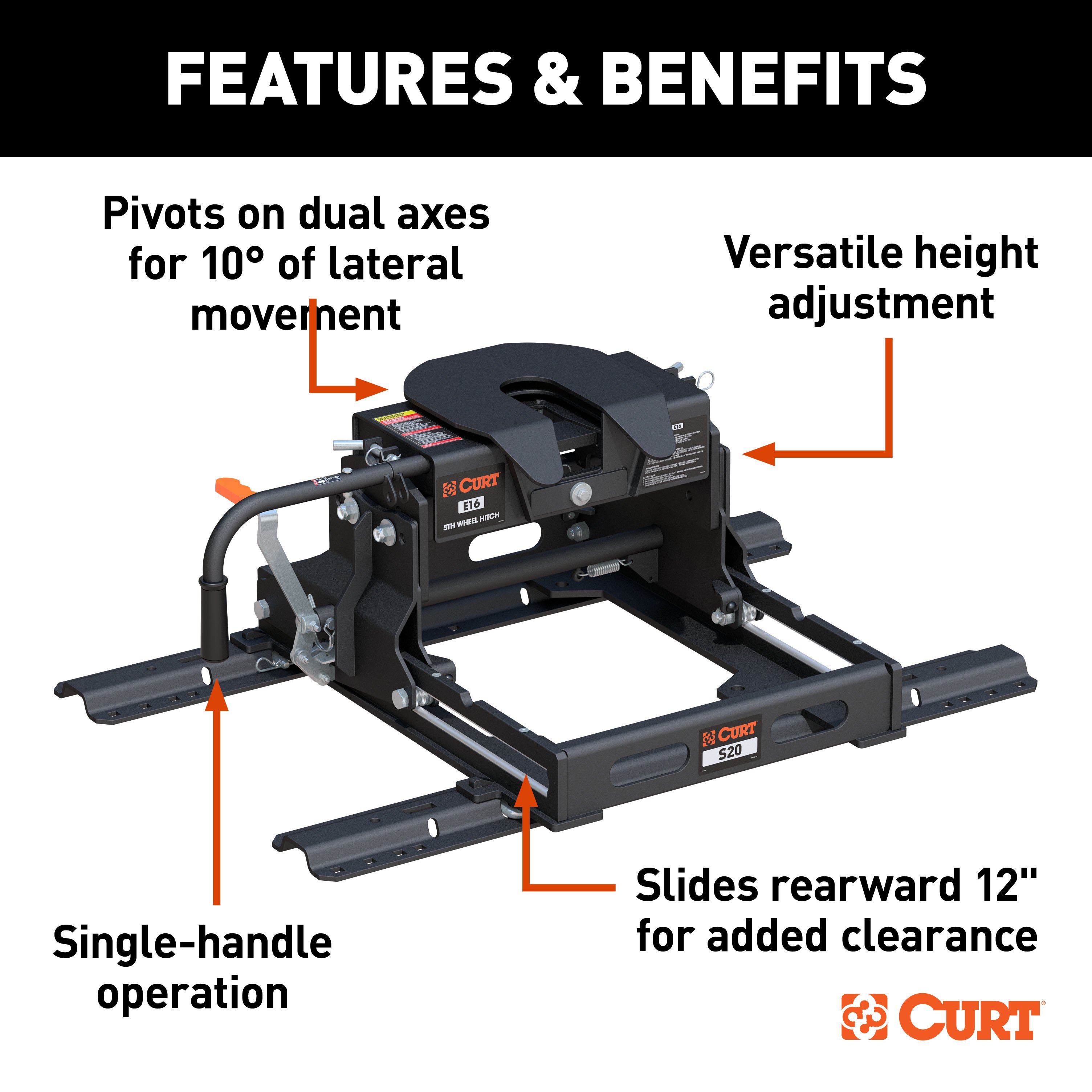

- Pivots on dual axes for 10 degrees of lateral movement

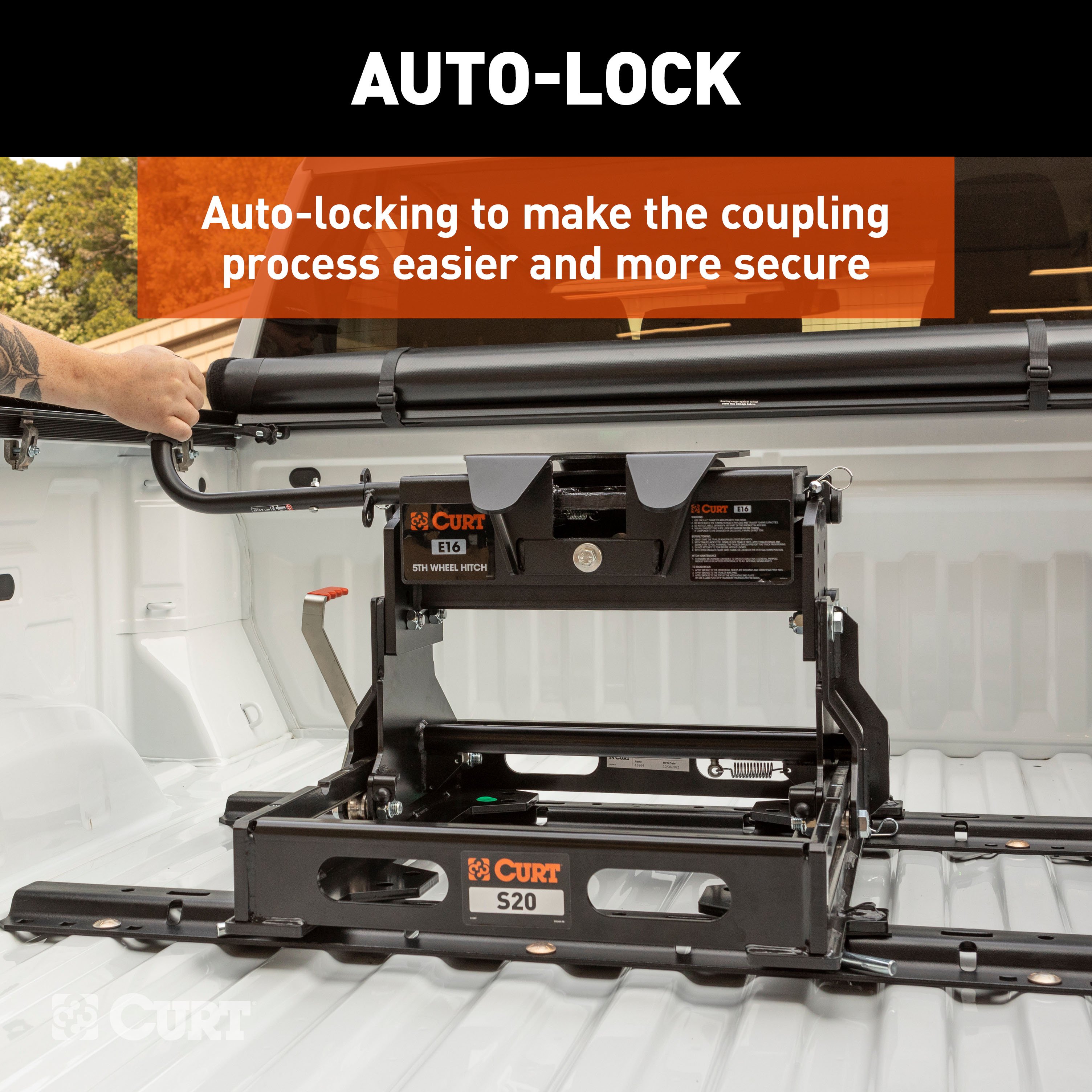

- Automatically locks for easy, secure coupling
- Operates using a single handle with few moving parts

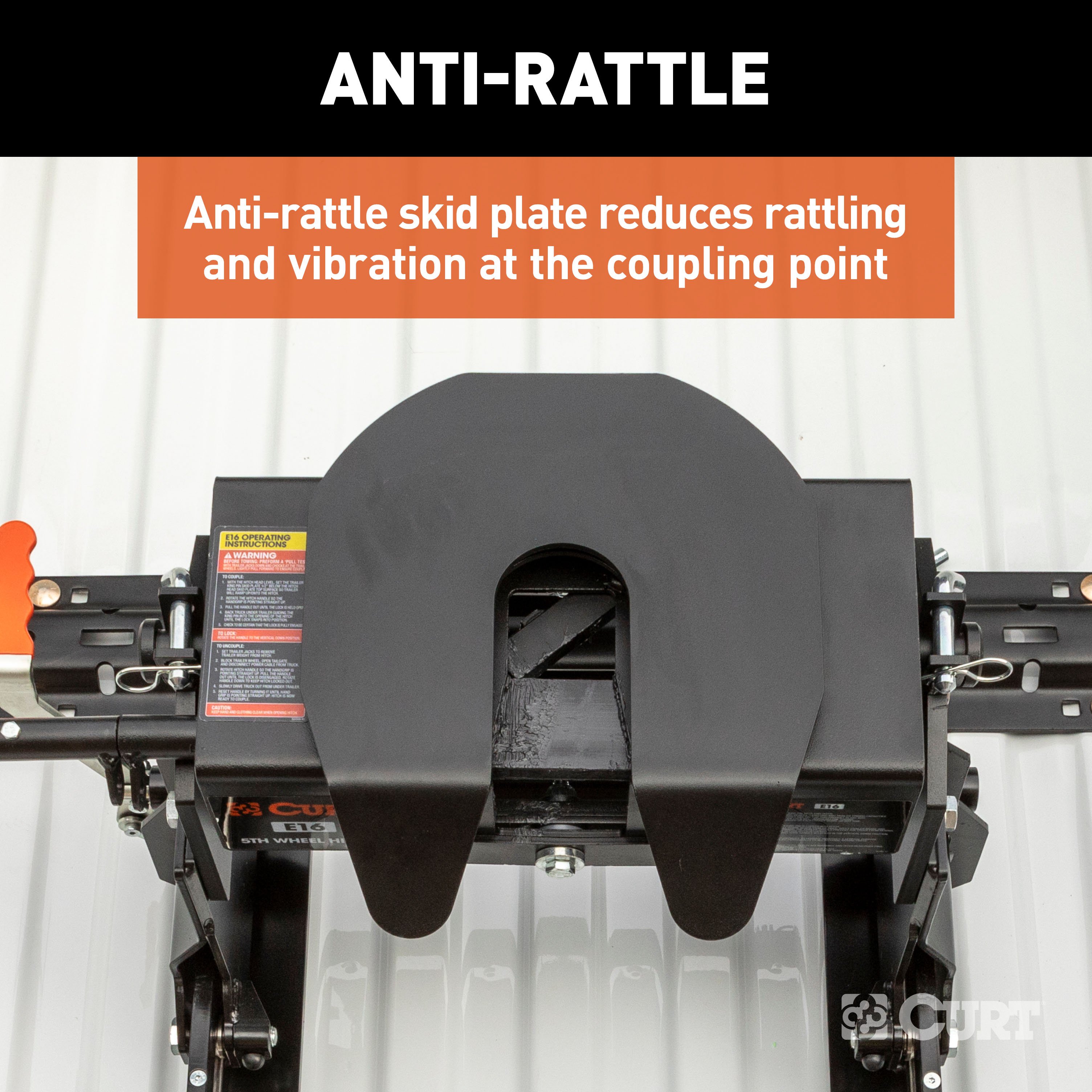

- Features an anti-rattle skid plate to help reduce noise
- S20 5th wheel slider #16564 provides 12" of travel in the truck bed

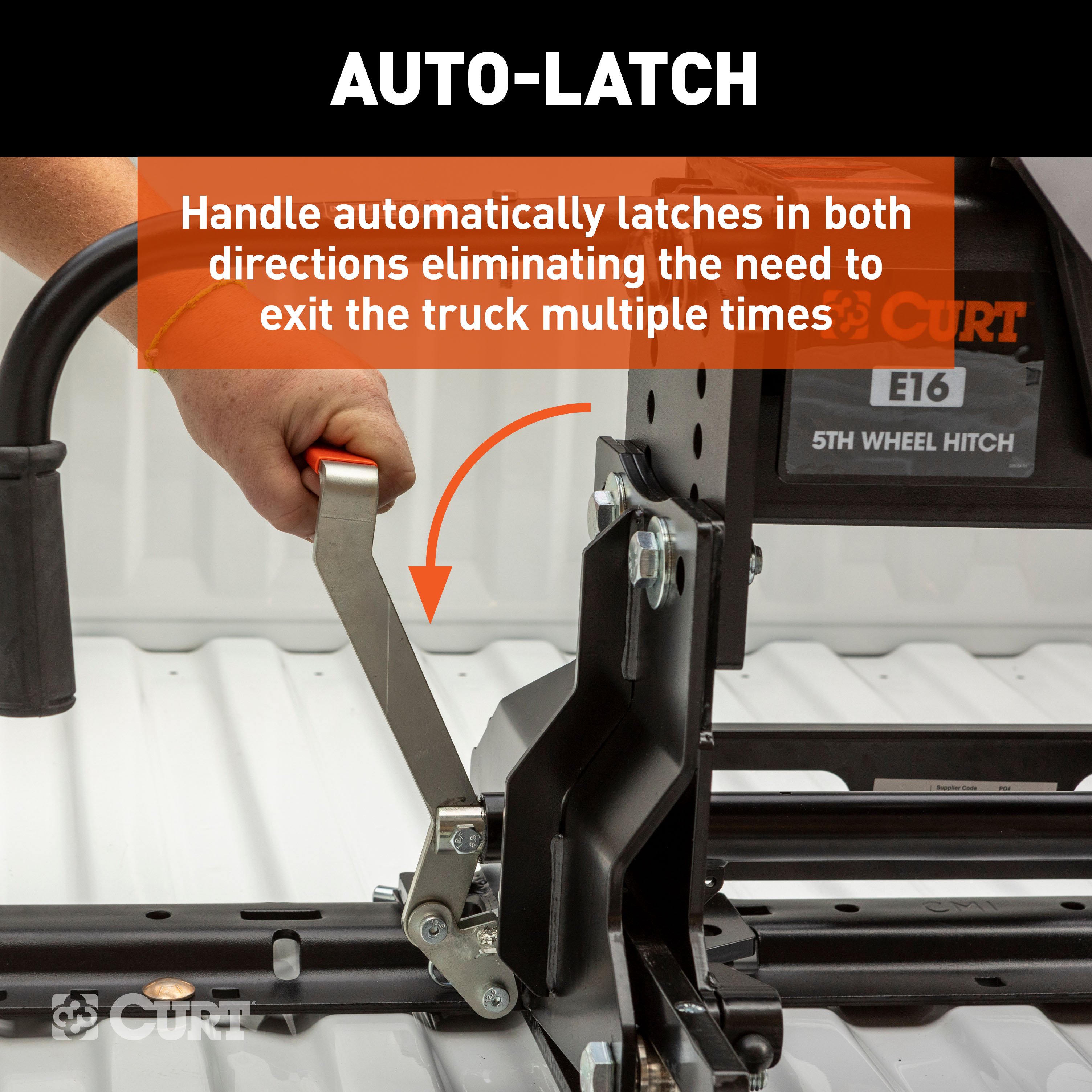

- Automatically latches in both directions so you only have to exit the truck once
- Offers four height adjustment positions to adapt to each unique truck bed
- Tested for safety in accordance with SAE J2638
- Protected by a highly durable carbide powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
Specifications
| Vertical Load | 4,000 LB |
| Shipping Weight | 208.000 |
| Class ID | 0 |
| Gross Trailer Weight (GTW) | 16,000 LB |
| Gross Trailer Weight (GTW) | 16,000 LBS |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Finish | CARBIDE BLACK POWDER COAT |
