Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

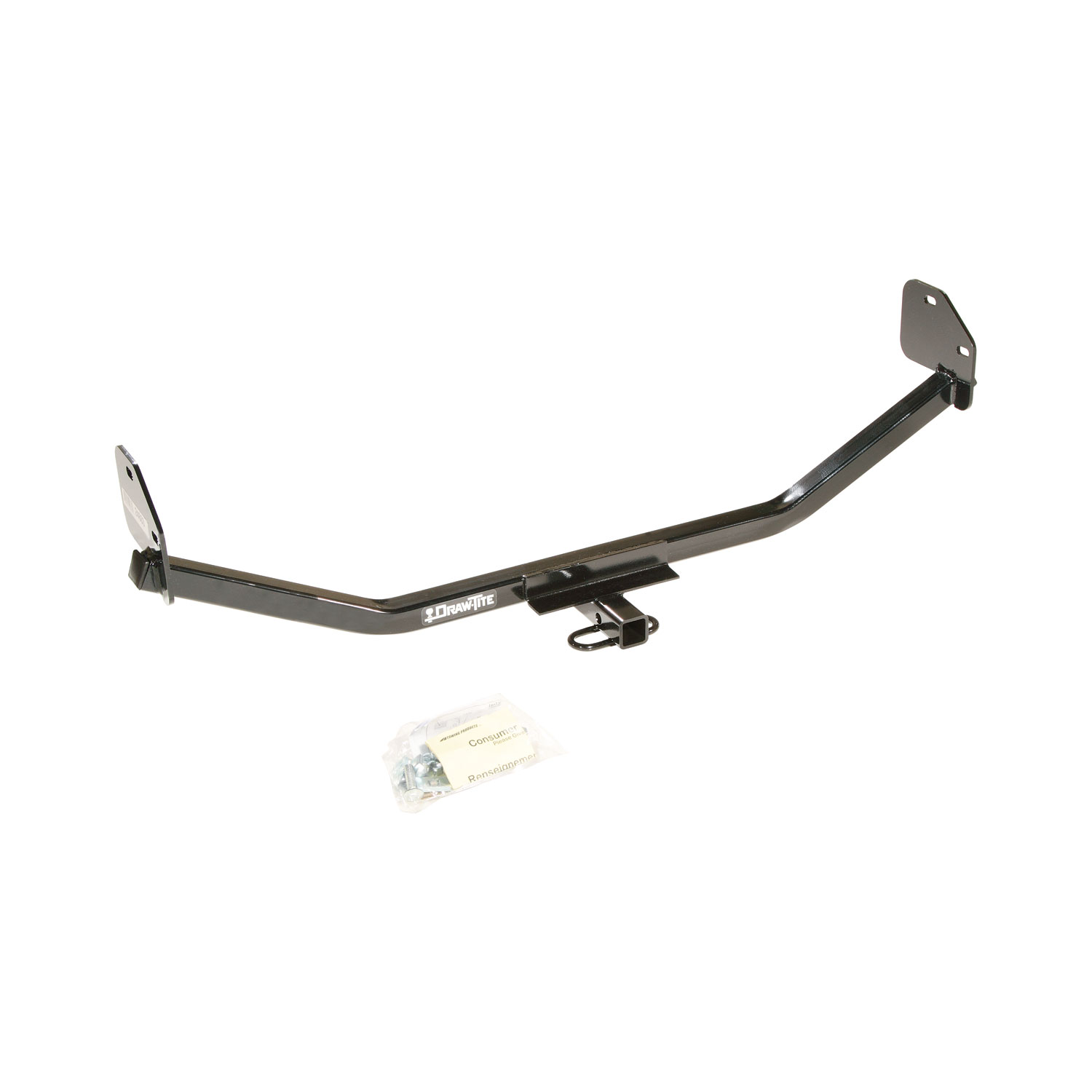

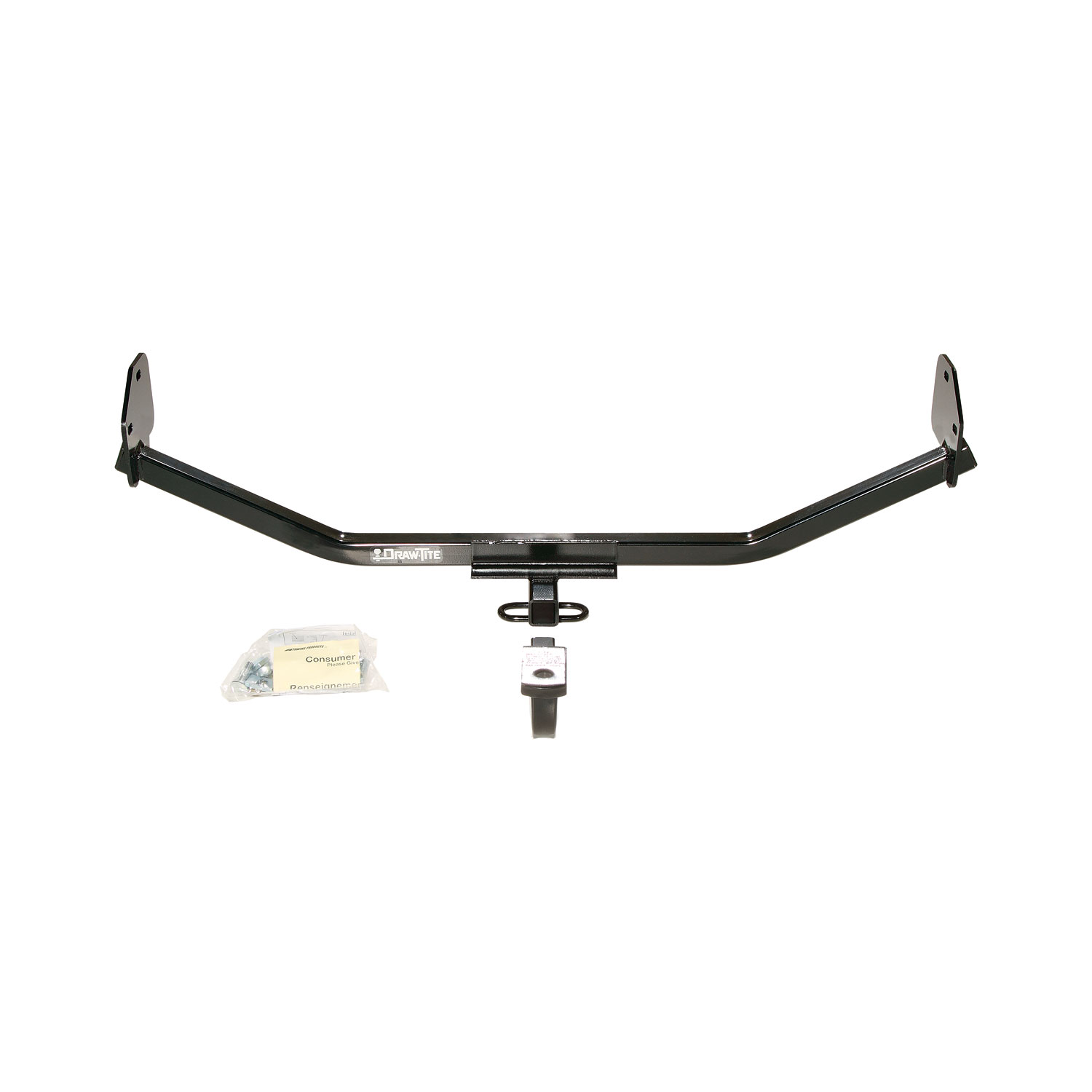

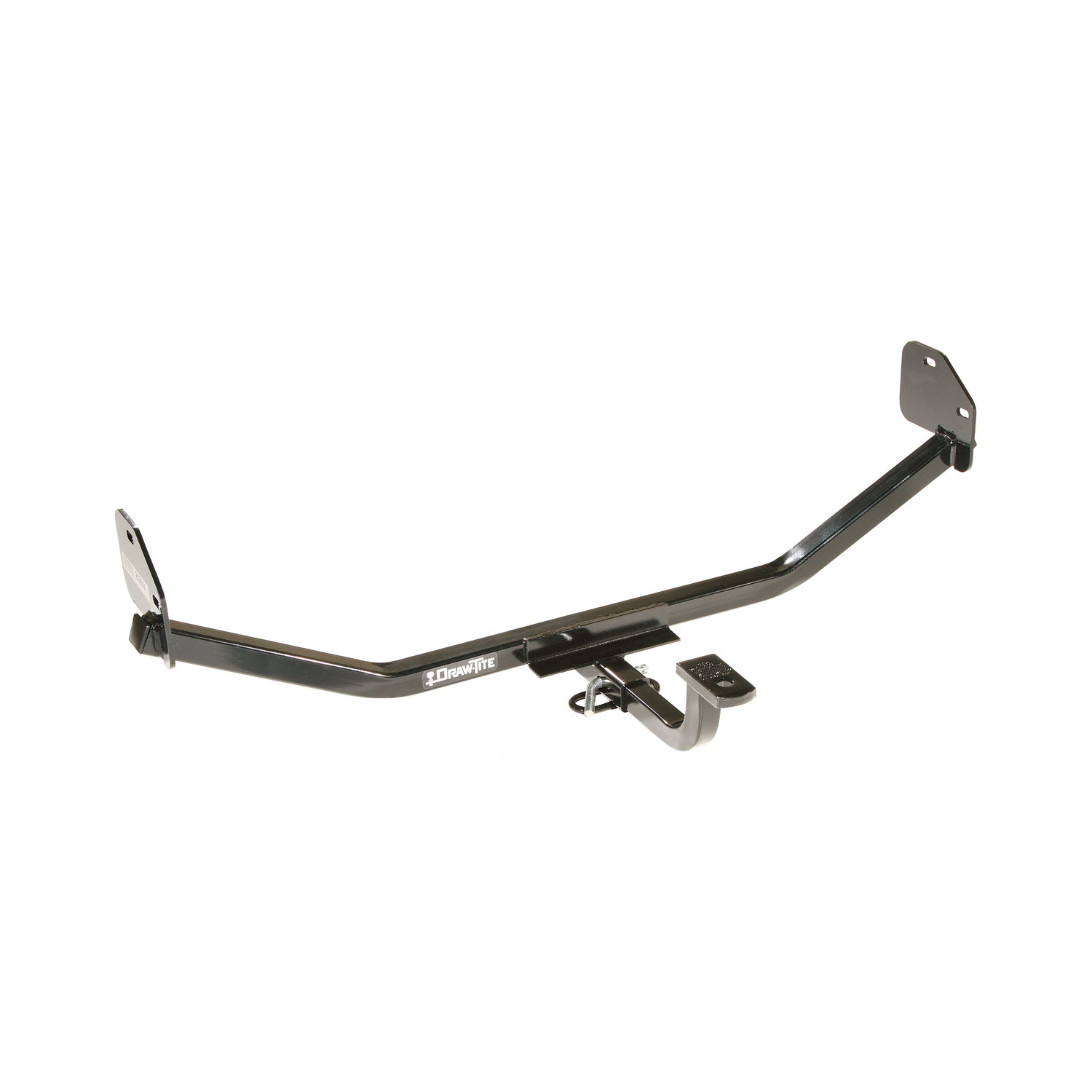

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24863 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 18.6 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2014 | Ford Mustang | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Mustang 24863 (Part #DT24863) is designed to fit the 2011-2014 Ford Mustang.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Mustang 24863 (Part #DT24863) fits the following vehicles: 2011-2014 Ford Mustang. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Mustang 24863 (Part #DT24863) fits 2011-2014 Ford Mustang models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Mustang 24863 (Part #DT24863) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24863 fits all Ford Mustang models including V-6, V-6 Premium, GT 5.0 Liter, GT-Premium, GT/California-Special, Shelby GT500 5.4 Liter, and convertible models of the above.
The maximum gross trailer weight is 2000 LB (908 kg) and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch specifications.
Required tools are wrenches or sockets in 13mm and 11/16" sizes, a torque wrench, a universal joint and extension, and spray lubricant. No drill bits are needed as no drilling is required for installation.
You do not need to remove the exhaust completely, but you must lower and rotate it. Remove the muffler metal tangs from the rubber exhaust hangers at the rear of the vehicle, loosen the strap bolts holding the exhaust together in front of the muffler on both sides, and rotate the mufflers downward to access the round holes in the bottom of the frame for the mounting bolts.
Torque the 7/16"-14 x 1-1/2" carriage bolts to 50 Lb.-Ft. (68 N·M) using a torque wrench.
Two people are recommended when raising the hitch into place so that you do not push the ends of the bolt leader wires back into the frame.
The bolt leader wires are used to fish the carriage bolts with blocks through the round access hole in the bottom of the frame and out through the holes on the outside of the frame. You insert the coiled end of the bolt leader through the attachment holes on the outside of the frame, through the large access hole, then through the block and screw it onto the bolt. The bolt leader ends are left sticking out a couple of inches to guide the bolts as the hitch is raised into position.
Yes. On V-6 models, pull the hitch rearward as far as possible to allow for more muffler clearance.
Yes. To allow more clearance between the bottom of the hitch frame brackets and the top of the tailpipes, you can twist the muffler and tailpipe around before tightening the strap bolts.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Do not exceed the towing vehicle manufacturer's rating or the hitch rating (2000 LB max gross trailer weight, 200 LB max tongue weight). The drawbar must be used in the rise position only.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced.
The hitch includes: (4) Carriage bolts 7/16"-14 x 1-1/2", (4) Hex nuts 7/16"-14, (4) Blocks 7/8" x 1-1/2" with square hole, (5) Bolt leaders 7/16" (one extra), and (4) Conical toothed washers 7/16".
Yes. The Drawbar Kit is part number 3594 and the Fastener Kit is part number 24863F. V-6 and V-8/GT fascias are sold separately.
Yes, part number 24863 fits all Ford Mustang convertible models including V-6, GT 5.0 Liter, GT-Premium, GT/California-Special, and Shelby GT500 5.4 Liter convertibles.
No, no drilling is required. The hitch uses existing frame access holes and does not require any holes to be drilled.
The manual does not specify whether the battery must be disconnected. Consult the vehicle manufacturer's instructions or a professional installer if you are unsure.
Torque the 7/16"-14 x 1-1/2" carriage bolts to 50 Lb.-Ft. (68 N·M) using a torque wrench.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these specifications.
Two people are recommended when raising the hitch into place to prevent the bolt leader wire ends from being pushed back into the frame.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
