Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

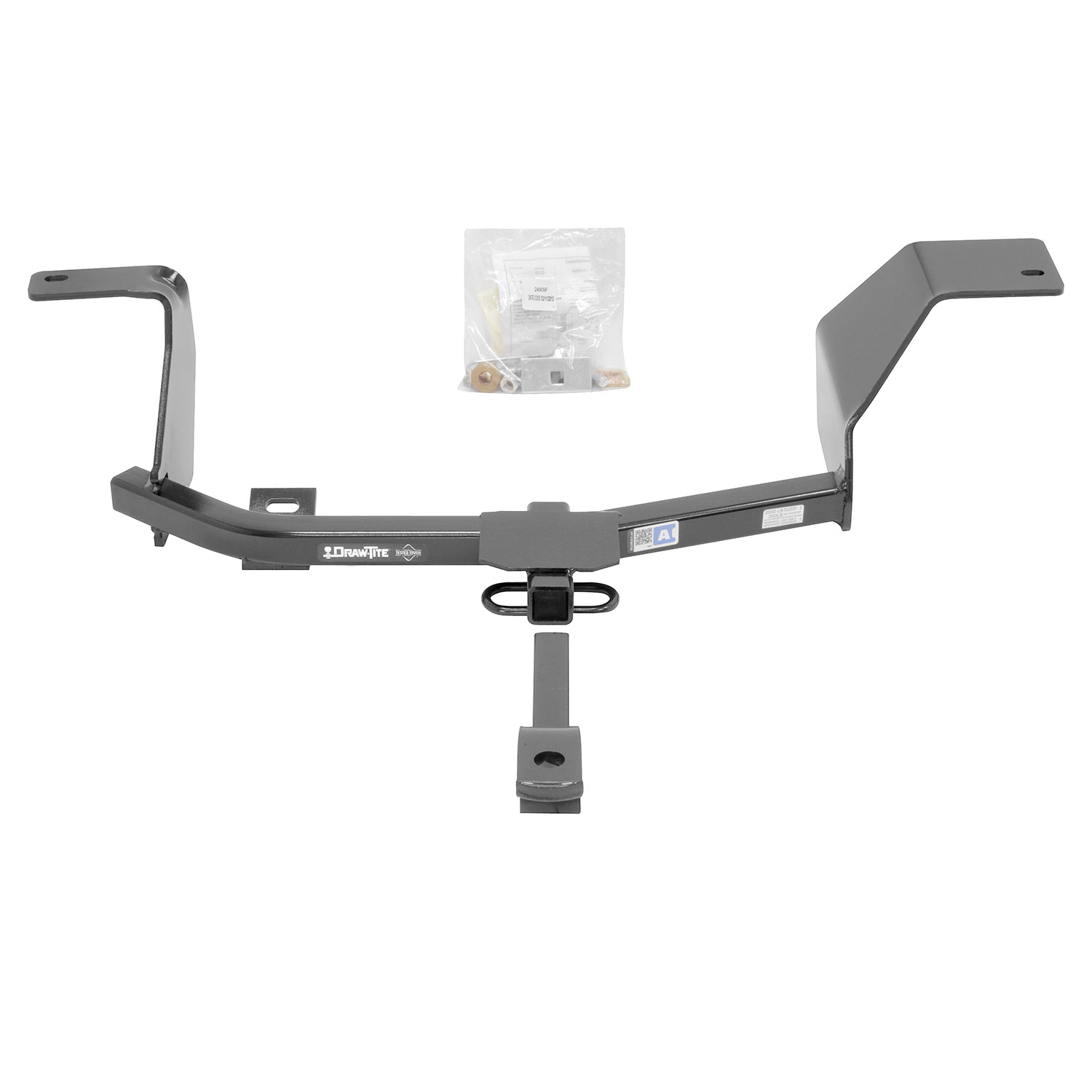

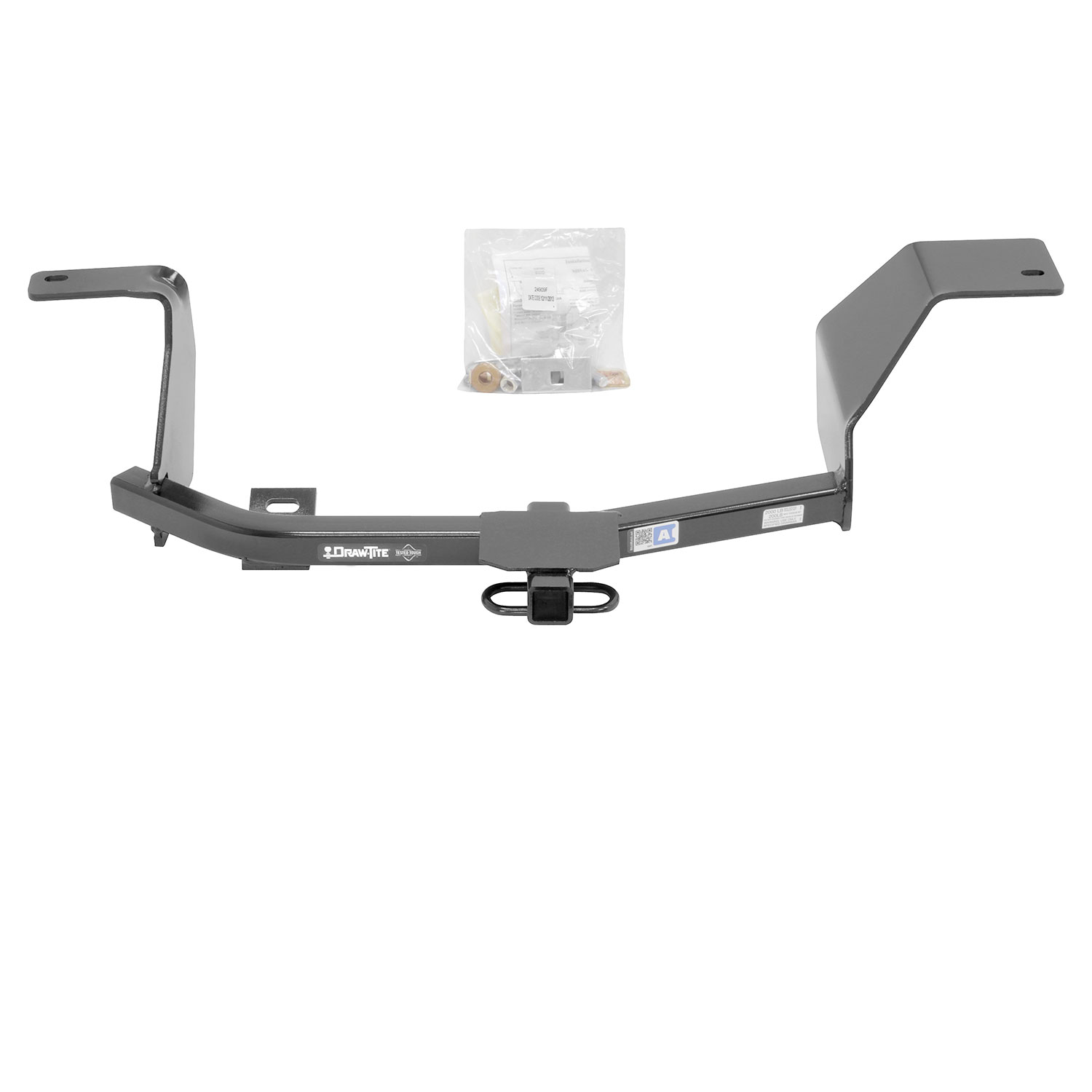

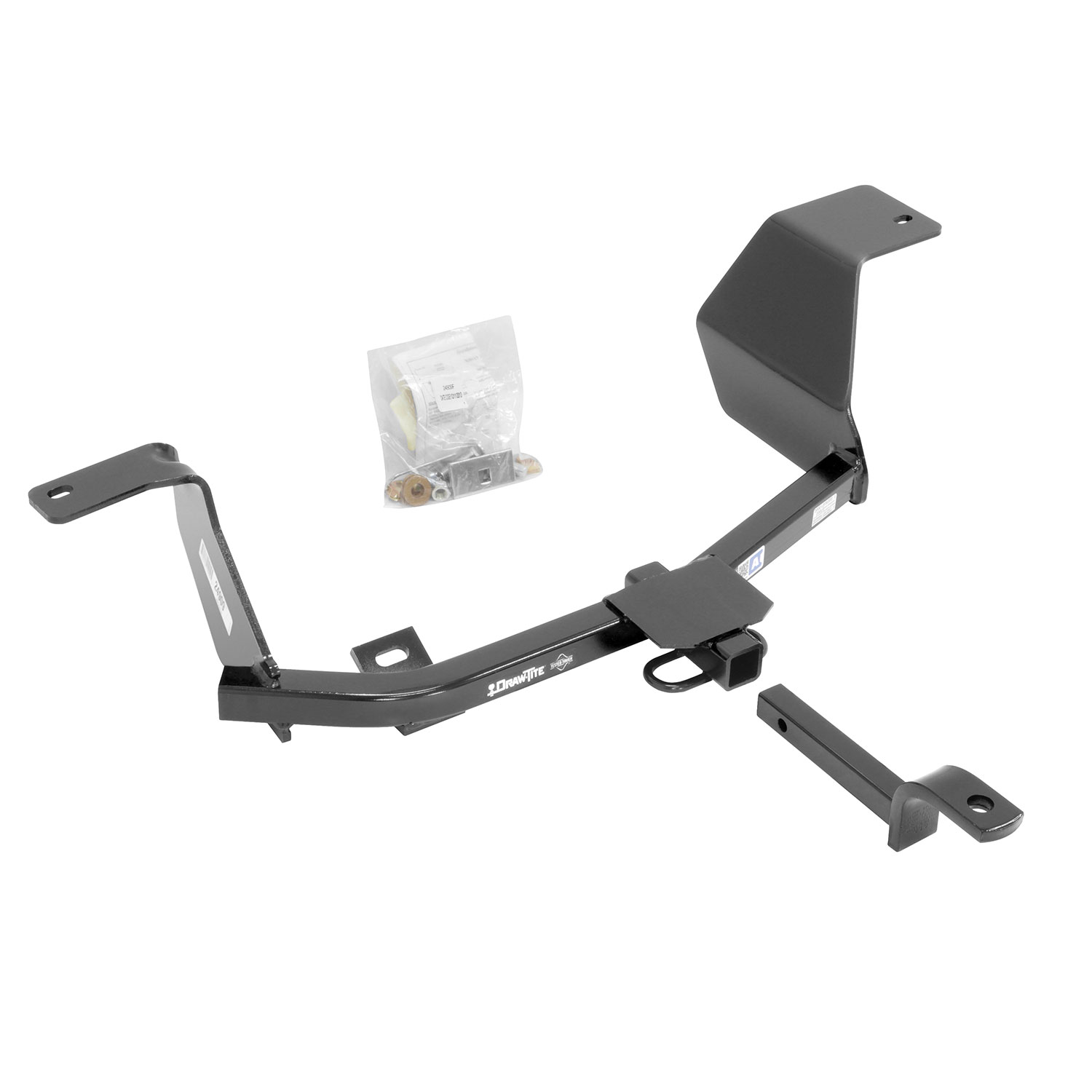

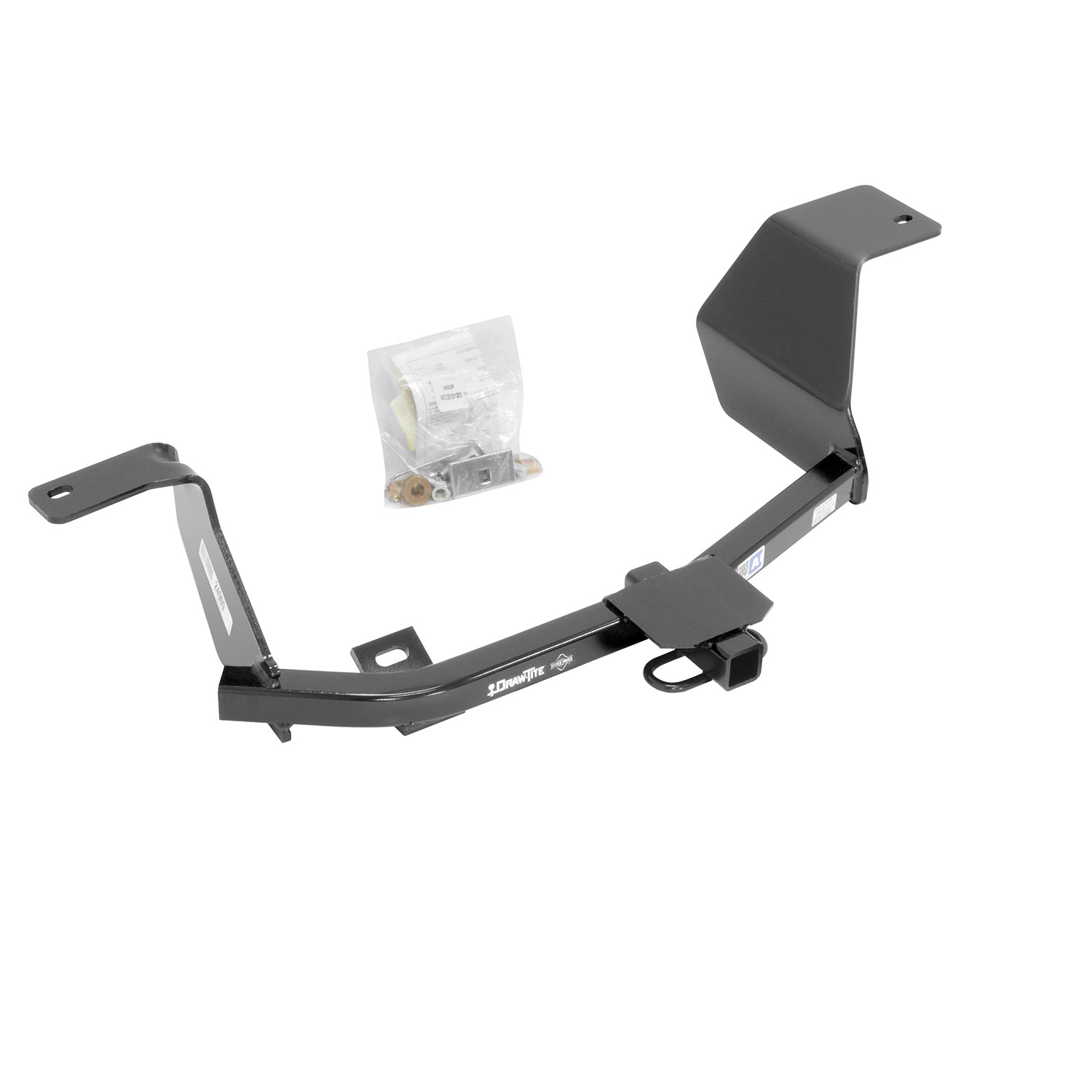

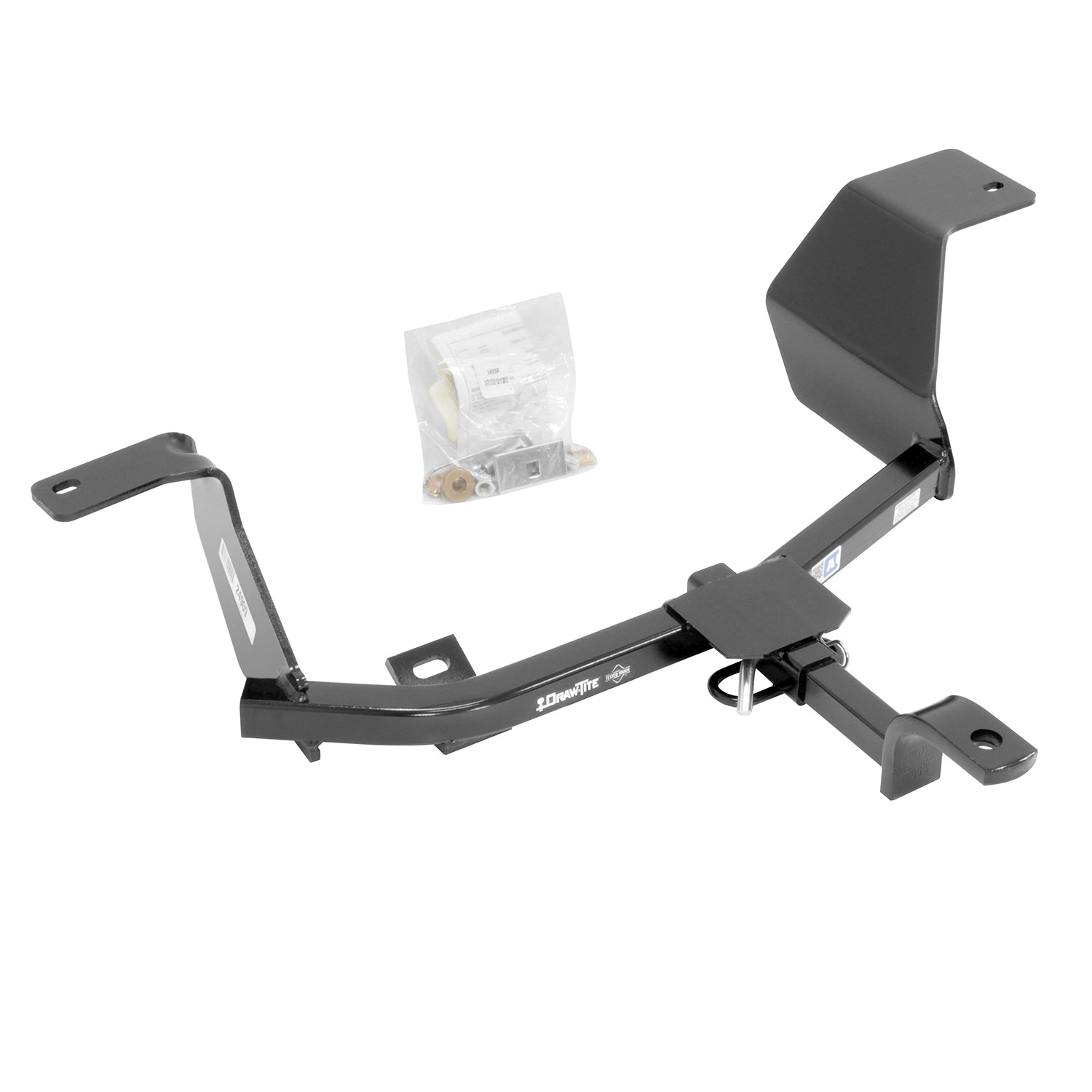

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24909 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 19.8 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2019 | Nissan Versa Note | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 30 minutes |
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Versa Note 24909 (Part #DT24909) is designed to fit the 2014-2019 Nissan Versa Note.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Versa Note 24909 (Part #DT24909) fits the following vehicles: 2014-2019 Nissan Versa Note. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Versa Note 24909 (Part #DT24909) fits 2014-2019 Nissan Versa Note models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Nissan Versa Note 24909 (Part #DT24909) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part number 24909 is designed for the Nissan Versa Note. The hitch assembly includes part numbers 24909, 60340, 77296, and 29175 UH.
The maximum gross trailer weight is 2000 lb (908 kg) and the maximum tongue weight is 200 lb (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
Required tools are: wrenches in sizes M10, 11/16 inch, and 3/4 inch; a 1 inch hole saw drill bit; tin snips; and a torque wrench. Lubricant or soapy water is also needed to help remove the exhaust isolator.

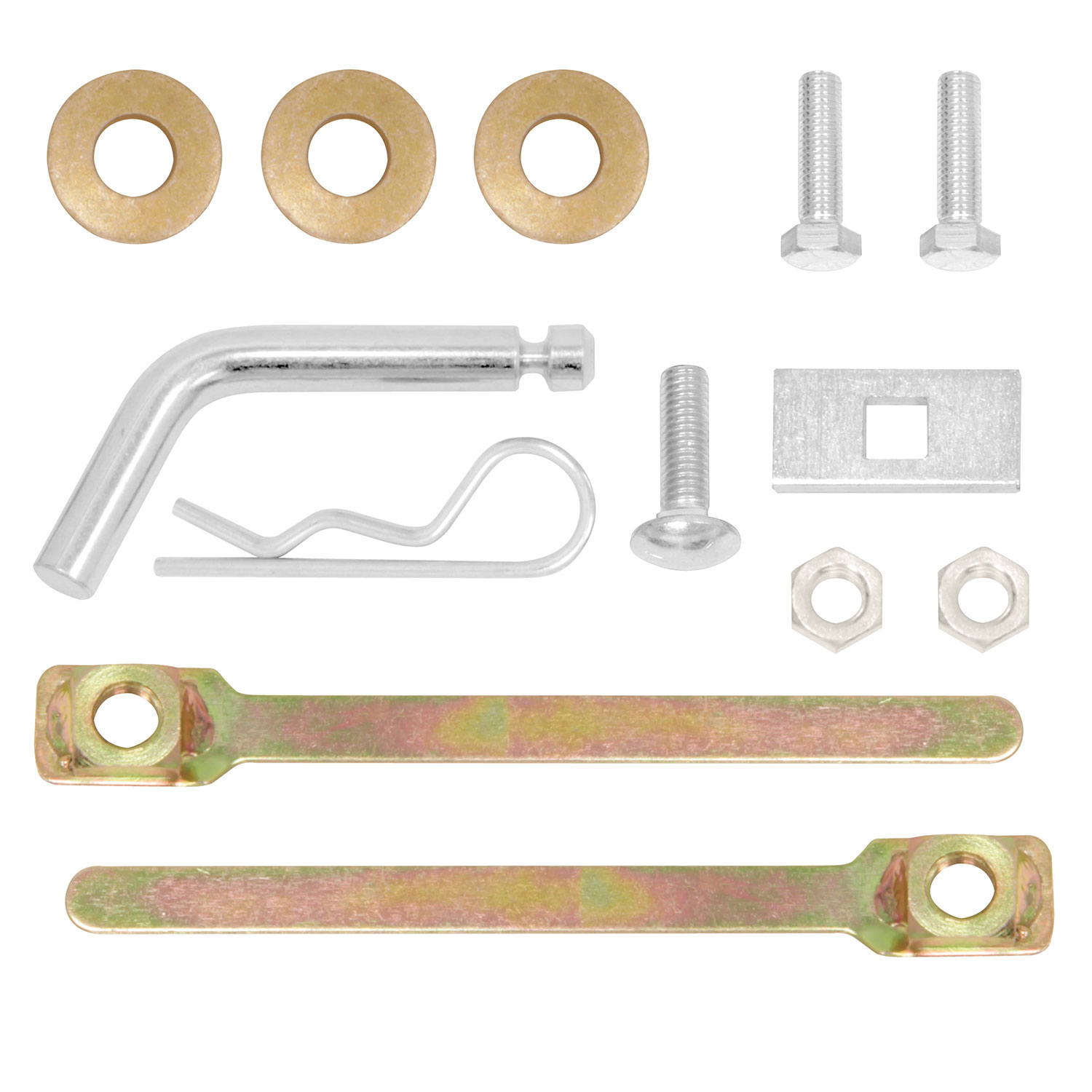

The hitch includes: one ½-13 x 2.00 GR5 carriage bolt, two ½-13 handle nuts, one ¼ x 1.50 x 3.00 spacer, two ½-13 bolts, three ½ inch conical washers, two galvanic isolators, and one ½-13 hex nut. Additional fasteners may be available in kit 24909F (sold separately).
Yes. The first step is to lower the exhaust at the rubber isolator. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. The exhaust is reinstalled as the final step after the hitch is secured.
Yes. The charcoal canister (black box) must be removed by taking out the M8 bolt and sliding the box forward. It is reinstalled in step 12 after the hitch is secured.
Yes. A 1 inch hole saw is used to drill access holes into the side of both the driver and passenger side frame rails, inline with existing holes to insert the handle nuts. These holes allow fastener access for installation.
Yes. The heat shield must be trimmed for access to the hole on the passenger frame rail. The rearward M6 bolt holding the heat shield is removed first and returned to the owner. On the passenger side, the heat shield is sandwiched between the frame rail and the hitch during installation.
No. Do not cut access or attachment holes with a torch. Use a 1 inch hole saw drill bit as specified in the equipment requirements.
All ½-13 GR5 fasteners that use a handle nut must be tightened to 50 lb-ft (68 N·m) with a torque wrench.
All ½-13 GR5 fasteners (except those using handle nuts) must be tightened to 75 lb-ft (102 N·m) with a torque wrench.
No. In step 8, when installing the conical washer and nut to the tie down attachment, do not tighten at that point. All fasteners are tightened to specification only after the hitch is centered on the vehicle in step 11.
1. Lower exhaust at rubber isolator. 2. Remove rearward M6 bolt from heat shield and trim heat shield. 3. Remove charcoal canister (M8 bolt). 4. Drill 1 inch access holes in driver and passenger frame rails. 5. Install ½ inch handle nuts into frame. 6. Install ½ inch carriage bolt and spacer to tie down hook. 7. Apply galvanic isolators to passenger side bracket. 8. Raise hitch and install conical washer and nut (do not tighten yet). 9. Feed ½ inch fasteners through slots on both sides; sandwich heat shield on passenger side. 10. Center hitch on vehicle. 11. Torque all fasteners to specification. 12. Reinstall charcoal canister. 13. Reinstall exhaust.
The two clear galvanic isolators are applied to the passenger side bracket as shown in Figure 1. They are positioned between the heat shield and the hitch bracket.
After raising the hitch into position and installing the fasteners through the slots on both sides, center the hitch on the vehicle before tightening all fasteners to specification.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The drawbar must be used in the RISE position only. The drawbar kit 3592 is sold separately.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed at any time, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Yes, the 24909 is designed for the Nissan Versa Note with a maximum towing capacity of 2000 lb gross trailer weight and 200 lb tongue weight.
Yes, a 1 inch hole saw is required to drill access holes in both driver and passenger frame rails. Heat shield trimming is also required.
You need wrenches (M10, 11/16, 3/4 inch), a 1 inch hole saw drill bit, tin snips, a torque wrench, and lubricant or soapy water.
Yes, both must be removed and then reinstalled after the hitch is secured. The exhaust is lowered at the rubber isolator first, and the charcoal canister is removed by taking out the M8 bolt.
Tighten ½-13 fasteners with handle nuts to 50 lb-ft (68 N·m). Tighten all other ½-13 GR5 fasteners to 75 lb-ft (102 N·m) with a torque wrench.
The drawbar must be used in the RISE position only. The drawbar kit 3592 is sold separately.
