Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

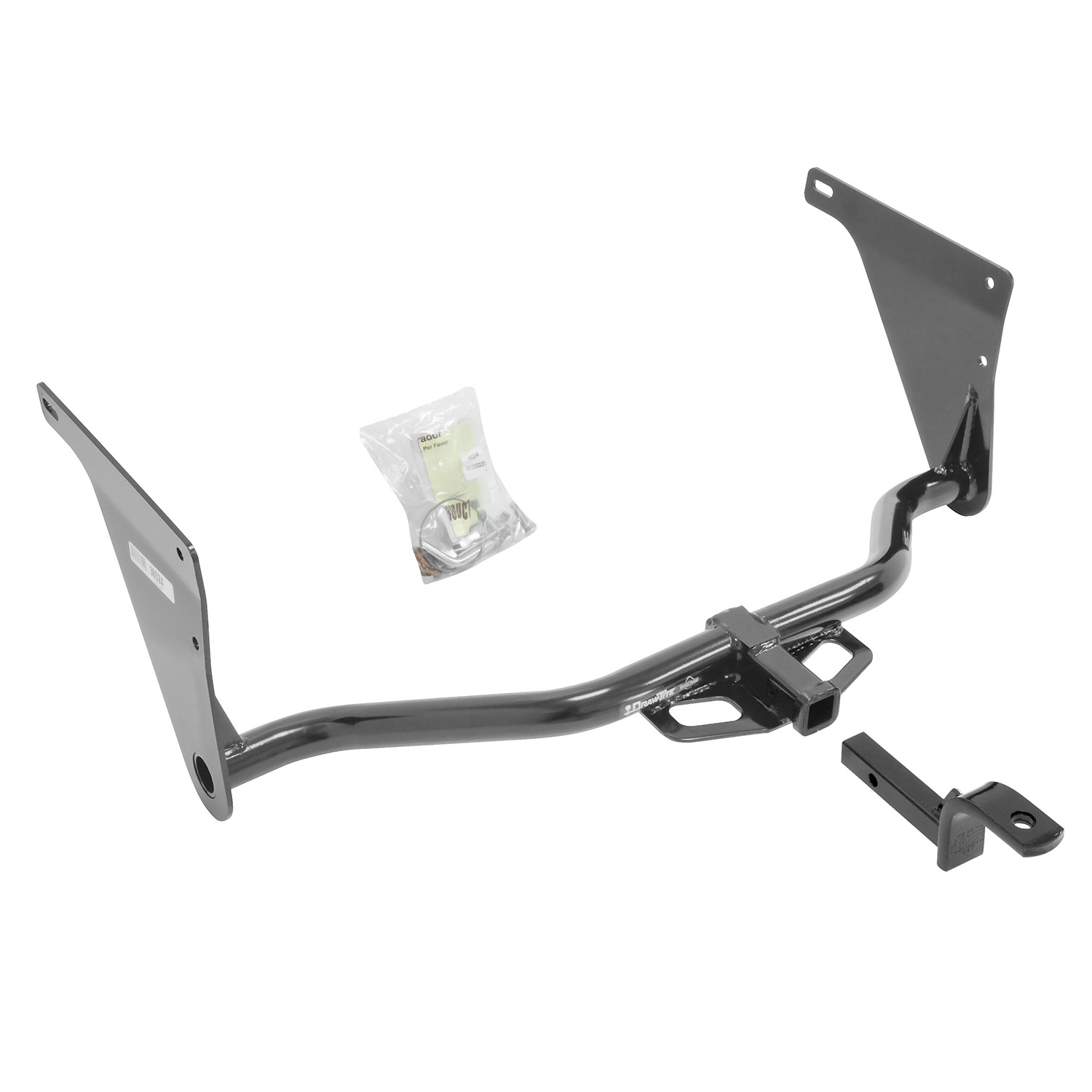

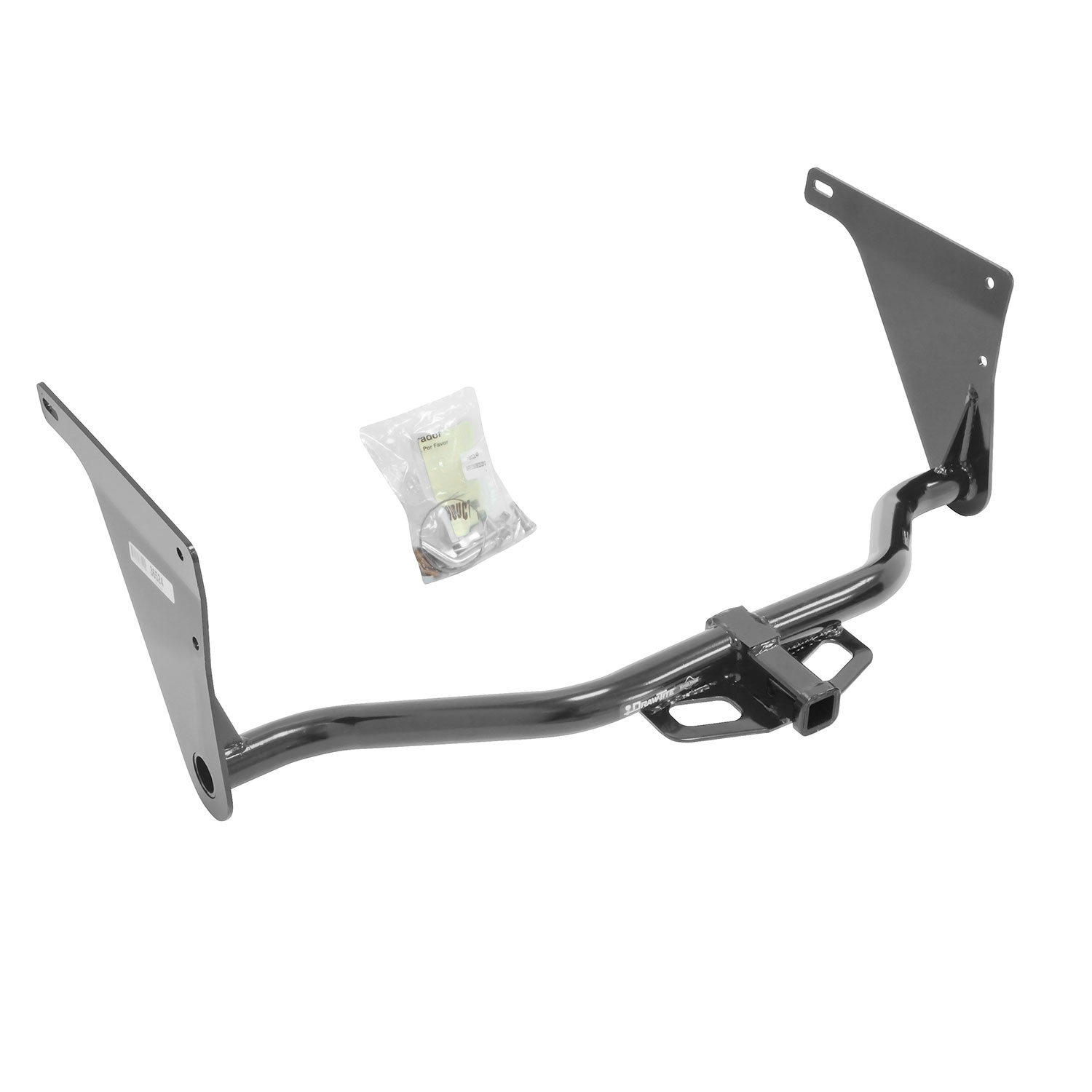

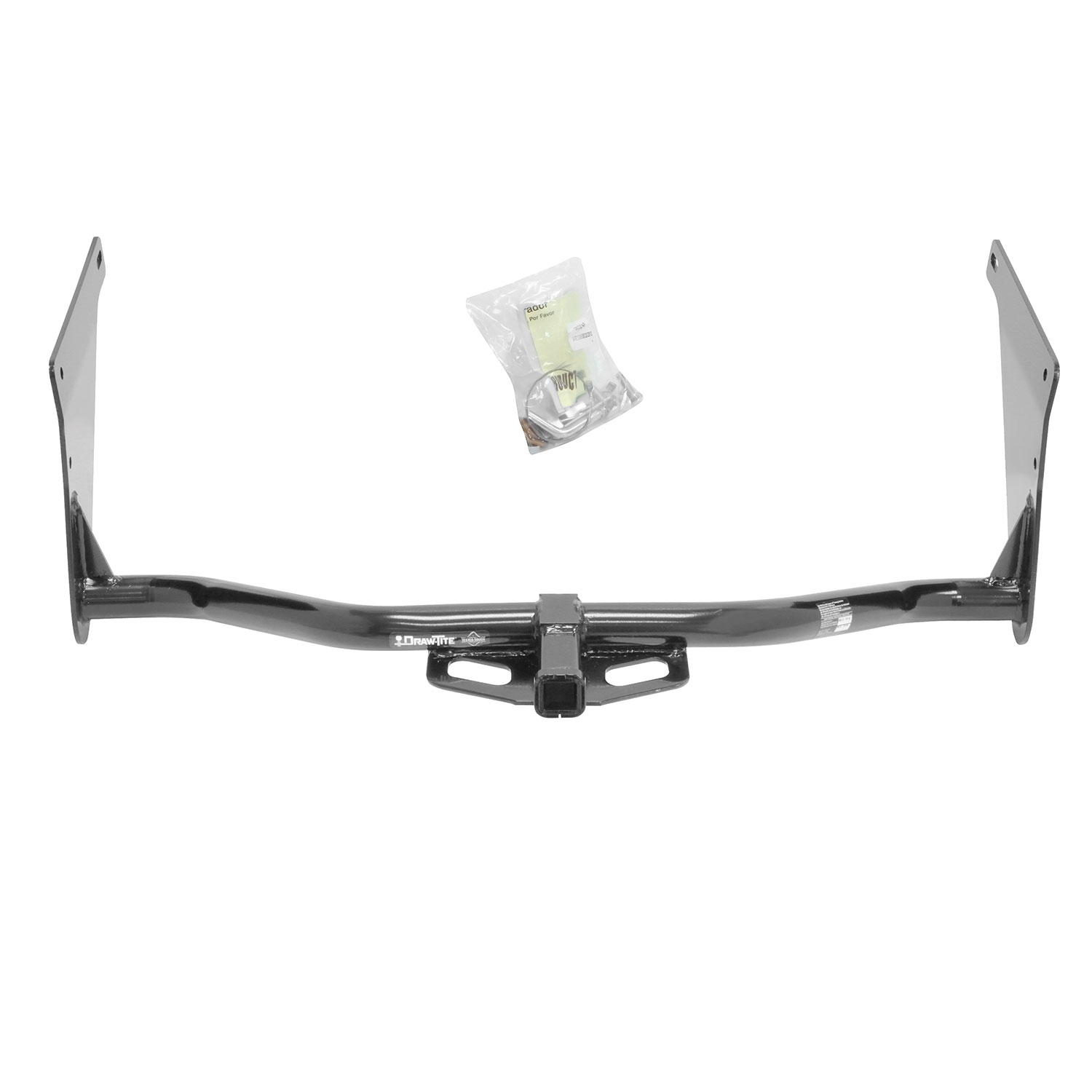

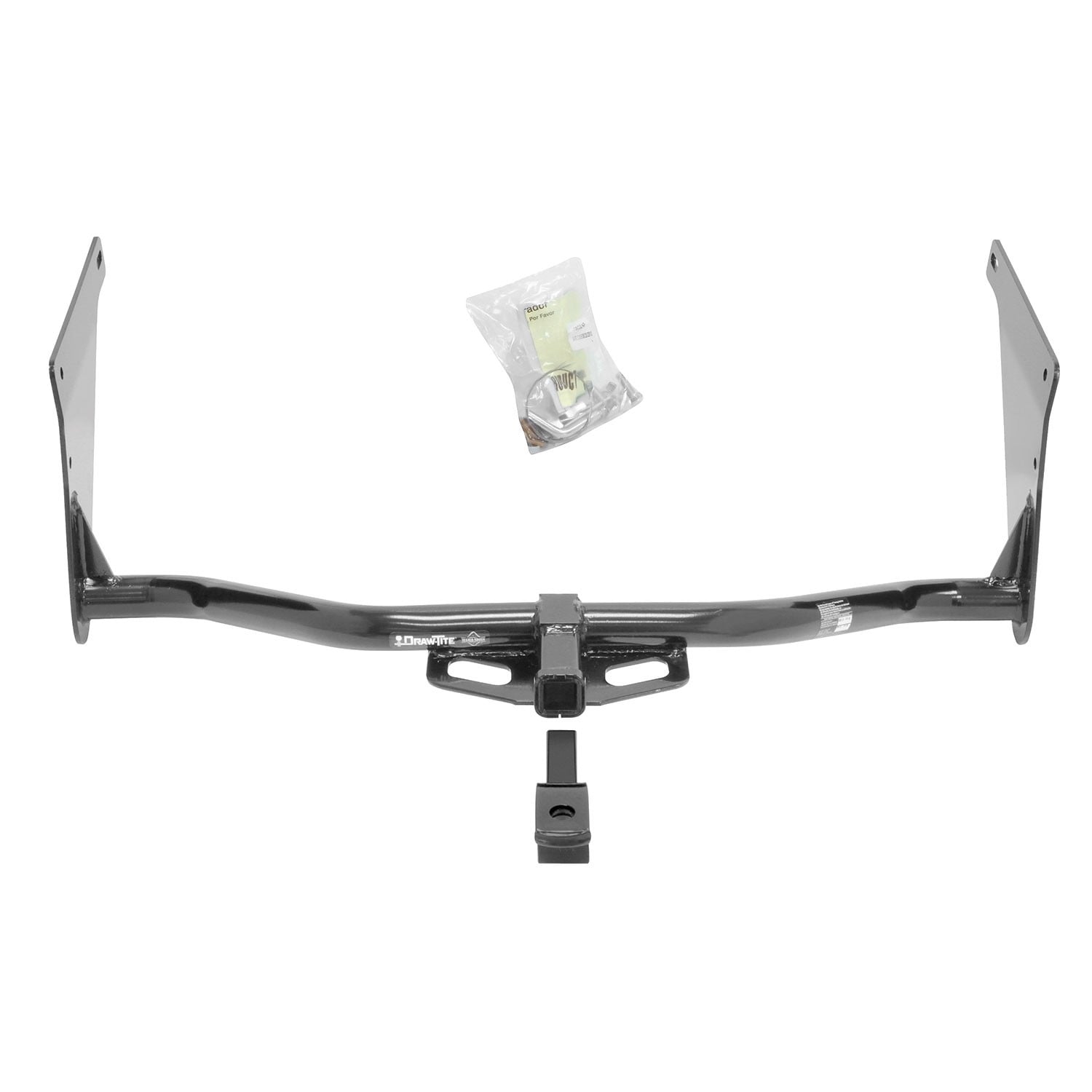

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36524 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 37 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2019 | Ford Escape | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Escape 36524 (Part #DT36524) fits 2013-2019 Ford Escape models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Escape 36524 (Part #DT36524) is designed to fit the 2013-2019 Ford Escape.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Escape 36524 (Part #DT36524) fits the following vehicles: 2013-2019 Ford Escape. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Ford Escape 36524 (Part #DT36524) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

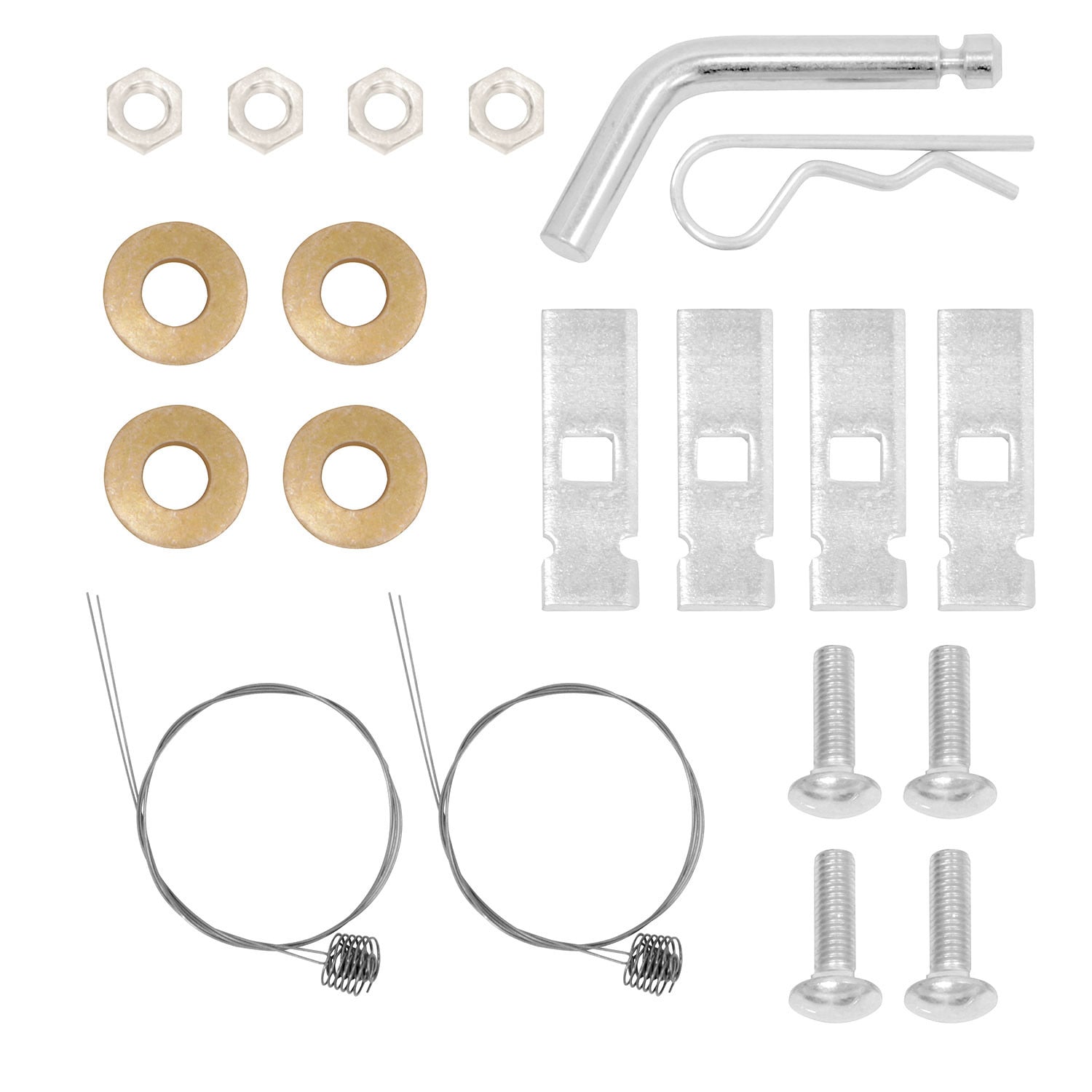

The kit includes 4 carriage bolts (7/16-14 X 1.50 GR5), 4 hex nuts (7/16-14 GR2), 4 spacers (¼ X 7/8 X 3.00), 4 pull wires (7/16), and 4 conical washers (7/16). All fasteners are included in fastener kit 36524F. A separate drawbar kit (36071) is sold separately.
Yes, the hitch is designed for Ford Escape. The manual specifies wiring access locations as SUV 1 & 2. However, if your vehicle has the 'Hands free lift gate' option, the lift gate sensor will only work in a limited area around the hitch installation location.
The hitch will not prevent the lift gate from functioning, but the lift gate sensor will only work in a limited area when the hitch is installed. The sensor's operating range is reduced to the area shown in Figure 2 of the manual.
You will need an 11/16" wrench and a torque wrench. The manual also shows that a file or prying tool (such as a wrench used as a lever) may be needed to enlarge the access holes if the spacer and bolt head do not fit through them initially.
You should first check whether the spacer and bolt head will fit through the access holes. If they do not fit, you will need to enlarge the holes. The manual shows two methods: using a file or inserting a wrench and prying to widen the opening. Enlarge the hole just enough to allow the hardware to pass through. Do not use a torch to cut the holes.
1. Feed spacers and carriage bolts into position using the pull wires provided, keeping the bolt and spacer separate (not engaged) while inserting into the frame rail. 2. Push fasteners back into the frame rail, leaving pull wires and extra wire sticking out. 3. Raise the hitch into position between the frame rails and feed pull wires through adjacent holes in the hitch. On the passenger side, raise the forward end of the bracket over the hoses crossing the frame rail. 4. Pull fasteners back through access holes and hitch. 5. Remove pull wires and attach conical washers and nuts, being careful not to push fasteners back into the frame rail. 6. Tighten all fasteners to specification using a torque wrench.
Keeping the bolt and spacer not engaged (not threaded together) while inserting them into the frame rail makes the installation much easier. Once the fasteners are positioned in the frame, you will pull them back through the hitch and then attach the conical washers and nuts.
The pull wires are used to feed the spacers and carriage bolts into position within the frame rails. After the hitch is raised into position, the pull wires are fed through adjacent holes in the hitch to help pull the fasteners back through the access holes and hitch. Once the fasteners are in place, the pull wires are removed.
On the passenger side, raise the forward end of the bracket over the hoses crossing the frame rail. This ensures the hitch bracket clears the hoses during installation.
All 7/16-14 GR5 carriage bolts must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench.
The kit includes 4 carriage bolts, each 7/16-14 X 1.50 GR5 (Grade 5). These bolts must be tightened to 50 Lb.-Ft. (68 N·M).
The kit includes 4 hex nuts, each 7/16-14 GR2 (Grade 2).
The kit includes 4 spacers, each ¼ X 7/8 X 3.00 inches.
The hitch has a maximum gross trailer weight of 3500 LB (1589 Kg) and a maximum tongue weight of 300 LB (136 Kg). However, you must not exceed the lower of the hitch rating or your vehicle manufacturer's towing rating.
The drawbar must be used in the Rise position only. The drawbar kit (36071) is sold separately.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Be careful not to push fasteners back into the frame rail when attaching conical washers and nuts.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Verify that the hitch is securely mounted and that all bolts remain at the specified torque of 50 Lb.-Ft. (68 N·M).
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
Yes, the hitch is designed for Ford Escape. If your vehicle has a hands-free lift gate option, the sensor will operate only in a limited area around the hitch.
You will need an 11/16" wrench and a torque wrench. A file or prying tool may be needed to enlarge access holes if required.
You may need to enlarge the existing access holes if the spacer and bolt head do not fit through them. Use a file or prying tool to enlarge just enough for the hardware to pass. Do not use a torch.
Tighten all 7/16-14 GR5 fasteners to 50 Lb.-Ft. (68 N·M) using a torque wrench.
Maximum gross trailer weight is 3500 LB (1589 Kg) and maximum tongue weight is 300 LB (136 Kg). Do not exceed your vehicle manufacturer's towing rating.
No, the drawbar kit (36071) is sold separately. The drawbar must be used in the Rise position only.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes to prevent water and exhaust fume entry.
