Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,500 lbs. gross trailer weight (GTW) and up to 675 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75742 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 28 LBS |
| GROSS TOWING WEIGHT: | 4,500 LBS. |
| GROSS TONGUE WEIGHT: | 675 LBS. |

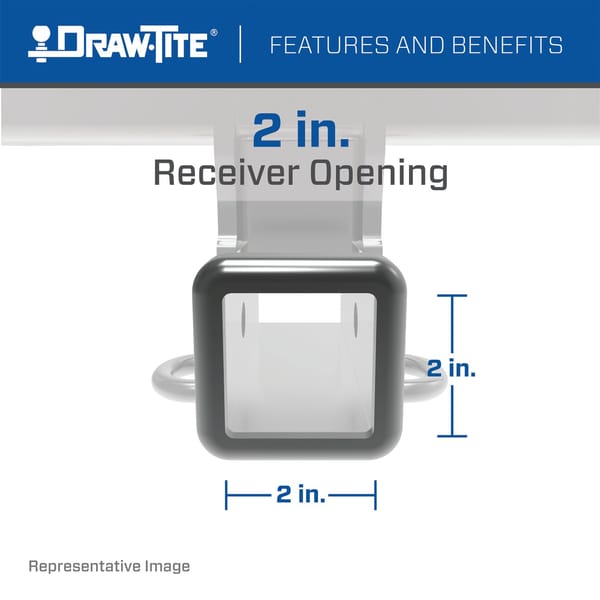

| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2016 | Honda CR-V | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Honda CR-V 75742 (Part #DT75742) is designed to fit the 2012-2016 Honda CR-V.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Honda CR-V 75742 (Part #DT75742) fits the following vehicles: 2012-2016 Honda CR-V. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Honda CR-V 75742 (Part #DT75742) fits 2012-2016 Honda CR-V models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Honda CR-V 75742 (Part #DT75742) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 75742 is designed for Honda CR-V. The hitch is a weight-carrying ball mount with a maximum gross trailer weight of 4500 lb (2043 kg) and maximum tongue weight of 675 lb (306 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
No. The manual explicitly states this hitch is 'Not For Use With Spring Bars'. You must use a weight-carrying ball mount only.
The maximum gross trailer weight is 4500 lb (2043 kg) and the maximum tongue weight is 675 lb (306 kg). However, you must not exceed the lower of your vehicle manufacturer's towing rating or these limits.
You will need: tape, utility knife, tape measure, marking pencil, lubricant or soapy water, wrenches in 10mm, 17mm, and 11/16 sizes, and a small Phillips head screwdriver. A torque wrench is required to tighten fasteners to specification.
No drilling is required. The hitch uses existing weld nuts on the frame rails. The installation does require trimming of the driver-side appearance panel to clear the hitch, but no holes are drilled into the vehicle frame.
You do not need to remove the exhaust system completely, but you must lower it. Remove the rubber isolators from the muffler hangers—remove the outside isolator first, then the inside isolator. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. After installing the hitch, raise the exhaust back into position and reinstall the rubber isolators.
The driver-side appearance panel must be trimmed. First, remove the panel by taking out 5 plastic rivets, 3 hex nuts, and 2 Phillips head screws located in the wheel well behind the driver-side rear tire. The panel is then trimmed to clear the hitch and reinstalled on the vehicle. The manual shows the trim area is 16.25 inches wide, 4.25 inches tall, 8.50 inches deep, and 3.00 inches from a reference point.
All M10 CL8.8 fasteners must be tightened with a torque wrench to 38 Lb.-Ft. (52 N*M).
All 3/8-16 GR5 fasteners must be tightened with a torque wrench to 30 Lb.-Ft. (41 N*M).

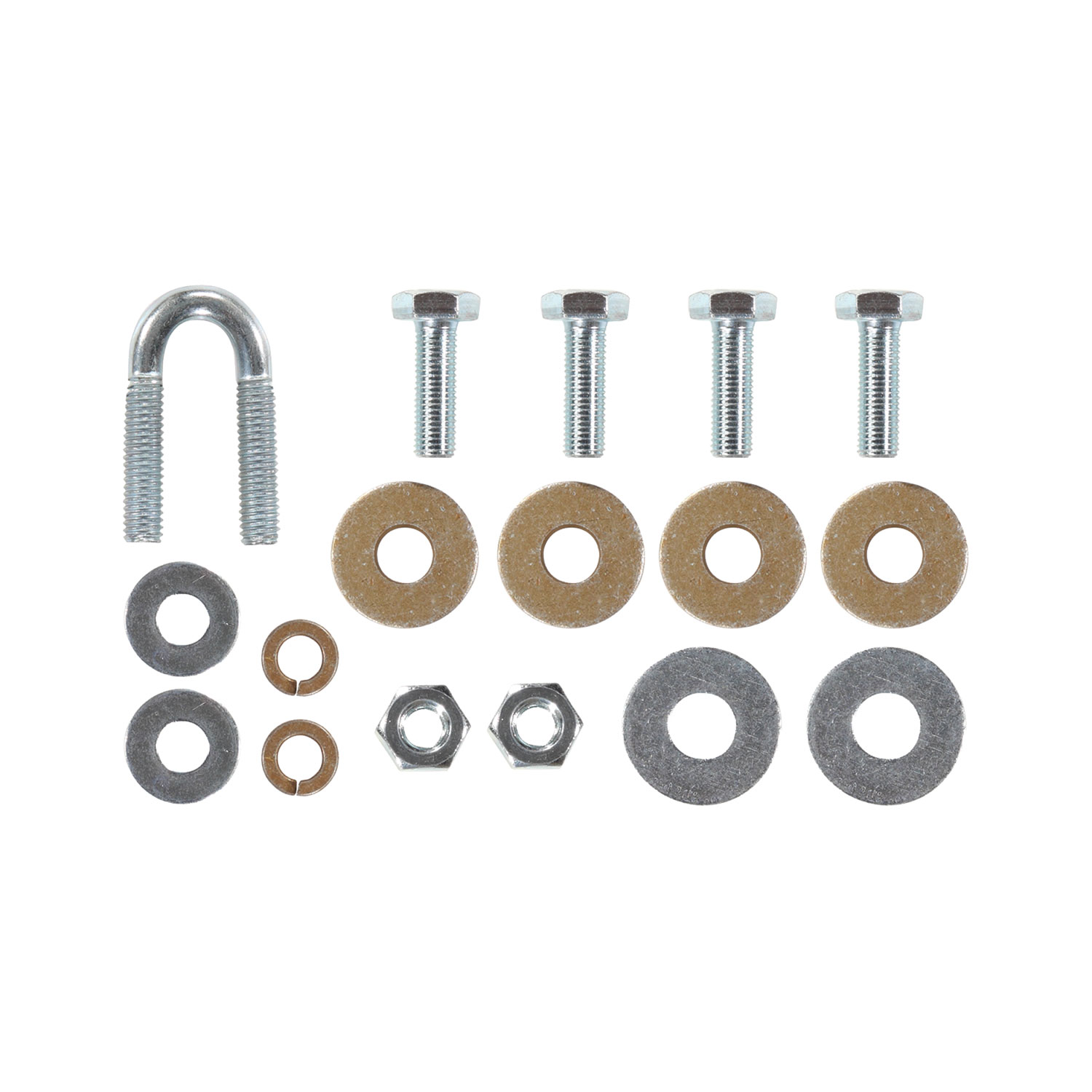

The fastener kit 75742F includes: 4 hex bolts M10×1.25×30 CL8.8 (item j), 4 conical washers (item k), 1 U-bolt 3/8-16 (item l), 2 flat washers 3/8" (item m), 2 lock washers (item n), 2 hex nuts 3/8" (item o), and 2 flat washers ½" (item p). The installation also uses existing weld nuts on the vehicle frame rails.
1. Run item 1 (the hitch) into existing weld nuts to clear the threads. 2. Tape flat washers (item 7) to the rearward weld nut location on both frame rails. 3. Raise the hitch into position. 4. Install M10 fasteners as shown. 5. Install the 3/8 U-bolt through the vehicle tie-down hook and through the tie-down hook attachment of the receiver, then install flat washer, lock washers, and 3/8 hex nuts. 6. Tighten all fasteners to the required torque specification. 7. Raise the exhaust back into position and reinstall rubber isolators.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Verify that all fasteners have been tightened to the required torque specifications: M10 fasteners to 38 Lb.-Ft. (52 N*M) and 3/8-16 fasteners to 30 Lb.-Ft. (41 N*M).
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but recommends regular inspection as part of vehicle maintenance.
The 75742 hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes. Maximum towing capacity is 4500 lb gross trailer weight and 675 lb tongue weight. Do not exceed your vehicle manufacturer's towing rating.
You need wrenches (10mm, 17mm, 11/16), a small Phillips head screwdriver, tape, utility knife, tape measure, marking pencil, lubricant or soapy water, and a torque wrench.
No drilling is required. The hitch uses existing weld nuts on the frame rails. The driver-side appearance panel must be trimmed and reinstalled.
Yes. Remove the rubber isolators from the muffler hangers (outside first, then inside) to lower the exhaust. Reinstall them after the hitch is mounted.
M10 CL8.8 fasteners: 38 Lb.-Ft. (52 N*M). 3/8-16 GR5 fasteners: 30 Lb.-Ft. (41 N*M). Use a torque wrench.
No. This hitch is not for use with spring bars. It is a weight-carrying ball mount only.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
