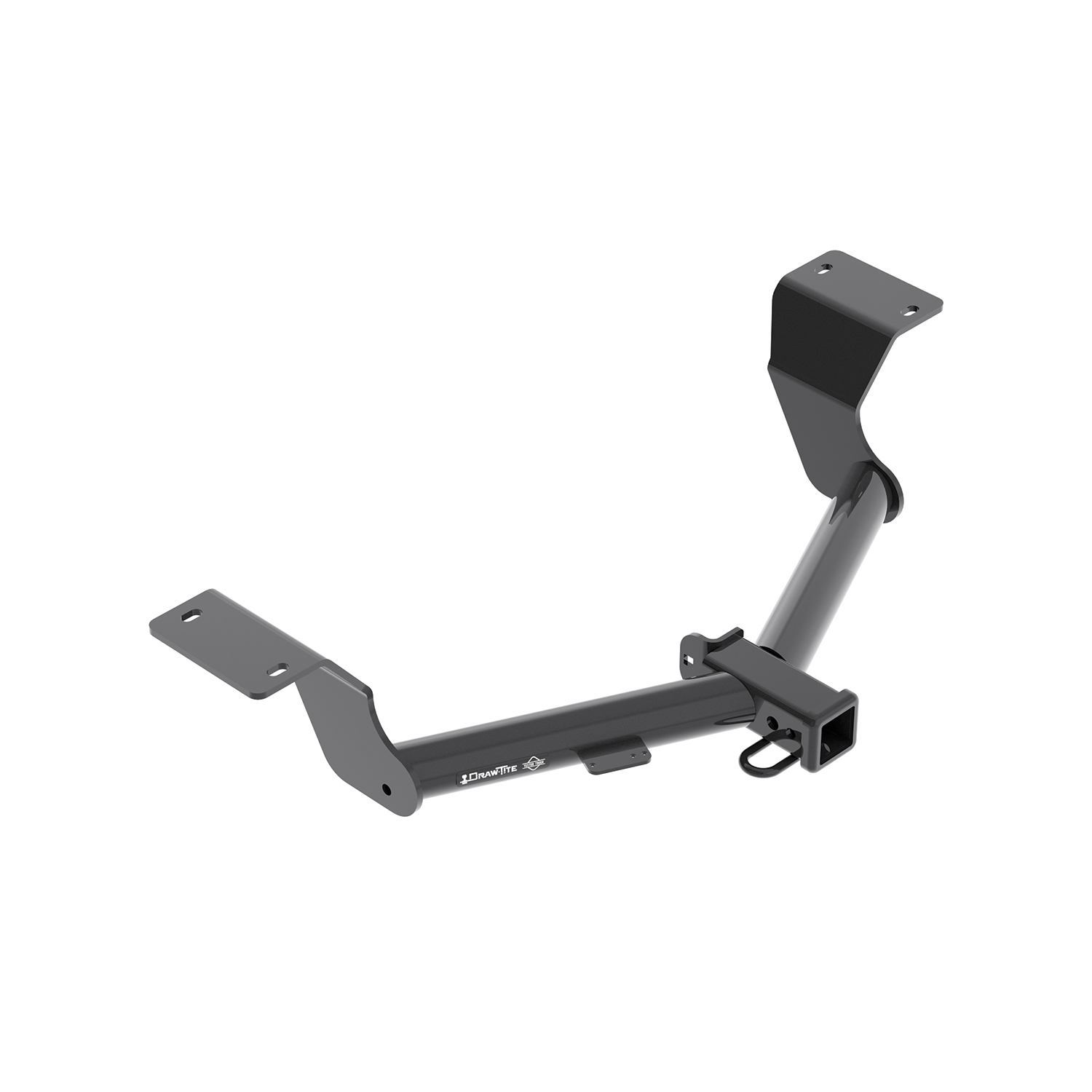

Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Honda CR-V 75742Draw-titeOut of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2017 - 2025 Honda CR-V
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,500 lbs. gross trailer weight (GTW) and up to 675 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76128 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 28 LBS |
| GROSS TOWING WEIGHT: | 4,500 LBS. |
| GROSS TONGUE WEIGHT: | 675 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2025 | Honda CR-V | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Honda CR-V 76128 (Part #DT76128) fits 2017-2025 Honda CR-V models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Honda CR-V 76128 (Part #DT76128) fits the following vehicles: 2017-2025 Honda CR-V. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Honda CR-V 76128 (Part #DT76128) is designed to fit the 2017-2025 Honda CR-V.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Honda CR-V 76128 (Part #DT76128) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The maximum gross trailer weight (GTW) for the weight-carrying hitch is 4500 lb. (2043 kg), with a maximum tongue weight of 675 lb. (306 kg). However, the lowest capacity of any component in your towing system—including your vehicle, trailer, and hitch—determines the maximum load you can safely tow. Always consult your vehicle manufacturer's recommended towing capacity and never exceed it.
Part numbers 76128, 84128, and CQT76128 are designed for Honda CR-V models. However, the manual does not list specific model years. Visit www.horizonglobal.com for the most up-to-date information regarding application years, sub-models, and trim levels to confirm compatibility with your specific vehicle.
Required tools are: ratchet, torque wrench, safety glasses, sockets (10 mm, 11/16", and 3/4"), 6" socket extension, flat head screwdriver, and exhaust removal pliers. The manual lists installation difficulty as Beginner level.
Fastener Kit 76128F includes: (4) carriage bolts 7/16"-14 × 1 1/4" GR5, (4) spacers 3/16" × 1" × 2", (4) conical washers 7/16", (4) hex nuts 7/16"-14 GR2, (1) carriage bolt 1/2"-13 × 2" GR5, (1) spacer 1/4" × 1" × 3", (1) lock washer 1/2", (1) hex nut 1/2"-13 GR5, and (4) fish wires 7/16".
Yes. Step 1 requires lowering the exhaust by removing the rubber isolators from both sides at the rear of the vehicle. It may also be necessary to remove the isolator forward of the rear axle. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator eases removal. The exhaust is then raised and reinstalled in Step 6 after the hitch is secured.
No. Center splash guard removal is required only for 2023 or newer Honda CR-V models. Using a 10 mm socket, remove nuts from the center splash guard. Using a flat head screwdriver, remove rivets. Return the splash guard to the vehicle owner.
Fish wire is used to route the carriage bolts and spacers (items 1 and 2) through the large access hole at the end of the vehicle frame. The fish wire is kept attached to the hardware and then fed through the attachment holes in the hitch to guide the fasteners into position. This method allows the hardware to be installed without pushing it back into the vehicle frame.
The conical washer teeth side must be positioned against the hitch. This is shown in Figure 1 and emphasized in the installation notes.
All 7/16" fasteners must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
All 1/2" fasteners must be tightened to 75 Lb.-Ft. (102 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
The hitch is rated for a maximum gross trailer weight of 4500 lb. (2043 kg) and a maximum tongue weight of 675 lb. (306 kg). However, you must never exceed your vehicle manufacturer's recommended towing capacity. The lowest capacity of any component in your towing system—vehicle, trailer, hitch, or towing equipment—determines the maximum load you can safely carry or tow.
No. The manual explicitly states: DO NOT cut, weld, or modify this trailer hitch. Additionally, do not cut access or attachment holes with a torch. Modifications will void the warranty and compromise the safety and structural integrity of the hitch.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
After installation, check that the hitch is securely mounted and all fasteners are properly tightened. The manual emphasizes: check hitch frequently, making sure all fasteners and ball are properly tightened. Regularly verify that all fasteners remain tight and the hitch is securely mounted to your vehicle, as vibration and use can loosen fasteners over time.
The manual states: regularly check that all fasteners are tight, and your hitch is securely mounted to your vehicle. Check hitch frequently, making sure all fasteners and ball are properly tightened. While a specific interval is not provided, regular inspection is essential to maintain safe towing operation.
Yes, parts 76128, 84128, and CQT76128 fit Honda CR-V models. Check www.horizonglobal.com for your specific model year, sub-model, and trim level compatibility.
You need: ratchet, torque wrench, safety glasses, sockets (10 mm, 11/16", 3/4"), 6" socket extension, flat head screwdriver, and exhaust removal pliers.
Tighten all 7/16" fasteners to 50 Lb.-Ft. (68 N·M) and all 1/2" fasteners to 75 Lb.-Ft. (102 N·M) using a torque wrench.
Maximum gross trailer weight is 4500 lb. (2043 kg) with a maximum tongue weight of 675 lb. (306 kg). Never exceed your vehicle manufacturer's recommended towing capacity.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
