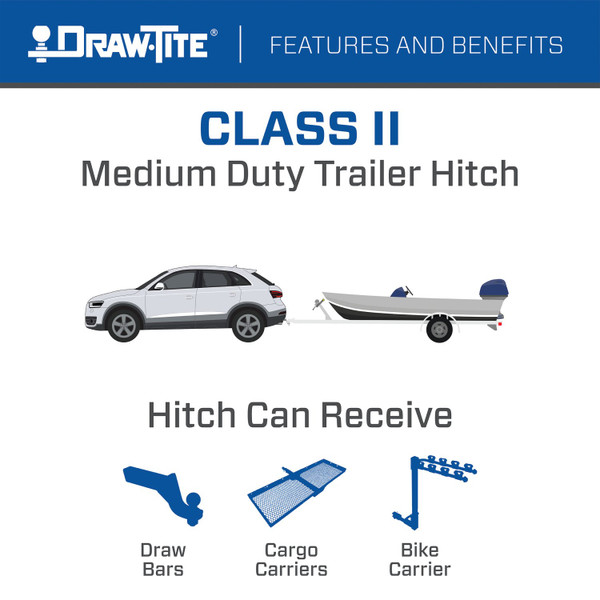

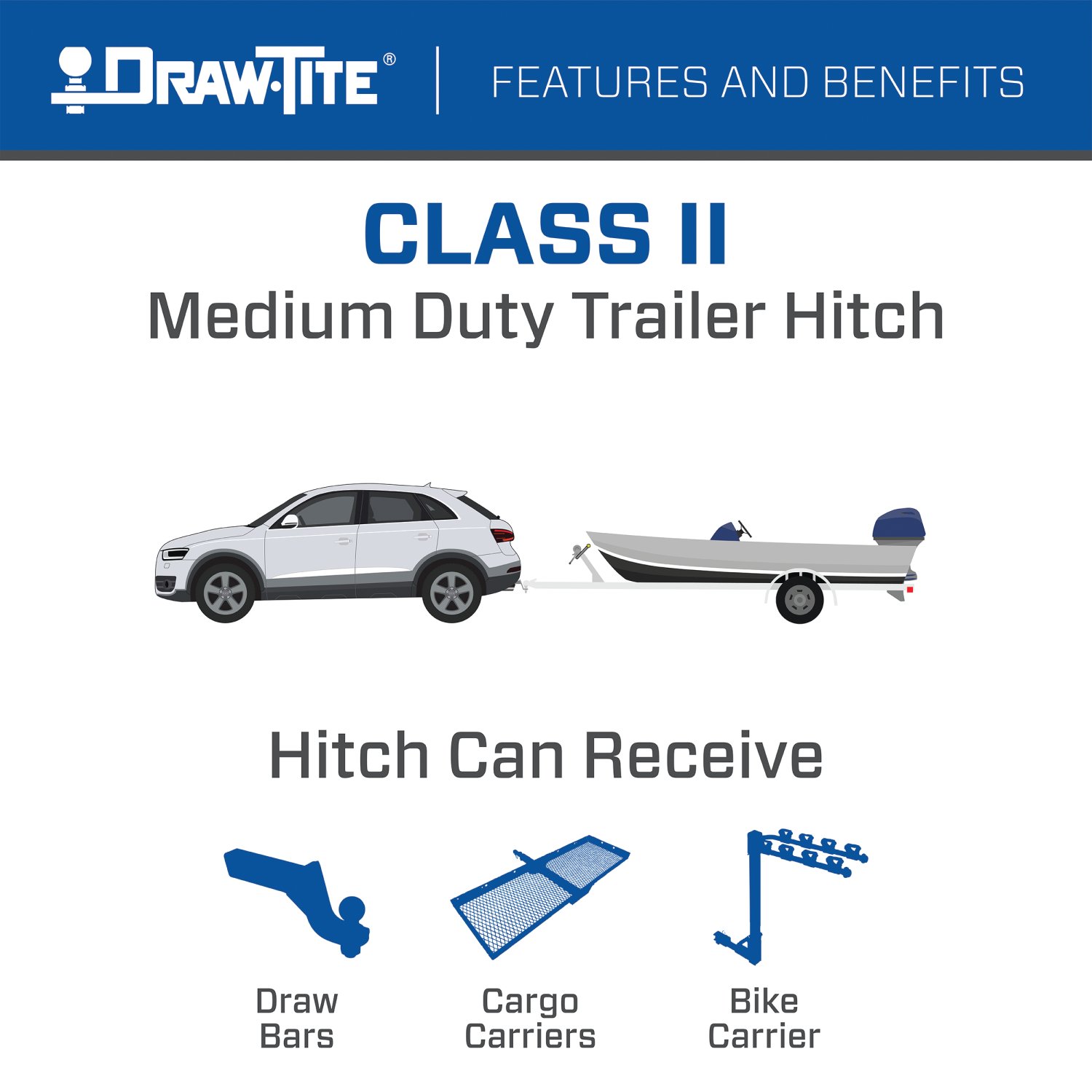

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 37132 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 33 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 350 LBS. |

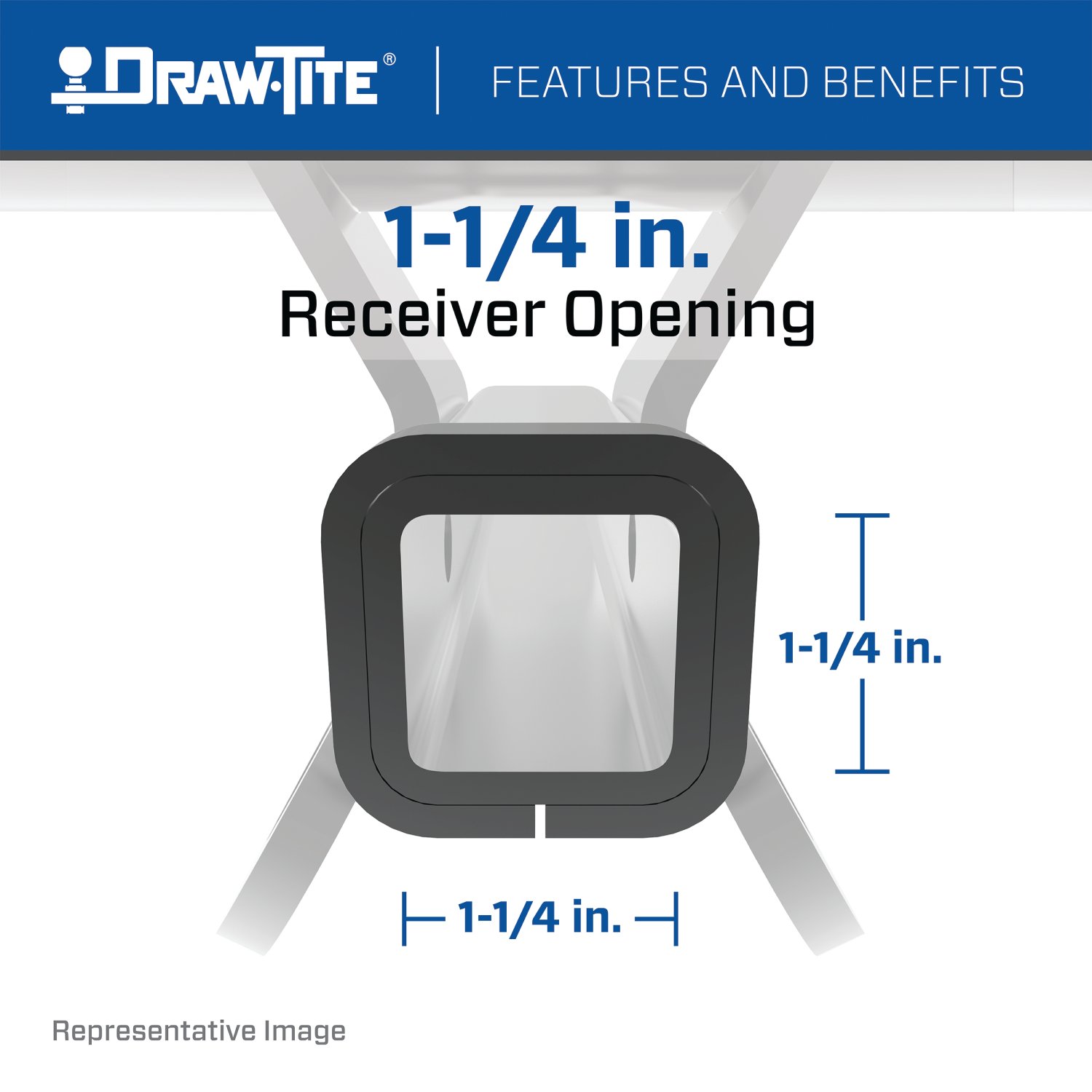

| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |

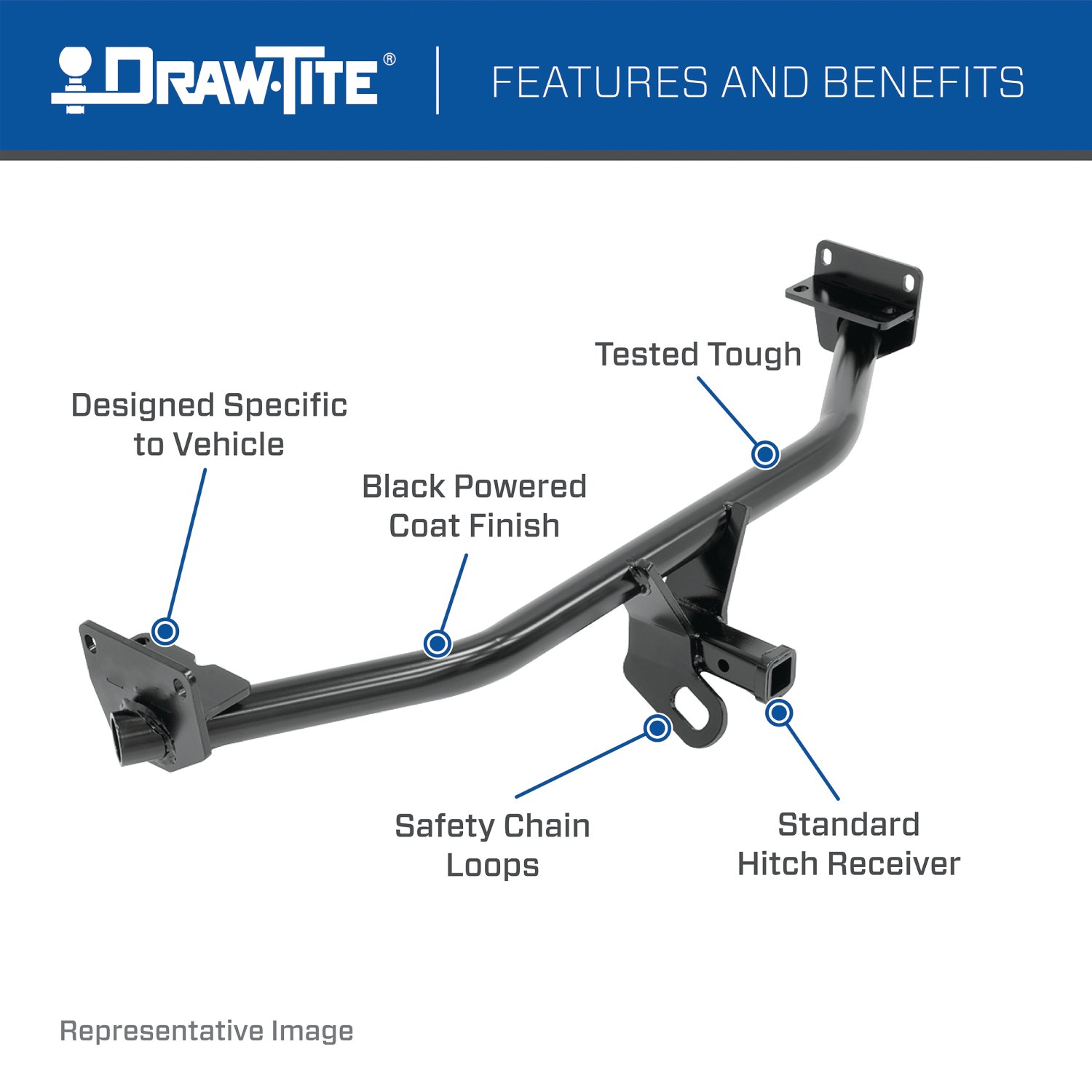

Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2020 | Hyundai Santa Fe | Class 2 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
| 2016 - 2020 | Kia Sorento | Class 2 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 40 minutes |
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Santa Fe, KIA Sorento 37132 (Part #DT37132) fits the following vehicles: 2019-2020 Hyundai Santa Fe; 2016-2020 Kia Sorento. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Santa Fe, KIA Sorento 37132 (Part #DT37132) fits 2019-2020 Hyundai Santa Fe models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Santa Fe, KIA Sorento 37132 (Part #DT37132) is designed to fit the 2019-2020 Hyundai Santa Fe.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Hyundai Santa Fe, KIA Sorento 37132 (Part #DT37132) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 37132 is designed for 2016-Current Kia Sorento models. Visit the Horizon Global website for the most up-to-date information regarding specific application years and trim levels.
No, part number 37132 is designed for 2016-Current Kia Sorento models only. Check the Horizon Global website for fitment information on earlier model years.
The 37132 is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb (1587 kg) and a maximum tongue weight of 350 lb (158 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
No, the 37132 is a weight-carrying hitch only. Weight-distributing capability is listed as NA (not available) for this model.
Required tools include: ratchet, torque wrench, safety glasses, sockets (3/4", 14 mm, 16 mm, 17 mm, 18 mm, 19 mm), 6" socket extension, and Phillips screwdriver. Lubricant or soapy water is also recommended to help with exhaust hanger removal.
The fastener kit 37132F includes: (2) hex bolts ½-13 x 4.50 GR5, (5) conical washers ½", (2) hex nuts ½-13, (1) bolt M12x1.75x120 CL8.8, (1) flat washer ½" hardened, (1) hex nut M12x1.75 CL8, (4) bolts M10x1.25x30 CL10.9, and (4) conical washers 7/16".
Yes, the spare tire must be lowered and removed before installation. The tire release is located underneath the storage compartment in the back of the vehicle. The spare tire is reinstalled after the hitch installation is complete.
Yes, the exhaust must be lowered by removing the rear and side hangers before hitch installation. Support the exhaust to prevent damage. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal. The exhaust is raised back into position after the hitch is secured.
The driver side rear plastic cover, located underneath the vehicle, must be removed using a small Phillips head screwdriver. Also remove (5) plastic push pins and (2) nuts. This cover is reinstalled after the hitch installation is complete.
The bumper locator pin may interfere with the hitch hardware. If necessary, use an angle grinder to trim the locator pin at the shoulder to allow proper hardware clearance. This is a conditional modification required only if interference is present.
No drilling is required. The hitch uses existing weldnuts in the frame rail. The installation involves removing rubber plugs from the bottom of the frame rail and inserting bolts into existing weldnuts.
M10 CL10.9 fasteners must be tightened to 40 Lb.-Ft. (54 N·M) using a torque wrench.
Both ½ GR5 fasteners must be tightened to 75 Lb.-Ft. (102 N·M) using a torque wrench.
M12 GR8.8 fasteners must be tightened to 68 Lb.-Ft. (92 N·M) using a torque wrench.
1. Lower and remove spare tire. 2. Remove driver side rear plastic cover, push pins, and nuts. 3. Lower exhaust by removing hangers and support it. Remove rubber plugs from frame rail. 4. Run M10 bolts into existing weldnuts to remove debris, then remove bolts. 5. Raise hitch into position and insert items 1 & 2 (driver side) and items 4 & 5 (passenger side). 6. Insert M10 bolts (items 8 & 7) and hand tighten. 7. Install conical washers and hex nuts. 8. Torque all fasteners to specification. 9. Raise exhaust back into position. 10. Reinstall plastic cover. 11. Reinstall spare tire.
Yes, M10 bolts (items 8 & 7) should be hand-tightened first (Step 6), then conical washers and hex nuts are installed (Step 7), and finally all fasteners are torqued to specification using a torque wrench (Step 8).
Items 1 & 2 (hex bolts ½-13 x 4.50 GR5 and conical washers ½") are inserted on the driver's side during Step 5.
Items 4 & 5 (bolt M12x1.75x120 CL8.8 and flat washer ½" hardened) are inserted on the passenger's side during Step 5.
Conical washers should be installed with the teeth side against the hitch or frame. Sort hardware prior to installation to confirm conical washers are kept with coordinated bolts.
Always wear safety glasses during installation. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. Support the exhaust system to prevent damage during removal. Wear eye protection.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
The maximum tongue weight is 350 lb (158 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or this limit.
After installation, make sure the spare tire is seated properly. Check the hitch frequently to ensure all fasteners and ball are properly tightened. Periodically verify that all fasteners remain tight and the hitch is securely mounted to the vehicle.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. Periodically verify that all fasteners remain tight and the hitch is securely mounted to the vehicle.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
The authorized drawbar kit is 36071 (sold separately). The drawbar must be used in the RISE position only.
The average installation time for professional installers is 40 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
Yes, part 37132 fits 2016-Current Kia Sorento. Check the Horizon Global website for specific trim level compatibility.
Maximum gross trailer weight is 3500 lb (1587 kg) and maximum tongue weight is 350 lb (158 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
You need a ratchet, torque wrench, safety glasses, sockets (3/4", 14 mm, 16 mm, 17 mm, 18 mm, 19 mm), 6" socket extension, and Phillips screwdriver. Lubricant or soapy water is recommended.
Yes, both must be removed. The spare tire is lowered and removed first, and the exhaust is lowered by removing rear and side hangers. Both are reinstalled after the hitch is secured.
M10 CL10.9: 40 Lb.-Ft. (54 N·M); ½ GR5: 75 Lb.-Ft. (102 N·M); M12 GR8.8: 68 Lb.-Ft. (92 N·M). Use a torque wrench for all fasteners.
Use an angle grinder to trim the locator pin at the shoulder to allow proper hardware clearance. This will resolve the interference and allow the hitch to be properly positioned.
