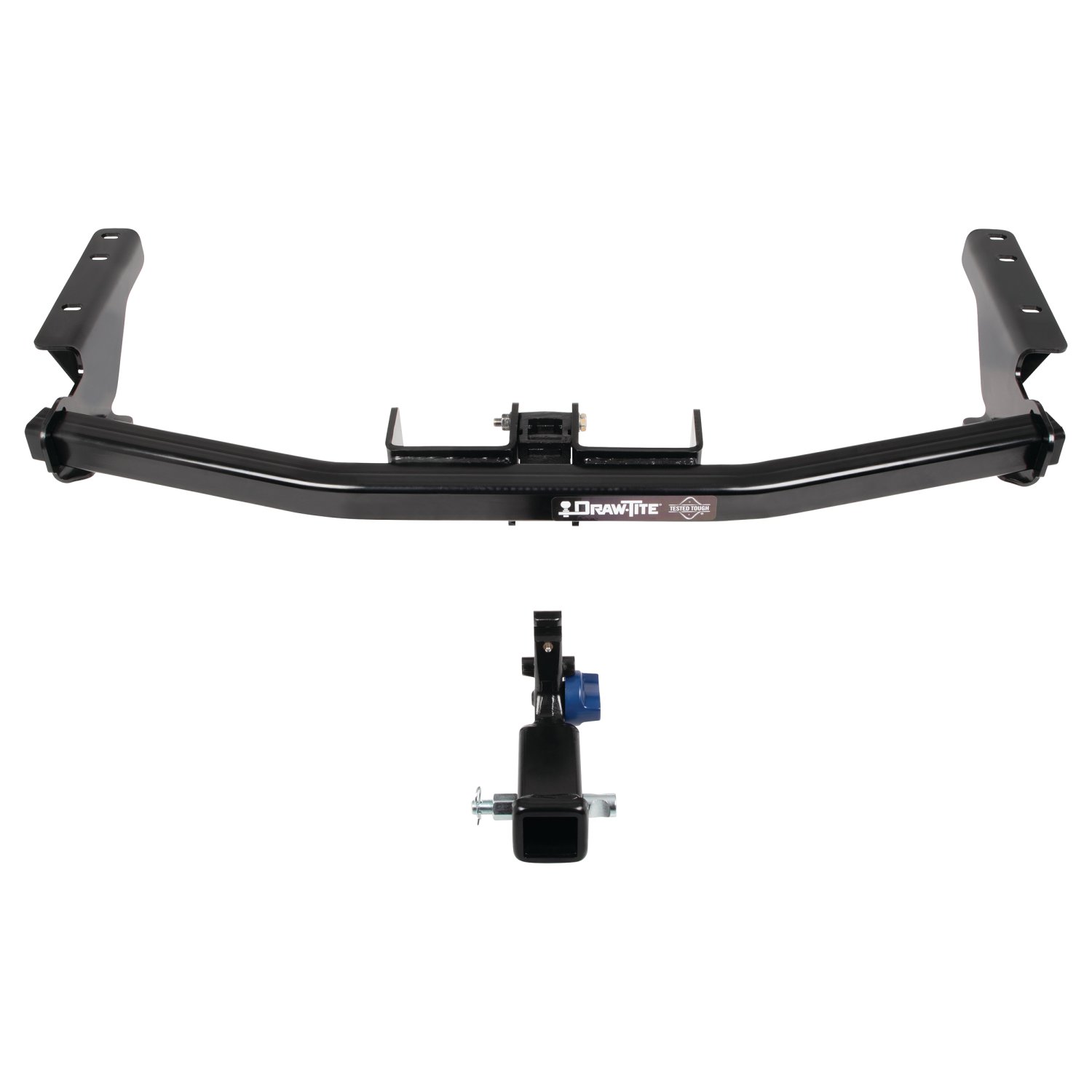

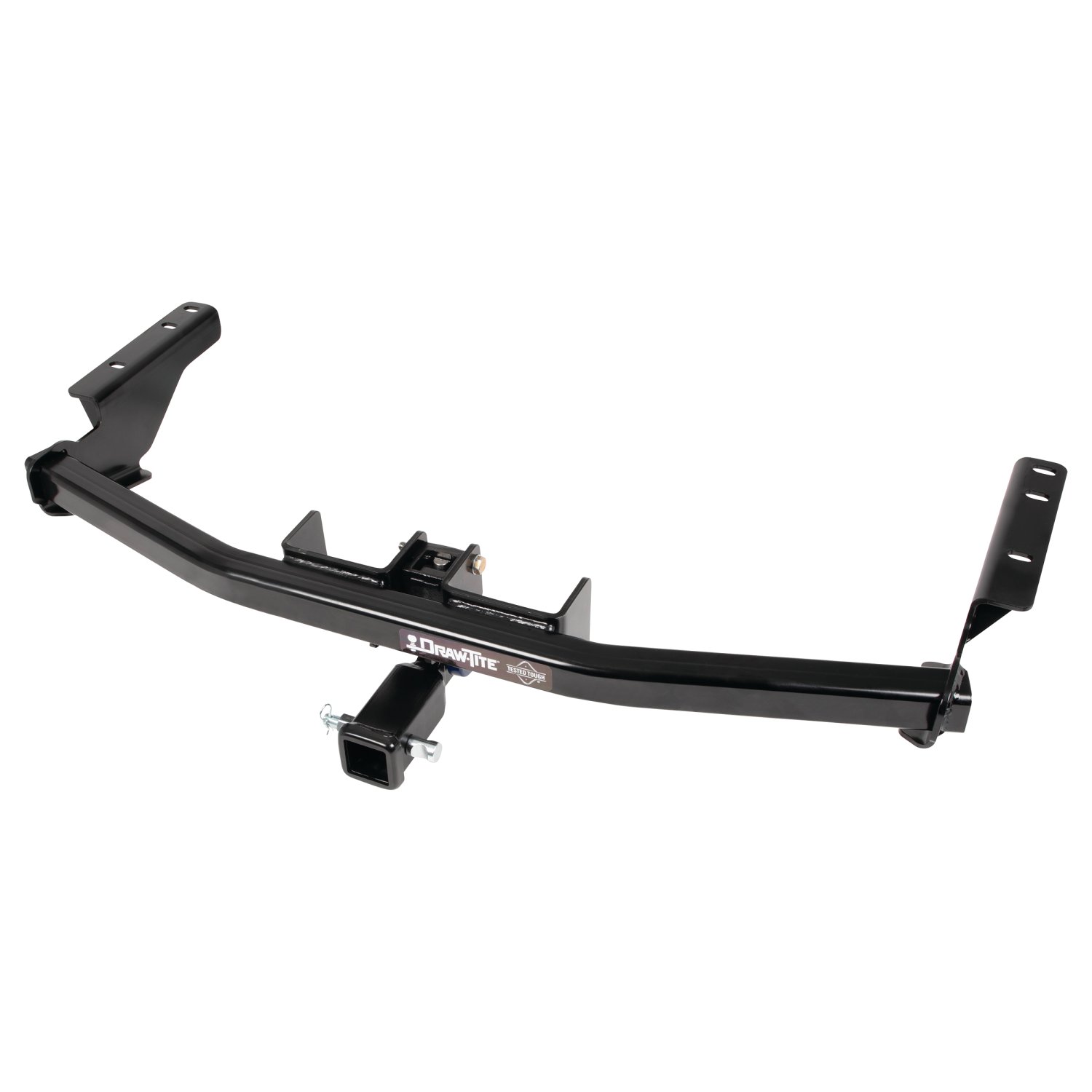

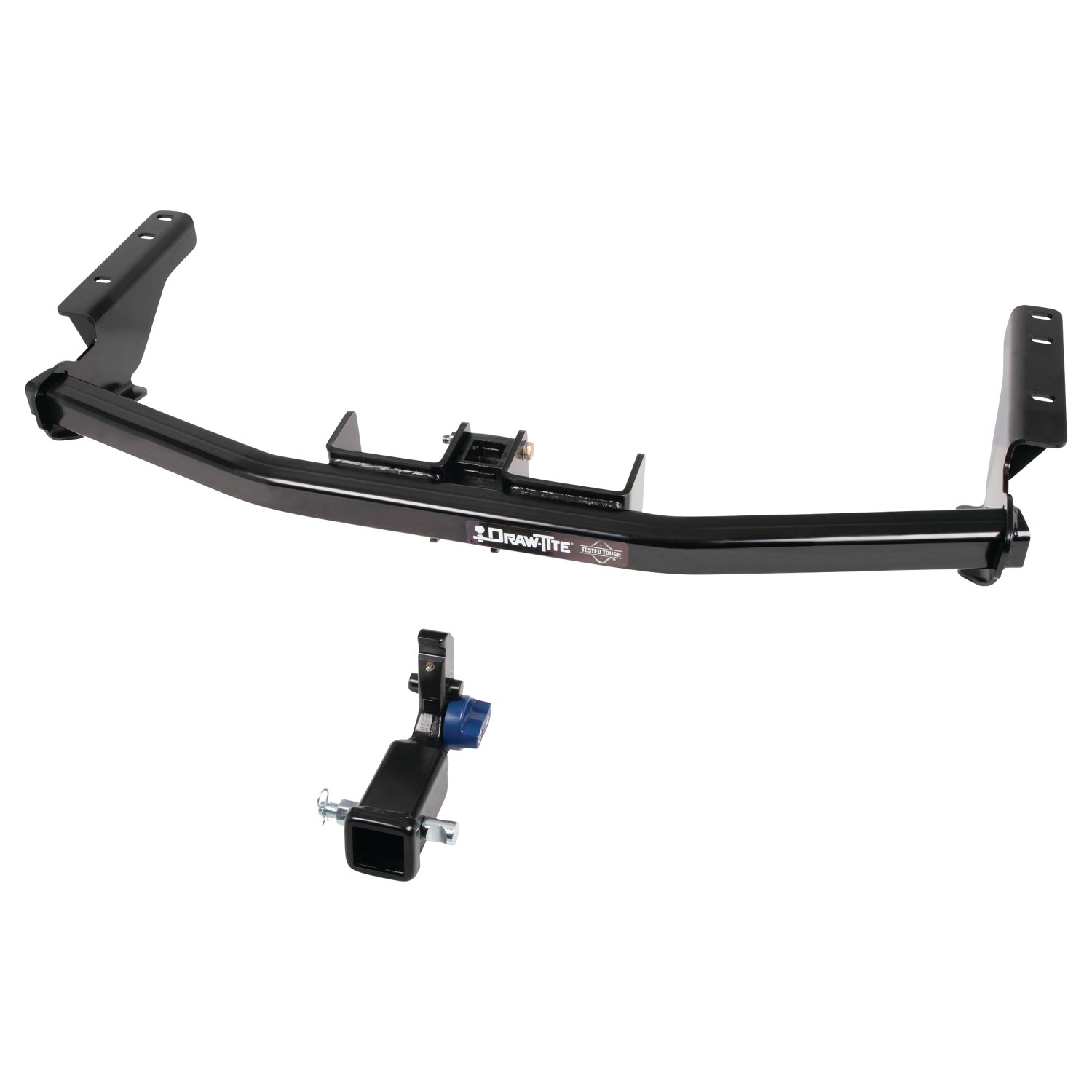

Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Subaru Outback 76907Draw-titeIn Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2014 - 2020 Infiniti QX60
Confirmed to Fit
2013 - 2020 Nissan Pathfinder
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76904 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 42.15 LBS |
| GROSS TOWING WEIGHT: | 4,500 LBS. |
| GROSS TONGUE WEIGHT: | 450 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.

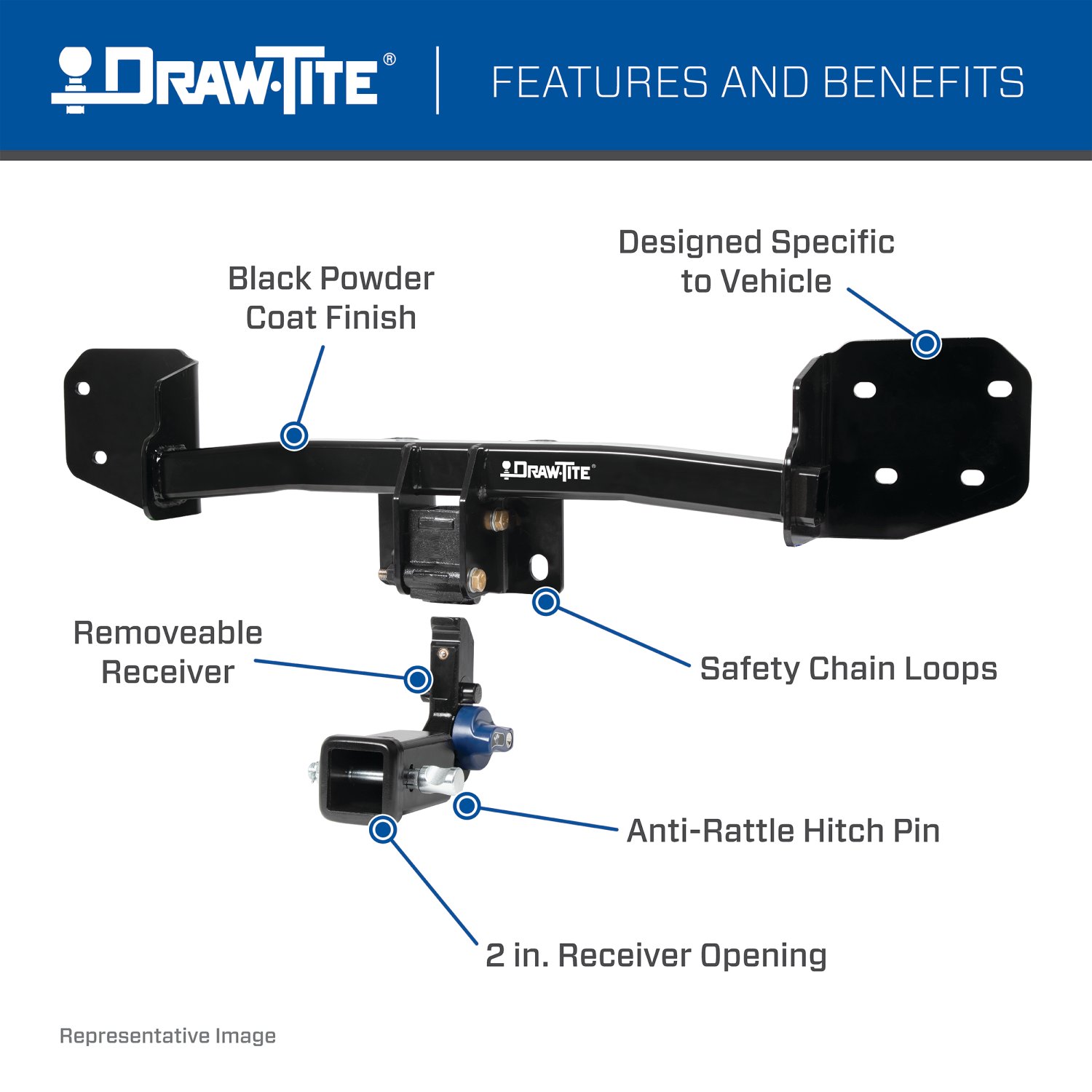

The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2020 | Infiniti QX60 | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
| 2013 - 2020 | Nissan Pathfinder | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Infiniti QX60, Nissan Pathfinder 76904 (Part #DT76904) fits the following vehicles: 2014-2020 Infiniti QX60; 2013-2020 Nissan Pathfinder. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Infiniti QX60, Nissan Pathfinder 76904 (Part #DT76904) is designed to fit the 2014-2020 Infiniti QX60.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Infiniti QX60, Nissan Pathfinder 76904 (Part #DT76904) fits 2014-2020 Infiniti QX60 models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Infiniti QX60, Nissan Pathfinder 76904 (Part #DT76904) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part 76904 fits 2013-current Nissan Pathfinder, 2013 Infiniti JX35, and 2014-current Infiniti QX60. Visit www.horizonglobal.com for the most up-to-date information regarding specific application years and trim levels.
You will need a ratchet, torque wrench, safety glasses, 12mm and 19mm sockets, 6" socket extension, wire brush, tin snips, and an M12x1.25 tap (if weldnut threads need cleaning).
Yes. You must lower the spare tire, remove the tie-down bracket, trim the carbon canister shield with tin snips, and remove the fascia support brackets. The tie-down bracket and mounting bolts should be returned to the customer.
All M12 CL8.8 fasteners must be tightened to 76 ft-lbs (103 N·m). The receiver housing bolt (M12) is tightened to 92 lb-ft (125 N·m).
The 76904 is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb (1589 kg) and maximum tongue weight of 350 lb (159 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Always wear your seatbelt. Load the trailer heavier in front. Slow down when towing and never exceed posted speed limits. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel steady—do not apply brakes or speed up. Do not exceed the hitch's 3500 lb GVWR or 350 lb tongue weight rating.
Yes. The 76904 is compatible with 2013-current Nissan Pathfinder models. For the most up-to-date information regarding specific trim levels and application years, visit www.horizonglobal.com or contact technical support at 800-632-3290.
Yes. The 76904 fits the 2013 Infiniti JX35 and 2014-current Infiniti QX60 models. Check www.horizonglobal.com for the most current information on specific trim levels.

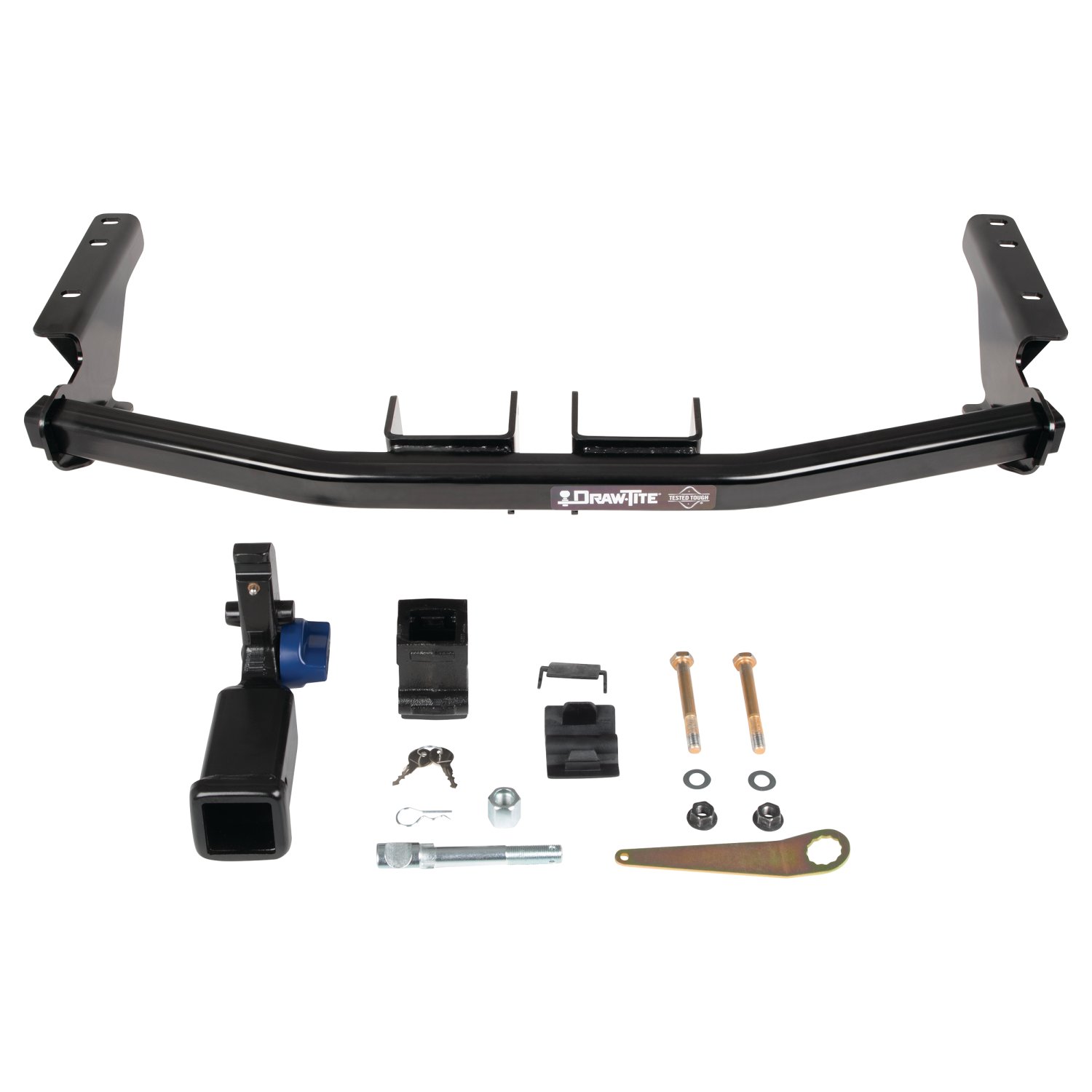

Fastener kit 76904F includes 6 M12 x 1.25 x 35mm Class 8.8 bolts, 6 half-inch flat washers, and 6 half-inch locking washers. Fastener kit 76904F2 includes 1 warning card and 2 warning labels. The receiver housing bolt (M12) is installed separately using the included hardware.
Yes. You must lower the spare tire before installation. Refer to your vehicle owner's manual for the specific procedure. The spare tire must be reinstalled in its original position after the hitch installation is complete.
The tie-down bracket is a factory component that must be removed before hitch installation. Using a 19mm socket, remove the bolts and bracket. Return the bracket and mounting bolts to the customer—they are not reused with the hitch.
Yes. Using tin snips, trim the bottom rear corner of the carbon canister shield as shown in Figure 2 of the installation instructions. This is a required modification to allow the hitch to fit properly.
The fascia support brackets are factory components on both sides of the vehicle. Remove the pushpin rivet that connects each bracket to the fascia, then use a 12mm socket to remove the screw that connects the bracket to the forward side of the bumper beam. Repeat for the other side. These brackets are not reused.
If necessary, use a wire brush or M12x1.25 tap to ensure the weldnut threads are clean and free of rust and debris. This step is important to ensure proper fastener engagement and correct torque application.
Raise the hitch into position by first placing the hitch center section behind the fascia, then raise the brackets into position. Install three M12 bolts, three 1/2" flat washers, and three 1/2" locking washers into the weldnuts on each side. Do not fully tighten yet.
All M12 CL8.8 fasteners must be tightened to 76 ft-lbs (103 N·m) using a torque wrench. This applies to the three bolts on each side of the hitch (six bolts total).
The M12 bolt that attaches the receiver housing to the hitch must be tightened to 92 lb-ft (125 N·m). This fastener uses a flat washer and prevailing torque nut.

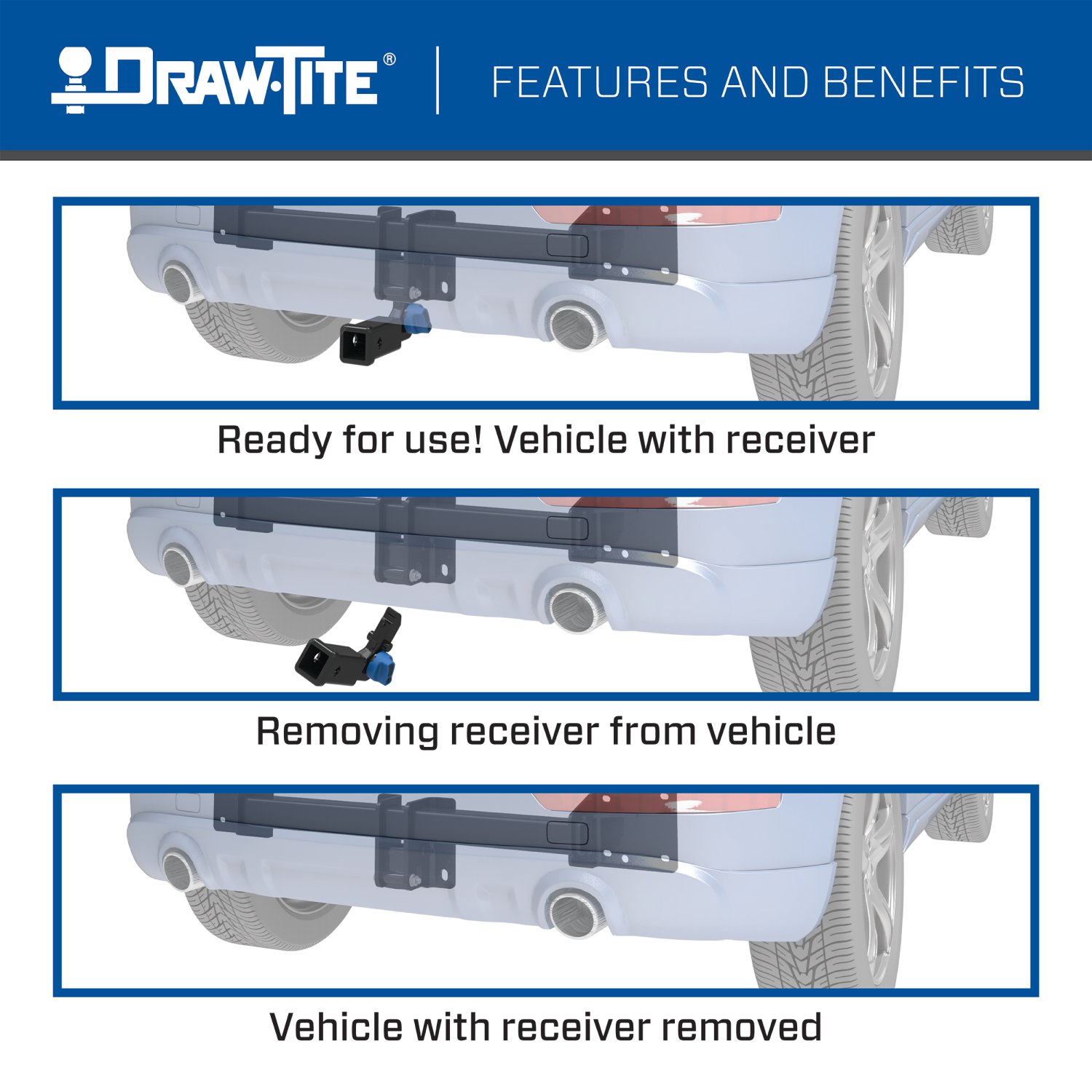

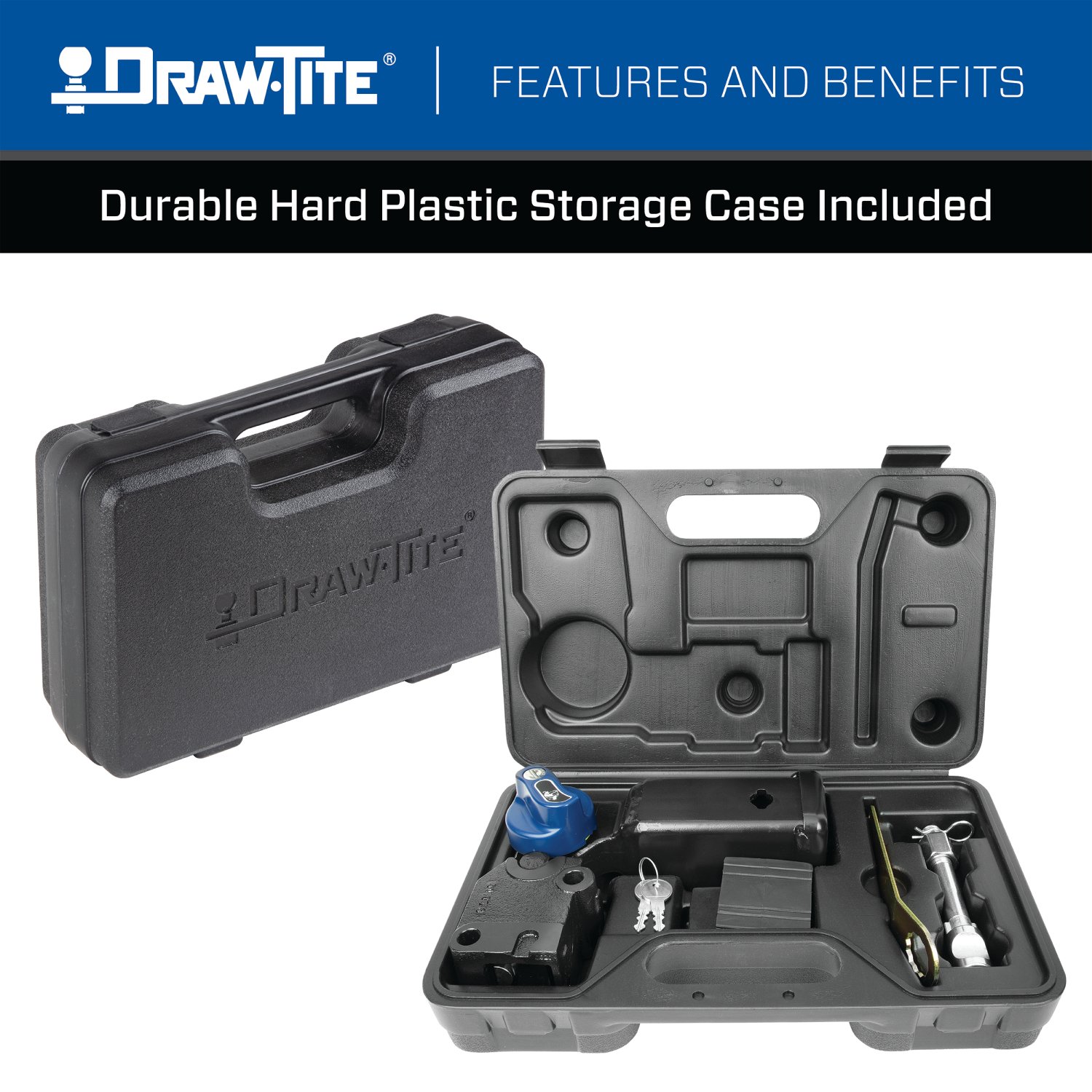

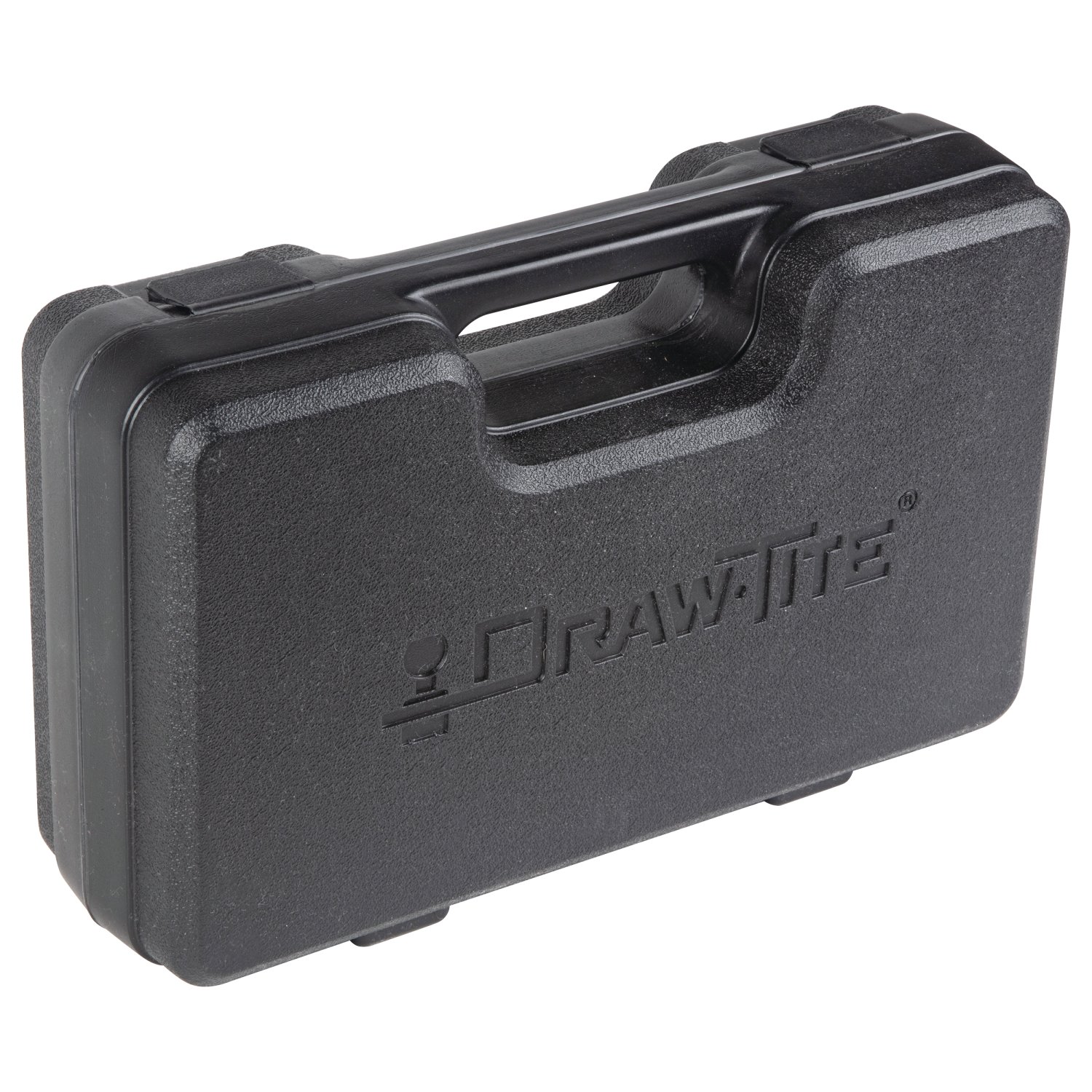

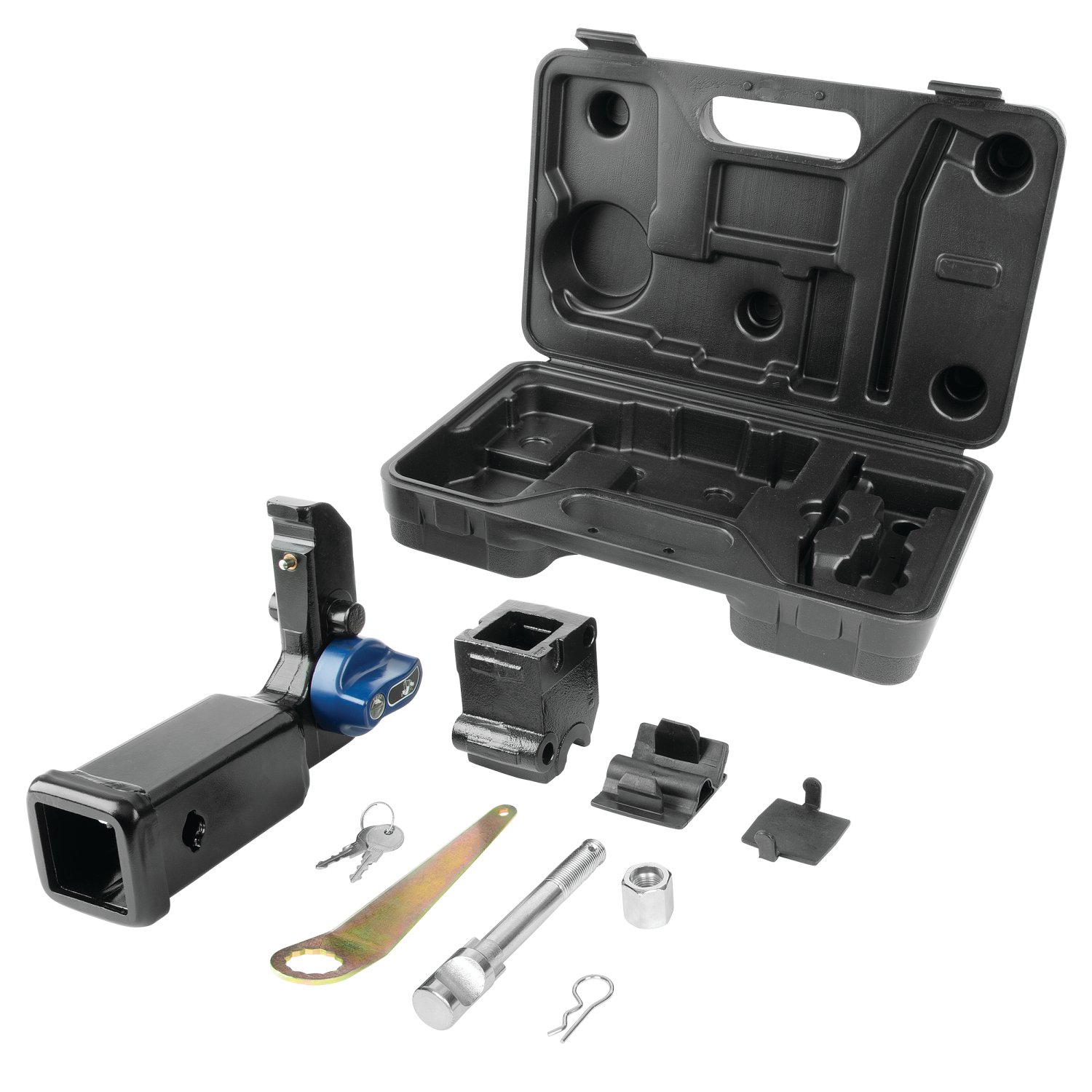

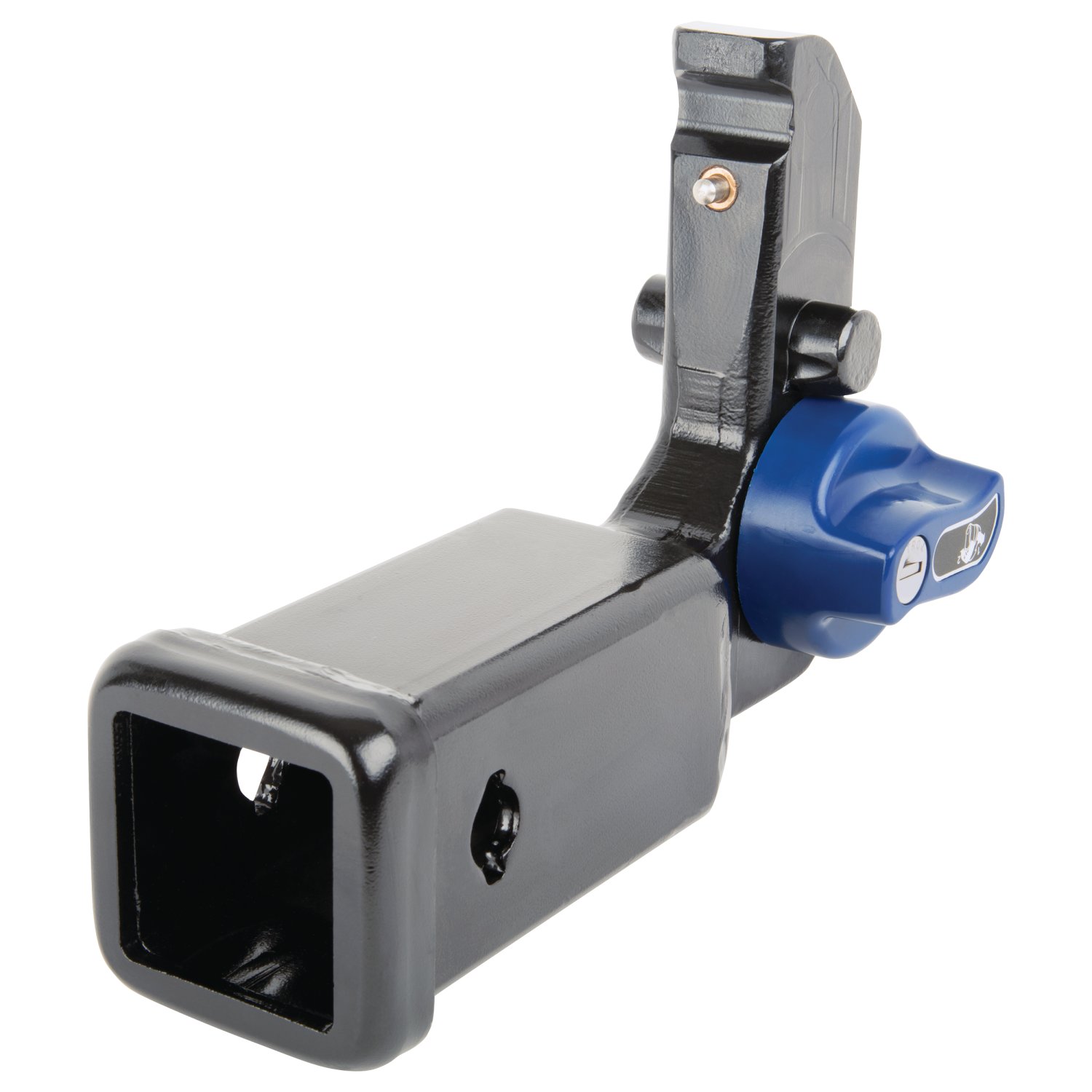

1. Remove the receiver and weather covers from the case. 2. Unlock the blue handle using the attached key and remove the housing by pressing the blue handle and rotating clockwise until you hear a click. 3. Install the top/bottom weather cover to the housing. 4. Attach the housing to the hitch using an M12 bolt, flat washer, and prevailing torque nut, and tighten to 92 lb-ft (125 N·m).
Keep the warning card in the glove compartment. Peel off the two warning labels and apply them to the top of the receiver and the door jamb respectively. These labels provide important safety information for vehicle occupants.
The 76904 accepts ball mounts with a maximum length of 10.5" (measured from the center of the ball hole to the center of the pin hole) and a minimum rise of 0.75" (measured from the top of the shank to the top of the ball platform). Ball mounts must be selected separately based on your towing needs.
Two quick-link options are available (sold separately): #49131 (5/16"), max GTW 3,500 lb, and #44133 (3/8"), max GTW 3,500 lb. These quick links are used to attach safety chains to the hitch.
After installation, verify that all fasteners are tight and the hitch is securely mounted to the vehicle. Check the hitch frequently during use to ensure all fasteners and the ball remain properly tightened. Proper torque is essential to keep the hitch secure when towing.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is required to maintain safe towing conditions.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Reduce speed and maintain steady steering until the sway subsides.
Load the trailer heavier in front. This helps maintain proper weight distribution and reduces the risk of sway during towing. Do not exceed the hitch's maximum tongue weight of 350 lb.
The average installation time is 25 minutes for professional installers. If you do not feel comfortable performing the installation yourself or need assistance, contact a professional installer.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A damaged hitch or ball must be removed and replaced immediately.
Yes. Slow down when towing and never exceed any posted speed limit. Always drive at reduced speeds when towing a trailer to maintain control and safety.
No. Do not cut, weld, or modify the receiver. Do not use a torch to cut access or attachment holes. Modifications will compromise the structural integrity and safety of the hitch.
Always wear safety glasses when installing the hitch. Eye protection is essential when working with fasteners, tools, and vehicle components.
The 76904 is covered by a Limited Lifetime Warranty from Horizon Global Americas Inc. The warranty covers material and workmanship defects (excluding ordinary wear and tear) if the product is installed, maintained, and used according to instructions. To make a warranty claim, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290. You must provide the product model number and purchase receipt.
Contact Horizon Global technical support at 800-632-3290 or email TechnicalSupport@horizonglobal.com. You can also visit www.horizonglobal.com for additional information and resources.
Yes. The 76904 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Check all fasteners and tighten them to the correct torque specification: M12 CL8.8 mounting bolts to 76 ft-lbs (103 N·m) and the receiver housing bolt to 92 lb-ft (125 N·m). The manual recommends checking the hitch frequently to ensure all fasteners remain tight. If fasteners repeatedly loosen, inspect the weldnuts and bolt threads for damage and clean or replace as needed.
If the M12 receiver housing bolt cannot be tightened to 92 lb-ft (125 N·m), the weldnut threads may be damaged or dirty. Clean the weldnut using a wire brush or M12x1.25 tap to remove rust and debris. If the bolt still will not reach the correct torque, the weldnut or bolt may be damaged and should be replaced.
If the hitch or ball is damaged, it must be removed and replaced. Do not attempt to repair or continue using a damaged hitch. Contact Horizon Global technical support at 800-632-3290 or TechnicalSupport@horizonglobal.com to arrange a replacement.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
