Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76916 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 54.14 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 350 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2023 | Chrysler Grand Caravan | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes |
| 2017 - 2025 | Chrysler Pacifica | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes |
| 2020 - 2025 | Chrysler Voyager | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes |

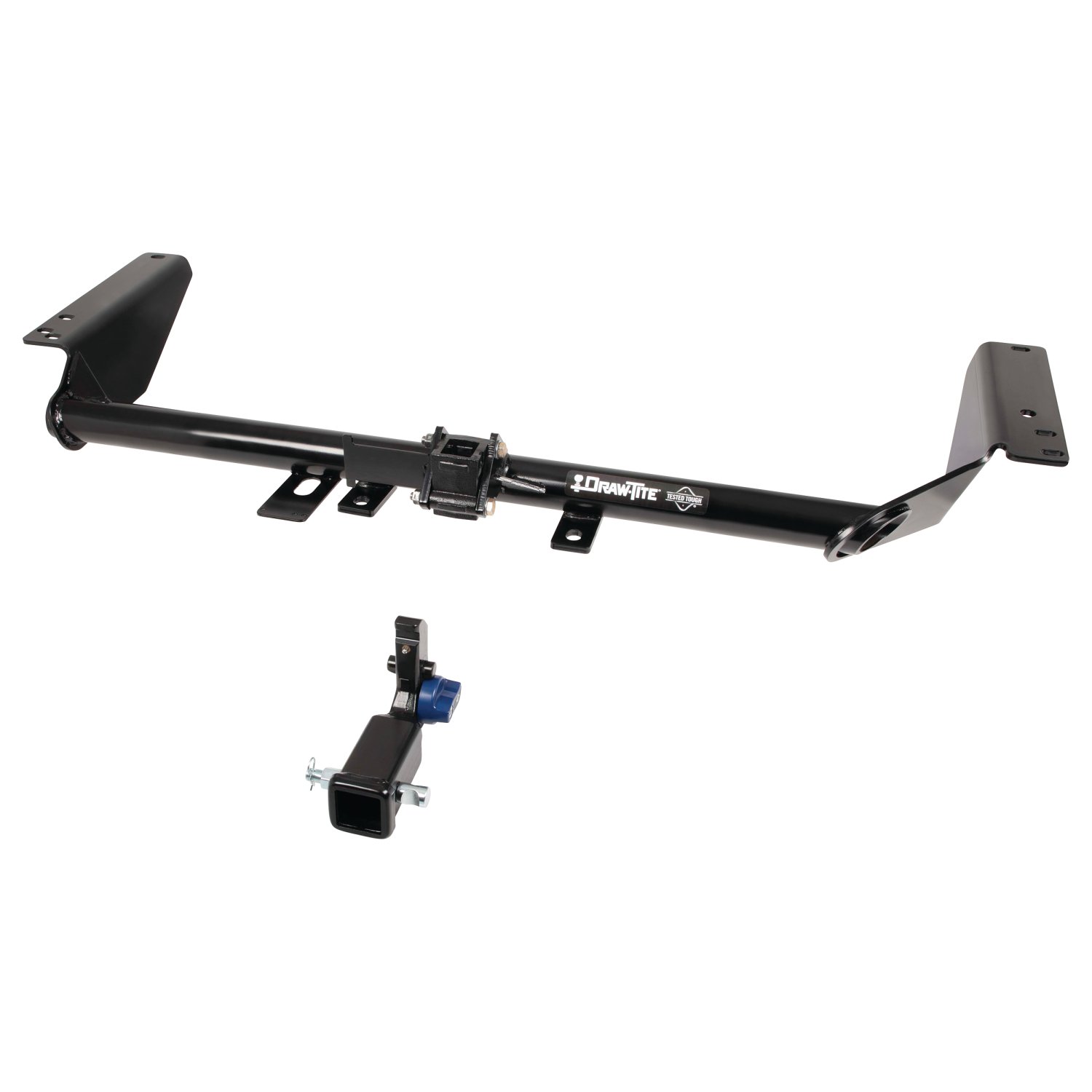

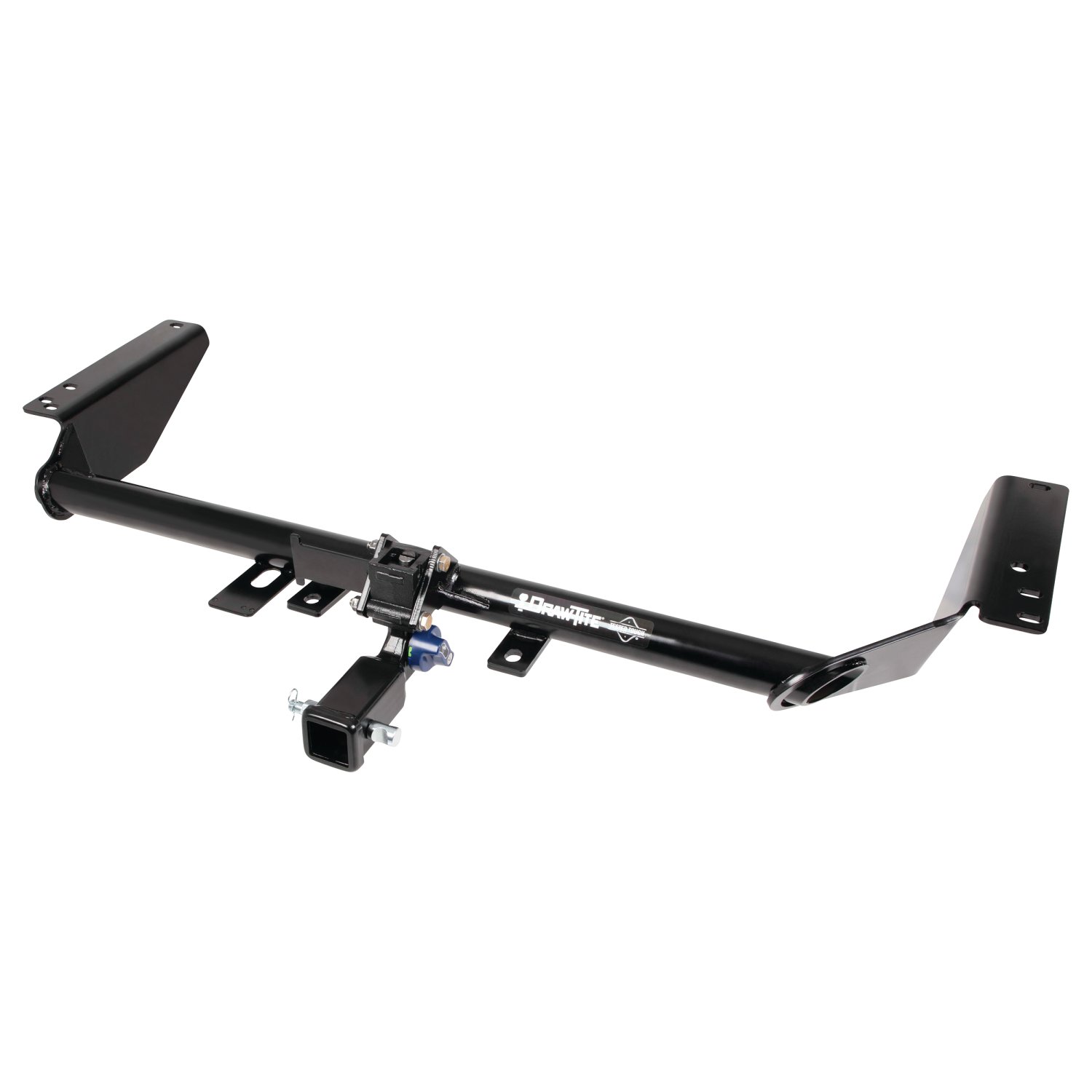

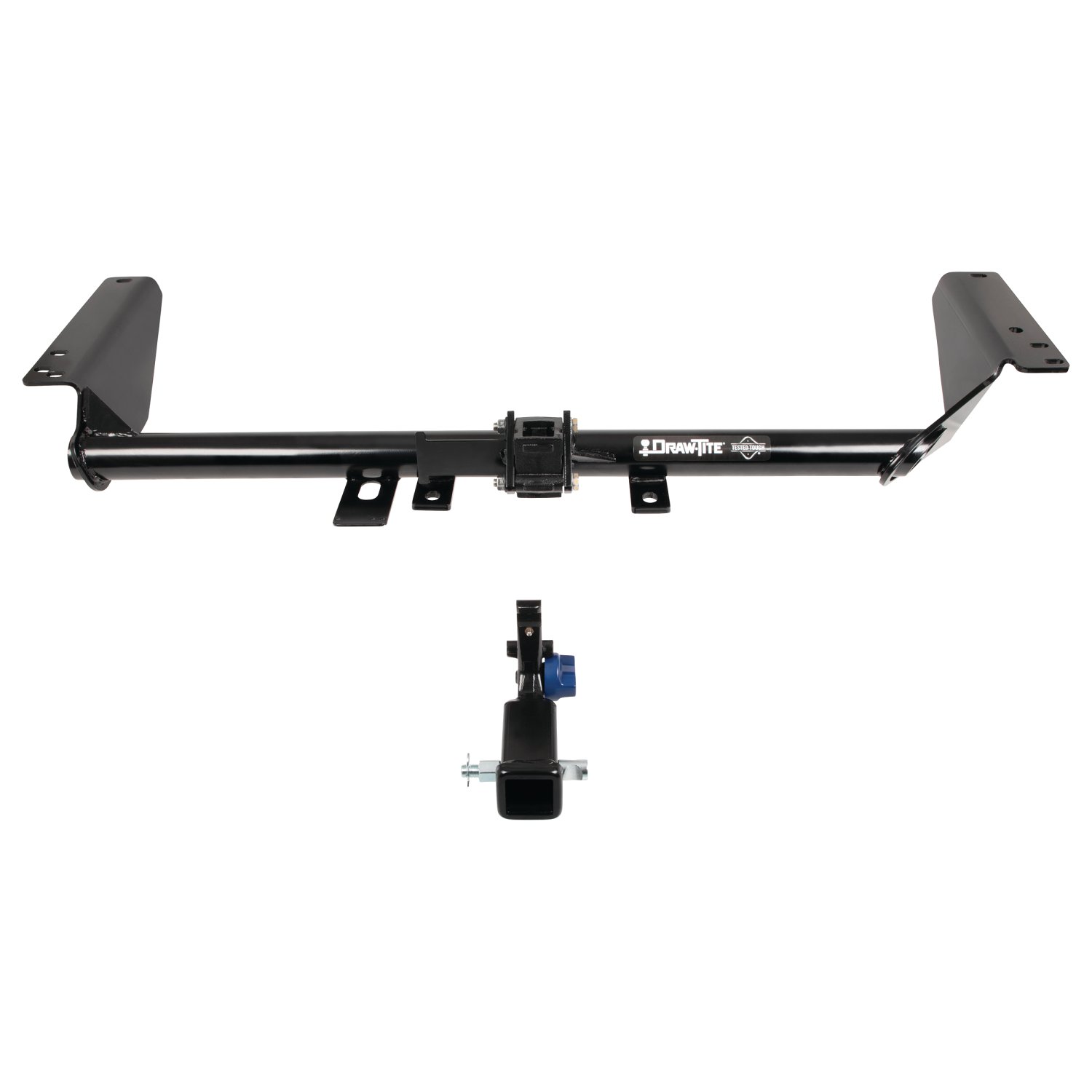

The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Chrysler Grand Caravan, Chrysler Pacifica, Chrysler Voyager 76916 (Part #DT76916) fits 2022-2023 Chrysler Grand Caravan models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Chrysler Grand Caravan, Chrysler Pacifica, Chrysler Voyager 76916 (Part #DT76916) fits the following vehicles: 2022-2023 Chrysler Grand Caravan; 2017-2025 Chrysler Pacifica; 2020-2025 Chrysler Voyager. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Chrysler Grand Caravan, Chrysler Pacifica, Chrysler Voyager 76916 (Part #DT76916) is designed to fit the 2022-2023 Chrysler Grand Caravan.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Chrysler Grand Caravan, Chrysler Pacifica, Chrysler Voyager 76916 (Part #DT76916) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part 76916 fits 2017-current Chrysler Pacifica models. For 2020-2021 Chrysler Voyager, it also fits. Visit www.horizonglobal.com for the most up-to-date information regarding specific application years and trim levels.
Yes. Hybrid models require service kit 76046SK, sold separately. This must be purchased in addition to the hitch.
Required tools: torque wrench, ratchet, sockets (7/8", 8mm, 10mm, 19mm), 6" socket extension, flat-head screwdriver, safety glasses, exhaust removal pliers, and tin snips. A 6" socket extension is specifically listed for access.
Yes. The manual states average installation time is 110 minutes for professional installers. If you do not feel comfortable performing the installation on your own or need assistance, contact a professional installer.
Yes. Installation requires trimming the heat shield and underbody panel according to Figures 2 and 3. The key proximity antenna housing must be trimmed or discarded at the bumper support. Tin snips are required. DO NOT use a torch to cut access or attachment holes. For model years after 2020, do not trim the heat shield or underbody panel; return them to the vehicle owner.
All hitch fasteners must be torqued to 110 lb-ft (149 N·m). The receiver housing fasteners (M12 bolts) are torqued to 92 lb-ft (125 N·m).
Maximum Gross Trailer Weight: 3500 lb (1589 kg). Maximum Tongue Weight: 350 lb (159 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch ratings.
Check that all fasteners are tight and the hitch is securely mounted. Verify that no wires or other items have been pinched between the hitch and vehicle frame. Check fasteners periodically during use. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.

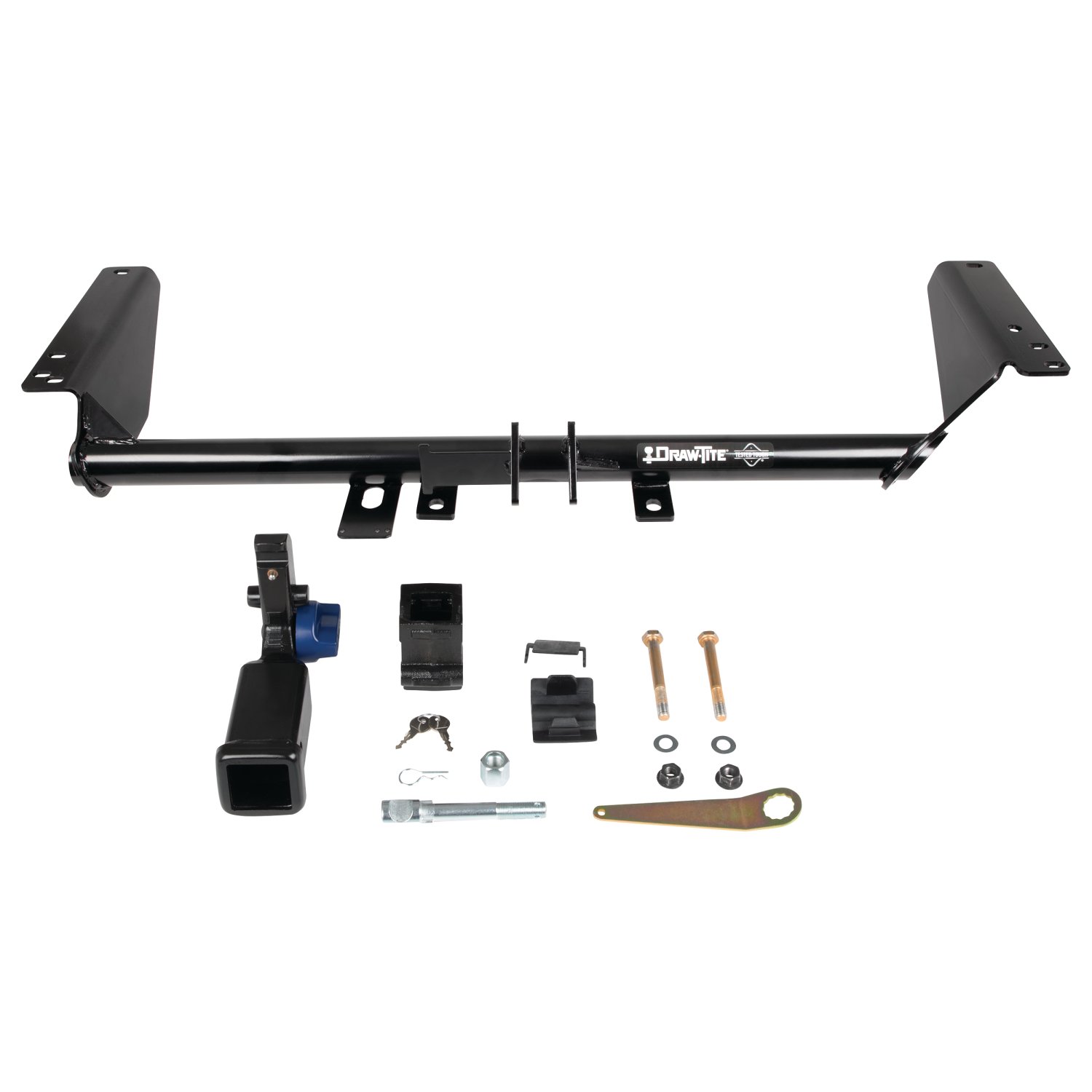

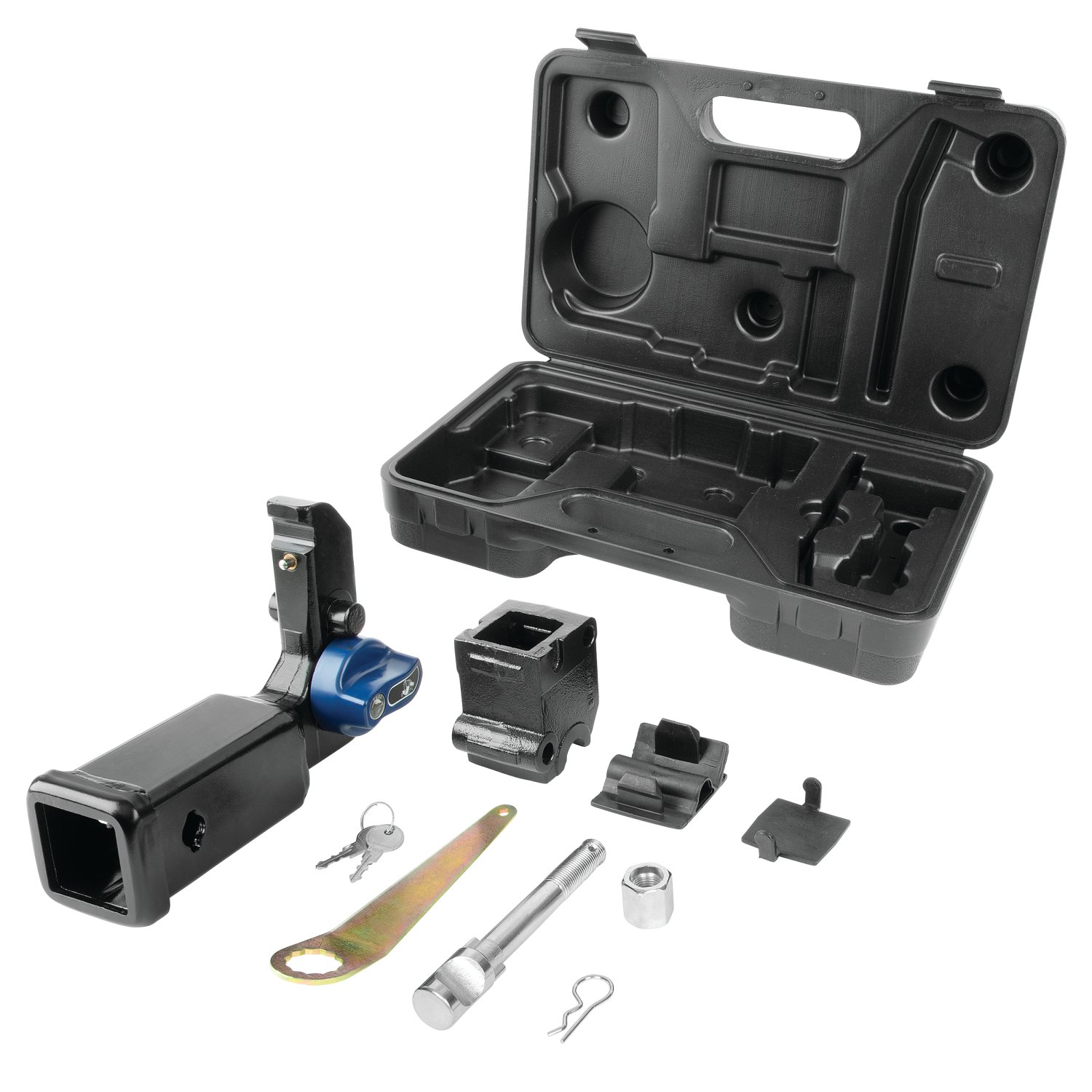

The kit includes: receiver assembly with receiver housing, weather covers, fastener kit 76916F (or 76916F2 for some versions) containing 6 carriage bolts ½"-13 x 1.75 Gr8, 6 conical washers 1/2", 2 blocks 1/4" x 1" x 3", 6 hex nuts ½"-13 Gr8, 4 blocks 1/4" x 1" x 2", 6 pull wires ½", 3 cable ties, 1 warning card, and 2 warning labels. The receiver itself is removable and can be stored separately.
No. DO NOT cut, weld, or modify this receiver. Doing so will void the warranty and compromise safety. Do not use a torch to cut access or attachment holes.
The ball mount must have a maximum length of 10.5" (distance from center of ball hole to center of pin hole) and a minimum rise of 0.75" (distance from top of shank to top of ball platform). Select a ball mount that meets these specifications for proper fitment and safety.
Two quick-link options are available (sold separately): #49131 (5/16"), Max GTW 3,500 lb, or #44133 (3/8"), Max GTW 3,500 lb. Both are rated for the maximum gross trailer weight of the hitch.

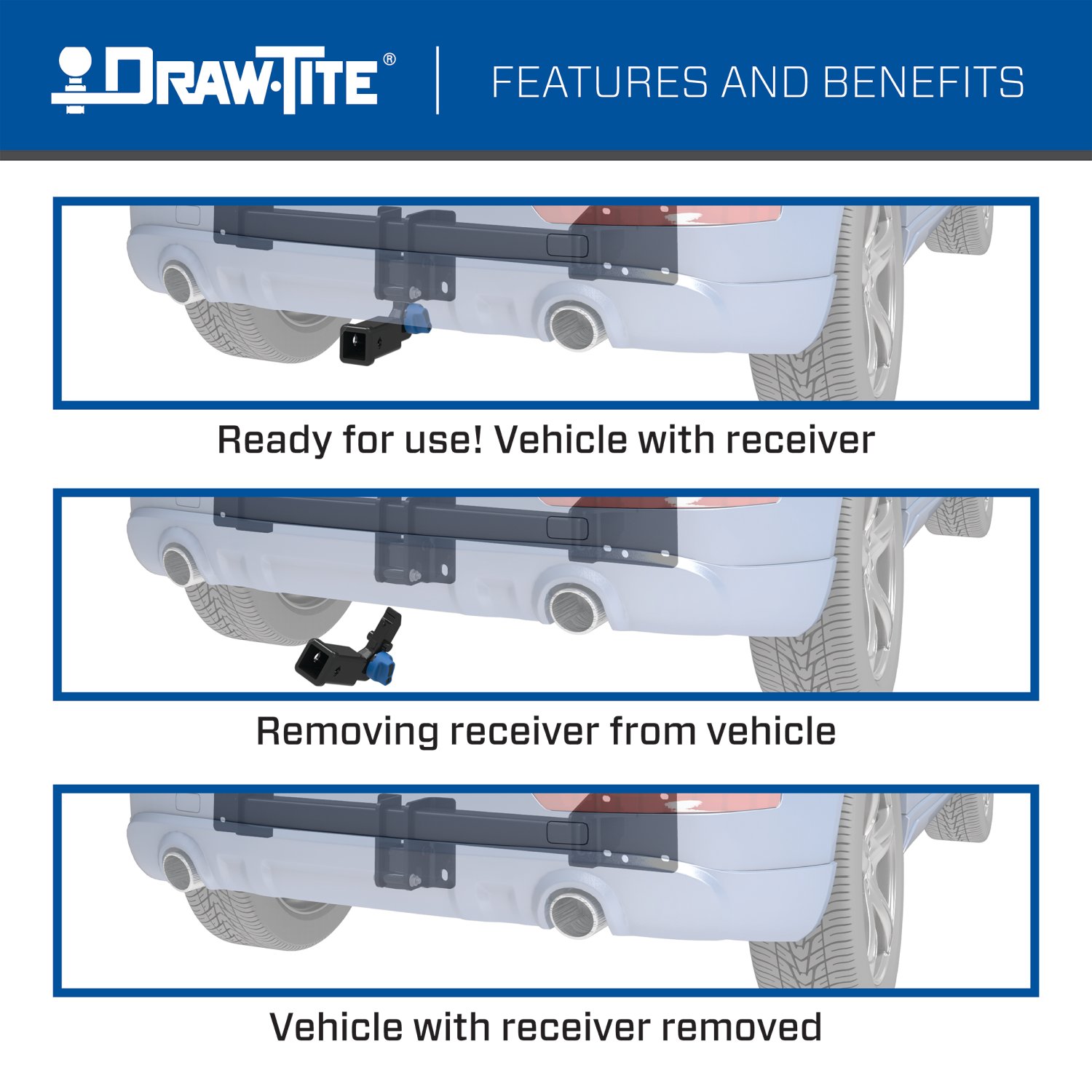

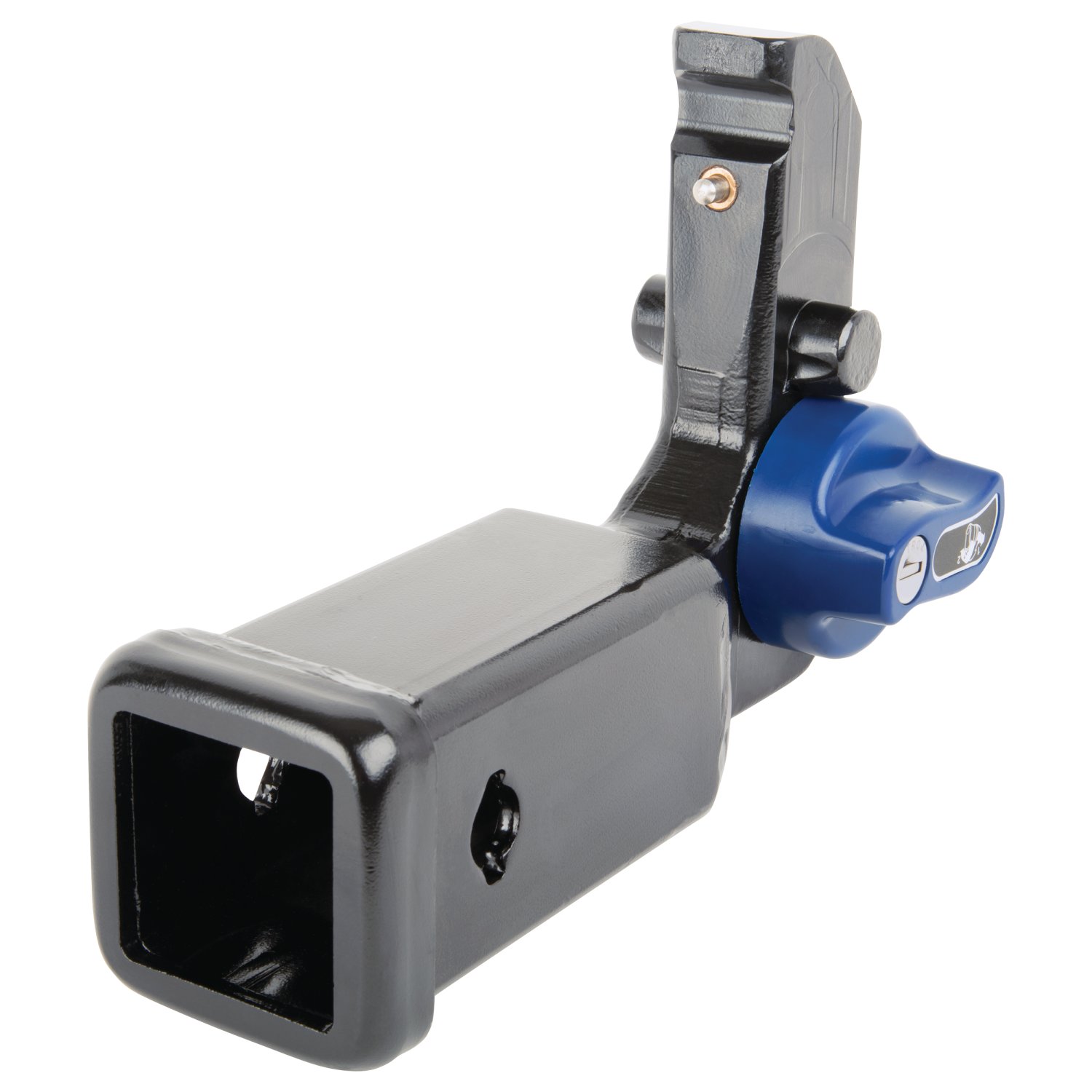

1. Use the key to unlock the blue knob. 2. Push in the blue knob and rotate it clockwise until you hear a click sound. 3. At this point, you can separate the receiver from the receiver housing. The receiver can then be stored separately when not in use.
Weather covers are installed on the top and bottom of the receiver housing to protect it from the elements. They are included with the hitch and must be installed before attaching the receiver housing to the hitch brackets.
The fishwire method is used to route carriage bolts and spacer blocks through the vehicle frame to the attachment holes. Pull wires are attached to the bolts and blocks, then guided through access holes in the frame. The rearward bolts use 2" long blocks, and the forward bolts use 3" long blocks. The pull wires are left attached until the hitch is raised into position and the bolts are secured with conical washers and hex nuts.
The conical washers must be installed with the teeth side facing toward the hitch. This orientation ensures proper clamping and load distribution when the hex nuts are torqued.
1. Remove underbody panel. 2. Lower exhaust system. 3. Remove heat shield. 4. Remove and relocate key proximity antenna. 5. Route rearward bolts using fishwire method with 2" blocks. 6. Route forward bolts using reverse fishwire method with 3" blocks. 7. Raise hitch into position, passenger side first over muffler. 8. Guide fishwire ends through attachment holes. 9. Install conical washers (teeth toward hitch) and hex nuts. 10. Torque all fasteners to 110 lb-ft (149 N·m). 11. Trim heat shield. 12. Reinstall exhaust hangers. 13. Trim underbody panel and reinstall.
The manual does not specify that the battery must be disconnected. However, you will need to disconnect the wiring to the key proximity antenna during installation and reconnect it after relocation.
The underbody panel must be removed. Depending on the model, this requires removing 9 M8 fasteners, 5 to 8 M10 nuts, and 1 to 2 plastic push-on fasteners (unscrew with a standard screwdriver while pulling down on the panel). The heat shield (2 M10 nuts) and key proximity antenna housing must also be removed. For model years after 2020, the heat shield may be connected to the underbody panel and removed in the same step.
Pry off the 2 rearmost rubber exhaust hangers using exhaust removal pliers or another suitable tool. Spraying the hangers with soapy water makes this easier. Be sure to support the exhaust system to prevent damage during removal and reinstallation.
The key proximity antenna must be removed from its housing and relocated. 1. Disconnect the wiring from the antenna. 2. Remove the antenna from the housing (retain the antenna). 3. Trim or discard the housing box at the bumper support. 4. After the hitch is installed, use the included zip ties to secure the antenna to the relocation bracket. 5. Reconnect the wiring.
Trim the heat shield according to Figure 2 in the manual. After trimming, reinstall the remaining portion of the heat shield. For model years after 2020, if the heat shield cannot be easily separated from the underbody panel due to a metal rivet, do not trim it and return it to the vehicle owner.
Trim the underbody panel according to Figure 3 in the manual. After trimming, reinstall the underbody panel. For model years after 2020, do not trim the underbody panel and return it to the vehicle owner.
1. Install weather covers to the top and bottom of the receiver housing. 2. Insert the receiver housing between the hitch brackets. 3. Align the housing with the holes in the brackets. 4. Insert 2 fastener assemblies (M12 bolt, flat washer, and prevailing torque nut) through the holes. 5. Torque each fastener to 92 lb-ft (125 N·m).
The kit includes 1 warning card and 2 warning labels. Keep the warning card in the vehicle glove compartment for future reference. Apply 1 label to the top of the receiver and 1 label to the vehicle door jamb.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual emphasizes periodic checking to ensure the hitch remains securely mounted to the vehicle during towing.
If excess sway occurs: 1. Take your foot off the gas pedal. 2. Hold the steering wheel as steady as possible. 3. DO NOT apply your brakes. 4. DO NOT speed up. Maintain control and gradually reduce speed.
Load the trailer heavier in front. This helps maintain stability and control while towing. Do not exceed the maximum tongue weight of 350 lb (159 kg) or the maximum gross trailer weight of 3500 lb (1589 kg).
The 76916 hitch is covered by a Limited Lifetime Warranty from Horizon Global. The warranty covers material defects in materials and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used in compliance with the manufacturer's instructions. To make a warranty claim, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290. You must provide the product and purchase receipt. Product replacement is the sole remedy under this warranty.
Step-by-step photo installation instructions are available by scanning the QR code on the manual or visiting http://qr.towingproducts.net/qrproducts/qr-product. You can also visit www.horizonglobal.com or www.draw-tite.com and search for part number 76900 for receiver installation and use instructions (76900N).
For technical assistance, contact Horizon Global at: Phone: 1-800-632-3290, Email: TechnicalSupport@horizonglobal.com, Website: www.horizonglobal.com
Pull wires are used to route the carriage bolts and spacer blocks through the vehicle frame. During steps 5 and 6, leave the pull wires attached to the bolts and blocks. When raising the hitch into position in step 7, guide the fishwire ends through the attachment holes, then remove the pull wires before installing the conical washers and hex nuts. Kink the pull wire to keep the spacer independent of the bolt during routing.
When raising the hitch into position, install the passenger side first over the muffler. This positioning helps guide the hitch into alignment with the frame attachment holes and ensures proper fitment without interference with the exhaust system.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle interior and prevents corrosion.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch. Contact a professional installer or the manufacturer for replacement.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. Support the exhaust system to prevent damage. Ensure no wires or other items are pinched between the hitch and vehicle frame. Wear eye protection at all times during installation.
The hitch uses 6 carriage bolts, each ½"-13 x 1.75 Grade 8. These bolts are routed through the vehicle frame using the fishwire method and secured with conical washers and hex nuts. All bolts must be torqued to 110 lb-ft (149 N·m).
The hitch uses 6 hex nuts, each ½"-13 Grade 8. These nuts are installed on the carriage bolts after the conical washers and must be torqued to 110 lb-ft (149 N·m).
Two types of spacer blocks are used: 2 blocks measuring 1/4" x 1" x 3" for the rearward attachment holes, and 4 blocks measuring 1/4" x 1" x 2" for the forward attachment holes. These blocks are routed through the frame using the fishwire method to properly space the hitch from the frame.
The hitch uses 6 conical washers, each 1/2" diameter. The teeth side must face toward the hitch to ensure proper clamping and load distribution when the hex nuts are torqued to 110 lb-ft (149 N·m).
The receiver housing is attached to the hitch brackets using 2 M12 bolts with flat washers and prevailing torque nuts. These fasteners must be torqued to 92 lb-ft (125 N·m).
Three cable ties are included to secure the key proximity antenna to the relocation bracket after the hitch is installed. The antenna is relocated from its original housing to a new position using these zip ties.
Check all fasteners with a torque wrench and re-torque to the specified values: 110 lb-ft (149 N·m) for main hitch fasteners and 92 lb-ft (125 N·m) for receiver housing fasteners. The manual recommends checking fasteners frequently to ensure they remain tight. Loose fasteners can result from vibration during towing and must be corrected immediately to maintain safety.
Stop the installation immediately. Remove the hitch and carefully extract any pinched wires or items. Inspect the wires for damage and repair or replace as necessary. Ensure the wiring is properly routed away from the hitch and frame before reinstalling the hitch. Pinched wires can cause electrical failures or fire hazards.
If the heat shield is connected to the underbody panel with a metal rivet and cannot be easily separated (typically on model years after 2020), do not attempt to trim it. Return both components to the vehicle owner in their original condition. Forcing separation could damage the components or compromise vehicle safety.
If the exhaust system becomes damaged during removal or lowering, it must be repaired or replaced before the vehicle is used. Do not reinstall the hitch until the exhaust system is in proper working condition. Damaged exhaust systems can cause performance issues, emissions problems, and safety hazards.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
