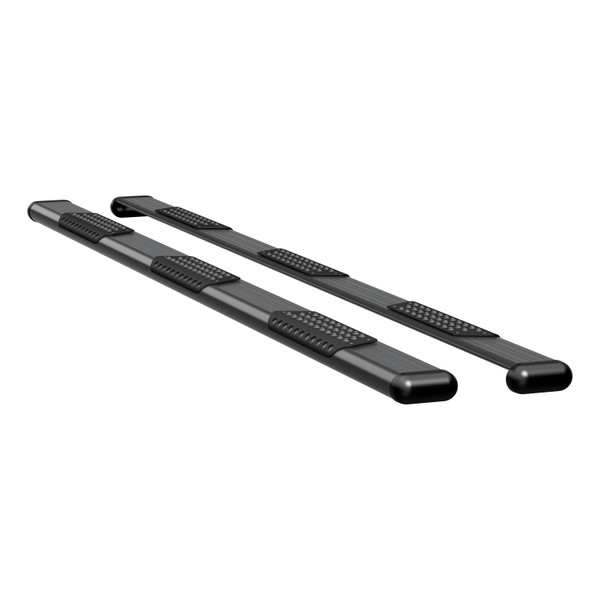

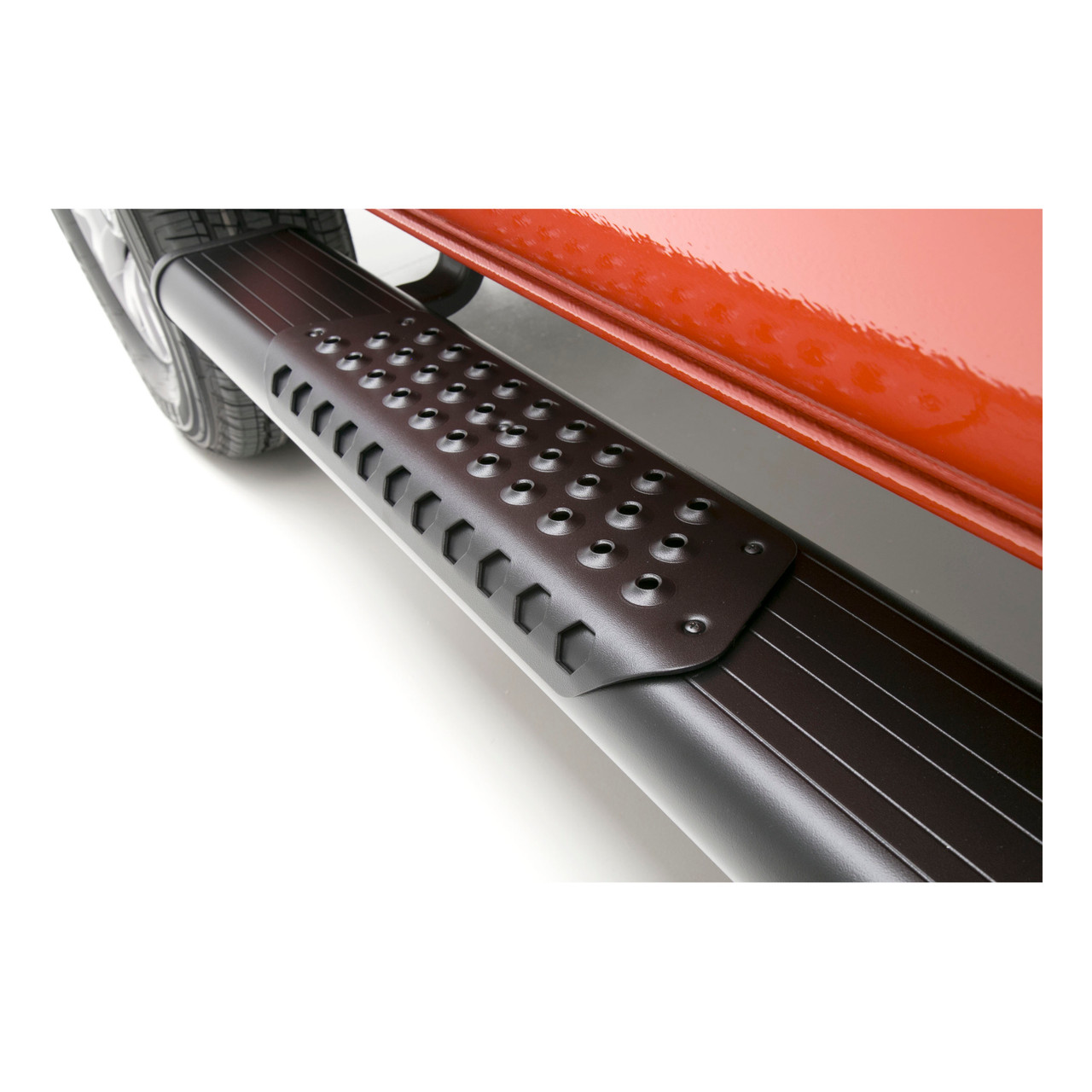

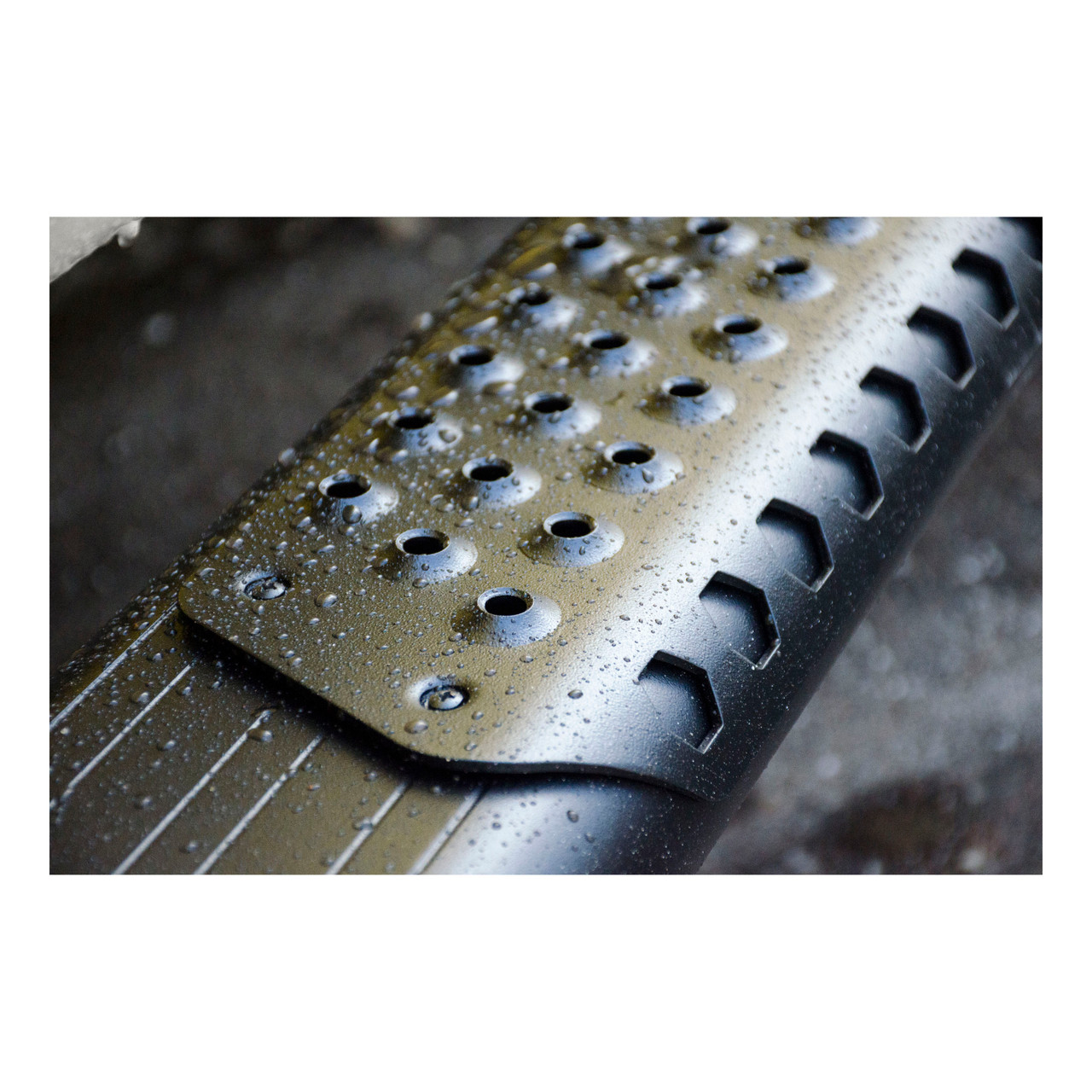

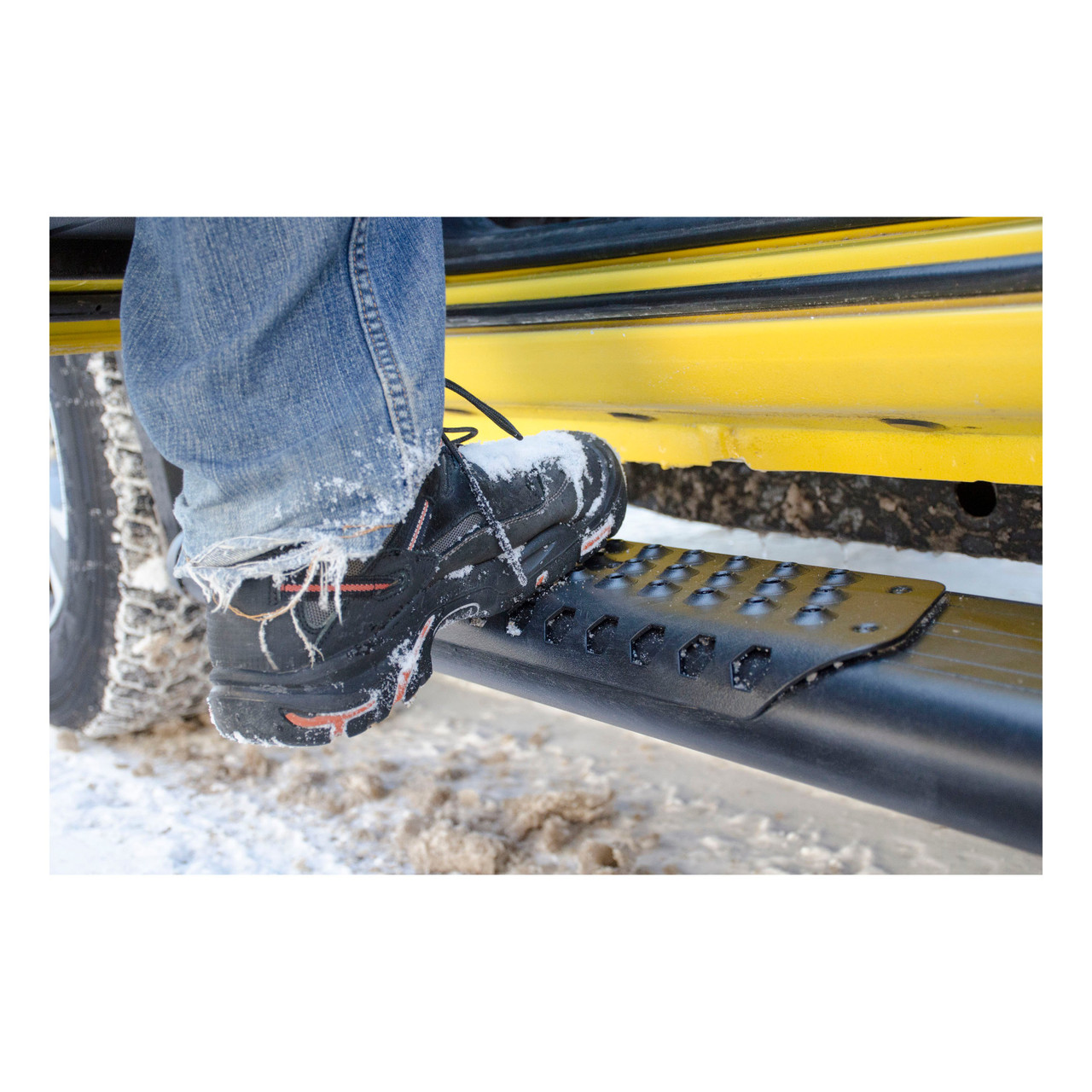

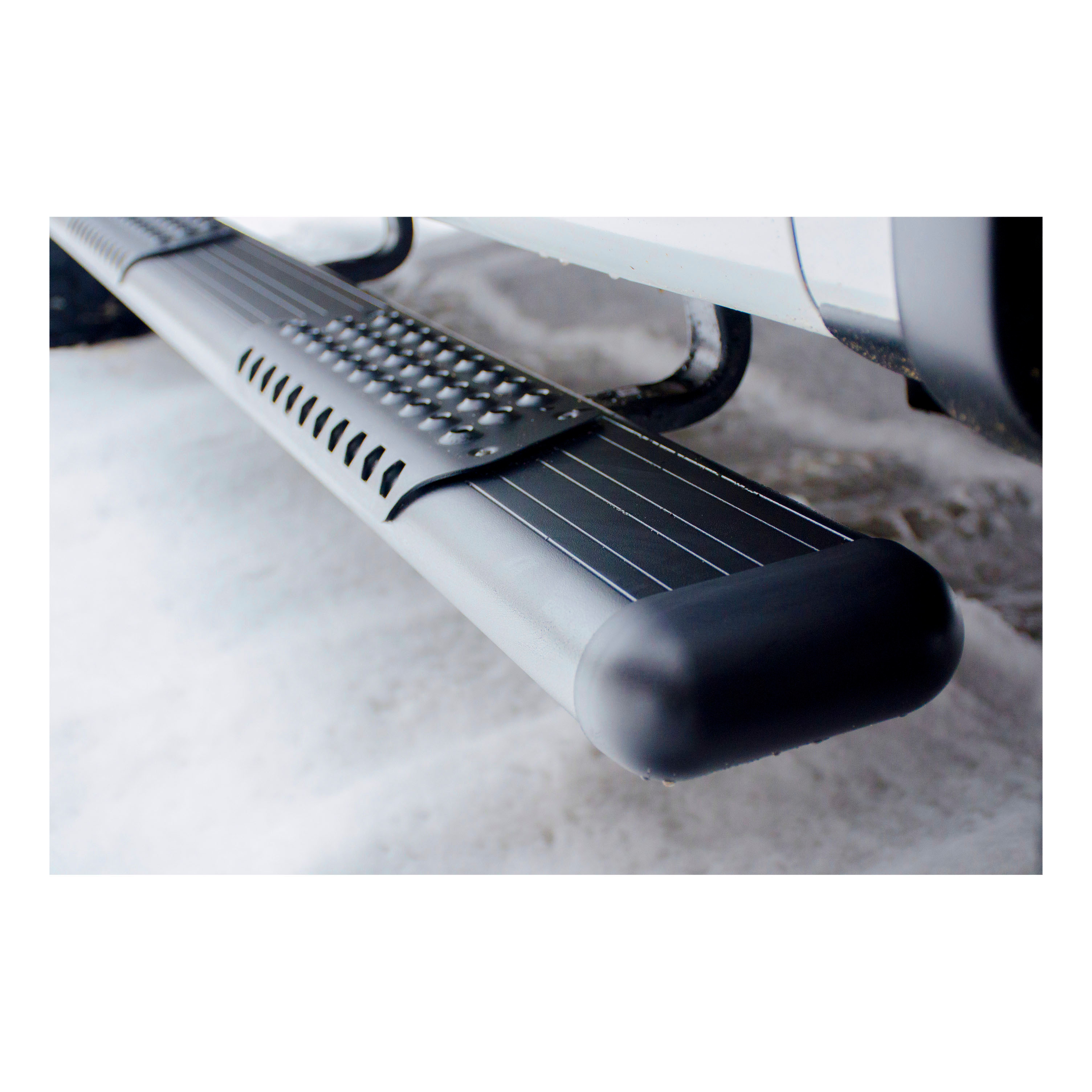

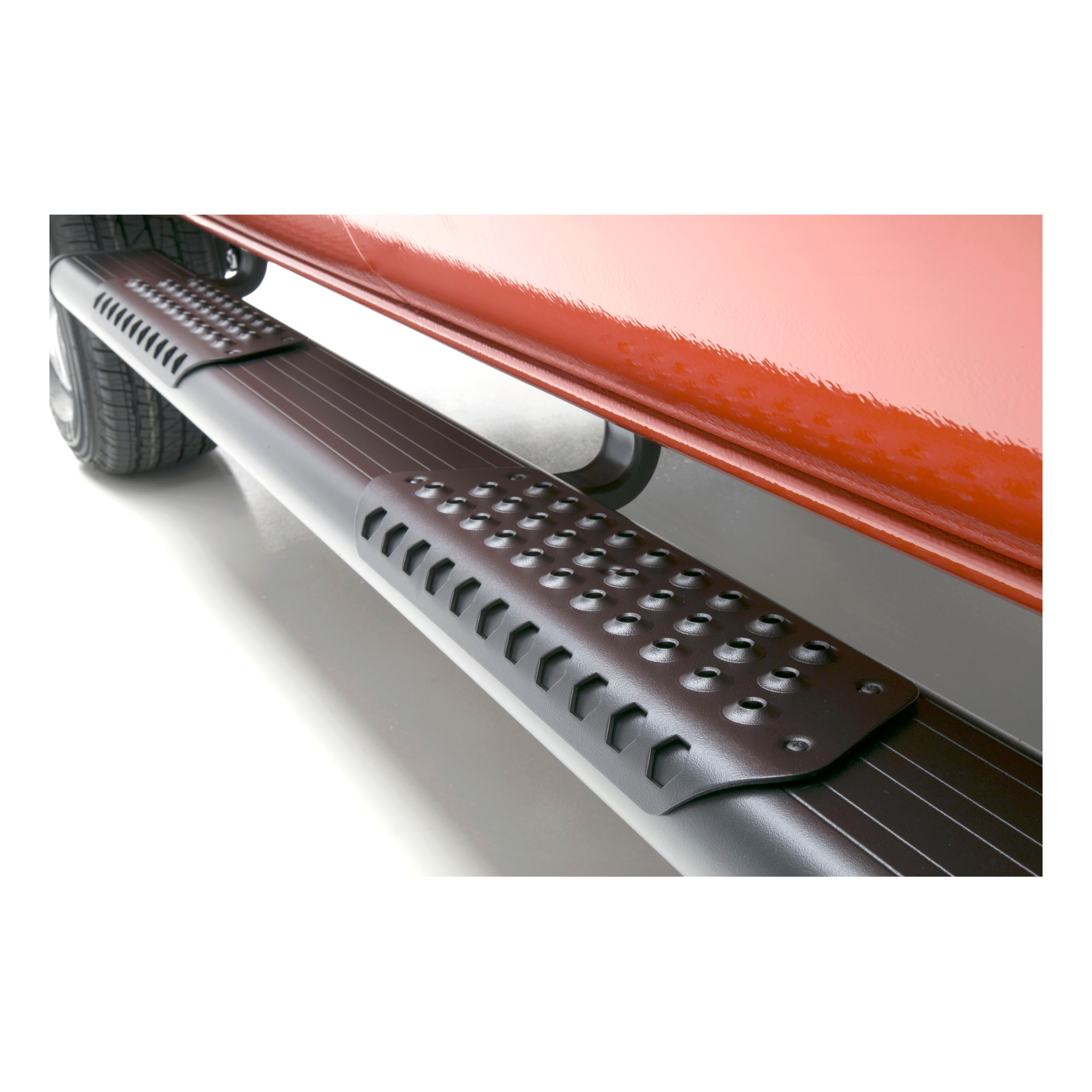

LUVERNE O-Mega II 6" oval wheel-to-wheel steps are the perfect side steps for offroad trucks and work trucks alike. They feature an aggressive look, highly functional step pads, a non-corrosive construction and a vehicle-specific fit. O-Mega II wheel-to-wheel steps are truly modern side steps for modern trucks. With their oval-shaped board profile, rounded end caps and angular step pads, they provide an aggressive look. The step pads also feature a unique cutout pattern and raised circular treads for an unmistakable accent. O-Mega II side steps are not only built for style, but they offer superior safety every time you climb into the cab. The step pads are made from aluminum to outlast the harsh elements and ensure maximum traction and wear resistance for the raised treads. These wheel-to-wheel steps are extra-long and are equipped with additional step pads toward the rear, giving you a solid and convenient step for reach into the truck bed. They?re perfect for accessing a truck tool box, headache rack, 5th wheel hitch or cargo in the truck bed. To ensure that LUVERNE O-Mega II oval wheel-to-wheel side steps are able to withstand anything the road or trail throws your way, they are constructed from aluminum alloy. Aluminum supplies dependable strength and rigidity, while maintaining unparalleled corrosion resistance and a lightweight design. These side steps and the step pads are also protected in a durable powder coat finish. The boards are available in your choice of carbide black or chrome powder coat. O-Mega II wheel-to-wheel steps are engineered for a fast, easy, secure installation, featuring vehicle-specific brackets for a custom fit. This particular set is designed to fit specific years of the Chevy Silverado 2500 HD or 3500 HD and GMC Sierra 2500 HD or 3500 HD (see application information to verify fitment; brackets included but shipped separately).
LUVERNE O-Mega II 6" oval wheel-to-wheel side steps are made to work hard and to do it with style. They are constructed from strong, lightweight, rust-free aluminum and shielded in a highly durable powder coat finish of textured black or smooth silver.
LUVERNE has manufactured truck accessories in the United States since 1963, specialising in grille guards, running boards, side steps and mud guards for pickups, commercial vans and SUVs. Products are built primarily from stainless steel, aluminium and mild steel, with model-specific mounting kits that use existing frame locations for a bolt-on installation.
LUVERNE has been manufacturing automotive accessories in the United States since 1963, and six decades of continuous production have made it a nationally recognised name in the truck accessory market. Now a Lippert brand, it concentrates on a defined set of products rather than spreading across the whole aftermarket: front-end protection, step access and spray protection for pickup trucks, commercial vans and sport utility vehicles.
Step products are the largest part of the catalog and the range is unusually deep, because the right step depends on the vehicle's ride height, the width of the rocker panel and how often people get in and out. The O-Mega II six-inch oval steps give a wide, flat standing surface in polished stainless or black powder coat, while the Regal 7 seven-inch oval steps go wider still for full-size crew cabs and lifted trucks. The broader running board and side bar range covers round tube, oval and boxed profiles across cab configurations, with treads positioned at the door openings where they are used.
Grille guards protect the front end against impacts, brush and road debris, built in tubular stainless or steel with model-specific brackets that tie into factory frame mounting points. Because the fit is engineered per vehicle, installation is a bolt-on job that does not require drilling or cutting on most applications.
Rounding out the line, LUVERNE mud guards and mud flaps shield rocker panels, paint and following vehicles from stones and road spray, in widths matched to the tyre and fender they sit behind. Material choice runs through everything the brand does: stainless steel where appearance and corrosion resistance matter most, aluminium where weight is the priority, and mild steel with protective coating where strength and value lead. Customers include contractors, fleet operators, van upfitters and truck owners.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Five-Year Finish, One-Year Parts)
Model 571447 MEGA STEP brackets fit 2014 and newer GM 1500 Pickups (gas engines) and 2015 GM 2500/3500HD Pickups (gas engines) only. This is a rocker panel mount, no-drill application. If you have a different truck model or year, you will need a different bracket package.
The O-MEGA II 6" Oval Steps are designed for universal application and can be used with various bracket packages. However, you must use the bracket package specific to your vehicle. The step pad locations vary significantly by vehicle model and cab style (double cab, extended cab, crew cab, mega cab, or van), so you must consult the Step Pad Location Guide to position the pads correctly for your particular vehicle.
Each O-MEGA II step assembly includes: 2 aluminum extrusions (available in silver or black, in lengths from 95.0" to 122.0"), 4 plastic end caps, 28 square head bolts (5/16"-18 x 1"), 28 serrated flange nuts (5/16"-18), 6 aluminum step pads, and 30 tek screws (#8-18 x 1/2"). Verify all parts are present before starting installation.

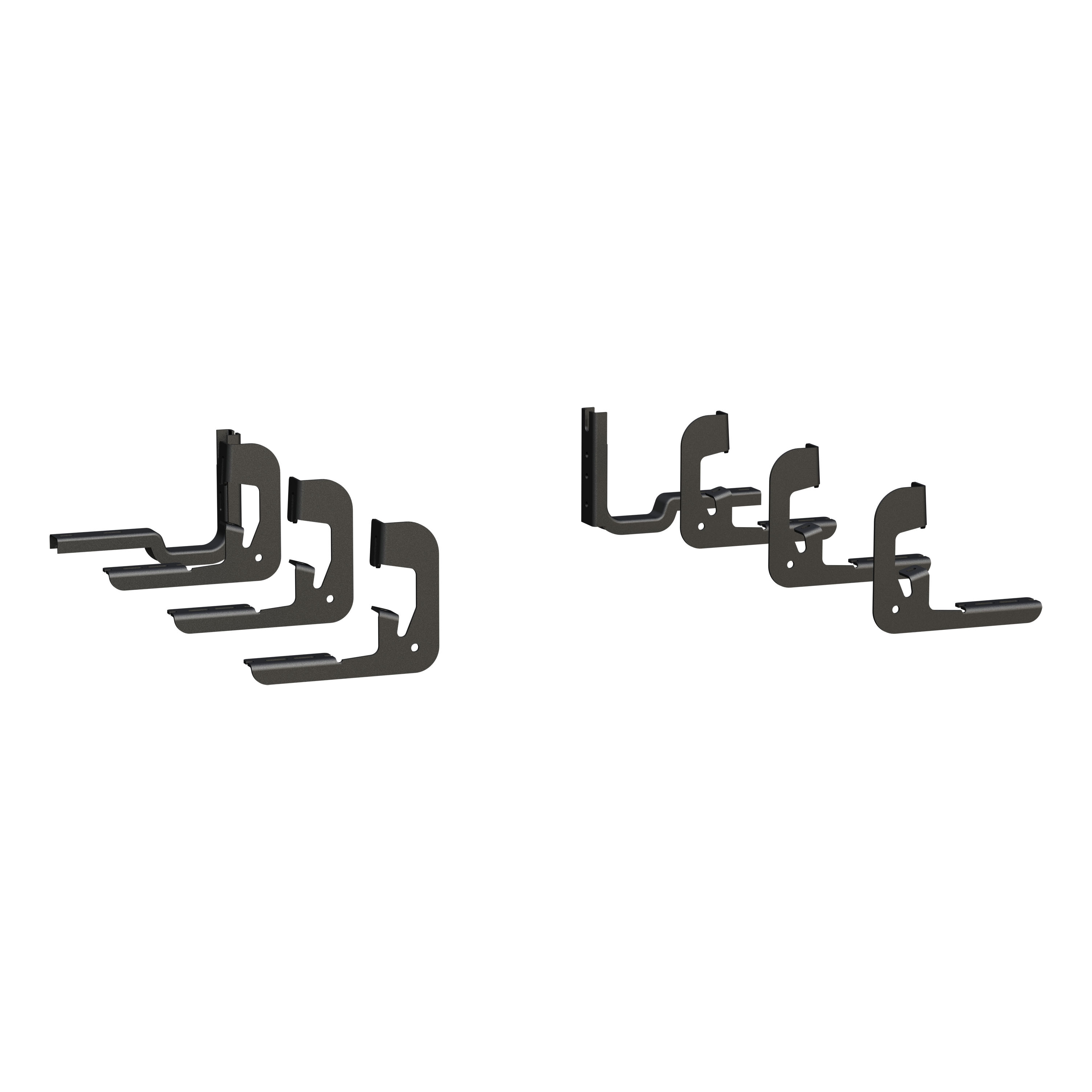

The Model 571447 kit includes: 3 left-side and 3 right-side mounting brackets, 12 5/16" flat washers, 6 5/16"-18 x 1.0" hex bolts, 6 M8-1.25 serrated flange nuts, 6 5/16"-18 U-nuts, 6 pinch weld support brackets, 12 M8-1.25 x 30 mm hex bolts, 2 inboard and 2 outboard spring hanger mounting brackets, 2 3/8"-16 x 2" hex bolts, 4 3/8" flat washers, 4 1/2" flat washers, and 2 3/8"-16 self-locking nuts. The step assembly itself is ordered separately.
No. Model 571447 is a no-drill application. The brackets mount to existing holes on the rocker panel pinch weld and vertical wall. However, you must remove plastic body plugs from the vertical wall of the rocker panel on the left side and insert U-nuts, or use threaded inserts if present in the upper location.
Yes. You must drill 5 holes of 1/8" diameter through the step plate using the step pad as a guide. The step pad is then attached with 5 tek screws (#8-18 x 1/2"). This must be done before attaching the step to the brackets. Note: on shorter boxes, mount the box step pad first, approximately 1/2" from the end cap, then mount the middle step pad accordingly.
1. Attach step pads to step plates using 1/8" drilled holes and tek screws. 2. Install square head bolts into the designated slots in the bottom of the step plates. 3. Install end caps and tighten nuts to 5 lb-ft. 4. Position the step on the mounting brackets so square head screws are in the bracket slots and the step is centered front to rear. 5. Install serrated flange nuts on the square head screws and tighten to 19 lb-ft.
1. Remove plastic body plugs from the rocker panel vertical wall and insert U-nuts (or use existing threaded inserts). 2. Position mounting brackets and install 5/16"-18 x 1.0" hex bolts and flat washers finger tight. 3. Install M8-1.25 x 30 mm bolts, flat washers, and pinch weld support brackets, and install M8-1.25 nuts finger tight. 4. Repeat for all brackets. 5. Attach spring hanger mounting brackets: loosen the spring hanger bolt, slide the inboard bracket behind the flange, and install the outboard bracket with 3/8"-16 bolts, washers, and lock nuts finger tight. 6. Install the step board per its instructions. 7. Press the step down and back, then tighten all mounting bolts to 19 lb-ft, starting with bottom bolts then top bolts. 8. Repeat for the right side.
Leave bolts finger tight during the initial positioning steps. For the O-MEGA II steps, tighten end cap nuts to 5 lb-ft, then tighten the step mounting bolts to 19 lb-ft. For the Model 571447 brackets, leave the rocker panel mounting bolts and spring hanger mounting bolts finger tight until the step board is installed. Then press the step down and back, and tighten all mounting bolts to 19 lb-ft, starting with the bottom bolts followed by the top bolts.
Tighten the end cap nuts to 5 lb-ft.
Install 5/16" serrated flange nuts on the square head screws and tighten to 19 lb-ft.
Tighten the mounting bolts to 19 lb-ft. Start with the bottom bolts, then tighten the top bolts. This is done after the step board is installed and pressed down and back.
Square head bolts: 5/16"-18 x 1" (28 required). Serrated flange nuts: 5/16"-18 (28 required). Tek screws for step pads: #8-18 x 1/2" (5 per pad, 30 total provided). End cap fasteners: nuts tightened to 5 lb-ft.
Rocker panel mounting: 5/16"-18 x 1.0" hex bolts with 5/16" flat washers (6 required). Pinch weld support: M8-1.25 x 30 mm hex bolts with 5/16" flat washers and M8-1.25 serrated flange nuts (6 sets). U-nuts: 5/16"-18 (6 required). Spring hanger mounting: 3/8"-16 x 2" hex bolts with 3/8" and 1/2" flat washers and 3/8"-16 self-locking nuts (2 sets). All mounting bolts tighten to 19 lb-ft.
CURT Group recommends regular inspection and maintenance of the leaf spring attachment point per GM Technical Service Bulletin 09-03-09-001E: Clunking Noise from Rear of Vehicle (Re-torque Leaf Spring Bolts) for 2007-2017 Chevrolet and GMC trucks. Failure to regularly inspect and maintain factory-recommended torque values may result in damage to the vehicle.
Step pad locations vary by vehicle model and cab style. Consult the Step Pad Location Guide on page 2 of the manual for your specific vehicle. For example, Silverado/Sierra double cab uses Pad A at 14-3/4" and Pad B at 46-3/4"; Ford F150 Super Crew Cab uses Pad A at 18-1/4" and Pad B at 56-1/2". Note: these are suggestions and may be placed at the purchaser's discretion.
No. Step pad locations vary significantly by vehicle model and cab style. Some vehicles (Chevrolet Express Van, GMC Savana Van, and some Ford models) use only one pad (Pad A) with no Pad B. Always consult the Step Pad Location Guide for your specific vehicle before drilling and installing the pads.
Read the complete instructions and verify that all required parts listed in the Service Parts List are on hand before starting. For the O-MEGA II steps, also follow the instructions included with your specific bracket package. For the Model 571447 brackets, note that the hole configuration may vary by vehicle and fasteners are provided for all applications.
Model 571447 fits 2014+ GM 1500 Pickups (gas) and 2015 GM 2500/3500HD Pickups (gas) only. It is a rocker panel mount, no-drill application.
Yes, O-MEGA II steps are universal but require a vehicle-specific bracket package. Step pad locations vary by vehicle model and cab style and must be positioned using the Step Pad Location Guide.
No, Model 571447 is a no-drill application. However, you must remove plastic body plugs from the rocker panel and insert U-nuts, or use existing threaded inserts.
Yes, you must drill 5 holes of 1/8" diameter through each step plate using the step pad as a guide, then attach with tek screws.
End cap nuts: 5 lb-ft. All mounting bolts (O-MEGA II step bolts and Model 571447 bracket bolts): 19 lb-ft.
For Model 571447 on GM trucks, CURT Group recommends regular inspection and maintenance of the leaf spring attachment point per GM Technical Service Bulletin 09-03-09-001E to prevent damage.
