LUVERNE O-Mega II 6" x 36", 100" Black Aluminum Side Steps, Select Nissan NV Vans 584100-571164LuverneIn Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Luverne
Verify Fitment
Select your vehicle to confirm this part fits.
2012 - 2021 Nissan NV1500
Confirmed to Fit
2012 - 2021 Nissan NV2500
Confirmed to Fit
2012 - 2021 Nissan NV3500
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

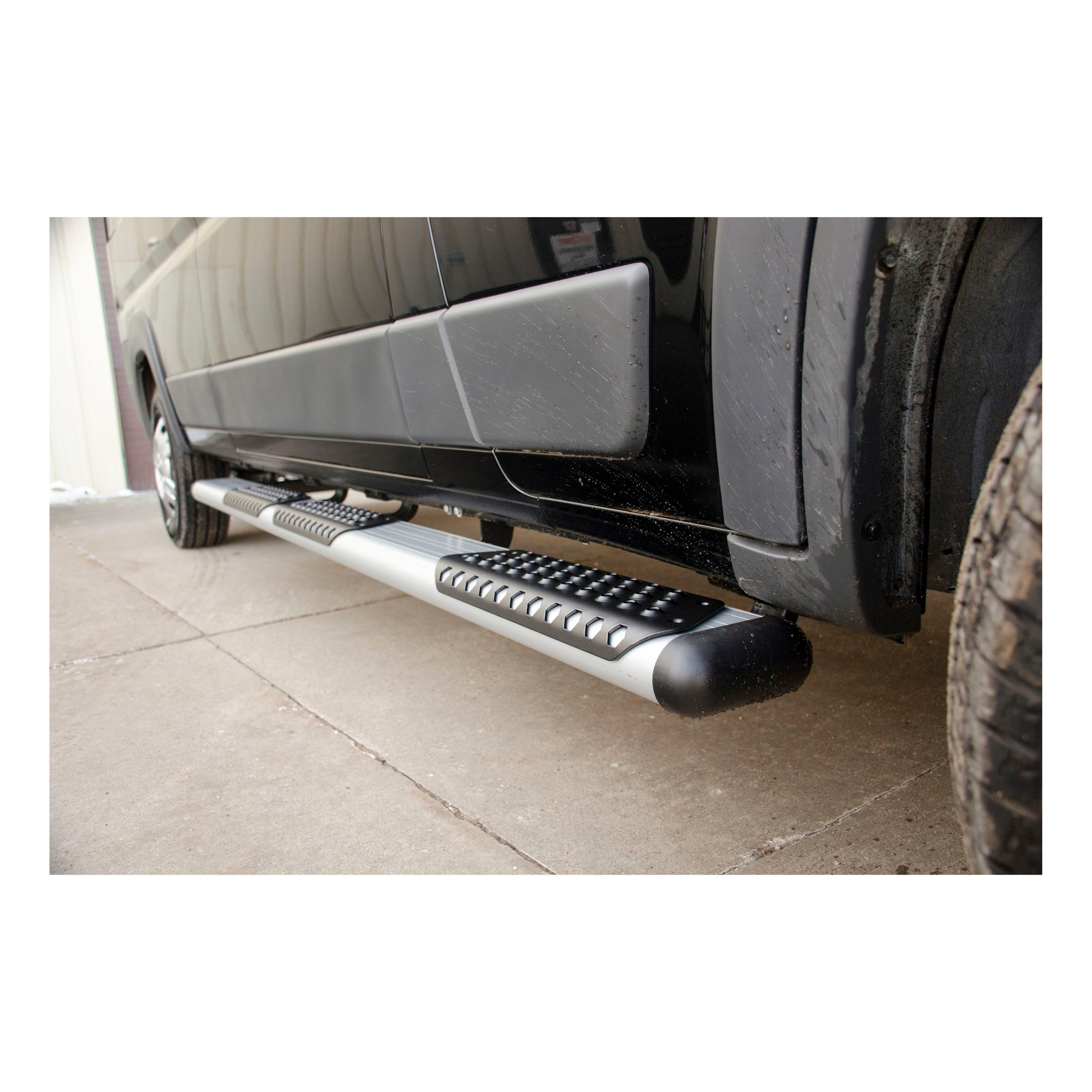

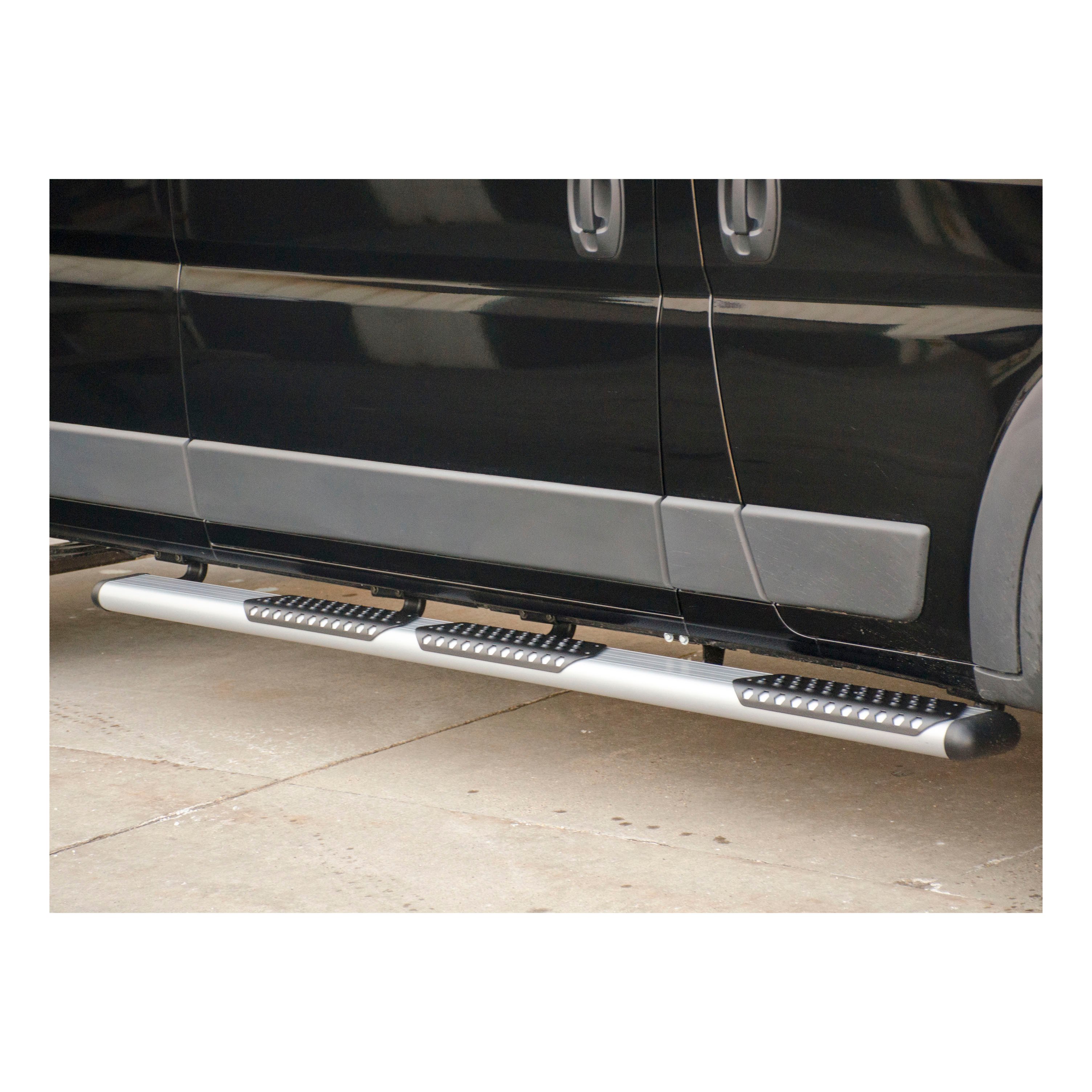

Like many LUVERNE side steps and running boards, O-Mega II 6" oval side steps are made to work hard and to do it with style. They are constructed from strong, lightweight, rust-free aluminum, and to truly make them a step up from the rest, we shield them in a highly durable powder coat finish. This ensures maximum corrosion resistance and excellent protection against scuffs and scratches. The side steps are available in two powder coat finish options, including textured black and silver powder coat. O-Mega II side steps are also made to provide safe, comfortable entry and exit from your vehicle. They feature tough aluminum step pads with protruded circular treads that will never wear or crack. The step pads offer a non-skid surface, and they are finished with a textured black powder coat for lasting corrosion resistance. Also unique to our O-Mega II step pads is their customizable positioning. The pads are packaged unattached from the tubes and mount with self-tapping screws. This allows you to precisely match the layout of your vehicle to suit your preferences. You can mount them to the provided factory specifications or adjust them to a custom placement. The 6" x 2-3/4" tubes are fitted with black TPO plastic end caps, adding a modern, professional look. The end caps are also paintable to allow for even further customization. Each set of O-Mega II side steps is designed for vehicle-specific installation and fitment, using a unique set of mounting brackets. This particular set of side steps fits specific years of the Nissan NV1500, NV2500 and NV3500 (see application info to verify fitment). NOTE: Mounting brackets are included but ship separately.
LUVERNE O-Mega II 6" oval side steps are made to work hard and to do it with style. They are constructed from strong, lightweight, rust-free aluminum and shielded in a highly durable powder coat finish of textured black or smooth silver.
LUVERNE has manufactured truck accessories in the United States since 1963, specialising in grille guards, running boards, side steps and mud guards for pickups, commercial vans and SUVs. Products are built primarily from stainless steel, aluminium and mild steel, with model-specific mounting kits that use existing frame locations for a bolt-on installation.
LUVERNE has been manufacturing automotive accessories in the United States since 1963, and six decades of continuous production have made it a nationally recognised name in the truck accessory market. Now a Lippert brand, it concentrates on a defined set of products rather than spreading across the whole aftermarket: front-end protection, step access and spray protection for pickup trucks, commercial vans and sport utility vehicles.
Step products are the largest part of the catalog and the range is unusually deep, because the right step depends on the vehicle's ride height, the width of the rocker panel and how often people get in and out. The O-Mega II six-inch oval steps give a wide, flat standing surface in polished stainless or black powder coat, while the Regal 7 seven-inch oval steps go wider still for full-size crew cabs and lifted trucks. The broader running board and side bar range covers round tube, oval and boxed profiles across cab configurations, with treads positioned at the door openings where they are used.
Grille guards protect the front end against impacts, brush and road debris, built in tubular stainless or steel with model-specific brackets that tie into factory frame mounting points. Because the fit is engineered per vehicle, installation is a bolt-on job that does not require drilling or cutting on most applications.
Rounding out the line, LUVERNE mud guards and mud flaps shield rocker panels, paint and following vehicles from stones and road spray, in widths matched to the tyre and fender they sit behind. Material choice runs through everything the brand does: stainless steel where appearance and corrosion resistance matter most, aluminium where weight is the priority, and mild steel with protective coating where strength and value lead. Customers include contractors, fleet operators, van upfitters and truck owners.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Five-Year Finish, One-Year Parts)
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2021 | Nissan NV1500 | — |
| 2012 - 2021 | Nissan NV2500 | — |
| 2012 - 2021 | Nissan NV3500 | — |
On Sale Today
You save $67.00 (12%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Tue, Aug 25 - Fri, Aug 28
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
The O-MEGA II 6" Oval Steps (models 583100 and 584100) are universal application oval steps available in silver or black aluminum. They are designed to mount to vehicle-specific bracket packages. The manual covers installation with Mega Step Brackets (571164) and Grip Step Brackets (401164) for 2011 Nissan NV Vans in short and long versions. For other vehicles, you must use the appropriate bracket package designed for your vehicle.
Yes, the O-MEGA II 6" Oval Steps (models 583100 and 584100) fit 2011 Nissan NV Vans when used with the correct bracket package. You will need either the Mega Step Brackets (571164) or Grip Step Brackets (401164), available in short and long versions. The bracket package must be installed first following its included instructions, then the O-MEGA II steps attach to the brackets.
The O-MEGA II 6" Oval Steps package includes: one 33" or 95" aluminum extrusion (silver or black), four step pads (Item #3), four end caps (Item #4), 18 square head screws 5/16-18 x 1" (Item #5), 18 serrated flange nuts 5/16-18 (Item #6), and 24 tek screws #8-18 x 1/2" (Item #7). The bracket package is separate and includes its own fasteners.
The bracket package includes six mounting brackets (either Mega Step 552021 or Grip Step 552131), six hex head cap screws 5/16-18 x 1.0" (Item #2), 12 flat washers 5/16" (Item #3), six serrated flange nuts 5/16-18 (Item #4), and 12 hex head self-tapping screws 1/4" x 3/4" (Item #5).
You will need a drill with bits for 1/8", 5/32", and 3/8" holes, a wrench or socket set for 5/16" fasteners, and a torque wrench calibrated to 5, 19, and 20 LB FT. A level is recommended to ensure brackets are level with the vehicle during installation.
The manual does not specify removal of any components. However, you will need access to the pinch weld and inner rocker panel to drill mounting holes. Check that the area is clear and accessible before beginning. Refer to the specific bracket package instructions for any vehicle-specific preparation.
Yes, drilling is required. For the driver side, you must drill two 3/8" diameter holes through the middle of the pinch weld for the bottom mounting holes. For the passenger side, you must drill four 3/8" diameter holes through the pinch weld. Additionally, you must drill two 5/32" holes through the inner rocker panel for each bracket (two per bracket) to install self-tapping screws. Hole locations are measured from the front wheel well opening and shown in the installation figures.
The 3/8" holes are drilled through the middle of the pinch weld. Locations are measured from the front wheel well opening and shown in Figure 1 (driver side) and Figure 3 (passenger side). The driver side requires two holes; the passenger side requires four holes. Refer to the installation figures in your bracket package for exact measurements.
1. Install the bracket package first per its included instructions. 2. Drill five 1/8" pilot holes in each step pad using the holes in the pad as a guide. 3. Attach step pads to step plates with five 8-18 x 1/2" tek screws (Item #7). 4. Install the required number of square head bolts into the designated slots in the bottom of the step plates. 5. Install end caps and tighten nuts to 5 LB FT. 6. Position the O-MEGA step on the mounting brackets so square head screws are in the bracket slots and the step is centered front to rear. 7. Install 5/16" serrated flange nuts on the square head screws and tighten to 19 LB FT.
Place the step pads (Item #3) on top of the step plates. Using the holes in the step pad as a guide, drill five 1/8" pilot holes. Attach the pads with five 8-18 x 1/2" tek screws (Item #7) provided. Repeat this process for all step pads.
Position the O-MEGA step on the mounting brackets so that the square head screws (Item #5) are located in the slots of the mounting brackets and the step is centered front to rear on the vehicle. This ensures proper alignment and weight distribution.
1. Drill two 3/8" diameter holes through the middle of the pinch weld (locations measured from the front wheel well opening, shown in Figure 1). 2. Hold two brackets (Item #1) up to the vehicle and secure them with a 5/16-18 x 1.0" bolt, flange nut, and two washers (Items #2, #3, #4). Tighten these fasteners ensuring the brackets are level with the vehicle. 3. With the brackets in place, use the top two holes in each bracket as a guide and drill two 5/32" holes through the inner rocker panel for each bracket. 4. Install the 1/4" x 3/4" self-tapping screws (Item #5) with care not to over-tighten.
1. Drill four 3/8" diameter holes through the middle of the pinch weld (locations measured from the front wheel well opening, shown in Figure 3). 2. Hold the brackets (Item #1) up to the vehicle and secure them with a 5/16-18 x 1.0" bolt, flange nut, and two washers (Items #2, #3, #4). Snug these fasteners down. 3. With the brackets in place, use the upper two holes in each bracket as a guide and drill two 5/32" holes through the inner rocker panel for each bracket. 4. Install the 1/4" x 3/4" self-tapping screws (Item #5) with care not to over-tighten.
All 5/16" nuts and bolts must be torqued to 20 LB FT. This applies to the hex head cap screws (Item #2) and serrated flange nuts (Item #4) used to secure the brackets to the vehicle.
The end caps (Item #4) must be tightened to 5 LB FT.
The 5/16" serrated flange nuts (Item #6) on the square head screws (Item #5) must be tightened to 19 LB FT.
Five 1/8" diameter pilot holes are drilled in each step pad using the holes in the pad as a guide before attaching with tek screws.
3/8" diameter holes are drilled through the middle of the pinch weld. The driver side requires two holes; the passenger side requires four holes.
5/32" diameter holes are drilled through the inner rocker panel. Two holes are drilled for each bracket using the top two holes in the bracket as a guide.
Use care not to over-tighten the 1/4" x 3/4" self-tapping screws (Item #5) when installing them in the inner rocker panel. Over-tightening can damage the rocker panel or strip the fastener.
Yes, with the correct bracket package. Use Mega Step Brackets (571164) or Grip Step Brackets (401164) in short or long versions. The brackets must be installed first per their included instructions.
Yes. Drill two 3/8" holes through the pinch weld (driver side) or four 3/8" holes (passenger side), and two 5/32" holes through the inner rocker panel for each bracket. Hole locations are measured from the front wheel well opening.
Drill with 1/8", 5/32", and 3/8" bits; wrench or socket set for 5/16" fasteners; torque wrench for 5, 19, and 20 LB FT; and a level to ensure brackets are level with the vehicle.
End caps: 5 LB FT. Square head screws: 19 LB FT. For 2011 Nissan NV brackets, all 5/16" nuts and bolts: 20 LB FT.
1. Install bracket package first. 2. Drill five 1/8" pilot holes in step pads and attach with tek screws. 3. Install square head bolts in step plate slots. 4. Install end caps (tighten to 5 LB FT). 5. Position step on brackets centered front to rear. 6. Install and tighten serrated flange nuts to 19 LB FT.
Use care not to over-tighten the 1/4" x 3/4" self-tapping screws in the inner rocker panel, as over-tightening can damage the panel or strip the fastener.
