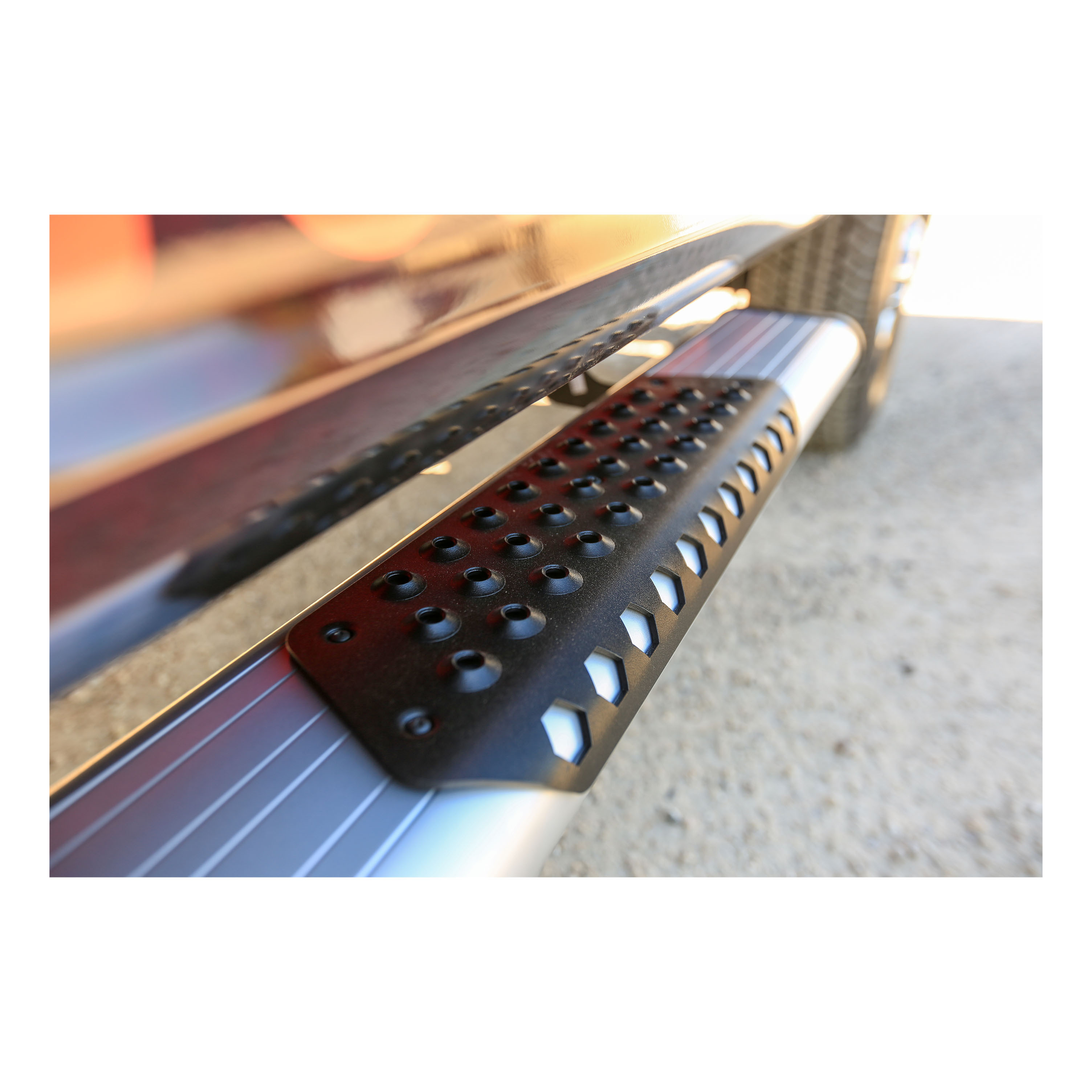

Like many LUVERNE side steps and running boards, O-Mega II 6" oval side steps are made to work hard and to do it with style. They are constructed from strong, lightweight, rust-free aluminum, and to truly make them a step up from the rest, we shield them in a highly durable powder coat finish. This ensures maximum corrosion resistance and excellent protection against scuffs and scratches. The side steps are available in two powder coat finish options, including textured black and silver powder coat. O-Mega II side steps are also made to provide safe, comfortable entry and exit from your vehicle. They feature tough aluminum step pads with protruded circular treads that will never wear or crack. The step pads offer a non-skid surface, and they are finished with a textured black powder coat for lasting corrosion resistance. Also unique to our O-Mega II step pads is their customizable positioning. The pads are packaged unattached from the tubes and mount with self-tapping screws. This allows you to precisely match the layout of your vehicle to suit your preferences. You can mount them to the provided factory specifications or adjust them to a custom placement. The 6" x 2-3/4" tubes are fitted with black TPO plastic end caps, adding a modern, professional look. The end caps are also paintable to allow for even further customization. Each set of O-Mega II side steps is designed for vehicle-specific installation and fitment, using a unique set of mounting brackets. This particular set of side steps fits specific years of the Ford F150 (see application info to verify fitment). NOTE: Mounting brackets are included but ship separately.
LUVERNE O-Mega II 6" oval side steps are made to work hard and to do it with style. They are constructed from strong, lightweight, rust-free aluminum and shielded in a highly durable powder coat finish of textured black or smooth silver.
LUVERNE has manufactured truck accessories in the United States since 1963, specialising in grille guards, running boards, side steps and mud guards for pickups, commercial vans and SUVs. Products are built primarily from stainless steel, aluminium and mild steel, with model-specific mounting kits that use existing frame locations for a bolt-on installation.
LUVERNE has been manufacturing automotive accessories in the United States since 1963, and six decades of continuous production have made it a nationally recognised name in the truck accessory market. Now a Lippert brand, it concentrates on a defined set of products rather than spreading across the whole aftermarket: front-end protection, step access and spray protection for pickup trucks, commercial vans and sport utility vehicles.
Step products are the largest part of the catalog and the range is unusually deep, because the right step depends on the vehicle's ride height, the width of the rocker panel and how often people get in and out. The O-Mega II six-inch oval steps give a wide, flat standing surface in polished stainless or black powder coat, while the Regal 7 seven-inch oval steps go wider still for full-size crew cabs and lifted trucks. The broader running board and side bar range covers round tube, oval and boxed profiles across cab configurations, with treads positioned at the door openings where they are used.
Grille guards protect the front end against impacts, brush and road debris, built in tubular stainless or steel with model-specific brackets that tie into factory frame mounting points. Because the fit is engineered per vehicle, installation is a bolt-on job that does not require drilling or cutting on most applications.
Rounding out the line, LUVERNE mud guards and mud flaps shield rocker panels, paint and following vehicles from stones and road spray, in widths matched to the tyre and fender they sit behind. Material choice runs through everything the brand does: stainless steel where appearance and corrosion resistance matter most, aluminium where weight is the priority, and mild steel with protective coating where strength and value lead. Customers include contractors, fleet operators, van upfitters and truck owners.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Five-Year Finish, One-Year Parts)
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2004 - 2014 | Ford F-150 | Extended Cab Pickup | — |
The O-MEGA II 6" Oval Steps are universal-application running boards available in models 583072, 583078, 583088, 584072, 584078, and 584088. They are designed for a wide range of vehicles including Chevrolet Silverado and Sierra, GMC Sierra, Chevrolet Colorado and Canyon, Chevrolet Avalanche, Suburban and Tahoe, GMC Yukon, Dodge Ram and Dakota, Ford F-150 and Super Duty, and Toyota Tundra and Tacoma. The specific bracket package required for your vehicle must be obtained separately and followed according to its instructions.
The O-MEGA II steps are universal application, but fitment depends on the correct bracket package for your vehicle. The manual provides a Step Pad Location Guide for the following vehicles: Silverado/Sierra (Double, Extended, and Crew Cab), Colorado/Canyon (Extended and Crew Cab), Avalanche/Suburban/Yukon XL, Tahoe/Yukon, Ram (Quad, Crew, and Mega Cab), Dodge Dakota Quad Cab, Dodge Durango, Ford F-150 (Super Cab and SuperCrew), Ford Super Duty (Super Cab and Crew Cab), and Toyota Tundra and Tacoma (various cab styles). You must obtain the bracket package specific to your vehicle and follow its instructions.
The Mega Steps Brackets (model 570922) are designed specifically for 2009 and newer Ford F-150 Super Cab and SuperCrew pickups. This system uses existing mounting hole patterns on the rocker panel pinch weld and interior wall. The step board assembly is sold separately and length varies depending on application. Installation requires three mounting brackets and uses the vehicle's factory holes, so no drilling into the vehicle body is required.
The O-MEGA II steps include: two extrusion step plates (available in silver or black, in three lengths: 69.0", 75.0", or 85.0"), four aluminum step pads, four plastic end caps, 24 square head screws (5/16-18 x 1"), 24 serrated flange nuts (5/16-18), and 20 tek screws (#8-18 x 1/2"). The bracket package is obtained separately and must be specific to your vehicle.
The Mega Steps Brackets (model 570922) include: three mounting brackets, six square head screws (5/16-18), 22 serrated flange nuts (5/16-18), six multi-thread U-nuts (5/16-18), eight zinc-plated hex head cap screws (5/16-18 x 1.00"), eight zinc-plated flat washers (5/16), six black-plated hex head cap screws (5/16-18 x 1.00"), six black-plated flat washers (5/16), and two angle brackets (SuperCrew only). The step board assembly is sold separately.
Yes, drilling is required. You must drill five 1/8" holes through the step plate using the step pad as a guide. These holes are used to attach the step pads to the step plates with tek screws. However, drilling into the vehicle body is not required; the steps attach to a bracket package that is specific to your vehicle and follows separate instructions.
No, drilling is not required. The Mega Steps Brackets use existing mounting hole patterns on the rocker panel pinch weld and interior wall of your 2009 or newer Ford F-150 Super Cab or SuperCrew. The installation uses these factory holes with U-nuts and cap screws.
The manual does not specify the tools required. You will need a drill with a 1/8" bit to drill holes for the step pads, and standard wrenches or sockets to tighten fasteners to the specified torque values (5 lb ft for end cap nuts, 19 lb ft for flange nuts on square head screws). Contact the manufacturer or your installer for a complete tool list.
The manual does not specify the tools required. You will need standard wrenches or sockets to tighten fasteners to 19 lb ft. Contact the manufacturer or your installer for a complete tool list.
Yes. Before attaching the step pads to the step plates, you must use the Step Pad Location Guide on sheet 2 to position the pads for your particular vehicle. The guide provides specific measurements for Pad A and Pad B locations for each vehicle model. The note states these are suggestions and may be placed at the purchaser's discretion, but the guide should be consulted first.
1. Install step pads on the step plates: position pads using the vehicle-specific guide, drill five 1/8" holes using the pad as a guide, and attach with five tek screws (8-18 x 1/2"). 2. Install square head bolts into the designated slots in the bottom of the step plates. 3. Install end caps as shown in figure 1, tightening nuts to 5 lb ft. 4. Position the step on the mounting brackets so square head screws are in the bracket slots and the step is centered front to rear. 5. Install 5/16" serrated flange nuts on the square head screws and tighten to 19 lb ft.
1. Install 5/16" multi-thread U-nuts in the top rear holes of the front and center patterns and the top front hole of the rear pattern, with threads facing inside the rocker panel. 2. Position the three mounting brackets so the top hole lines up with the U-nut and the offset hole lines up with the pinch weld hole. 3. Attach the top of each bracket with a 5/16" x 1.00" zinc-plated hex head cap screw and flat washer. 4. Attach the bottom to the pinch weld with a 5/16" x 1.00" black-plated hex head cap screw, flat washer, and serrated flange nut. 5. Level the brackets and tighten all fasteners to 19 lb ft. 6. Attach the step board assembly to the brackets using square head screws and serrated flange nuts, tightened to 19 lb ft.
For SuperCrew models, after attaching the middle mounting bracket, you must attach an angle bracket (item 10) to the mounting bracket using a 5/16" x 1.00" zinc-plated hex head cap screw, zinc-plated flat washer, and serrated flange nut. The angle bracket is positioned with the angle towards the multi-thread U-nut in the hole offset from the pinch weld hole. Then follow the same procedure as the Super Cab for attaching the step board assembly.
Insert three 5/16" square head screws in the center slot on the underside of the step. Position the step on the mounting brackets so that the square head screws are located in the slots of the mounting brackets and the step is centered front to rear on the cab. You can then locate the step in and out as desired. Install 5/16" serrated flange nuts on the square head screws and tighten to 19 lb ft. Install serrated flange nuts on any unused square head screws in the inboard slot and tighten to 19 lb ft.
The end cap nuts must be tightened to 5 lb ft.
The 5/16" serrated flange nuts on the square head screws must be tightened to 19 lb ft.
All fasteners on the Mega Steps Brackets must be tightened to 19 lb ft. This includes the hex head cap screws attaching the brackets to the vehicle, the square head screws attaching the step to the brackets, and the serrated flange nuts on unused square head screws.
You must drill five 1/8" holes through the step plate using the step pad as a guide. These holes are used to attach the step pads with tek screws.
Five 8-18 x 1/2" tek screws (item 6) are used to attach each step pad to the step plate. These are stainless steel, bronze-plated screws provided with the kit.
The steps attach to the brackets using 5/16" square head screws (item 4) and 5/16" serrated flange nuts (item 5). The square head screws are inserted into the designated slots in the bottom of the step plates and positioned in the slots of the mounting brackets. The serrated flange nuts are tightened to 19 lb ft.
The brackets attach to the vehicle using: (1) 5/16" x 1.00" zinc-plated hex head cap screws (item 6) with 5/16" zinc-plated flat washers (item 7) at the top, and (2) 5/16" x 1.00" black-plated hex head cap screws (item 8) with 5/16" black-plated flat washers (item 9) and 5/16" serrated flange nuts (item 4) at the bottom. All fasteners are tightened to 19 lb ft.
Three 5/16" square head screws (item 3) are inserted in the center slot on the underside of the step. The step is positioned so these screws are located in the slots of the mounting brackets. 5/16" serrated flange nuts (item 4) are installed on the square head screws and tightened to 19 lb ft. Serrated flange nuts are also installed on any unused square head screws in the inboard slot and tightened to 19 lb ft.
Install 5/16" multi-thread U-nuts (item 5) in the top rear holes of the front and center patterns and in the top front hole of the rear pattern. The threads must face inside the rocker panel. Insert the threaded half of the U-nut through the large access holes and slide the U-nut towards the round hole until it seats in the round hole.
The brackets must be leveled before final tightening to ensure the step is properly aligned and sits evenly on the vehicle. After positioning the brackets so the top hole lines up with the U-nut and the offset hole lines up with the pinch weld hole, you level the brackets and then tighten all fasteners to 19 lb ft.
The step must be positioned so it is centered front to rear on the vehicle. This means the step should be aligned equally between the front and rear of the vehicle's cab or bed area. The step is positioned on the mounting brackets so the square head screws are located in the slots of the mounting brackets, and this centering is achieved by adjusting the step's position before tightening the serrated flange nuts to 19 lb ft.
The step must be positioned so it is centered front to rear on the cab. This means the step should be aligned equally between the front and rear of the cab. The step is positioned on the mounting brackets so the square head screws are located in the slots of the mounting brackets, and you can locate the step in and out as desired before tightening the serrated flange nuts to 19 lb ft.
The O-MEGA II is universal application and fits Silverado/Sierra, Colorado/Canyon, Avalanche, Tahoe/Yukon, Ram, Dodge Dakota/Durango, Ford F-150/Super Duty, and Toyota Tundra/Tacoma. You must obtain the bracket package specific to your vehicle model and cab style.
The Mega Steps Brackets (model 570922) fit 2009 and newer Ford F-150 Super Cab and SuperCrew pickups only. They use existing rocker panel holes, so no drilling into the vehicle is required.
No. The bracket package is obtained separately and must be specific to your vehicle. Follow the instructions included with your bracket package.
No. The step board assembly is sold separately. Length varies depending on application.
No drilling into the vehicle is required. However, you must drill five 1/8" holes through the step pad to attach it to the step plate with tek screws.
No. The Mega Steps Brackets use existing mounting holes on the rocker panel pinch weld and interior wall. No drilling into the vehicle is required.
Tighten end cap nuts to 5 lb ft. Tighten all 5/16" serrated flange nuts on square head screws to 19 lb ft.
Tighten all fasteners to 19 lb ft, including hex head cap screws attaching brackets to the vehicle and serrated flange nuts on square head screws attaching the step.
Yes. Use the Step Pad Location Guide on sheet 2 to position Pad A and Pad B for your specific vehicle model before drilling and attaching them.
Reposition the step on the mounting brackets before final tightening. Ensure the square head screws are located in the slots of the mounting brackets and adjust the step's position to center it front to rear on the vehicle. Once properly centered, tighten the 5/16" serrated flange nuts to 19 lb ft.
Loosen the fasteners and reposition the brackets. Ensure the top hole lines up with the multi-thread U-nut and the offset hole lines up with the pinch weld hole. Level the brackets before retightening all fasteners to 19 lb ft.
Ensure the threaded half of the U-nut is inserted through the large access hole and slide the U-nut towards the round hole until it seats in the round hole. The threads must face inside the rocker panel. If the U-nut still does not seat, verify that you are using the correct holes: top rear holes of the front and center patterns and the top front hole of the rear pattern.
