Reese Fifth Wheel Hitch Mounting System Rails OnlyReeseOriginal price was $216.25. Current price is $206.44.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Reese
These rails fit any truck, but the mounting brackets that bolt them to your frame are vehicle-specific. Select your vehicle to find the custom-fit bracket kit for an easy, no-drill installation.
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Want to take the family on a cross-country adventure? Or perhaps you're planning a shorter trip to your favorite campground. Whatever your destination, it's important to have the right equipment, especially when towing a fifth wheel trailer. To ensure proper hookup and safety while towing, you'll need something to attach your fifth wheel hitch in the bed on your truck. Many pickups come equipped with factory-installed rails or puck systems, but if you don't have one of these already installed, don't worry. REESE has an extensive line of mounting rails and bracket kits, custom-made to the exact specifications needed based on your truck's year, make, and model. REESE also offers several Industry Standard designs, as well as fastener kits, spacer kits, and a Power Puck mounting kit, so you can be sure you're covered, no matter what pickup you're using to tow. So make it easy. Make it fun. Make it REESE, so you can make the journey as enjoyable as the destination.
| BRAND: | REESE |
| PART NUMBER: | 30153 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 59.7 LBS |
| UNIVERSAL OR SPECIFIC FIT: | UNIVERSAL |
| WELDING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| RAILS INCLUDED: | YES |
| DRILLING REQUIRED: | YES |
| MATERIAL: | STEEL |
| BOLT GRADE: | Grade 8 |
| LOCKABLE: | NO |
| COLOR: | BLACK |
Reese has designed towing equipment since 1952 and remains a benchmark for heavy-duty towing. The line covers fifth wheel hitches such as the modular M5, gooseneck couplers including the Goose Box, air-ride and short-bed pin boxes, weight distribution systems with active sway control, and the accessories that connect them, all built to exceed published industry standards.
Reese has been pioneering towing performance since 1952, when Margaret Reese asked her husband TJ to stop travel trailers rocking every time somebody walked through them. His answer, the first pair of stabilising jacks, was simple and effective enough to change the RV industry. From that starting point Reese grew into a designer and manufacturer of complete towing systems, and today it anchors the heavy-duty end of the Horizon Global towing portfolio.
Fifth wheel towing is where the brand's engineering is most visible. The M5 fifth wheel hitch uses a modular design that breaks into manageable sections for assembly, with a wider stance, tighter tolerances and a shock absorption system aimed at the jolts that travel up through a truck bed. For owners who would rather tow from a gooseneck coupler and keep the bed clear, the Goose Box 20K replaces the trailer's king pin with a gooseneck connection carrying its own air-ride cushioning.
Pin boxes are a Reese speciality. The 5th Airborne uses air-ride technology to dampen road shock and reduce the chucking motion that makes fifth wheel towing tiring, while the Sidewinder was designed for short-bed pickups, pivoting the connection point so the trailer can turn sharply without the front cap meeting the cab.
For conventional towing, Reese weight distribution systems restore load to the tow vehicle's front axle and control sway. The Pro Round Bar distributes weight evenly while damping sway, and the Pro Dual Cam II uses active cam-based sway control that works harder the stronger the sway force becomes. Complete kits pair bars, head and shank to a rated tongue weight, and dedicated sway control kits can be added to existing setups. The products suit RV owners, horse and livestock haulers and anyone towing near the upper end of a vehicle's rating.
Experts available to answer your questions
Call 888-634-9494Lifetime

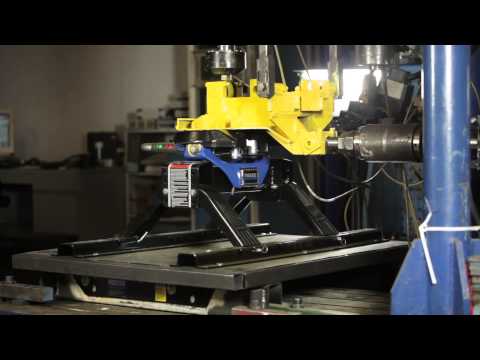

Reese® R16 Fifth Wheel Hitch Features & Benefits - 30866
The Reese Rail Mounting Kit #30153 must be mounted with REESE Series Custom mounting kits (part # 56000 series only), which are mounted outboard. These kits are required for proper installation and operation of the rail system.

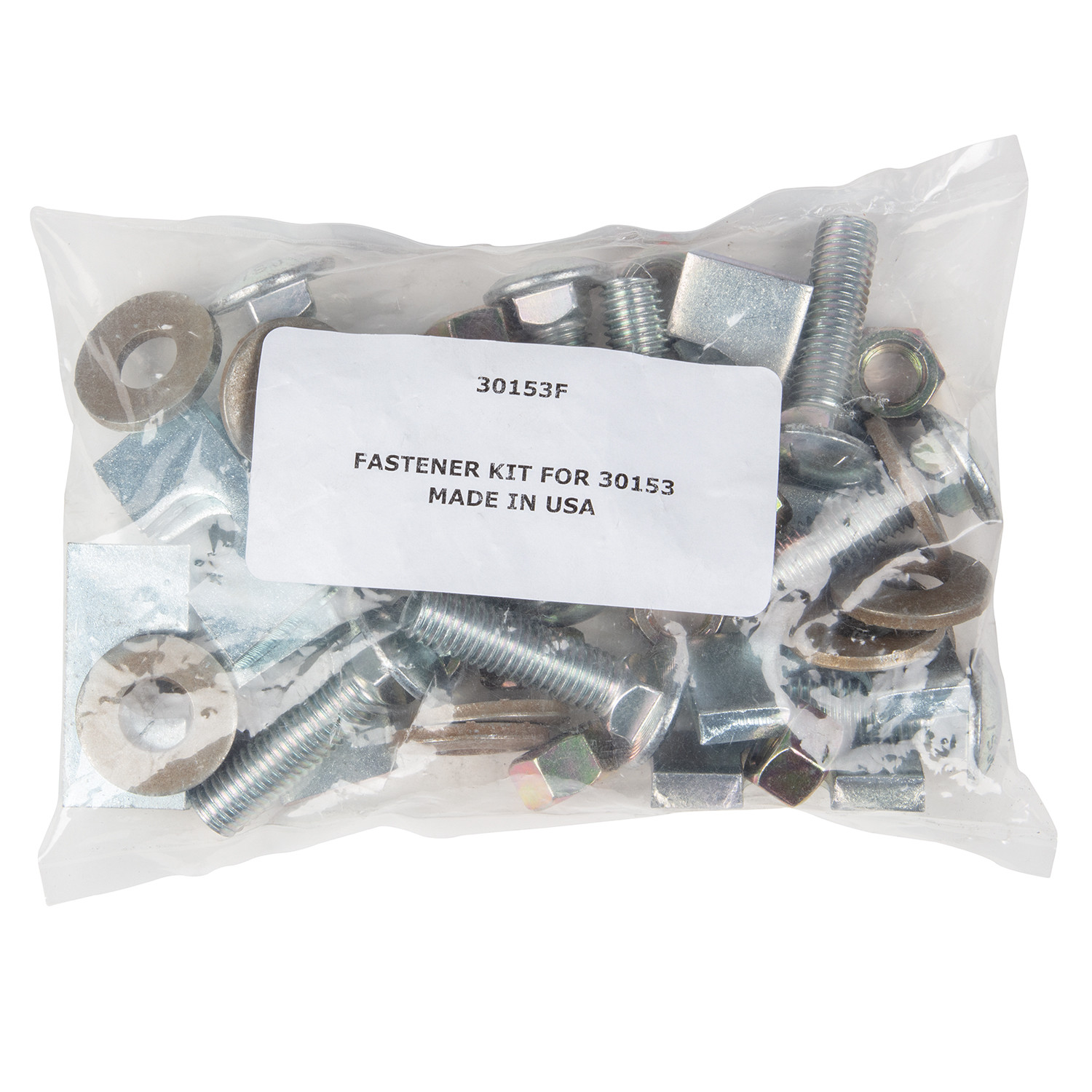

The kit includes: (2) Reese baserails, (10) ½" × 2" Grade 8 carriage bolts, (10) truck bed spacers, (10) ½" conical toothed washers, and (10) ½" nuts.
No. Plastic bed liners must be cut out of the way before installing the mounting rails. However, the base rails may be installed on a spray-in liner. If using a spray-in liner, consult your installer for the recommended curing time before installation.
No. You must use only the bolts, nuts, and washers supplied by Cequent Performance Products, Inc. with this kit. All bolts are Grade 8 hardware and are specifically designed for this application.
The kit meets SAE J2638, the latest North American testing standard for fifth wheel mounting systems. It uses Grade 8 hardware that meets all North American requirements for commercial and recreational towing.
Refer to the rail label and rail markings for the correct weight capacity of your specific kit. The capacity is marked on the rails themselves.
Check the mounting system bolt tightness once per year to ensure the system remains secure.
Yes. The kit is covered by a Limited Lifetime Warranty from Cequent Performance Products, Inc. The warranty covers material and workmanship defects, excluding ordinary wear and tear, provided installation and use follow the product instructions. The warranty is non-transferable and applies only to the original consumer purchaser. For warranty claims, contact Cequent Performance Products at 47912 Halyard Dr. Suite 100, Plymouth, MI 48170, or call 1-888-521-0510.
It must be used with REESE Series Custom mounting kits (56000 series only). These are the only compatible mounting kits for this rail system.
Yes, plastic bed liners must be cut out of the way. Spray-in liners may be kept in place, but consult your installer for recommended curing time before installation.
All bolts are Grade 8 hardware, which meets North American requirements for commercial and recreational towing.
Check the mounting system bolt tightness once per year. Refer to the rail label and markings for the correct weight capacity.
Verify the weight capacity by checking the rail label and rail markings. Ensure all bolts are tight. Save your warranty sheet and receipt for future support.
On Sale Today
Original price was $308.75. Current price is $305.22.You save $3.53
Free Shipping
Ships free on all orders
Authorized Dealer
FREE ShippingFREE SHIPPING
Estimated delivery Tue, Sep 22 - Fri, Sep 25
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
| Part Number | Description | Packaging | Master Carton |
|---|---|---|---|
| 30153 | Outboard Mounting Rails, 10-Bolt Design | Boxed | 1 |
| Replacement Parts | |||
| 58467 | Outboard Mounting Rail Pins and Clips, Includes: (4) Hole Style Pins and (4) Clips | Display Bag | 50 |
| 58504 | Outboard Mounting Rail Installation Hardware, Includes: (10) Carriage Bolts 1/2 in. - 13 x 2 in., Grade 8, (10) Hex Nuts 1/2 in. - 13 Grade 5 and (10) Blocks 5/16 in. x 1 in. x 2 in., 10-Bolt Design | Display Bag | 1 |
