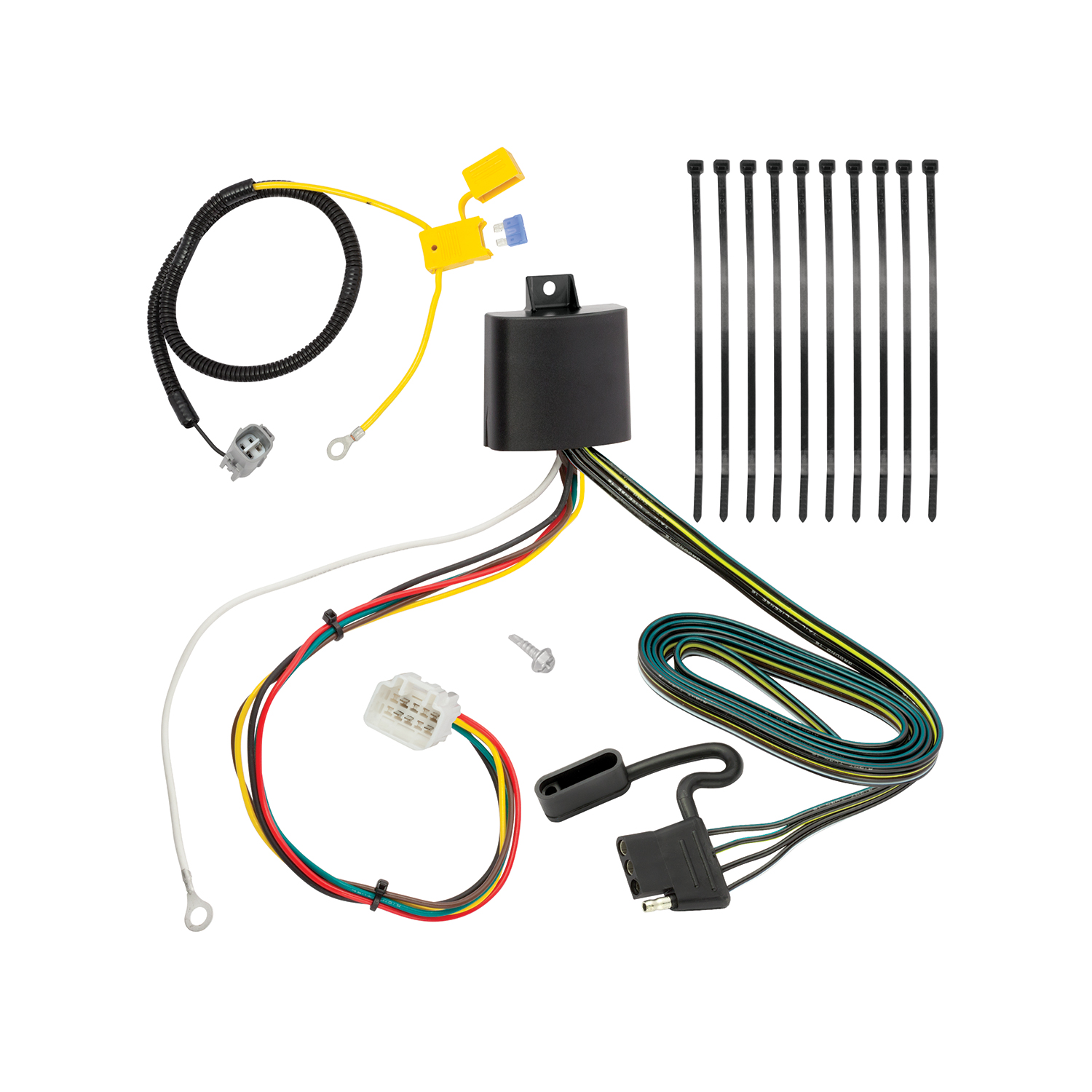

Tekonsha Tow Harnesses are the replacement for your factory electrical connector to the back of your vehicle. These harnesses are used to link the wiring from your vehicle to the trailer when towing. Tekonsha Tow Harnesses feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of Replacement Tow Harnesses. Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118277 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 0.9 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 18 AWG, .85 AVSS |
| POWER LEAD REQUIRED: | NO |
| ELECTRICAL SYSTEM TYPE: | 3-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2021 | Mitsubishi Outlander | Tow Harness Wiring Package Uses all existing holes. No Drilling required Install Time is 25 minutes |
The Tekonsha Tow Harness, 4-Way Flat, w/Circuit Protected ModuLite HD Module TK118277 (Part #TK118277) fits the following vehicles: 2016-2021 Mitsubishi Outlander. Always verify your specific year, make, and model before ordering.
Yes, the Tekonsha Tow Harness, 4-Way Flat, w/Circuit Protected ModuLite HD Module TK118277 (Part #TK118277) is designed to fit the 2016-2021 Mitsubishi Outlander.
The Tekonsha Tow Harness, 4-Way Flat, w/Circuit Protected ModuLite HD Module TK118277 (Part #TK118277) fits 2016-2021 Mitsubishi Outlander models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The Tekonsha Tow Harness, 4-Way Flat, w/Circuit Protected ModuLite HD Module TK118277 (Part #TK118277) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the N118277 tow harness is designed for the Mitsubishi Outlander. However, your vehicle must have a factory tow harness connector on the driver's side for this product to work. Consult your vehicle's owner's manual or contact the manufacturer to confirm your specific model year and trim level are compatible.
The N118277 tow harness is designed for the Mitsubishi Outlander and requires a factory tow harness connector on the driver's side.
You will need: trim panel remover, 12mm socket and ratchet, drill with 3/32" drill bit, 1/4" socket, wire crimpers, wire cutters, Phillips head screwdriver, and test probe. Safety glasses are also required.
A 3/32" drill bit is required to drill the grounding hole for the white wire eyelet.
Yes. You must disconnect and isolate the vehicle's negative (-) battery terminal before beginning installation. This is a required safety step stated in the first warning of the installation instructions.
Yes, you must disconnect and isolate the vehicle's negative battery terminal before starting installation.
The factory tow harness connector is located on the driver's side and is taped to the vehicle body harness. You will need to open the rear tailgate and remove access panels, threshold, trunk floor panels and trays on the driver's side to access it.
Insert the tow harness connector into the factory tow harness connector and lock it into place. Be careful not to damage the locking tabs and ensure that connectors are fully inserted with locking tabs in place. All connections must be complete for the tow harness to function properly.
Mount the black box module on a flat surface in an out-of-the-way place to prevent damage or rattling. The exact location is not specified in the manual, so choose a location that is secure, protected from moisture, and away from moving parts or heat sources.
Yes, drilling is required. You must drill a 3/32" hole on the driver's side near the connectors to secure the white wire with an eyelet using the screw provided. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.
Yes, you must drill a 3/32" hole to secure the white wire grounding eyelet. Always verify what is behind the surface before drilling to avoid damage.
Before drilling, verify what is behind any surface to avoid damage to the vehicle and personal injury. Do not drill into any exposed surfaces. This is critical to prevent hitting hidden wires, fuel lines, or structural components.
The white wire is the ground wire. It must be secured with an eyelet to a suitable grounding point on the driver's side near the connectors using the screw provided. The grounding point should be on a flat surface, and you must drill a 3/32" hole to attach it.
The ring terminal must be connected to the positive side of the battery terminal. This connection is made after locating the black plug under the fuse block behind the driver's side headlight, removing it, and plugging in the grey connector into the factory harness.
The grey connector is plugged into the factory harness after removing the black plug located under the fuse block behind the driver's side headlight. This is part of the electrical connection sequence for the tow harness.
Do not exceed the lower of two ratings: the towing manufacturer rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Overloading circuits can cause fires. Consult your vehicle's owner's manual and the product documentation for the exact amperage specifications.
Do not exceed the lower of the towing manufacturer rating or the specific amperage ratings stated on the product. Consult your vehicle's owner's manual and the product for exact specifications.
Test and verify the installation with a test light or trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. All connections must be complete for the tow harness to function properly before testing.
Test with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.
Store the 4-flat connector in the rear cargo area when not in use. This protects it from damage and keeps it accessible for future use.
On the driver's side, you must remove access panels, threshold, trunk floor panels and trays. Set aside all items removed carefully to avoid damaging them. These must be reinstalled after the tow harness is connected.
Yes. After installation is complete, you must reinstall the plastic trim panels, threshold, storage covers, floor covering and other items that were removed during installation. Be careful not to pinch or cut the wires when reinstalling.
The black plug is located under the fuse block behind the driver's side headlight. You must remove this plug and replace it by plugging in the grey connector into the factory harness.
First, verify that all connections are complete and fully inserted with locking tabs in place. Test and verify the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition. If the harness still does not function, check that the grey connector is properly plugged into the factory harness and the ring terminal is securely connected to the positive battery terminal. Ensure the white ground wire is properly secured to a suitable grounding point.
Be careful not to damage the locking tabs when inserting the connectors. Ensure that connectors are fully inserted with locking tabs in place. If they still will not insert fully, stop and inspect the connectors and locking tabs for damage or debris. Do not force the connection, as this may damage the locking tabs and prevent proper function.
