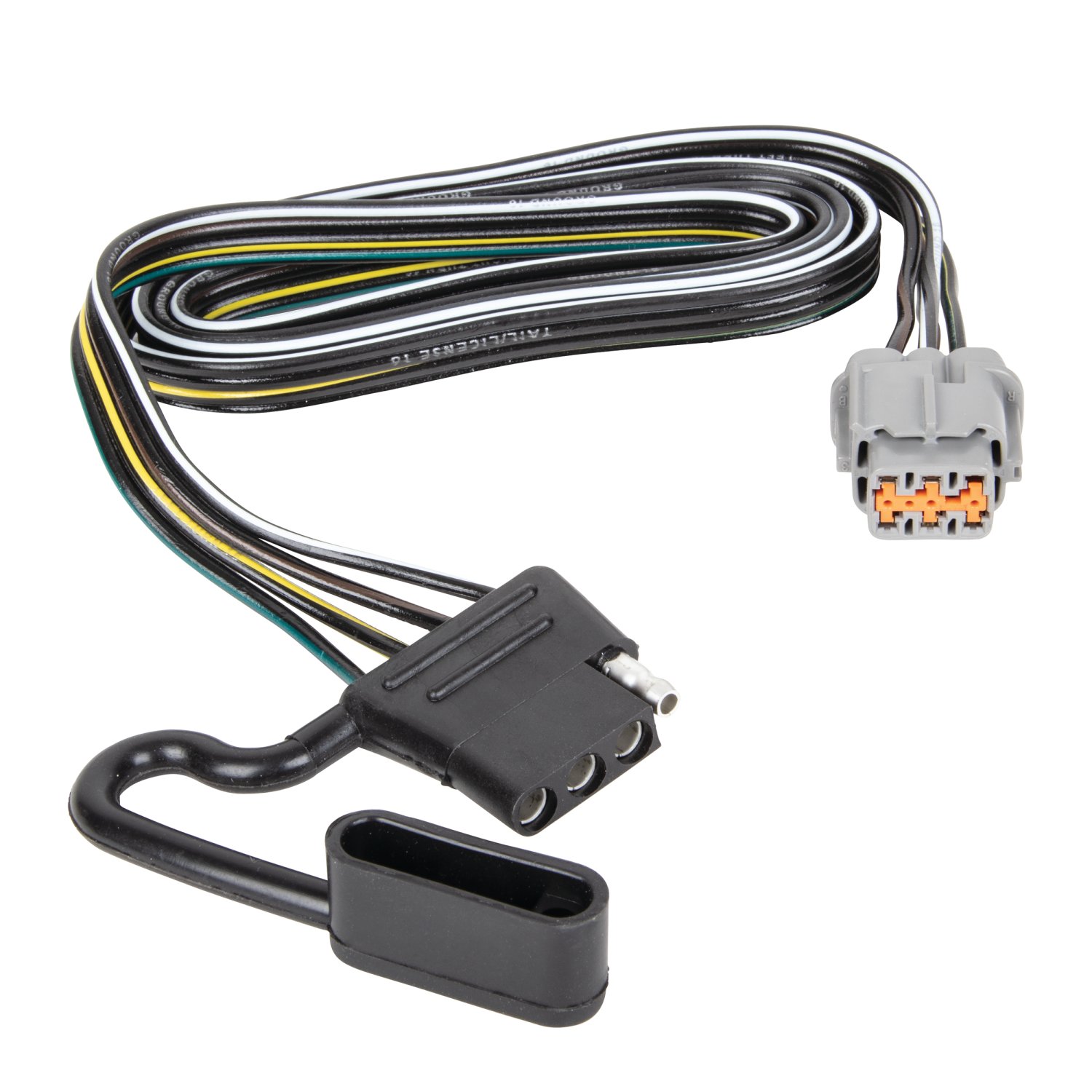

Tekonsha Tow Harnesses are the replacement for your factory electrical connector to the back of your vehicle. These harnesses are used to link the wiring from your vehicle to the trailer when towing. Tekonsha Tow Harnesses feature custom designs to fit each vehicle make and model based on manufacturer specifications. Plus, the Plug & Play connectors on the end of the wires make it easy to install. No cutting or splicing!
Tekonsha offers the largest, most complete line of Replacement Tow Harnesses. Hit the road with the peace of mind only Tekonsha can provide. Life's a Journey. Stop Often.
| BRAND: | TEKONSHA |
| PART NUMBER: | 118294 |
| WARRANTY: | LIMITED 1 YEAR WARRANTY |
| WEIGHT: | 0.35 LBS |
| UNIVERSAL OR SPECIFIC FIT: | SPECIFIC |
| CIRCUIT PROTECTED: | YES |
| HARNESS TYPE: | MALE FEMALE |
| TERMINAL QUANTITY: | 4 |
| WIRE COLORS: | BROWN, GREEN, YELLOW, WHITE |
| WIRE QUANTITY: | 4 |
| WIRE GAUGE: | 18 AWG, .85 AVSS |
| POWER LEAD REQUIRED: | NO |
| ELECTRICAL SYSTEM TYPE: | 2-WIRE SYSTEM |
| HARDWARE INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2025 | Infiniti QX60 | Tow Harness Wiring Package Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2022 - 2025 | Nissan Pathfinder | Tow Harness Wiring Package Uses all existing holes. No Drilling required Install Time is 20 minutes |
Yes, the Tekonsha Tow Harness, 4-Way Flat, w/Circuit Protected ModuLite Module TK118294 (Part #TK118294) is designed to fit the 2022-2025 Infiniti QX60.
The Tekonsha Tow Harness, 4-Way Flat, w/Circuit Protected ModuLite Module TK118294 (Part #TK118294) fits the following vehicles: 2022-2025 Infiniti QX60; 2022-2025 Nissan Pathfinder. Always verify your specific year, make, and model before ordering.
The Tekonsha Tow Harness, 4-Way Flat, w/Circuit Protected ModuLite Module TK118294 (Part #TK118294) fits 2022-2025 Infiniti QX60 models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Tekonsha Tow Harness, 4-Way Flat, w/Circuit Protected ModuLite Module TK118294 (Part #TK118294) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The T-One® Connector 118294-037 is designed for Nissan Pathfinder and Infiniti QX60 models equipped with factory tow packages. Verify your vehicle has a factory tow harness before purchasing. If your vehicle is not listed or does not have factory tow equipment, this connector will not be compatible.

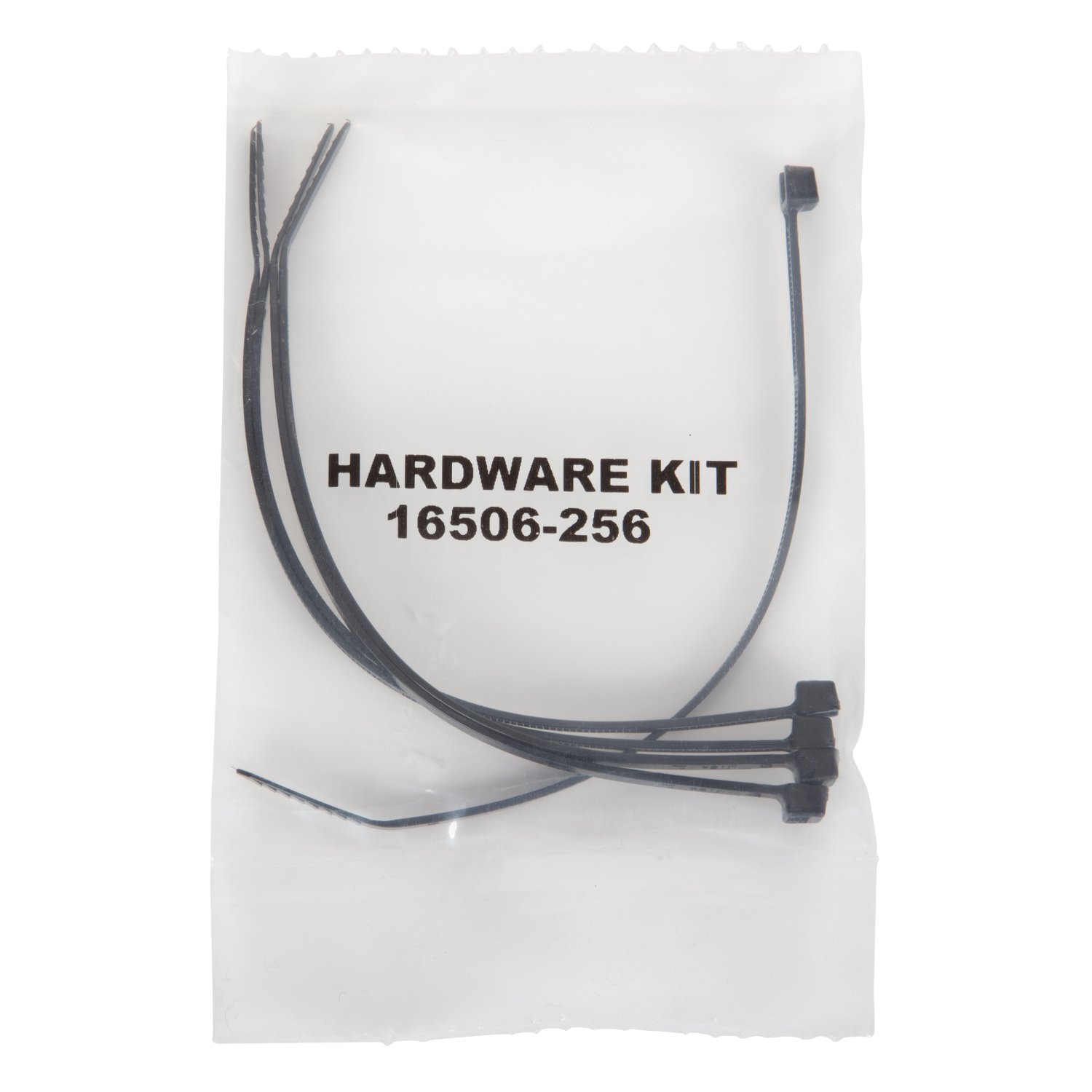

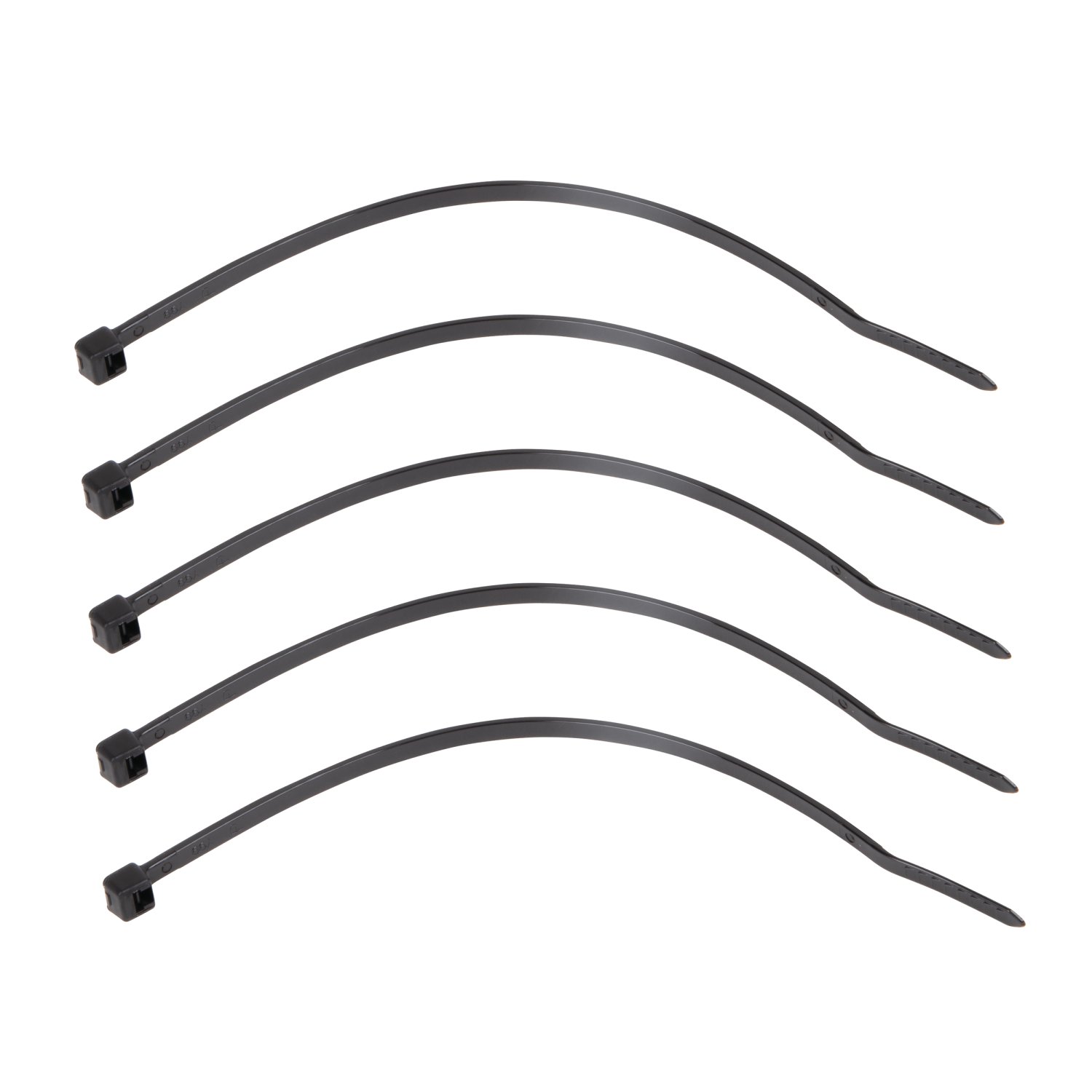

The kit includes the T-One® Connector harness with a 6-Pin Tow-Plug Adapter, a 4-Flat end connector, cable ties for securing the harness, and a protective cap. A bracket or electrical box to mount the 4-Flat end is not included and must be purchased separately.
You will need a Trim Panel Puller and a Test-probe. The Trim Panel Puller is used to access the factory trailer harness connector located under the vehicle behind the rear bumper on the passenger's side. The Test-probe is used to verify the installation after completion.
The factory trailer harness connector is located under the vehicle, behind the rear bumper, on the passenger's side of the vehicle. You will need a Trim Panel Puller to access it.

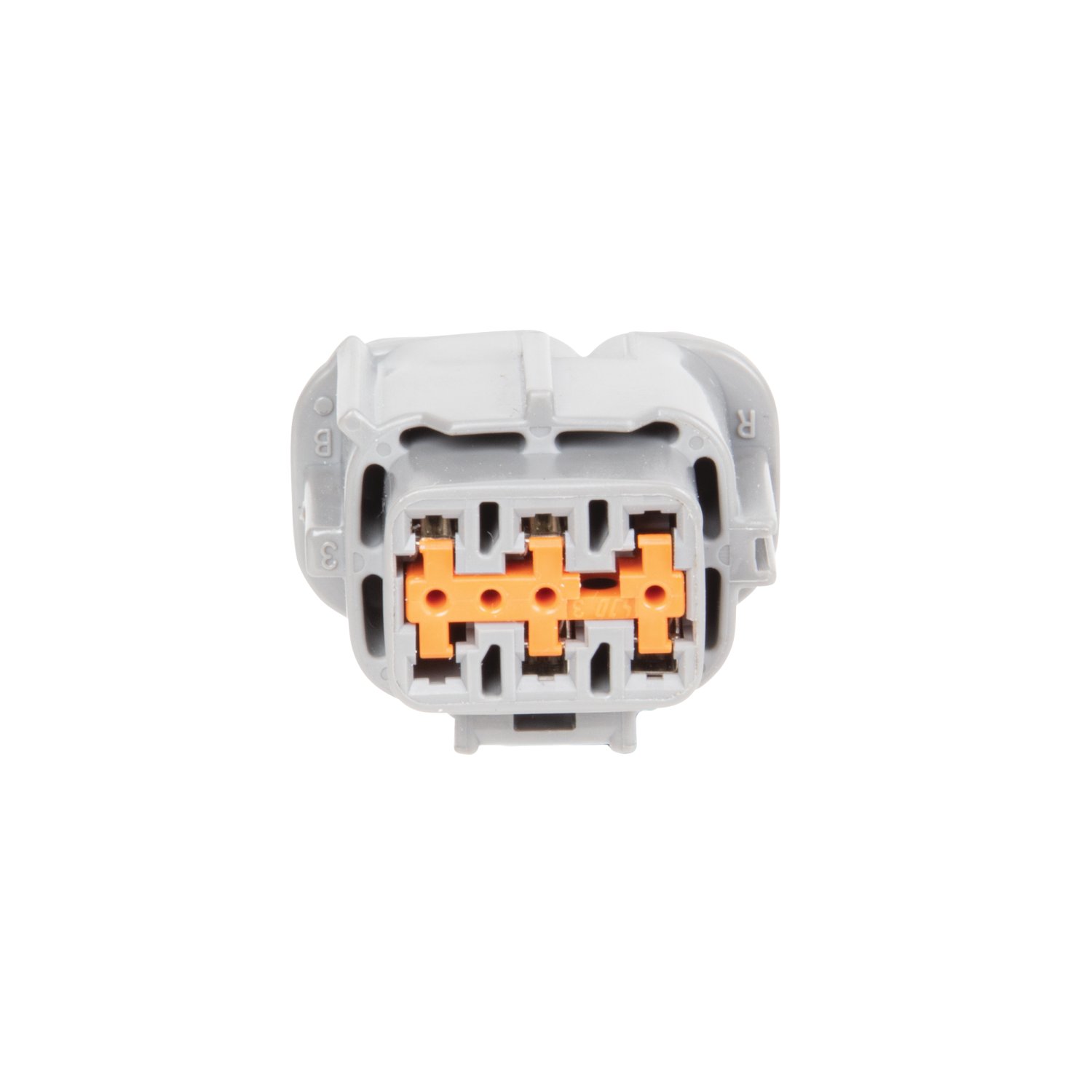

First, remove the protective cap from the factory connector and store it in the glove compartment with the installation instructions. Check that the mating surfaces of both connectors are clean; clean if necessary. Insert the 6-Pin Tow-Plug Adapter into the factory connector and lock it into place. Ensure the connectors are fully inserted with the locking tabs in place.
Route the T-Connector harness rearward to the back of the bumper fascia. Secure the remainder of the harness with the cable ties provided to prevent damage, rattling, and to avoid areas that could pinch, cut, or melt the wire. Take care to route the harness away from sharp edges and heat sources.

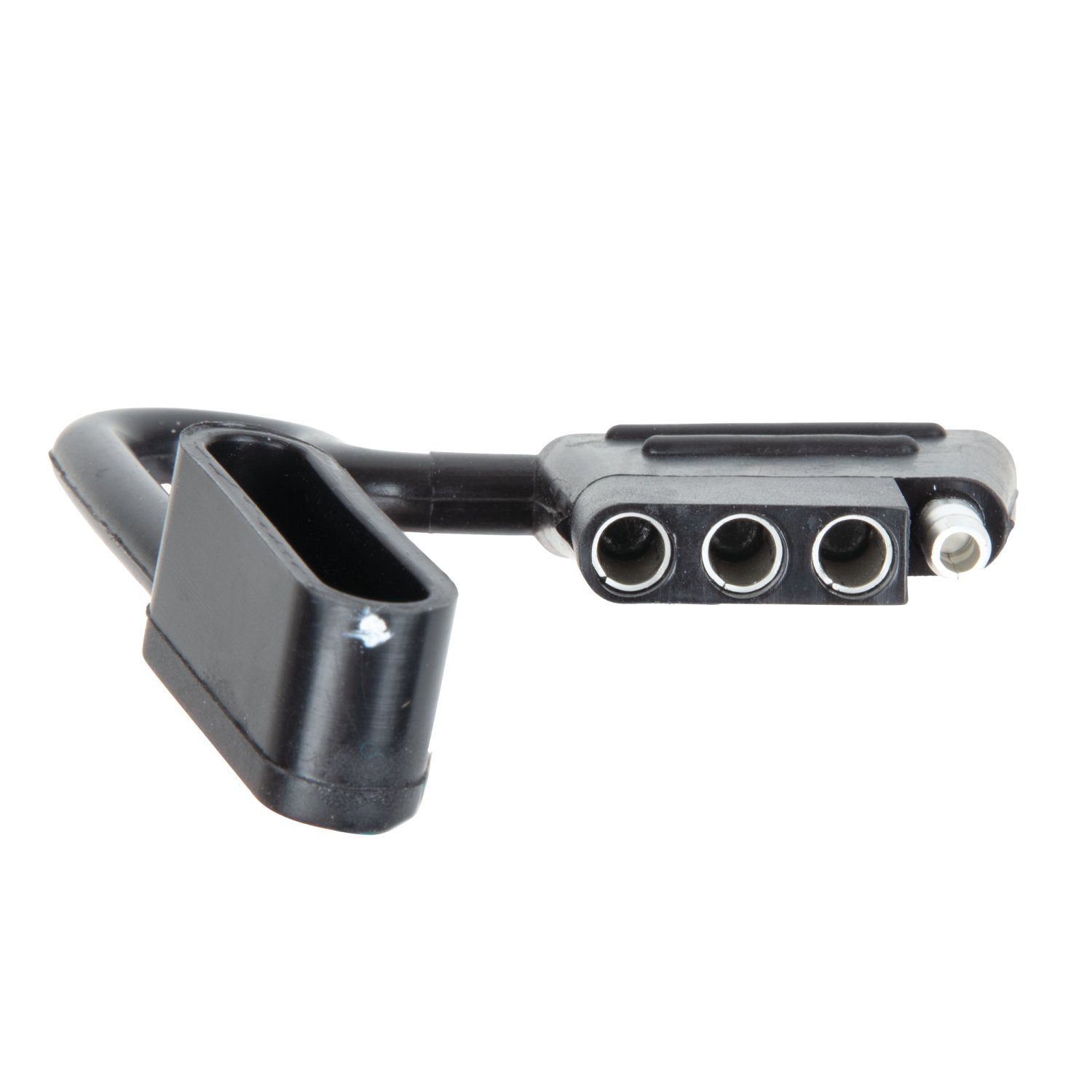

Mount the 4-Flat end in an accessible location using a bracket or electrical box. The bracket or electrical box is not included with the kit and must be purchased separately. Choose a location that is easy to reach when connecting or disconnecting a trailer.
All connections must be complete for the T-One® Connector to function properly. Test and verify the installation with a test light or by connecting an actual trailer once installed. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition, then reinsert the key and test the lights.
The manual does not state the specific amperage rating for this product. Do not exceed the lower of the towing manufacturer's rating (found in your vehicle owner's manual) or the specific amperage ratings stated on the product itself. Check the product label for the exact amperage specification.
Always wear safety glasses during installation. Read and follow all warnings and instructions included with the product before beginning. Read your vehicle owner's manual and the warnings printed on the tow vehicle's battery. Do not exceed the stated product ratings or the lower of the towing manufacturer's rating to avoid overloading circuits, which can cause fires.
Yes. Remove the protective cap from the factory connector during installation and store it in the glove compartment along with the installation instructions. Keep it for future reference and use if you need to disconnect the T-One® Connector.
Yes. Before inserting the 6-Pin Tow-Plug Adapter, check that the mating surfaces of the factory connector are free of dirt. Clean the surfaces if necessary to ensure a proper connection.
The T-One® Connector 118294-037 is designed for Nissan Pathfinder and Infiniti QX60 models equipped with factory tow packages.
You will need a Trim Panel Puller to access the factory connector and a Test-probe to verify the installation.
No. The bracket or electrical box to mount the 4-Flat end connector is not included and must be purchased separately.
The manual does not mention drilling. The installation involves connecting the 6-Pin Tow-Plug Adapter to the factory harness and routing the harness with provided cable ties.
Test with a test light or by connecting a trailer. Reset the vehicle electrical system by temporarily removing the ignition key before testing. All connections must be complete for proper function.
Do not exceed the stated product ratings or the lower of the towing manufacturer's rating. Overloading circuits can cause fires. Always wear safety glasses during installation.
