Free Shipping
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: GLOSS BLACK POWDER COAT
Material: Aluminum
Part Type: SIDE MOUNT

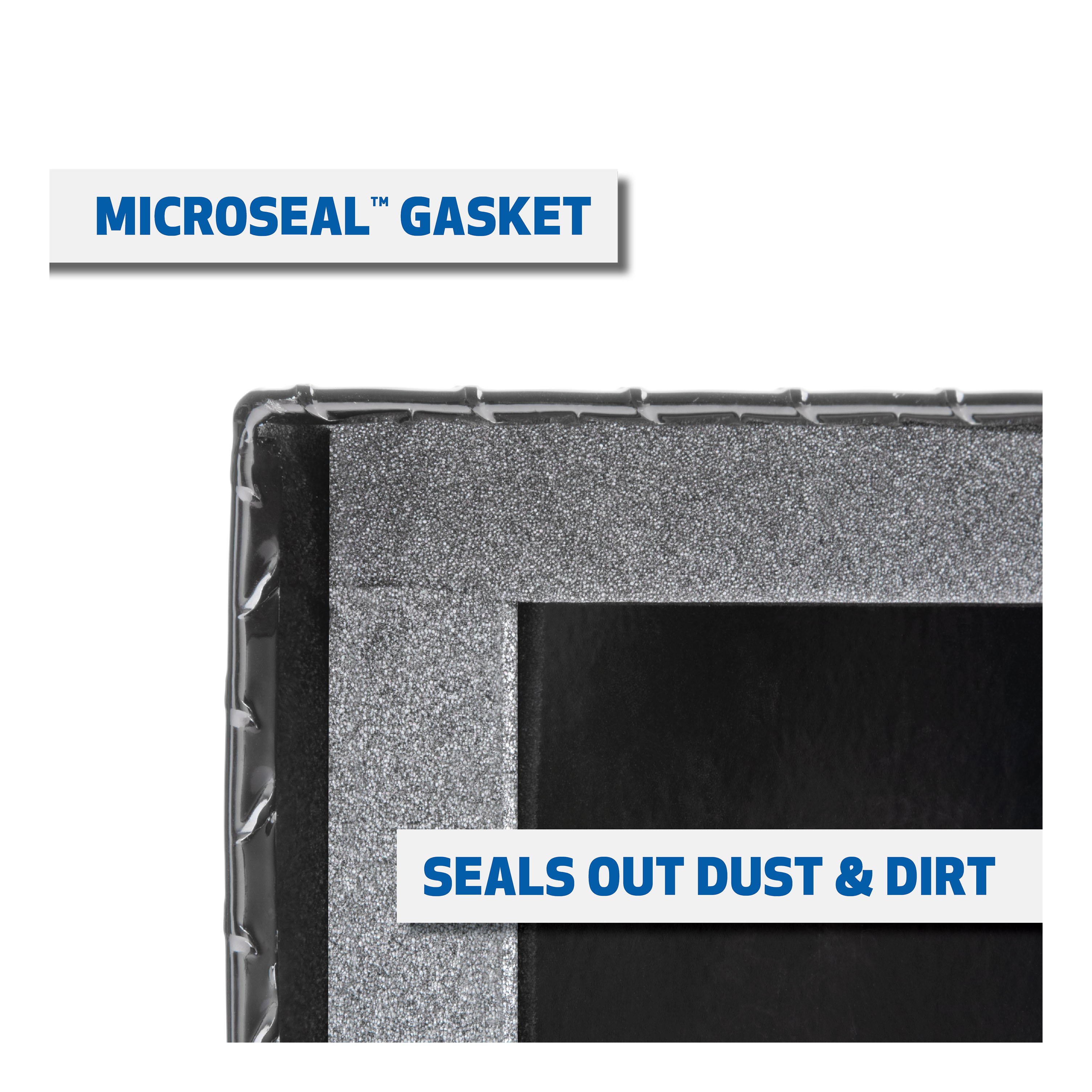

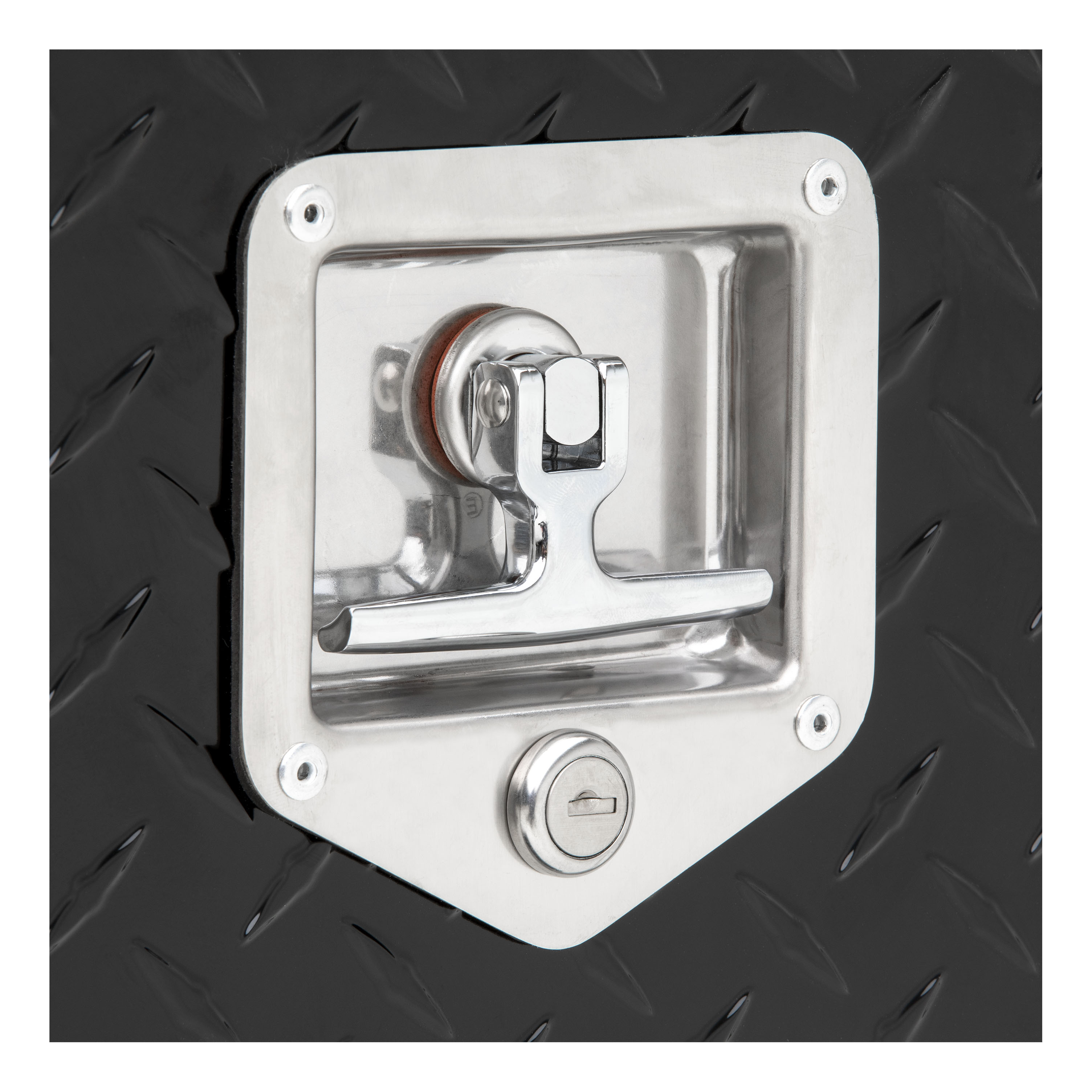

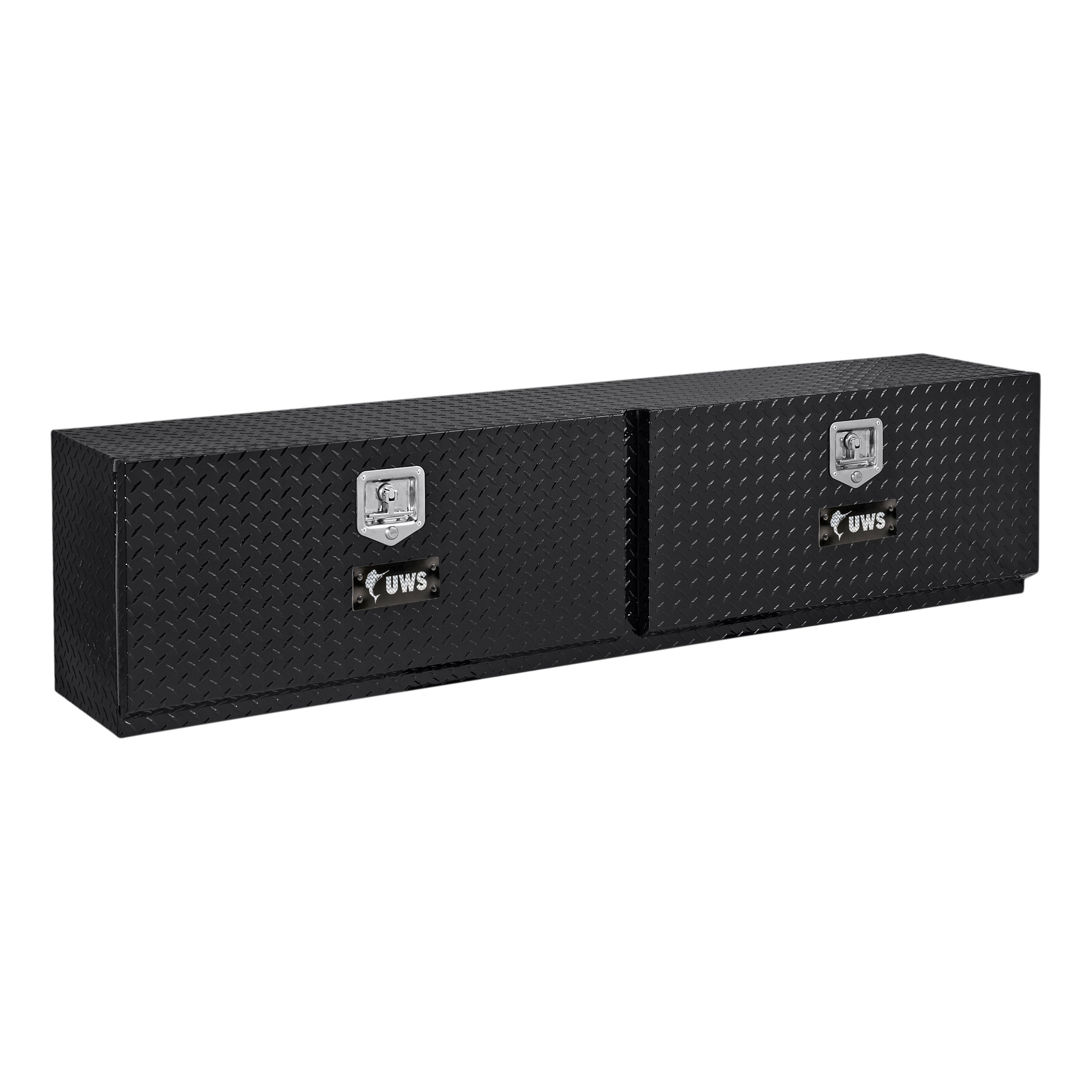

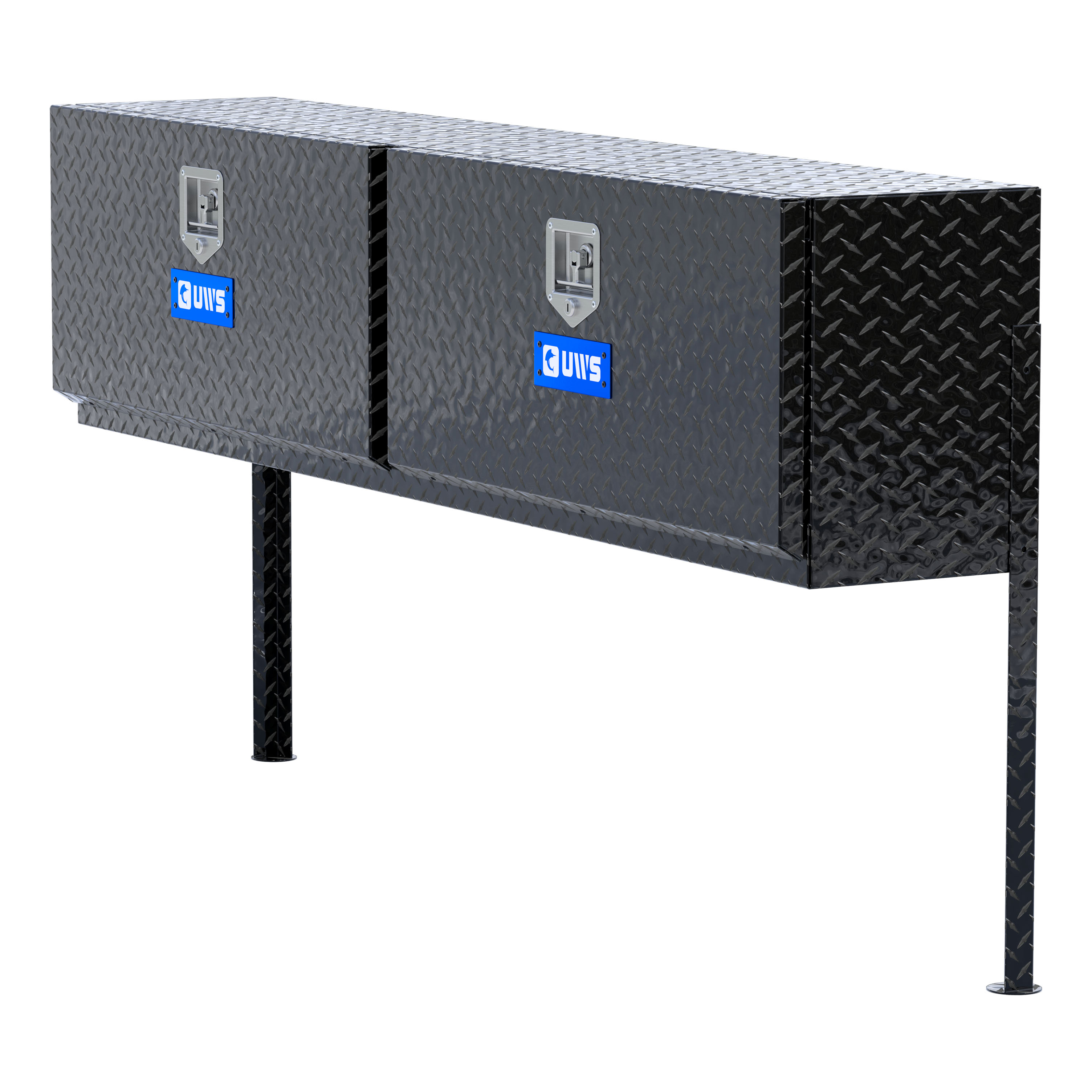

UWS topside truck tool boxes provide unbeatable storage and security for your items in the bed of your truck and on the jobsite. Each box features a corrosion-resistant aluminum construction, heavy-duty aircraft cable door supports and a stainless steel locking system -- all to keep your equipment and valuables safe and easily accessible whenever needed. Each UWS truck side tool box is constructed from extra-thick aluminum for increased structural strength. The tub is welded together into a single piece for weather resistance and to easily hold heavy tools and other items. The doors feature aircraft-grade stainless steel cables, ensuring reliable strength and door operation. The locking mechanism of this truck side tool box provides excellent security for your items, featuring stainless steel, key-operated T-handles. Stainless steel construction supplies the locks with long-lasting corrosion resistance, and the doors also have a MicroSeal stripping, blocking moisture, dust and insects from getting inside and damaging your valuables. The doors also open a full 90 degrees for easier access. UWS truck tool boxes are available in multiple sizes to accommodate any storage need. Like all UWS products, each one is proudly assembled right here in the USA for style and long-lasting dependability (NOTE: This product is heavily packaged for parcel shipping).
UWS designs and builds heavy-duty truck tool boxes and storage for tradespeople and truck owners. The line covers crossover and side-mount boxes, chest boxes, underbody boxes, transfer tanks and dog boxes. Every aluminum box is designed, fabricated and welded in Perry, Florida, with construction aimed at job-site abuse, road vibration and daily use.
UWS is a leading manufacturer and designer of truck tool boxes and truck accessories, and a Lippert brand. The company's focus is narrow and deliberate: storage that stands up to being opened and slammed shut dozens of times a day, loaded past what looks reasonable, and left outdoors in whatever weather the job brings. Its customers are electricians, plumbers, contractors, farmers, outdoorsmen and truck owners who treat a pickup as a working tool rather than transport.
The catalog covers the full range of bed storage. Crossover boxes sit across the bed behind the cab in single-lid, gull-wing, secure-lock and low-profile styles, so there is a fit whether the priority is capacity, rear visibility or working under a tonneau. Side-mount boxes mount along the bed rails and keep the bed floor free for cargo, while underbody boxes tuck beneath the frame rails of service bodies and flatbeds.
Beyond the bed, UWS makes portable chest boxes that move between vehicles and the shop, transfer tanks and combination tank-and-toolbox units for crews working away from fuel supply, and insulated, ventilated dog boxes for hunters and handlers.
Manufacturing sits at the centre of the brand's identity. Every UWS aluminum tool box is designed, fabricated and welded in Perry, Florida, by tradespeople with decades of experience, and the company's Rooted in Trades initiative is built around that connection to skilled manual work. Boxes use heavy-gauge aluminum, continuous welds at the seams, weather stripping to seal against rain and dust, and locking systems intended to resist tampering. The practical result is storage that keeps tools dry, organized and where they were left.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
UWS | Tough. Reliable.
The package includes one topside tool box, two keys, and two legs. Hardware (bolts, washers and nylock nuts) is not included and must be purchased separately.
The manual does not specify which vehicles or truck bed types this tool box fits. Contact CURT Group at 877-287-8634 or consult your dealer to confirm compatibility with your specific vehicle before purchasing.
The manual does not specify whether this tool box is compatible with short, standard or long truck beds. Contact CURT Group at 877-287-8634 or your dealer to confirm fitment for your specific bed length.
You will need a drill, drill bit set, ratchet, socket set, tape measure, level, square, and marker. The manual rates the installation difficulty as Easy.
Hardware is not included. You must purchase your own bolts, washers and nylock nuts. The manual provides torque specifications for M6, M8, M10 and M12 metric bolts, and 1/4", 5/16", 3/8", 7/16" and 1/2" SAE bolts. Consult the torque specifications provided with your purchased hardware for the correct sizes.
Park the truck on level ground. Before drilling, check under your vehicle to ensure the drill location does not puncture, cut or obstruct any brake or fuel fluid lines, electrical wires, fuel tanks or other components. Take precaution that all fasteners near the fuel tank do not create the possibility of fuel tank puncture or other damage during a collision.
1. Park the truck on level ground and place the tool box on the bed rail with handles and logo plate facing outward. 2. Ensure the tool box is level. Place one leg on a corner not resting on the bed rail and use a square to ensure it is vertical and at the correct height to rest on the truck bed. 3. Mark two mounting locations on the leg and tool box corner, drill two holes, and secure with purchased hardware. 4. Repeat for the other leg. Note: For added security, legs may be bolted to the truck bed.
The legs are attached to the tool box corners with two holes drilled through each leg and the tool box. The manual notes that for added security, the legs may be bolted to the truck bed, but this is optional. Confirm the specific mounting method required for your vehicle with your dealer or CURT Group.
Yes. You must drill two holes through each leg and the corresponding tool box corner to attach the legs. Before drilling, check under your vehicle to ensure the drill location does not puncture, cut or obstruct any brake or fuel fluid lines, electrical wires, fuel tanks or other components.
Before drilling, check under your vehicle to ensure the drill location does not puncture, cut or obstruct any brake or fuel fluid lines, electrical wires, fuel tanks or other components. Take precaution that all fasteners near the fuel tank do not create the possibility of fuel tank puncture or other damage during a collision.
General torque guidelines are: M6 bolt 3 ft-lbs, M8 bolt 7 ft-lbs, M10 bolt 16 ft-lbs, M12 bolt 28 ft-lbs (metric); 1/4" bolt 3 ft-lbs, 5/16" bolt 7 ft-lbs, 3/8" bolt 16 ft-lbs, 7/16" bolt 20 ft-lbs, 1/2" bolt 28 ft-lbs (SAE). These are general guidelines. If purchasing hardware, use the torque specifications provided with that hardware.
Do not use this product for storing or transporting flammables, explosives, hazardous materials or hazardous waste, such as containers of gasoline, solvents, gun powder, dynamite, propane tanks, acetylene tanks and cutting torches. Danger of explosion.
Never exceed the vehicle manufacturer's recommended capacity. The manual does not specify the tool box's own weight capacity. Contact CURT Group at 877-287-8634 or your dealer for the specific capacity rating.
Yes. This product can reduce the driver's ability to clearly see roadways, vehicular or pedestrian traffic and other objects through the rear and side windows of the vehicle, which may cause an accident. Extra precaution should be taken when driving a vehicle with this product.
No. Do not interfere with factory-installed safety equipment. Ensure your installation does not obstruct or damage any factory safety systems.
Ensure all knobs, bolts, screws, straps and locks are firmly secured. Periodically re-tighten and inspect all components for signs of wear, corrosion and fatigue. With the topside tool box installed, periodic inspections should be performed to ensure all mounting hardware remains tight.
Ensure all knobs, bolts, screws, straps and locks are firmly secured before every trip. Periodically re-tighten and inspect all components for signs of wear, corrosion and fatigue.
For polished, gloss and other smooth finishes, polish may be used to clear small scratches and scuffs. Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Treat or seal all fasteners and exposed metal in any holes drilled in the vehicle to prevent corrosion. This is especially important for fasteners near the fuel tank.
No. Do not modify this product. Use it only for the purposes for which it was designed. Consult your dealer if you have any questions regarding the installation, operation, use and limits of this product.
The manual does not specify vehicle compatibility. Contact CURT Group at 877-287-8634 or your dealer to confirm fitment before purchasing.
You must purchase bolts, washers and nylock nuts. The manual provides torque specifications for M6, M8, M10 and M12 metric bolts, and 1/4", 5/16", 3/8", 7/16" and 1/2" SAE bolts. Use the torque specifications provided with your hardware.
You need a drill, drill bit set, ratchet, socket set, tape measure, level, square and marker. Installation is rated as Easy.
Do not store flammables, explosives or hazardous materials such as gasoline, solvents, gun powder, dynamite, propane tanks, acetylene tanks or cutting torches. Danger of explosion.
Ensure all bolts, screws and locks are firmly secured before every trip. Periodically re-tighten and inspect all components for signs of wear, corrosion and fatigue.
Use mild automotive detergent. Do not use dish detergent, abrasive cleaners, abrasive pads or wire brushes. For scratches on polished or gloss finishes, use polish.
| Shank Diameter (C) | Shank Length (B) | Rise (D) | GTW | Chrome Bulk # | Chrome Full Throne # | Chrome Half Throne # | Stainless Bulk # | Stainless Full Throne # | Raw Bulk # |
|---|---|---|---|---|---|---|---|---|---|
| 1-7/8" Ball Diameter (A) | |||||||||
| 3/4" | 1-5/8" | 0" | 2,000 lbs. | 40001 | 40061 | 40161 | -- | -- | -- |
| 3/4" | 2-1/8" | 0" | 2,000 lbs. | 40015 | 40063 | 40163 | -- | -- | 40050 |
| 3/4" | 2-1/8" | 1" | 2,000 lbs. | 40016 | 40071 | 40171 | -- | -- | 40051 |
| 3/4" | 3" | 0" | 2,000 lbs. | 40026 | 40072 | 40172 | -- | -- | 40081 |
| 1" | 2-1/8" | 0" | 3,500 lbs. | 40031 | -- | -- | -- | -- | -- |
| 1" | 3" | 0" | 3,500 lbs. | 40032 | -- | -- | -- | -- | -- |
| 2" Ball Diameter (A) | |||||||||
| 1" | 1-3/4" | 0" | 3,500 lbs. | 40003 | 40064 | 40164 | -- | -- | -- |
| 3/4" | 2-1/8" | 0" | 3,500 lbs. | 40018 | 40065 | 40165 | -- | -- | 40052 |
| 3/4" | 2-1/8" | 1" | 3,500 lbs. | 40019 | 40073 | 40173 | -- | -- | 40082 |
| 1" | 2-1/8" | 0" | 6,000 lbs. | 40001 | 40066 | 40166 | 40053 | -- | 40083 |
| 1" | 2-1/8" | 1" | 6,000 lbs. | 40002 | -- | -- | -- | -- | -- |
| 1-1/4" | 2-5/8" | 0" | 8,000 lbs. | 40034 | -- | -- | -- | -- | -- |
| 1" | 3" | 0" | 12,000 lbs. | 40033 | -- | -- | -- | -- | -- |
| 1-1/4" | 2-5/8" | 0" | 12,000 lbs. | 40038 | -- | -- | -- | -- | -- |
| 1" | 2-1/8" | 0" | 10,000 lbs. | 40039 | -- | -- | -- | -- | 40056 |
| 1-1/4" | 3" | 0" | 10,000 lbs. | 40090 | 40069 | 40190 | -- | -- | -- |
| 2-5/16" Ball Diameter (A) | |||||||||
| 1" | 2-1/8" | 0" | 7,500 lbs. | 40005 | 40067 | 40167 | -- | -- | 40084 |
| 1" | 2-1/4" | 0" | 10,000 lbs. | 40011 | -- | -- | -- | -- | 40042 |
| 1" | 2-1/2" | 0" | 12,000 lbs. | 40037 | -- | -- | -- | -- | -- |
| 1" | 2-1/8" | 1" | 6,000 lbs. | 40012 | 40075 | 40175 | -- | -- | -- |
| 1" | 3-1/4" | 0" | 6,000 lbs. | 40020 | -- | -- | -- | -- | -- |
| 1-1/4" | 2-5/8" | 0" | 15,000 lbs. | 40030 | 40078 | 40178 | 40055 | -- | -- |
| 1" | 3" | 0" | 15,000 lbs. | 40030 | 40078 | 40178 | 40055 | -- | -- |
| 1-1/4" | 2-5/8" | 1" | 15,000 lbs. | 40035 | -- | -- | -- | -- | -- |
| 1-1/4" | 2-5/8" | 0" | 20,000 lbs. | 40036 | -- | -- | -- | -- | 40085 |
| 1" | 2-1/2" | 2-1/4" | 25,000 lbs. | 40038 | -- | -- | -- | -- | 40086 |
| 1" | 2-5/8" | 1" | 12,000 lbs. | 40041 | -- | -- | 40045 | -- | -- |
| 1" | 2-5/8" | 2" | 15,000 lbs. | 40048 | 40089 | -- | -- | -- | 40087 |
| 1-1/4" | 2-5/8" | 1" | 20,000 lbs. | 40008 | 40081 | 40109 | 40109 | -- | -- |
| 1-1/4" | 2-1/2" | 0" | 25,000 lbs. | 40022 | 40076 | 40176 | -- | -- | 40088 |
| 1" | 2-1/2" | 0" | 25,000 lbs. | 40022 | 40076 | 40176 | -- | -- | 40088 |
| 3" Ball Diameter (A) | |||||||||
| 1-1/4" | 3-1/4" | 0" | 30,000 lbs. | -- | -- | -- | -- | -- | 40089 |
| 50mm Ball Diameter (A) | |||||||||
| 3/4" | 50mm | 0" | 1,600 kg. | 40099 | -- | -- | -- | -- | -- |
