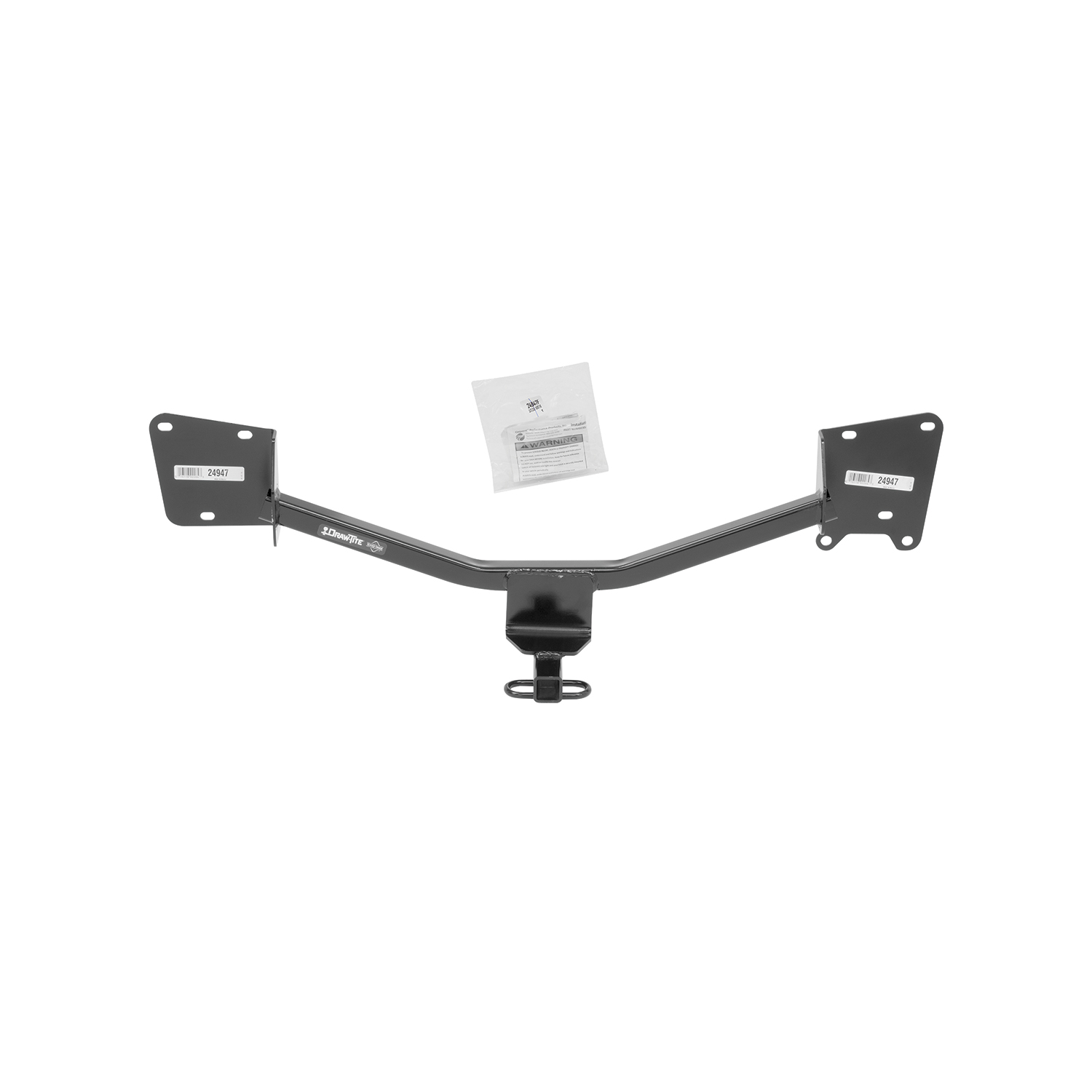

These dependable custom hitches are manufactured for 2016-2019 Chevrolet Volt and attach to your vehicle?s frame or bumper for a sleek, clean appearance. Each hitch also has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. DRAW-TITE Class 1 custom trailer hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground and need a place for the cooler, taking the bikes to hit the trails in the park, or you are tackling a DIY project (maybe some landscaping or a home repair), choose DRAW-TITE and travel with confidence knowing your setup is connected with the security only DRAW-TITE can provide. DRAW-TITE: North America?s Favorite Hitch.
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.

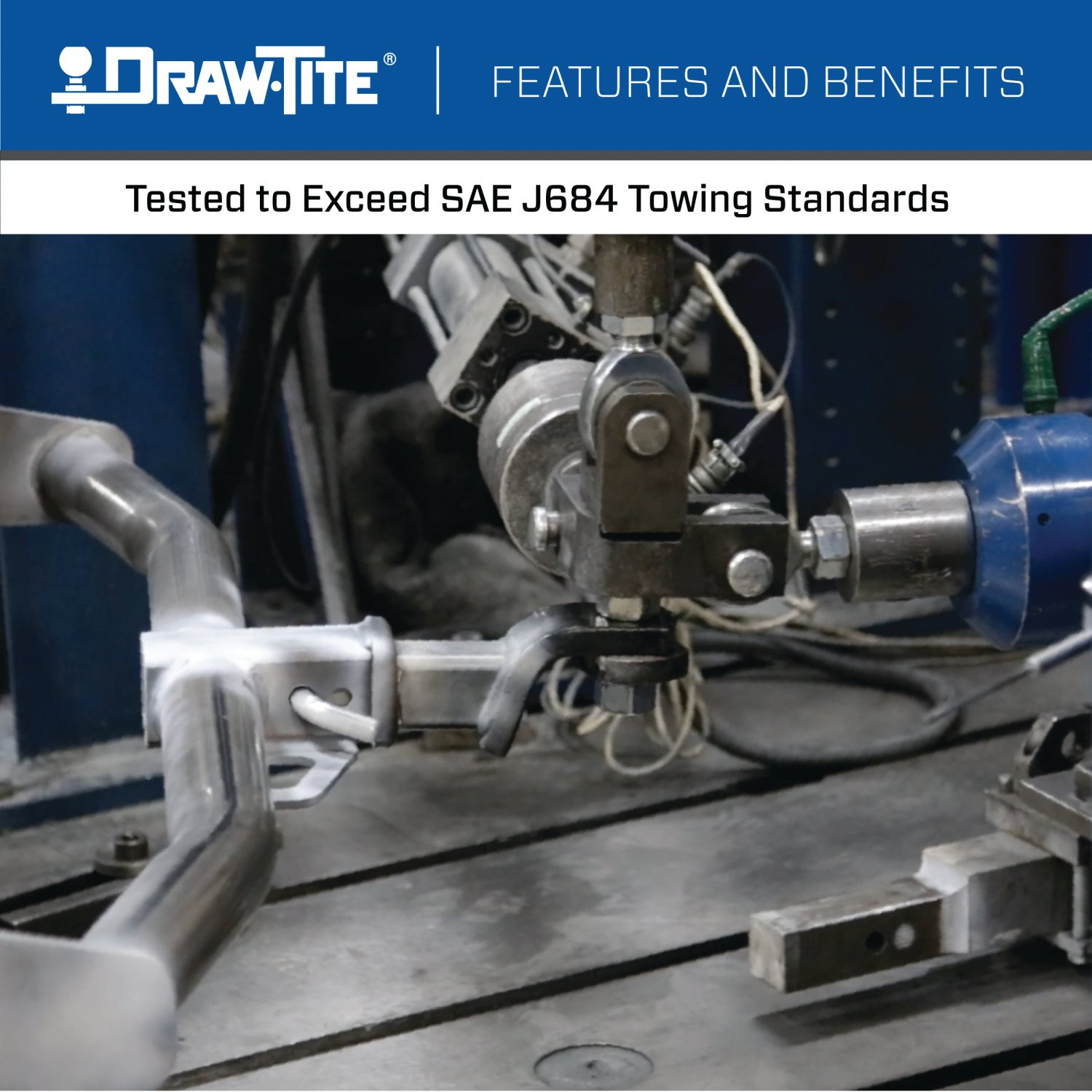

Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.

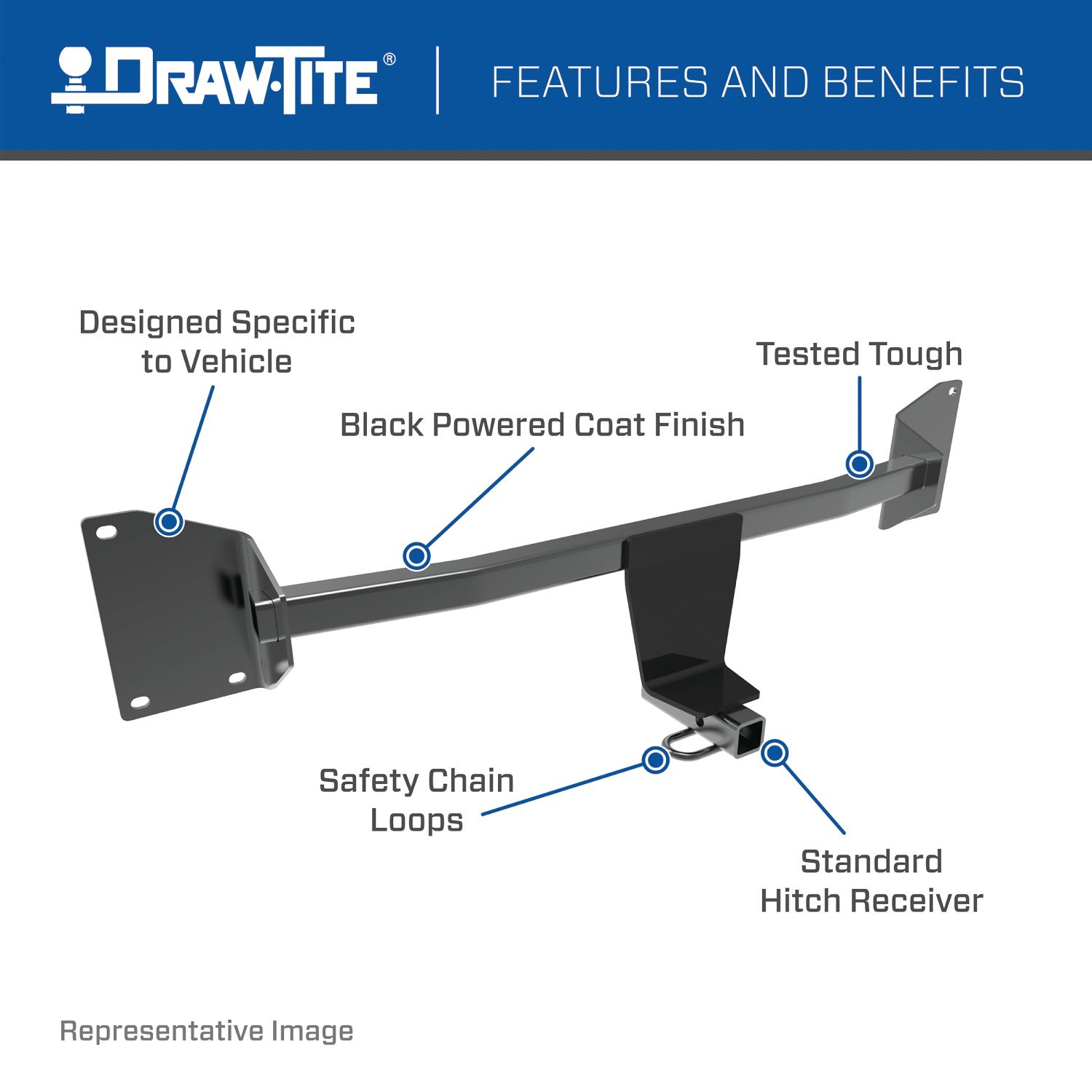

Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.

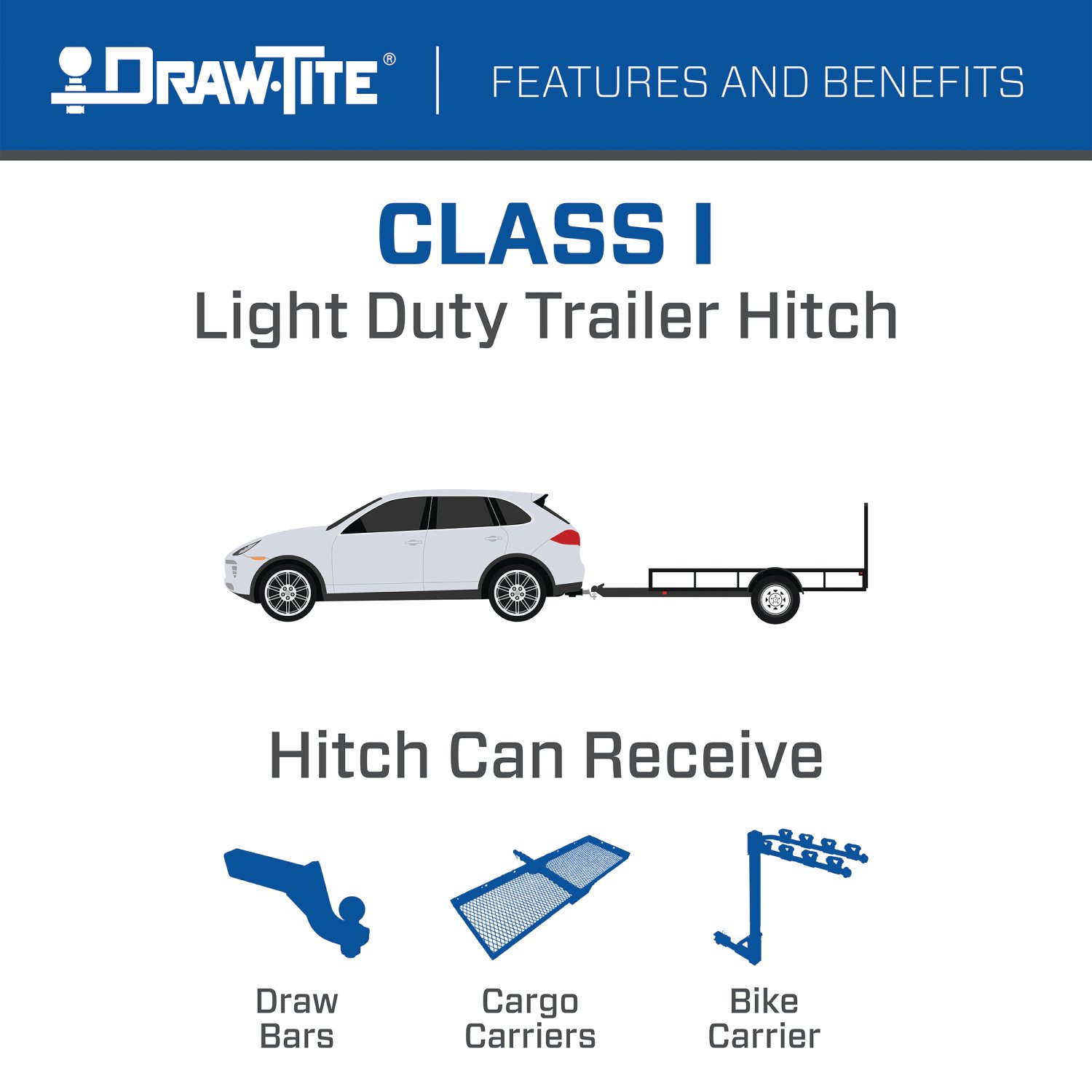

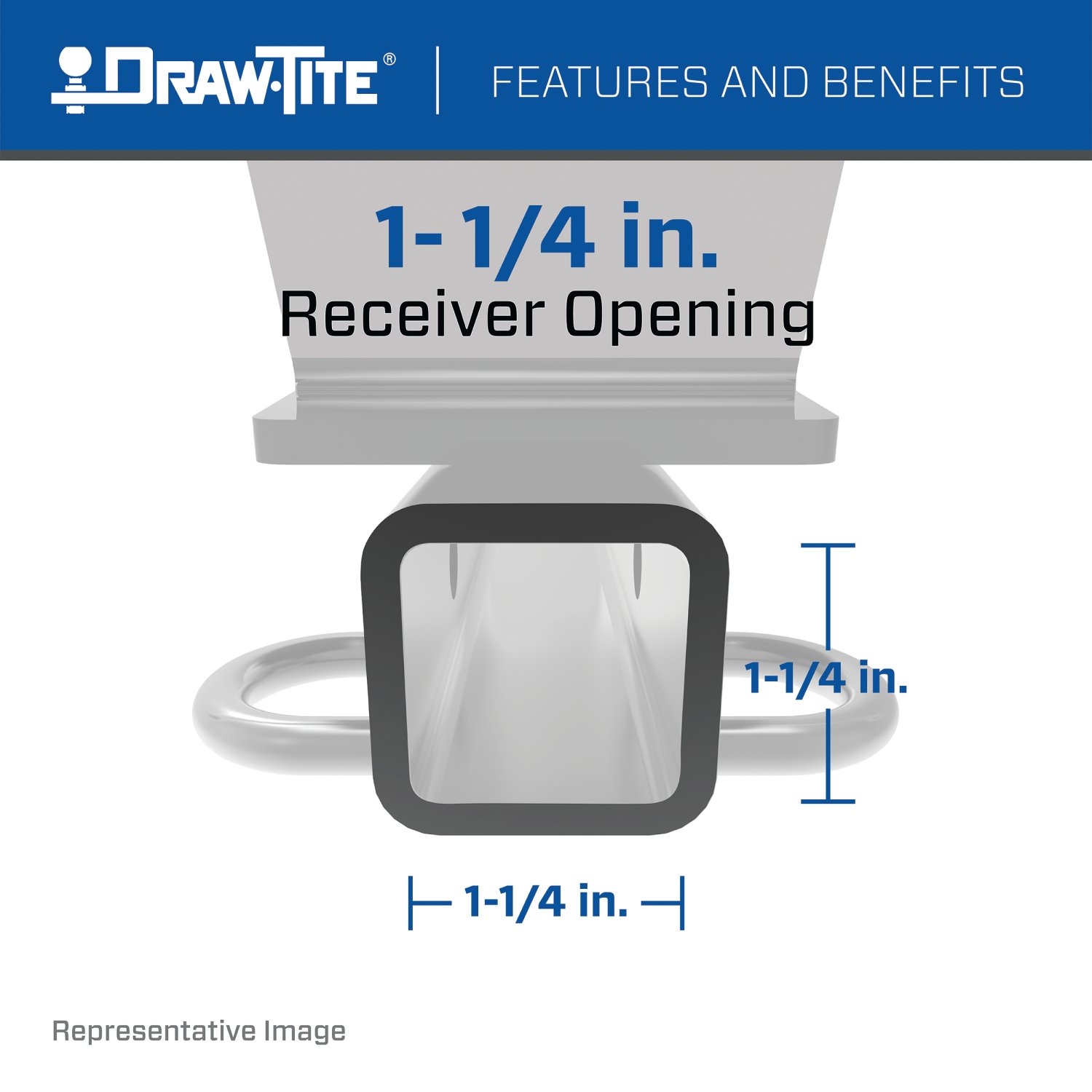

The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 | Chevrolet Volt | — |

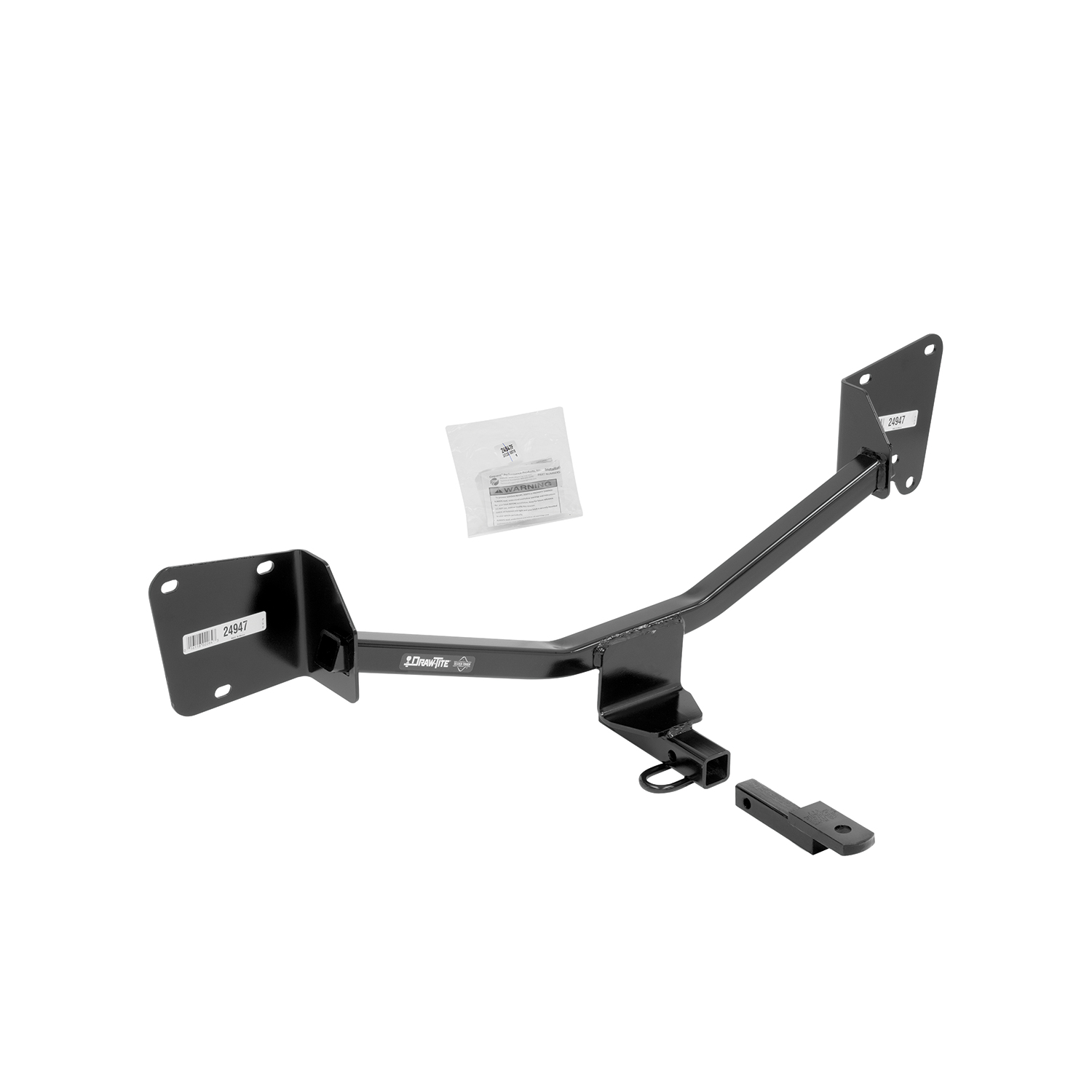

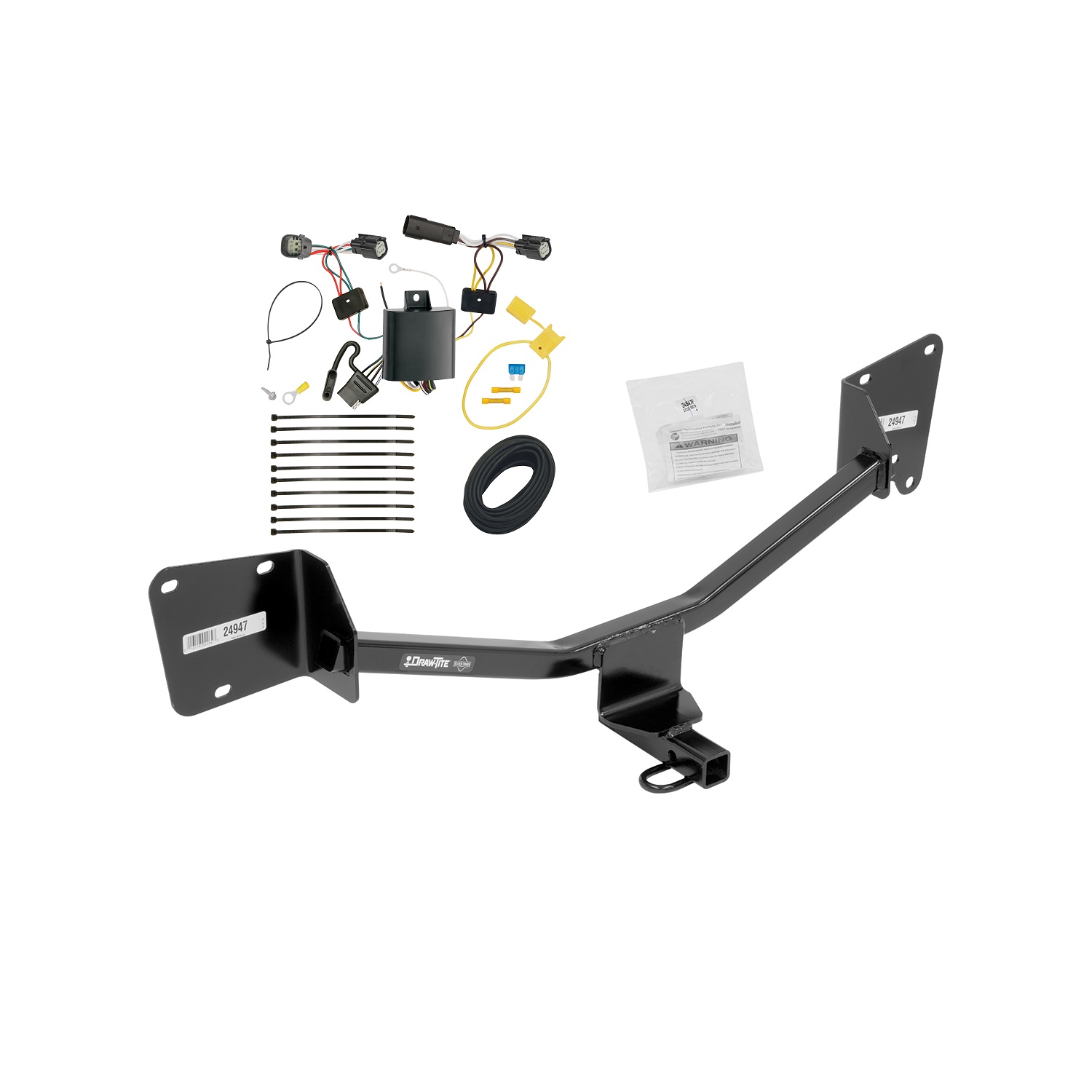

The 2016-2019 Chevrolet Volt Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24947-118726) fits the following vehicles: 2003 Chevrolet Volt. Always verify your specific year, make, and model before ordering.
The 2016-2019 Chevrolet Volt Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24947-118726) fits 2003 Chevrolet Volt models. The 2003 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2016-2019 Chevrolet Volt Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24947-118726) is designed to fit the 2003 Chevrolet Volt.
The 2016-2019 Chevrolet Volt Draw-tite Class 1 Trailer Hitch, 1-1/4 Inch Square Receiver Bundle w/ Plug-n-Play T-One Wiring Harness (Part #DTB24947-118726) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24947 is designed for 2016 and current model year Chevrolet Volt. Visit the manufacturer's website for the most up-to-date information regarding specific trim levels and application years.
The hitch is rated for a maximum gross trailer weight of 2000 lb (908 kg) and maximum tongue weight of 200 lb (90.8 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
Required tools include: ratchet, torque wrench, safety glasses, sockets (7mm, 10mm, 13mm, 15mm), 6" socket extension, T15 Torx bit, Phillips screwdriver, plastic trim tools, tape measure, tin snips, and tape. Installation time is approximately 60 minutes for professional installers.
Yes. The bumper beam must be removed to install the hitch. Using a 15mm deep wall socket with 6" extension, remove the 6 flange hex nuts holding the bumper beam to the end panel. The hitch is then sandwiched between the bumper beam and end panel.
Yes. The underbody panel must be trimmed using a tape measure, tape, and tin snips. Mark and trim the panel as shown in Figure 2: trim 3-3/4" on one section, 5-1/2" on another, and 3-1/2" on a third section. The panel may be trimmed in place or optionally removed entirely for trimming.
Tighten all M10 fasteners to 38 Lb.-Ft. (52 N·M) and all M8 fasteners to 20 Lb.-Ft. (27 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
Always wear safety glasses during installation. Do not cut, weld, or modify the receiver. Do not use a torch to cut holes. Support the exhaust before unhoking the exhaust hanger. When towing, always wear your seatbelt, slow down, never exceed posted speed limits, and load the trailer heavier in front. If excess sway occurs, take your foot off the gas and hold the steering wheel steady—do not apply brakes or speed up.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. Periodically verify that all fasteners and the ball remain properly tightened. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Hitch 24947 is designed for 2016 and current model year Chevrolet Volt. For the most up-to-date information regarding specific trim levels and application years, visit the manufacturer's website at www.cequentgroup.com.
The authorized drawbar kit is part number 3593 (sold separately). The drawbar must be used in the RISE position only.
Approximately 28 fasteners must be removed during installation: 5 screws from inside each wheel well (10 total), 1 screw vertically in upper wheel well area on each side (2 total), 8 screws from underbody panel near wheel wells, 5 screws from underbody panel to fascia, 2 screws from each taillight housing (4 total), 1 Phillips screw from each taillight housing (2 total), 2 bolts from exhaust hanger, and 6 flange hex nuts from bumper beam.
Yes. Open the trunk and remove 2 Torx T15 screws and 1 Phillips screw from each taillight housing on both sides. Gently pull the taillights rearward and disconnect the wiring from the taillights. You must reconnect the wiring after installation.
If your vehicle is equipped with fascia wiring, you must disconnect it before removing the fascia. Reconnect all wiring to the fascia after reinstalling it.
Support the exhaust before unhoking the exhaust hanger from the hooks on the end panel. This prevents the exhaust system from dropping or becoming damaged during installation.
First, loosely reinstall the 6 existing M10 hex flange nuts (3 per side) onto the studs. Then reattach the exhaust hanger over the hooks on the end panel and install the 2 M8 bolts. Finally, tighten all M10 fasteners to 38 Lb.-Ft. (52 N·M) and all M8 fasteners to 20 Lb.-Ft. (27 N·M) using a torque wrench.
Raise the hitch and bumper beam into position, aligning the hitch holes with the studs in the end panel. Sandwich the hitch between the bumper beam and the end panel. The hitch is held in place by the 6 M10 flange hex nuts (3 per side) that attach to the studs.
Using a tape measure, tape, and tin snips, mark and trim the underbody panel as follows: trim 3-3/4" on one section, 5-1/2" on another section, and 3-1/2" on a third section, as shown in Figure 2. The panel may be trimmed in place or optionally removed entirely for trimming.
All M10 fasteners must be tightened to 38 Lb.-Ft. (52 N·M) using a torque wrench. There are 6 M10 fasteners total (3 per side) that hold the hitch to the end panel studs.
All M8 fasteners must be tightened to 20 Lb.-Ft. (27 N·M) using a torque wrench. There are 2 M8 fasteners that secure the exhaust hanger.
You will need sockets in the following sizes: 7mm, 10mm, 13mm, and 15mm. A 15mm deep wall socket with a 6" extension is specifically required to remove the bumper beam fasteners.
A T15 Torx bit is required. It is used to remove 5 screws from inside each wheel well, 8 screws from the underbody panel near the wheel wells, and 2 screws from each taillight housing.
Yes. A Phillips head screwdriver is required to remove 1 screw from each taillight housing (2 total) during the removal process.
Tin snips are required to trim the underbody panel. Do not use a torch to cut access or attachment holes, as this is explicitly prohibited.
The manual states that the average installation time for professional installers is 60 minutes. If you do not feel comfortable performing the installation on your own or are in need of assistance, contact a professional installer.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. These actions will help stabilize the trailer.
Hitch 24947 is a weight-carrying hitch only. Weight distributing capability is not available (marked as X in the specifications). The maximum gross trailer weight is 2000 lb (908 kg) and maximum tongue weight is 200 lb (90.8 kg).
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is required to maintain safe towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle's interior and prevents corrosion.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch, as it may fail during towing and create a safety hazard.
Cequent Performance Products offers a Limited Lifetime Warranty to the original consumer purchaser. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are installed, maintained, and used according to instructions. To make a warranty claim, contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290, or TechnicalSupport@cequentgroup.com. You must provide the product and purchase receipt.
Hitch 24947 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Check all fasteners and tighten them to the correct torque specifications: M10 fasteners to 38 Lb.-Ft. (52 N·M) and M8 fasteners to 20 Lb.-Ft. (27 N·M) using a torque wrench. The manual recommends checking the hitch frequently to ensure all fasteners remain properly tightened.
A hitch which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch. Contact the manufacturer at 1-800-632-3290 or TechnicalSupport@cequentgroup.com for warranty service or replacement options.
The T-Connector is a trailer wiring harness designed for the Chevy Volt LT Hatchback. It provides electrical connections between the vehicle's taillights and a 4-flat trailer connector, allowing you to tow a trailer with integrated lighting. The system includes a black control module, wiring harness with color-coded wires (yellow, brown, green, red, white, and black), connectors, a 15 amp fuse holder, and cable ties.
The T-Connector is designed specifically for the Chevy Volt LT Hatchback. The manual does not confirm compatibility with other Volt model years, trim levels, or body styles. Verify your vehicle matches this specification before purchasing.
You will need: trim panel remover, 10 mm socket and ratchet (or 10 mm wrench), drill with 3/32" drill bit, wire crimpers, wire cutters, Phillips head screwdriver, and a test probe. These tools are required to remove trim panels, disconnect battery, drill the ground hole, crimp wire connections, and test the installation.

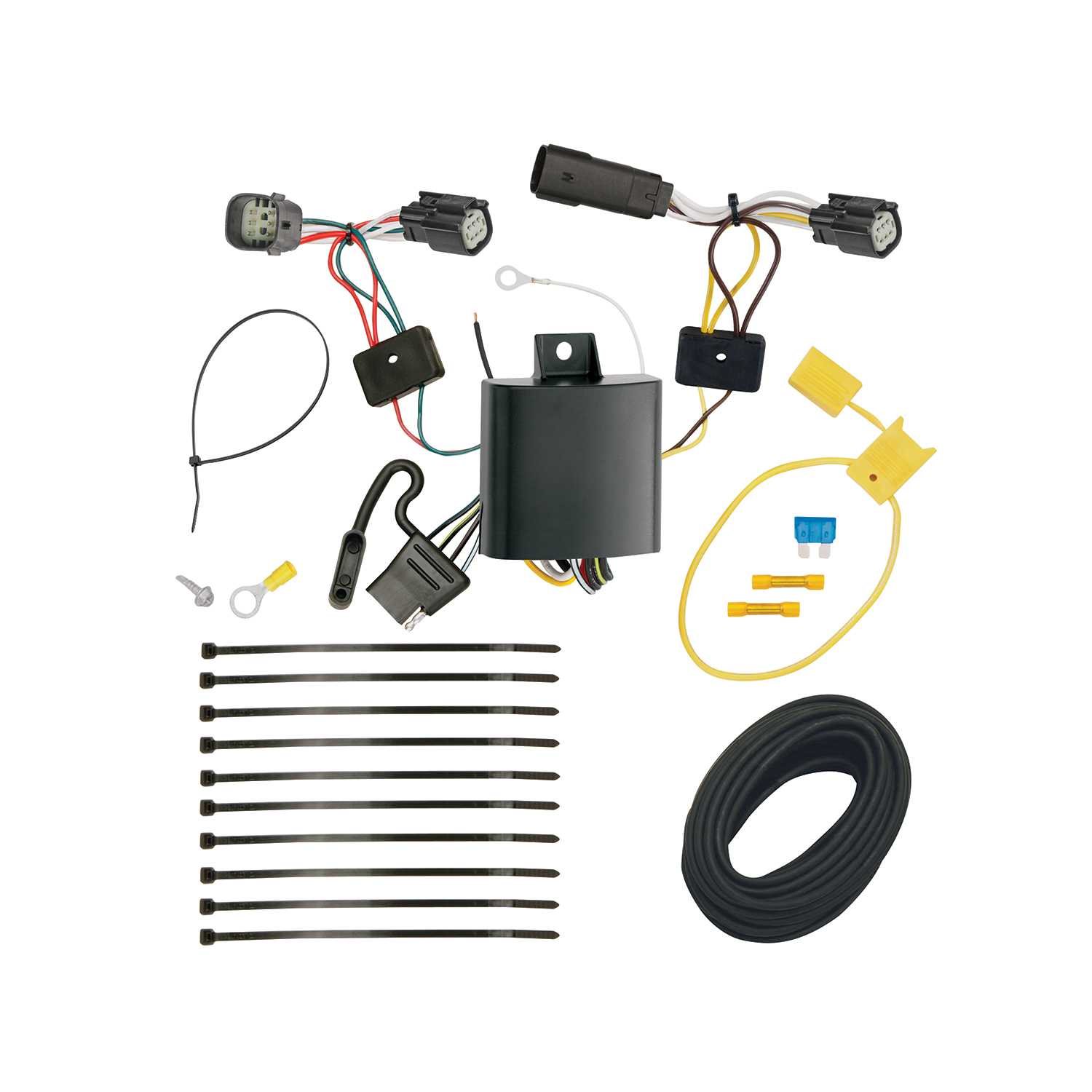

The kit includes: a black control module, T-Connector harness with color-coded wires (yellow, brown, green, red, white, black 12 ga.), cable ties, a yellow fuse holder with 15 amp fuse, a yellow butt connector, an eyelet and screw for the ground wire, and a ring terminal. The 4-flat trailer connector end must be mounted in an accessible location using a bracket or electrical box (not included).
Yes. You must disconnect the vehicle's negative (-) battery cable before connecting the power wire to the battery. This is a required safety step performed in step 7. After all wiring connections are complete, you reconnect the negative battery cable and install the 15 amp fuse in step 10.
Yes. You must open the vehicle hatch and remove both the driver's side and passenger's side taillights to access the vehicle's wiring connectors. This is the first step of the installation process.
Mount the black control module underneath the vehicle on the driver's side, attached to the aluminum bumper support brace using the cable tie provided. The epoxy side of the module must point toward the ground to prevent water buildup. This is a critical orientation requirement.
On the driver's side, separate the vehicle's taillight wiring connectors carefully without breaking the locking tabs. Route the T-Connector end with yellow and brown wires upward between the bumper cover and rear body panel, exiting at the taillight pocket. Connect the yellow and brown wires to the matching vehicle connectors, ensuring all connectors lock into place and surfaces are clean and dirt-free. Repeat the same process on the passenger's side using the T-Connector end with green and red wires.
Route the green and red wires along the metal bumper from driver's side to passenger's side. Route the black 12 ga. power wire along the exterior frame or follow existing wiring along the thresholds into the engine compartment to the battery. Route all wires carefully to avoid hot pipes, heat shields, the fuel tank, and any points that may pinch or break the wire. Secure the harness with provided cable ties, avoiding areas that would pinch, cut, or melt the wire.
Yes. You must drill a 3/32" hole to create a grounding point for the white wire near the black control module. You can use an existing ground stud if available, or drill a new hole. Do not drill into the vehicle floor or bed. Before drilling, verify what is behind the surface to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces. Clean dirt and rustproofing from the area after drilling.
The T-Connector uses the following wire colors: yellow and brown wires connect to the driver's side taillight; green and red wires connect to the passenger's side taillight; white wire is the ground connection; black 12 ga. wire is the power connection to the vehicle battery. The yellow fuse holder contains the 15 amp fuse for the power circuit.
Locate the black 12 ga. power wire from the T-Connector box on the driver's side. Attach the black 12 ga. wire provided. Route it along the exterior frame or follow existing wiring along the thresholds into the engine compartment to the battery. After disconnecting the negative battery cable, cut the fuse holder wire, attach the ring terminal to the vehicle's positive (+) battery cable, and connect the other end of the fuse holder to the black 12 ga. wire using the yellow butt connector provided. Install the 15 amp fuse after reconnecting the negative battery cable.
The T-Connector uses a 15 amp fuse. The fuse is installed in the yellow fuse holder provided with the kit. The fuse must be installed in step 10 after all wiring connections are complete and the negative battery cable is reconnected.
Always wear safety glasses during installation. Read and follow all warnings and cautions on the vehicle battery before connecting the power wire. Do not exceed the product's amperage rating or the towing manufacturer's rating stated in your vehicle owner's manual. Verify what is behind any surface before drilling to avoid damage or injury. Do not route wires near hot pipes, heat shields, or the fuel tank. Ensure all connections are complete before testing. Overloading circuits can cause fires.
After all connections are complete and the 15 amp fuse is installed, test and verify the installation using a test light or by connecting an actual trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition. This ensures all connections are functioning properly before towing.
Verify that all wiring connectors are locked into place and connector surfaces are clean and free of dirt. Ensure the black control module is mounted with the epoxy side facing the ground. Confirm that all wires are secured with cable ties and routed away from hot pipes, heat shields, fuel tank, and pinch points. Reinstall all taillights and plastic trim panels without pinching or cutting the wires. Test the installation with a test light or trailer to confirm proper function.
Mount the 4-flat connector end in an accessible location using a bracket or electrical box (not included). The manual does not specify a particular location, but it should be positioned where it is easy to connect and disconnect a trailer.
The T-Connector (118726-037) is designed for the Chevy Volt LT Hatchback only. Verify your vehicle matches this specification before purchasing.
Trim panel remover, 10 mm socket/ratchet or wrench, drill with 3/32" bit, wire crimpers, wire cutters, Phillips screwdriver, and test probe.
Yes, you must disconnect the negative battery cable before connecting the power wire to the battery in step 7.
Yes, you must drill a 3/32" hole for the ground wire connection near the black control module. Do not drill into the vehicle floor or bed.
Do not exceed the product's amperage rating or the towing manufacturer's rating. Overloading circuits can cause fires. Always wear safety glasses and follow all warnings on the vehicle battery.
Verify that all wiring connections are complete. Ensure all connectors are locked into place and connector surfaces are clean and free of dirt. Confirm the 15 amp fuse is installed in the fuse holder. Test the installation with a test light or by connecting a trailer. If the initial test fails, reset the vehicle's electrical system by temporarily removing the key from the ignition. If the system still does not function, check that the negative battery cable is properly reconnected.
The module is not mounted with the correct orientation. The epoxy side of the module must point toward the ground to prevent water buildup. Remount the module so the epoxy side faces downward.
