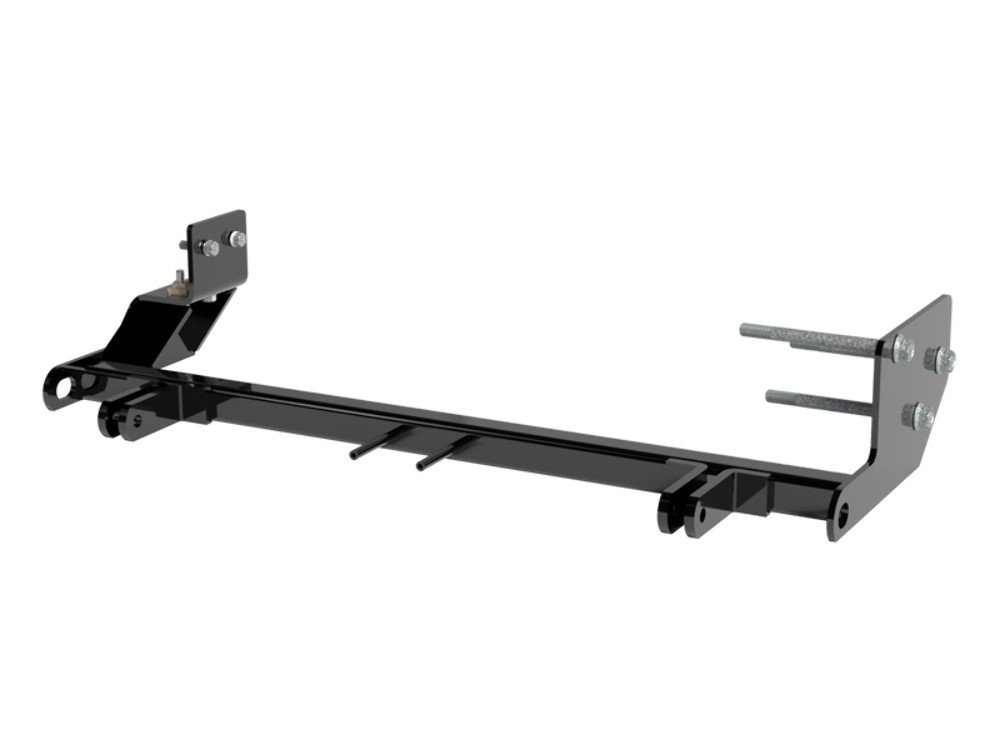

Custom Designed: Each BX1120 Tow Bar Bracket is uniquely designed for a specific towed vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX1120 Tow Bar Bracket is a custom-designed, heavy-duty towing solution for your vehicle. Made from robust steel with a durable black powder coat finish, this bracket is designed to withstand harsh conditions and provide consistent, reliable performance. The bracket features a bolt-on mounting type, making installation simple and straightforward. All necessary mounting hardware is included, along with comprehensive do-it-yourself instructions. This tow bar bracket is your ideal companion for safe and secure towing.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1997 - 2006 | Jeep TJ | Comes with Standard Attachment Tabs Install Rating 2 Minor Drilling Required PN BX88152 Adapter Can Not Ne Used w/This Baseplate w/Twin Tube Bumper |
| 1997 - 2006 | Jeep Wrangler | Comes with Standard Attachment Tabs Install Rating 2 Minor Drilling Required PN BX88152 Adapter Can Not Ne Used w/This Baseplate w/Twin Tube Bumper |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP WRANGLE TUBE ST (Part #FDRWBX1120) is designed to fit the 1997-2006 Jeep TJ.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP WRANGLE TUBE ST (Part #FDRWBX1120) fits the following vehicles: 1997-2006 Jeep TJ; 1997-2006 Jeep Wrangler. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP WRANGLE TUBE ST (Part #FDRWBX1120) fits 1997-2006 Jeep TJ models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP WRANGLE TUBE ST (Part #FDRWBX1120) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

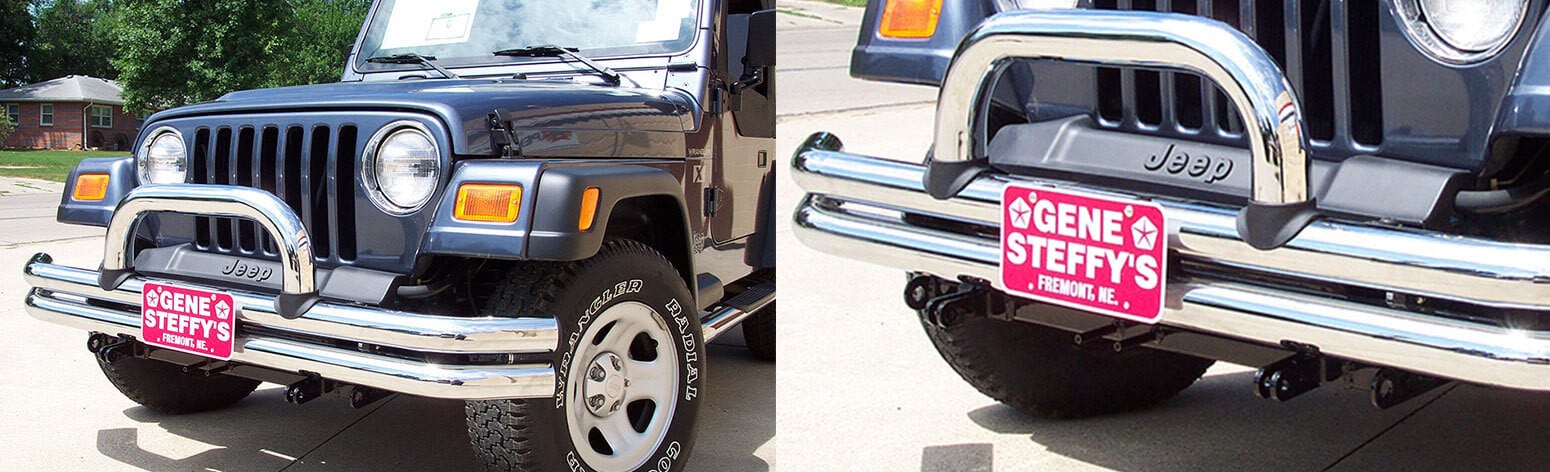

Yes, the BX1120 is designed for 1997–2006 Jeep Wrangler models equipped with a Rugged Ridge Double Tube Bumper. If the front of your vehicle looks different from the image in the manual, contact Blue Ox Customer Care at (402) 385-3051 before proceeding with installation.
The attachment tab height is 17-3/4" and the attachment tab width is 24".
Required tools are: large vise grip, torque wrench, drill, tape measure, 13/32" drill bit, 7MM socket, 16MM socket, and 9/16" socket. You will also need Loctite Red.
The kit includes: four 3/8"-16 nut plates with 14" wire, one BX1120 baseplate, two #10-32 1/2" round slotted head screws, four 3/8"-16 x 1-1/2" hex head bolts (Grade 5, zinc plated), two #12-14 x 1" self-drilling screws, two #10-32 hex nuts, two 3/8" flat washers, four 3/8" lock washers, two #10 lock washers, one electrical bracket, three existing bolts (reused from vehicle), two baseplate safety cables (Class III), and two 3/8" quicklinks.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work". If needed, Blue Ox Dealers can be found at www.blueox.com or by contacting Customer Care at (402) 385-3051.
Always use the hardware supplied in the hardware kit and existing hardware as specified in the installation instructions. Do not assume existing bolts are adequate for baseplate mounting, even though bolts may be present. The manual specifies which existing bolts to reuse (three metric bolts on the driver's side) and which new hardware to use for the passenger's side.
Yes, some drilling and trimming is required. You will drill four holes on the passenger's side using a 13/32" drill bit, using the baseplate as a template. The manual also notes that a hole must be drilled according to the BX8869 Tail Light Wiring Kit instructions.
No, the BX8869 Tail Light Wiring Kit is recommended for this vehicle but is not listed in the included parts. It must be purchased separately.
1. Remove three metric bolts on both sides of the vehicle using a 16MM socket while someone holds the gearbox and idler arm; set bolts aside for reinstallation. 2. Hold the baseplate in place and insert the three existing bolts on the driver's side through the baseplate, frame, and gearbox; tighten them. 3. Clamp the baseplate on the passenger's side with a large vise grip. Using the baseplate as a template, drill four holes with a 13/32" drill bit. 4. Insert 3/8"-16 nut plates into the frame, align with the drilled holes, insert 3/8"-16 x 1-1/2" hex bolts with 3/8" lock washers, and tighten all bolts.
Yes, when removing the three metric bolts from both sides of the vehicle in Step 1, you must have someone hold the gearbox and idler arm while you remove the bolts using a 16MM socket.
A 13/32" drill bit is used to drill four holes on the passenger's side of the vehicle, using the baseplate as a template.
Yes, the manual states that "some drilling and trimming is required" as part of the installation. Once the four holes are drilled on the passenger's side, these modifications are permanent. The manual recommends using good quality paint to spray cut edges of the frame to prevent rusting.
The 3/8"-16 hex bolts are Grade 5. According to the torque chart provided in the manual, Grade 5 3/8" bolts should be torqued to 33 foot-pounds. Always apply Loctite Red to all bolts before tightening.
The manual does not specify the torque value for the three existing metric bolts that are removed and reinstalled on the driver's side. Contact Blue Ox Customer Care at (402) 385-3051 or consult your Jeep Wrangler owner's manual for the manufacturer's specification.
Yes, you must use Loctite Red on all bolts before tightening. Tighten all bolts according to the torque chart provided in the manual.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for your specific GVWR.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX1120 kit includes two Class III baseplate safety cables and two 3/8" quicklinks. These cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must remain installed as long as the baseplate is installed. The cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses, or brake lines. If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after installation.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended torque specifications and apply Loctite Red to all bolts.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Ensure that all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
Yes, remove the attachment tabs when not in use (if applicable).
Register your product online at www.blueox.com to receive alerts about product offerings, updates, upgrades, maintenance and safety bulletins, and recalls. Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended specifications. Use good quality paint to spray any cut edges of the frame to prevent rusting.
Blue Ox offers a three-year limited warranty to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. To activate coverage, the customer warranty card must be returned within 30 days of purchase, and a copy of the original invoice showing date and place of purchase must accompany any warranty claim. The warranty does not cover improper installation, improper use, modification, neglect, normal wear and tear, paint, or rust. The warranty is non-transferable and does not cover loss of use, inconvenience, or consequential damages.
Visit http://blueox.com/warranty/ to register your warranty. You must return the customer warranty card within 30 days of purchase to activate coverage.
The warranty is voided by: incorrect or improper installation, improper use, modification or neglect of the product, failure to properly service and maintain, misuse, accident, failure to follow guidelines in the instructional material, exceeding the vehicle's GVWR, or towing behind a non-motorized vehicle. The warranty also does not cover normal wear and tear, paint, or rust.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to use the correct parts will void the manufacturer's warranty.
Contact Blue Ox Customer Care at (402) 385-3051. You can also visit www.blueox.com to find a Blue Ox Dealer or to access the latest version of the installation instructions.
Yes, the BX1120 is designed for 1997–2006 Jeep Wrangler with Rugged Ridge Double Tube Bumper. If your vehicle looks different, contact Blue Ox at (402) 385-3051.
You need a large vise grip, torque wrench, drill, tape measure, 13/32" drill bit, 7MM socket, 16MM socket, 9/16" socket, and Loctite Red.
Yes, you will drill four holes on the passenger's side using a 13/32" drill bit. Some trimming is also required.
Grade 5 3/8" bolts should be torqued to 33 foot-pounds. Always apply Loctite Red before tightening.
Yes, two Class III baseplate safety cables and two 3/8" quicklinks are included. They are strongly recommended and must be connected from the baseplate to the vehicle's frame rail or cross member.
The baseplate is tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for your GVWR.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to specification and apply Loctite Red.
The manual notes that "the dimensional variations between otherwise identical vehicles can be considerable" and that "it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances." If alignment issues occur, contact Blue Ox Customer Care at (402) 385-3051 for guidance on adjusting the baseplate.
If the baseplate is in an accident or you suspect damage, it must be replaced. Do not use a damaged baseplate again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. If connections are not working, verify that all plugs are fully seated and that no wires were damaged during installation. If problems persist, contact Blue Ox Customer Care at (402) 385-3051.
