BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, BUICK LACROSSEBlue OxOut of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2006 - 2011 Buick Lucerne
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
On Sale Today
You save $0.99
Free Shipping
Ships free on all orders
Authorized Dealer
Total for 0 items:
$0.00
FREE ShippingFREE SHIPPING
Estimated delivery Wed, Sep 9 - Sat, Sep 12
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Custom Design: Each Blue Ox BX1512 Tow Bar Bracket is custom designed for specific towed vehicles, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX1512 Tow Bar Bracket is a custom-designed, high-quality solution for all your towing needs. Crafted from robust steel with a sleek black powder coat finish, this bracket ensures maximum durability and resistance to corrosion. The bolt-on mounting type is designed for easy installation, and comes with all necessary hardware included. Perfect for any towing situation, this Blue Ox base plate is the ultimate tool for secure and reliable vehicle towing.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
Yes, the BX1512 is designed specifically for 2006-11 Buick Lucerne vehicles. However, dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments such as filing holes, bending electrical rods or bending end plates may be necessary to compensate for manufacturer tolerances.
No. Due to the design of the removable tabs on the BX1512, the RangeFinderII and Ambassador tow bars cannot be used with this baseplate.
Most adapters cannot be used with the BX1512 baseplate. Only the BX8833 and BX88151 adapters are compatible. All other adapters are not supported.
The BX1512 attachment tabs are 12-1/2 inches in height and 30 inches in width.
Required tools are: 3/4" socket/wrench, 10mm socket, 13mm socket, 15mm socket, 13/32" drill bit, reciprocating saw, tape measure, utility knife, and Loctite RED. When using power drills, be aware of the dangers of torque and drill bit length.
The radiator cover, fascia, belly pan, and metal bumper must be removed for installation. The fascia support is trimmed. Bumper bracket bolts are not reinstalled. All removed pushpins and bolts should be set aside for reinstallation after baseplate installation is complete.
Yes, drilling is required. Using the 13/32" drill bit, you must drill two holes into the frame rail on each side of the vehicle to mount the 3/8"-16 nut plates. The endplate is used as a template for hole location.
Using a reciprocating saw, you must cut a rectangular area through the bumper bracket and frame rail. Mark horizontally below the upper portion of the bumper bracket and continue just beyond the lower bolt hole, then mark straight down until reaching the bottom of the frame rail. This vertical marking should be flush with the frame rail edge behind the bumper bracket.
Two trimming operations are required: (1) Remove three tabs from the lower edge of the fascia support using a utility knife. (2) Remove the fascia support from the back of the fascia, then starting 7-1/2" in from the fascia support's inside edge, cut vertically upward until stopped by molding, then cut horizontally until reaching the inside edge. Perform this on both sides of the vehicle. Reinstall the fascia support to the back of the fascia after trimming.
Yes, the trimming of the fascia support and fascia is permanent. When reinstalling the fascia on the vehicle, the fascia will need to be trimmed to fit the removable tabs through.
For 1/2" Grade 5 bolts, the torque specification is 78 foot-pounds. The manual states to tighten all bolts according to the torque chart on the front page of the installation instructions or page 3 of the Baseplate Towing General Instructions, and Loctite RED must be used on all bolts before tightening.
For 3/8" Grade 5 bolts, the torque specification is 33 foot-pounds. Loctite RED must be applied to all bolts before tightening.
For 1/4" Grade 5 bolts, the torque specification is 10 foot-pounds. Loctite RED must be applied before tightening.

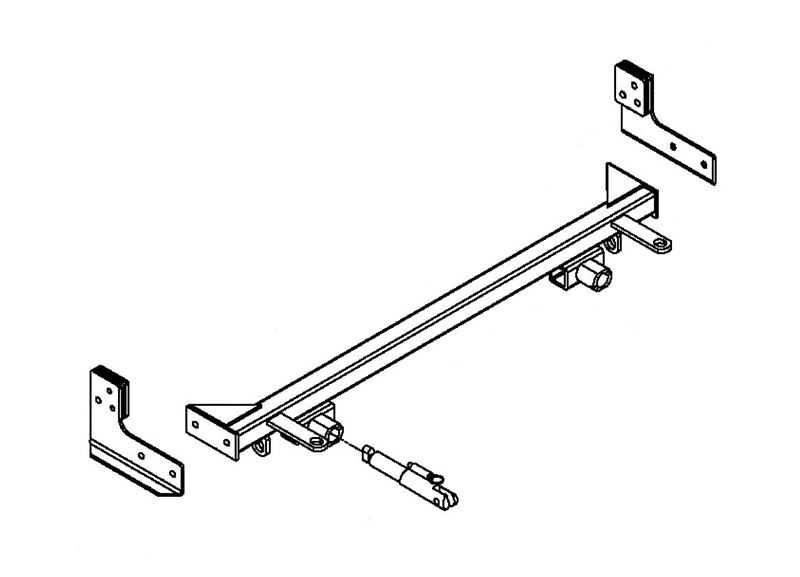

The kit includes: cross tube weldment (61-6302), two plate end weldments (61-6279, 61-6280), two 1/2-13 nut plates with 10" wire (61-3799), four 3/8-16 nut plates with 14" wire (61-5208), bolts in various sizes (1/2-13 x 2-1/2", 1/2-13 x 1-1/4", 3/8-16 x 2-1/2", 1/4-20 x 3/4", 3/8-16 x 1"), lock washers, flat washers, hex nuts, flange nuts, slot screws, electrical bracket (101-6135), 4-way connector adapters (101-5822), attachment assemblies (62-3469), baseplate safety cables (226-0046), quicklinks (229-0359), and receiver cap plugs (290-0437).
The BX8869 Bulb and Socket Wiring Kit is recommended for the 2006-11 Buick Lucerne, but not stated as required. The manual notes a possible location for the kit on the vehicle.
If the baseplate is in an accident, it must be replaced and not used again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. These cables must remain installed as long as the baseplate is installed and are to be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Do not mount the permanent baseplate safety cables against wires, hoses or brake lines. If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes, the attachment tabs should be removed when not in use.
Do not substitute homemade or non-typical parts on the baseplate. Use only genuine factory replacement parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Failing to follow these instructions or altering the installation instructions will void the manufacturer's warranty. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor.
Yes, towing behind a non-motorized vehicle will void the warranty.
Yes. Confirm the towability and pre-towing procedures for your vehicle with the owner's manual or contact the vehicle's manufacturer for specific towing procedures before attempting to install or operate this equipment.
Yes. Blue Ox towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Customer Care Department at (402) 385-3051.
Yes, the BX1512 is designed for 2006-11 Buick Lucerne. Minor adjustments may be needed for manufacturer tolerances.
Yes, drilling is required. You must drill two 13/32" holes per side into the frame rail using the endplate as a template.
3/4" and 10/13/15mm sockets, 13/32" drill bit, reciprocating saw, tape measure, utility knife, and Loctite RED.
Radiator cover, fascia, belly pan, and metal bumper must be removed. The fascia support is trimmed and bumper bracket bolts are not reinstalled.
1/2" Grade 5: 78 ft-lbs; 3/8" Grade 5: 33 ft-lbs; 1/4" Grade 5: 10 ft-lbs. Apply Loctite RED to all bolts before tightening.
If damaged or involved in an accident, the baseplate must be replaced and not reused. Do not use if damaged or missing parts.
Permanent baseplate safety cables are strongly recommended. They must connect from baseplate to frame rail and not be mounted against wires, hoses or brake lines.
RangeFinderII and Ambassador tow bars cannot be used. Only BX8833 and BX88151 adapters are compatible.
Ensure all electrical connections are plugged in properly and functioning before installing the fascia. If connections are not working, check that the tab-style connector is in its original location and the other connector is properly snapped in from the backside of its bracket. Verify both connections are fully seated before proceeding.
The dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may be necessary to compensate for manufacturer tolerances. These adjustments may include filing a hole slightly, bending electrical rods, or bending end plates. Ensure the top of the endplate is parallel with the frame rail before tightening bolts.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2006 - 2011 | Buick Lucerne | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Requires some trimming of the air dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
