1. High-Quality Material: Constructed from robust steel, offering maximum durability and longevity.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

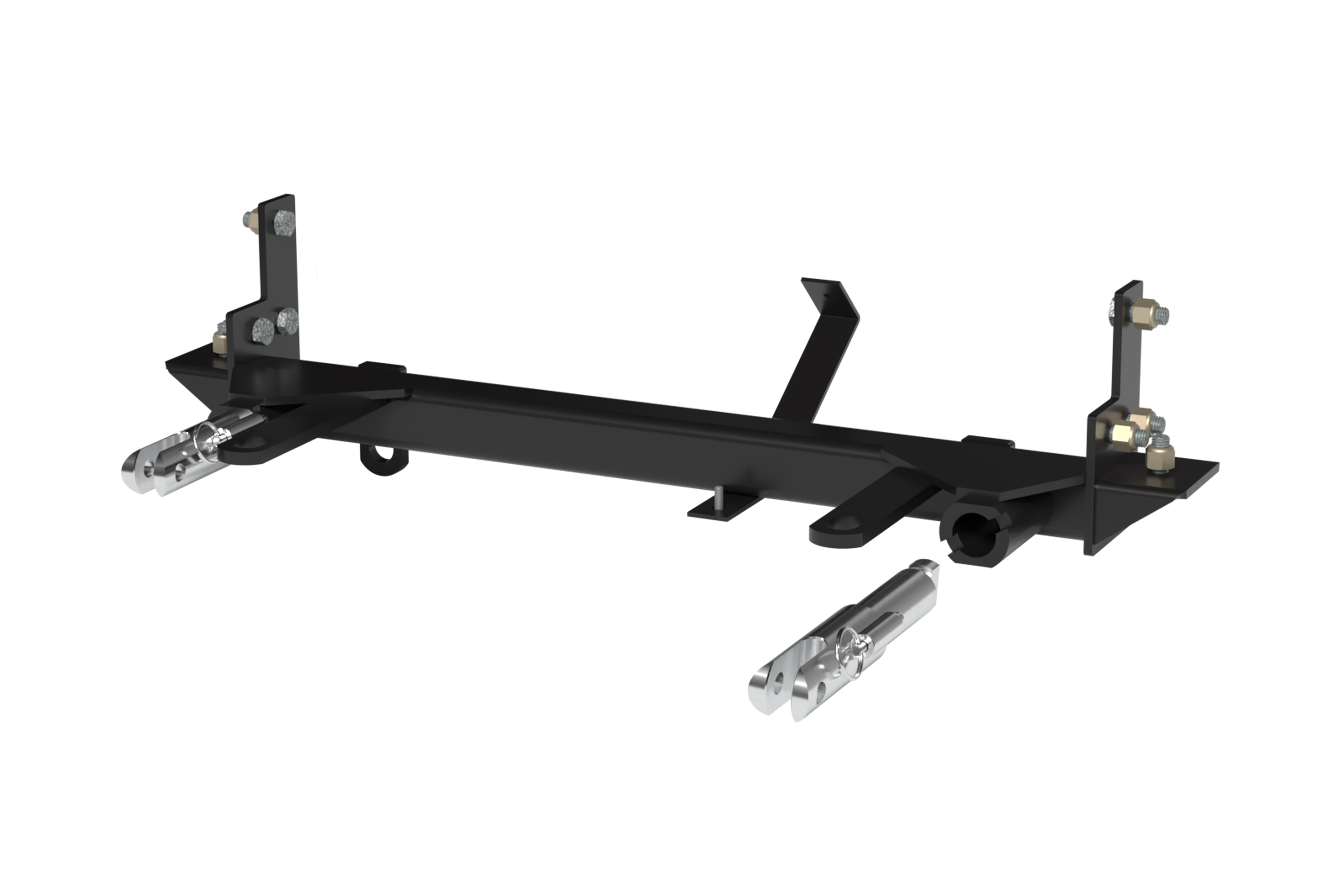

The Blue Ox BX1699 Tow Bar Bracket is an essential addition to any towing setup, offering a blend of durability, performance, and convenience. Made from high-quality steel with a sleek black powder coat finish, this bracket is designed to provide unparalleled strength and resistance against wear and tear. Custom-designed for each specific towed vehicle, it ensures a perfect fit and easy installation. The bracket comes with all necessary mounting hardware, facilitating a seamless do-it-yourself installation process. Enhance your towing experience with the Blue Ox BX1699 Tow Bar Bracket, combining toughness, precision, and user-friendliness.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2014 | Cadillac Escalade | Also Hybrid Comes with Removable Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |

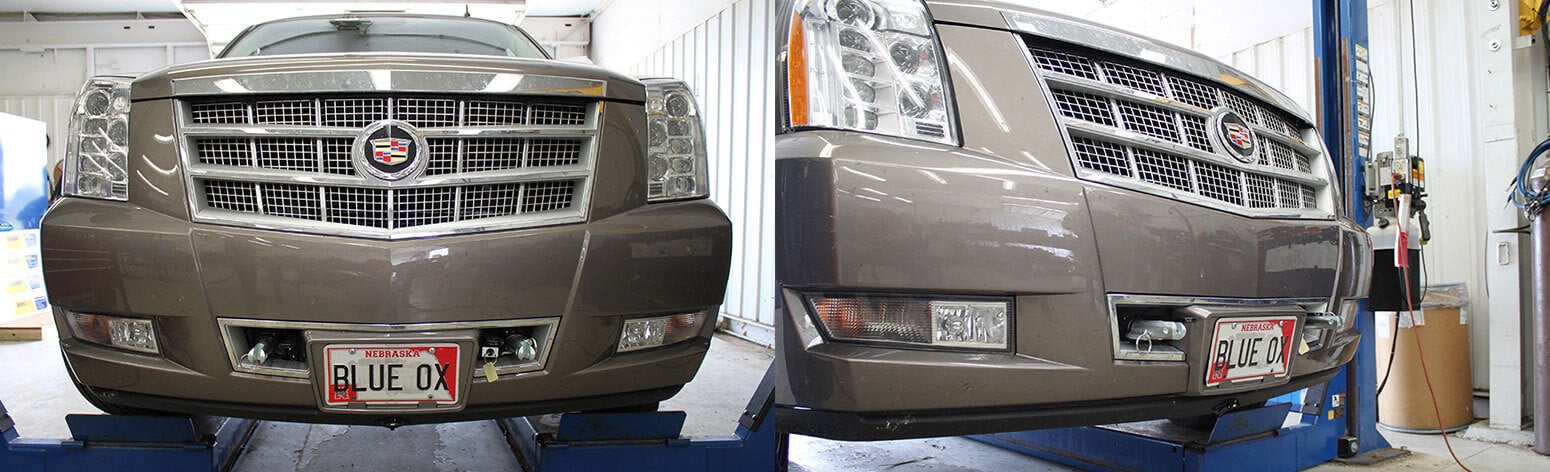

Yes, the BX1699 is designed specifically for the 2011-14 Cadillac Escalade Platinum, including hybrid models. The baseplate has an attachment tab height of 17 1/2" and width of 23 1/4". If the front of your vehicle looks different than the reference image in the manual, contact Blue Ox at (402) 385-3051 before proceeding with installation.
Tow bar adapters are not to be used with vehicles weighing over 5,000 lbs. You must confirm the weight of your individual vehicle before towing, as some models depending on options and load may exceed the weight rating of specific tow bars. Always ensure both your tow bar and hitch are adequately rated for your vehicle's overall weight. Contact Blue Ox or consult your vehicle's owner's manual for specific towing capacity information.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work. The installation involves removal and reinstallation of the fascia, radiator cover, and lower bumper support, as well as drilling and trimming. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051.
Required tools include: 7MM socket, 10MM socket, 7/16" socket, 3/4" socket, 15MM socket, 7/16" wrench, 3/4" wrench, flat screwdriver, drill, 17/32" drill bit, 1-1/2" hole saw, torque wrench, tape measure, utility knife, large vice grip, and Loctite RED. A power drill is used during installation; be aware of the dangers of torque and drill bit length when operating.
The kit includes: 1 weld mount (61-6934), 2 attachment tab assemblies (62-3469), 3 x 1/4-20 hex nylon nuts (202-0102), 3 x 1/4-20 x 3/4 hex bolts Grade 5 (201-0050), 8 x 1/2-13 x 1 1/4 hex bolts Grade 5 (201-0011), 8 x 1/2-13 hex nylon insert lock nuts (202-0094), 1 breakaway bracket (102-7245), 2 baseplate safety cables (226-0046), 2 quicklinks 3/8" (229-0359), and 2 black cap plugs (290-0437).
The fascia, radiator cover, and lower bumper support must be removed during installation and reinstalled after the baseplate is mounted. Specifically: remove nine push pins from the radiator cover on top of the fascia, remove six bolts from the fascia using a 10MM socket, remove two 7MM bolts and two push pins in front of each tire, and remove one 10MM bolt and one push pin directly in front of each tire underneath the fascia.
Yes, drilling is required. The baseplate uses existing bolt holes where possible, but additional holes must be drilled with a 17/32" drill bit to accommodate 1/2-13 x 1 1/4 hex bolts. Holes are drilled at the front of the baseplate (if existing holes do not align), at the bottom of the baseplate on both sides, and on the side plates of the baseplate on both sides. An optional 1-1/2" hole saw is used to drill through the fascia frame for an electrical connector if desired.
Yes, trimming is required. Using a utility knife, cut out the chrome webbing on the front of the fascia on both sides to accommodate the baseplate. After chrome trimming, trim the plastic on the backside of the fascia, then turn the fascia over and trim the second layer of plastic from the front side of the fascia.
The torque specification for 1/2-13 hex bolts is 78 foot-pounds for Grade 5 bolts and 119 foot-pounds for Grade 8 bolts. The BX1699 kit includes 1/2-13 x 1 1/4 hex bolts Grade 5. All bolts must be tightened with Loctite RED applied before tightening, and torqued according to the torque chart on the front page of the instructions.
The torque specification for 1/4-20 hex bolts is 10 foot-pounds for Grade 5 bolts and 14 foot-pounds for Grade 8 bolts. The BX1699 kit includes 1/4-20 x 3/4 hex bolts Grade 5 for the optional breakaway bracket. Apply Loctite RED before tightening.
Start with the front bolts on each side of the baseplate, using existing bolt holes in the frame as a guide. Ensure the baseplate is level and clamp with large vice grips. Insert 1/2-13 x 1 1/4 hex bolts with 1/2-13 hex nylon insert lock nuts, applying Loctite RED before tightening. Next, drill and install bolts at the bottom of the baseplate on both sides. Finally, drill and install the remaining two holes on the side plates of the baseplate on both sides. Confirm the baseplate remains level throughout.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The recommended installation secures the cables to the frame of the vehicle. Do this on both sides. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses, or brake lines. Be sure the safety cables do not rub against any hoses or moving parts. If additional options interfere with the suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables.
The breakaway bracket installation is optional. If you choose to install it, remove the driver's side bolt from the bellypan using a 15MM socket. Attach the breakaway bracket into the existing hole on the bellypan using the existing bolt, then attach the breakaway bracket to the fascia with a 1/4-20 x 3/4 hex bolt and 1/4-20 hex nylon nut.
The electrical connector installation is optional. To mount an electrical connector (not provided), drill a 1-1/2" hole through the bottom of the fascia frame in the center underneath the license plate frame. Insert the electrical adapter and use it as a template to drill additional holes on each side to attach with hardware. Ensure all electrical connections are plugged in properly and functioning before installing the fascia.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor.
Do not use the towed vehicle for storing luggage, equipment, etc. This may cause you to exceed the towing capacity of the tow bar, baseplate, and its accessories.
Before towing, ensure all electrical connections are plugged in properly and functioning. It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite RED on all bolts and tighten to the recommended specifications. Verify that the safety cables do not rub against any hoses or moving parts. Confirm the vehicle weight and that both your tow bar and hitch are adequately rated for the vehicle's overall weight.
The permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite RED on all bolts and tighten to the recommended specifications. Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines. Blue Ox offers a service technician program for a nominal fee to service your towing system to ensure it is in proper working condition.
The BX8848 Diode Wiring Kit is recommended for the 2011-14 Cadillac Escalade Platinum with the BX1699 baseplate. The manual does not specify whether it is required or optional, but recommends its use. Contact Blue Ox at (402) 385-3051 for specific guidance on whether this kit is necessary for your vehicle configuration.
The factory bolts removed from the radiator cover, fascia, and lower bumper support should be set aside and reinstalled when those components are reinstalled. However, for baseplate mounting, use only the hardware supplied in the hardware kit or existing hardware specified in the Baseplate Towing Installation Instructions. Do not assume existing holes and bolts are adequate for baseplate mounting. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5).
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Warranty coverage is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any claim. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint, or rust. Register your warranty at http://blueox.com/warranty/.
Yes, the BX1699 is designed for 2011-14 Cadillac Escalade Platinum models including hybrid versions. Attachment tabs are 17 1/2" high and 23 1/4" wide. If your vehicle's front looks different, call Blue Ox at (402) 385-3051.
You will need: sockets (7MM, 10MM, 7/16", 3/4", 15MM), wrenches (7/16", 3/4"), drill with 17/32" bit and 1-1/2" hole saw, torque wrench, tape measure, utility knife, large vice grip, flat screwdriver, and Loctite RED.
Yes. Drilling is required with a 17/32" drill bit for baseplate mounting holes. Trimming is required: cut chrome webbing on the front fascia with a utility knife, then trim plastic on both sides of the fascia.
Tighten 1/2-13 Grade 5 bolts to 78 foot-pounds. Apply Loctite RED before tightening all bolts.
If the baseplate is in an accident or damaged, it must be replaced. Do not use it again, as unseen damage could cause separation of the towed vehicle.
Yes. The fascia, radiator cover, and lower bumper support must be removed during installation and reinstalled after the baseplate is mounted.
Yes. Blue Ox recommends installation by Blue Ox Dealers who have the equipment and knowledge for fit work. Find a dealer at www.blueox.com or call (402) 385-3051.
If existing bolt holes need to be drilled to accommodate the baseplate, use a 17/32" drill bit to accommodate the 1/2-13 x 1 1/4 hex bolts. Ensure the baseplate remains level while drilling. The manual notes that dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments such as filing a hole slightly, bending electrical rods, or bending end plates may be necessary to compensate for auto manufacturer's tolerances.
After clamping the baseplate with large vice grips, confirm that the baseplate is level. If it is not level, reposition the baseplate and re-clamp. The manual specifically instructs to "confirm baseplate remains level" when drilling the bottom holes on both sides. If the baseplate cannot be leveled, contact Blue Ox at (402) 385-3051 for assistance.
Be sure the safety cables do not rub against any hoses or moving parts. If they do, reposition the cables. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines. If additional options interfere with the suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables.
