Custom designed: Each base plate is specifically designed to fit a range of towed vehicles, ensuring a perfect and secure fit.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

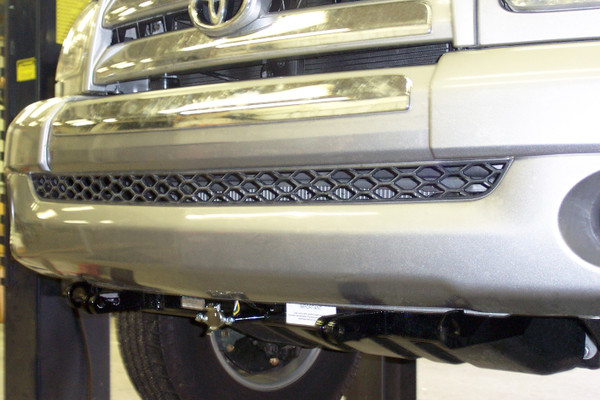

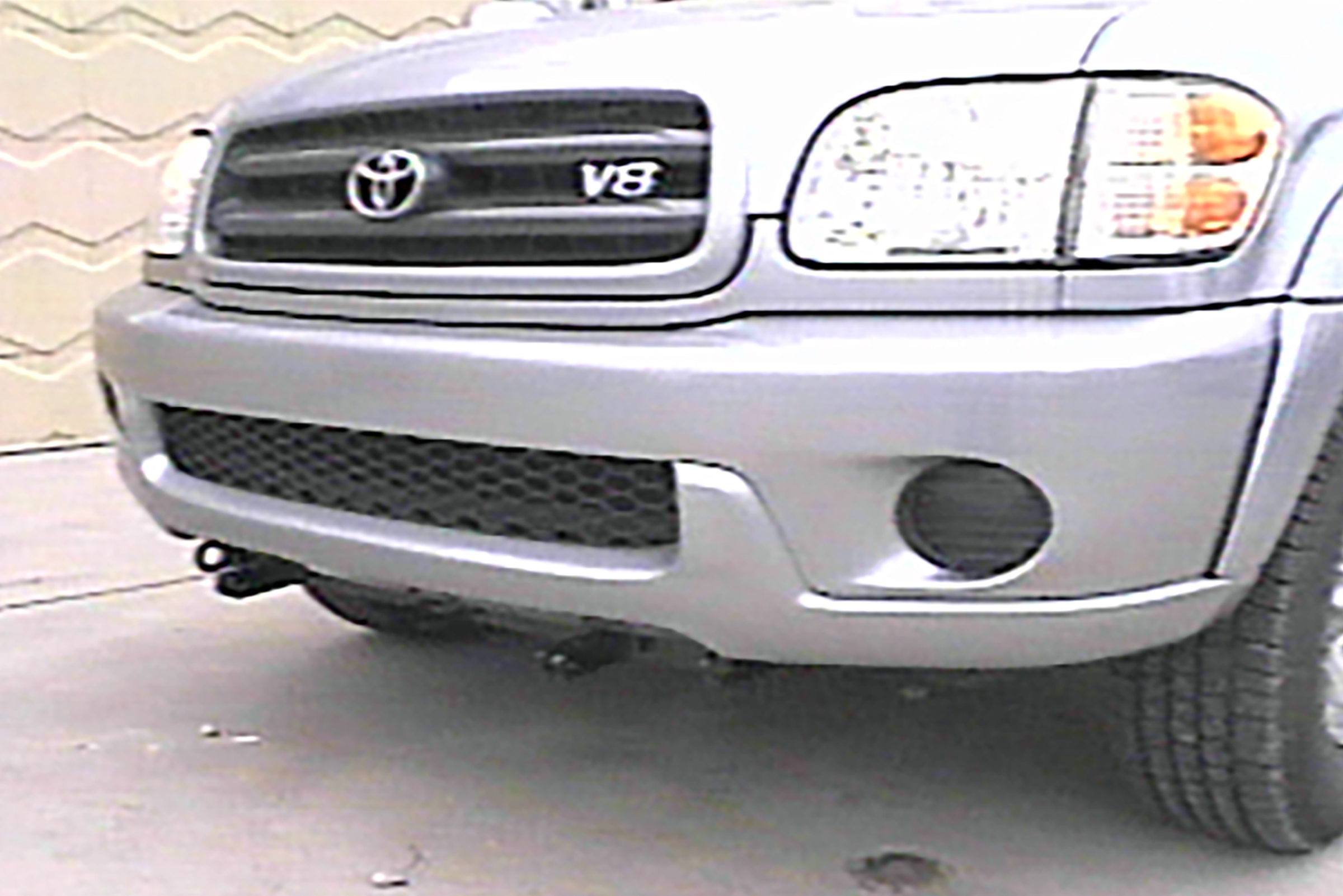

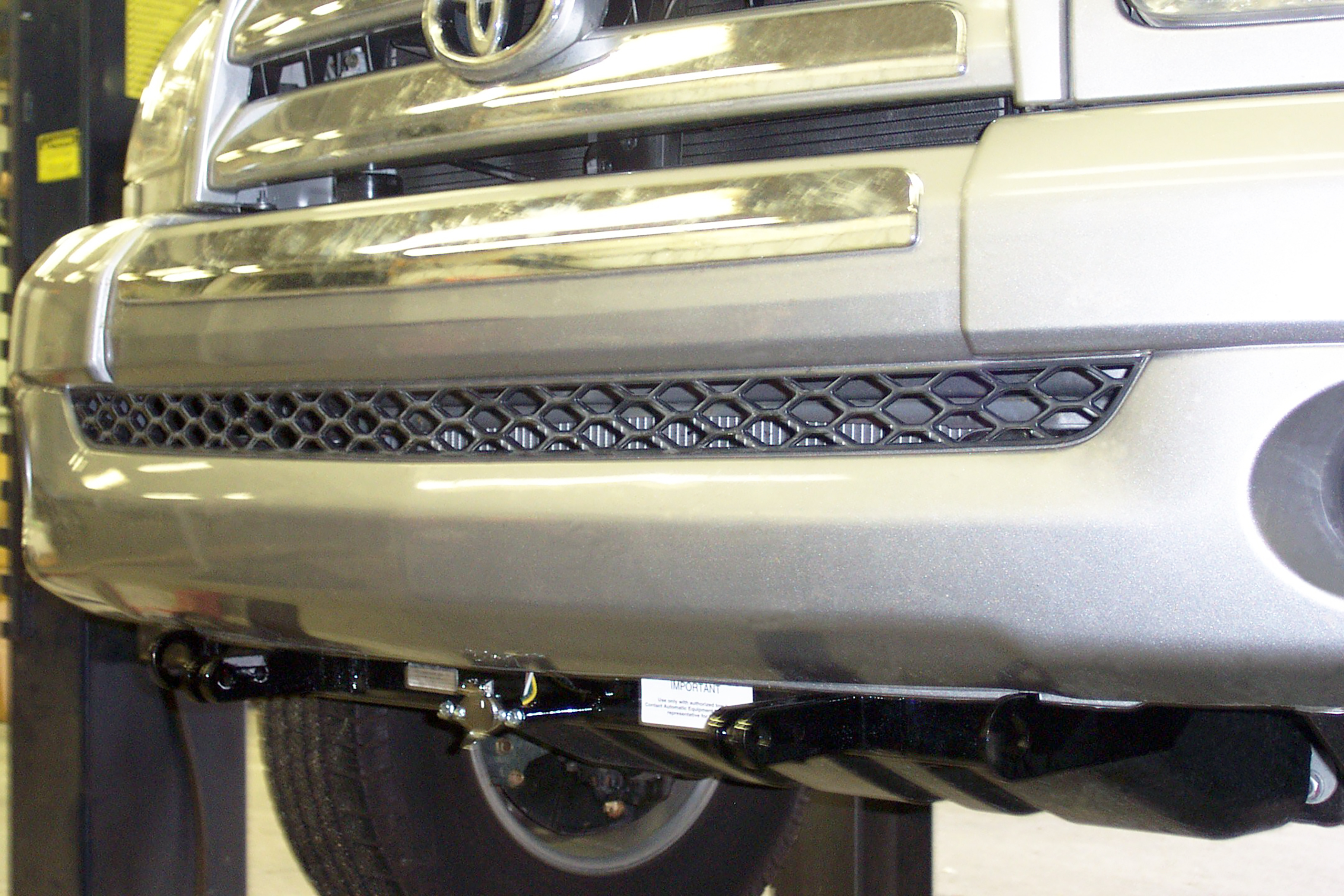

The Blue Ox BX3745 Tow Bar Bracket is a top-of-the-line base plate custom-designed to fit a wide range of towed vehicles. Crafted from robust steel and finished with a sleek black powder coat, this bracket offers durability and style. The product comes with a bolt-on mounting type, allowing for a straightforward, do-it-yourself installation, thanks to the included hardware and comprehensive instructions. This Blue Ox Tow Bar Bracket is the perfect blend of strength, convenience, and aesthetic appeal.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2001 - 2004 | Toyota Sequoia | Comes with Standard Attachment Tabs Install Rating 1 Minor Drilling Required |
| 2003 - 2006 | Toyota Tundra | Comes with Standard Attachment Tabs Install Rating 1 Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight. Height Deviation up to 4” higher on the Towing Vehicle Allowed When Used for Utility Applications Only with an Allure Tow Bar |
The BX3745 baseplate is designed for 2001–04 Toyota Sequoia 4WD and 2003–06 Toyota Tundra 2WD/4WD models. If your vehicle is outside these model years or is a different model, this baseplate will not fit.

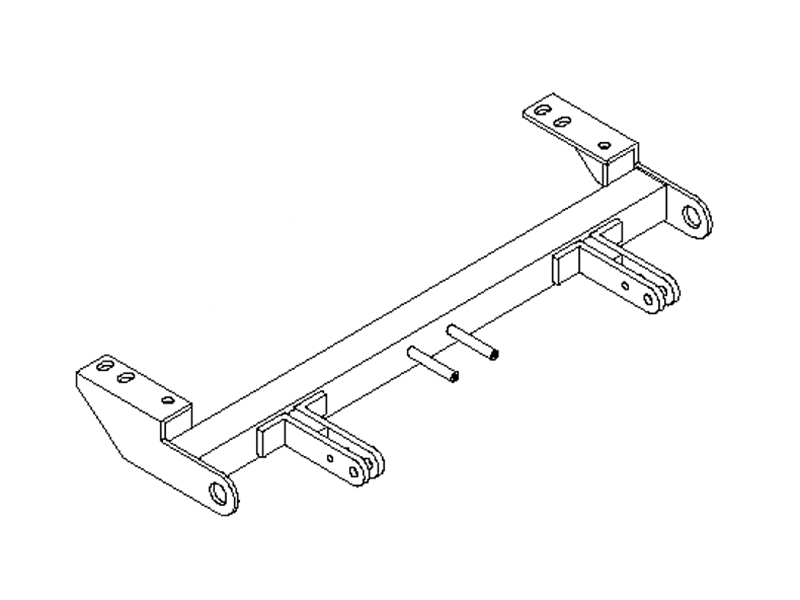

The kit includes the baseplate weldment (61-5625), two 1/2" nut plates with 18" wire (61-5496), two 1/2-13 Grade 5 hex bolts (201-0051), two 1/2" lock washers (203-0012), two #12-14 x 1" self-drilling screws (201-0979), two #10-32 hex nuts (202-0047), two #10 lock washers (203-0054), two #10-32 x 1/2" slot round-head screws (201-0192), two 4-way connector adapters (101-5822), two 36" CL IV baseplate safety cables (226-0049), and four 1/2" quicklinks (229-0512). The kit also reuses two existing factory bolts.
You will need a 17MM socket, a 3/4" socket, a 17/32" drill bit, and Loctite Red. These are the tools specified in the manual's Tools Required section.
Yes. The factory tie-down bracket and tow hook must be removed and then reinstalled as part of the baseplate installation. You will remove two metric bolts from the driver's side using a 17MM socket and two metric bolts from the passenger side using a 17MM socket.
Yes, drilling is required. You will use the baseplate as a template to drill holes with a 17/32" drill bit on both sides of the frame. The manual notes that some drilling is required and that dimensional variations between vehicles may necessitate filing a hole slightly to ensure proper fit.
1. Remove the two metric bolts from the factory tie-down bracket on the driver's side using a 17MM socket. 2. Remove the two metric bolts from the factory tow bracket on the passenger side using a 17MM socket. 3. Hold the baseplate in place and tighten the existing bolts using Loctite Red. Using the baseplate as a template, drill holes with a 17/32" drill bit on both sides. 4. Insert the nut plates (item 2) into the holes on the frame sides to align with the drilled holes. Tighten the hex bolts (items 3 and 4) into the nut plates using Loctite Red on all bolts. 5. File any holes slightly if necessary due to dimensional variations. 6. Install the tow bar and safety cables according to their included instructions.
The attachment tabs are 24 inches center to center and positioned at 14 inches height.
Yes. The manual explicitly states to use Loctite Red on all bolts before tightening. This applies to both the existing bolts when holding the baseplate in place and the hex bolts inserted into the nut plates.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX3745 kit includes two 36" CL IV baseplate safety cables (226-0049) and four 1/2" quicklinks (229-0512) for this purpose. These cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses, or brake lines. Permanent baseplate safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The installer must watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed and comes into contact with a wire or hose, it could cause fluid leaks or electrical shorts some time after installation. Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines.
The BX8869 bulb and socket kit is recommended for the BX3745 on Toyota Sequoia and Tundra vehicles. The manual indicates the location for the BX8869 on the passenger's side taillight assembly for 2004 models, but does not state whether it is required or optional.
Yes, the two existing factory bolts are reused during installation. However, if a bolt is lost or needs replacement, you must use a replacement bolt of the same grade, usually Grade 5. Use only genuine factory replacement parts; do not substitute homemade or nontypical parts. Replacement bolts may be ordered through your nearest Blue Ox dealer or distributor.
The manual notes that dimensional variations between otherwise identical vehicles can be considerable. While the baseplate holes were designed to allow for easy installation, it may be necessary to file a hole slightly to ensure proper fit.
Do not substitute other devices if the tow bar pin or clip is lost. Install the tow bar and safety cables according to the instructions included in their packages.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten them to the recommended specifications. The attachment tabs should be removed when not in use, if applicable.
Yes. Blue Ox recommends that you register your product online at www.blueox.com. Registration is crucial so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
The BX3745 fits 2001–04 Toyota Sequoia 4WD and 2003–06 Toyota Tundra 2WD/4WD.
You will need a 17MM socket, 3/4" socket, 17/32" drill bit, and Loctite Red.
Yes, drilling is required. You will drill holes with a 17/32" drill bit on both sides of the frame using the baseplate as a template.
Yes, use Loctite Red on all bolts before tightening.
Yes, the kit includes two 36" CL IV baseplate safety cables and four 1/2" quicklinks. These cables are strongly recommended and must be used in conjunction with, not as a replacement for, legally required safety cables.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to recommended specifications with Loctite Red.
