CURT Electrical Adapter with Tester (6-Way Round Vehicle to 4-Way Flat Trailer) Trailer Wiring Adapter ConnectorCURT$21.99In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Warranty: One-Year Limited Warranty
Installation Time Exact (Minutes): 0
There are several different types of connectors used to supply power from a tow vehicle's electrical system to a trailer's wiring system. Some trailers only need the bare essentials -- running lights, brake lights and turn signals -- while others require a connection for reverse lights, electric brakes and auxiliary power. With connectors ranging from simple to complex, it may be the case that the connection between your vehicle and your trailer is not a perfect match. For example, your truck may be equipped with a 6-way round socket, but your trailer may have a 4-way flat plug. For this very common problem, CURT offers a quick and simple solution in the form of an electrical adapter. An adapter is an electrical device that allows a connection to be made between a mismatched trailer plug and vehicle socket. It easily plugs in your vehicle's electrical socket and usually requires no additional wiring. CURT offers an array of adapters to accommodate most types of plugs and sockets, including 4-way flat, 4-way round, 5-way flat, 6-way round, 7-way RV blades and more. This electrical adapter is designed to adapt a 4-way flat vehicle socket to fit a 6-way round trailer plug. Some manual wiring is required. It comes with an integrated electrical tester, a mounting bracket and all necessary hardware for a complete installation. All CURT wiring and electrical products come with a one-year limited warranty to give you the assurance you need to tow with confidence.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products

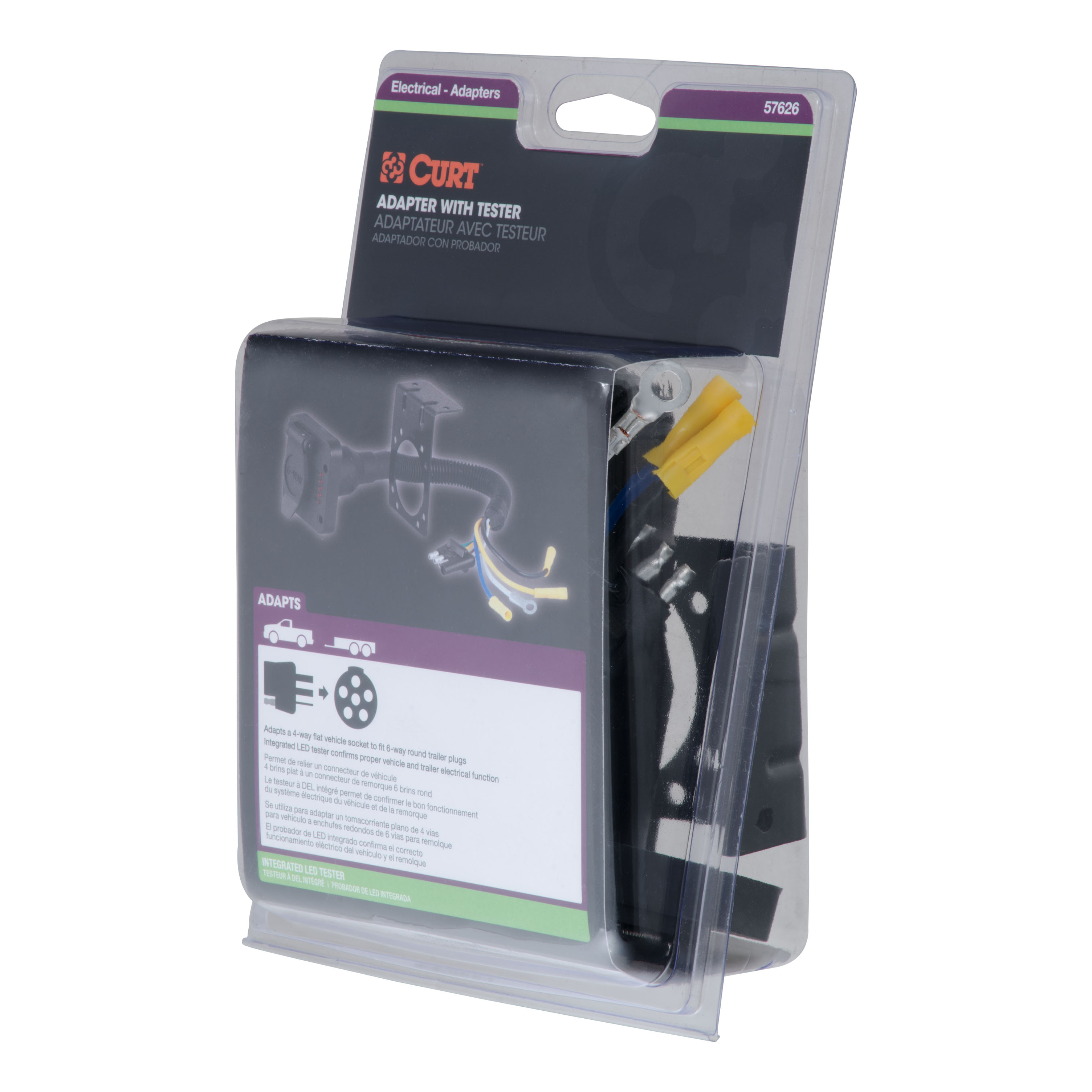

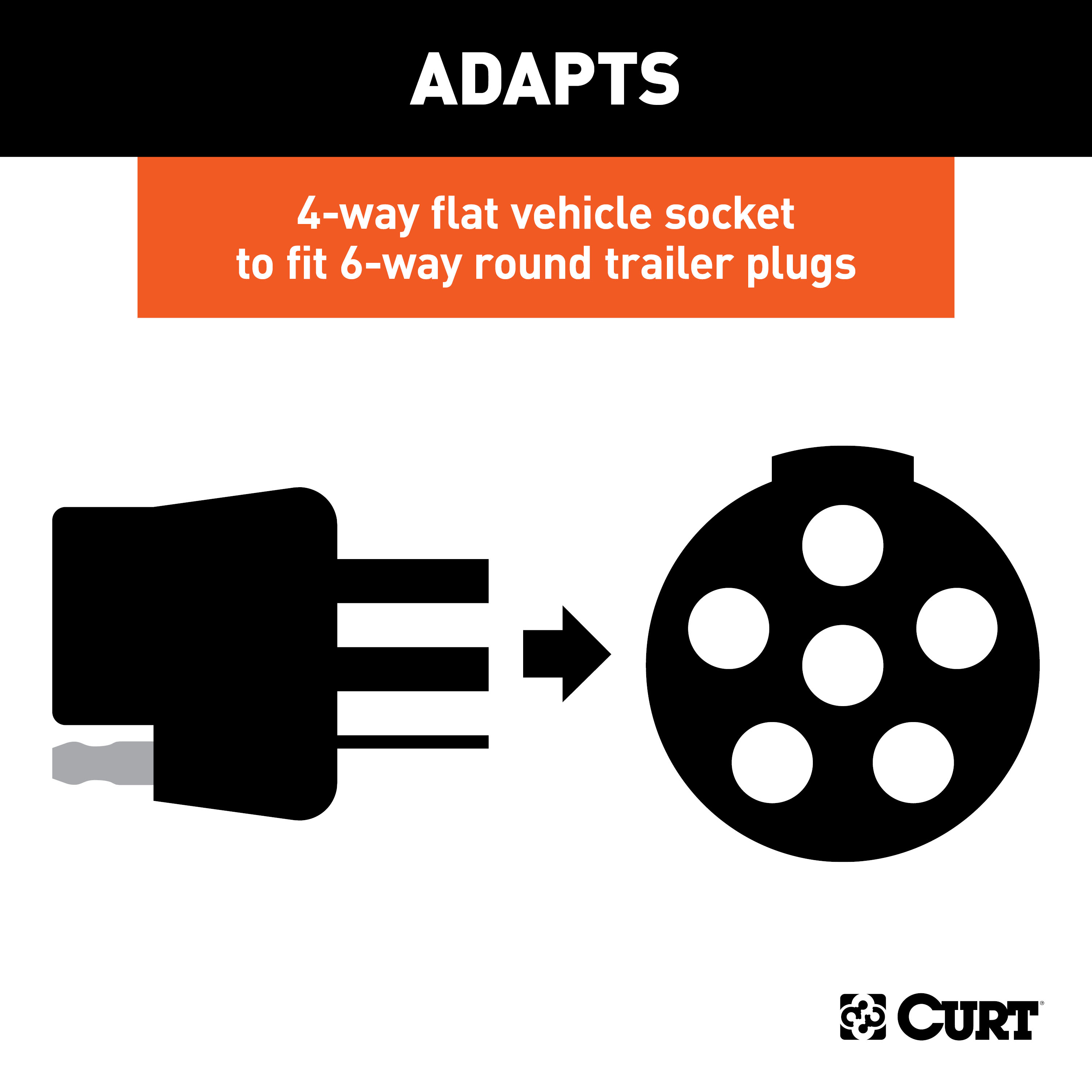

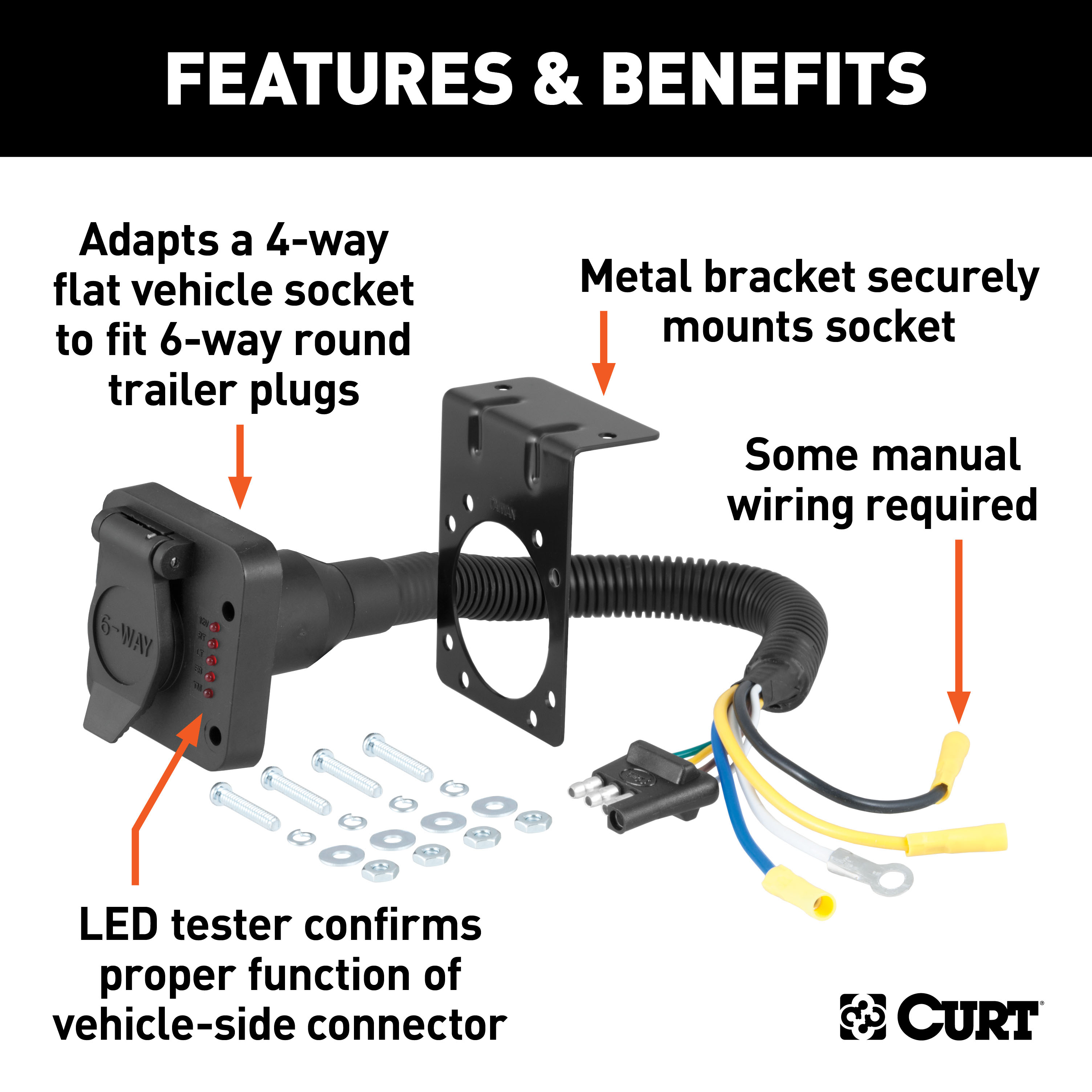

The Curt 57626 is a 4-way flat to 6-way round electrical adapter with a mounting bracket. It converts the 4-way flat connector on your tow vehicle to a 6-way round connector for your trailer, allowing you to connect trailers with 6-way round plugs to vehicles with 4-way flat connectors.
Yes. The 57626 requires your vehicle to be equipped with a 4-way flat trailer connector. If your vehicle does not have a 4-way flat connector, you will need to install a custom wiring harness or other 4-way flat trailer connector before installing the adapter.
Both convert 4-way flat to 6-way round. The 57626 includes a mounting bracket; the 57183 does not. Choose 57626 if you need a bracket for mounting the adapter on your vehicle.
No. The 57626 converts to a 6-way round connector only. For 7-way RV blade trailers, use part number 57185 or 57676 instead.
You will need: 1/8" drill bit, drill, Phillips screwdriver, wire stripper, cutting tool, terminal crimpers, and a test light. The manual also lists three #10 - 1/2" self-tapping screws as required, though these are noted as not included.
No. Three #10 - 1/2" self-tapping screws are required but not included in the package. You will need to obtain these separately for mounting the bracket and grounding wire.
Mount the bracket on the vehicle's bumper or other suitable surface. The mounting location must be within reach of the trailer's wiring harness and positioned near the center of the vehicle so the connectors can be easily accessed and connected.
No. The manual explicitly warns: never attach the mounting bracket directly to the hitch by cutting, welding or drilling into the hitch. Mount it to the bumper or other suitable vehicle surface instead.
Drill 1/8" holes using the bracket as a template. Use a 1/8" drill bit. The same 1/8" hole size is used for the grounding point.
Before drilling, be sure of what is behind the surface. Check for brake lines, fuel lines, wiring or any other components that may harm the vehicle's operation. The manual warns to check for miscellaneous items hidden behind or under any surface to avoid damage and personal injury.
Use 12 gauge (minimum) wire with butt-connectors to connect the remaining wires to the appropriate functions. This applies to the yellow (auxiliary/back-up lights), blue (electric brakes), and black (positive power) wires.
The yellow wire connects to auxiliary or back-up lights on the trailer.
The blue wire connects to electric brakes on the trailer.
The black wire provides positive power (+) to the trailer and must be connected with an appropriate inline fuse.
The white wire is the ground connection (-). It must be attached with a ring terminal to a 1/8" hole drilled in a suitable grounding point on the vehicle using a #10 - 1/2" self-tapping screw. This ground connection is required for the harness to work properly. The white wire on the vehicle's 4-way flat connector will not support the ground functions of the combination harness.
Determine a suitable grounding point within reach of the combination harness. The area must be clean of dirt, debris or undercoating. Drill a 1/8" hole at this location and attach the white wire with its ring terminal using a #10 - 1/2" self-tapping screw.
Proper grounding is required for the harness to work properly. Failing to properly ground the product can cause loss of warranty, overheating and potential fire.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. The manual does not specify the exact product rating; refer to the product documentation or contact Curt Manufacturing at 1.877.287.8634 for this specification.
Confirm proper function with a test light or by using a properly functioning trailer. This verifies that all wiring connections are correct and the adapter is working before towing.
Secure any loose wires by using cable ties or equivalent product to prevent them from moving, catching on components, or becoming damaged.
The 57626 fits vehicles with a 4-way flat trailer connector. It converts to a 6-way round connector. If your vehicle does not have a 4-way flat connector, you will need to install one first.
You must purchase three #10 - 1/2" self-tapping screws (not included). You will also need 12 gauge minimum wire, butt-connectors, and an appropriate inline fuse for the black (positive) wire.
Yes. You must drill two 1/8" holes: one for the mounting bracket and one for the grounding wire. Always check for brake lines, fuel lines and wiring before drilling.
Use 12 gauge (minimum) wire with butt-connectors. The black (positive) wire must include an appropriate inline fuse.
Yes. The white wire must be grounded to a clean, suitable point on the vehicle using a #10 - 1/2" self-tapping screw in a 1/8" hole. Proper grounding is required for the harness to work and to avoid overheating and fire.
Test with a test light or a properly functioning trailer to confirm all functions work before towing.
| Part # | From Vehicle | To Trailer | Notes | Material |
|---|---|---|---|---|
| Single Output | ||||
| 57184 | 4-way flat | 7-way RV blade | See mounting brackets on pages 127 and 128 | Plastic |
| 57183 | 4-way flat | 6-way round | See mounting brackets on pages 127 and 128 | Die-cast |
| 57185 | 4-way flat | 7-way RV blade | Includes mounting bracket | Steel |
| 57186 | 4-way flat | 7-way RV blade | Includes wiring and components to splice in a brake controller connection | Plastic |
| 57506 | 4-way flat | 7-way RV blade | Ideal for towing a boat trailer with surge brakes | Plastic |
| 57626 | 4-way flat | 6-way round | Integrated test lamps display proper connections | Plastic |
| 57676 | 4-way flat | 7-way RV blade | Integrated test lamps display proper connections | Plastic |
| 56476 | 4-way flat | USCAR socket | Pair with #57015 for 4-way and 7-way RV blade output. See page 112 | Plastic |
| Dual Output | ||||
| 57604 | 4-way flat | 4-way flat | -- | Plastic |
| 57624 | 4-way flat | 6-way round | Integrated test lamps display proper connections | Plastic |
| 57627 | 4-way flat | 6-way round | -- | Plastic |
| 57674 | 4-way flat | 7-way RV blade | Integrated test lamps display proper connections | Plastic |
| 57102 | 4-way flat | 7-way RV blade | Audible back-up alarm when vehicle in reverse (97 decibels) | Plastic |
