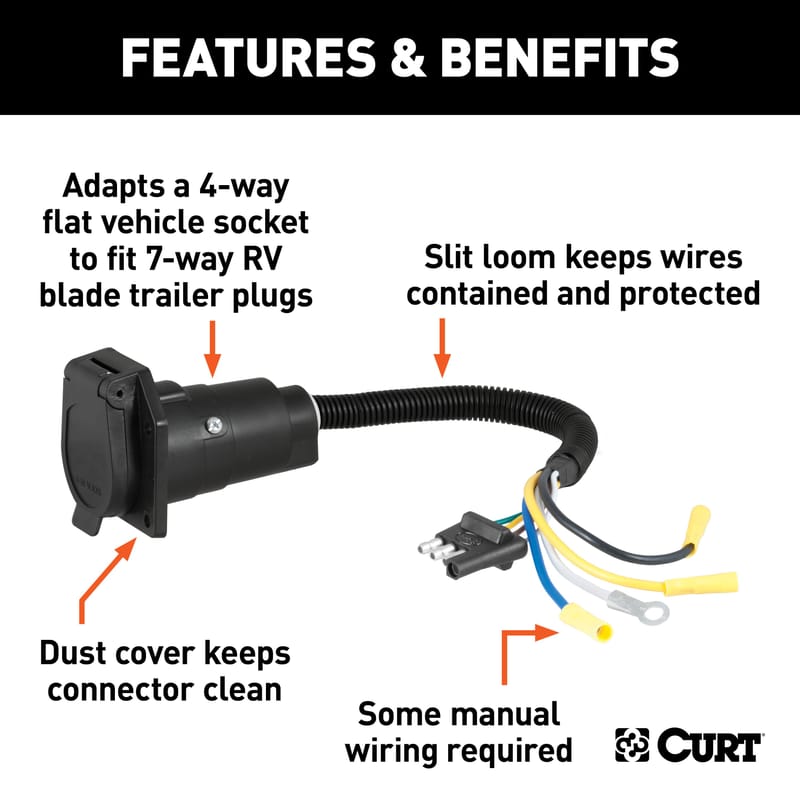

Some manual wiring required
Warranty: One-Year Limited Warranty
Installation Time Exact (Minutes): 0

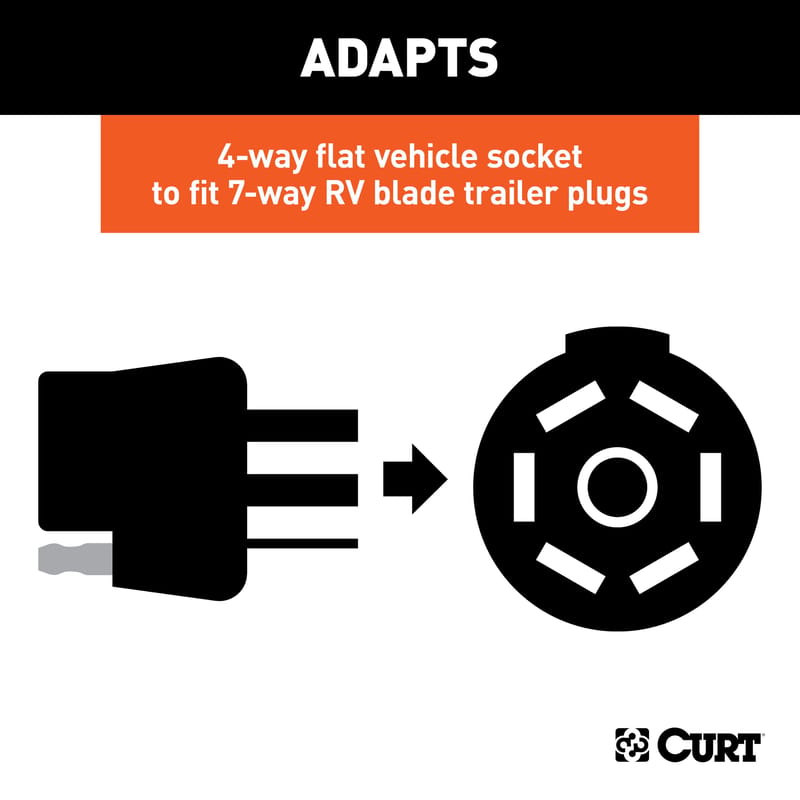

There are several different types of connectors used to supply power from a tow vehicle's electrical system to a trailer's wiring system. Some trailers only need the bare essentials -- running lights, brake lights and turn signals -- while others require a connection for reverse lights, electric brakes and auxiliary power. With connectors ranging from simple to complex, it may be the case that the connection between your vehicle and your trailer is not a perfect match. For example, your truck may be equipped with a 6-way round socket, but your trailer may have a 4-way flat plug. For this very common problem, CURT offers a quick and simple solution in the form of an electrical adapter. An adapter is an electrical device that allows a connection to be made between a mismatched trailer plug and vehicle socket. It easily plugs in your vehicle's electrical socket and usually requires no additional wiring. CURT offers an array of adapters to accommodate most types of plugs and sockets, including 4-way flat, 4-way round, 5-way flat, 6-way round, 7-way RV blades and more. This electrical adapter is designed to adapt a 4-way flat vehicle socket to fit a 7-way RV blade trailer plug. It is constructed from quality plastic and requires some splicing. All CURT wiring and electrical products come with a one-year limited warranty to give you the assurance you need to tow with confidence.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The 4-way flat electrical adapter converts a vehicle's factory 4-way flat trailer connector to a 6-way round, 7-way RV blade, or dual 4-way flat connector. This allows you to connect trailers with different connector types to your tow vehicle. The adapter harness carries tail lights, stop lights, turn signals, auxiliary/back-up lights, and electric brake functions.
Yes. Your vehicle must be equipped with a 4-way flat trailer connector. If your vehicle does not have one, you will need to install a custom wiring harness or other 4-way flat trailer connector before installing this adapter.
Single output adapters convert to either 6-way round or 7-way RV blade. Dual output adapters provide two 4-way flat connectors plus either a 6-way round or 7-way RV blade connector. Part numbers 57184 and 57183 are single output without a mounting bracket. Part numbers 57185, 57626, 57676, 57604, 57624, 57672, 57674, and 57102 include a mounting bracket.
Some models include a mounting bracket and some do not. Part numbers 57184 and 57183 do not include a bracket. All other part numbers (57185, 57626, 57676, 57604, 57624, 57672, 57674, 57102) include a mounting bracket.
You will need: 1/8" drill bit, drill, Phillips screwdriver, wire stripper, cutting tool, terminal crimpers, and a test light. The manual also lists three #10 - 1/2" self-tapping screws as required hardware (not included with the product).
No. You will need to supply three #10 - 1/2" self-tapping screws to secure the mounting bracket to the vehicle. These are not included with the product.
Mount the combination harness on the tow vehicle's bumper or other suitable surface. The mounting location must be within reach of the trailer's wiring harness and positioned near the center of the vehicle. If your adapter includes a mounting bracket, use it as a template to mark the drilling locations.
Drill 1/8" holes into the mounting surface using the bracket as a template. You will also need to drill a separate 1/8" hole for the grounding screw at a suitable grounding point within reach of the combination harness.
Yes. You must drill 1/8" holes for the mounting bracket and a separate 1/8" hole for the ground connection. Before drilling, check for brake lines, fuel lines, wiring and other components that could be damaged.
Before drilling, be sure of what is behind the surface you are drilling into. Stay clear of brake lines, fuel lines, wiring or any other components that may harm the vehicle's operation. The manual warns to check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and personal injury.
No. Never attach the mounting bracket directly to the hitch by cutting, welding or drilling into the hitch. The bracket must be attached to the vehicle's bumper or other suitable surface.
Use 12 gauge (minimum) wire with butt-connectors to connect the remaining wires to the appropriate functions. The manual specifies this minimum gauge for all wire connections.
Yellow wire: Auxiliary or back-up lights. Blue wire: Electric brakes. Black wire: Positive power (+) with appropriate inline fuse. White wire: Ground connection (required for proper operation).
Yes, grounding is required. The white wire with ring terminal must be attached to a 1/8" hole drilled at a clean grounding point using a #10 - 1/2" self-tapping screw. The vehicle's 4-way flat connector white wire cannot support the ground functions of the adapter.
Yes. The black wire (positive power) must be connected with an appropriate inline fuse. The manual does not specify the fuse amperage; consult the manufacturer or your vehicle's electrical specifications.
Use a wire stripper to strip the wire insulation, then use terminal crimpers to attach butt-connectors to the ends of the wires. Connect the wires to the appropriate functions as listed in the manual. Secure any loose wires using cable ties or equivalent product.
For the 6- or 7-way connector, feed the entire harness through the large mounting hole in the bracket and position the connector against the face of the mounting bracket. Attach the connector using the supplied mounting hardware. Slide the 4-way flat connector into the side mounting slot until it is secured in place.
Plug the combination harness's trailer-style 4-way flat connector into the tow vehicle's 4-way flat connector. This connection provides the tail lights, stop lights and turn signal functions. Confirm proper function with a test light or by using a properly functioning trailer.
Confirm proper function with a test light or by using a properly functioning trailer. This verifies that all connections are working correctly before towing.
Failing to properly ground the product can cause loss of warranty, overheating and potential fire. Proper grounding is essential for safe operation. The white wire must be attached to a clean grounding point with a #10 - 1/2" self-tapping screw.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding either rating may damage the adapter or the vehicle's electrical system.
Determine a suitable grounding point within reach of the combination harness. The area must be clean of any dirt, debris or undercoating before drilling the 1/8" hole. This ensures proper electrical contact for the ground connection.
| Part # | From Vehicle | To Trailer | Notes | Material |
|---|---|---|---|---|
| Single Output | ||||
| 57184 | 4-way flat | 7-way RV blade | See mounting brackets on pages 127 and 128 | Plastic |
| 57183 | 4-way flat | 6-way round | See mounting brackets on pages 127 and 128 | Die-cast |
| 57185 | 4-way flat | 7-way RV blade | Includes mounting bracket | Steel |
| 57186 | 4-way flat | 7-way RV blade | Includes wiring and components to splice in a brake controller connection | Plastic |
| 57506 | 4-way flat | 7-way RV blade | Ideal for towing a boat trailer with surge brakes | Plastic |

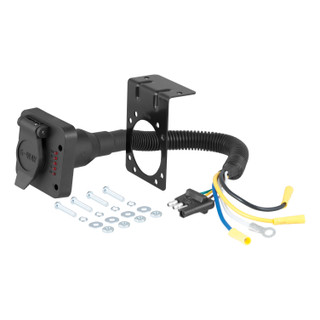

| 57626 | 4-way flat | 6-way round | Integrated test lamps display proper connections | Plastic |
| 57676 | 4-way flat | 7-way RV blade | Integrated test lamps display proper connections | Plastic |
| 56476 | 4-way flat | USCAR socket | Pair with #57015 for 4-way and 7-way RV blade output. See page 112 | Plastic |
| Dual Output | ||||

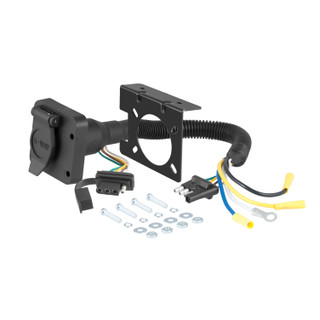

| 57604 | 4-way flat | 4-way flat | -- | Plastic |
| 57624 | 4-way flat | 6-way round | Integrated test lamps display proper connections | Plastic |
| 57627 | 4-way flat | 6-way round | -- | Plastic |
| 57674 | 4-way flat | 7-way RV blade | Integrated test lamps display proper connections | Plastic |
| 57102 | 4-way flat | 7-way RV blade | Audible back-up alarm when vehicle in reverse (97 decibels) | Plastic |
