Warranty: One-Year Limited Warranty
Installation Time Exact (Minutes): 0

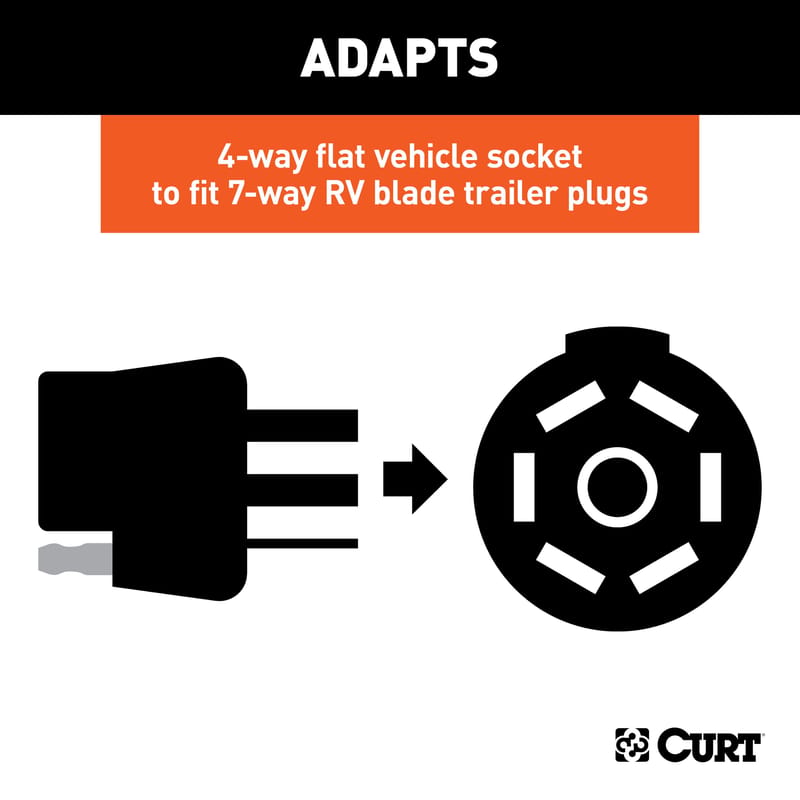

There are several different types of connectors used to supply power from a tow vehicle's electrical system to a trailer's wiring system. Some trailers only need the bare essentials -- running lights, brake lights and turn signals -- while others require a connection for reverse lights, electric brakes and auxiliary power. With connectors ranging from simple to complex, it may be the case that the connection between your vehicle and your trailer is not a perfect match. For example, your truck may be equipped with a 6-way round socket, but your trailer may have a 4-way flat plug. For this very common problem, CURT offers a quick and simple solution in the form of an electrical adapter. An adapter is an electrical device that allows a connection to be made between a mismatched trailer plug and vehicle socket. It easily plugs in your vehicle's electrical socket and usually requires no additional wiring. CURT offers an array of adapters to accommodate most types of plugs and sockets, including 4-way flat, 4-way round, 5-way flat, 6-way round, 7-way RV blades and more. This electrical adapter is designed to adapt a 4-way flat vehicle socket to fit a 7-way RV blade trailer plug. Some manual wiring is required. It comes with an integrated electrical tester, a mounting bracket and all necessary hardware for a complete installation. All CURT wiring and electrical products come with a one-year limited warranty to give you the assurance you need to tow with confidence.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The 4-way flat electrical adapter converts a vehicle's 4-way flat trailer connector to a 6-way round, 7-way RV blade, or dual 4-way flat connector. This allows you to connect trailers with different connector types to your vehicle. The adapter provides tail lights, stop lights, turn signal functions, and optionally electric brake and auxiliary/backup light functions depending on the model.
Yes. Your vehicle must be equipped with a 4-way flat trailer connector. If your vehicle does not have one, you will need to install a custom wiring harness or other 4-way flat trailer connector before installing this adapter.
Single output models convert the 4-way flat to either a 7-way RV blade (part numbers 57184, 57185, 57676) or a 6-way round (part numbers 57183, 57626). Dual output models provide a 4-way flat output plus either a 6-way round (57604, 57624) or 7-way RV blade (57672, 57674, 57102).
Models 57185, 57626, 57676, 57604, 57624, 57672, 57674, and 57102 include a mounting bracket. Models 57184 and 57183 do not include a mounting bracket.
You will need: a 1/8" drill bit, drill, Phillips screwdriver, wire stripper, cutting tool, terminal crimpers, and a test light. You will also need three self-tapping screws (#10 - 1/2") to secure the mounting bracket and ground wire, though these are not included in the kit.
No. Three self-tapping screws (#10 - 1/2") are required but not included. You will need to supply these screws to secure the mounting bracket and ground wire connection.
Mount the combination harness on the tow vehicle's bumper or other suitable surface. The mounting location must be within reach of the trailer's wiring harness and positioned near the center of the vehicle. Do not attach the mounting bracket directly to the hitch by cutting, welding, or drilling into it.
Yes. You must drill two 1/8" holes: one for the mounting bracket and one for the ground wire connection. Before drilling, check carefully for brake lines, fuel lines, wiring, or other components that may be hidden behind or under the surface to avoid damage and personal injury.
Both holes are 1/8" diameter. One hole is drilled for the mounting bracket, and a second 1/8" hole is drilled at a suitable grounding point to attach the white ground wire with a #10 - 1/2" self-tapping screw.
Yellow wire = Auxiliary or backup lights; Blue wire = Electric brakes; Black wire = Positive power (+) with appropriate inline fuse; White wire = Ground (-). The white wire must be connected to a clean, bare metal grounding point on the vehicle using a #10 - 1/2" self-tapping screw. The white wire on the vehicle's 4-way flat connector will not support the ground functions of the adapter.
Use 12 gauge (minimum) wire for all connections. Connect the wires using butt connectors to the appropriate vehicle functions.
Yes. The black wire (positive power) must be connected with an appropriate inline fuse. The manual does not specify the fuse amperage; consult the manufacturer or your vehicle's electrical specifications.
Proper grounding is required for the harness to work properly. Failing to properly ground the product can cause loss of warranty, overheating, and potential fire. The white ground wire must be attached to a clean, bare metal grounding point using a #10 - 1/2" self-tapping screw. The white wire on the vehicle's 4-way flat connector will not support the ground functions of the adapter.
Before drilling, check carefully for brake lines, fuel lines, wiring, or any other components that may be hidden behind or under the surface. Drilling into these components can cause damage and personal injury. Ensure the area where you will drill is clean of dirt, debris, and undercoating.
No. Never attach the mounting bracket directly to the hitch by cutting, welding, or drilling into the hitch. Mount the bracket to the vehicle's bumper or other suitable surface instead.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding either rating can damage the adapter or vehicle wiring and create a safety hazard.
Confirm proper function with a test light or by using a properly functioning trailer. This will verify that all wiring connections are correct and the adapter is working before towing.

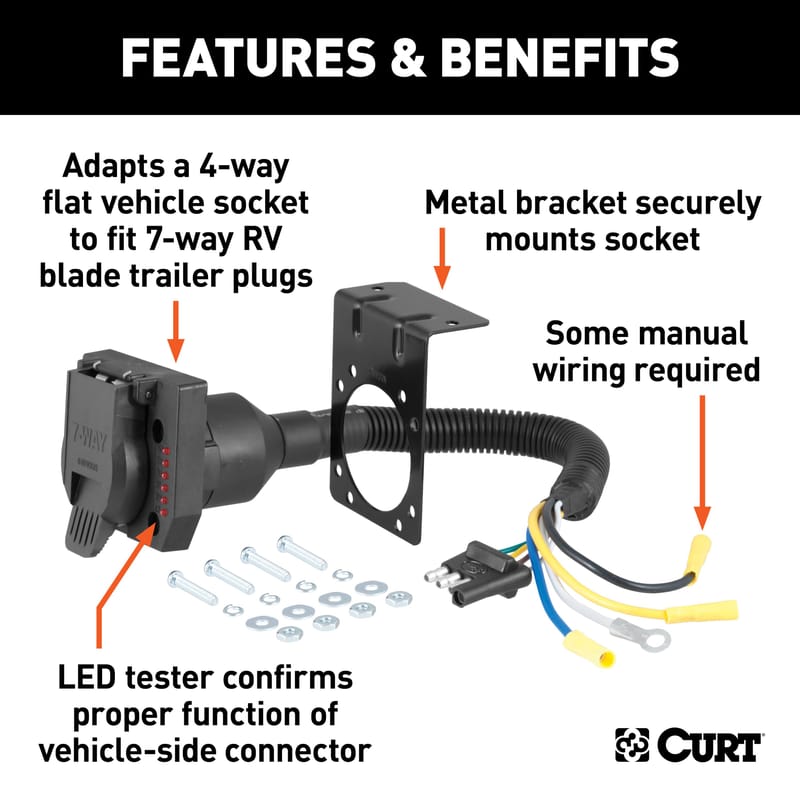

Feed the entire harness through the large mounting hole in the bracket and position the connector against the face of the mounting bracket. Using the supplied mounting hardware, attach the connector to the bracket.
Slide the 4-way flat connector into the side mounting slot until the connector is secured in place.
Plug the combination harness's trailer-style 4-way flat connector into the tow vehicle's 4-way flat connector. This connection provides the tail lights, stop lights, and turn signal functions. Secure any loose wires using cable ties or equivalent product.
Your vehicle must have a 4-way flat trailer connector. If it does not, you will need to install a custom wiring harness or 4-way flat connector first. Choose the adapter model based on your desired output: 6-way round, 7-way RV blade, or dual 4-way flat.
You need a 1/8" drill bit, drill, Phillips screwdriver, wire stripper, cutting tool, terminal crimpers, test light, and three #10 - 1/2" self-tapping screws (not included). 12 gauge minimum wire and butt connectors are also required.
Yes. You must drill two 1/8" holes—one for the mounting bracket and one for the ground wire. Before drilling, check for brake lines, fuel lines, and wiring to avoid damage.
Yellow = auxiliary/backup lights; Blue = electric brakes; Black = positive power (with inline fuse); White = ground to clean bare metal. Use 12 gauge minimum wire and butt connectors.
Improper grounding can cause loss of warranty, overheating, and fire. The white ground wire must be attached to a clean, bare metal point with a #10 - 1/2" self-tapping screw. The vehicle's 4-way connector white wire cannot support the adapter's ground functions.
No. Never attach the mounting bracket to the hitch by cutting, welding, or drilling. Mount it to the bumper or other suitable vehicle surface instead.
Test with a test light or by connecting a properly functioning trailer. This confirms all wiring is correct before towing.
On Sale Today
Original price was $52.95. Current price is $46.99.You save $5.96 (11%)
Free Shipping
Ships free on all orders
Authorized Dealer| Part # | From Vehicle | To Trailer | Notes | Material |
|---|---|---|---|---|
| Single Output | ||||
| 57184 | 4-way flat | 7-way RV blade | See mounting brackets on pages 127 and 128 | Plastic |
| 57183 | 4-way flat | 6-way round | See mounting brackets on pages 127 and 128 | Die-cast |
| 57185 | 4-way flat | 7-way RV blade | Includes mounting bracket | Steel |
| 57186 | 4-way flat | 7-way RV blade | Includes wiring and components to splice in a brake controller connection | Plastic |
| 57506 | 4-way flat | 7-way RV blade | Ideal for towing a boat trailer with surge brakes | Plastic |
| 57626 | 4-way flat | 6-way round | Integrated test lamps display proper connections | Plastic |
| 57676 | 4-way flat | 7-way RV blade | Integrated test lamps display proper connections | Plastic |
| 56476 | 4-way flat | USCAR socket | Pair with #57015 for 4-way and 7-way RV blade output. See page 112 | Plastic |
| Dual Output | ||||
| 57604 | 4-way flat | 4-way flat | -- | Plastic |
| 57624 | 4-way flat | 6-way round | Integrated test lamps display proper connections | Plastic |
| 57627 | 4-way flat | 6-way round | -- | Plastic |
| 57674 | 4-way flat | 7-way RV blade | Integrated test lamps display proper connections | Plastic |
| 57102 | 4-way flat | 7-way RV blade | Audible back-up alarm when vehicle in reverse (97 decibels) | Plastic |
