Rear-mounted spare tires may interfere with folding feature
Includes hitch pin & clip
Inside dimensions: 60" x 19-1/4" x 2-1/2"
Includes hitch pin & clip
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size (Inches): 2 IN
Color: Black
Finish: CARBIDE BLACK POWDER COAT
Installation Time Exact (Minutes): 0

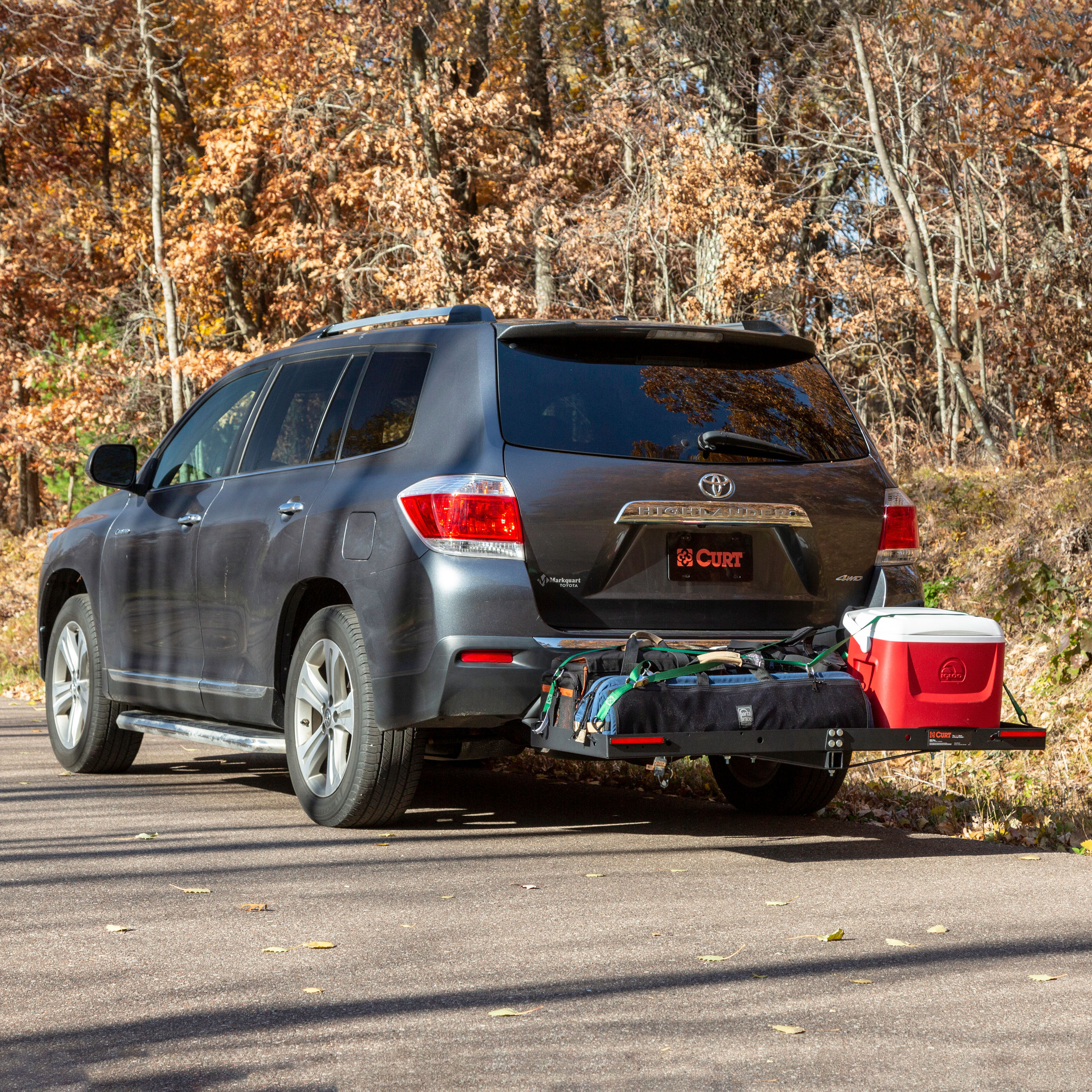

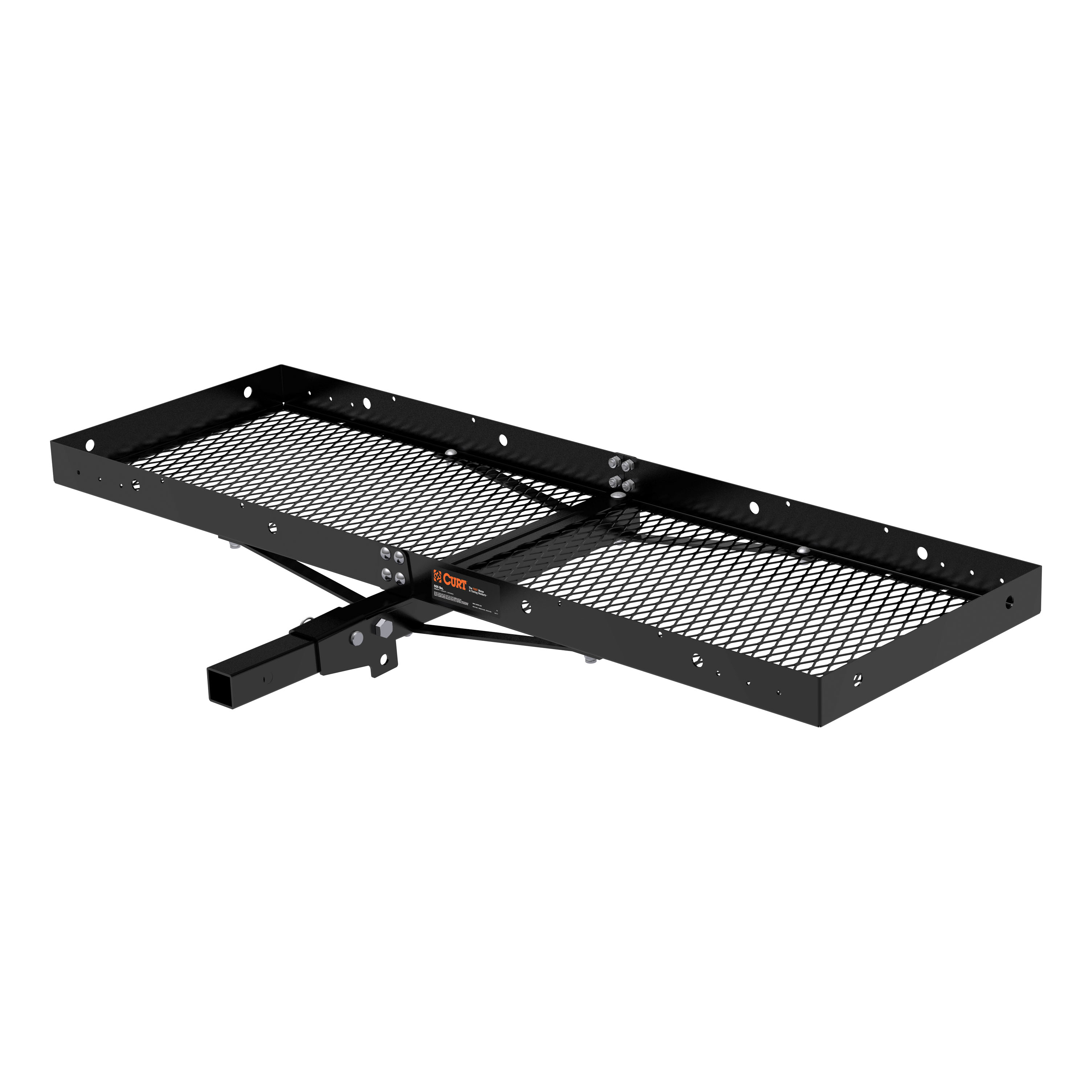

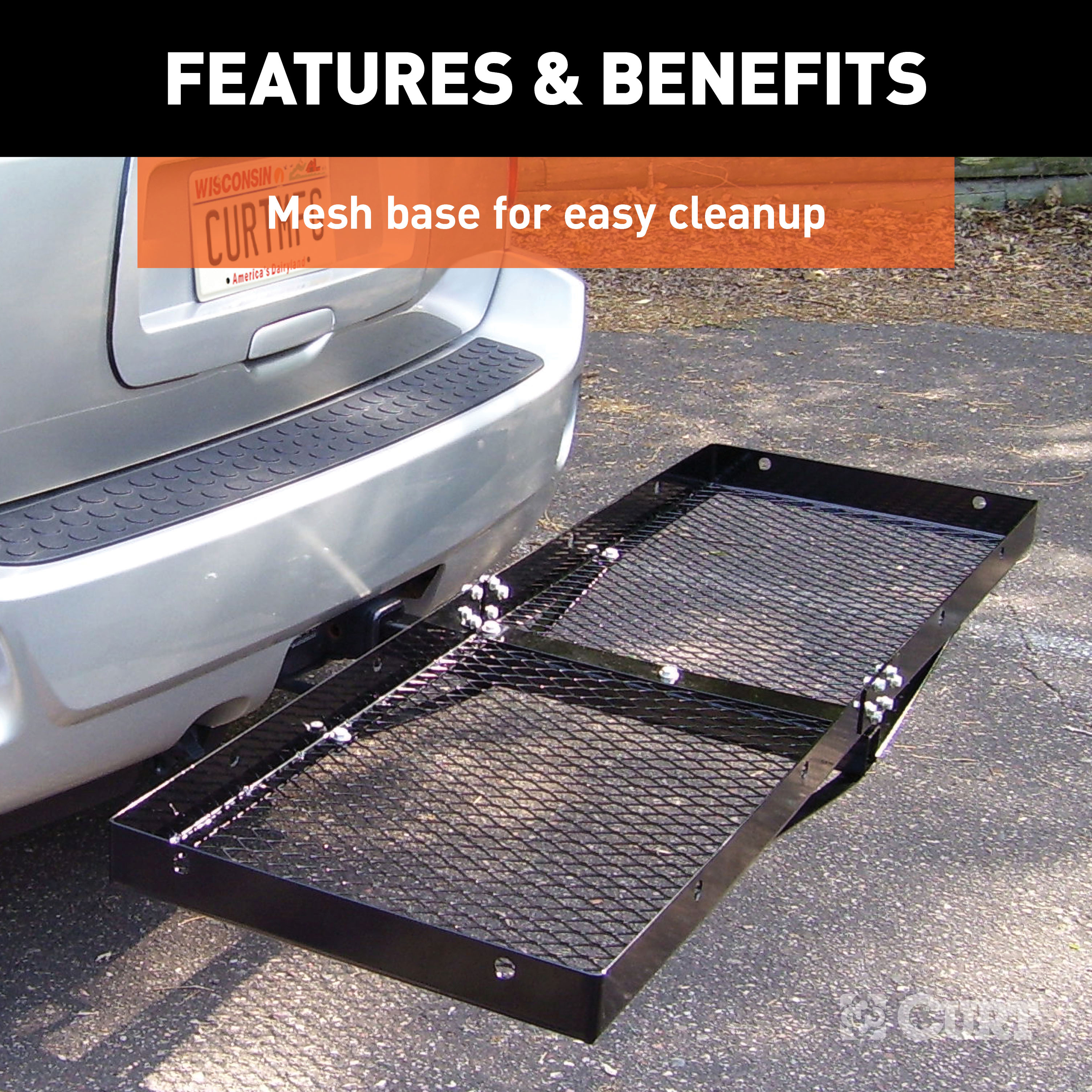

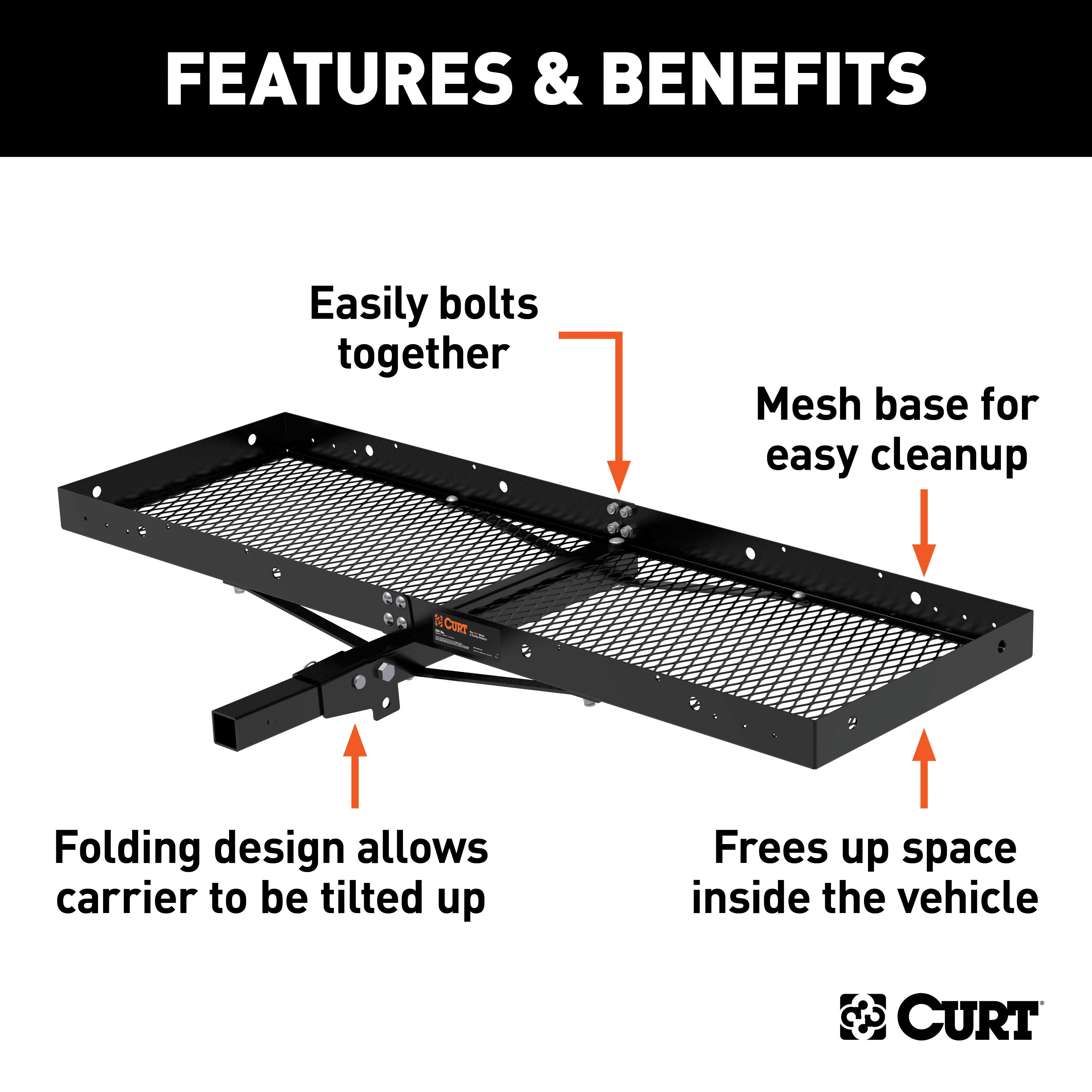

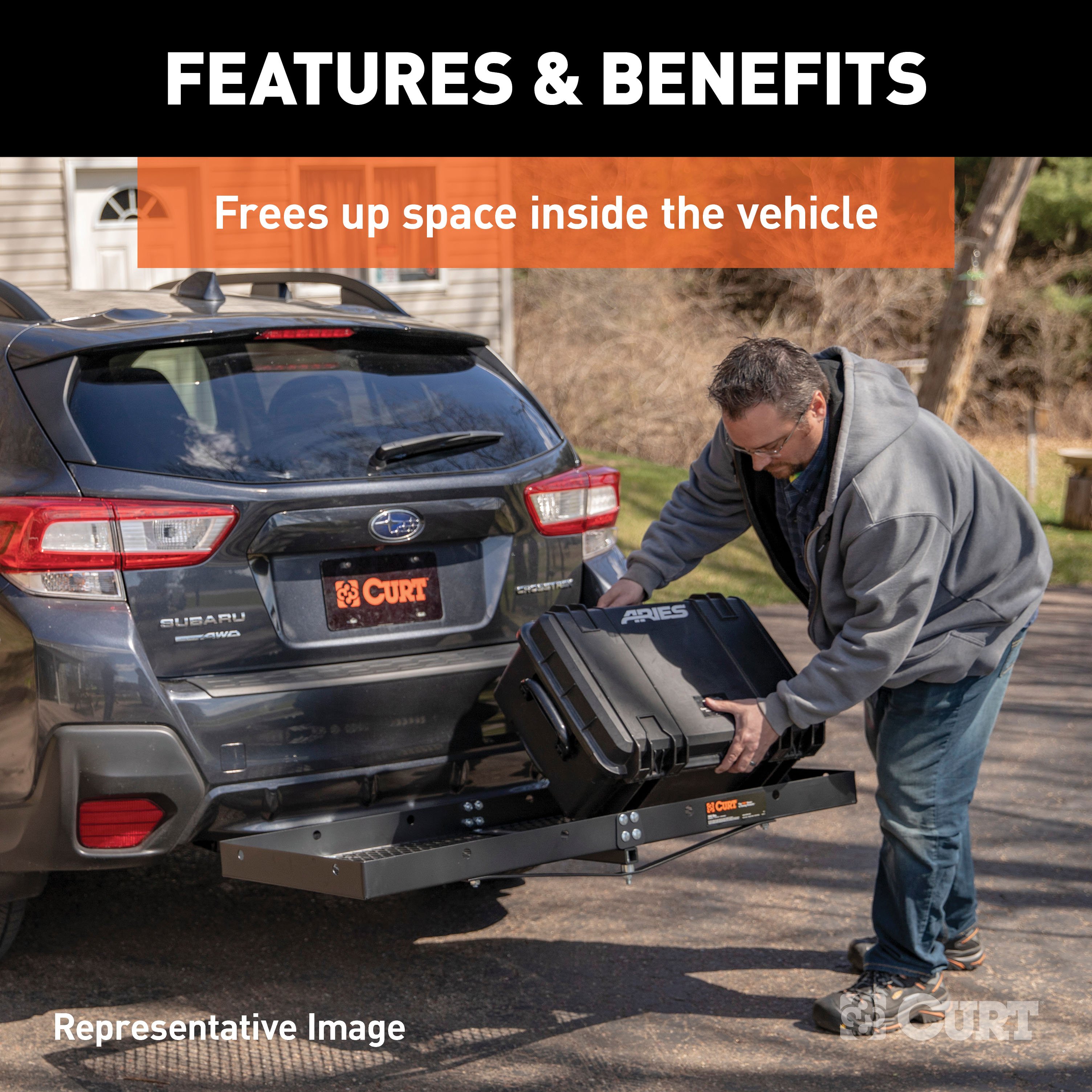

Even with the roomiest of vehicles, packing the car for a long trip can quickly turn into a frustrating game of Tetris. CURT cargo carriers are a simple yet effective solution for maximizing the storage area of your vehicle. The advantage of a hitch-mounted cargo carrier is that it can be mounted on the rear or front end of a vehicle as long as the vehicle is properly equipped with the right receiver hitch. Mounting a cargo carrier in the front opens up the rear receiver hitch for towing a trailer or adding a second carrier or bike rack if needed. The hitch-mounted design also makes installation quick and easy. CURT introduces the mesh, bolt-together, tray-style cargo carrier. This carrier features heavy-duty steel construction and a durable black carbide powder coat finish to resist rust and corrosion from outdoor exposure. It comes with a 2" x 2" shank and can hold up to 500 lbs. of cargo. This particular model also comes with a folding shank to allow the cargo carrier to be folded up when not in use, and it features a simple two-piece design for quick assembly. It offers a total storage area of 60" x 20". CURT tray-style cargo carriers are versatile and simple to use. They have holes along the outer edge for mounting a cargo net or bungees, making it easy to keep items secure, and they provide plenty of space to make your trip more comfortable, no matter where you are headed. Whether you prefer the hitch-mounted carrier or the roof rack option, CURT has cargo management solutions to meet your needs.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The maximum weight capacity is 500 lbs. when using the 2" receiver tube. Weight must be evenly distributed on the platform.
No. The CURT 18109 is designed for cargo only and must not be used to transport people.
No. Never use the cargo carrier as a step or platform, as injury may result.
No. Do not carry flammable items on the carrier or allow exhaust fumes to blow directly on your cargo, as this is a fire hazard.
The CURT 18109 is designed for 2" receiver tube hitch systems. Consult the manufacturer or a fitment database to confirm compatibility with your specific vehicle year, make, model, cab style and bed length, as the manual does not list vehicle-specific applications.
You will need a 17mm wrench, a 24mm wrench, and an adjustable wrench.
The kit includes: 2 platform frame halves, 1 shank (2"), 2 connecting plates, 1 folding shank assembly, 1 clip, 1 pin (5/8"), 1 lock nut (M16), 1 hex bolt (M16 x 80mm), 14 lock nuts (M10), 12 carriage bolts (M10 x 20mm), 2 carriage bolts (M10 x 75mm), 1 flat brace, and 2 support bridges.
The manual does not mention battery disconnection. The CURT 18109 is a mechanical cargo carrier with no electrical components, so battery disconnection is not required.
The installation difficulty is rated as "Easy". The manual does not require professional installation, though proper tools and careful attention to instructions are recommended.
The manual does not mention any vehicle modifications, drilling, welding, or cutting. The cargo carrier is designed to mount directly to an existing 2" receiver hitch.

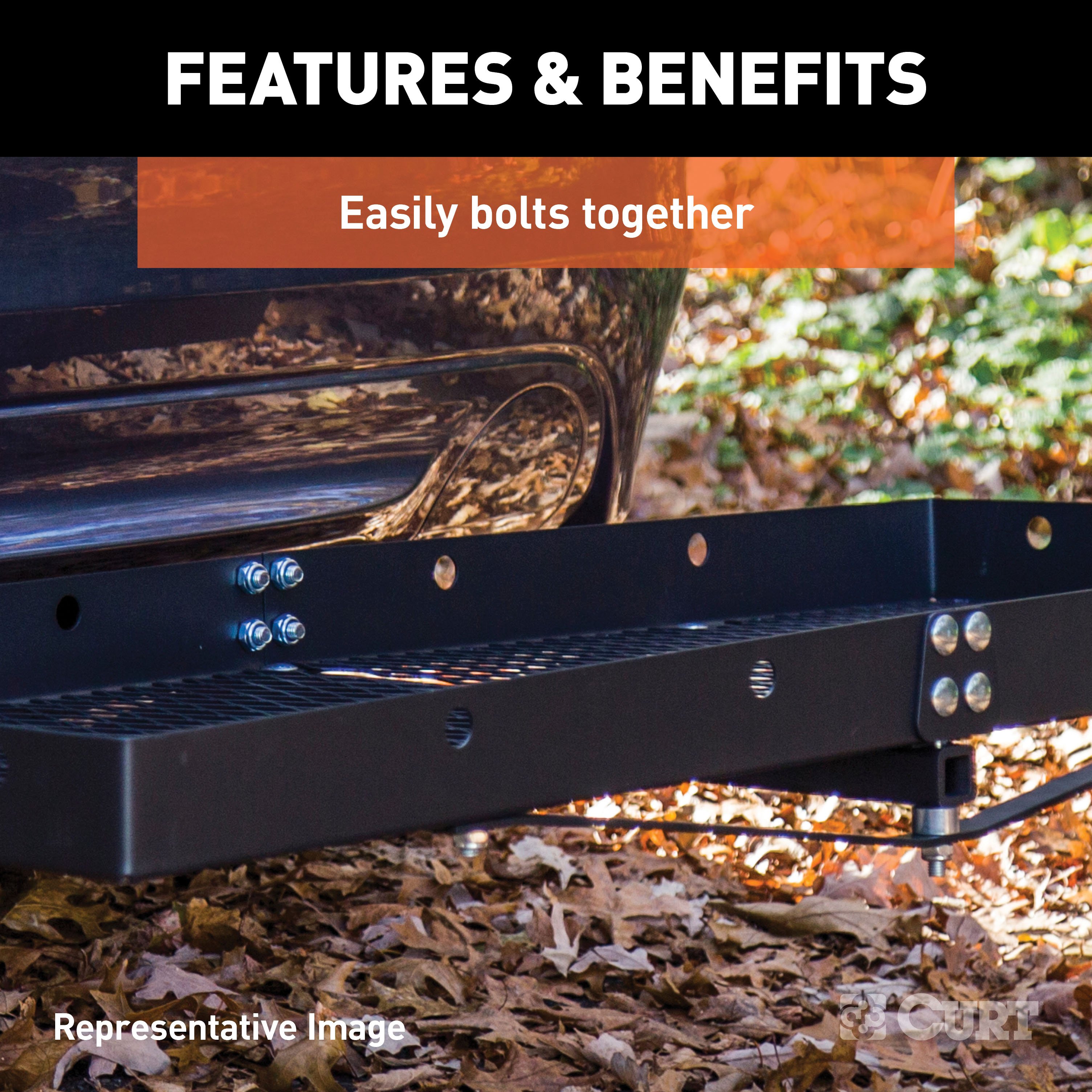

1. Align the two platform halves and connect them with the top two holes using M10 x 20mm carriage bolts and M10 lock nuts; hand tighten. 2. Place the 2" shank under the middle of the platform, position the support bridge under the shank, and place the flat brace on top of the platform; hand tighten the M10 x 75mm carriage bolt and M10 lock nut. 3. Connect the bottom two holes of the platform halves using M10 x 20mm carriage bolts and M10 lock nuts; hand tighten. 4. Insert the 2" shank into the folding shank assembly, align holes, insert the M16 x 80mm hex bolt through the hole closest to the cargo carrier, and secure with the M16 lock nut. 5. Insert the pin (5/8") in the hole closest to the vehicle. 6. Fully tighten all bolts and lock nuts to the specified torque values.
Yes. The manual instructs you to hand tighten all bolts and lock nuts during assembly (Steps 1-3), then fully tighten all of them to the specified torque specifications after assembly is complete.

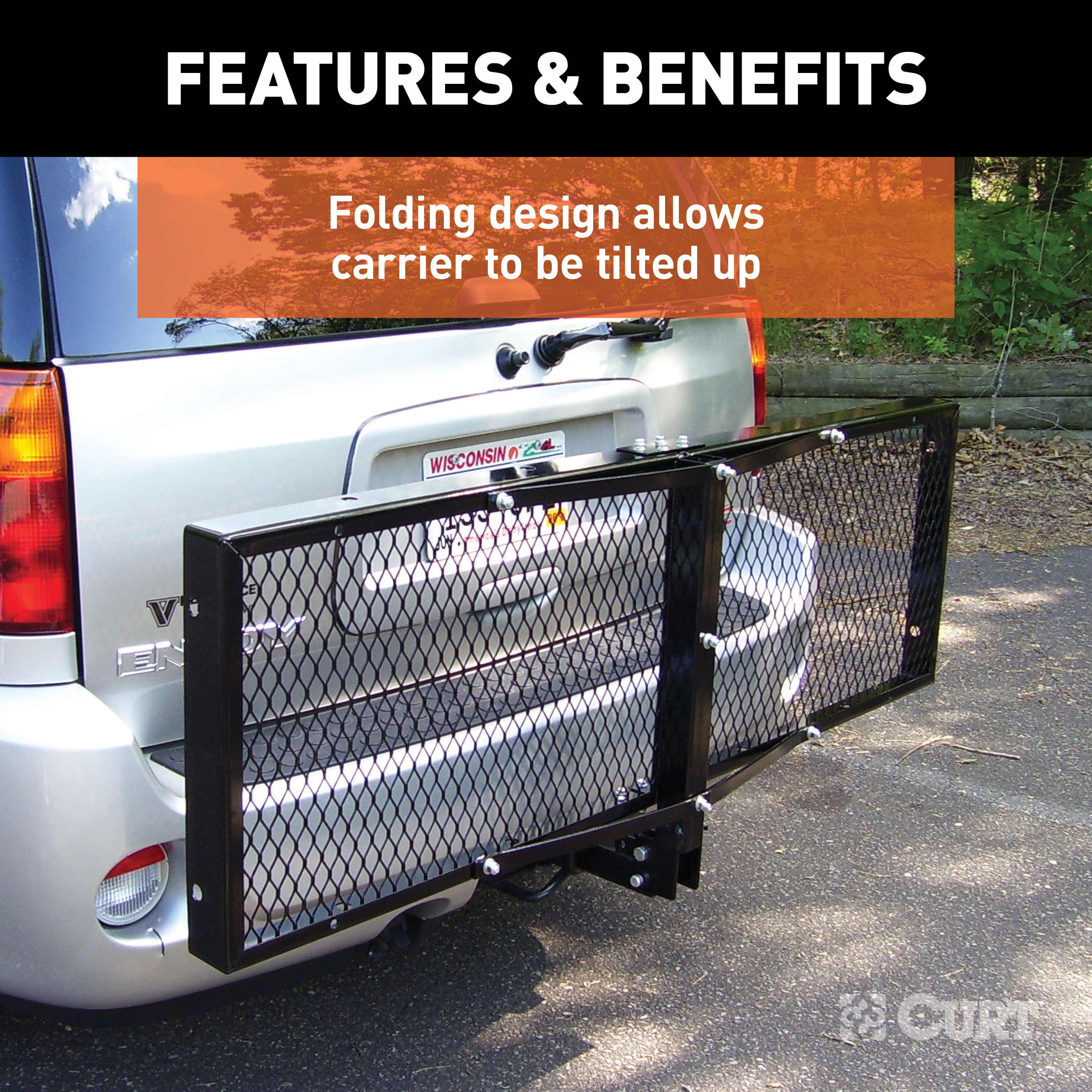

To fold the basket: remove the pin (5/8") from the hole closest to the vehicle, fold the basket up, and place the pin in the lower hole. The clip must always remain attached to the pin.
M10 bolts must be torqued to 16 ft-lbs.
M16 bolts must be torqued to 70 ft-lbs.
The pin is 5/8" in diameter.
The hex bolt is M16 x 80mm.
Never exceed your vehicle manufacturer's recommended towing capacity. Ensure loads are evenly distributed on the platform and do not exceed 500 lbs. Do not carry loads taller, wider, or deeper than the cargo carrier. Do not block brake lights or turn signals. Always use caution when in reverse.
Do not carry flammable items on the carrier or allow exhaust fumes to blow directly on your cargo, as this is a fire hazard. Do not carry loads taller, wider, or deeper than the cargo carrier. Distribute weight evenly on the platform.
Periodic inspection of your product should be performed to ensure all hardware and components remain secure. The manual does not specify an inspection interval or detailed maintenance procedures beyond this general guidance.
The CURT 18109 is designed for 2" receiver hitch systems. Confirm your vehicle has a 2" receiver hitch and consult a fitment database or CURT support (877.287.8634) for your specific year, make, and model.
No. The manual does not mention drilling, welding, cutting, or any vehicle modifications. The cargo carrier mounts directly to your 2" receiver hitch.
M10 bolts: 16 ft-lbs. M16 bolts: 70 ft-lbs. Hand tighten all bolts during assembly, then fully tighten to these specifications after assembly is complete.
Maximum weight capacity is 500 lbs. Weight must be evenly distributed on the platform. Never exceed your vehicle manufacturer's towing capacity.
No. Do not carry flammable items or allow exhaust fumes to contact cargo, as this is a fire hazard.
| Part # | Capacity | Inside Dimensions | Shank | Shank | Finish and Material |
|---|---|---|---|---|---|
| 18110 | 300 lbs. | 47-3/4" (L) x 19-1/2" (W) x 2-1/2" (H) | 1-1/4" x 1-1/4" | Fixed | Carbide black powder coat over steel |
| 18100 | 500 lbs. | 60" (L) x 19" (W) x 2-3/4" (H) | 2" x 2" adapter | Folding | Raw aluminum basket with a powder-coated steel shank |
| 18109 | 500 lbs. | 60" (L) x 19-1/4" (W) x 2-1/2" (H) | 2" x 2" | Folding | Carbide black powder coat over steel |
