CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2016 - 2018 Chevrolet Silverado 1500
Confirmed to Fit
2019 Chevrolet Silverado 1500 LD
Confirmed to Fit
2016 - 2020 Chevrolet Suburban
Confirmed to Fit
2016 - 2020 Chevrolet Tahoe
Confirmed to Fit
2016 - 2018 GMC Sierra 1500
Confirmed to Fit
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Includes base plate, safety cables and installation hardware (tow bar sold separately)
Not compatible with universal tow bar
Includes base plate, safety cables and installation hardware (tow bar sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: GLOSS BLACK POWDER COAT
Installation Difficulty: Professional
Installation Time Exact (Minutes): 180
CURT tow bar base plates are engineered for a custom fit on each unique vehicle. This custom tow bar base plate fits select years of the Chevrolet Silverado, Suburban, Tahoe and GMC Sierra (see application info to verify fitment). It features an OE style design to fully integrate with the front of the vehicle and maintain a factory look. This Chevy / GMC tow bar baseplate is constructed from high-quality steel and is precisely welded for a perfect fit. It is physically tested for absolute safety and peace of mind while dinghy towing. It also features a unique co-cured finish of liquid A-coat and highly durable powder coat to protect against the outdoor elements. This base plate for towing comes with attachment tabs, safety cables and installation hardware.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
6 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2018 | Chevrolet Silverado 1500 | Drilling Required Installation Time: 90+ minutes Visibility: Concealed |
| 2019 | Chevrolet Silverado 1500 LD | Drilling Required Installation Time: 90+ minutes Visibility: Concealed |
| 2016 - 2020 | Chevrolet Suburban | Drilling Required Installation Time: 90+ minutes Z71, excluding adaptive cruise Visibility: Concealed |
| 2016 - 2020 | Chevrolet Tahoe | Drilling Required Installation Time: 90+ minutes Z71, excluding adaptive cruise Visibility: Concealed |
| 2016 - 2018 | GMC Sierra 1500 | Drilling Required Installation Time: 90+ minutes Visibility: Concealed |
| 2019 | GMC Sierra 1500 Limited | Drilling Required Installation Time: 90+ minutes Visibility: Concealed |
Yes, the CURT 70120 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Chevrolet Silverado, Suburban, Tahoe, GMC Sierra (Part #BKDK70120) is designed to fit the 2016-2018 Chevrolet Silverado 1500.
The CURT 70120 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Chevrolet Silverado, Suburban, Tahoe, GMC Sierra (Part #BKDK70120) fits 2016-2018 Chevrolet Silverado 1500 models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 70120 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Chevrolet Silverado, Suburban, Tahoe, GMC Sierra (Part #BKDK70120) fits the following vehicles: 2016-2018 Chevrolet Silverado 1500; 2019 Chevrolet Silverado 1500 LD; 2016-2020 Chevrolet Suburban; 2016-2020 Chevrolet Tahoe; 2016-2018 GMC Sierra 1500; 2019 GMC Sierra 1500 Limited. Always verify your specific year, make, and model before ordering.
The CURT 70120 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Chevrolet Silverado, Suburban, Tahoe, GMC Sierra (Part #BKDK70120) Drilling is required for installation. Typical installation time is 90+ minutes. Basic hand tools are typically all you need.
The CURT 70120 is designed for Tahoe, Suburban, Silverado, and Sierra models. However, the manual does not specify year ranges or generations. Contact CURT at 877.287.8634 or visit curtmfg.com to confirm fitment for your specific vehicle year and model variant before purchasing.

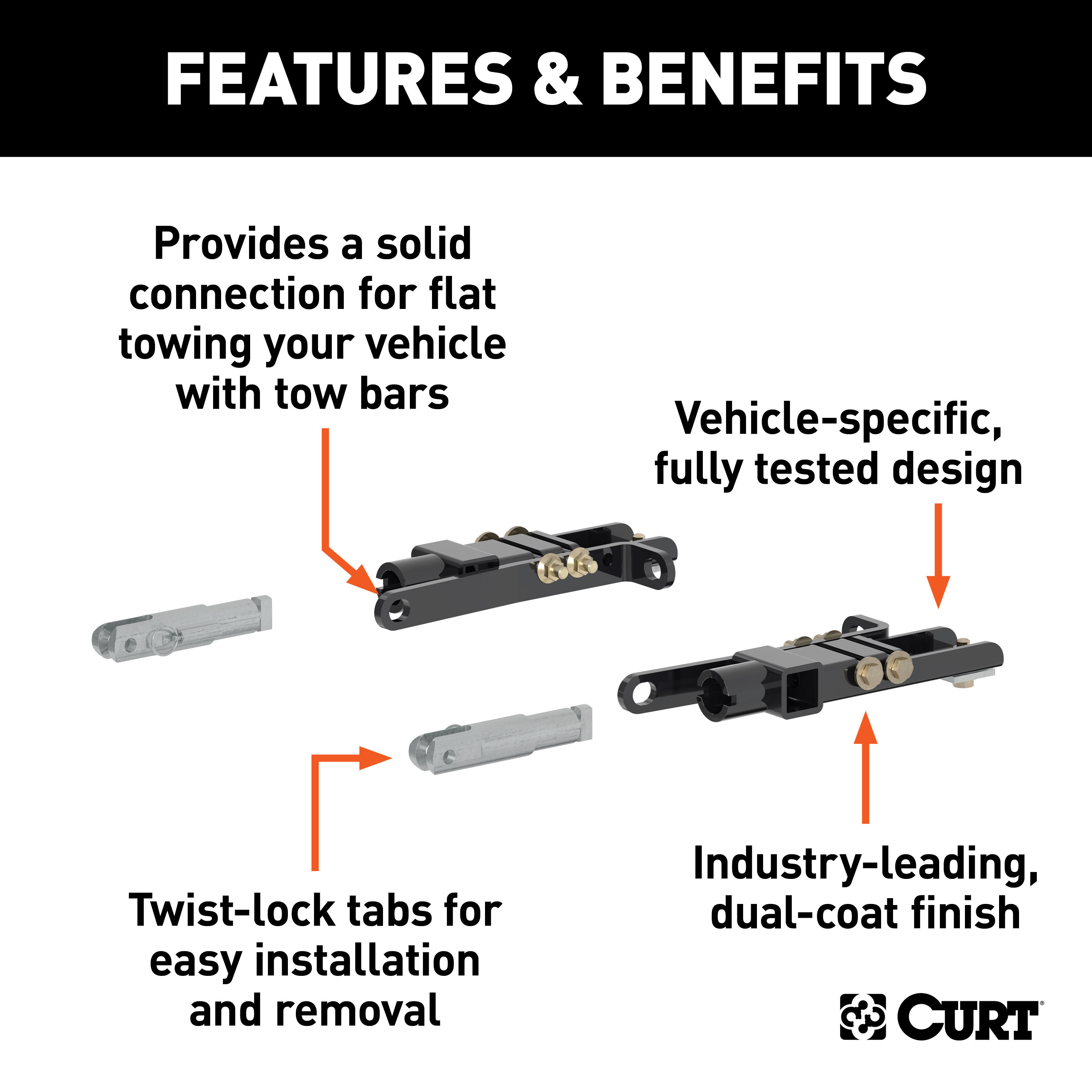

The kit includes: 2 tow bar base plates, 2 safety cable loop brackets (driver and passenger side), 2 tow bar mounting tabs, 2 safety cables rated 7,500 lbs each, 2 slotted spacer plates, 2 round-hole spacers (1/4" x 2" x 2"), 2 hex bolts 1/2"-13 x 1-1/2" (grade 5), 4 hex bolts 1/2"-13 x 5" (grade 8), 6 conical washers 1/2", 4 flange nuts 1/2"-13 (grade 8), 2 quick links 1/2", and 2 socket plugs. Not pictured in the manual are safety cables, quick links and socket plugs.
Required tools include: torque wrench, drill, drill bits (1/2" and 1-1/4" hole saw), sockets (7/16", 3/4", 7mm, 10mm, 15mm, 18mm), nut driver (5/16"), wrenches (3/4", 7/16", 18mm), large vise grip, utility knife, flat head screwdriver, tape measure, and level. A hammer may also be needed if the frame opening requires adjustment.
Yes. The manual states that fascia panels and the bumper must be temporarily removed and reinstalled as part of the installation process. For SUV models, this involves removing the top fascia cover, fascia/grille, and disconnecting wiring. For pickup models, the plastic fascia must be removed from the steel bumper. The bumper itself is not removed, but access to it is required.
Yes. Drilling is required. You must drill a 1/2" hole in the vehicle frame using the rear, side base plate hole as a guide. For the driver side, drill from the inside; for the passenger side, drill from the outside. The manual also notes that the bottom hole may need to be enlarged to align with the slotted opening.
Two trimming tasks are required: (1) For pickup models, trim the six tabs that had clips from the plastic fascia using a utility knife (Step 8). (2) Use a utility knife to trim out the tow hook openings on each side of the front fascia (Step 14). The manual warns to take care when cutting plastic or metal as injury may occur if done improperly.
If the base plate does not fit, the manual provides two options: (1) Carefully tap the sides of the frame opening outward with a hammer for a snug fit, or (2) Touch the tube spacers in the base plate with a grinder. Additionally, the bottom hole may need to be enlarged to align with the slotted opening. These adjustments should be made before final tightening of hardware.
Torque the 1/2" x 5" hex bolts (grade 8) with 1/2" conical washers and 1/2" flange nuts to 110 lb-ft. Torque the 1/2" x 1-1/2" hex bolts (grade 5) to 75 lb-ft. These torque values are applied in Step 12 after the safety cable loop brackets are installed. The manual emphasizes using specified torque specifications to help prevent damage to the product or vehicle.
Tahoe and Suburban models have three bolts in each tow hook. Silverado and Sierra models have two bolts in each tow hook. All bolts are removed using an 18mm socket in Step 9, and the tow hooks are returned to the vehicle owner as they will not be reinstalled.
The installation sequence is: (1) Remove fascia panels and disconnect wiring (Steps 1-8); (2) Remove factory tow hooks (Step 9); (3) Slide base plate into frame and start threading bolts without fully tightening (Step 10); (4) Drill 1/2" hole in frame (Step 11); (5) Install safety cable loop brackets with 1/2" x 5" bolts and torque to 110 lb-ft (Step 12); (6) Torque the 1/2" x 1-1/2" bolts to 75 lb-ft; (7) Install permanent safety cables and quick links (Step 13); (8) Trim tow hook openings (Step 14); (9) Reinstall fascia and components (Step 15).
The front two holes in the safety cable loop bracket are preferred for mounting. However, if additional clearance is needed, the two rear holes may be used instead. This choice is made during Step 12 when installing the brackets.
Yes. During fascia removal (Step 1 for SUV models), you must disconnect the wiring harness on the passenger side. In Step 5, you must unplug the electrical connections before removing the fascia. The manual does not specify whether the vehicle battery must be disconnected before beginning work.
Safety glasses should be worn at all times while installing this product. Take care when cutting any plastic or metal as injury may occur if done improperly. Never exceed the vehicle manufacturer's recommended gross vehicle weight rating (GVWR). When installing safety cables, ensure they do not pinch or interfere with any hoses, wiring or other components.
No. The manual explicitly states that base plate safety cables are not a replacement for safety chains connecting the tow vehicle to the towed vehicle. The safety cables are designed to help prevent complete vehicle separation in the event of a disconnect, but they work in addition to, not instead of, safety chains.
Return the factory tow hooks to the vehicle owner as they will not be reinstalled. They are removed in Step 9 using an 18mm socket (three bolts for Tahoe/Suburban, two bolts for Silverado/Sierra).

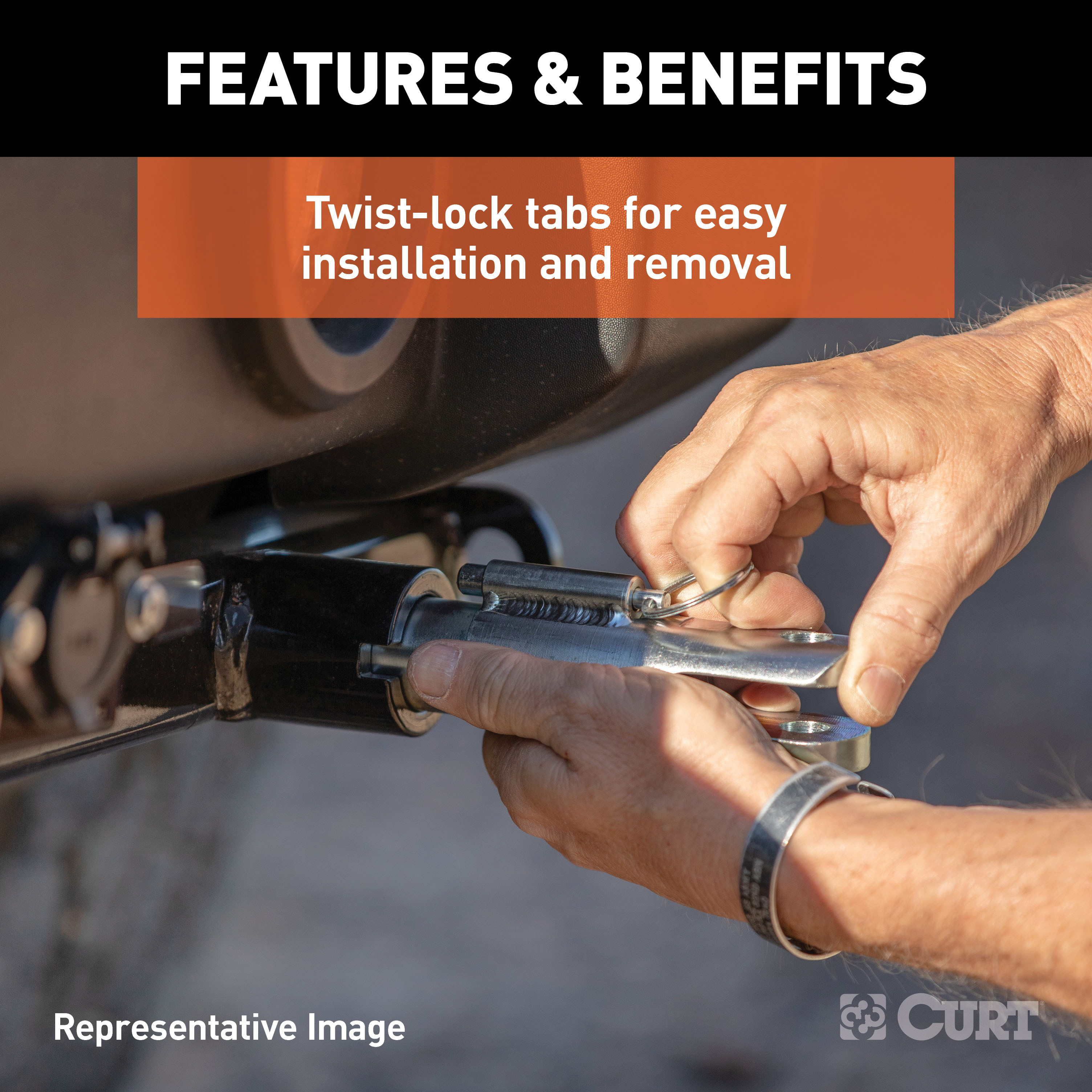

When not towing, insert the socket plugs (item #13) into the ends of the tow bar base plates (item #1). When ready to tow, install the tow bar mounting tabs (item #4) instead.
Yes. For Z71 models only, Step 4 requires removing the belly pan using a 16mm socket to remove four bolts (two at the front and two at the rear) before proceeding with fascia removal. After installation, Z71 models require reinstalling the belly pan, grille, front fascia and top fascia cover (Step 15). Pickup models do not have this step.
Periodically check the condition of all towing equipment. Ensure all fasteners are tight and that all structural components are sound. Do not tow with worn or damaged parts. Review your vehicle manufacturer's owner's manual for specific recommendations, capacities and requirements for your towed vehicle and towing vehicle.
The installed attachment tabs have a height of 18 inches and a width of 32-1/2 inches.
Each safety cable is rated for 7,500 lbs. Two cables are included in the kit. The installation guidelines state that each cable must meet or exceed the gross weight of the towed vehicle.
Install the permanent safety cables by looping them around the vehicle frame and linking them to the safety cable loop brackets using quick links. There must be one cable on each side of the vehicle. Make sure the cables do not pinch or interfere with any hoses, wiring or other components. The manual provides illustrations showing cable routing with and without convenience links.
The CURT 70120 is designed for Tahoe, Suburban, Silverado, and Sierra models. Confirm your specific vehicle year and variant with CURT before purchasing.
Yes. You must drill a 1/2" hole in the vehicle frame. Fascia removal and trimming are also required.
A torque wrench is essential, along with a drill, sockets (7/16", 3/4", 7mm, 10mm, 15mm, 18mm), wrenches, and a utility knife. The installation is rated as difficult.
Torque the 1/2" x 5" bolts to 110 lb-ft and the 1/2" x 1-1/2" bolts to 75 lb-ft. Use a torque wrench to ensure proper tightening.
Yes, two safety cables rated 7,500 lbs each are included. They must be installed and are not a replacement for safety chains connecting the tow vehicle to the towed vehicle.
Insert the socket plugs into the ends of the tow bar base plates when not towing. Install the tow bar mounting tabs when ready to tow.
Periodically check that all fasteners are tight and structural components are sound. Do not tow with worn or damaged parts. Review your vehicle manufacturer's recommendations for towing capacities.
If the base plate does not fit, try one of two approaches: (1) Carefully tap the sides of the frame opening outward with a hammer to create a snug fit, or (2) Touch the tube spacers in the base plate with a grinder to reduce their size. Additionally, the bottom hole may need to be enlarged to align with the slotted opening. Make these adjustments before final tightening of hardware.
Reroute the safety cables to ensure they do not pinch or interfere with any hoses, wiring or other components. The cables must be connected to the base plate and the vehicle frame, with one cable on each side. Refer to the safety cable installation illustrations in the manual for proper routing guidance. If necessary, use the rear holes of the safety cable loop bracket instead of the front holes to provide additional clearance.
