Includes base plate, safety cables and installation hardware (tow bar sold separately)
Not compatible with universal tow bar
Includes base plate, safety cables and installation hardware (tow bar sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: GLOSS BLACK POWDER COAT
Installation Time Exact (Minutes): 0

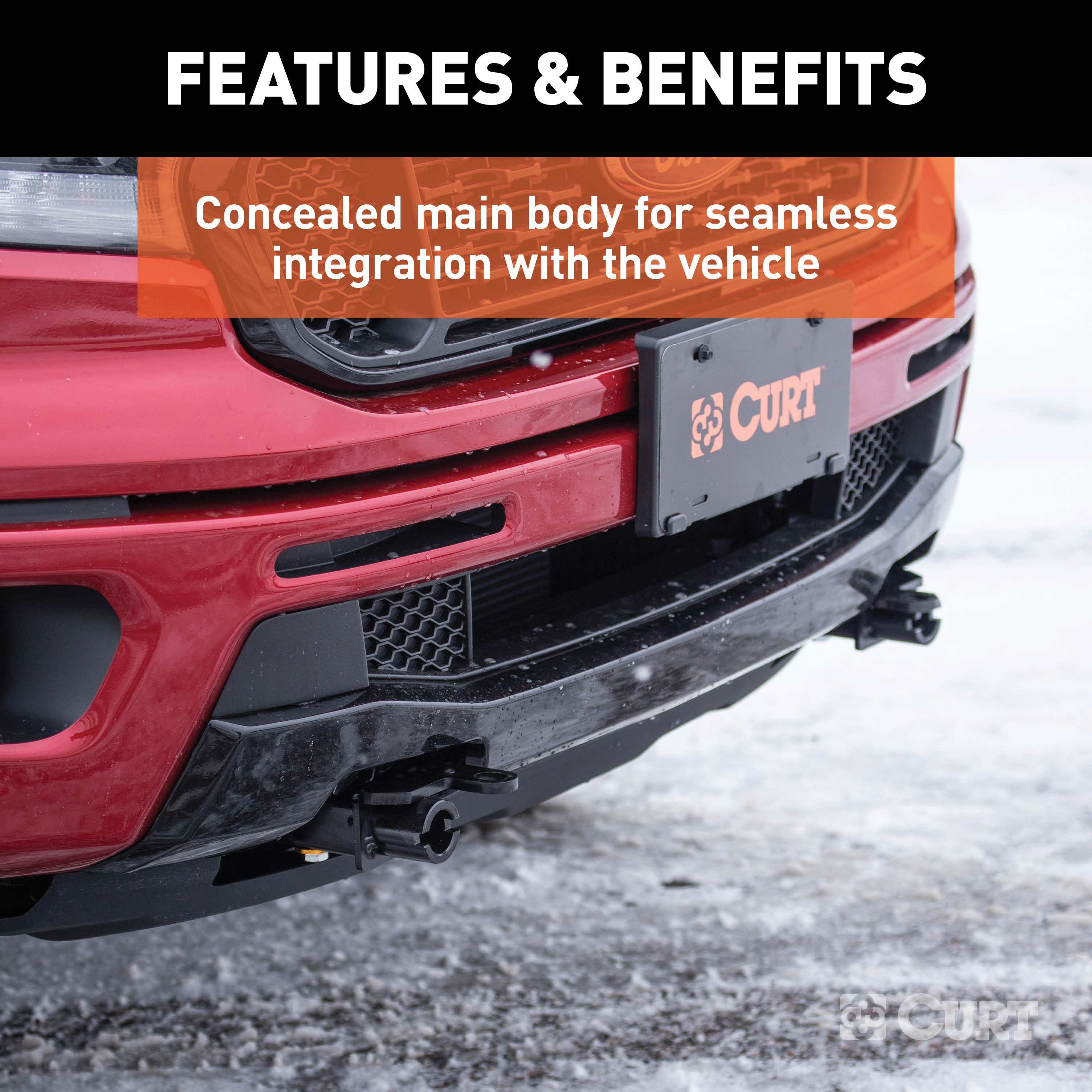

CURT tow bar base plates are engineered for a custom fit on each unique vehicle. This custom tow bar base plate fits select years of the Ford Ranger (see application info to verify fitment). It features an OE style design to fully integrate with the front of the vehicle and maintain a factory look. This Ford Ranger tow bar baseplate is constructed from high-quality steel and is precisely welded for a perfect fit. It is physically tested for absolute safety and peace of mind while dinghy towing. It also features a unique co-cured finish of liquid A-coat and highly durable powder coat to protect against the outdoor elements. This base plate for towing comes with attachment tabs, safety cables and installation hardware.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2023 | Ford Ranger | Installation Time - Visibility - |
Yes, the CURT 70127 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Ford Ranger (Part #BKDK70127) is designed to fit the 2019-2023 Ford Ranger.
The CURT 70127 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Ford Ranger (Part #BKDK70127) fits the following vehicles: 2019-2023 Ford Ranger. Always verify your specific year, make, and model before ordering.
The CURT 70127 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Ford Ranger (Part #BKDK70127) fits 2019-2023 Ford Ranger models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 70127 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Ford Ranger (Part #BKDK70127) Typical installation time is . Basic hand tools are typically all you need.
The manual does not specify which vehicle make, model or year this tow bar base plate is designed for. Contact CURT product support at 877.287.8634 or visit curtmfg.com to confirm fitment for your vehicle.
You will need a 15mm socket, 18mm socket, 7/16" socket, 7/16" wrench, and a torque wrench. Safety glasses are required at all times during installation.
No. The manual states that no drilling or trimming is required for this installation.
You must remove the skid shield (underbody shield) from under the front end using a 15mm socket, and remove the plastic shrouds around both tow hooks. The tow hooks themselves must also be removed using a 15mm socket. The skid shield is temporarily removed and will be reinstalled after installation.
Torque all hardware in this order: 3/8" hardware to 36 lb-ft, M12 hardware to 79 lb-ft, and all 1/2" hardware to 110 lb-ft. Refer to Step 7 for the complete torque sequence.
Yes. Two permanent safety cables (7,500 lbs. each) must be installed at all times when dinghy towing. The cables are designed to help prevent complete vehicle separation in the event of a disconnect. They must be connected to both the base plate and the vehicle frame, and must not pinch or interfere with hoses, wiring or other components. Safety cables are not a replacement for safety chains connecting the tow vehicle to the towed vehicle.
Periodically check the condition of all towing equipment. Ensure all fasteners are tight and that all structural components are sound. Do not tow with worn or damaged parts. Review your vehicle owner's manual for specific towing recommendations, capacities and requirements.

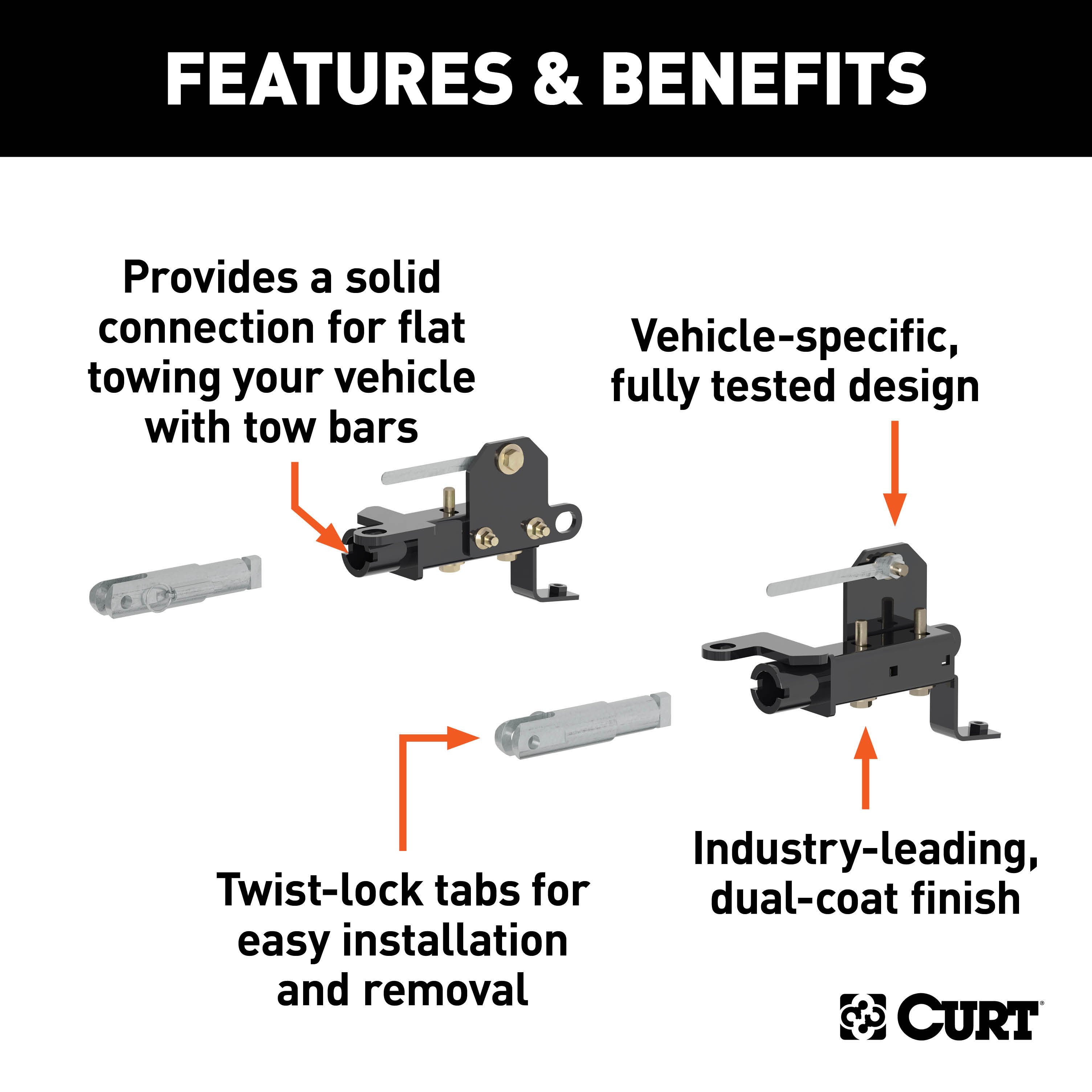

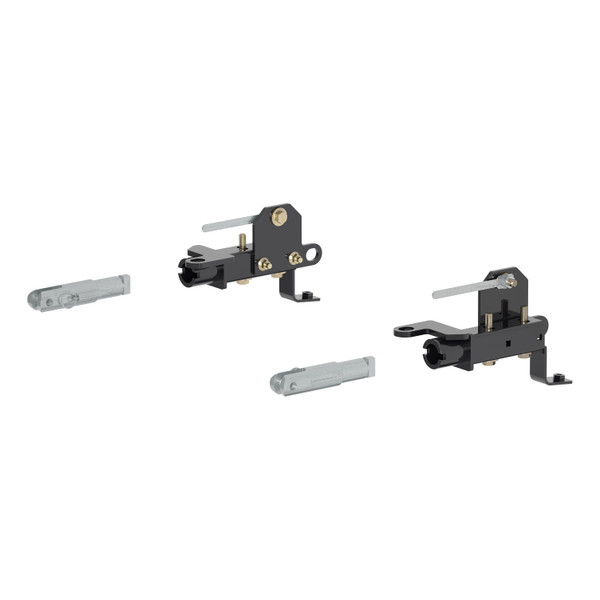

The kit includes: one driver-side tow bar base plate, one passenger-side tow bar base plate, two mounting tab support brackets (one short for passenger side, one tall for driver side), two tow bar mounting tabs, two safety cables rated for 7,500 lbs., two hex bolts 1/2"-13 x 1-1/2" grade 8, four carriage bolts 3/8"-16 x 1-1/4" grade 8, four hex bolts M12-1.75 x 80mm CL10.9, four serrated-flange nuts 3/8"-16 grade 8, two handle nuts 1/2"-13 grade 8, two flat washers 1/2", six conical-toothed washers 1/2", two quick links 1/2", two socket plugs, and four fishwires 3/8". The manual notes that safety cables, quick links and socket plugs are not pictured in the product photo.
The installed attachment tabs have a height of 17 inches and a width of 31 inches.
The manual rates this as an "Easy" installation difficulty level based on time and effort involved. However, the manual does not explicitly state whether professional installation is required or recommended. Contact CURT product support at 877.287.8634 for guidance on whether professional installation is necessary for your specific vehicle.
Fishwiring is a technique used to install hardware through tight spaces. In the CURT 70127 installation, you use 3/8" fishwires (included in the kit) to thread two 3/8" carriage bolts into the square holes on the engine side of the support bracket. The bolts are then secured with 3/8" serrated-flange nuts. The manual lists fishwiring as one of the required installation techniques but does not provide detailed instructions on the fishwiring technique itself. For detailed guidance, visit curtmfg.com for instructional videos.
Install the two mounting tab support brackets in the factory holes above the tow hook mounting holes. The driver side uses the taller bracket (#4) and the passenger side uses the shorter bracket (#3). For each bracket: insert a 1/2" hex bolt (#7) with a conical-tooth washer (#13) into the top hole, place a flat washer (#12) onto the bolt on the other side of the plate, thread the bolt into the factory hole, and loosely install a 1/2" handle nut (#11). Bend the end of the handle over so that it is flush to the end of the frame. Do not fully tighten these bolts until Step 7 when all hardware is torqued to specification.
Position the driver-side tow bar base plate (#1) on the vehicle frame with the safety cable loops facing the center of the vehicle. Secure it to the support bracket (#4) by fishwiring two 3/8" carriage bolts (#8) into the square holes on the engine side, then secure with 3/8" serrated-flange nuts (#10). Repeat the same process on the passenger side using the passenger-side tow bar base plate (#2) and the shorter support bracket (#3). Do not fully tighten these bolts until Step 7.
Install two M12 hex bolts (#9) with 1/2" conical-tooth washers (#13), one in each factory tow hook mounting hole on each side of the vehicle. These bolts secure the base plates to the vehicle frame where the original tow hooks were mounted. Do not fully tighten these bolts until Step 7 when all hardware is torqued to specification.
Torque all hardware in this specific order: first torque all 3/8" hardware to 36 lb-ft, then torque all M12 hardware to 79 lb-ft, and finally torque all 1/2" hardware to 110 lb-ft. This sequence ensures proper load distribution and prevents over-tightening of any single fastener.
Install the two permanent safety cables (#6) and quick links (#14) by looping them around the vehicle frame and linking them to the tow bar base plates (#1, #2). There must be one cable on each side of the vehicle. The cables must be connected to both the base plate and the vehicle frame. Make sure the cables do not pinch or interfere with any hoses, wiring or other components. Each cable must meet or exceed the gross weight of the towed vehicle. Refer to the safety cable installation illustrations in the manual for guidance on proper routing.
The skid shield is temporarily removed at the beginning of installation using a 15mm socket (two bolts at the front and two at the rear). After all other installation steps are complete, reinstall the skid shield using the factory hardware in Step 9.
The plastic shrouds around the tow hooks on each side of the vehicle must be removed during installation. The manual states that these shrouds will not be reinstalled.
Install the tow bar mounting tabs (#5) when you are ready to tow. When not towing, insert the socket plugs (#15) into the ends of the tow bar base plates (#1, #2) to protect the attachment points.
Each of the two permanent safety cables included with the CURT 70127 is rated for 7,500 lbs. The manual specifies that each cable must meet or exceed the gross weight of the towed vehicle.
No. The manual explicitly states that base plate safety cables are not a replacement for safety chains connecting the tow vehicle to the towed vehicle. Both safety cables and safety chains must be used when towing.
Before towing, review your vehicle owner's manual for specific towing recommendations, capacities and requirements. Never exceed the vehicle manufacturer's recommended towing capacity. Periodically check the condition of all towing equipment, ensure all fasteners are tight, and verify that all structural components are sound. Do not tow with worn or damaged parts.
The manual recommends periodically checking the condition of all towing equipment. Ensure all fasteners are tight and that all structural components are sound. The manual does not specify a particular inspection interval. For specific maintenance recommendations, contact CURT product support at 877.287.8634 or visit curtmfg.com.
Visit www.curtmfg.com for a full-color copy of the installation manual, as well as helpful videos, guides and additional information. You can also contact CURT product support at 877.287.8634.
To register your purchase, get copies of product warranties, or provide feedback, visit warranty.curtgroup.com/surveys. CURT stands behind its products with industry-leading warranties.
