Includes base plate, safety cables and installation hardware (tow bar sold separately)
Not compatible with universal tow bar
Includes base plate, safety cables and installation hardware (tow bar sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: GLOSS BLACK POWDER COAT
Installation Difficulty: Advanced
Installation Time Exact (Minutes): 90
CURT tow bar base plates are engineered for a custom fit on each unique vehicle. This custom tow bar base plate fits select years of the Jeep Liberty (see application info to verify fitment). This Jeep Liberty tow bar baseplate is constructed from high-quality steel and is precisely welded for a perfect fit. It is physically tested for absolute safety and peace of mind while dinghy towing. It also features a unique co-cured finish of liquid A-coat and highly durable powder coat to protect against the outdoor elements. This base plate for towing comes with attachment tabs, safety cables and installation hardware.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2007 | Jeep Liberty | Drilling Required Installation Time - Visibility - |
The CURT 70128 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Jeep Liberty (Part #BKDK70128) fits 2005-2007 Jeep Liberty models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 70128 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Jeep Liberty (Part #BKDK70128) is designed to fit the 2005-2007 Jeep Liberty.
The CURT 70128 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Jeep Liberty (Part #BKDK70128) fits the following vehicles: 2005-2007 Jeep Liberty. Always verify your specific year, make, and model before ordering.
The CURT 70128 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Jeep Liberty (Part #BKDK70128) Drilling is required for installation. Typical installation time is . Basic hand tools are typically all you need.

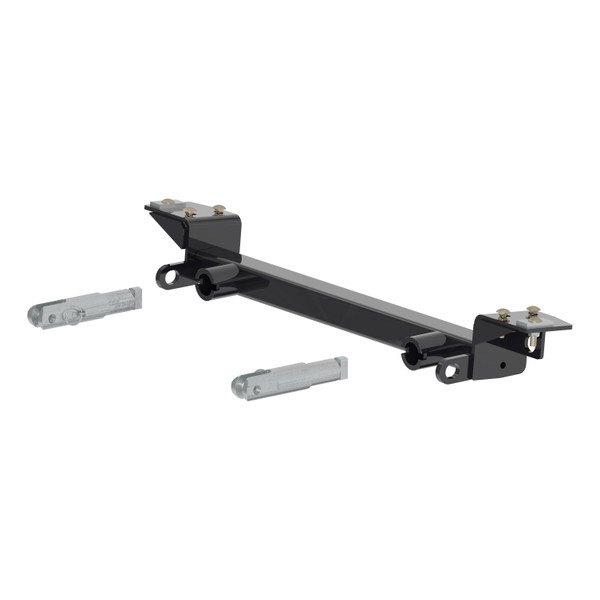

The CURT 70128 is a tow bar base plate assembly designed for vehicle front-end installation. It includes a base plate, backing plates, mounting tabs, safety cables rated at 7,500 lbs each, and all required fasteners. The installed attachment tabs measure 19" in height and 20" in width. Installation is rated as moderate difficulty and requires drilling, removal of factory components, and fishwiring.
The manual does not specify the vehicle make, model, or model year. Contact CURT product support at 877.287.8634 or visit curtmfg.com to confirm fitment for your specific vehicle before purchasing.
Required tools are: torque wrench, Torx socket T-20, ratchet, drill, drill bit 13/32", diagonal cutters, and sockets in 9mm, 10mm, 11/16", 15mm, and 9/16" sizes. A plastic fastener remover or flathead screwdriver is also needed. Proper tools will improve installation quality and reduce time required.
The kit includes: 1 tow bar base plate, 2 backing plates, 2 tow bar mounting tabs, 2 safety cables (7,500 lbs each), 4 carriage bolts 7/16"-14 grade 8, 2 carriage bolts 3/8"-16 grade 8, 6 M6 rivets, 2 serrated flange nuts 3/8"-16 grade 8, 4 serrated flange nuts 7/16"-14 grade 8, 2 square hole spacers 1/4" × 1" × 2", 2 pieces of 3/8" fishwire, 2 quick links 1/2", and 2 caplugs #dop-1375.
Yes. The factory grill must be removed. Disconnect the six tabs on the top edge of the grill by lifting up on each tab. Some models may have two bolts on the top edge instead, one on each side; use a T-20 Torx socket to remove these. Pull the grill forward slightly to release, then pull the top of the grill forward and up to remove it completely. Set it aside for reinstallation after installation is complete.
Yes. The factory fascia must be removed. This involves removing bolts below the headlight assembly (10mm socket), christmas tree fasteners or rivets in the wheel well (two locations), metric bolts from the bottom edge below the radiator support (10mm socket), and releasing tabs on the inside of the wheel well. Push down tabs on top of the fascia and gently pull it forward. Unplug electrical connections on both sides before setting the fascia aside for reinstallation.
Yes, if equipped. Remove two nuts and one bolt securing the tow hook mounting bracket using a 15mm socket. Repeat on the other side of the vehicle. Once removed, return the tow hooks and hardware to the vehicle owner.
Yes. Remove the bolt from the hub on each side using a 10mm socket and set the hubs aside for reinstallation later. The hubs are reinstalled in Step 15 after the base plate is secured.
Yes. Drilling is required. Using the base plate as a template, drill a hole into the frame on both sides with a 13/32" drill bit. Some vehicles may need to have existing frame holes enlarged to achieve proper fit. The manual does not specify which vehicles require enlargement.
Yes, fishwiring is required. Fishwiring is the process of threading a 3/8" carriage bolt and spacer through an opening in the frame using the included 3/8" fishwire. This allows the bolt to be secured inside the frame where direct access is not possible. The fishwired bolt is then tightened with a 3/8" serrated flange nut using a 9/16" socket.
Torque all 3/8" hardware to 37 ft-lbs and all 7/16" hardware to 59 ft-lbs. This applies to the carriage bolts and serrated flange nuts. Use a torque wrench to ensure proper tightening and help prevent damage to the product or vehicle.
Use an 11/16" socket to tighten the 7/16" serrated flange nuts on both sides of the vehicle. Use a 9/16" socket to tighten the 3/8" serrated flange nuts on both sides of the vehicle. Both should be torqued to the specifications in Step 13.
Each of the two permanent safety cables included with the CURT 70128 is rated at 7,500 lbs. The cables must be looped around the vehicle frame and linked to the tow bar base plate, with one cable on each side of the vehicle. Ensure the cables do not pinch or interfere with any hoses, wiring or other components.
Never exceed the vehicle manufacturer's recommended towing capacity. This is a critical safety requirement that must be observed when using the tow bar base plate.
Periodic inspection of the product should be performed to ensure all hardware and components remain secure. The manual does not specify the inspection interval or detailed inspection procedures beyond this general requirement.
Insert the backing plate with the slot toward the rear of the vehicle and the holes toward the inside of the vehicle. The backing plate is inserted into the opening on the end of the frame rail along with two 7/16" carriage bolts, which pass through existing holes within the bottom of the frame rail.
1. Remove factory grill, fascia, bumper hub, and tow hooks. 2. Insert backing plates and 7/16" carriage bolts into the frame rail openings on both sides. 3. Raise the base plate into place and lightly secure with 7/16" serrated flange nuts. 4. Drill holes using the base plate as a template with a 13/32" drill bit on both sides. 5. Fishwire 3/8" carriage bolts and spacers into the drilled openings. 6. Tighten all fasteners to specification. 7. Install permanent safety cables. 8. Reinstall bumper hubs, fascia, and grill.
Yes. Be sure to reconnect all electrical components that were disconnected during disassembly of the fascia. This is done during Step 16 when the fascia is reinstalled.
Yes. If the vehicle has rivets (rather than christmas tree fasteners) in the wheel well locations, remove them using diagonal cutters during disassembly. Replace them with the plastic rivets provided in the kit during Step 16 when reinstalling the fascia.
The manual does not specify vehicle make, model, or year. Contact CURT at 877.287.8634 or visit curtmfg.com to confirm fitment before purchasing.
You need a torque wrench, T-20 Torx socket, ratchet, drill, 13/32" drill bit, diagonal cutters, and sockets in 9mm, 10mm, 11/16", 15mm, and 9/16" sizes. A plastic fastener remover or flathead screwdriver is also required.
Yes. You must remove the factory grill, fascia, bumper hub, and tow hooks (if equipped). All components are reinstalled after the base plate is secured.
Torque all 3/8" hardware to 37 ft-lbs and all 7/16" hardware to 59 ft-lbs using a torque wrench.
Each safety cable is rated at 7,500 lbs. Loop them around the vehicle frame and link them to the tow bar base plate, one on each side. Ensure they do not pinch or interfere with hoses, wiring, or other components.
Never exceed the vehicle manufacturer's recommended towing capacity. Perform periodic inspection to ensure all hardware and components remain secure.
