Includes base plate, safety cables and installation hardware (tow bar sold separately)
Not compatible with universal tow bar
Includes base plate, safety cables and installation hardware (tow bar sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: GLOSS BLACK POWDER COAT
Installation Difficulty: Advanced
Installation Time Exact (Minutes): 90
CURT tow bar base plates are engineered for a custom fit on each unique vehicle. This custom tow bar base plate fits select years of the Jeep Cherokee with the aluminum bumper without tow hooks (see application info to verify fitment). It features an OE style design to fully integrate with the front of the vehicle and maintain a factory look. This Jeep Cherokee tow bar baseplate is constructed from high-quality steel and is precisely welded for a perfect fit. It is physically tested for absolute safety and peace of mind while dinghy towing. It also features a unique co-cured finish of liquid A-coat and highly durable powder coat to protect against the outdoor elements. This base plate for towing comes with attachment tabs, safety cables and installation hardware.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2023 | Jeep Cherokee | No Drilling Required Installation Time - Aluminum bumper without tow hooks Visibility: Concealed |
The CURT 70132 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Jeep Cherokee (Part #BKDK70132) fits the following vehicles: 2019-2023 Jeep Cherokee. Always verify your specific year, make, and model before ordering.
The CURT 70132 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Jeep Cherokee (Part #BKDK70132) fits 2019-2023 Jeep Cherokee models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 70132 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Jeep Cherokee (Part #BKDK70132) is designed to fit the 2019-2023 Jeep Cherokee.
The CURT 70132 Custom Tow Bar Base Plate Brackets for Dinghy Towing, Fits Select Jeep Cherokee (Part #BKDK70132) Drilling is not required for installation. Typical installation time is . Basic hand tools are typically all you need.

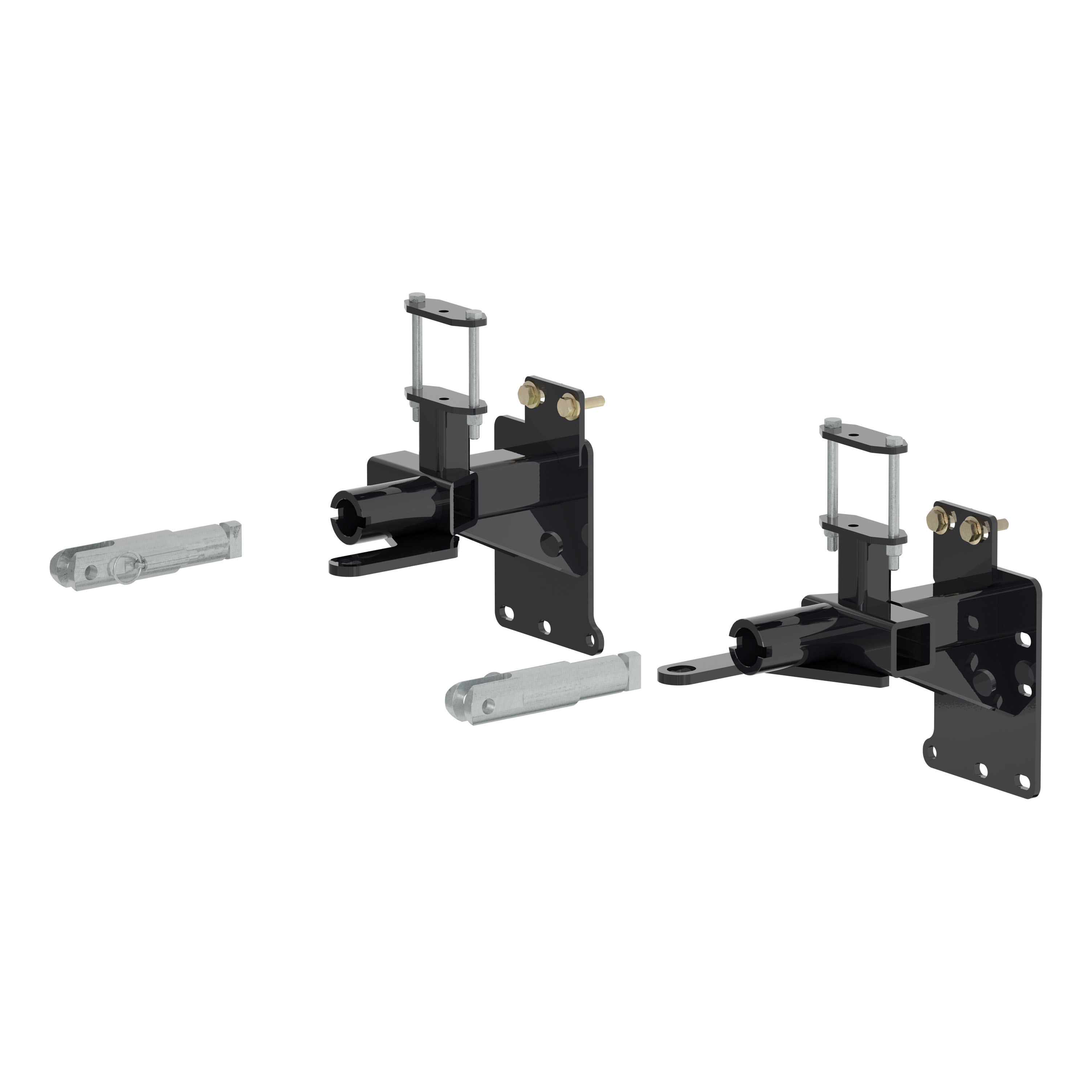

The CURT 70132 is a tow bar base plate assembly designed to be permanently mounted to a vehicle's front frame. It consists of driver-side and passenger-side base plates, mounting tabs, safety cables, and hardware. The installed attachment tabs measure 19.5" in height and 37" in width. It is rated for 7,500 lbs. safety cables and requires drilling and trimming of factory components during installation.
The manual does not specify which vehicle makes, models, or years are compatible with the CURT 70132. Contact CURT product support at 877.287.8634 or visit curtmfg.com to confirm fitment for your specific vehicle before purchasing.
Yes. In Step 11, non-shutter models require removal of the air dam by unbolting two bolts with a 7mm socket and unclipping three clips. Shutter models require trimming the plastic surrounding the outer grille area to expose the grille behind, following the protrusion straight down while leaving areas next to the screws intact. Confirm your vehicle's grille type before beginning installation.
Required tools are: torque wrench, ratchet, 8mm socket, 10mm socket, 15mm socket, 3/4" socket, 7/16" socket, flat screwdriver, drill with 1/4" drill bit, rivet gun, and a reciprocating saw or rotary cutting tool. Proper tools will improve installation quality and reduce time required.

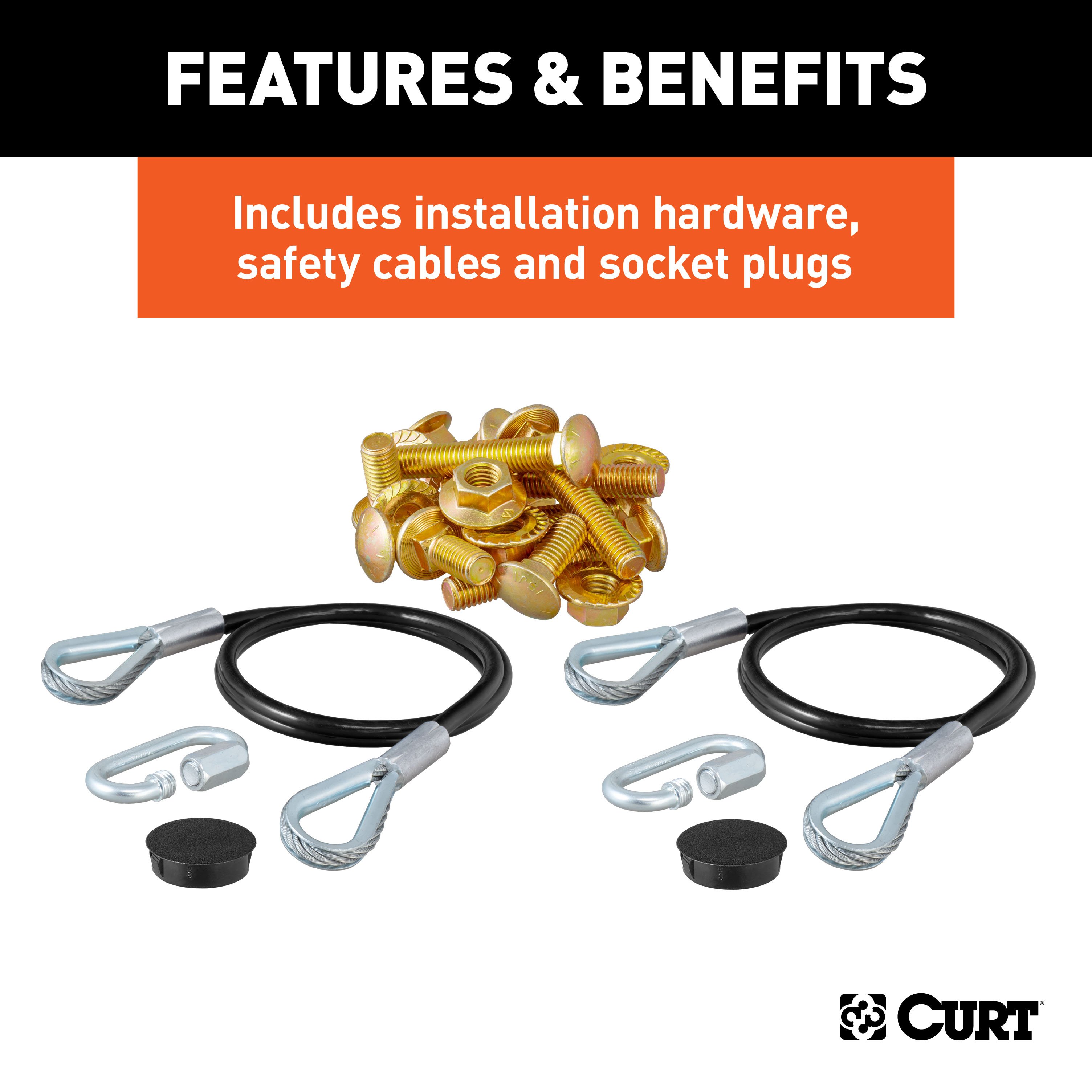

The kit includes: 1 driver-side base plate, 1 passenger-side base plate, 2 mounting tabs, 2 safety cables (7,500 lbs. rated), 4 carriage bolts (1/2"-13, grade 5), 4 hex bolts (M10 x 1.25"-40), 6 rivets (M6), 4 serrated flange nuts (1/2"-13, grade 5), 4 conical-toothed washers (3/8"), 2 quick links (1/2"), and 2 caplugs (#dop-1375).
Installation requires removal of: the fascia cover (13 push fasteners), wheel well covers and trim (multiple bolts), three rivets underneath the vehicle in front of the front tire on each side, four underside bolts, frame extensions (three bolts and one nut per side using 15mm and 10mm sockets), and bumper bolts. The frame extensions are not reinstalled. The air dam (non-shutter models) or outer grille plastic (shutter models) must also be removed or trimmed.
1. Remove fascia cover and wheel well trim. 2. Drill out three rivets in front of each front tire. 3. Remove underside bolts and frame extensions. 4. Slide base plates into place and start two M10 hex bolts with 3/8" conical-toothed washers on the bumper bottom, then install three existing M10 bolts and nut. 5. Place flat top plate on bumper and insert two 5" carriage bolts through top and base plates, securing with serrated flange nuts. 6. Torque all hardware. 7. Install safety cables and quick links. 8. Trim fascia and reinstall bumper and fascia.
Yes. A 1/4" drill bit is required to drill out and remove three rivets underneath the vehicle in front of each front tire (Step 3). This is a permanent modification to the vehicle.
Yes. The fascia must be trimmed in Step 11. For non-shutter models, the air dam is removed by unbolting and unclipping. For shutter models, the plastic surrounding the outer grille area must be trimmed to expose the grille behind, following the protrusion straight down while leaving areas next to the screws intact. A reciprocating saw or rotary cutting tool is required.
Torque M10 hardware to 48 ft-lbs. Torque 1/2" hardware to 64 ft-lbs. All hardware must be torqued in Step 10 after assembly. Proper torque specifications must be followed to prevent damage to the product or vehicle.
The installed attachment tabs measure 19.5" in height and 37" in width.
The two permanent safety cables included with the CURT 70132 are each rated for 7,500 lbs.
Never exceed the vehicle manufacturer's recommended towing capacity. Additionally, the safety cables must not pinch or interfere with any hoses, wiring or other components. Periodic inspection of all hardware and components must be performed to ensure they remain secure.
In Step 12, install the permanent safety cables by looping them around the vehicle frame and linking them to the tow bar base plates using the quick links. There must be one cable on each side of the vehicle. Ensure the cables do not pinch or interfere with any hoses, wiring or other components.
After installation, verify that all hardware is torqued to specification (M10 hardware to 48 ft-lbs, 1/2" hardware to 64 ft-lbs), all electrical connections are reconnected, the fascia and fascia cover are reinstalled, and the safety cables do not pinch or interfere with hoses, wiring or other components. Periodic inspection of all hardware and components must be performed to ensure they remain secure.
Periodic inspection of the product should be performed to ensure all hardware and components remain secure. The manual does not specify a retorque interval or other maintenance schedule. Contact CURT product support at 877.287.8634 for detailed maintenance recommendations.
The manual does not specify compatible vehicles. Contact CURT at 877.287.8634 or visit curtmfg.com to confirm fitment for your vehicle.
You need: torque wrench, ratchet, 8mm/10mm/15mm/3/4"/7/16" sockets, flat screwdriver, drill with 1/4" bit, rivet gun, and reciprocating saw or rotary cutting tool.
Yes. You must drill out three rivets per side with a 1/4" bit and trim the fascia (air dam removal for non-shutter models, or grille plastic trimming for shutter models).
Torque M10 hardware to 48 ft-lbs and 1/2" hardware to 64 ft-lbs.
The two permanent safety cables are each rated for 7,500 lbs. They must be looped around the vehicle frame and linked to the base plates, with one cable on each side.
Verify all hardware is torqued to specification, electrical connections are reconnected, fascia is reinstalled, and safety cables do not interfere with hoses or wiring. Perform periodic inspections to ensure all hardware remains secure.
