Includes mounting hardware (base rails sold separately)
Includes mounting hardware (base rails sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Color: Black
Finish: A-COAT
Installation Time Exact (Minutes): 0

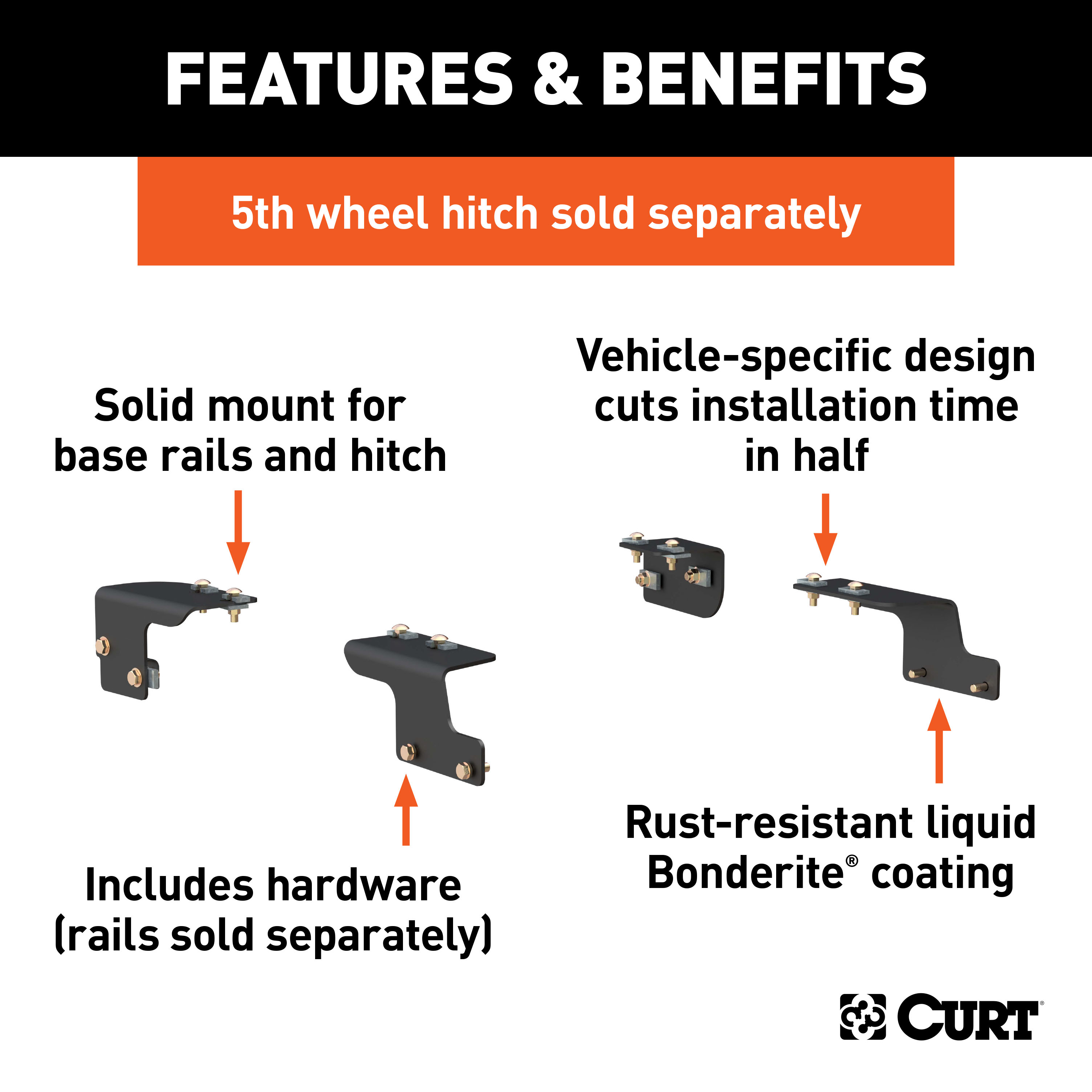

When you purchase a 5th wheel trailer hitch, you expect it to be capable of towing your RV, flatbed or whatever other 5th wheel trailer you own. While a 5th wheel hitch does offer an impressive amount of towing strength, it cannot get far without the proper installation equipment. Engineered for specific makes and models, CURT custom 5th wheel brackets provide the ideal solution for complementing the power of your 5th wheel trailer hitch. A custom 5th wheel bracket features a shape that contours to the frame of your truck and uses pre-drilled holes in the frame wherever possible to make installation quick and easy. Depending on your model of pickup truck, they also reduce or eliminate the need for drilling. These particular custom 5th wheel brackets offer a custom fit for certain model years of the Toyota Tundra, 6.5' bed (except extended crew cab) (see application info to verify fitment). Finished in a durable liquid A-coat, CURT custom 5th wheel brackets are made to last. They include all necessary mounting hardware and are designed to be used in conjunction with CURT industry-standard 5th wheel base rails #16104 or #16204 (base rails sold separately).
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
2 compatible vehicles
| Year | Make & Model | Style | Bed | Notes |
|---|---|---|---|---|
| 2007 - 2021 | Toyota Tundra | Extended Cab Pickup | 6'7" Bed | Drilling Required Installation Time - |
| 2007 - 2017 | Toyota Tundra | Standard Cab Pickup | 6'7" Bed | Drilling Required Installation Time - |
The CURT Custom 5th Wheel Brackets, Select Toyota Tundra, 6.5' Bed (No Extended Crew Cab) Fifth Wheel Trailer Hitch Bracket (Part #BKDK16468) is designed for 6'7" bed trucks. Check the fitment chart for your specific Toyota Tundra configuration.
Yes, the CURT Custom 5th Wheel Brackets, Select Toyota Tundra, 6.5' Bed (No Extended Crew Cab) Fifth Wheel Trailer Hitch Bracket (Part #BKDK16468) is designed to fit the 2007-2021 Toyota Tundra.
The CURT Custom 5th Wheel Brackets, Select Toyota Tundra, 6.5' Bed (No Extended Crew Cab) Fifth Wheel Trailer Hitch Bracket (Part #BKDK16468) fits 2007-2021 Toyota Tundra models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom 5th Wheel Brackets, Select Toyota Tundra, 6.5' Bed (No Extended Crew Cab) Fifth Wheel Trailer Hitch Bracket (Part #BKDK16468) fits the following vehicles: 2007-2021 Toyota Tundra. Always verify your specific year, make, and model before ordering.
The CURT Custom 5th Wheel Brackets, Select Toyota Tundra, 6.5' Bed (No Extended Crew Cab) Fifth Wheel Trailer Hitch Bracket (Part #BKDK16468) Drilling is required for installation. Typical installation time is . Basic hand tools are typically all you need.
Curt 16468 is designed for Toyota Tundra with a 6.5' standard box only. If your Tundra has a different bed length, this kit is not compatible. The manual does not support fitment for other truck models or bed sizes.
No. The manual states: 'System may not work with 2003 and earlier competitor products.' If you have an older non-Curt hitch, compatibility is not guaranteed and you should contact Curt Manufacturing or the hitch manufacturer before proceeding.
The kit includes: four 5/8"-11 UNC grade 8 hex head cap screws (1-3/4" long), four 5/8" flat washers, four 5/8"-11 UNC grade 8 serrated flange nuts, four M14×1.5 grade 10.9 hex head cap screws (40mm long), four 9/16" lock washers, eight 1/2"-13 UNC grade 8 serrated flange nuts, eight 1/2"-13 UNC grade 8 carriage bolts (2" long), eight .313" × 1.00" × 2.00" U-shape spacers, and eight .250" × 1.50" × 2.00" square hole spacers. Four .375" × 1.25" × 2.50" square hole spacers are also included. Use only these supplied fasteners for installation.

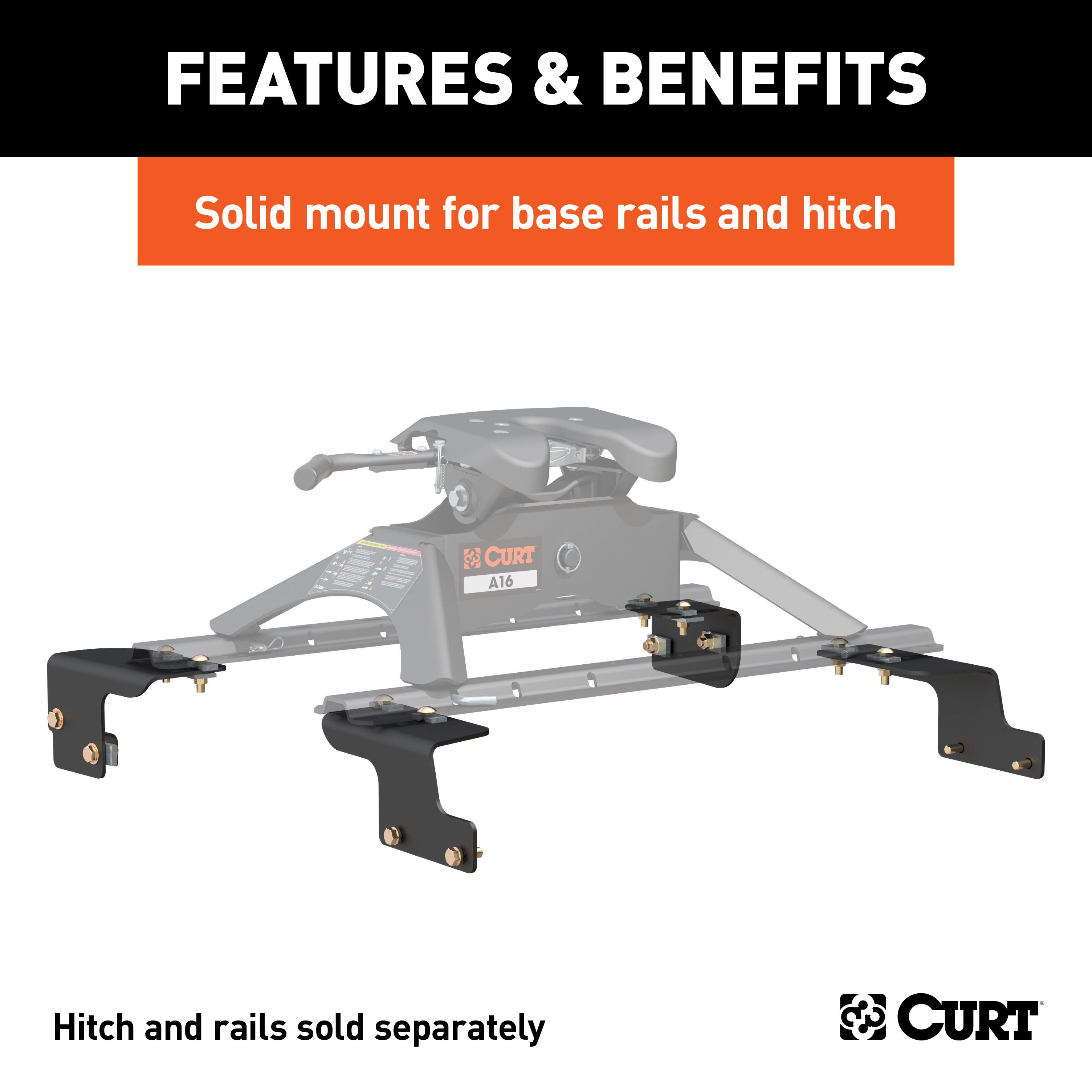

The manual shows the kit installed with a Curt 16115 5th wheel hitch but states '5th wheel mounting rails (sold separately)' on the diagram. The 16468 kit provides the frame-mounted rails only; the hitch itself must be purchased separately.
No. The manual is titled 'Installation of Rear Plates Without Full Bumper Removal.' Instead, you loosen the bumper bracket bolts, rotate the bumper down to allow the rear side plates to be positioned between the bumper brackets and frame rails, then rotate the bumper back into position and re-install the bolts loosely before final torquing.
Yes. Step 1 requires you to lower and remove the spare tire before beginning installation.
The electrical box mounted on the inside of the driver side frame rail must be relocated. Remove it by unbolting the nut on the outside of the frame, then re-attach it to the supplied electrical box bracket (CM-16468-EBB) using the original fasteners. This allows the driver side front plate to be installed without interference.
No. The manual warns: 'Do not install mounting rails over plastic bed liners. Plastic liners must be trimmed for metal-to-metal contact.' Spray-in liners are acceptable and do not require trimming.
Three types of drilling are required: (1) Enlarge the existing 3/8" hole on the passenger side frame rail to 5/8" for the front plate bolt. (2) Drill 1/8" pilot holes in the truck bed floor at positions marked using the rail location diagram. (3) Enlarge those 1/8" holes to 9/16" using a step drill. (4) Drill a 5/8" hole on the driver side frame rail where the front plate attaches. The manual estimates approximately 90 minutes total installation time.
The manual warns: 'Frame rail must be clear of any electrical or brake components where side plates attach. When drilling, protect the electrical and brake components from damage by placing a piece of metal between.' Before drilling, inspect the frame rail to identify any components in the drilling path and position a metal shield to prevent accidental damage.
The installation sequence is: (1) Lower and remove spare tire. (2) Enlarge the 3/8" hole on the passenger side frame rail to 5/8". (3) Relocate the electrical box to the supplied bracket. (4) Position and mark the driver side front plate. (5) Place the first mounting rail in the truck bed and mark hole positions using the rail location diagram. (6) Drill 1/8" pilot holes in the bed. (7) Temporarily position side plates to verify alignment, then drill the 5/8" hole on the driver side. (8) Enlarge the 1/8" holes to 9/16". (9) Install the first mounting rail with carriage bolts and spacers. (10) Position the second mounting rail with the hitch. (11) Repeat steps 6–8 for the rear rail. (12) Loosen and rotate the bumper bracket, position rear side plates, rotate bumper back, and loosely install bolts. (13) Install the rear mounting rail. (14) Torque all fasteners to specification.
Spacers are placed between the frame bracket or mounting rails and the truck bed to ensure metal-to-metal contact and to eliminate 'rib crush' of the bed. The kit includes eight .313" × 1.00" × 2.00" U-shape spacers and eight .250" × 1.50" × 2.00" square hole spacers, plus four .375" × 1.25" × 2.50" square hole spacers for the electrical box bracket.
Use a tape measure to center each mounting rail on the truck box floor and position it at the proper distance from the rear edge of the truck box as shown on the 'rail location diagram' page. The diagram specifies 49.375 inches from the center line of the axle for the 6.5' box. Use a center punch to mark the hole positions before drilling. Ensure the rail is centered on the truck box floor to guarantee the 5th wheel has a snug fit.
If more than one hitch product will be used with the mounting rails, both should be used at the same time to align the second mounting rail. This ensures that one product does not compromise the fit of the other.
Torque all 1/2" fasteners to 110 lb-ft and all 5/8" fasteners to 210 lb-ft. Torque all 14mm bumper bolts to 136 lb-ft. These torque values apply after the mounting rails are positioned and all bolts are initially installed loosely.
According to the rail location diagram, the distance is 49.375 inches from the center line of the axle for the 6.5' standard box. This measurement ensures proper positioning of the 5th wheel hitch.
Do not exceed the vehicle manufacturer's recommended towing capacity. This warning appears on every page of the manual and is critical to safe operation. Exceeding the manufacturer's capacity can result in loss of vehicle control and serious injury or death.
Yes. The manual states: 'Before installing hitch measure to be sure there will be enough clearance between the truck and trailer to allow for turns.' This ensures the trailer will not strike the truck bed or cab during cornering.
After installation, verify that all fasteners are torqued to specification (1/2" fasteners to 110 lb-ft, 5/8" fasteners to 210 lb-ft, and 14mm bumper bolts to 136 lb-ft). Ensure the rear bumper is level. Confirm that the mounting rails are centered on the truck box floor and that the 5th wheel hitch has a snug fit. Check that all bolts are fully tightened before towing.
Yes, if your Tundra has a 6.5' standard box. This kit is not compatible with other bed lengths or truck models.
No. The kit includes the mounting rails only. The 5th wheel hitch must be purchased separately.
Yes. You must drill 1/8" pilot holes in the truck bed, enlarge them to 9/16", enlarge an existing 3/8" hole to 5/8" on the passenger side frame rail, and drill a 5/8" hole on the driver side frame rail.
Torque 1/2" fasteners to 110 lb-ft, 5/8" fasteners to 210 lb-ft, and 14mm bumper bolts to 136 lb-ft.
Do not exceed the vehicle manufacturer's recommended towing capacity. Always measure clearance between truck and trailer before towing to ensure adequate turning radius.
