CURT Custom Tow Bar Base Plate, Select Chevrolet Blazer Tow BarCURTOriginal price was $752.95. Current price is $466.99.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2018 - 2022 Chevrolet Equinox
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Includes base plate, safety cables and installation hardware (tow bar sold separately)
Not compatible with universal tow bar
Includes base plate, safety cables and installation hardware (tow bar sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: GLOSS BLACK POWDER COAT
Installation Difficulty: Professional
Installation Time Exact (Minutes): 240

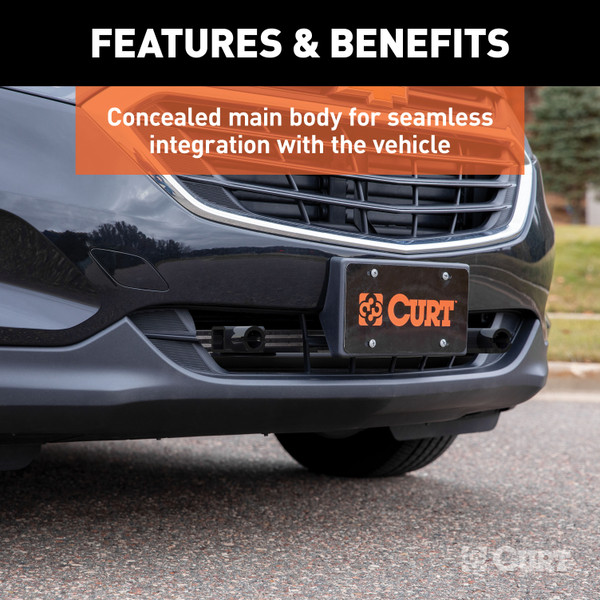

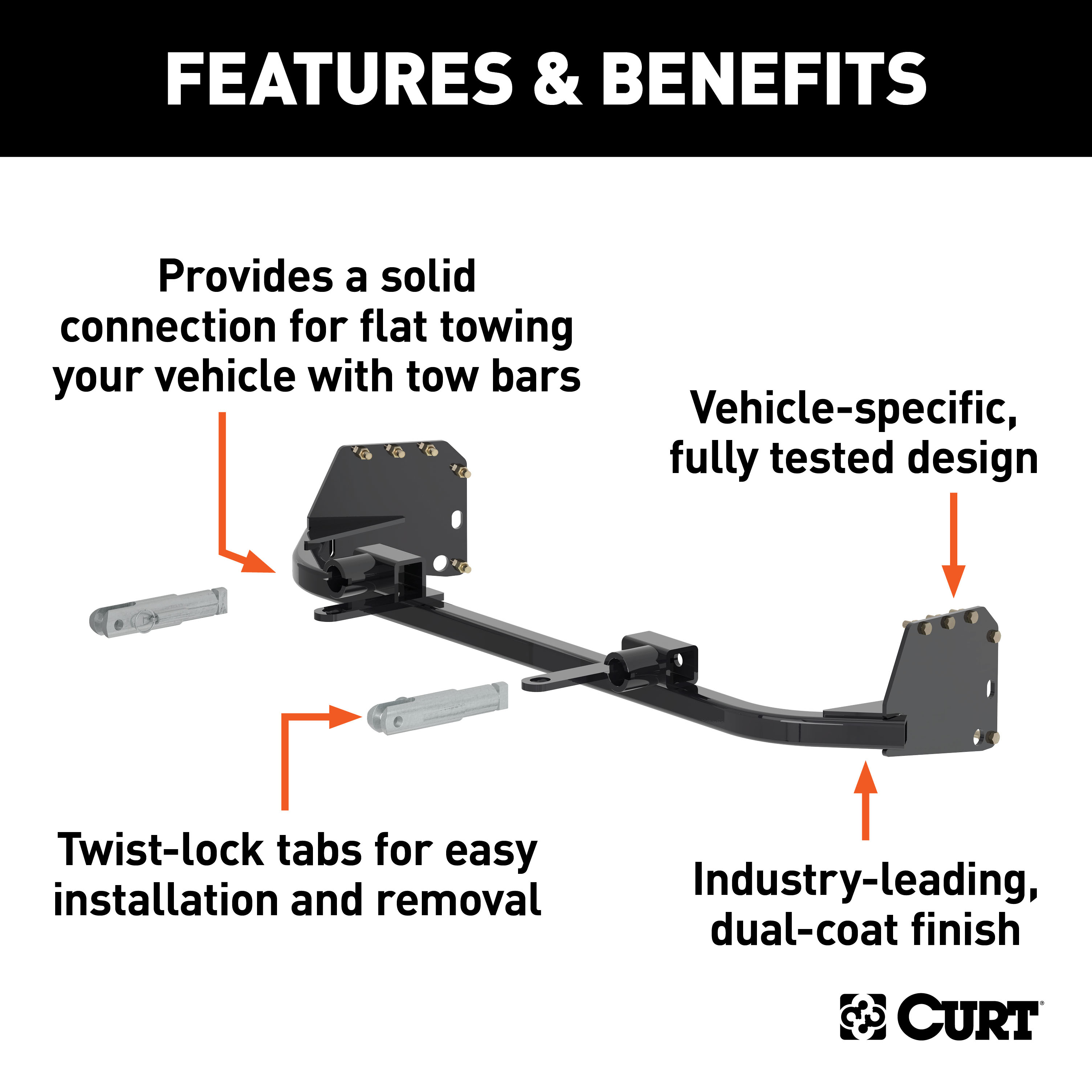

CURT tow bar base plates are engineered for a custom fit on each unique vehicle. This custom tow bar base plate fits select years of the Chevy Equinox (see application info to verify fitment). It features an OE style design to fully integrate with the front of the vehicle and maintain a factory look. This Chevy Equinox tow bar baseplate is constructed from high-quality steel and is precisely welded for a perfect fit. It is physically tested for absolute safety and peace of mind while dinghy towing. It also features a unique co-cured finish of liquid A-coat and highly durable powder coat to protect against the outdoor elements. This base plate for towing comes with attachment tabs, safety cables and installation hardware.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2022 | Chevrolet Equinox | Drilling Required Installation Time: 90+ minutes Visibility: Concealed Excluding lower shutters |
The CURT Custom Tow Bar Base Plate, Select Chevrolet Equinox Tow Bar (Part #BKDK70108) fits the following vehicles: 2018-2022 Chevrolet Equinox. Always verify your specific year, make, and model before ordering.
Yes, the CURT Custom Tow Bar Base Plate, Select Chevrolet Equinox Tow Bar (Part #BKDK70108) is designed to fit the 2018-2022 Chevrolet Equinox.
The CURT Custom Tow Bar Base Plate, Select Chevrolet Equinox Tow Bar (Part #BKDK70108) fits 2018-2022 Chevrolet Equinox models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Tow Bar Base Plate, Select Chevrolet Equinox Tow Bar (Part #BKDK70108) Drilling is required for installation. Typical installation time is 90+ minutes. Basic hand tools are typically all you need.

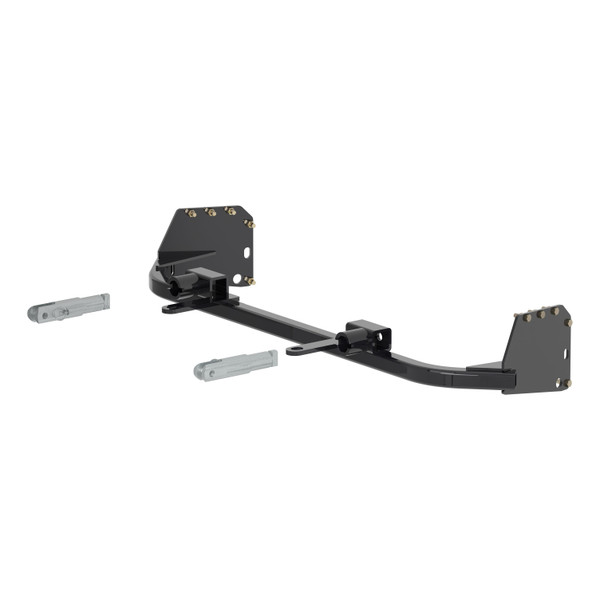

The kit includes: one tow bar base plate, two tow bar mounting tabs, two safety cables (3,500 lbs. each), ten 3/8"-16 x 1-1/4" grade 8 hex bolts, ten 3/8"-16 grade 8 nylock nuts, one M6 flat washer, one M6-1 x 30mm CL8.8 hex bolt, two 1/4" quick links, and two socket plugs. The safety cables, quick links and socket plugs are not pictured in the product photo.
The manual does not specify the vehicle make, model or year. Contact CURT product support at 877-287-8634 or visit curtmfg.com to confirm fitment for your specific vehicle.
Required tools are: torque wrench, drill, 3/8" drill bit, T15 Torx bit, utility knife, large vise grip, and the following sockets and wrenches: 9/16", 7/16", 7mm, 10mm, 5/16" nut driver, and 7/16" and 9/16" wrenches.
Yes. The installation requires temporary removal and reinstallation of: front fascia panels, driver-side headlight, windshield washer reservoir, and temperature sensor. The front grille panel, wheel well liner, and bumper cover must also be removed during installation.
Yes. You must drill ten 3/8" holes in the vehicle frame—five on each side. The first hole on each side is drilled using the top center hole in the base plate side panel as a guide (Steps 10-11). Additionally, you must drill a 1/4" hole in the temperature sensor bracket (Step 12).
Yes. Trimming is required in three areas: (1) trim marked areas from the front plastic trim piece using a utility knife (Step 7); (2) cut off the driver-side temperature sensor bracket from the front plastic trim piece with a utility knife (Step 12); and (3) trim the bumper cover where it may interfere with the safety cable loops and attachment tabs (Step 16).
Yes. In Step 8, you must use a hammer to carefully bend the metal frame components inward about 1/8" on each side of the vehicle to accommodate the base plate. This is a permanent modification.
All 3/8" hex bolts (#4) securing the tow bar base plate to the vehicle frame must be torqued to 37 lb-ft. This applies to both the initial center hole installation (Step 10) and the four remaining holes on each side (Step 11).
Position the base plate on the vehicle frame and temporarily clamp it in place, ensuring it is level (Step 9). Using the top center hole in the base plate side panel as a guide, drill a 3/8" hole in the frame on each side and install a 3/8" hex bolt with a nylock nut, torqued to 37 lb-ft (Step 10). Then drill the four remaining holes on each side and install bolts with nylock nuts, also torqued to 37 lb-ft (Step 11). Repeat the process on the other side of the vehicle.
Reinstall the reservoir using the previously removed hardware (three bolts and one nut). For the bottom-most rearward bolt, use the supplied M6 hex bolt (#7) and M6 flat washer (#6) to attach the reservoir through the base plate to the frame; this fastener clamps the base plate between the reservoir and frame (Step 13). Reconnect the fluid hoses and electrical connectors, then refill with windshield washer fluid.
Cut off the driver-side temperature sensor bracket from the front plastic trim piece using a utility knife. Drill a 1/4" hole in the bracket and reinstall it on the upper mounting hole on the driver side of the plastic trim piece so the sensor points forward. Attach the sensor clip and plastic trim piece with the factory push pin for that location, then reinstall the front plastic trim piece on the grille using the remaining factory push pins (Step 12).

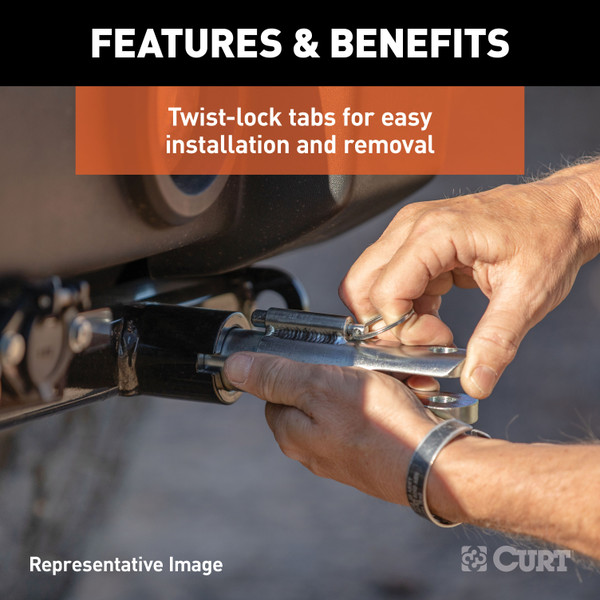

When ready to tow, install the tow bar mounting tabs (#2) onto the base plate. When not towing, insert the socket plugs (#9) into the ends of the tow bar base plate to cover the attachment points (Step 16).
Install the permanent safety cables (#3) and quick links (#8), looping them around the vehicle frame and linking them to the tow bar base plate (#1). There must be one cable on each side of the vehicle. Ensure the cables do not pinch or interfere with any hoses, wiring or other components (Step 15). The cables must be connected to both the base plate and the vehicle frame, and each cable must meet or exceed the gross weight of the towed vehicle.
Wear safety glasses at all times during installation. Take care when cutting any plastic or metal, as injury may occur if done improperly. Never exceed the vehicle manufacturer's recommended gross vehicle weight rating (GVWR). When dinghy towing, base plate safety cables must be used at all times and are designed to help prevent complete vehicle separation in the event of a disconnect. Safety cables are not a replacement for safety chains connecting the tow vehicle to the towed vehicle.
Periodically check the condition of all towing equipment. Ensure all fasteners are tight and that all structural components are sound. Do not tow with worn or damaged parts. Review your vehicle owner's manual and the towed vehicle owner's manual for specific recommendations, capacities and requirements.
Periodically check the condition of all towing equipment. Ensure all fasteners are tight and that all structural components are sound. Do not tow with worn or damaged parts. The manual does not specify an exact inspection interval; consult your vehicle owner's manual for specific maintenance recommendations.
The manual does not specify vehicle compatibility. Contact CURT product support at 877-287-8634 or visit curtmfg.com to confirm fitment for your specific vehicle make, model and year.
Yes. You must drill ten 3/8" holes in the vehicle frame (five per side) and one 1/4" hole in the temperature sensor bracket. Trimming of plastic trim pieces and the bumper cover is also required.
You need a torque wrench, drill with 3/8" and 1/4" bits, T15 Torx bit, utility knife, large vise grip, and sockets/wrenches in 9/16", 7/16", 7mm, 10mm, and 5/16" sizes.
You must temporarily remove the front fascia panel, driver-side headlight, windshield washer reservoir, and temperature sensor. The front grille panel, wheel well liner, and bumper cover must also be removed.
Yes. Two permanent safety cables (3,500 lbs. each) must be installed—one on each side—looping around the vehicle frame and linked to the base plate. Safety cables must be used at all times when dinghy towing and are not a replacement for safety chains connecting the tow vehicle to the towed vehicle.
