Includes base plate, safety cables and installation hardware (tow bar sold separately)
Not compatible with universal tow bar
Includes base plate, safety cables and installation hardware (tow bar sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: Blank
Installation Difficulty: Professional
Installation Time Exact (Minutes): 120

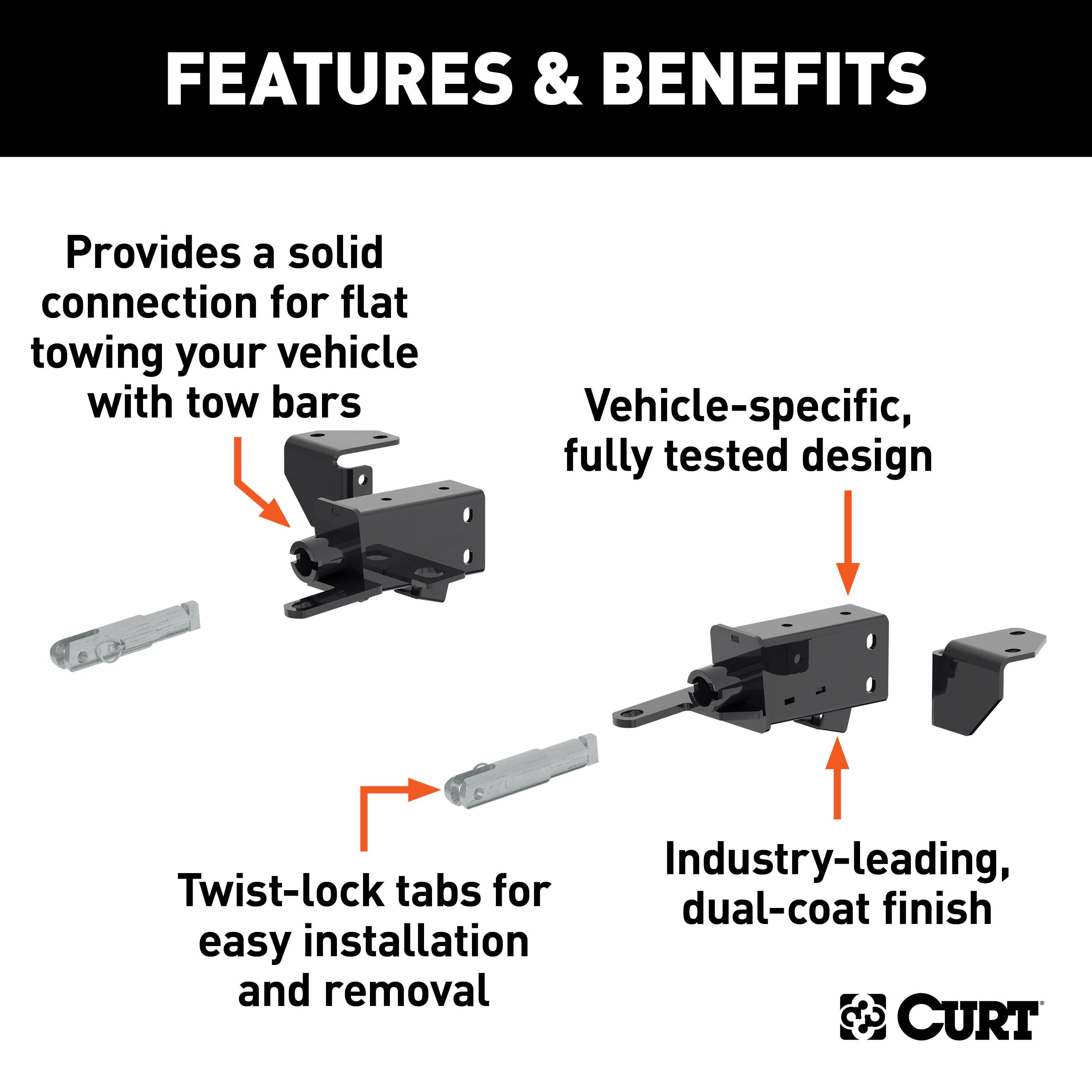

CURT tow bar base plates are engineered for a custom fit on each unique vehicle. This custom tow bar base plate fits select years of the Ford Bronco with standard bumper (see application info to verify fitment). It features an OE style design to fully integrate with the front of the vehicle and maintain a factory look. This Ford Bronco tow bar baseplate is constructed from high-quality steel and is precisely welded for a perfect fit. It is physically tested for absolute safety and peace of mind while dinghy towing. It also features a unique co-cured finish of liquid A-coat and highly durable powder coat to protect against the outdoor elements. This base plate for towing comes with attachment tabs, safety cables and installation hardware.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited lifetime warranty (one-year finish, one-year parts)
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2024 | Ford Bronco | No Drilling Required Installation Time - Standard Bumper Visibility: Concealed |
The CURT Custom Tow Bar Base Plate, Select Ford Bronco with Standard Bumper 70147 (Part #BKDK70147) fits the following vehicles: 2021-2024 Ford Bronco. Always verify your specific year, make, and model before ordering.
Yes, the CURT Custom Tow Bar Base Plate, Select Ford Bronco with Standard Bumper 70147 (Part #BKDK70147) is designed to fit the 2021-2024 Ford Bronco.
The CURT Custom Tow Bar Base Plate, Select Ford Bronco with Standard Bumper 70147 (Part #BKDK70147) fits 2021-2024 Ford Bronco models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Tow Bar Base Plate, Select Ford Bronco with Standard Bumper 70147 (Part #BKDK70147) Drilling is not required for installation. Typical installation time is . Basic hand tools are typically all you need.

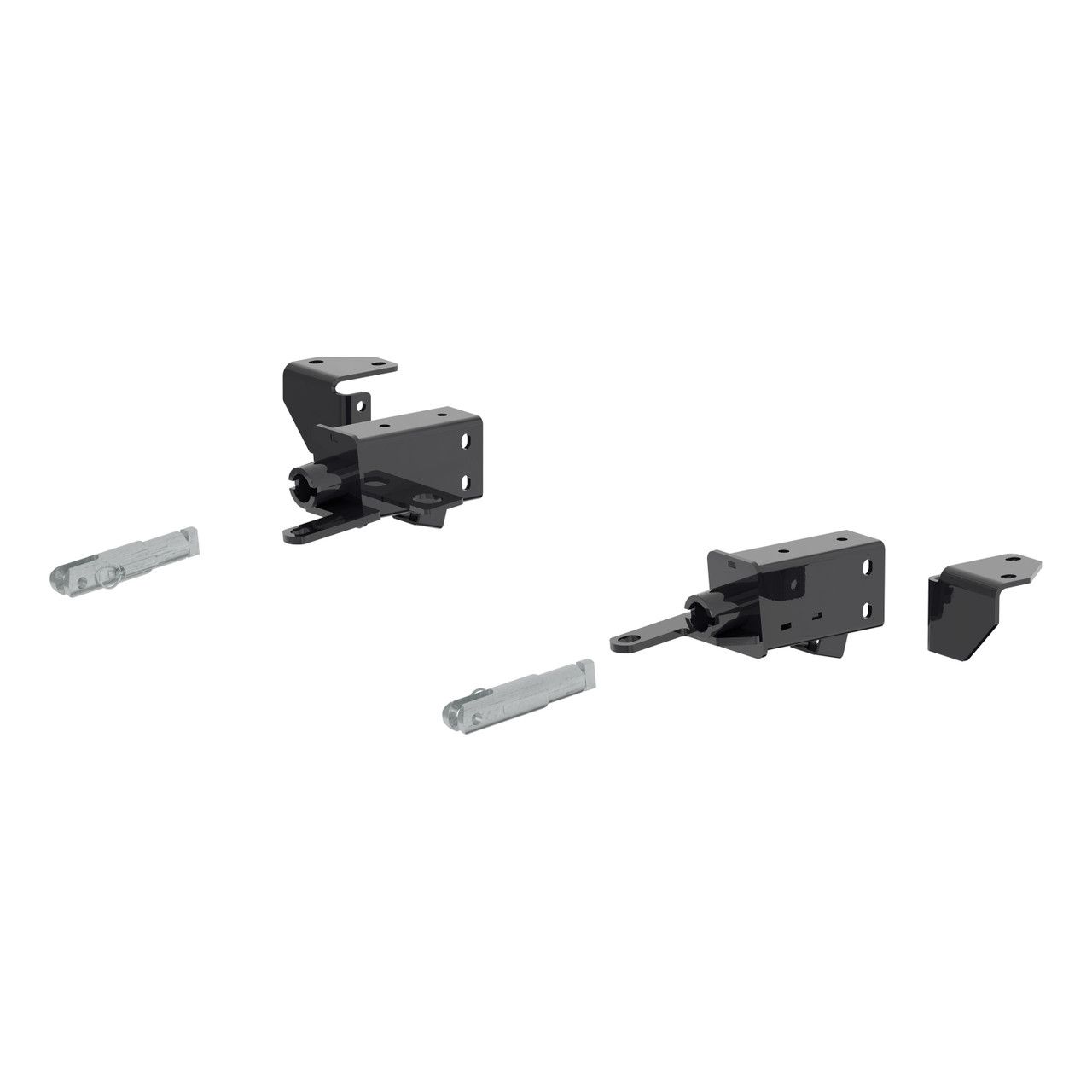

The CURT 70147 is a tow bar base plate assembly designed for dinghy towing. It consists of two base plates (one per side) that mount to the vehicle frame rails using existing factory tow hook bolt holes. The assembly includes mounting plates, tabs, safety cables rated for 7,500 lbs, and all required fasteners. The installed attachment tabs measure 19.5" in height and 30.5" in width.
The CURT 70147 is designed for vehicles with frame rails, factory tow hooks, a skid plate, and rubber grommets on the frame. The manual does not specify the exact vehicle make, model, or year. Contact CURT product support at 877-287-8634 or visit curtmfg.com to confirm fitment for your specific vehicle.
Required tools are: sockets (8mm, 10mm, 15mm, 18mm, 11/16", 3/4"), socket extension, ratchet, torque wrench, wrenches (18mm, 11/16", 3/4"), angle grinder with cutoff wheel, paint marker, flathead screwdriver, Phillips screwdriver, and safety glasses.
The kit includes: 2 tow bar base plates, 2 tow bar mounting plates, 2 tow bar mounting tabs, 2 safety cables (7,500 lbs rating), 4 hex bolts 1/2"-13 UNC 1-1/2" grade 8, 4 lock washers 1/2", 4 flat washers 1/2", 4 nylock nuts 1/2"-13 UNC grade 8, 4 hex bolts 7/16"-14 UNC 1-1/2" grade 8, 4 serrated flange nuts 7/16"-14 grade 8, 4 flat washers 7/16", 4 fishwire 7/16", 2 quick links 1/2", and 2 caplugs #dop-1375.
Permanently remove recovery loops and D-rings. Temporarily remove the bumper and skid shield. The skid plate must be removed initially (six bolts total, three per side, using a 15mm socket) and saved for possible reinstallation after trimming. Factory tow hooks must be removed (two bolts per side, 15mm socket) and returned to the vehicle owner.
Yes. Use a 15mm socket to remove two bolts securing each tow hook to the frame (four bolts total). Remove both tow hooks and return them to the vehicle owner. If a plastic shroud is present around the tow hook, pinch back the rear area and remove it before removing the bolts.
The fishwire technique uses a coiled 7/16" fishwire tool to guide a bolt and spacer through the vehicle frame rail without losing them inside the frame. Thread the fishwire onto the 7/16" hex bolt, attach the flat washer to the fishwire, insert the coiled end through the frame's access hole (large hole), feed it through the mounting hole, then pull the fishwire to draw the bolt and spacer through the frame. Kink the wire to keep the spacer separate from the bolt. This prevents bolt or spacer loss during installation.
Install the base plates to the proper sides using the two existing factory tow hook bolt holes. Use a socket and socket extension to secure them. Align the base plate flange with the rubber grommet extruding from the vehicle frame to ensure correct orientation and installation on the proper side.
Secure each mounting bracket to its base plate using two supplied 1/2" x 1-1/2" hex bolts (#5) with lock washers (#6) and flat washers (#7), fastened with nylock nuts (#8) on the inside of the base plate tube. Do not fully tighten the hardware at this stage. Repeat on the other side of the vehicle.
Thread the 7/16" fishwire onto the 7/16" hex bolt (#9) and attach the 7/16" flat washer (#11) onto the fishwire on the bolt. Insert the fishwire into the access hole (large hole) holding the bolt and washer in your hand. Feed the fishwire into the mounting hole, grab the fishwire on the mounting hole side, and begin pulling the bolt through the access hole and out the mounting hole. Loosening the top bolt from the base plate may make this easier.
Hold the skid plate close to its original position and mark with tape or paint marker where trimming is needed. Use an angle grinder with a cutoff wheel to trim the skid plate for proper fit. Take care when cutting metal as injury may occur if done improperly.
Torque all 7/16" hardware to 59 ft-lbs. Torque all 1/2" hardware to 90 ft-lbs. Do not fully tighten hardware during initial assembly; tighten to specification after all components are positioned.
Torque all 1/2" hardware to 90 ft-lbs.
Torque all 7/16" hardware to 59 ft-lbs.
The installed attachment tabs measure 19.5" in height and 30.5" in width.
The two safety cables included with the CURT 70147 are each rated for 7,500 lbs.
Yes. When dinghy towing a vehicle with the CURT 70147 tow bar, base plate safety cables must be installed and used at all times. In the event of a disconnect, the safety cables are designed to help prevent complete vehicle separation. However, base plate safety cables are not a replacement for safety chains connecting the tow vehicle to the towed vehicle.
Two safety cables must be installed. Each cable must be connected to both the base plate and the vehicle frame. Each cable must meet or exceed the gross weight of the towed vehicle. Make sure cables do not pinch or interfere with hoses, wiring or other components. Use the quick links provided to secure the cables.
Never exceed the vehicle manufacturer's recommended towing capacity. The CURT 70147 manual does not specify a maximum capacity; you must refer to your vehicle's owner's manual for the towing capacity limit.
Periodically inspect your product to ensure all hardware and components remain secure. Check the condition of all towing equipment, ensure all fasteners are tight, and verify that all structural components are sound. Do not tow with worn or damaged parts. Refer to your towing vehicle and trailer manufacturer's recommendations for specific requirements and capacities.
Periodic inspection of your product should be performed to ensure all hardware and components remain secure. The manual does not specify an exact interval. Check before each towing trip and at regular maintenance intervals.
Periodically check the condition of all towing equipment. Ensure all fasteners are tight and that all structural components are sound. Do not tow with worn or damaged parts. Review your towing vehicle and trailer manufacturer's recommendations for specific maintenance requirements and capacities.
Permanently remove recovery loops and D-rings. Temporarily remove the bumper and skid shield. Remove the skid plate (six bolts, 15mm socket) and factory tow hooks (four bolts, 15mm socket) and save them.
Yes. The skid plate must be trimmed using an angle grinder with a cutoff wheel after the base plates are installed. Mark the trim line with tape or paint marker and trim for proper fit.
