CURT Custom Tow Bar Base Plate, Select Jeep Wrangler JK Tow BarCURTOriginal price was $752.95. Current price is $466.99.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
1997 - 2006 Jeep Wrangler
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Includes base plate, safety cables and installation hardware (tow bar sold separately)
Not compatible with universal tow bar
Includes base plate, safety cables and installation hardware (tow bar sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Finish: GLOSS BLACK POWDER COAT
Installation Difficulty: Professional
Installation Time Exact (Minutes): 120

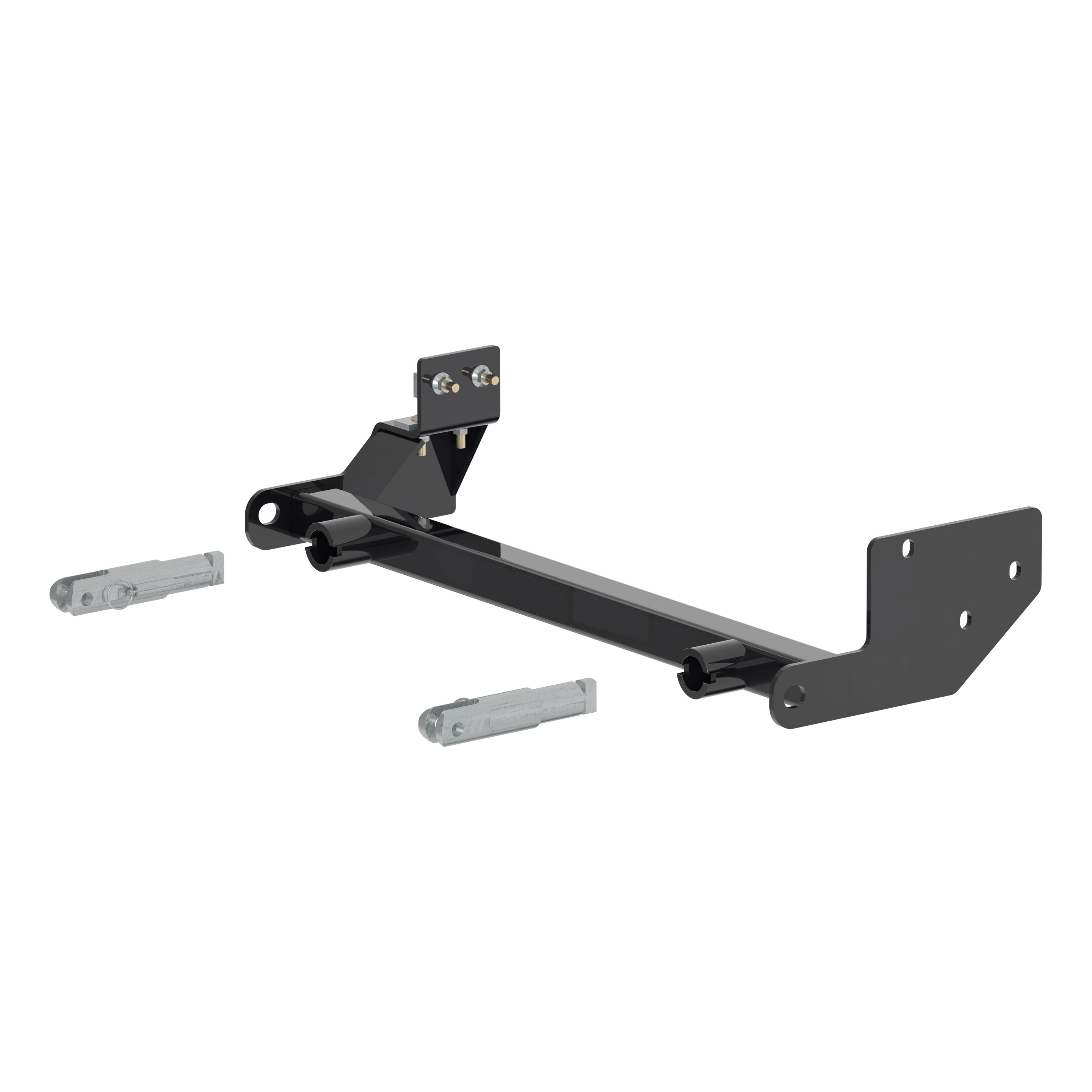

CURT tow bar base plates are engineered for a custom fit on each unique vehicle. This custom tow bar base plate fits select years of the Jeep Wrangler TJ (see application info to verify fitment). This Jeep Wrangler TJ tow bar baseplate is constructed from high-quality steel and is precisely welded for a perfect fit. It is physically tested for absolute safety and peace of mind while dinghy towing. It also features a unique co-cured finish of liquid A-coat and highly durable powder coat to protect against the outdoor elements. This base plate for towing comes with attachment tabs, safety cables and installation hardware.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1997 - 2006 | Jeep Wrangler | Drilling Required Installation Time: 90+ minutes Visibility: Concealed |
Yes, the CURT Custom Tow Bar Base Plate, Select Jeep Wrangler TJ Tow Bar (Part #BKDK70112) is designed to fit the 1997-2006 Jeep Wrangler.
The CURT Custom Tow Bar Base Plate, Select Jeep Wrangler TJ Tow Bar (Part #BKDK70112) fits 1997-2006 Jeep Wrangler models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom Tow Bar Base Plate, Select Jeep Wrangler TJ Tow Bar (Part #BKDK70112) fits the following vehicles: 1997-2006 Jeep Wrangler. Always verify your specific year, make, and model before ordering.
The CURT Custom Tow Bar Base Plate, Select Jeep Wrangler TJ Tow Bar (Part #BKDK70112) Drilling is required for installation. Typical installation time is 90+ minutes. Basic hand tools are typically all you need.

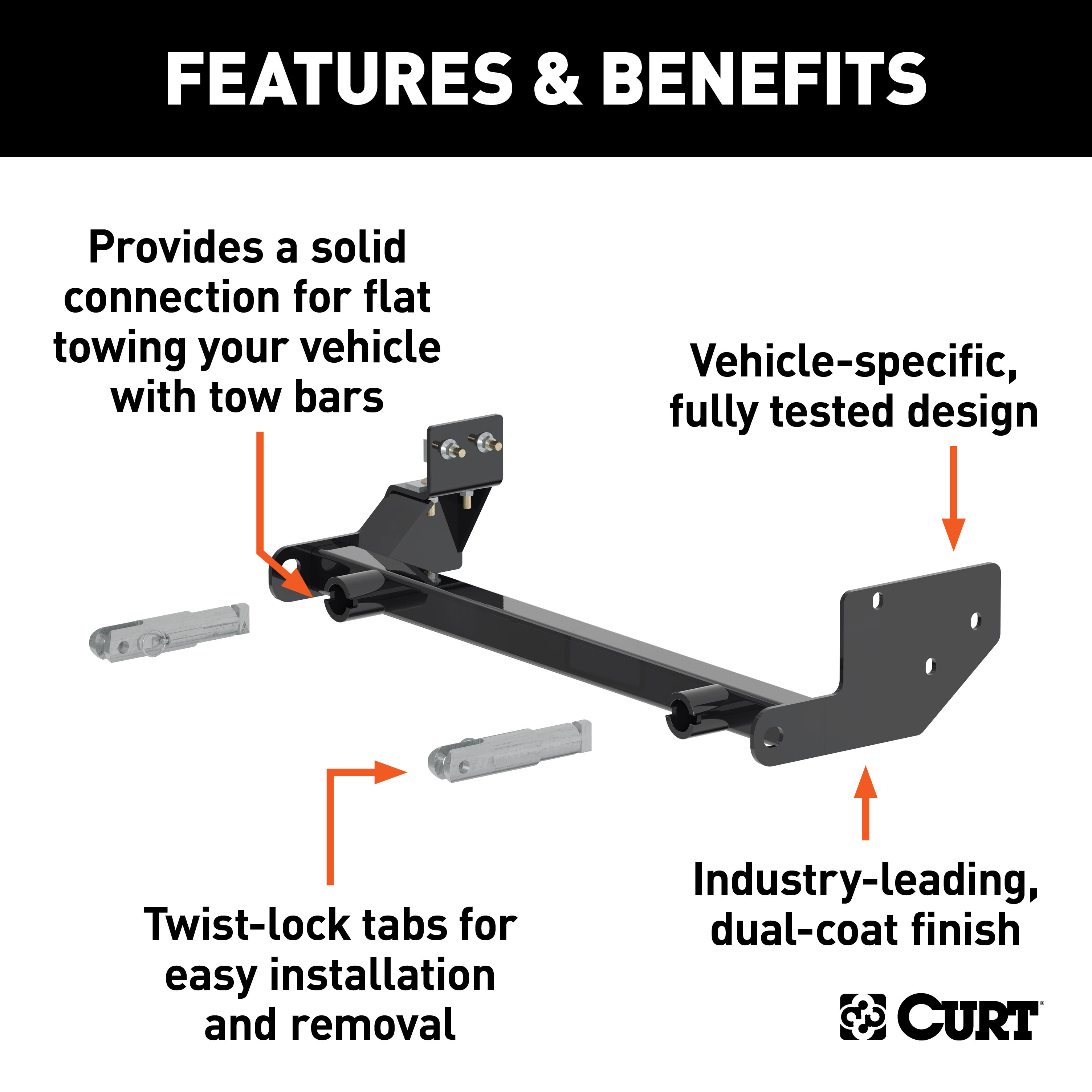

The CURT 70112 is a frame-mounted tow bar base plate system designed for dinghy towing. It includes a base plate, mounting tabs, safety cables, quick links, and socket plugs. The base plate is permanently mounted to the vehicle frame, and the mounting tabs are installed when towing and removed when not in use. Socket plugs are inserted into the base plate ends when the product is not in use.
The manual does not specify which vehicle years, makes, models or frame types are compatible with the 70112. Contact CURT Product Support at 877.287.8634 or visit curtmfg.com to confirm fitment for your specific vehicle before purchasing.
You will need: torque wrench, drill, 9/16" socket, 7mm socket, 16mm socket, 13/32" drill bit, tape measure, clamp, and four 3/8" fishwires (included). Safety glasses are required at all times during installation.
The kit includes: one tow bar base plate, two tow bar mounting tabs, two safety cables (3,500 lbs. each), four square hole spacers (1/4" × 1" × 2"), four carriage bolts (3/8"-16 × 1-1/2", grade 8), four flange nuts (3/8"-16, grade 8), four quick links (1/4"), two socket plugs, and four 3/8" fishwires.
The manual does not specify whether battery disconnection is required. Contact CURT Product Support at 877.287.8634 for guidance on your specific vehicle.
Begin by supporting the steering box and idler arm using a strap or jack stand. Then use a 16mm socket to remove the three bolts passing through the frame and into the steering box housing. These bolts will be reused to secure the driver side of the tow bar base plate.
Position the tow bar base plate on the vehicle frame and secure it in place using the three previously removed steering box bolts on the driver side and a clamp on the passenger side. Be sure to reattach the gear box on the driver side as the bolts are installed. Snug the hardware but do not fully tighten at this stage.
Yes. After positioning the base plate, you must drill four 13/32" holes in the vehicle frame using the passenger-side side plate holes as a guide. Make sure the tow bar base plate is level before drilling. Take care when drilling metal, as injury may occur if done improperly.
Use the included 3/8" fishwires to thread the 3/8" carriage bolts and square hole spacers into each of the four drilled holes. Install 3/8" flange nuts on each bolt. Torque all hardware to 37 lb-ft.
All hardware on the CURT 70112 must be torqued to 37 lb-ft. This includes the carriage bolts and flange nuts securing the passenger-side attachment.
Install the permanent safety cables and quick links by looping them around the vehicle frame and linking them to the tow bar base plate. There must be one cable on each side of the vehicle. Make sure the cables do not pinch or interfere with any hoses, wiring or other components. See the 'Installing the Permanent Base Plate Safety Cables' section for detailed installation guidelines.
When not towing, insert the socket plugs into the ends of the tow bar base plate. When ready to tow, install the tow bar mounting tabs instead. The socket plugs protect the base plate when the product is not in use.
Two permanent safety cables must be installed, one on each side of the vehicle. Each cable must be connected to both the base plate and the vehicle frame using quick links. Each cable must meet or exceed the gross weight of the towed vehicle. The cables are designed to help prevent complete vehicle separation in the event of a disconnect. Safety cables are not a replacement for safety chains connecting the tow vehicle to the towed vehicle.
Each safety cable is rated for 3,500 lbs. Two cables are included with the product.
Periodically check the condition of all towing equipment. Ensure all fasteners are tight and that all structural components are sound. Do not tow with worn or damaged parts. Review the owner's manual for both your towed vehicle and towing vehicle for specific recommendations, capacities and requirements. Never exceed the vehicle manufacturer's recommended gross vehicle weight rating (GVWR).
Periodically check the condition of all towing equipment. Ensure all fasteners are tight and that all structural components are sound. Do not tow with worn or damaged parts. The manual recommends removing the base plate attachment tabs when not in use.
The installed attachment tabs have a height of 17-3/4" and a width of 24".
The manual does not specify vehicle compatibility. Contact CURT Product Support at 877.287.8634 or visit curtmfg.com to confirm fitment before purchasing.
All hardware must be torqued to 37 lb-ft.
Yes. You must remove three bolts from the steering box housing using a 16mm socket. Support the steering box and idler arm with a strap or jack stand before removal. These bolts are reused to secure the driver side of the base plate.
