Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2025 Mazda 3 Sport
Confirmed to Fit
2019 - 2025 Mazda Grand Vitara
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

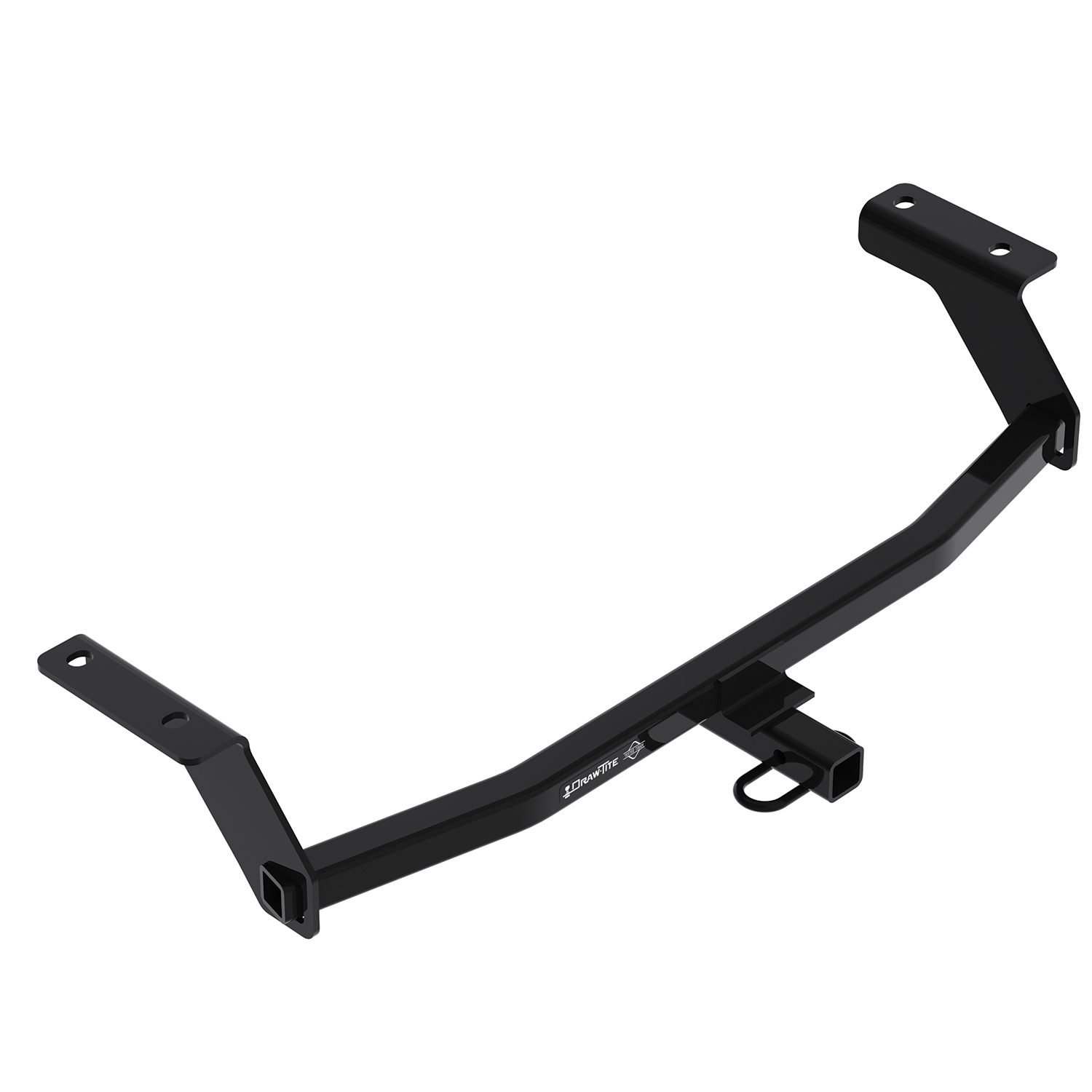

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24984 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 19.3 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw-Tite® Trailer Hitches | Receiver Hitches
2 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2025 | Mazda 3 Sport | Hatchback | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes |
| 2019 - 2025 | Mazda Grand Vitara | Hatchback | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 40 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3, Mazda 3 Sport 24984 (Part #DT24984) fits 2025 Mazda 3 Sport models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3, Mazda 3 Sport 24984 (Part #DT24984) fits the following vehicles: 2025 Mazda 3 Sport; 2019-2025 Mazda Grand Vitara. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3, Mazda 3 Sport 24984 (Part #DT24984) is designed to fit the 2025 Mazda 3 Sport.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Mazda 3, Mazda 3 Sport 24984 (Part #DT24984) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part numbers 24984, 77984, and CQT24984 are designed for 2019-Current Mazda 3 Hatchback models. Visit the Horizon Global website for the most up-to-date information regarding specific application years and trim levels.
This is a weight-carrying hitch with a maximum gross trailer weight of 2000 lb. (908 kg) and maximum tongue weight of 200 lb. (90.8 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, 10 mm socket, 11/16 inch socket, 6 inch socket extension, die grinder, flat head screwdriver, and exhaust removal pliers.
Yes. You must enlarge the existing access holes to 1 inch diameter on each side using a die grinder. Do not use a torch to cut the holes.
Yes. You must lower the exhaust by removing the rearmost rubber hangers using exhaust removal pliers. Support the exhaust to avoid damage. Lubricant or soapy water may ease removal. The exhaust is reinstalled after hitch installation.
All 7/16 inch fasteners must be tightened to 50 Ft.-Lb. (68 N·M) using a torque wrench. Proper torque is required to keep the hitch secure to the vehicle when towing.
The authorized drawbar kit is part number 3593 (sold separately). It must be used in the RISE position only.
The maximum tongue weight is 200 lb. (90.8 kg). Do not exceed the lower of your vehicle manufacturer's rating or this limit.
No. This hitch is designed for 2019-Current Mazda 3 Hatchback models only. Visit the Horizon Global website at www.horizonglobal.com for the most up-to-date information regarding specific application years and trim levels, or contact technical support at 800-632-3290.
This is a weight-carrying hitch. Weight-distributing capability is not available for this model, as indicated by the 'X' in the weight-distributing row of the specifications table.
Fastener Kit 24984F includes: (4) carriage bolts 7/16"-14 x 1.50 GR5; (4) spacers .250 x .875 x 3.00 (P/N HE-2370-000); (4) conical washers 7/16" (P/N 01292007); (4) hex nuts 7/16"-14 GR2; and (4) pull wires 7/16" (P/N 5481).
Remove the underbody appearance panel. Using a flat head screwdriver, remove the rivets from the bottom appearance panel. Using a 10 mm socket, remove one screw from the bottom bracket attachment on each side. Press the bracket inward to release the piece from the plastic tab attached to the frame rails. Return the panel to the vehicle owner.
Feed the carriage bolts and spacers through the access holes using the pull wires. Leave the pull wires attached. Raise the hitch and feed the pull wire previously installed through the hitch bracket slot. Remove the pull wires and loosely install the conical washers and hex nuts to the hitch. Kink the pull wire to keep the spacer independent of the bolt.
Using a die grinder, enlarge the access holes to 1 inch diameter on each side. Do not use a torch to cut the holes.
Yes. Slightly bend the heat shield away from the hitch mounting area. The manual does not specify whether this bending is permanent or reversible.
Fasteners should be loosely installed initially. After all fasteners are in place, tighten all 7/16 inch fasteners with a torque wrench to 50 Ft.-Lb. (68 N·M) as the final step before reinstalling the exhaust.
Raise the exhaust back into position and reinstall all rubber hangers that were removed earlier.
The carriage bolts are 7/16"-14 x 1.50 GR5. Four bolts are included in the fastener kit.
The spacers are .250 x .875 x 3.00 inches (P/N HE-2370-000). Four spacers are included in the fastener kit.
The conical washers are 7/16 inch (P/N 01292007). Four washers are included. The teeth side of the conical washer must be positioned against the hitch.
The hex nuts are 7/16"-14 GR2. Four nuts are included in the fastener kit.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Support the exhaust to avoid damage when lowering it. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch capacity of 2000 lb. (908 kg) gross trailer weight and 200 lb. (90.8 kg) tongue weight.
Slow down when towing and never exceed any posted speed limit. Always wear your seatbelt.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
No. Do not cut, weld, or modify this receiver. Doing so may compromise the safety and integrity of the hitch.
Return the panel to the vehicle owner. The manual does not specify whether the panel can be reinstalled after hitch installation.
Lubricant or soapy water may ease removal of the rubber hangers when lowering the exhaust.
This product includes a Limited Lifetime Warranty covering material defects in materials and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are returned for inspection, defects are not caused by misuse, neglect, improper installation, or accident, and the product was installed, maintained, and used according to instructions. Product replacement is the sole remedy. Contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or 1-800-632-3290 to make a warranty claim.
The average installation time for professional installers is 30 to 40 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
Contact Horizon Global technical support at 800-632-3290 or TechnicalSupport@horizonglobal.com. You can also visit www.horizonglobal.com for additional information.
Yes. Scan the QR code on the manual or visit http://qr.towingproducts.net/qrproducts/qr-product for step-by-step photo installation instructions.
Check all fasteners and retighten them to 50 Ft.-Lb. (68 N·M) using a torque wrench. The manual recommends checking the hitch frequently to ensure all fasteners and the ball are properly tightened. Loose fasteners can compromise the security of the hitch during towing.
Remove and replace the damaged hitch or ball. Do not continue to use a damaged hitch, as it may fail during towing and cause loss of the trailer.
